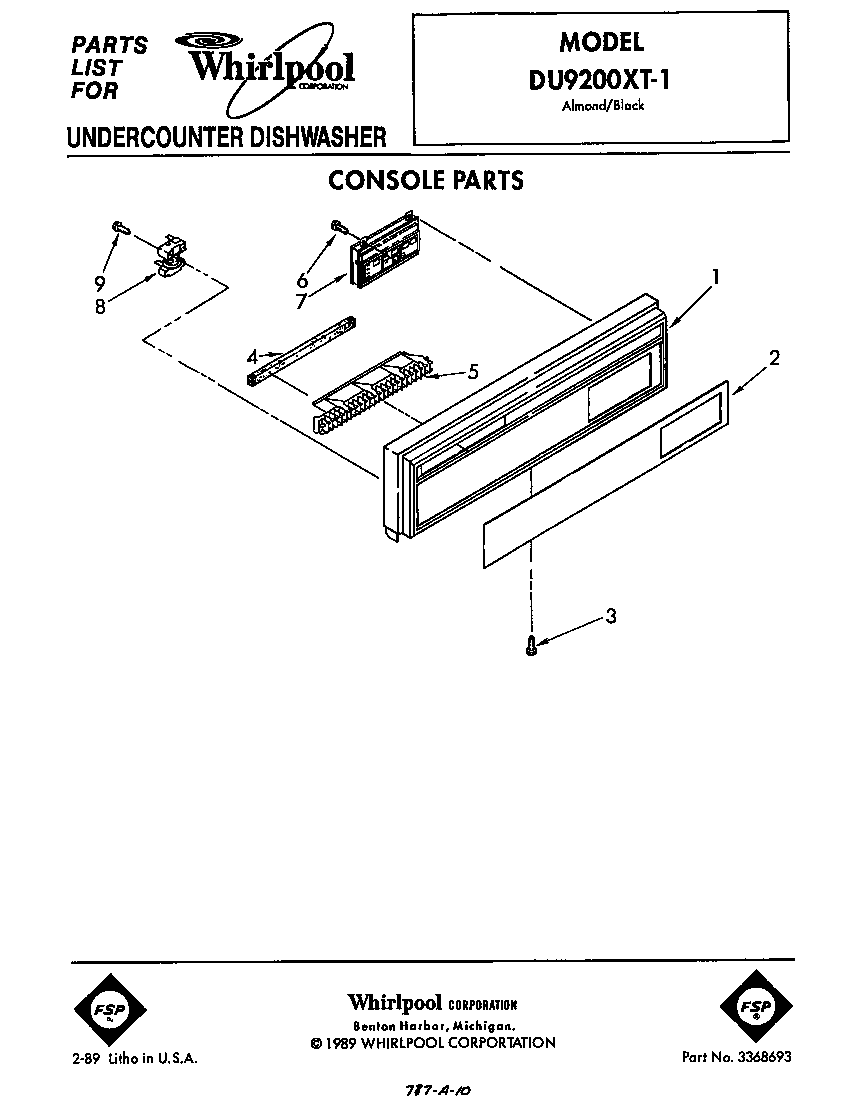

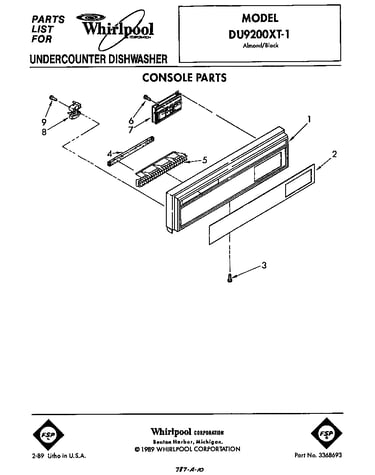

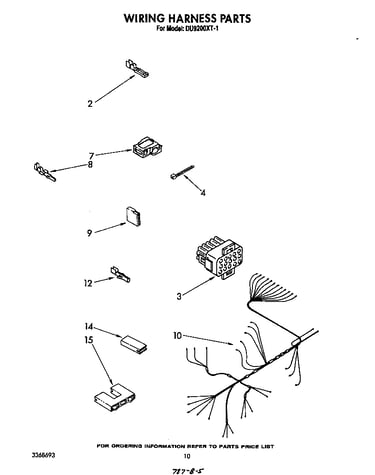

Model #DU9200XT1 Whirlpool dishwasher

Here are the repair parts and diagrams for your Whirlpool DU9200XT1 dishwasher.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 227 parts

Refrigerator Capacitor Screw

#44

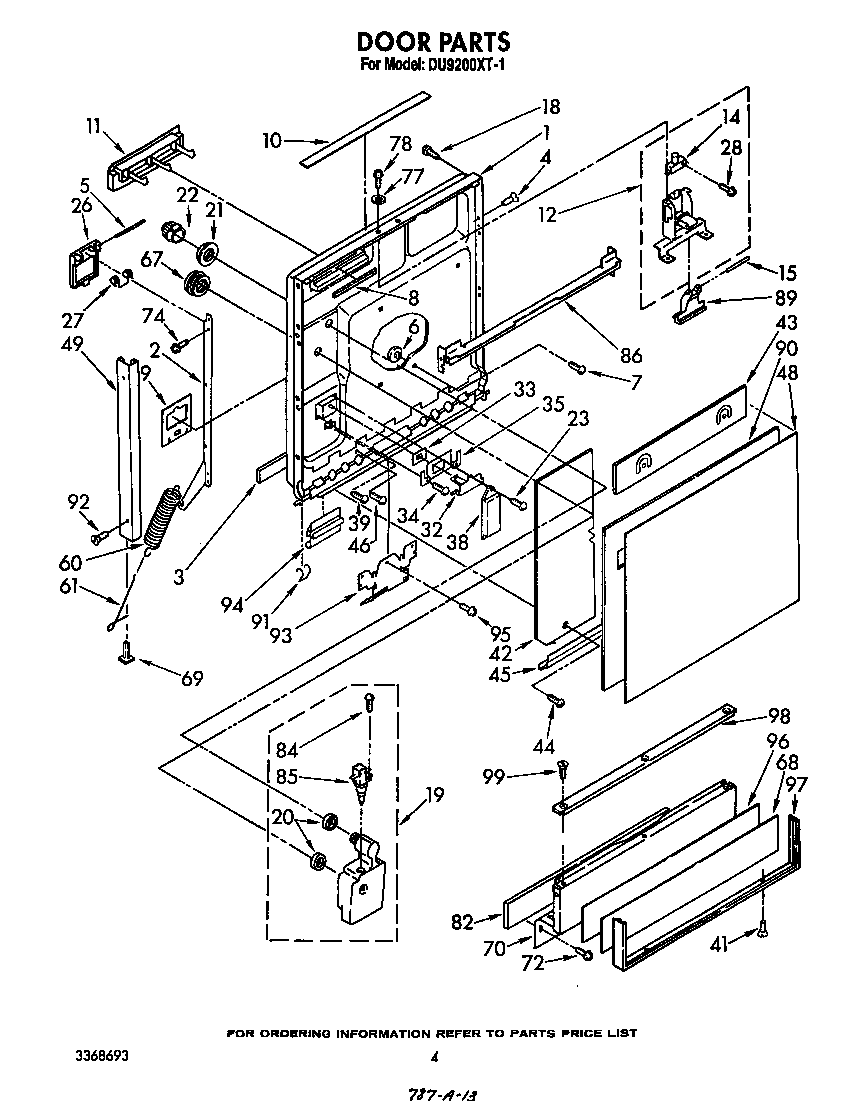

Door Diagram

Refrigerator capacitor screw

Part #WP487240
This item is not returnable

$4.56

In Stock

Dishwasher Door Handle Pivot Pin

#15

Door Diagram

Dishwasher door handle pivot pin

Part #300234
This item is not returnable

$5.39

In Stock

Screw

#99

Door Diagram

Screw

Part #302251

$12.49

In Stock

Screw

#37

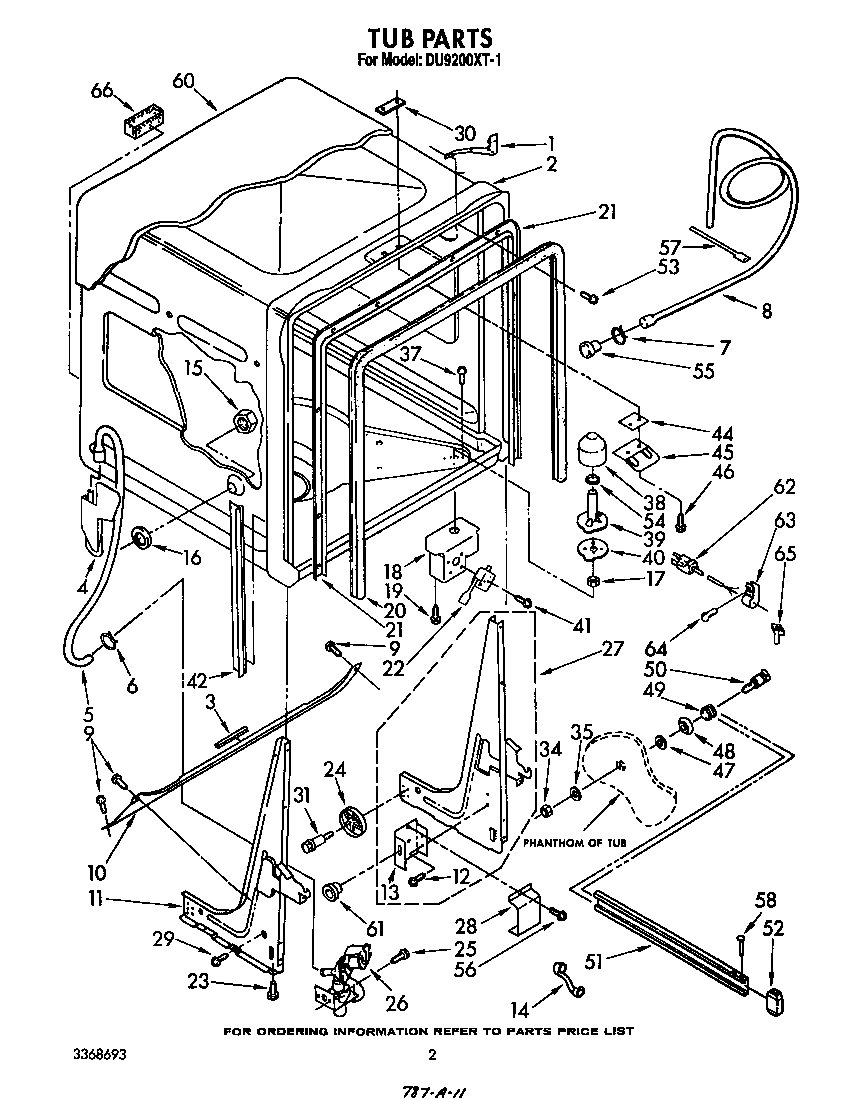

Tub Diagram

Screw

Part #717236
This item is not returnable

$2.16

In Stock

Screw

#17

Tub Diagram

Screw

Part #717488

$10.31

In Stock

Cover

#28

Tub Diagram

Cover

Part #300068

$17.49

In Stock

Clip

#57

Tub Diagram

Clip

Part #596490
This item is not returnable

$2.16

In Stock

Dishwasher Circulation Pump Gasket

#41

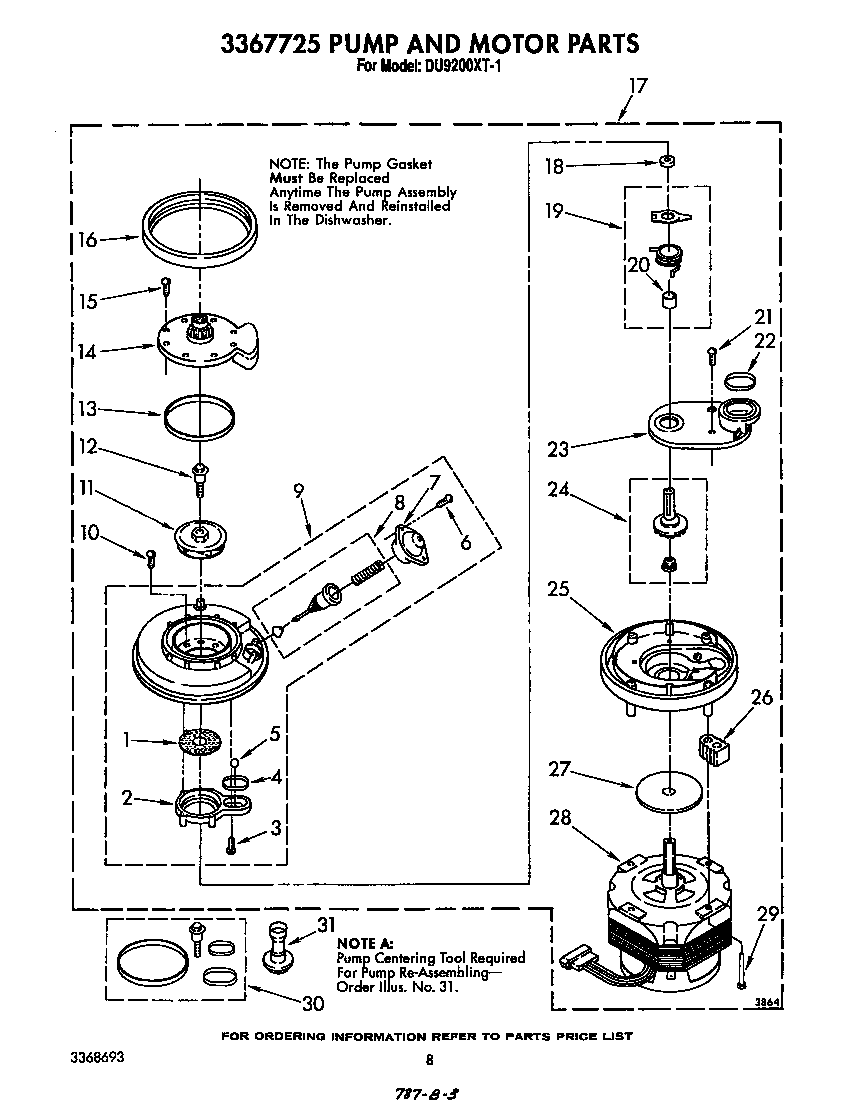

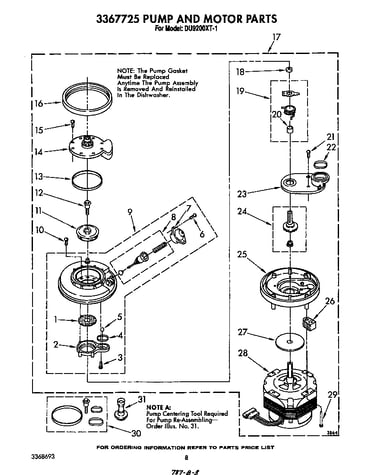

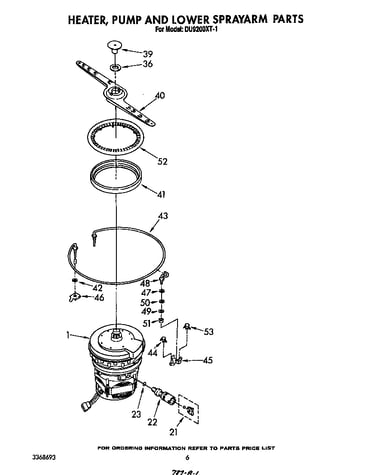

Heater, pump and lower sprayarm Diagram

$15.43

Back Order

Nut

#25

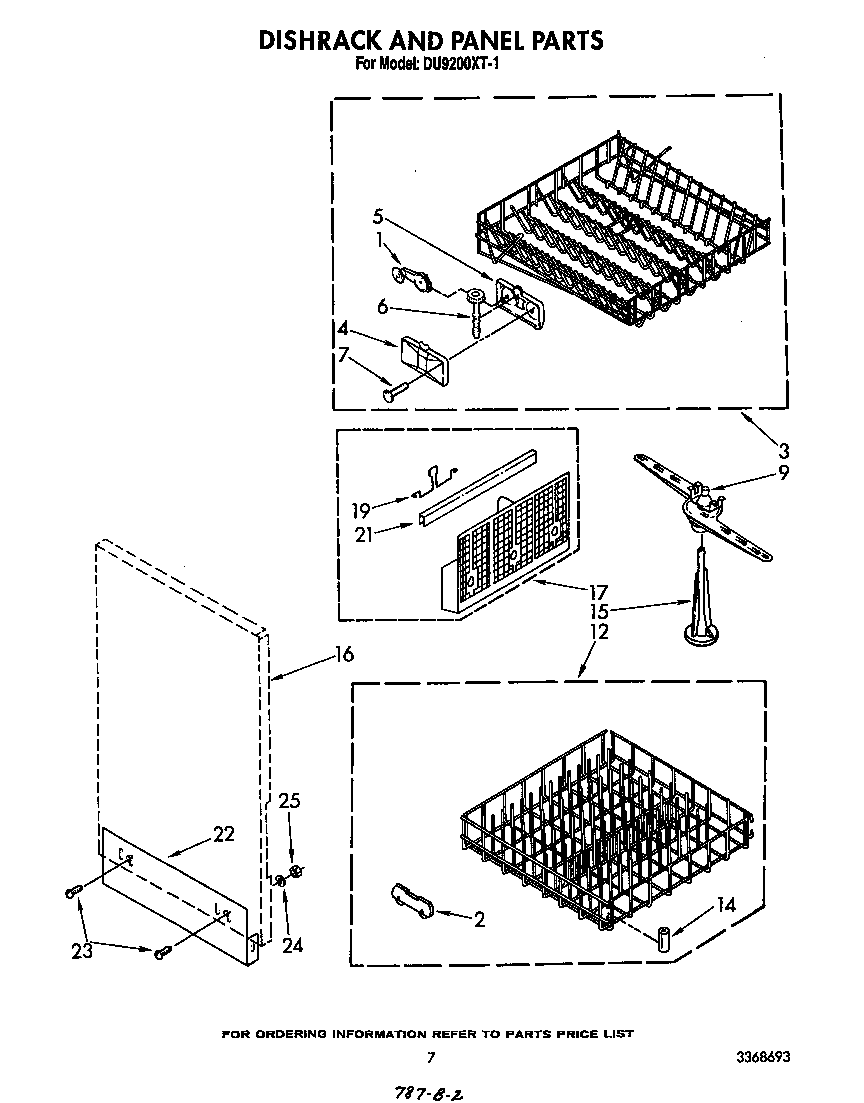

Dishrack and panel Diagram

Nut

Part #W10080180
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  965176
This part replaces 965176

$12.49

In Stock

Appliance Touch-Up Paint, 0.6-oz (Almond)

#NI

All parts Diagram

Appliance touch-up paint, 0.6-oz (almond)

Part #WP72107
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  72107
This part replaces 72107
This item is not returnable

$4.59

In Stock

Symptoms common to all dishwashers

Choose a symptom to see related dishwasher repairs.

Main cause: damaged rack height adjuster
Main causes: broken door spring, detergent dispenser failure, cabinet mounting brackets loose or broken
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm or pump problems

Repair guides common to all dishwashers

These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.
