Kenmore Elite 66513929K015 undercounter dishwasher Parts

Common problems we see on Kenmore dishwashers like model 66513929K015 include not starting, not filling, not draining, poor cleaning, and leaking. Many issues come down to door latch/Start-Resume conditions, water supply problems, drain restrictions, loading, or filtration and heating performance; see the 66513929K015 owner's manual for model-specific checks.

• Won’t start or stops mid-cycle: close and latch the door; if Start/Resume is blinking, close the door and press Start/Resume.
• Won’t fill: confirm the water supply valve is on; make sure the float moves freely and is not blocked.
• Water left in tub (won’t drain): verify the cycle completed; check for a kinked drain hose and clogs in the drain path.
• Not cleaning well: reload so items do not block the wash system; use the right cycle for soil level; confirm incoming water is at least 120°F.
• White residue or spots: hard water and detergent balance are common causes; adjust detergent amount for water hardness.
• Noisy thumping: dishes may be hitting the spray arms; reposition items and resume.

If basic checks do not fix the issue, these model-compatible parts are often involved:

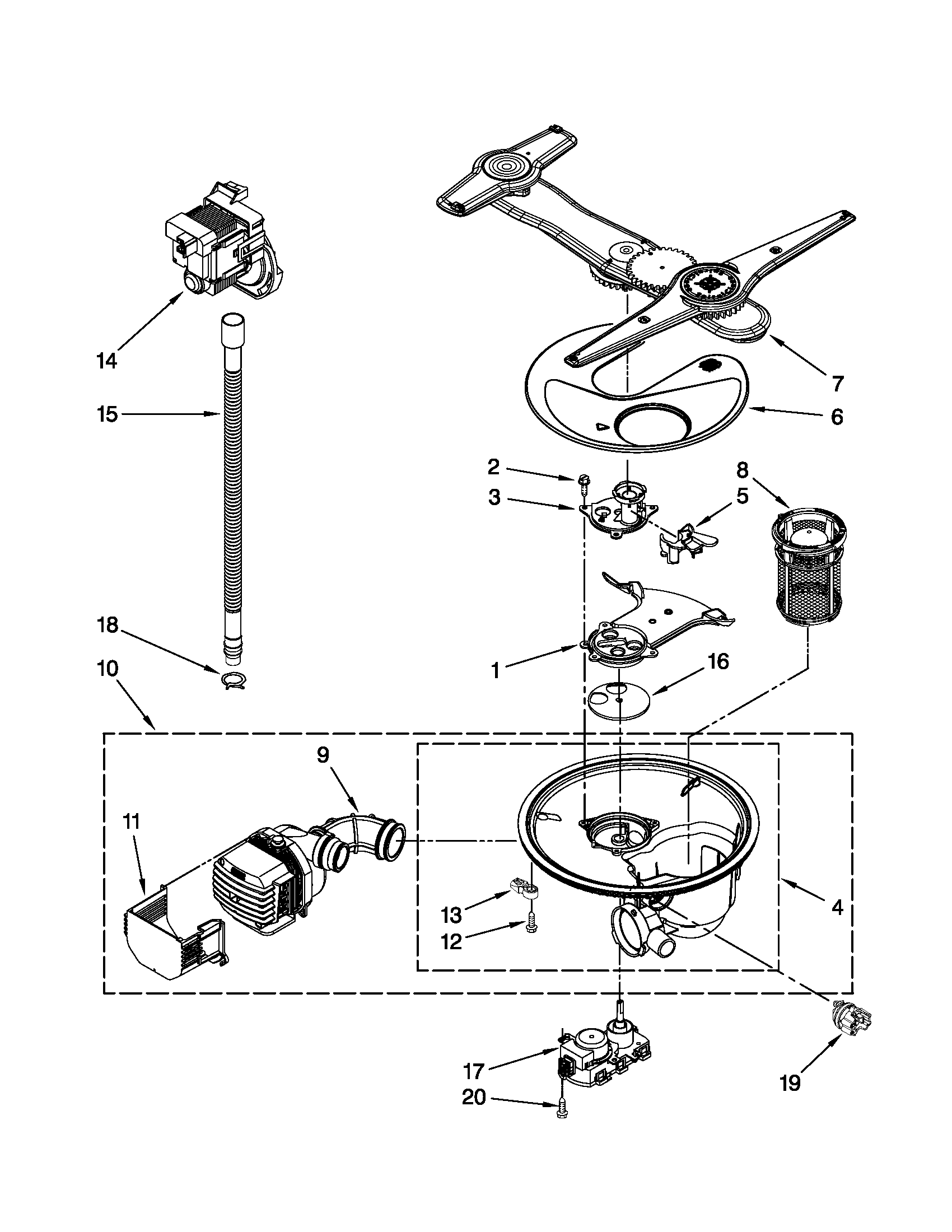

• Drain problems: dishwasher drain pump WPW10348269, drain hose routing and clogs

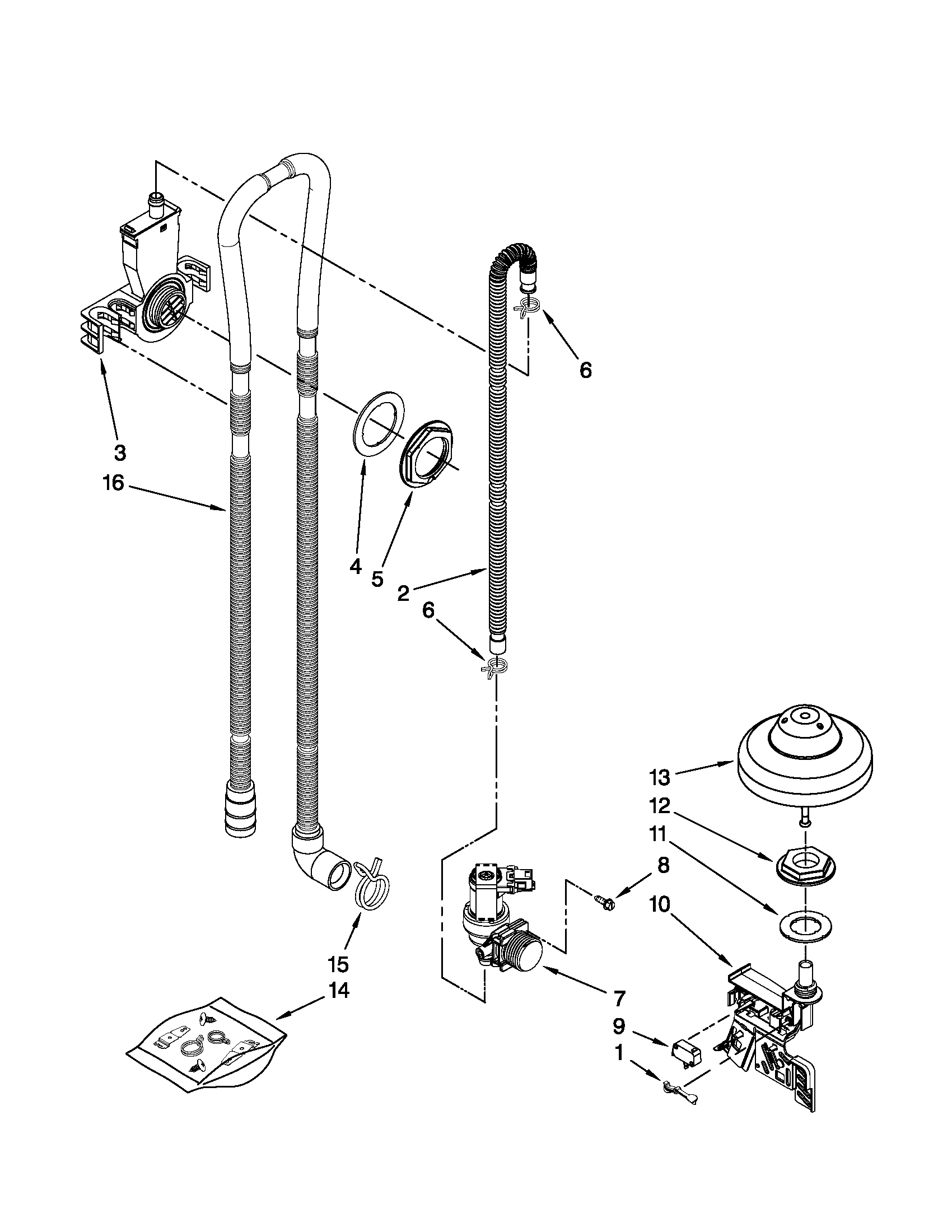

• Filling problems: dishwasher water inlet valve W11175771
• Poor cleaning or residue: dishwasher filter W10872845, spray arm obstructions

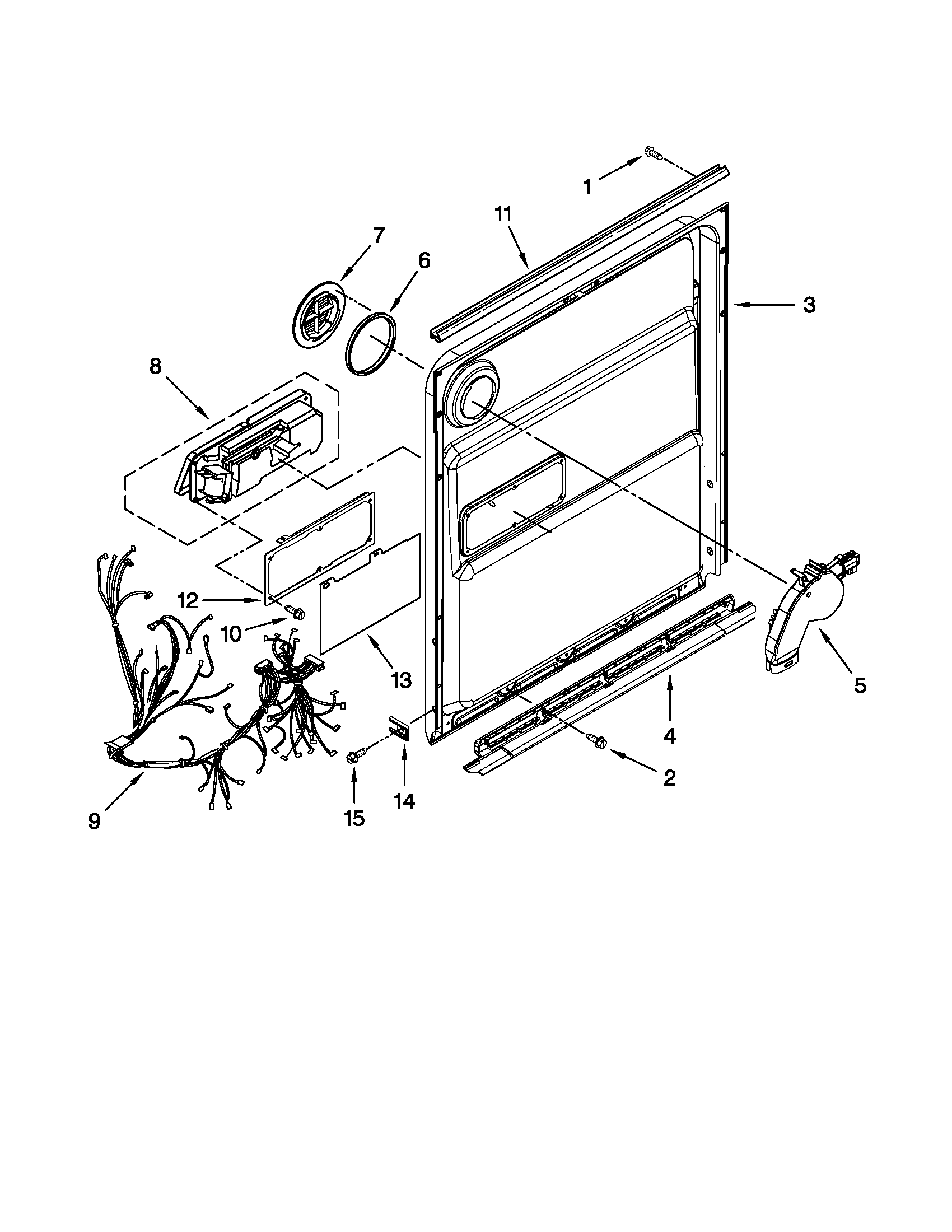

• Leaks at the door: lower door seal wear (inspect for tears and gaps)

Catching the simple causes first (door not latched, water valve off, kinked drain hose, blocked float, or a dirty filter) prevents repeat cycle failures, standing water, and poor wash results, and it helps you avoid replacing parts that are still good.

Last updated: January 2026

On a Kenmore dishwasher, the E15 code means the leak protection system has detected water in the bottom/base area and the unit may stop or drain to prevent overflow. For your Kenmore Elite 66513929K015, focus on finding the source of the leak and drying the base before restarting; see the 66513929K015 owner's manual for model-specific reset and operation details.

• Turn off power at the breaker before inspecting under the dishwasher.
• Shut off the water supply valve if you see active leaking.
• Pull the toe-kick panel and look for water in the base pan area.
• Dry any standing water you can reach (towels or a wet/dry vac).
• Check the door area for drips that run down into the base.

E15 is usually triggered by a real leak or a drain issue that causes water to back up and spill into the base.

• Door sealing issue: debris on the gasket, misaligned door, or a worn lower seal
• Drain backup: kinked hose, disposer knockout plug not removed, or blockage in the drain path
• Overfilling: inlet valve not closing fully or a float/level issue
• Internal leak: loose clamp, cracked hose, or a leaking pump/sump connection

Our manual guidance for this style of dishwasher includes these practical drain checks:

• If connected to a food waste disposer, make sure the disposer inlet knockout plug is removed.
• Check for kinks in the drain hose.
• Check for food obstructions in the drain or disposer.

E15 is a protection alert: water where it should not be can lead to poor washing, repeated draining, and damage to nearby cabinets or flooring. Fixing the leak source (not just clearing the code) keeps the dishwasher running normally.

Last updated: January 2026

The model number for your Kenmore Elite dishwasher is printed on the appliance’s model and serial tag, usually located on the tub frame around the door opening. Once you find it, match it exactly (including all digits) when ordering parts for model 66513929K015.

Check these common locations first (with the door open):

• Along the left or right side of the tub frame (the vertical edge)
• Across the top lip of the tub opening
• On the inner edge of the door
• Near the latch area on the tub rim
• On a label that includes both model and serial numbers

Kenmore Elite dishwasher model numbers are typically a long number string. For this unit, you want the full model exactly as:

A small character mix-up can pull the wrong diagrams or parts list. We recommend:

• Wipe the label clean and use a flashlight
• Take a clear photo and zoom in
• Write it down exactly as shown (including any suffix)
• Use the model number, not the series name “Kenmore Elite”

Parts, wiring, and even rack hardware can vary by revision. Using the exact model number helps ensure the correct fit for items like the dishwasher drain pump WPW10348269 or dishwasher water inlet valve W11175771. For additional label-location and identification details, use the owner's manual.
