How to replace Kenmore Range oven control board?

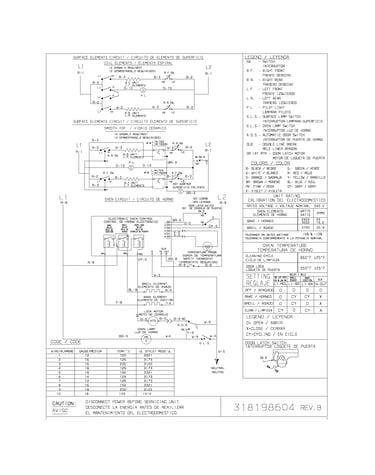

On Kenmore electric range model 79090102203, replacing the oven control board is a careful wire-by-wire transfer after you shut off power and remove the rear cover of the control console. Use the wiring and console access details in the 79090102203 owner's manual before moving any connectors.
- Turn the 240V range breaker OFF and confirm the display is dark
- Phillips screwdriver and nut driver (common sizes)
- Masking tape and marker for labeling connectors
- Phone photos of every plug and wire position
- Correct replacement control board for model 79090102203 (match connector layout and any sticker numbers)
- Disconnect power at the breaker.

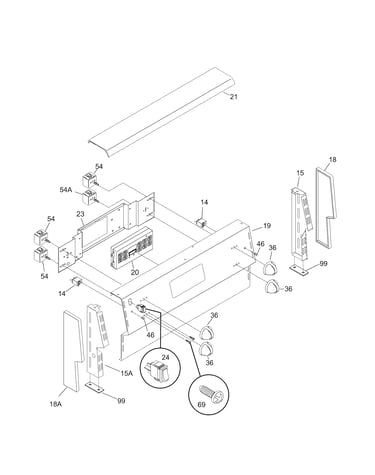

- Remove screws holding the rear control console cover; lift the cover off.
- Photograph the board and harness routing.
- Transfer wires one connector at a time from the old board to the same location on the new board.
- Reconnect the ribbon cable (if used): slide it fully into the connector, then lock the tab/clip.
- Reinstall the rear cover, restore power, set the clock, then test Bake and Broil.
Use the code list and reset steps in the Kenmore 790 manual-clean range error codes guide.
| Symptom | Most common cause | What to do |
|---|---|---|
| Blank display | No power, loose harness | Recheck breaker; reseat connectors |
| F1 or F3 beeping | Connection issue or control fault | Press Cancel; reseat ribbon and plugs |
| Display works, no heat | Heating circuit issue | Check bake element and sensor connections |
The electronic oven control manages bake, broil, timing, and fault detection. Labeling and transferring connectors one at a time prevents miswiring that can cause error codes or a no-heat condition.
Last updated: February 2026
What causes a Kenmore oven to stop working?
A Kenmore 79090102203 electric range oven typically stops working due to a power supply problem, an electronic control fault (often beeping with an F-code), or a failed heating component such as the bake element or oven temperature sensor. Use the 79090102203 owner's manual to follow the model-specific troubleshooting steps.
- Confirm the range has power; check the home breaker(s) for a tripped 240V circuit.
- If your installation uses a cord, make sure the plug is fully seated.
- If the control is beeping and shows an F-code, press CANCEL to stop beeping and clear the display.
- After a power outage, turn oven controls OFF before restarting (the manual warns against operating during a power failure).
- Verify you selected the correct mode (BAKE or BROIL) and temperature.

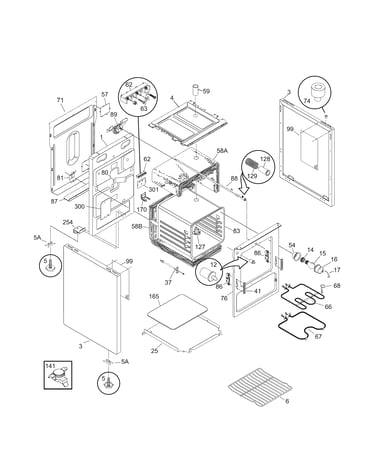

These failures are most common on electric ranges:
- Burned-out bake element
- Failed oven temperature sensor
- Loose or burned wiring at the terminal block
- Electronic oven control problem
Model-matched parts to consider:
- Range bake element 318255001
- Frigidaire range oven temperature sensor 316217002
- Terminal block 5304409888
| What you see | Most likely cause | Best next step |
|---|---|---|
| No display, no oven functions | No power to range | Check breaker, outlet, terminal connections |
| Display works, no heat | Bake element or sensor | Inspect element; test sensor circuit |
| Beeping with F1, F3, F9 | Control detected a fault | Press CANCEL; record code; diagnose |
Power issues, control faults, and heating-circuit failures look similar from the outside. A quick, step-by-step check prevents unnecessary parts replacement and helps you target the correct repair.
Last updated: February 2026
What was the size of the Kenmore 79090102203 oven?
For Kenmore model 79090102203, “oven size” usually means oven cavity capacity (cubic feet), not the exterior width. The exact capacity and usable rack positions are listed in the 79090102203 owner's manual; use the 79090102203 installation guide for the overall range dimensions and required clearances.
When customers ask for oven size, it typically refers to one of these:
- Oven capacity (cubic feet)
- Usable interior space (rack-to-rack and front-to-back clearance)
- Overall exterior dimensions (fit in the kitchen opening)

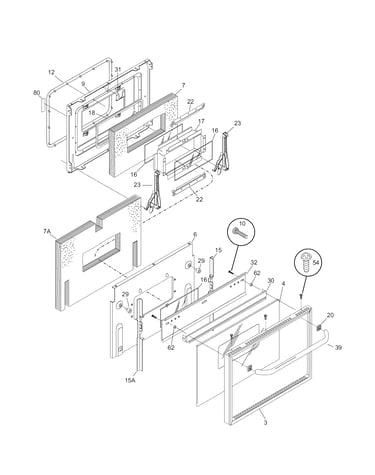

- Door swing and handle depth (clearance in front of the range)
- Vent location and airflow space (needed for proper baking)
Use these sources so you get the correct number for your specific Kenmore 790 configuration (coil top vs. radiant top, control style, and trim can vary):
| What you need | Where to find it | Why it matters |
|---|---|---|
| Oven capacity (cu. ft.) | 79090102203 owner's manual | Confirms true cooking volume for pans and roasters |
| Overall width, height, depth | 79090102203 installation guide | Ensures the range fits your opening |
| Required clearances | 79090102203 installation guide | Prevents heat damage and airflow problems |
If you are trying to confirm whether a large pan will fit, we recommend measuring the interior directly:
- Measure rack width between the side rails at the rack level you use most.
- Measure rack depth from the back wall to the inside of the closed door.
- Measure vertical clearance from the rack to the next rack position above.
- Confirm whether you have a hidden bake element or exposed element; it changes usable height near the bottom.
Oven capacity affects what fits (turkey roasters, pizza stones, multiple sheet pans), while exterior dimensions and clearances affect safe installation, proper venting, and stable anti-tip protection.
Last updated: February 2026
Where can I find my Kenmore electric range model number?
On Kenmore electric range model 79090102203, the model and serial number are printed on an identification plate located on the left side of the range. You can see it when the oven door is open, or on the inside of the storage drawer along the side of the frame; see the 79090102203 owner's manual.
- Open the oven door and look along the left side frame (door opening area)
- Pull out the bottom storage drawer and check the inside left side of the frame
- Look for a label that includes both Model No. and Serial No.
- Wipe grease or dust off the label so the full number is readable
The identification plate usually lists:
- Model No. (for example, starts with 790. on many Kenmore ranges)
- Serial No.
- Sometimes the electrical rating information
| What you need | Why we ask for it | Example format |
|---|---|---|
| Model number | Ensures parts fit your exact range | 79090102203 |
| Serial number | Helps match production details when needed | Letters and numbers |
Using the exact model number prevents ordering the wrong bake element, oven temperature sensor, or cooktop surface element. Even small model variations can change wiring, mounting, and part compatibility.
Last updated: February 2026
Who makes Kenmore 79090102203?
Kenmore model 79090102203 is a Kenmore electric range built for Sears; the 790 model prefix identifies the original manufacturer as Frigidaire (Electrolux/Frigidaire family) for this range platform. For confirmation details, check the model and serial tag location shown in the 79090102203 owner's manual.
We use the model prefix on the identification plate to determine who built the appliance.
- Open the oven door and look along the left side of the range frame for the identification plate.
- If you do not see it there, check inside the storage drawer area along the side of the frame.
- Verify the model number reads 79090102203 (the 790 prefix is the key).
- Record the serial number too; it helps when ordering parts like a bake element or temperature sensor.
- Use the manual for the exact tag location and product record section: 79090102203 owner's manual.
On Kenmore ranges, the first three digits often indicate the manufacturing source.
| Kenmore model prefix | What it typically indicates | Why you care |
|---|---|---|
| 790 | Frigidaire-built range | Parts and service procedures follow Frigidaire design |
| Other prefixes | Other manufacturers | Parts can differ even if the range looks similar |
Manufacturer families share design patterns, wiring layouts, and common replacement parts. That helps you match the right component the first time.
- Heating issues often point to the bake element or oven temperature sensor.

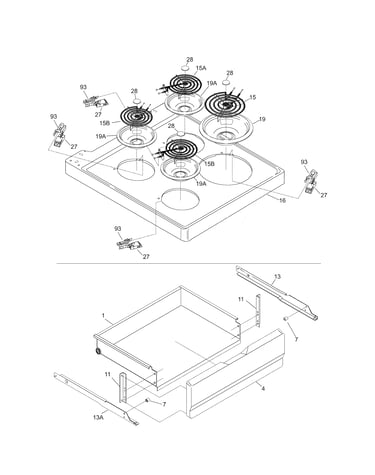

- Cooktop problems often involve a surface element or its receptacle/terminal connections.
- Lighting issues commonly involve the bulb, lens, or socket.
If you are troubleshooting an oven temperature problem on this Frigidaire-built Kenmore platform, the range common questions guide helps narrow down symptoms before ordering parts.
Last updated: February 2026
Why is my Kenmore electric oven not getting hot?
If your Kenmore electric range model 79090102203 isn’t getting hot, the most common causes are a failed bake element, a bad oven temperature sensor, or a control or wiring issue that prevents the element from receiving power. Use the troubleshooting steps in the 79090102203 owner's manual to narrow it down safely.
- Confirm the oven is set to Bake (not Delay Start, Sabbath, or Keep Warm).
- Allow a full 10 to 20 minutes for preheat; avoid opening the door during preheat.
- Look for a visible break, blister, or burn spot on the bake element.
- Make sure the oven isn’t packed tight; airflow matters for heating and temperature stability.
- If the oven recently sat unused in a cold area, let it warm to room temperature before testing (electronic controls can act up in cold conditions).
In many electric ranges, the oven can appear to run normally (lights, display, fan) even when a heating circuit has failed.
| Symptom | Most likely cause | What to do next |
|---|---|---|
| No heat in Bake, Broil may still work | Failed bake element | Inspect and test the range bake element 318255001 for continuity |
| Oven heats but temperature is way off | Bad sensor or poor connection | Test/replace the frigidaire range oven temperature sensor 316217002 |
| Intermittent heat, burning smell at back | Loose power connection | Inspect the power cord connection and terminal block 5304409888 for heat damage |
- Turn off power at the breaker.
- Inspect for cracks or holes.
- If you have a multimeter, check for continuity; replace if open.
- A sensor that reads incorrectly can prevent proper heating.
- Check the sensor wiring connection at the back of the oven and test resistance if you’re comfortable doing so.
- Electric ovens typically need 240 VAC to heat.
- If the cooktop works but the oven will not heat, you can still have a partial power issue (one leg of power lost) or a damaged terminal connection.
An oven that won’t heat is often a single failed part (bake element or sensor), but overheating at the terminal block or damaged wiring can create a repeat failure. Correct diagnosis helps you avoid replacing the wrong part and restores safe, consistent baking.
Last updated: February 2026
