Frigidaire FGHC2355PF9A refrigerator

Frigidaire FGHC2355PF9A refrigerator Parts

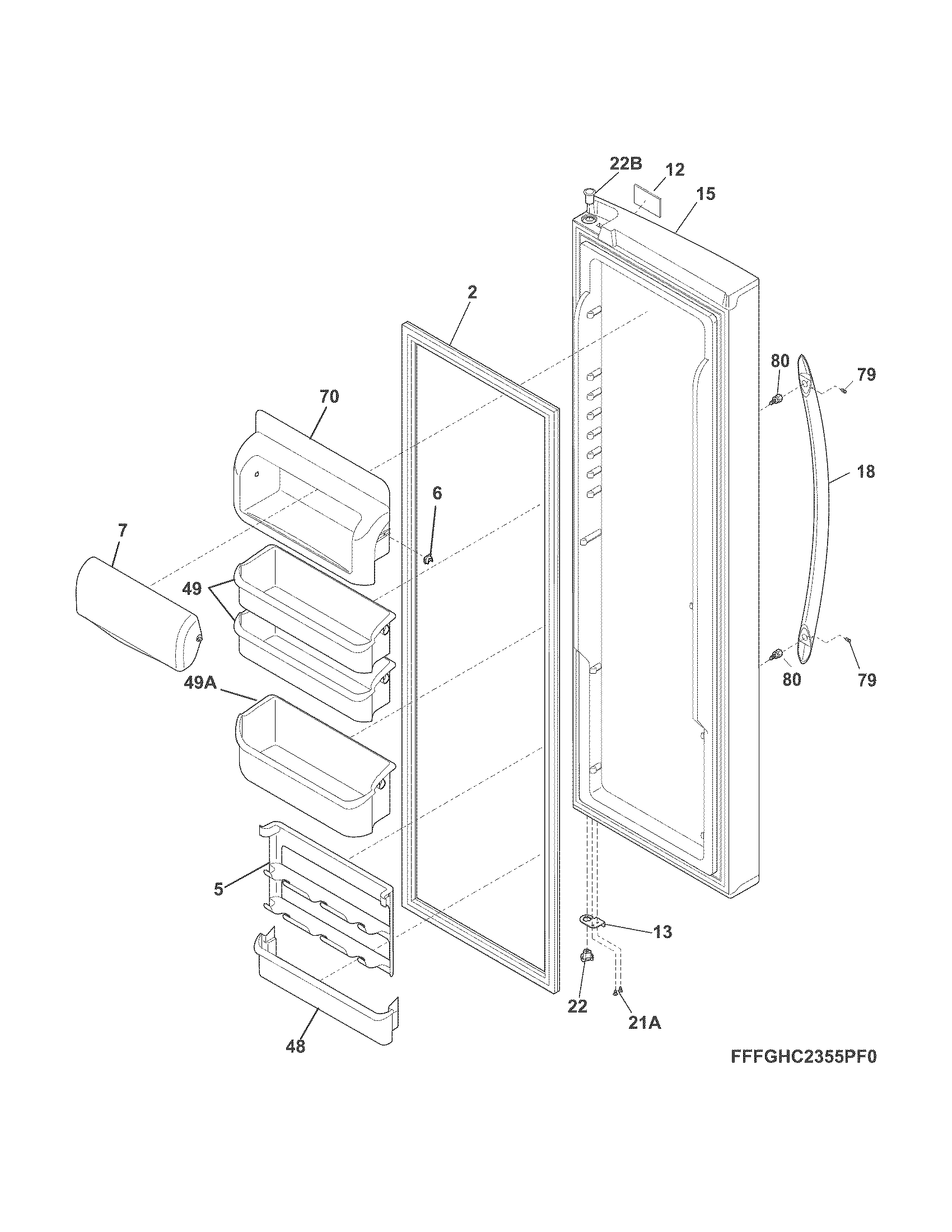

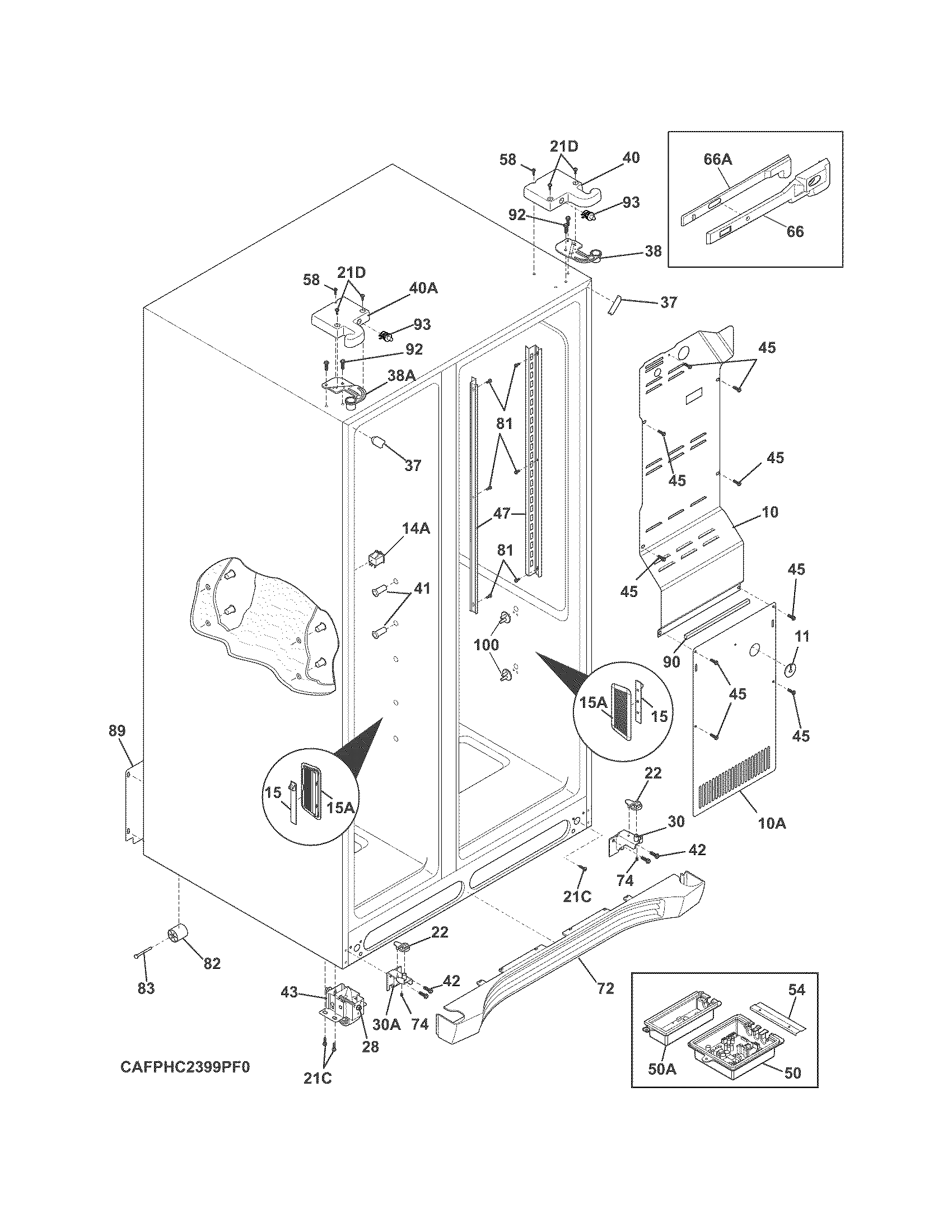

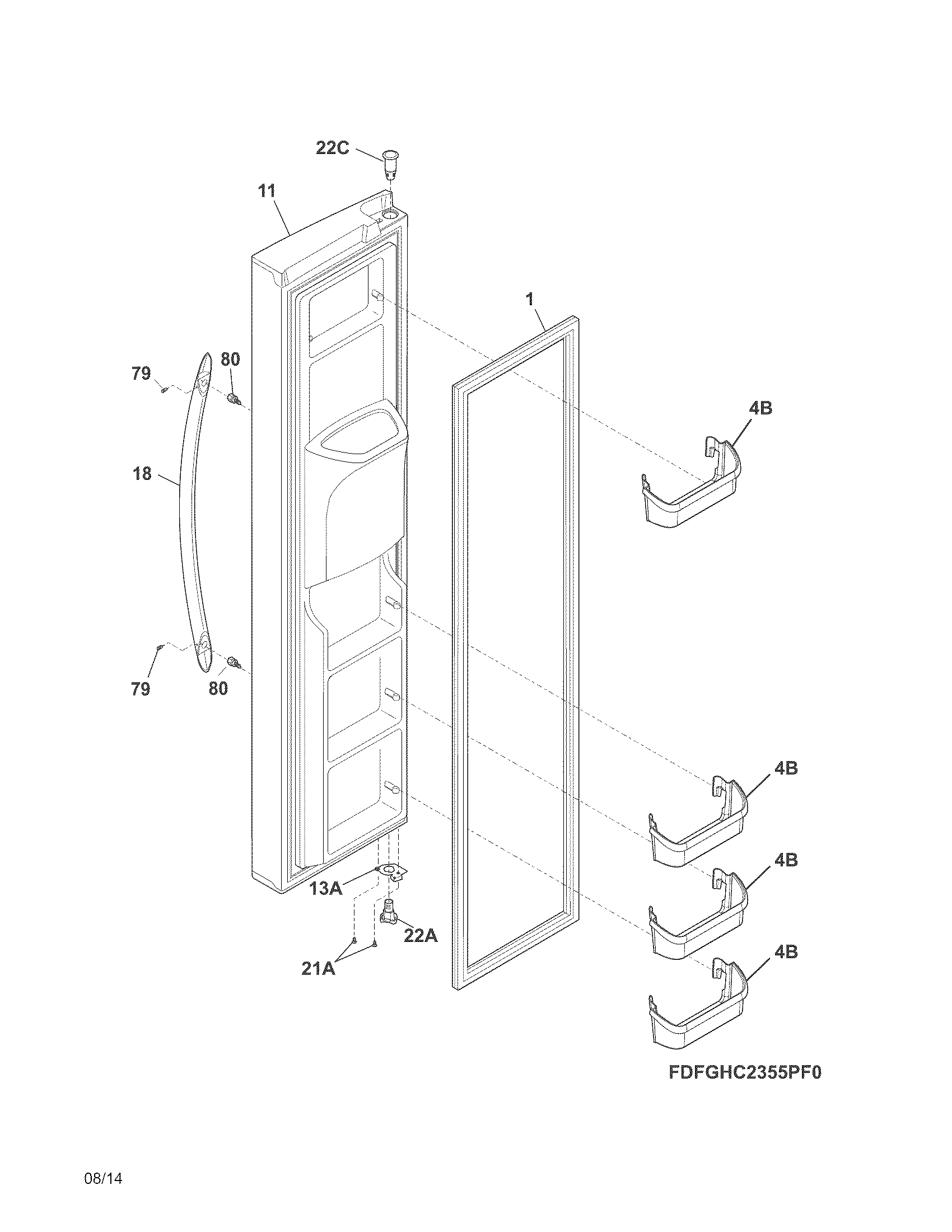

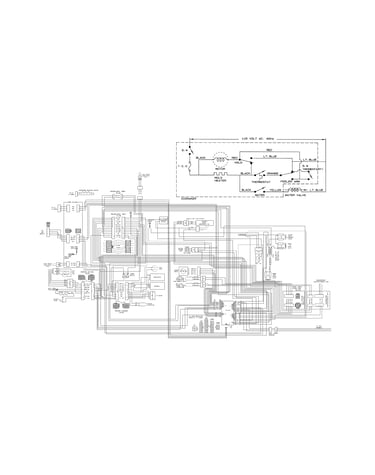

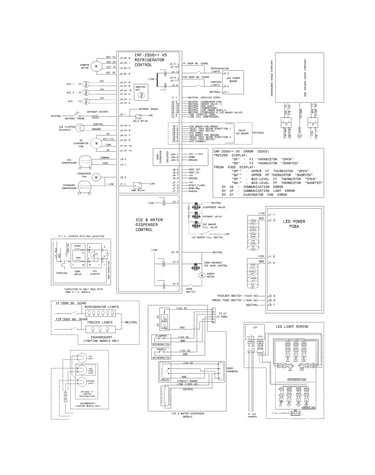

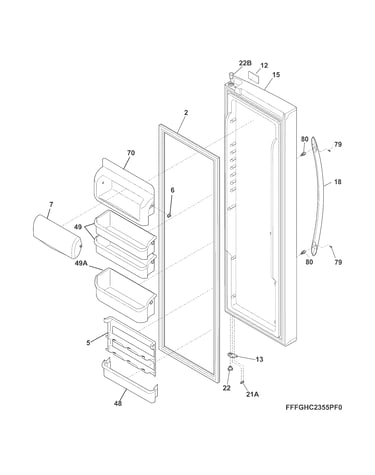

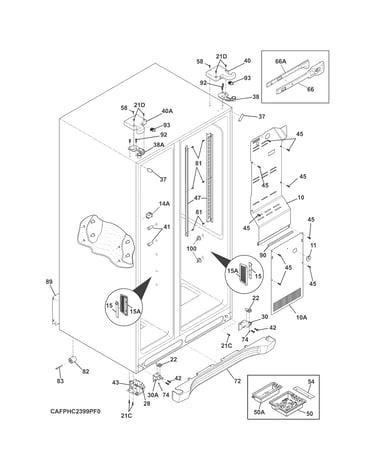

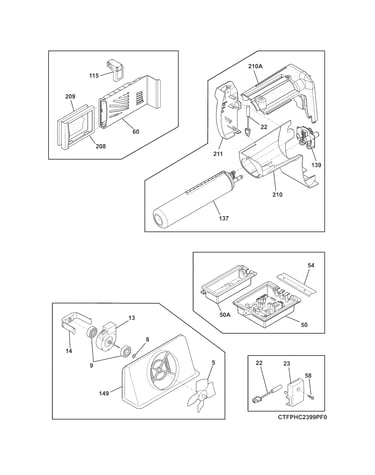

Here are the diagrams and repair parts for Frigidaire FGHC2355PF9A refrigerator, as well as links to manuals and error code tables, if available.

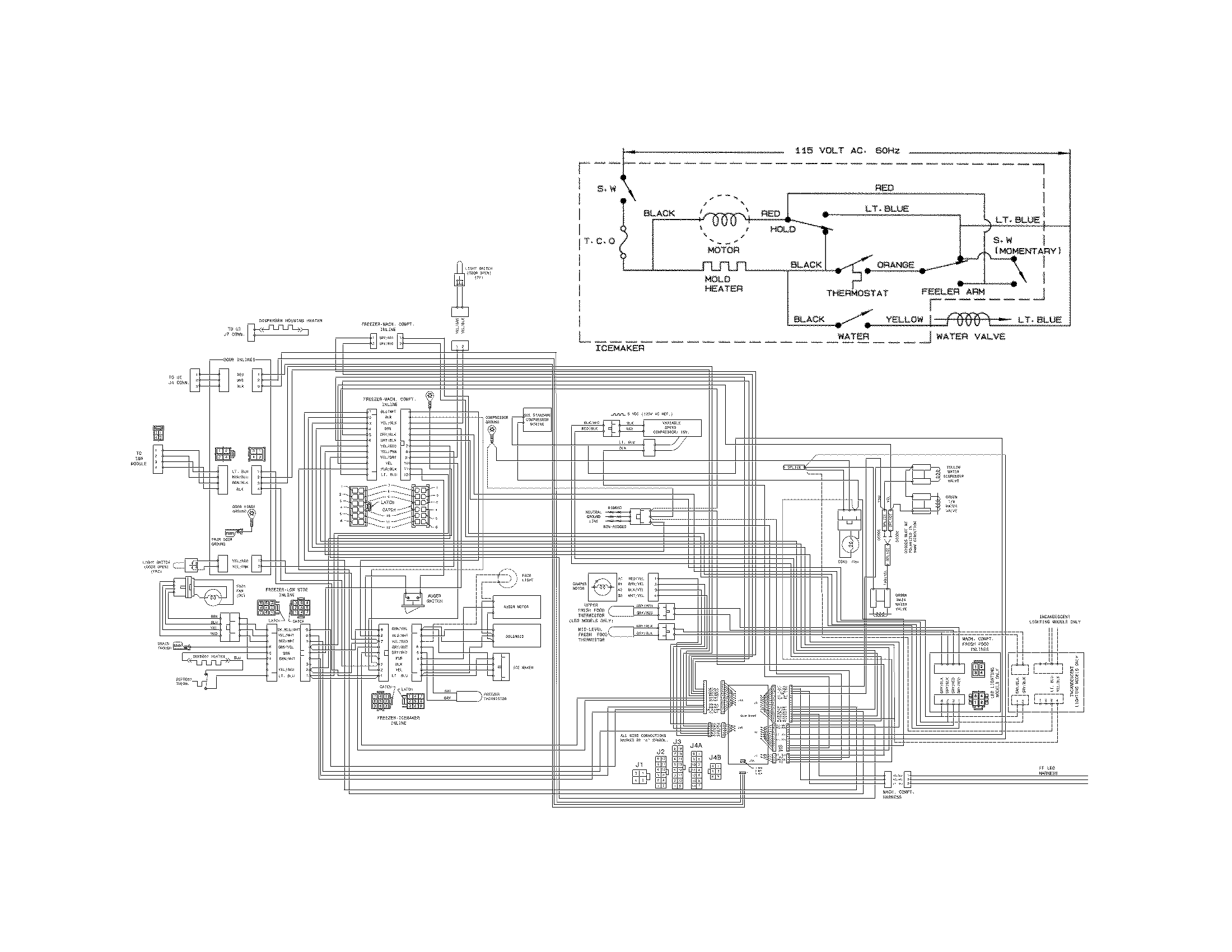

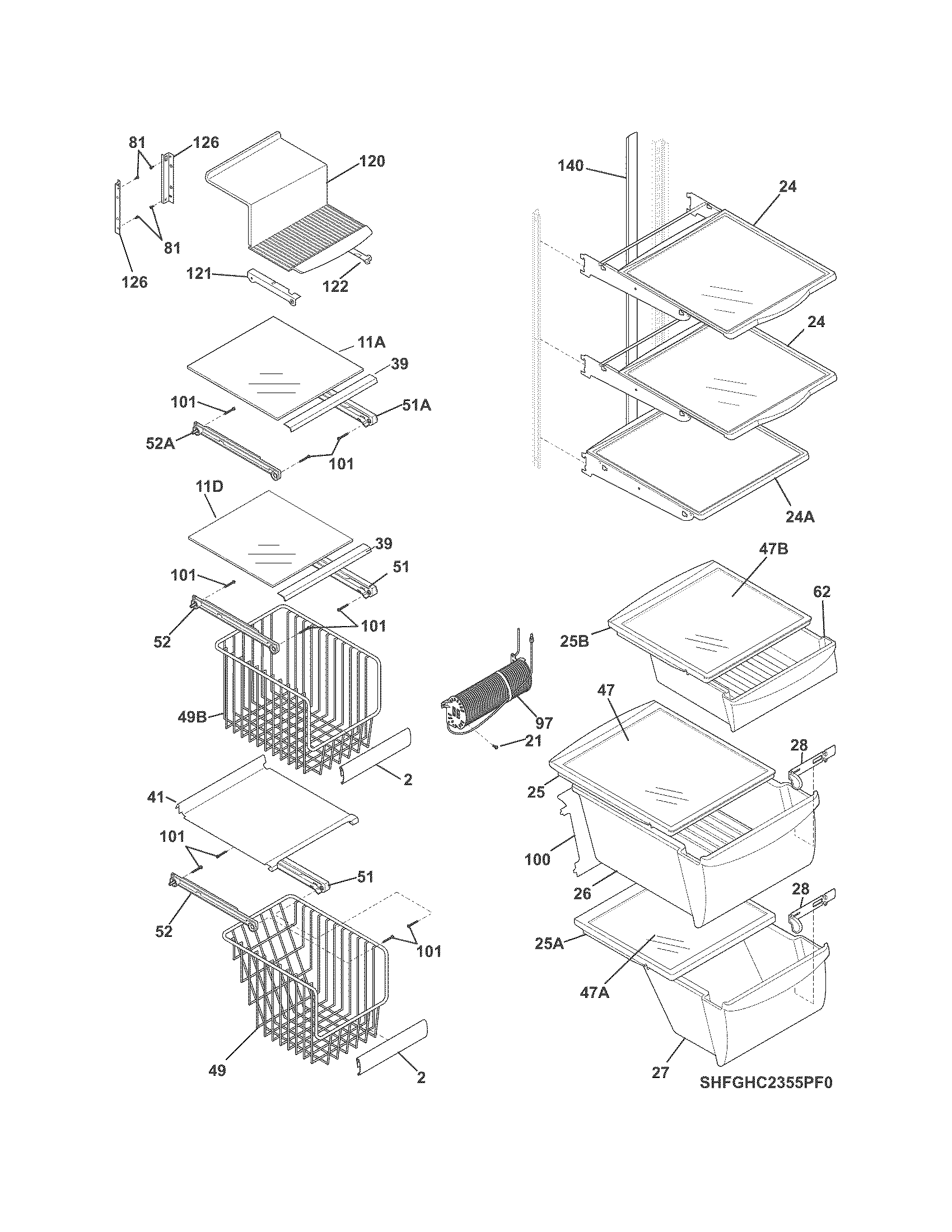

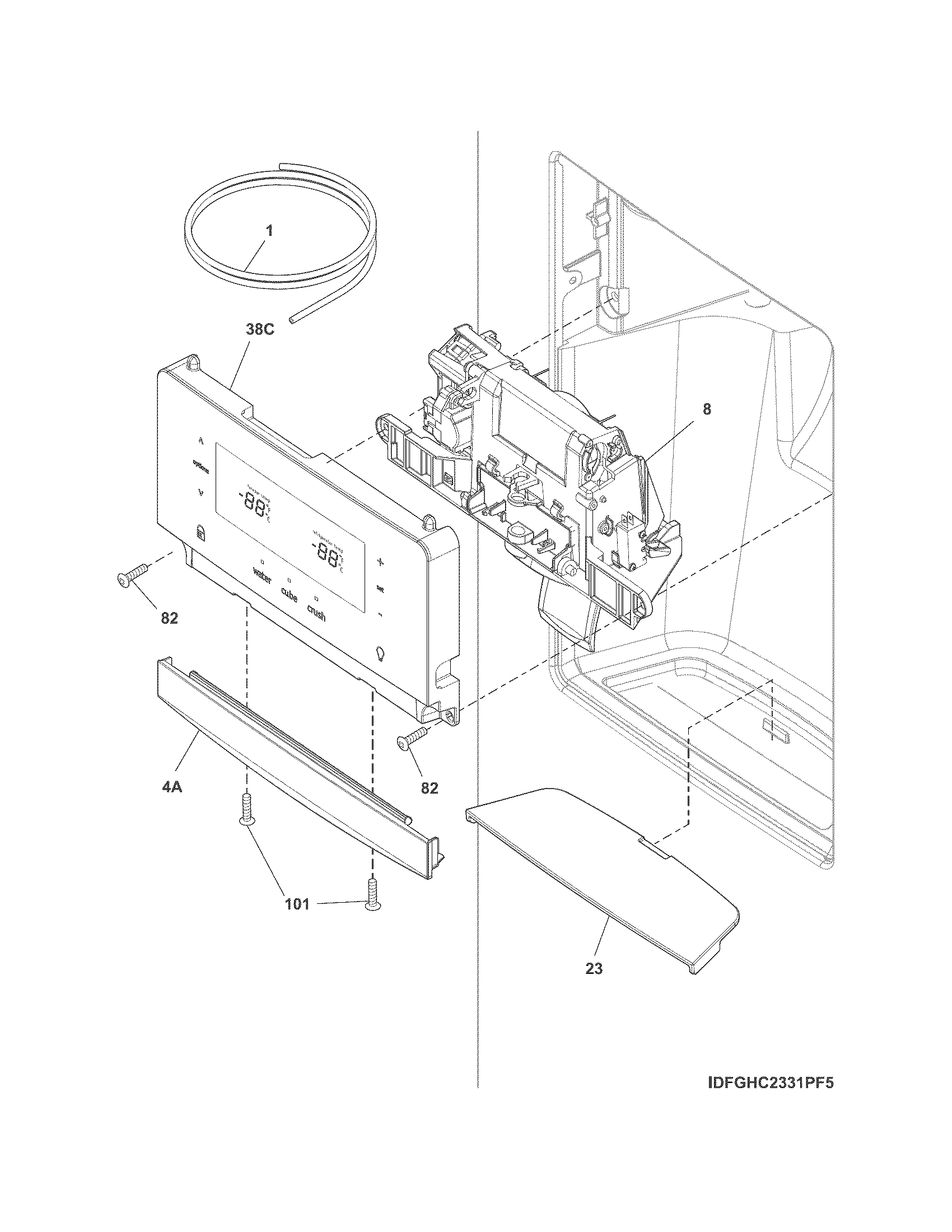

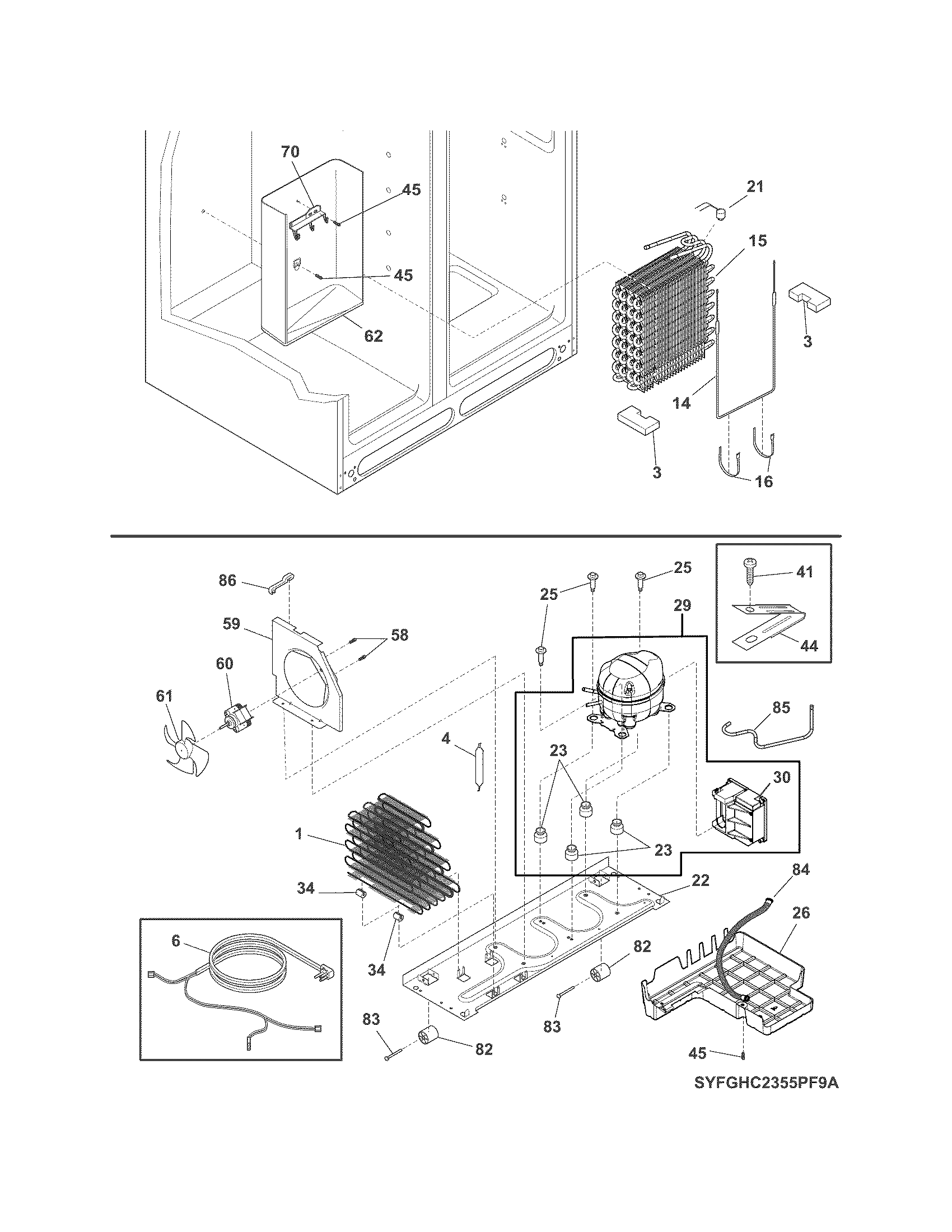

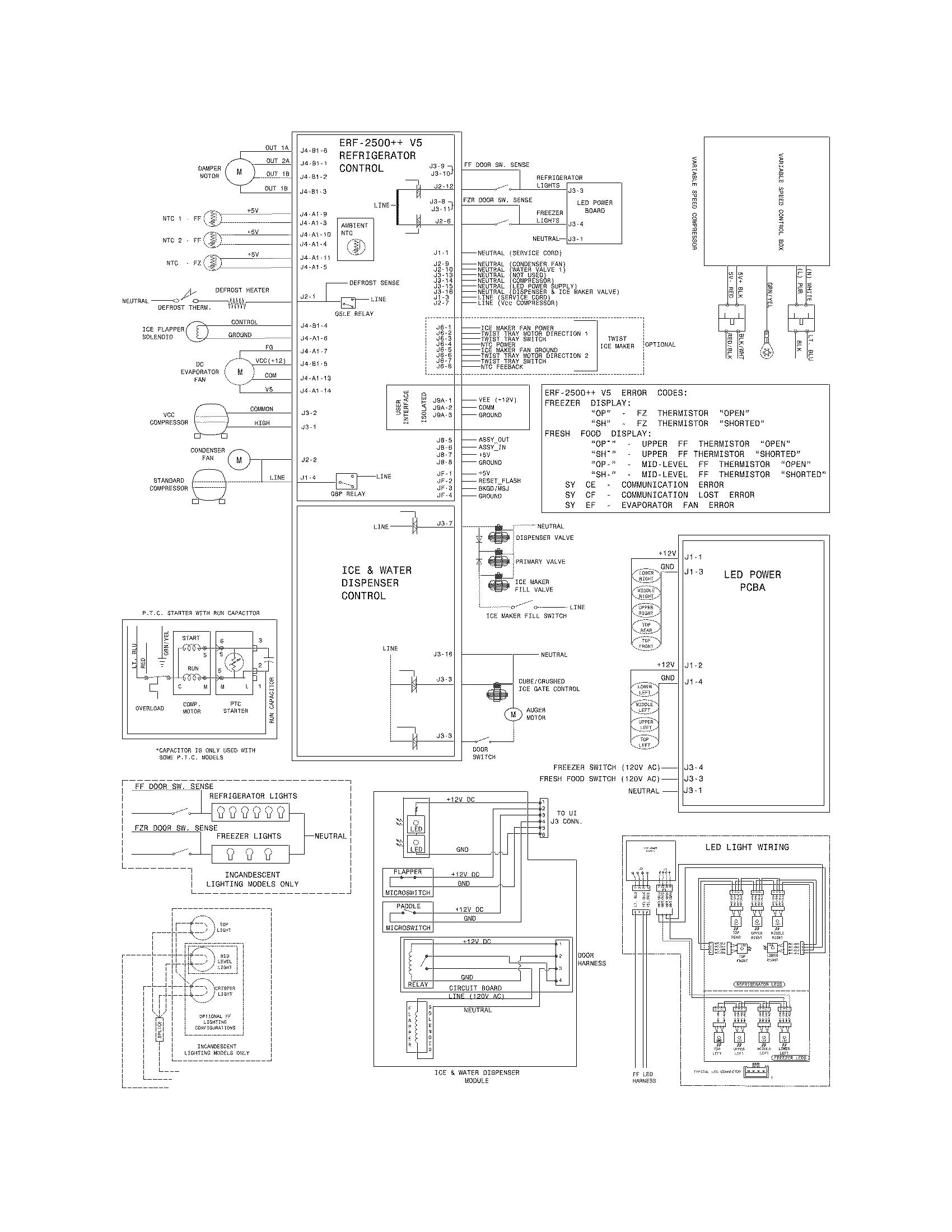

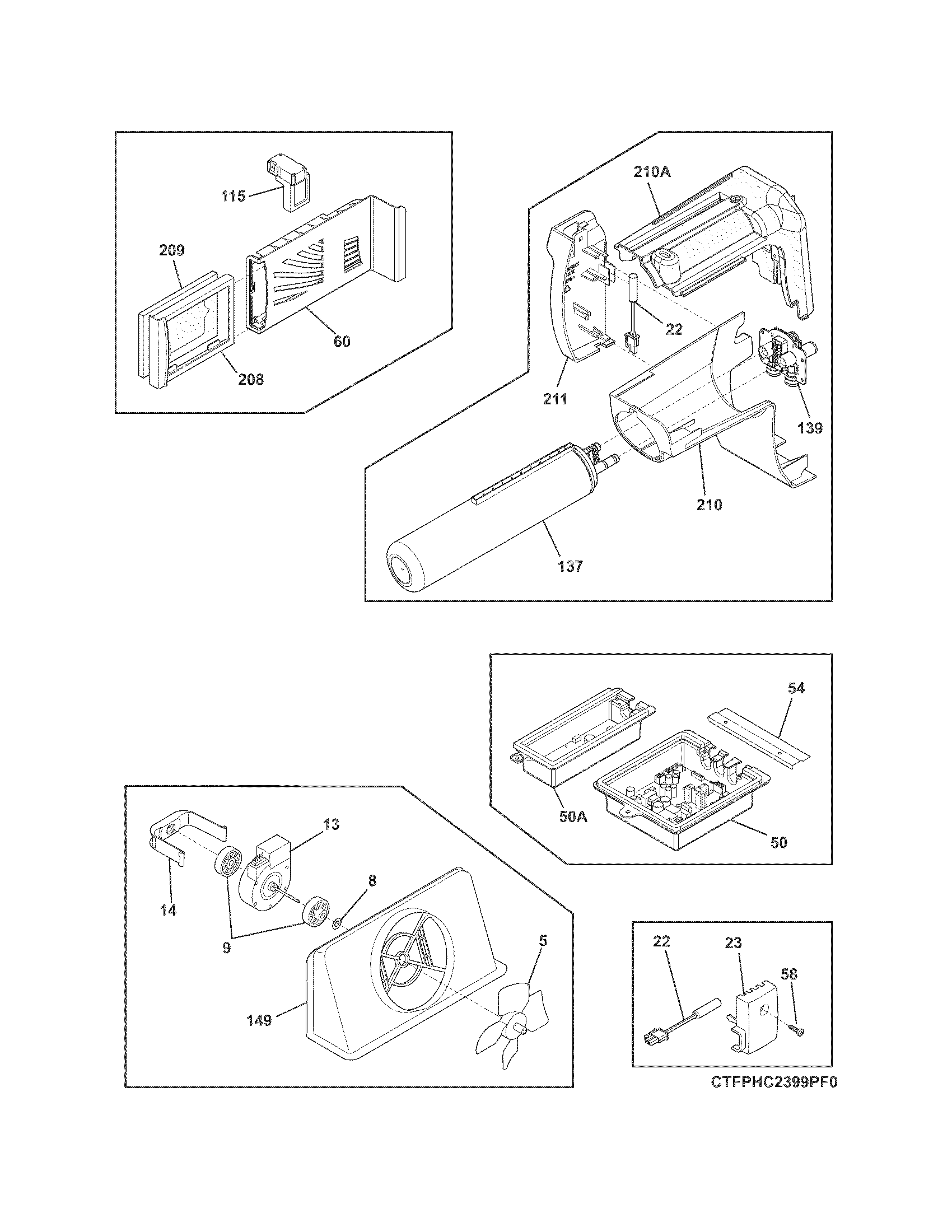

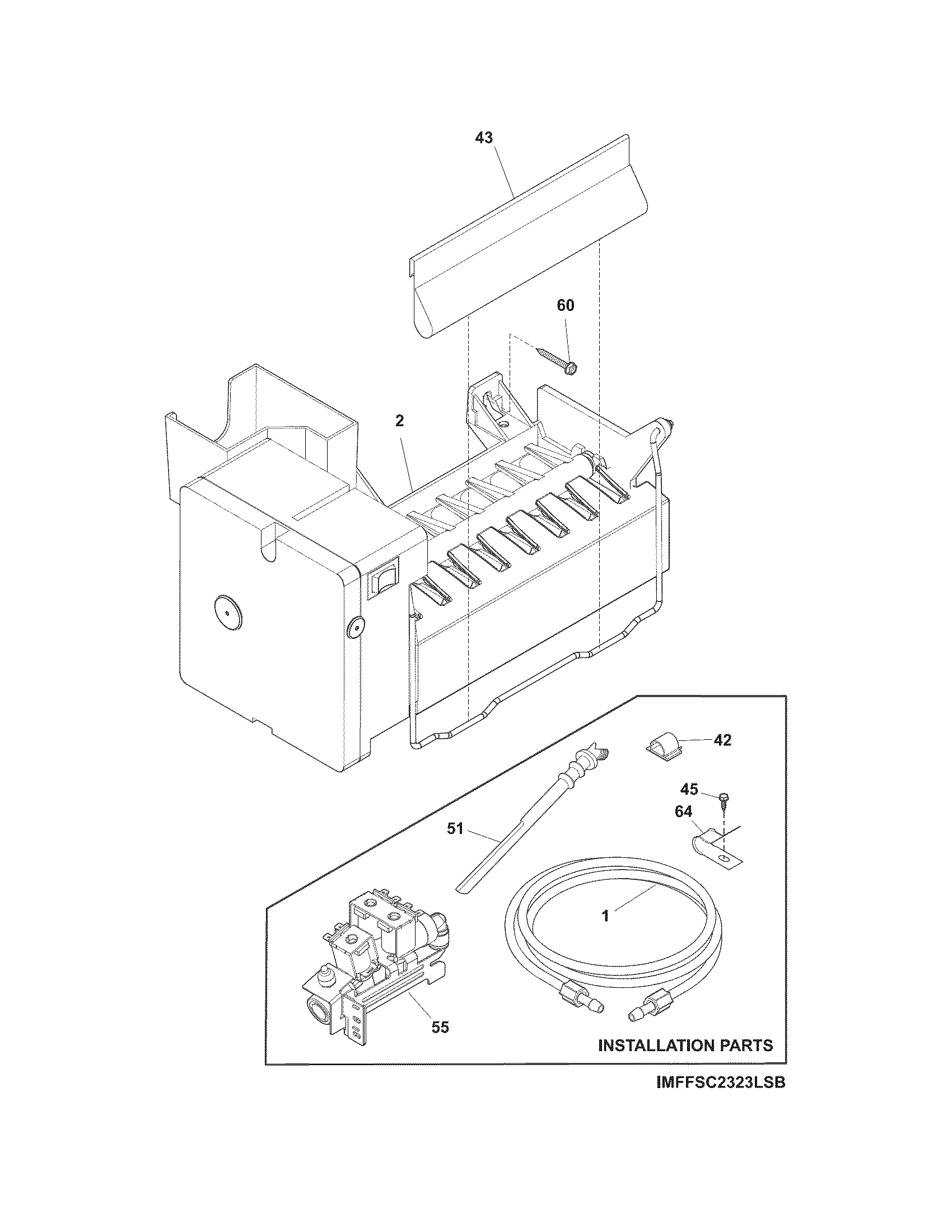

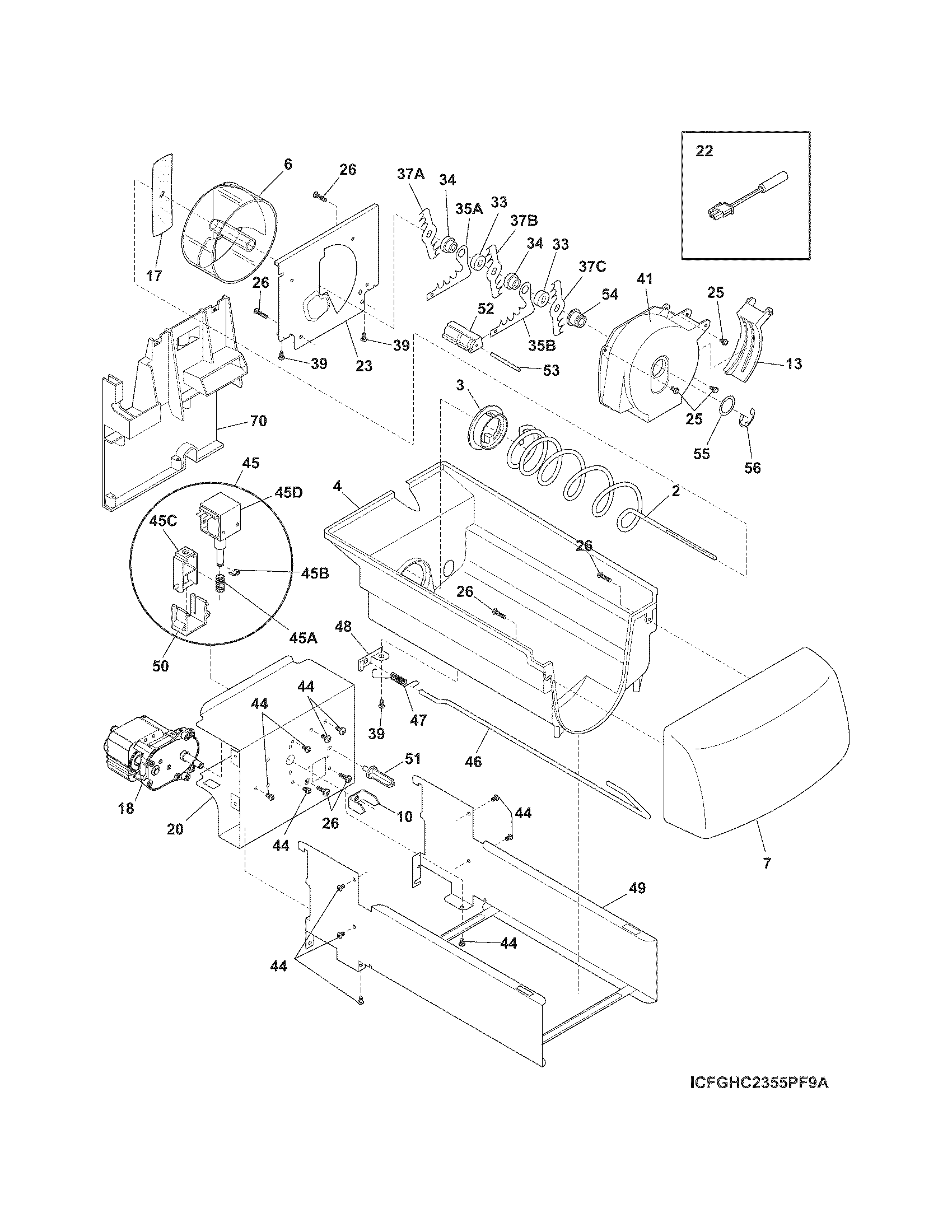

By Schematic
By Part

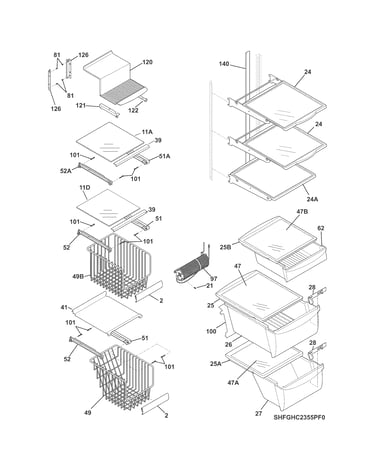

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for FGHC2355PF9A Refrigerators

Frigidaire Refrigerator FGHC2355PF9A FAQs

A side-by-side refrigerator typically lasts about 12 to 15 years with normal household use. For your Frigidaire FGHC2355PF9A, good airflow at the toe grille, correct temperatures, and routine filter changes help the sealed system and fans run efficiently for the long haul (see the FGHC2355PF9A owner's manual).

What affects lifespan the most

  • Airflow and heat removal: Keep the toe grille clear so the unit can breathe.
  • Stable room temperature: Avoid extreme ambient temps; the compressor struggles outside normal ranges.
  • Door seal condition: Leaky gaskets force longer run times.
  • Water and ice system upkeep: Clogs and leaks create extra wear.
  • Filter maintenance: Old filters restrict flow and can reduce performance.

Typical lifespan expectations (quick guide)

Appliance type Typical lifespan What usually ends it
Side-by-side refrigerator 12 to 15 years Compressor wear, sealed-system leaks, control failures
Top-freezer refrigerator 14 to 17 years Sealed-system issues, thermostat/control problems
French door refrigerator 10 to 14 years Ice maker/dispenser issues, electronics, sealed system

Maintenance that helps you reach (or beat) the average

  • Set and maintain safe temps (fresh food around 37°F, freezer around 0°F).
  • Do not block the toe grille; vacuum dust from the front and lower areas.
  • Replace the water filter about every 6 months; the FGHC2355PF9A uses the refrigerator water filter ULTRAWF.
  • Replace the air filter on schedule to reduce odors and keep airflow fresh.
  • Fix small issues early (slow ice production, warm spots, unusual fan noise).

Why it matters

A refrigerator that runs hot, runs long, or runs with restricted airflow wears out the compressor and fans faster. Simple habits like keeping vents clear and staying on top of filters reduce run time, stabilize temperatures, and help protect expensive components.

Last updated: January 2026

A common disadvantage of a side-by-side refrigerator like the Frigidaire FGHC2355PF9A is reduced usable width in each compartment; wide platters, pizza boxes, and large produce trays often do not fit as easily as they do in a French door design.

Common side-by-side drawbacks (and what to do about them)

  • Narrow shelves and bins: Each side is slimmer, so wide items can be awkward to store.
  • More bending for fresh food: Fresh items are often spread across multiple shelves, so you may reach and bend more.
  • Freezer organization can be tricky: Tall, narrow freezer shelves can hide items behind other items.
  • Door swing clearance matters: You need enough space for both doors to open fully for best access.
  • More door openings: You may open both sides more often during meal prep, which can let in warm air.

Quick setup tips that improve day-to-day use

Use these adjustments to make a side-by-side layout feel less cramped:

  • Keep frequently used fresh foods at eye level.
  • Store wide items (party trays, sheet pans) on the lowest shelf where there is often more usable space.
  • Use clear bins to group snacks, deli items, and condiments.
  • Avoid overpacking; airflow matters for even temperatures.
  • Confirm the refrigerator is positioned so both doors can open fully (especially if the hinge side is near a wall).

Door clearance and spacing guidelines (installation basics)

Your installation guidance matters because tight clearances make access worse.

Area Typical guideline for this style Why it matters
Sides and top clearance 3/8 inch Helps airflow and prevents rubbing
Rear clearance 1 inch Helps airflow and protects connections
Door opening Full opening recommended Improves access to drawers and baskets

For model-specific positioning and door-opening notes, follow the FGHC2355PF9A installation guide.

Why it matters

Side-by-side refrigerators can cool and dispense ice and water very well, but the narrower compartments change how you shop and store food. Planning for door clearance and organizing by “use frequency” prevents frustration and helps temperatures stay stable.

Last updated: January 2026

We don’t recommend “staying away” from a specific refrigerator brand or model based on name alone; instead, we focus on avoiding any fridge that can’t hold safe temperatures, has chronic ice and water dispenser issues, or has hard-to-find replacement parts for your needs. For your Frigidaire FGHC2355PF9A, use the FGHC2355PF9A owner's manual to confirm proper setup and operating checks.

What to avoid when choosing a refrigerator

Look for these red flags during shopping or in the first weeks of ownership:

  • Can’t maintain temperature: fresh food should stay near 37°F and freezer near 0°F.
  • Frequent warm spots or thawing: especially after door openings.
  • Persistent water leaks or puddles: often tied to drain or defrost issues.
  • Noisy operation that changes suddenly: new grinding, squealing, or repeated clicking.
  • Dispenser problems: weak water flow, slow ice production, or clumping ice.
  • Poor parts support: limited availability of common wear items (filters, sensors, fan parts).

Quick checks that matter most (before you blame the fridge)

These are the same basics we use when troubleshooting side-by-side refrigerators:

  • Plug the refrigerator into a dedicated 115V, 60 Hz, 15A grounded outlet (no extension cord).
  • Confirm the unit is level and doors close and seal fully.
  • Keep vents inside the compartments unblocked.
  • If you are not connecting water, turn the ice maker off.
  • Replace the water filter on schedule; a clogged filter can cause dispenser and ice issues.

Common “good choice” vs “stay away” comparison

What you see Usually means What to do
Temps steady, normal fan/compressor cycling Normal operation Keep coils and seals clean; follow the manual
Warm fridge, freezer OK Airflow/evaporator fan or defrost issue Check airflow; consider evaporator fan diagnostics
Weak water flow Filter restriction or supply issue Replace filter; purge air; verify supply

Parts that often influence satisfaction on this model

If your decision is based on ongoing maintenance, these are common items people replace on the FGHC2355PF9A:

Why it matters

A refrigerator that can’t hold temperature reliably risks food spoilage and forces the compressor and fans to run harder, which increases noise and energy use. Choosing a model with straightforward maintenance (filters, airflow, cleaning) and strong parts availability usually prevents most “stay away” experiences.

Last updated: January 2026

Most common symptoms to help you fix your refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan…

Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost tim…

Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condens…

Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, se…

Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubin…

Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer o…

Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, cl…

Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freeze…
