GE PDT715SFN3DS dishwasher Parts

Yes. On the GE PDT715SFN3DS dishwasher, we can replace many common parts ourselves if we shut off power and water first and follow the correct steps. Simple mechanical items are usually DIY-friendly; electrical wiring and leak-related repairs require extra care and strict safety steps from the PDT715SFN3DS owner's manual.

What you can usually replace yourself

These repairs are typically straightforward with basic hand tools:

• Spray arms (clogged, cracked, not spinning)
• Door latch components (door won’t start cycle because it won’t latch)
• Drain hose (kinked, leaking, restricted)
• Tub gasket (minor door-area leaks)
• Rack hardware (rollers, brackets, slide rails)

Examples of model-matched parts:

Symptom	Common DIY part for PDT715SFN3DS	What it affects
Poor cleaning, arm not spinning	Dishwasher spray arm, lower WD22X33499	Water distribution to lower rack
Won’t drain, standing water	Dishwasher drain pump WD19X25461	Pumps water out to the drain
Won’t start, door won’t latch	GE dishwasher door latch lock WD21X10490	Safety interlock for starting

Repairs that need extra caution

We treat these as advanced DIY because mistakes can cause shocks, leaks, or repeat failures:

• Water inlet and supply connections (flooding risk)
• Heating circuit and internal wiring
• Control board and UI control replacement
• Any repair after a leak is detected or water is found in the base

The manual also emphasizes disconnecting power before maintenance and avoiding repairs not specifically recommended; use the PDT715SFN3DS installation guide for electrical and grounding expectations.

DIY checklist before you start

• Turn off the breaker (or remove the house fuse) and confirm the dishwasher is dead
• Shut off the water supply valve under the sink
• Take photos of wire and hose routing before removal
• Keep screws and clamps organized by step
• Run a short test cycle and check for leaks after reassembly

Why it matters

Dishwashers combine water, heat, and electricity in a tight space. Following the correct shutdown steps and model-specific procedures helps prevent leaks, protects the wiring, and keeps the dishwasher serviceable for future repairs.

Last updated: February 2026

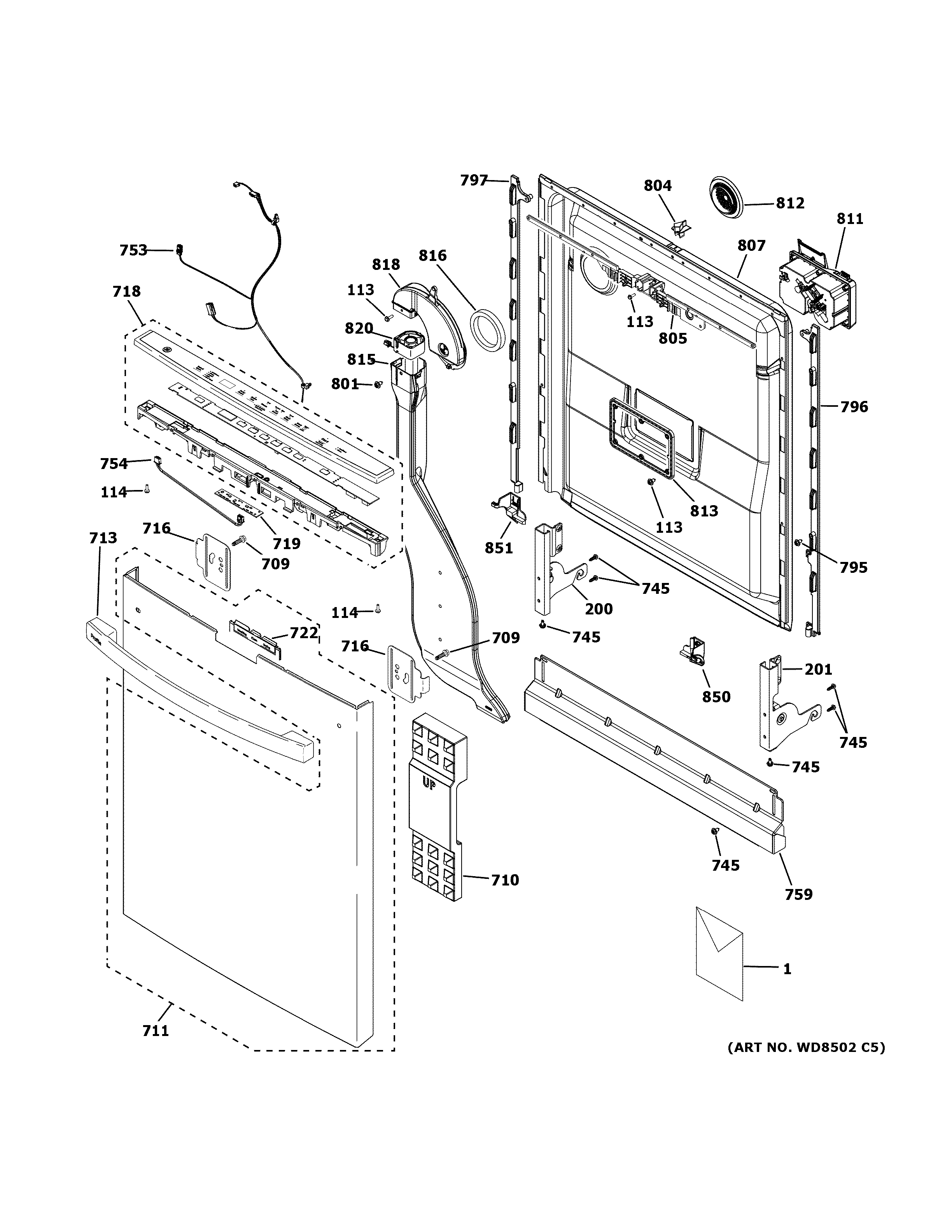

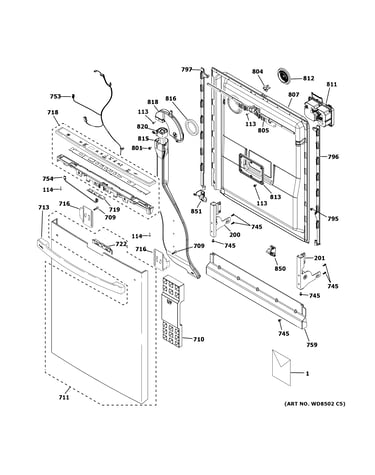

On the GE PDT715SFN3DS dishwasher, we remove the control panel by opening the door, removing the inner-door screws, separating the inner door liner, then releasing the control assembly from its retaining tabs so it can be lifted off and unplugged.

Before you start (safety and prep)

• Turn off power at the breaker (dishwashers are hard-wired or corded, but either way we want it de-energized).
• Open the door and support it; do not let it drop while screws are out.
• Use a towel to protect the outer door finish and catch screws.
• Take a quick photo of wire routing and connector positions for reassembly.
• Use the correct driver so you do not strip screw heads.

Steps to remove the control panel (typical for this GE platform)

1. Open the door.
2. Remove the screws around the perimeter of the inner door liner (keep track of locations and lengths).
3. Carefully separate and lift the inner door liner away from the outer door.
4. Locate the control assembly at the top edge of the door.
5. Release the control assembly from the retaining tabs (a small pick can help) and pull the control panel/control housing forward.
6. Disconnect the wire connectors (press locking tabs, pull on connectors, not wires).

Reinstall tips (avoid panel damage)

The installation instructions for this model emphasize keeping the door panel and control panel from contacting the cabinet or countertop, and driving mounting screws straight and flush to prevent damage. Use the same care when reassembling the door and refastening the dishwasher. See the installation guide.

• Make sure the control panel sits fully on all tabs before tightening screws.
• Route the harness so it is not pinched between the inner and outer door.
• Tighten screws evenly; stop when snug.
• Confirm the door closes freely and the panel does not rub the countertop.

Quick reference table

What you see	Most likely cause	What we do
Panel feels stuck at the top	Tabs still engaged	Release tabs one at a time, then lift off
Inner door will not separate	Missed screws	Recheck perimeter screws on the inner liner
Buttons/display dead after reassembly	Loose connector	Reseat connectors and verify harness routing

Why it matters

Removing the control panel the right way prevents cracked trim, stripped screws, and pinched wiring that can cause a no-start condition or intermittent keypad issues. For model-specific diagrams and screw locations, use the PDT715SFN3DS manual.

Last updated: February 2026

In the GE PDT715SFN3DS dishwasher, the most commonly replaced parts are the wash and drain components, water fill parts, door sealing and latching parts, and a few high-wear rack items. These parts typically fail from normal wear, mineral buildup, clogs, or leaks over time.

Commonly replaced dishwasher parts (and what they affect)

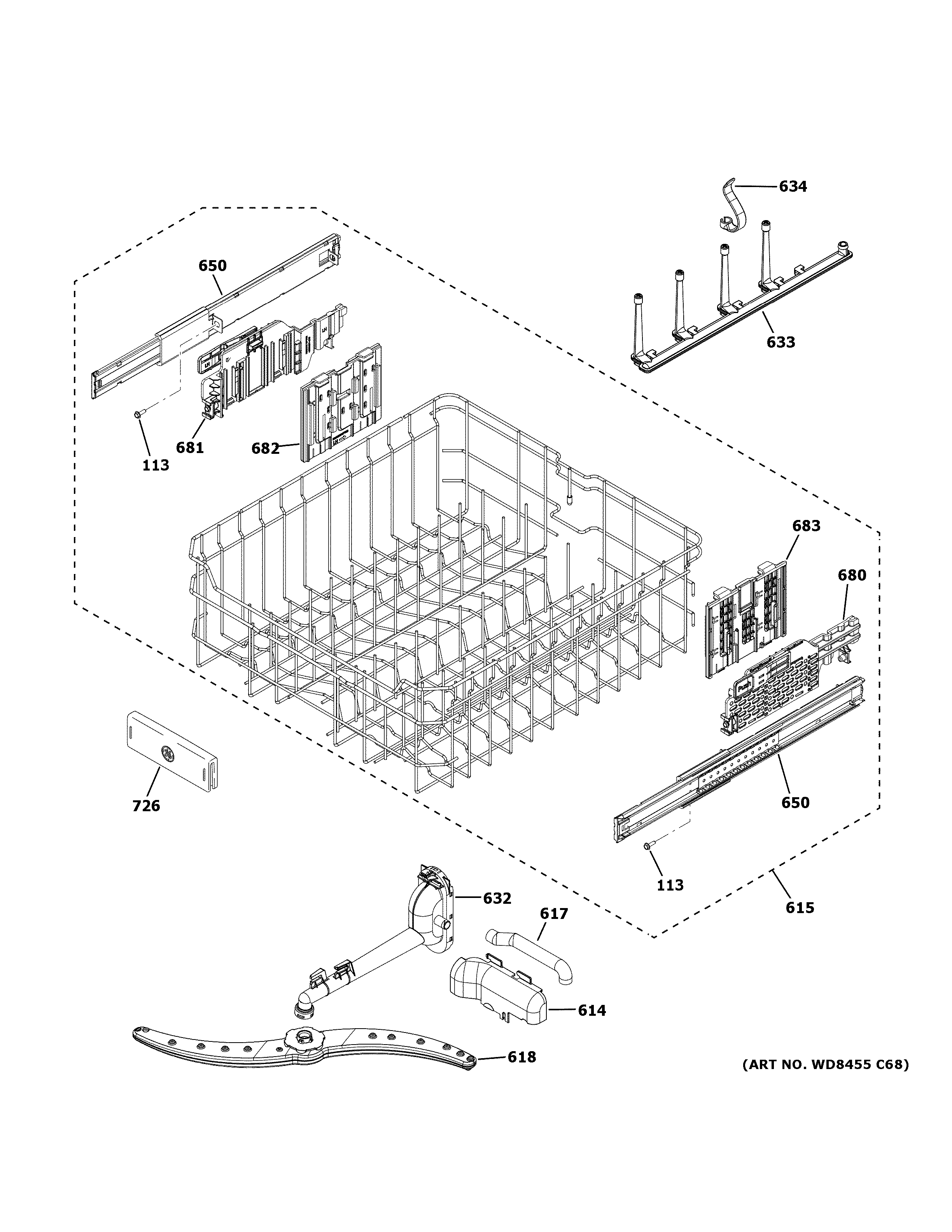

• Spray arms: poor cleaning, weak spray, or clogged jets (example: dishwasher spray arm, lower WD22X33499, dishwasher spray arm, middle WD22X33498)
• Heating system: poor drying or cool water (example: element heat WD05X35098)
• Water fill parts: not filling, slow fill, or fill errors (example: dishwasher water inlet valve WD15X26078)

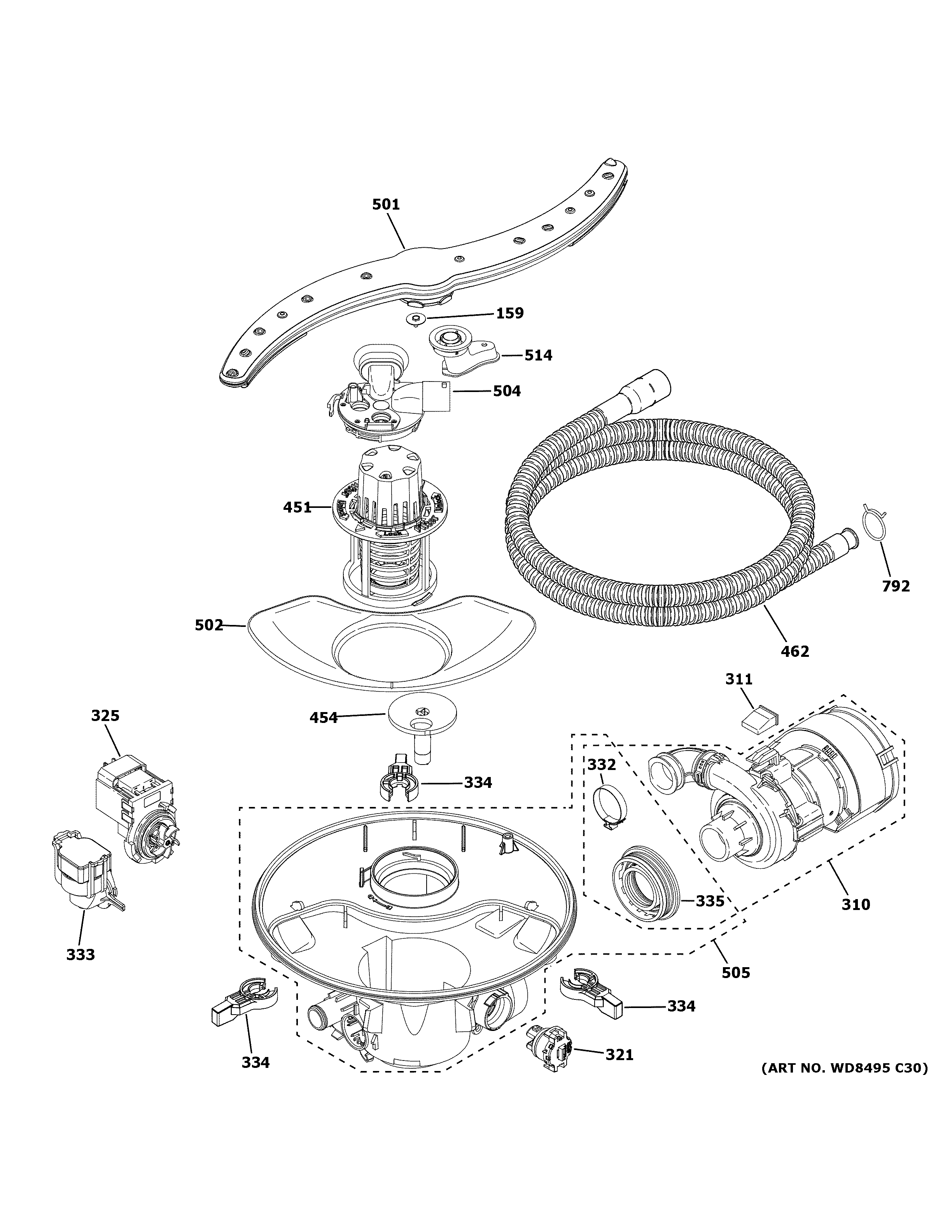

• Drain system: standing water, slow drain, or drain noise (example: dishwasher drain pump WD19X25461, dishwasher drain hose WD24X10062)

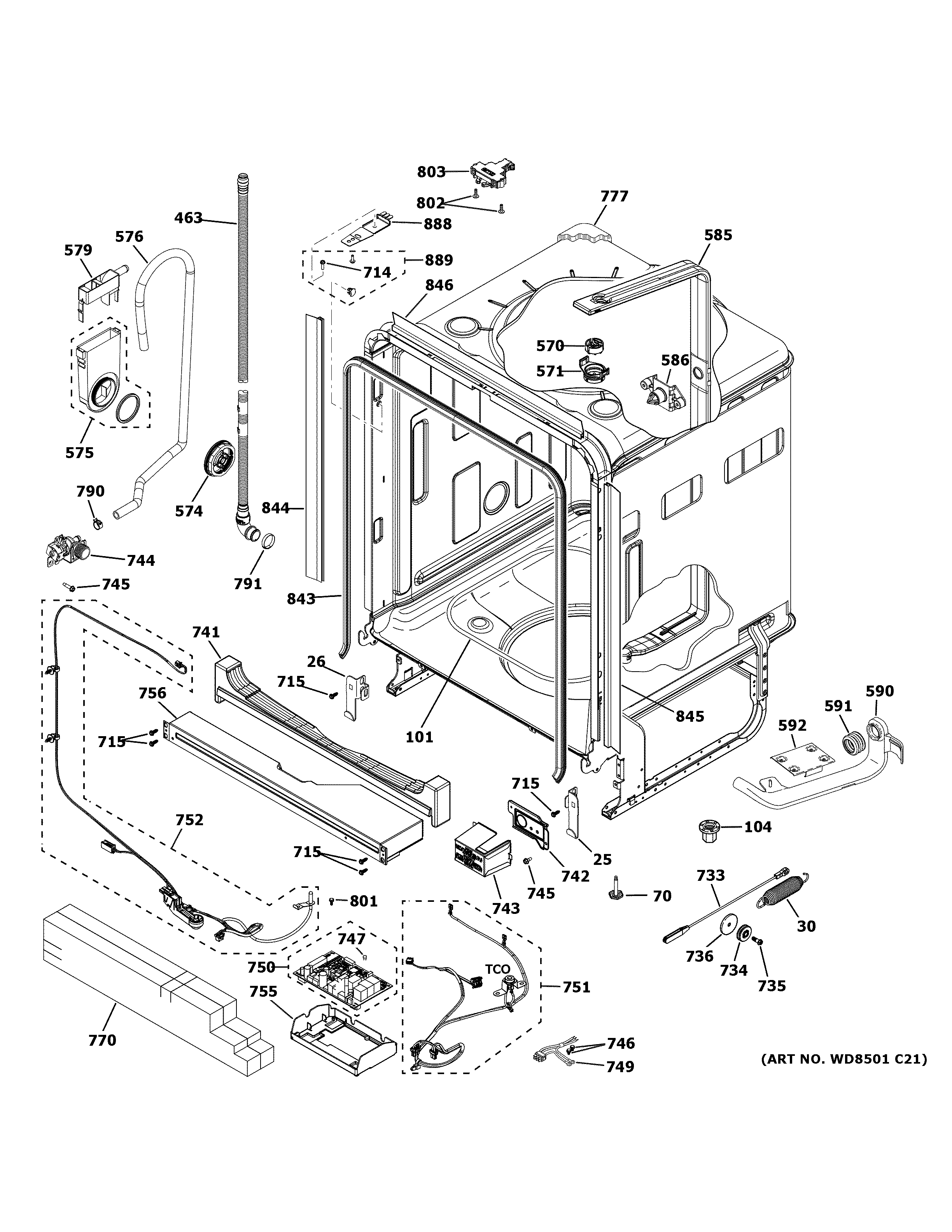

• Door latch and sealing: won’t start (door not sensed closed) or leaks (example: GE dishwasher door latch lock WD21X10490, dishwasher tub gasket WD08X23477)
• Sensors and controls: odd behavior, stopping mid-cycle, or error codes (example: GE dishwasher pressure sensor WD21X25468)

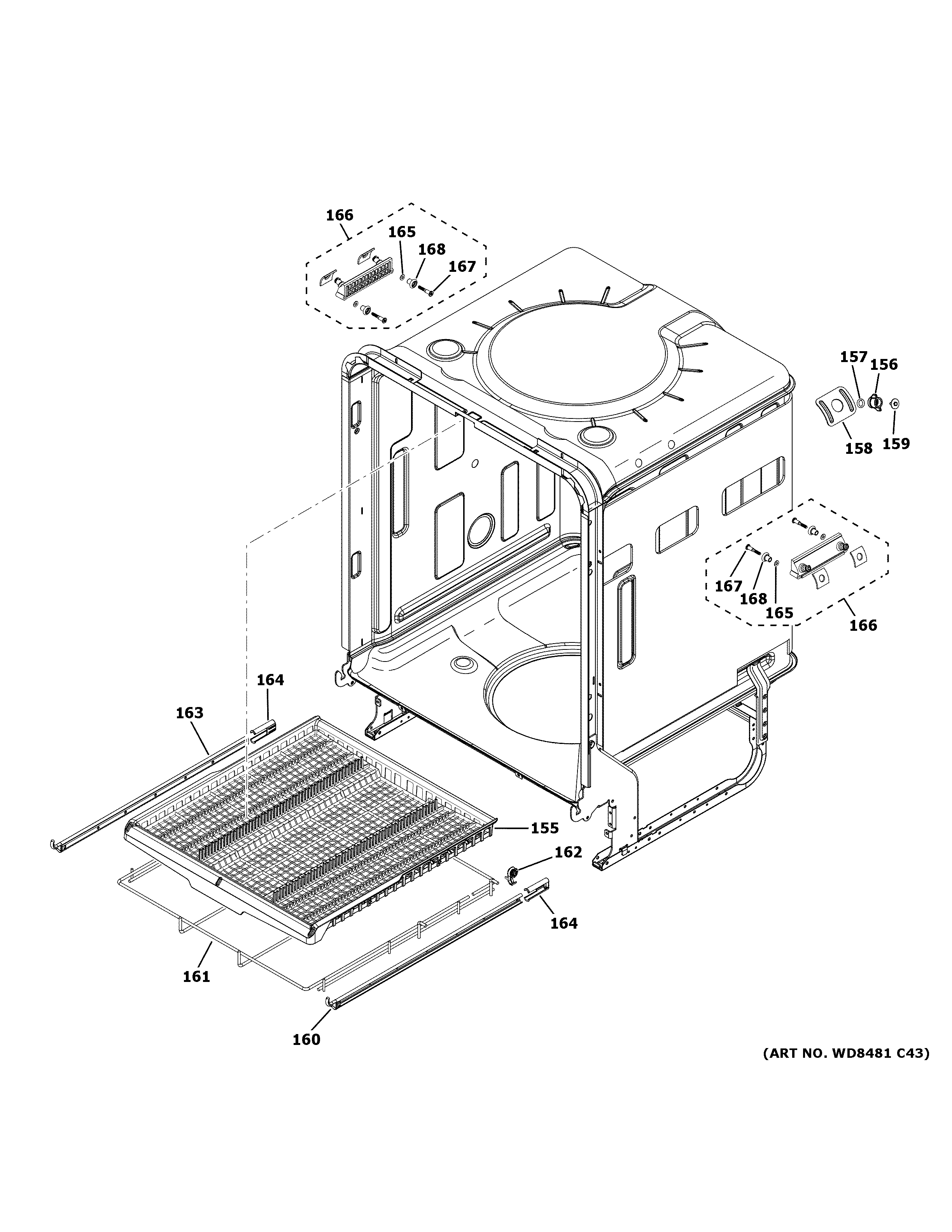

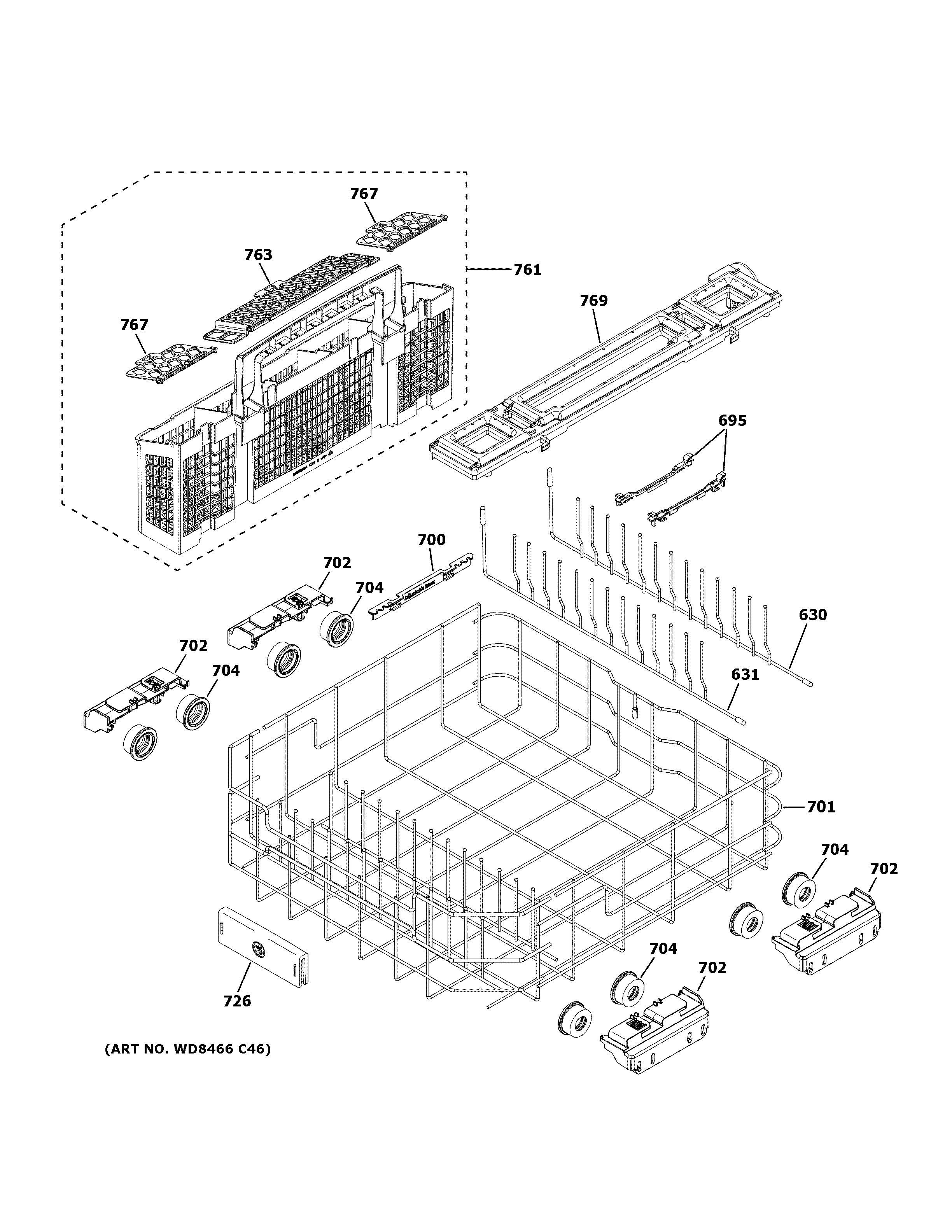

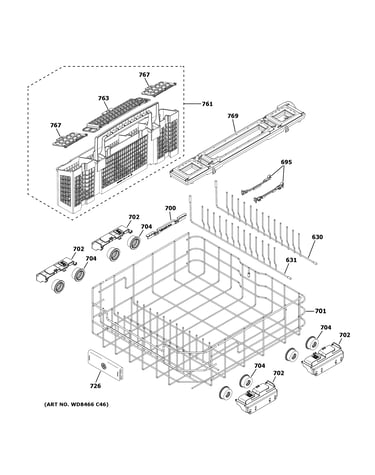

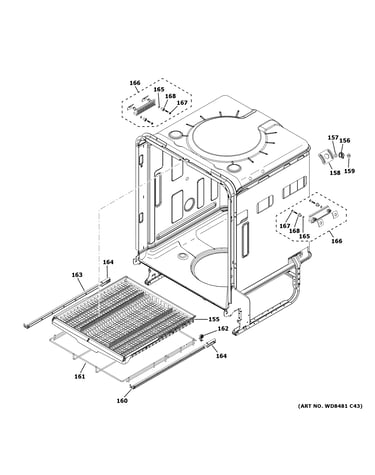

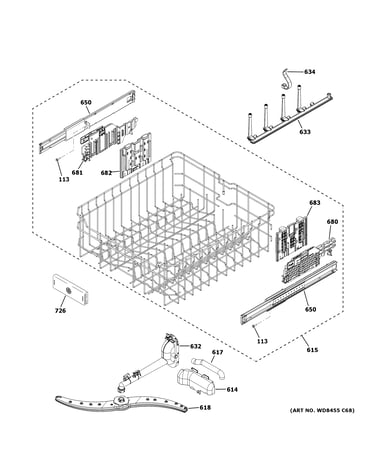

• Rack hardware: rack not rolling smoothly or falling off track (example: dishwasher dishrack roller bracket WD01X35298)

Quick symptom-to-part guide

Symptom	Most likely part area	Example part for PDT715SFN3DS
Dishes not clean	Spray arms, wash pump, sump	WD22X33499, WD22X33498
Not drying	Heating element, venting, rinse aid use	WD05X35098
Won’t drain	Drain pump, drain hose, blockage	WD19X25461, WD24X10062
Won’t start	Door latch/strike, control lock, power	WD21X10490
Leaking	Tub gasket, door sealing, hose connections	WD08X23477

Why it matters (and what to check first)

Replacing the right part first saves time and prevents repeat failures. Before ordering parts, we recommend these quick checks:

• Clean the filters and remove debris that can restrict water flow
• Inspect spray arm holes for clogs and confirm arms spin freely
• Verify the sink drain/disposer connection is clear (common drain restriction point)
• Confirm the door closes firmly and the latch engages
• Reset the breaker and confirm any wall switch feeding the dishwasher is ON

For model-specific operating steps, safety notes, and maintenance guidance, use the PDT715SFN3DS owner’s manual. For installation-related items like drain hose routing, grounding, and mounting brackets, use the PDT715SFN3DS installation guide.

Last updated: February 2026
