Kenmore
Canister Vacuum

Model # 11620871 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 11620871 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |

Suction Control 722419
#2

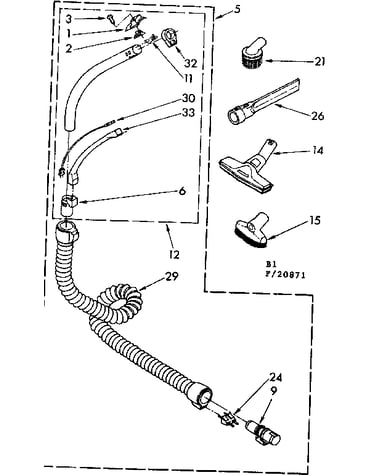

Attachment parts diagram

Suction control

Part #722419

The manufacturer no longer makes this part, and there's no substitute part

Screw 681491
#3

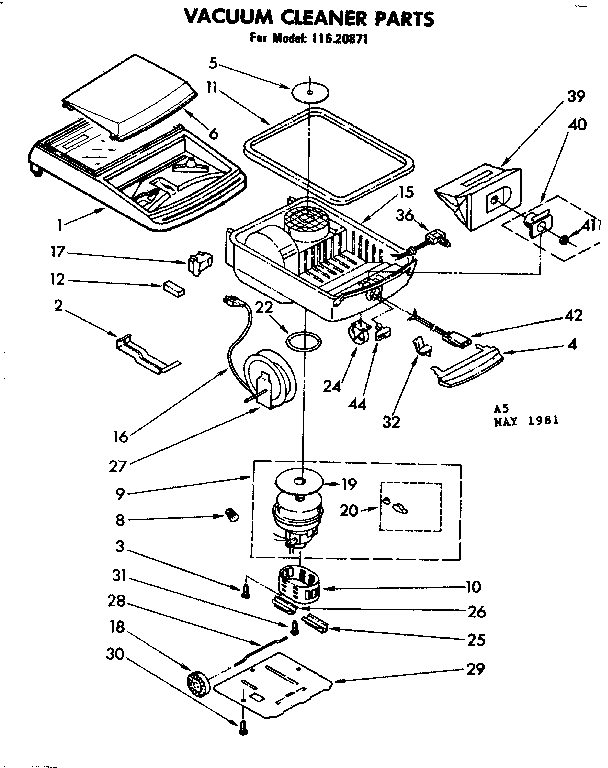

Base assembly diagram

Screw

Part #681491

The manufacturer no longer makes this part, and there's no substitute part

Fan 588708
#19

Base assembly diagram

Fan

Part #588708

The manufacturer no longer makes this part, and there's no substitute part

Filter 764681
#5

Base assembly diagram

Filter

Part #764681

The manufacturer no longer makes this part, and there's no substitute part

Lock 764212
#32

Base assembly diagram

Lock

Part #764212

The manufacturer no longer makes this part, and there's no substitute part

Brush Kit 588867
#20

Base assembly diagram

Brush kit

Part #588867

The manufacturer no longer makes this part, and there's no substitute part

Axle 703270
#28

Base assembly diagram

Axle

Part #703270

The manufacturer no longer makes this part, and there's no substitute part

Cover 741096
#33

Attachment parts diagram

Cover

Part #741096

The manufacturer no longer makes this part, and there's no substitute part

Suction Control 722418
#1

Attachment parts diagram

Suction control

Part #722418

The manufacturer no longer makes this part, and there's no substitute part

Cover 704537
#2

Base assembly diagram

Cover

Part #704537

The manufacturer no longer makes this part, and there's no substitute part
