Part #WB27T11463
Part #WB27X28659
Part #WB21X10165
Part #WB26X31060
Part #49-80597
Part #WB35X21972
Part #WB18X30704
Part #WB02X32816
Part #WB56X32857
Part #WB35X26197
Replaced by #WB35X34867

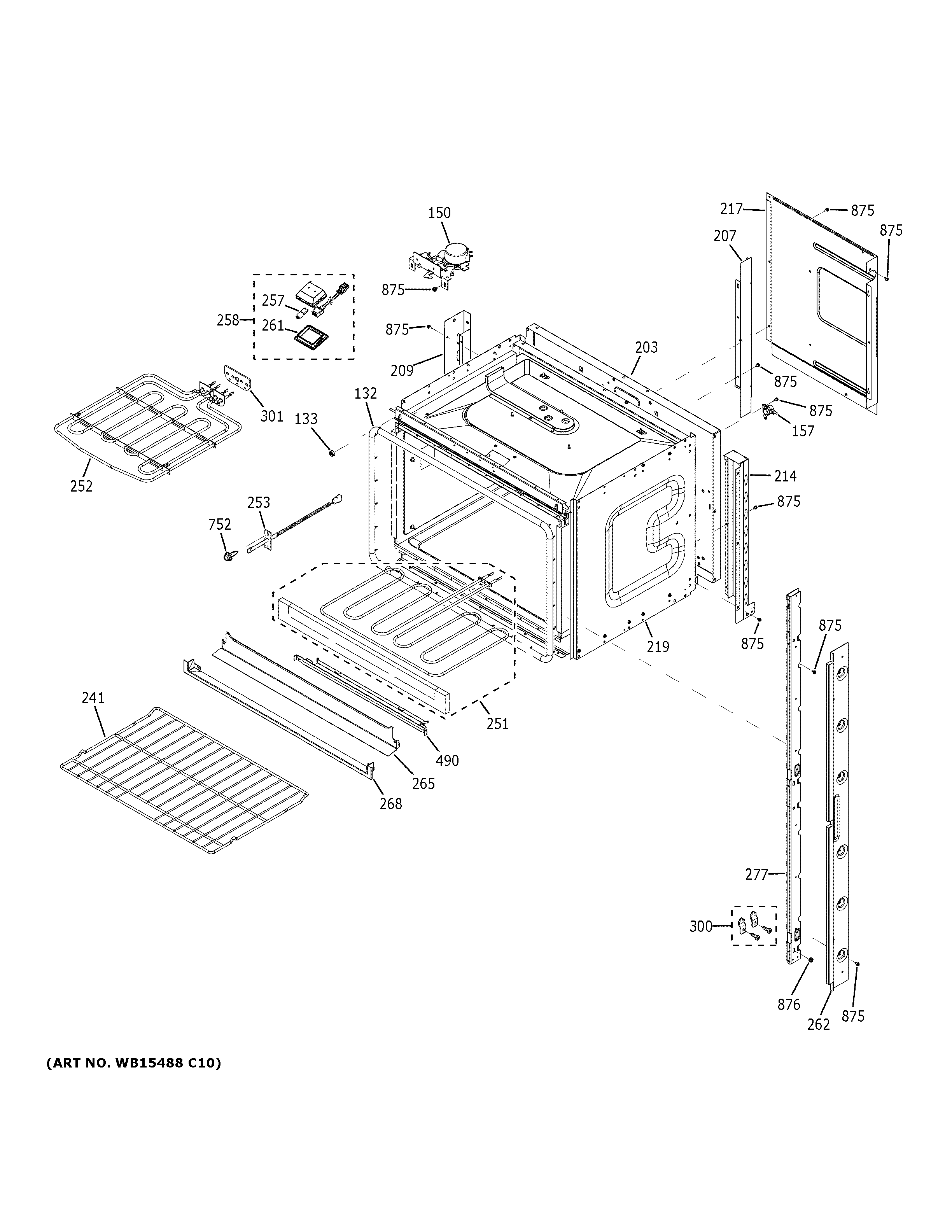

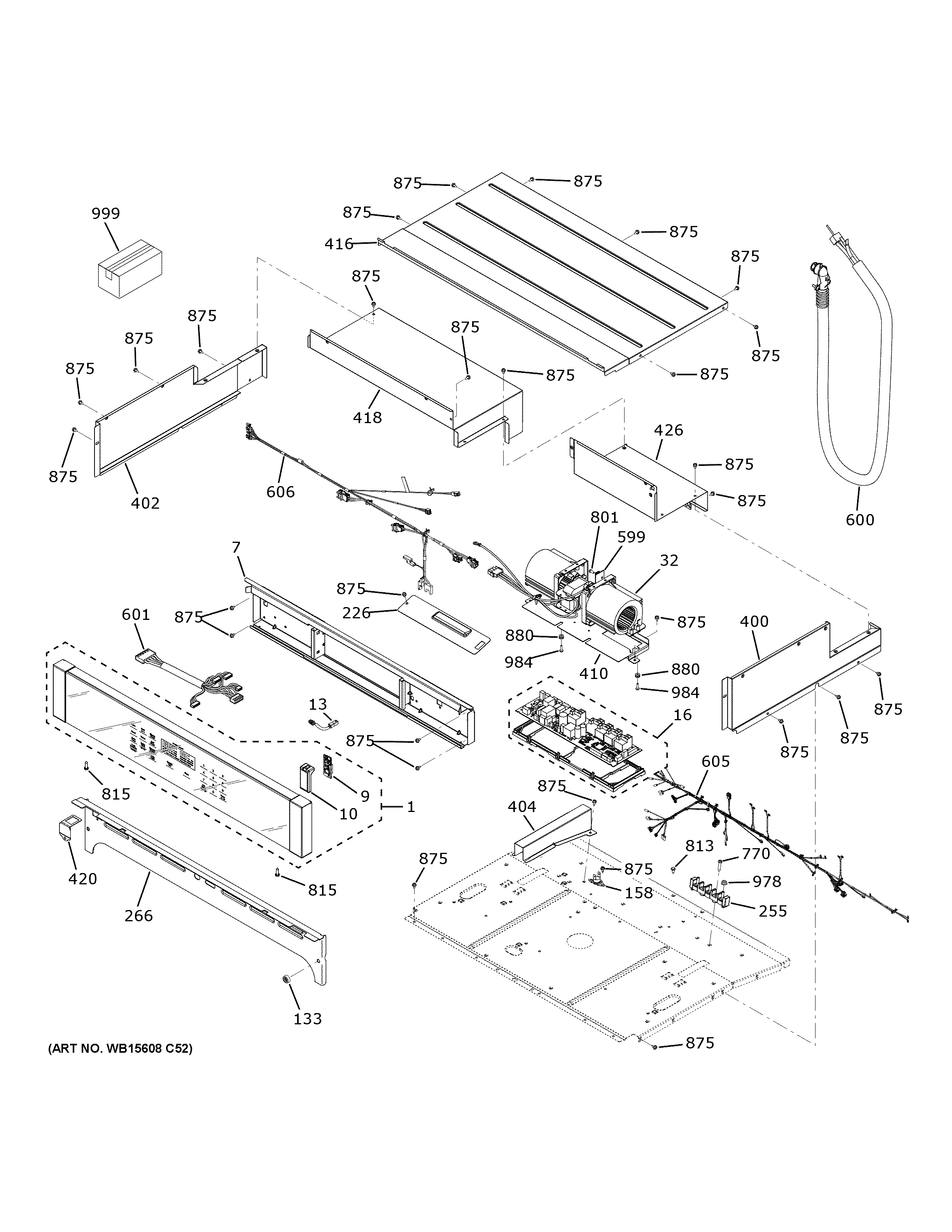

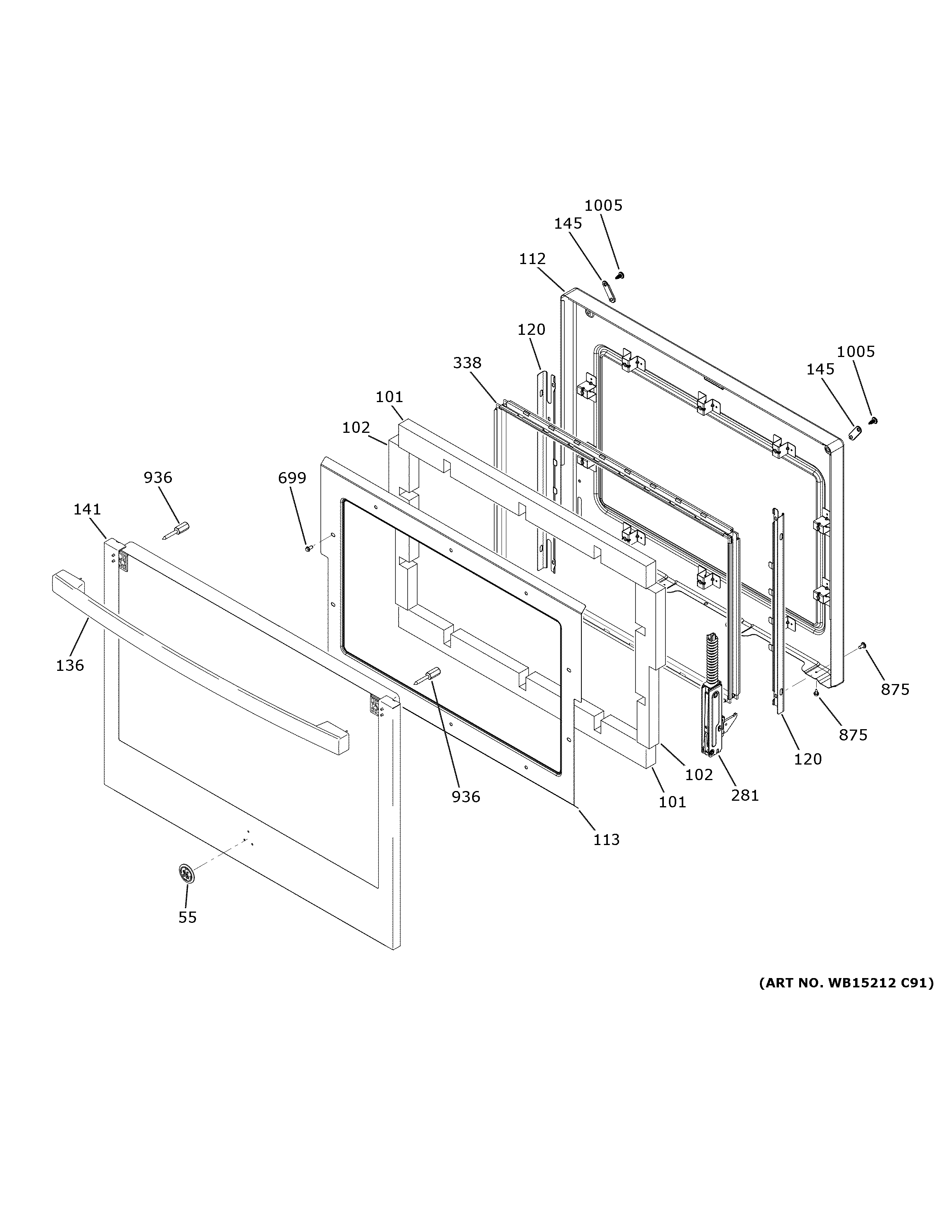

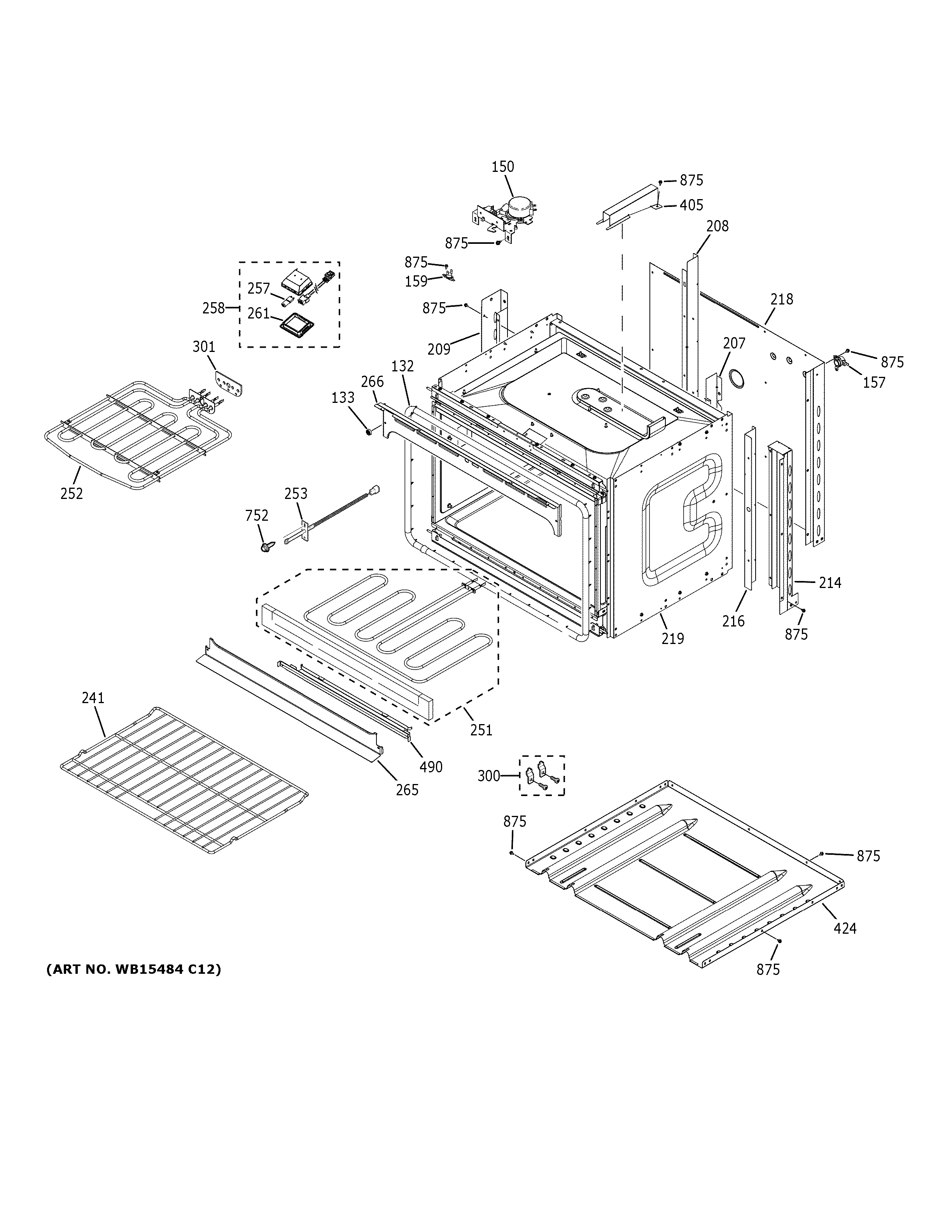

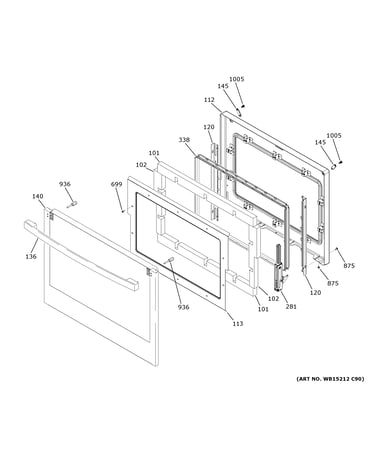

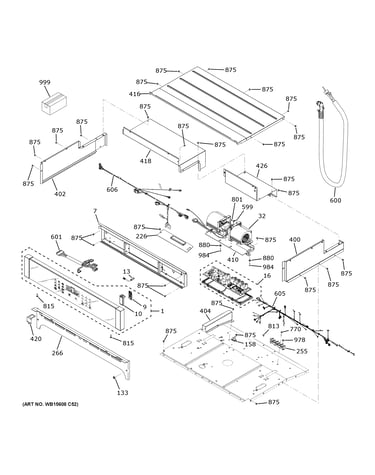

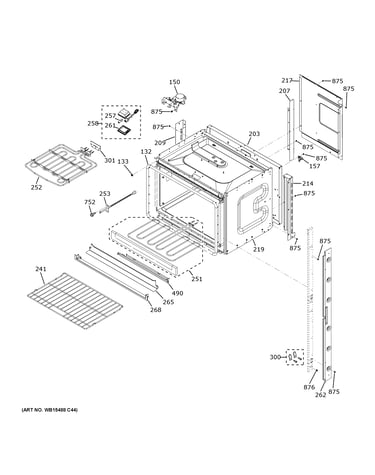

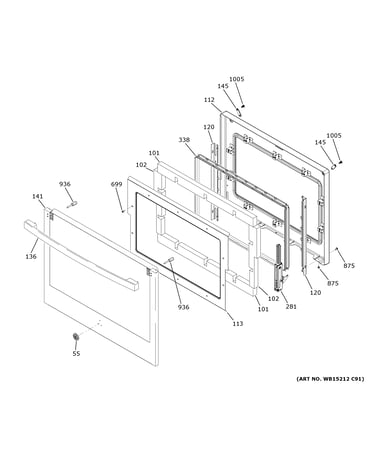

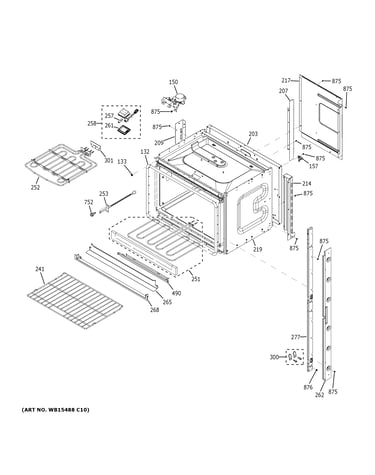

Here are the diagrams and repair parts for Official GE JKD3000SN1SS electric wall oven, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Part #WB27T11463
Part #WB27X28659
Part #WB21X10165
Part #WB26X31060
Part #49-80597
Part #WB35X21972
Part #WB18X30704
Part #WB02X32816
Part #WB56X32857
Part #WB35X26197
Replaced by #WB35X34867
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Get your oven temperature under your control by replacing a faulty oven control thermostat.…
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Learn where to place the rack in your oven for optimal broiling, toasting, baking or roasting.…
Learn how to repair broken, frayed or damaged wires in your appliances.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
