Yes. Side-by-side refrigerators are made in smaller widths and capacities for tighter kitchens, as well as full-size models for maximum storage. For your Jenn-Air JCD2295KEP, use the clearance and opening guidelines in the owner's manual to confirm what size will physically fit your space.

What “small” usually means for side-by-side refrigerators

Most “small” side-by-side models are designed to fit narrower openings and shallower kitchens.

• Narrower cabinet width than many standard side-by-sides
• Less total cubic-foot capacity (less freezer and fresh-food volume)
• Often fewer door bins and narrower shelves
• Can still include ice and water features, depending on the model

How to measure your opening the right way

We recommend measuring before shopping so you do not end up with doors that cannot swing open or a unit that cannot ventilate.

• Measure width, height, and depth of the opening
• Account for baseboards, trim, and uneven flooring
• Leave ventilation clearance at the top and behind the refrigerator (the manual calls out clearance for air circulation)
• If the hinge side is against a wall, allow extra space so the door can open wider
• If installing in a fully covered recess, measure to the top of the hinge cap for proper clearance

Quick comparison: smaller vs standard side-by-side

Feature	Smaller side-by-side	Standard side-by-side
Fit in tight kitchens	Better	Depends on opening
Storage capacity	Less	More
Door swing clearance needs	Similar	Similar
Best for	Apartments, narrow openings	Families, bulk storage

Why it matters

A refrigerator that is too tight in the opening can run hotter, cool poorly, and be harder to use day to day. Following the installation and clearance guidance for the JCD2295KEP helps you avoid airflow and door-clearance problems.

Last updated: February 2026

A Jenn-Air side-by-side refrigerator like model JCD2295KEP typically lasts 15 years. Real-world lifespan depends most on condenser cleanliness, stable temperatures, and keeping the door seals tight; those factors reduce compressor run time and help prevent cooling-system wear (see the JCD2295KEP owner's manual).

Typical lifespan range (what to expect)

Most premium side-by-side refrigerators fall into a predictable window.

• Typical: 15 years
• Common range: 10 to 20 years
• Shorter lifespan is more likely when: condenser is clogged with dust, doors do not seal, or the unit runs hot due to poor airflow

Lifespan outcome	What it usually looks like	What helps most
10 years	More frequent repairs, cooling struggles	Better airflow, clean condenser, good door seal
15 years	Normal wear, occasional part replacement	Routine cleaning and correct temperature settings
20 years	Light repair history, stable cooling	Consistent maintenance and gentle use

Maintenance that most affects longevity

These steps have the biggest impact on how long your JCD2295KEP lasts.

• Keep the condenser area clean so the compressor does not overwork.
• Make sure doors close and seal fully; replace worn gaskets when needed.
• Set and maintain steady temperatures; avoid frequent large adjustments.
• Do not overload shelves; allow airflow in both compartments.
• Replace the water filter on schedule if you use the dispenser; the manual notes changing the filter at least every 12 months.

Why it matters

A refrigerator’s most expensive wear items are in the sealed cooling system (compressor and related components). When airflow is restricted or warm air leaks in through a poor door seal, the refrigerator runs longer and harder, which shortens overall service life.

Helpful related DIY guidance

If you are troubleshooting cooling airflow or fan noise, we use this guide often: how to fix your evaporator cooling fan.

Last updated: February 2026

If your Jenn-Air JCD2295KEP refrigerator is not cooling, the fastest fixes are usually correcting temperature control settings, restoring airflow (no blocked grilles or overcrowded shelves), and cleaning dirty condenser coils. If the compressor is not running, the unit may simply be in defrost mode for up to about 40 minutes.

Quick checks we recommend first

• Confirm the refrigerator is plugged in and the breaker is not tripped.
• Verify temperature controls are not set too warm (adjust per the JCD2295KEP owner's manual).
• Wait about 40 minutes if the compressor is currently off; the refrigerator may be in defrost.
• Make sure doors close tightly and nothing (drawers, bins, oversized containers) is preventing a full seal.
• Check for blocked airflow: avoid overcrowding shelves and keep air inlets/grilles clear.
• Clean condenser coils; dirty coils commonly cause warm temperatures and long run times.

What the symptoms usually point to

What you notice	Most likely cause	What to do next
Lights on, but compressor not running	Defrost cycle	Wait 40 minutes; then recheck cooling
Food too warm, runs a lot	Dirty condenser coils or poor airflow	Clean coils; reduce overcrowding
Food too warm, doors opened often	Frequent door openings or warm food load	Limit door time; let temps stabilize
Warm temps plus poor door seal	Door not closing or gasket not sealing	Remove obstructions; clean gasket surfaces

Parts that commonly relate to “not cooling” complaints

If basic airflow and control checks do not restore cooling, these model-compatible parts are often involved in cooling performance:

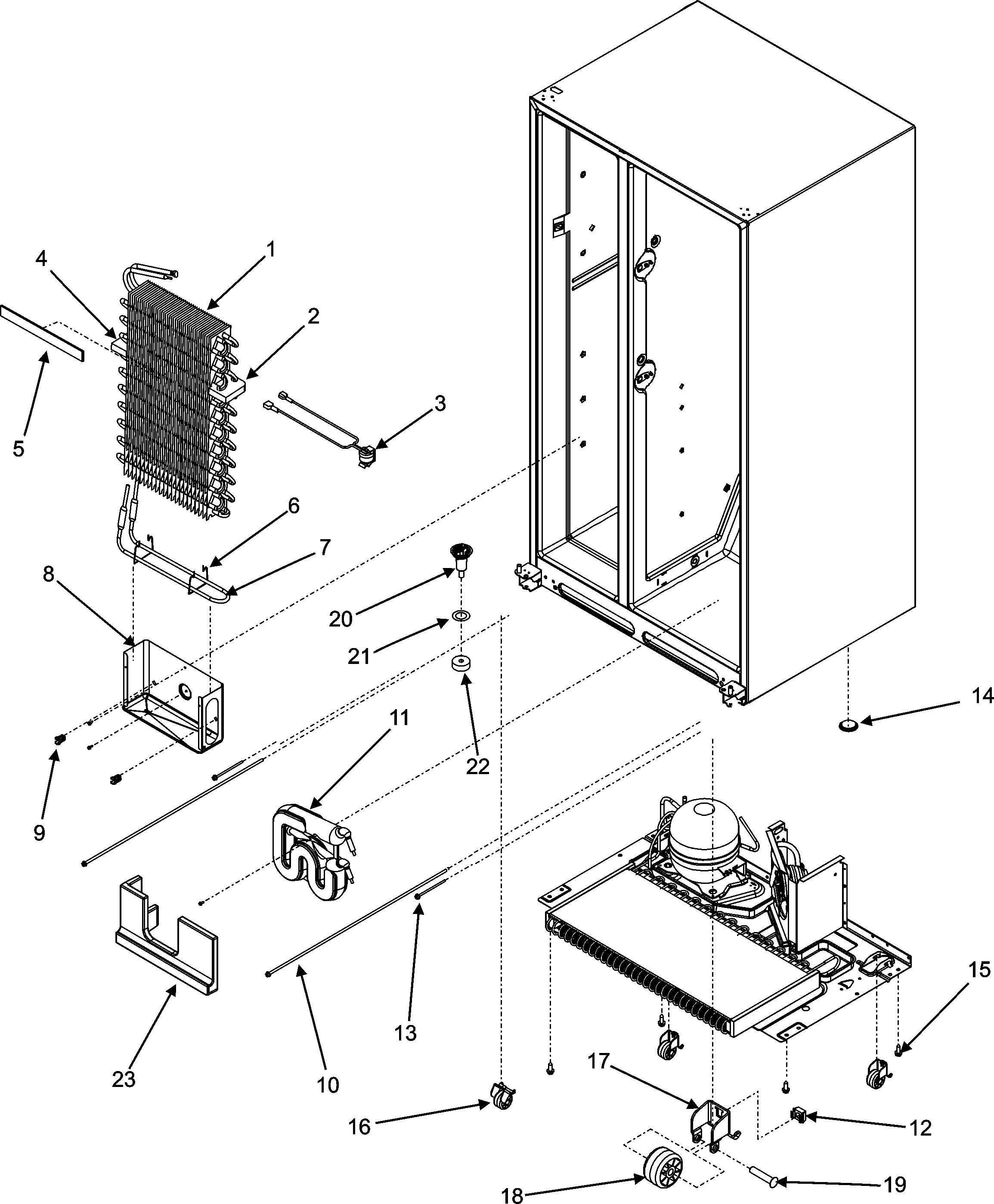

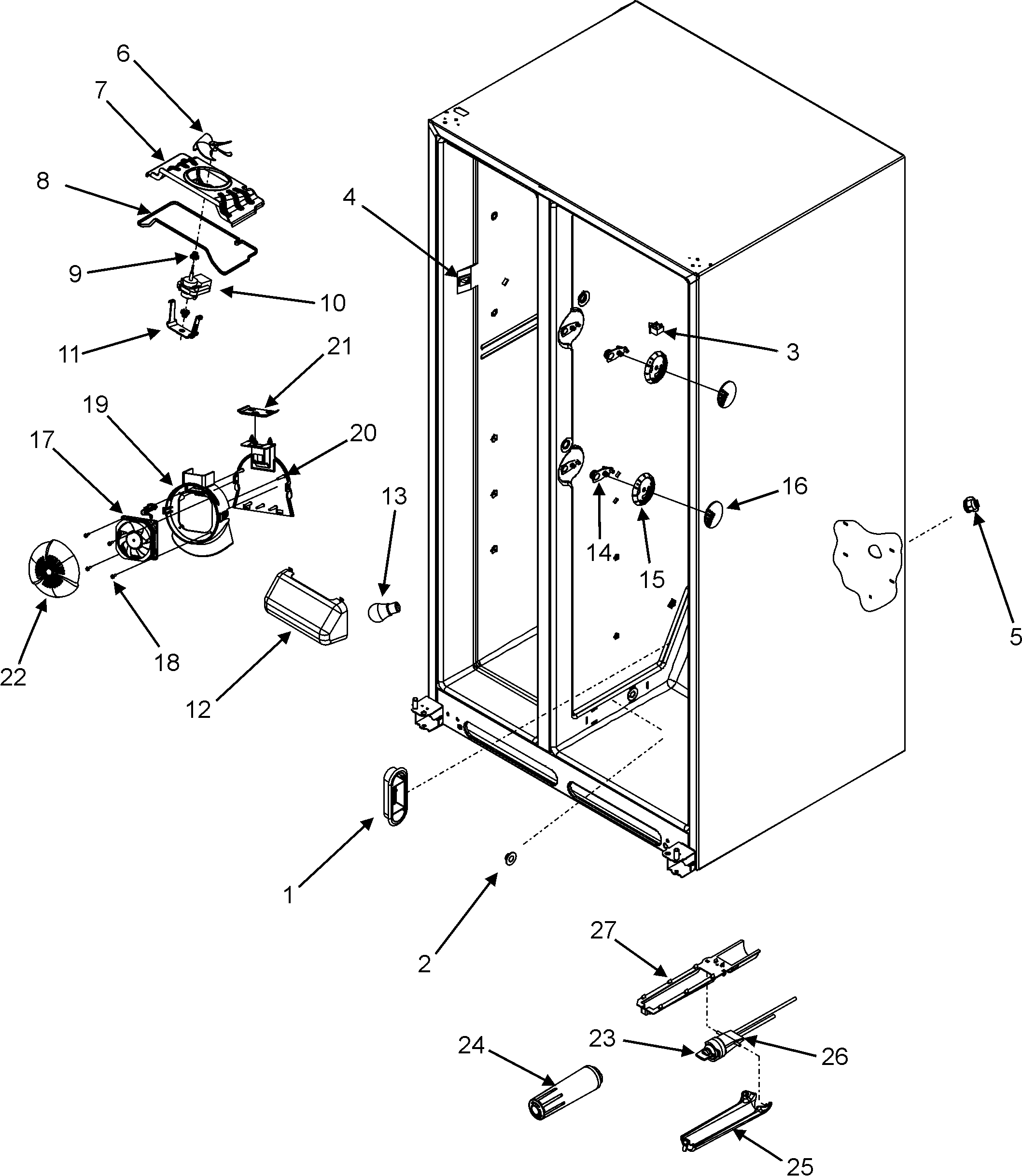

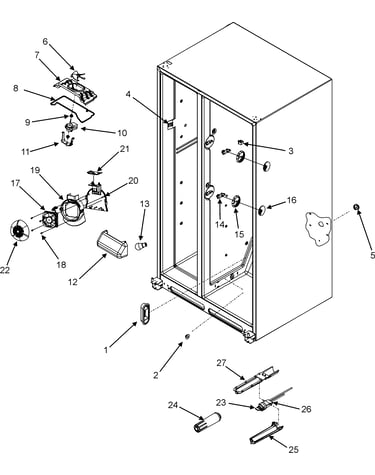

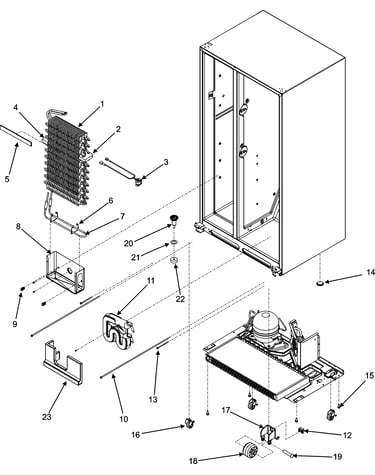

• Evaporator motor WPW10128551 (drives airflow across the evaporator)
• Refrigerator evaporator fan blade WP2169142 (moves cold air through compartments)

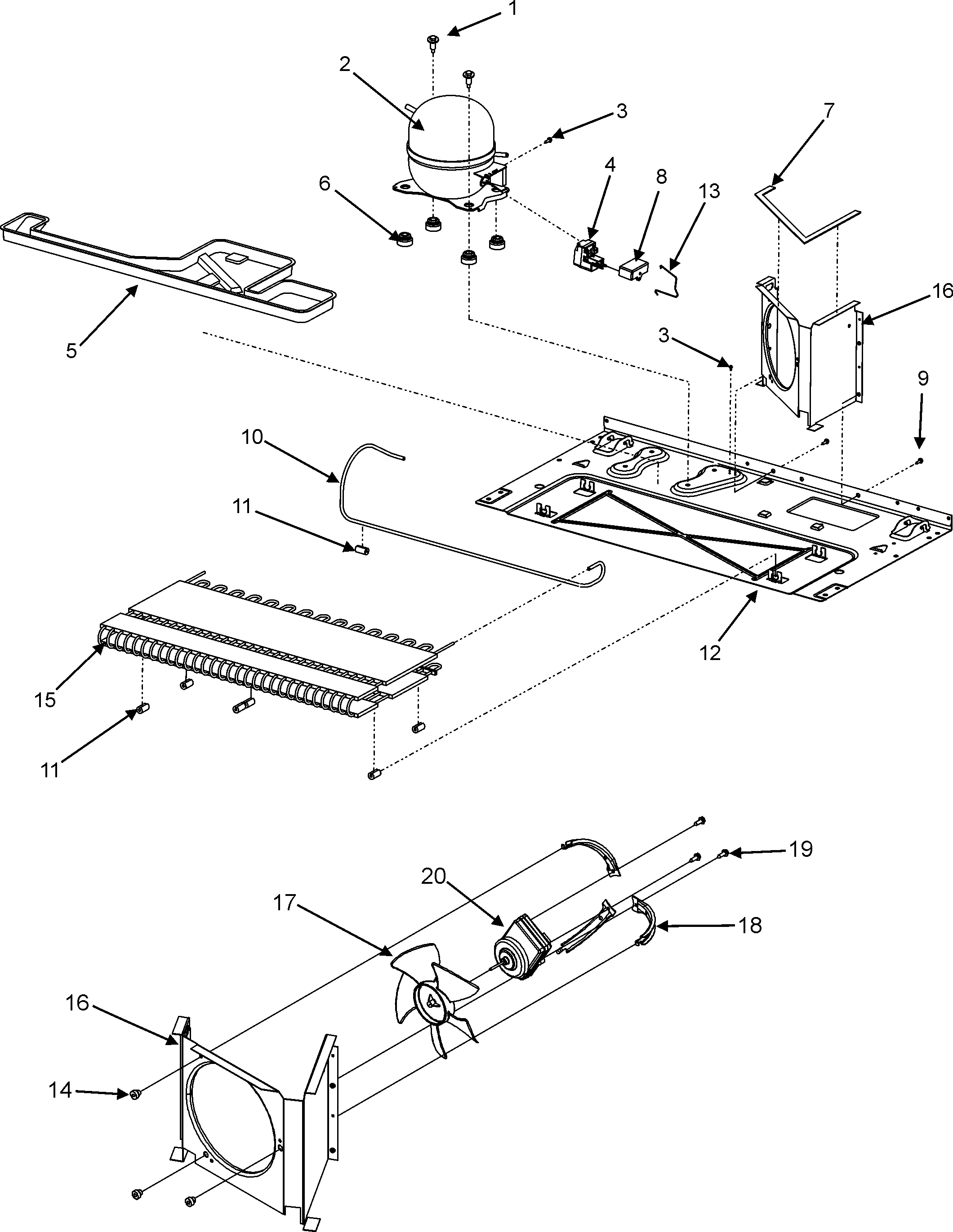

• Refrigerator compressor W10309990 (pumps refrigerant; a failure can stop cooling)
• Refrigerator overload release W10613606 (can prevent the compressor from starting)

Why it matters

A side-by-side refrigerator like the JCD2295KEP depends on steady airflow and heat removal at the condenser. When coils are dirty, vents are blocked, or doors do not seal, temperatures rise, food warms, and the refrigerator runs longer with less cooling.

Last updated: February 2026

Common problems we see with Jenn-Air refrigerators like model JCD2295KEP include not cooling well, water leaks, ice maker or dispenser issues, doors not sealing, and unusual noises. Many of these trace back to airflow restrictions, dirty condenser coils, or a water supply problem; the JCD2295KEP owner's manual troubleshooting chart helps pinpoint the cause.

Most common symptoms and what usually causes them

• Not cooling or warm temperatures: dirty condenser coils, blocked rear air grille, controls set incorrectly, frequent door openings
• Compressor not running: unit in defrost mode (normal), power issue, control setting issue, or a start component problem
• Leaking water or puddles: clogged/iced drain path, loose water line connection, or a valve that is not closing fully
• Ice maker not working: water supply issue, frozen fill path, or failed ice maker module

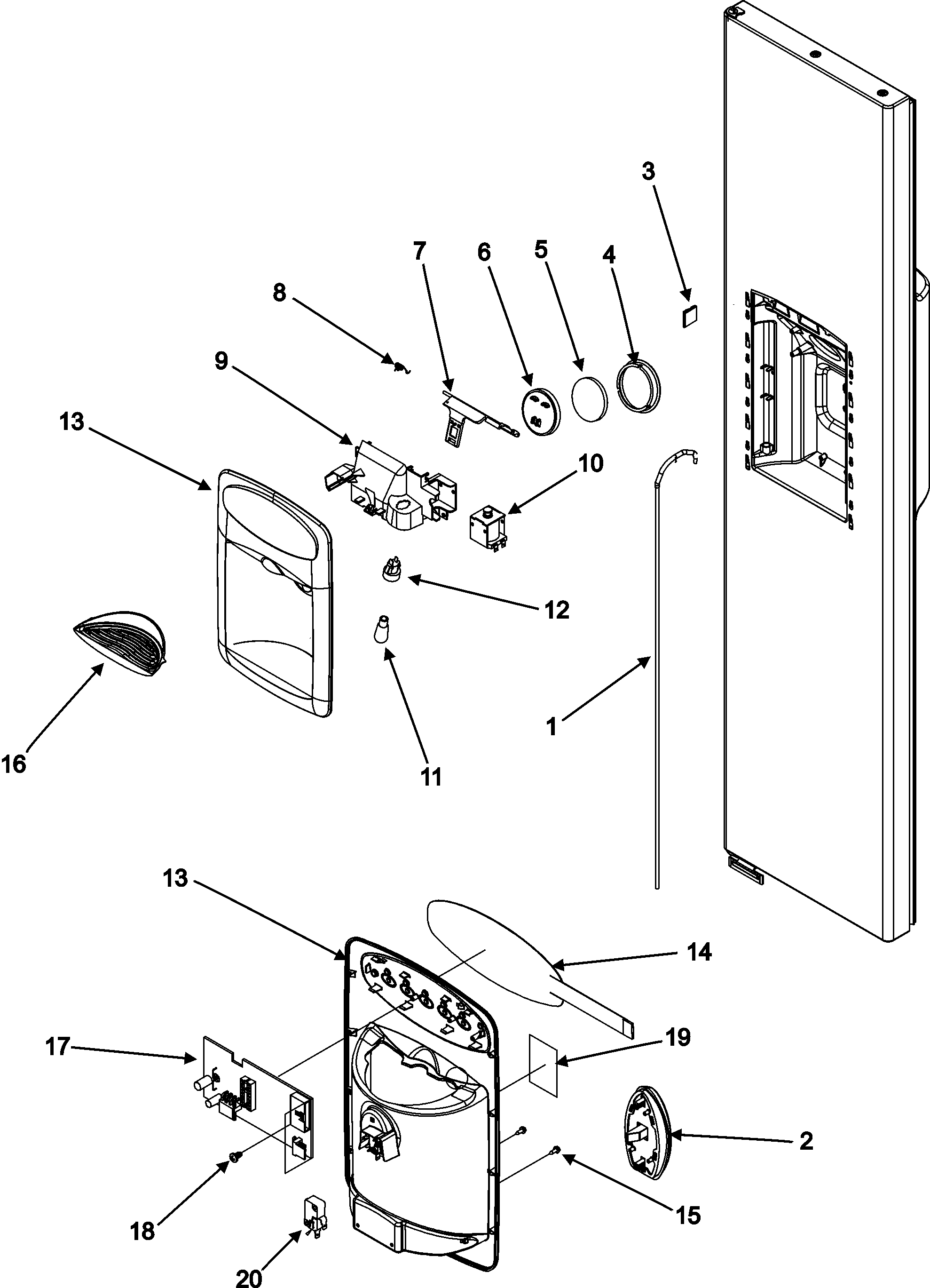

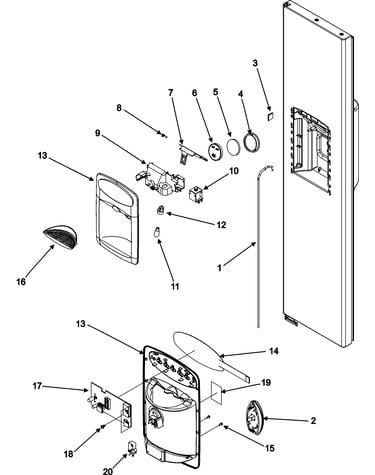

• Water dispenser not working: air in the water line, restricted filter, or inlet valve problem
• Door not closing or poor seal: gasket not sealing, cabinet not level, or overloaded bins/shelves

Quick checks we recommend first (fast, no parts)

• Confirm the refrigerator is plugged in and the breaker is not tripped.
• Wait about 40 minutes if the compressor is off; the refrigerator may be in defrost mode.
• Clean the condenser coils; dirty coils commonly cause warm temps and long run times.
• Make sure the rear air grille and interior air inlets are not blocked by food packages.
• Inspect door gaskets for gaps; clean the sealing surfaces and confirm the cabinet is level.

Parts that commonly solve these problems on JCD2295KEP

If basic checks do not fix the issue, these model-compatible parts are often involved:

Problem area	Common fix	Part to check
Poor cooling, warm fridge	Restore evaporator airflow	Evaporator motor WPW10128551 and refrigerator evaporator fan blade WP2169142

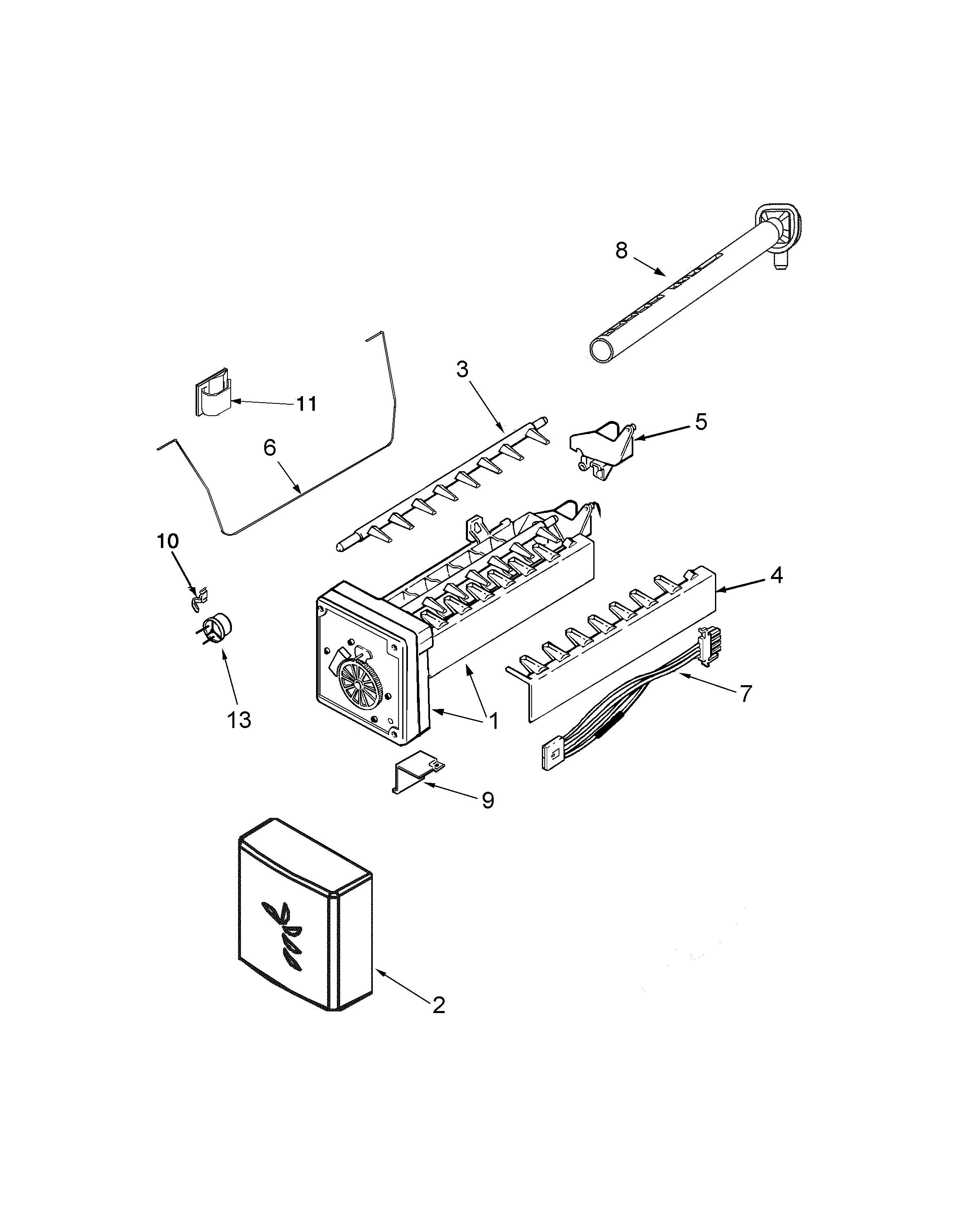

No ice production	Replace ice maker assembly	Refrigerator ice maker D7824706Q
Weak/no water flow	Replace clogged filter	Refrigerator water filter EDR4RXD1
No water to ice maker/dispenser	Restore water fill	Refrigerator water inlet valve assembly WP67006531

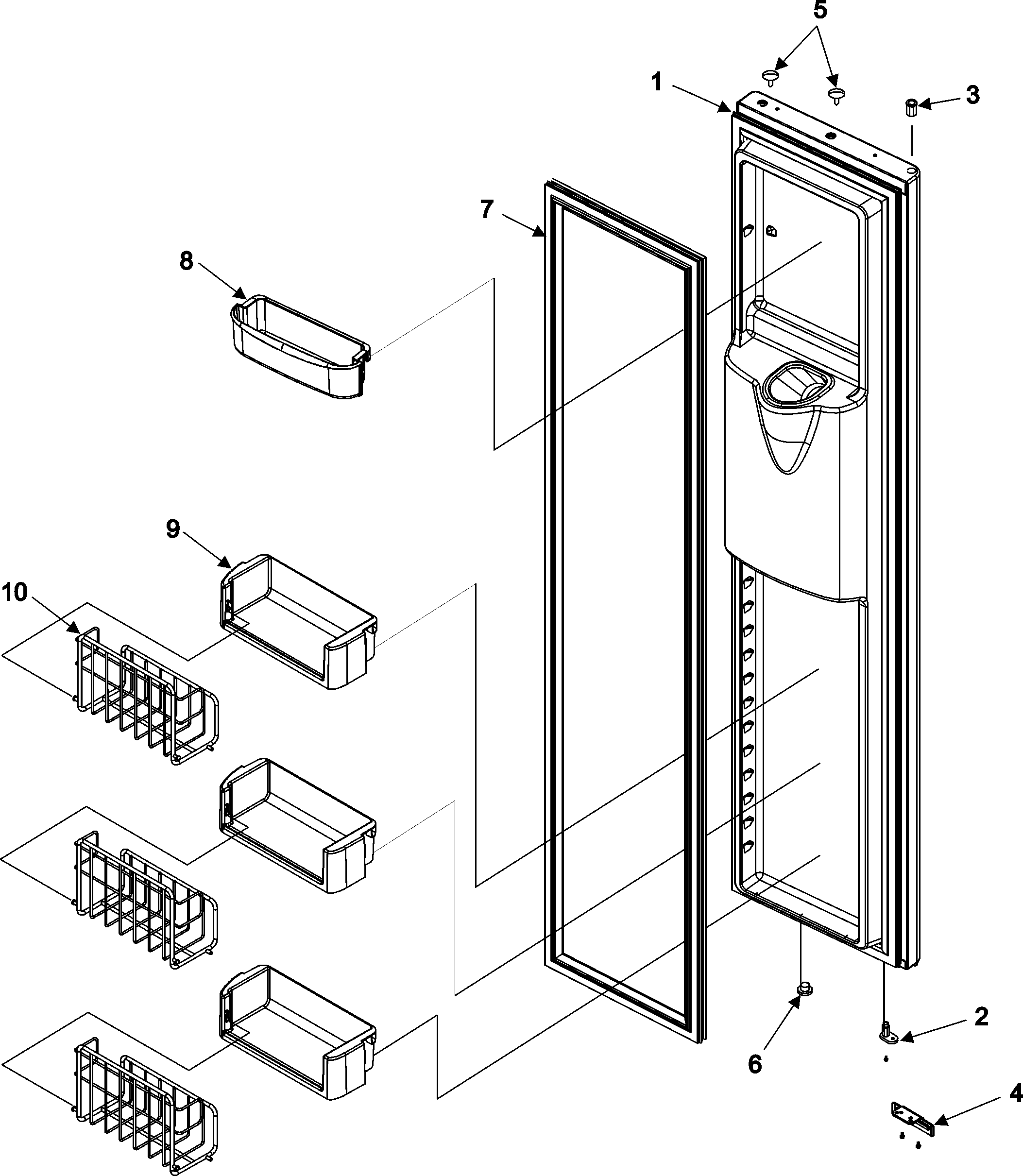

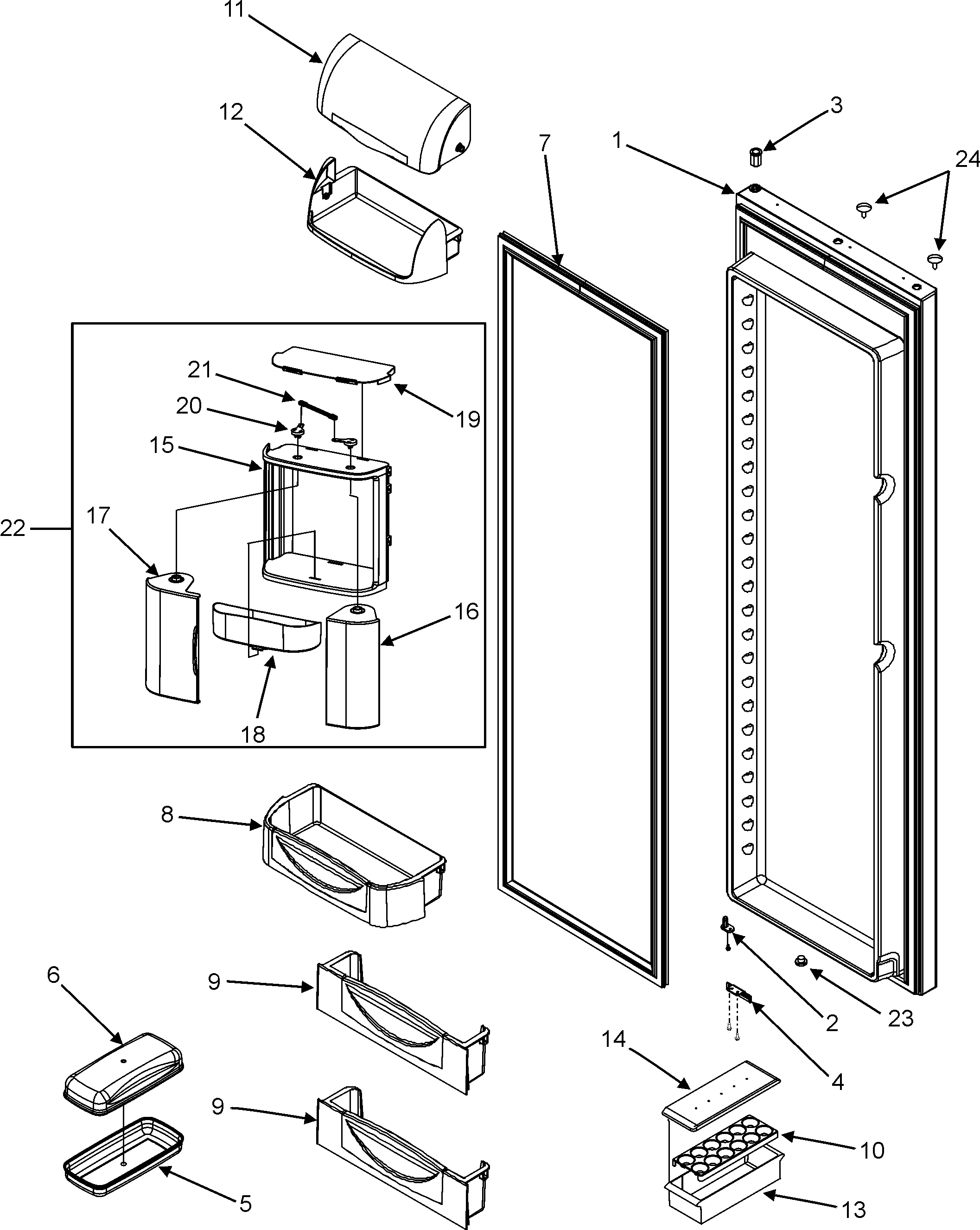

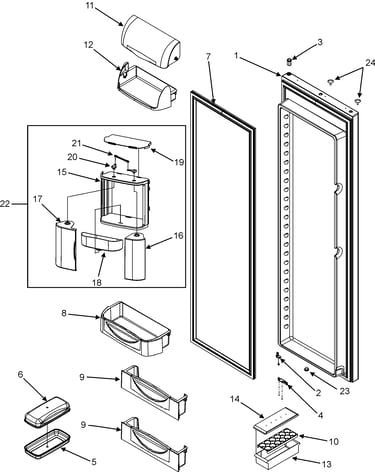

Door not sealing	Replace torn/warped gasket	Refrigerator door gasket W10840101 or refrigerator door gasket W10133491

Why it matters

Cooling and ice-making problems often get worse when airflow is restricted (dirty coils, blocked vents) or when doors do not seal. Fixing those basics first helps protect food temperatures and reduces compressor run time.
