Kenmore
Gas Range

Model # 79075903993 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79075903993 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

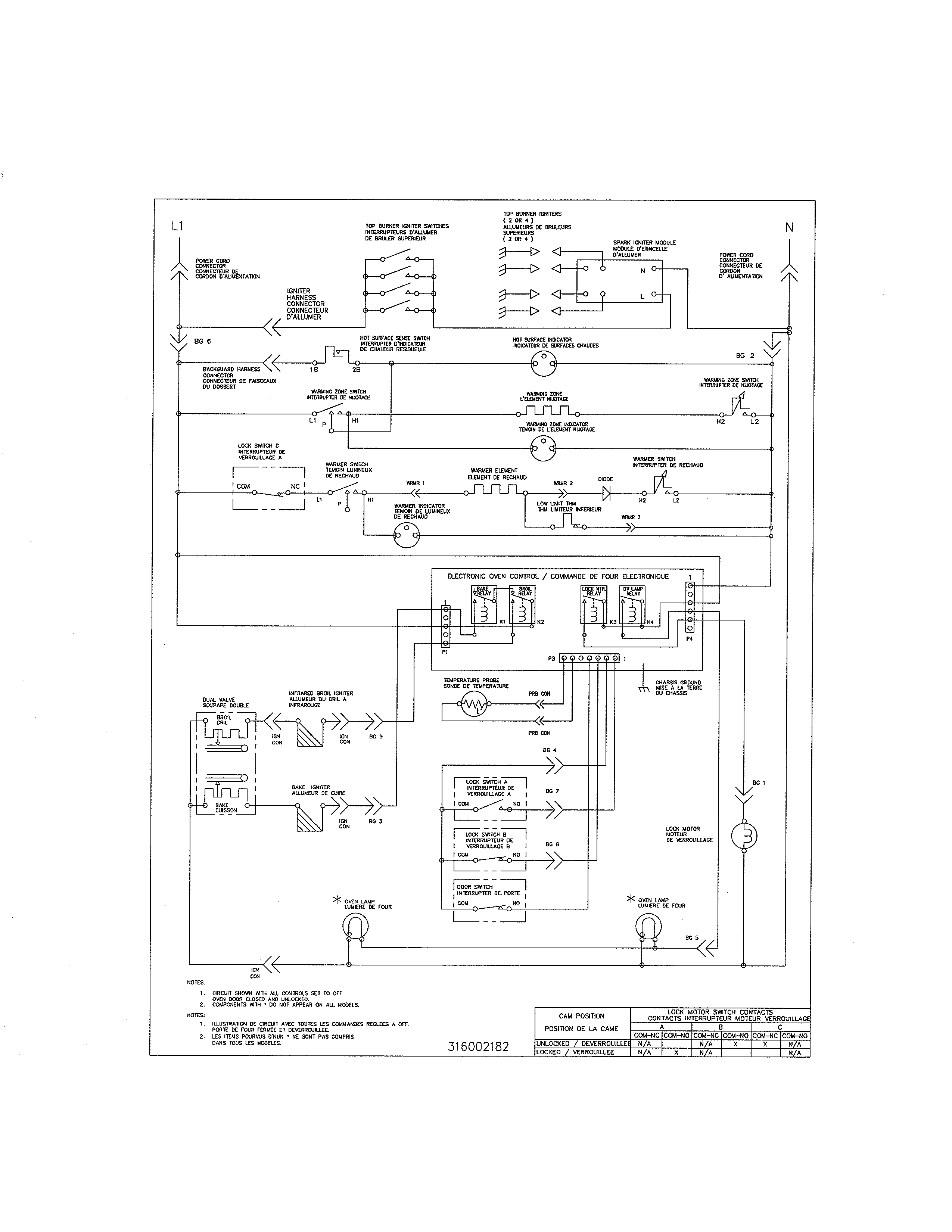

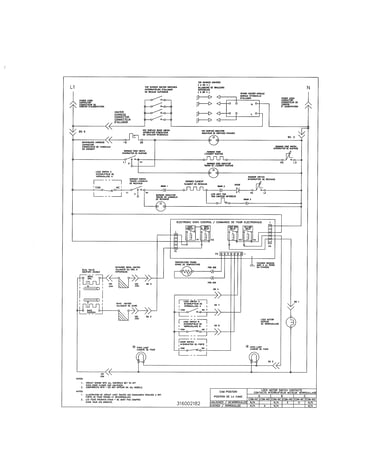

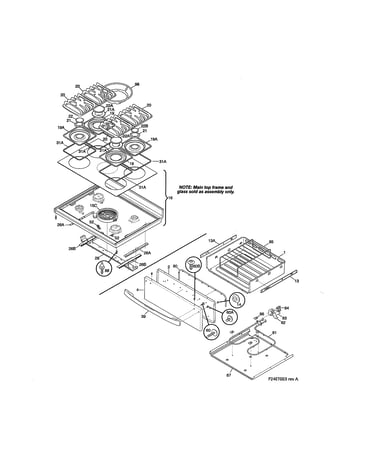

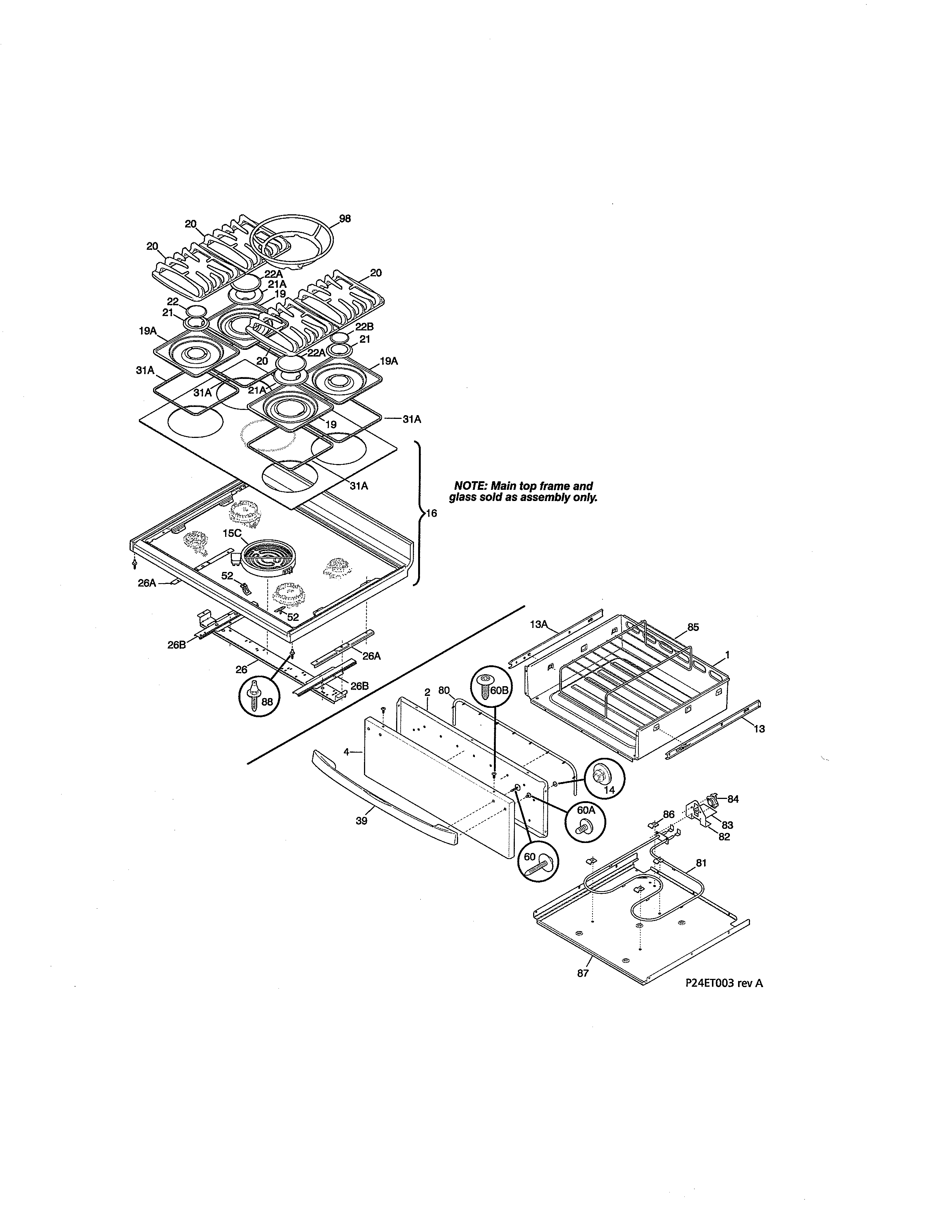

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 190 parts  |

Range Oven Light Bulb 5303013071
#15

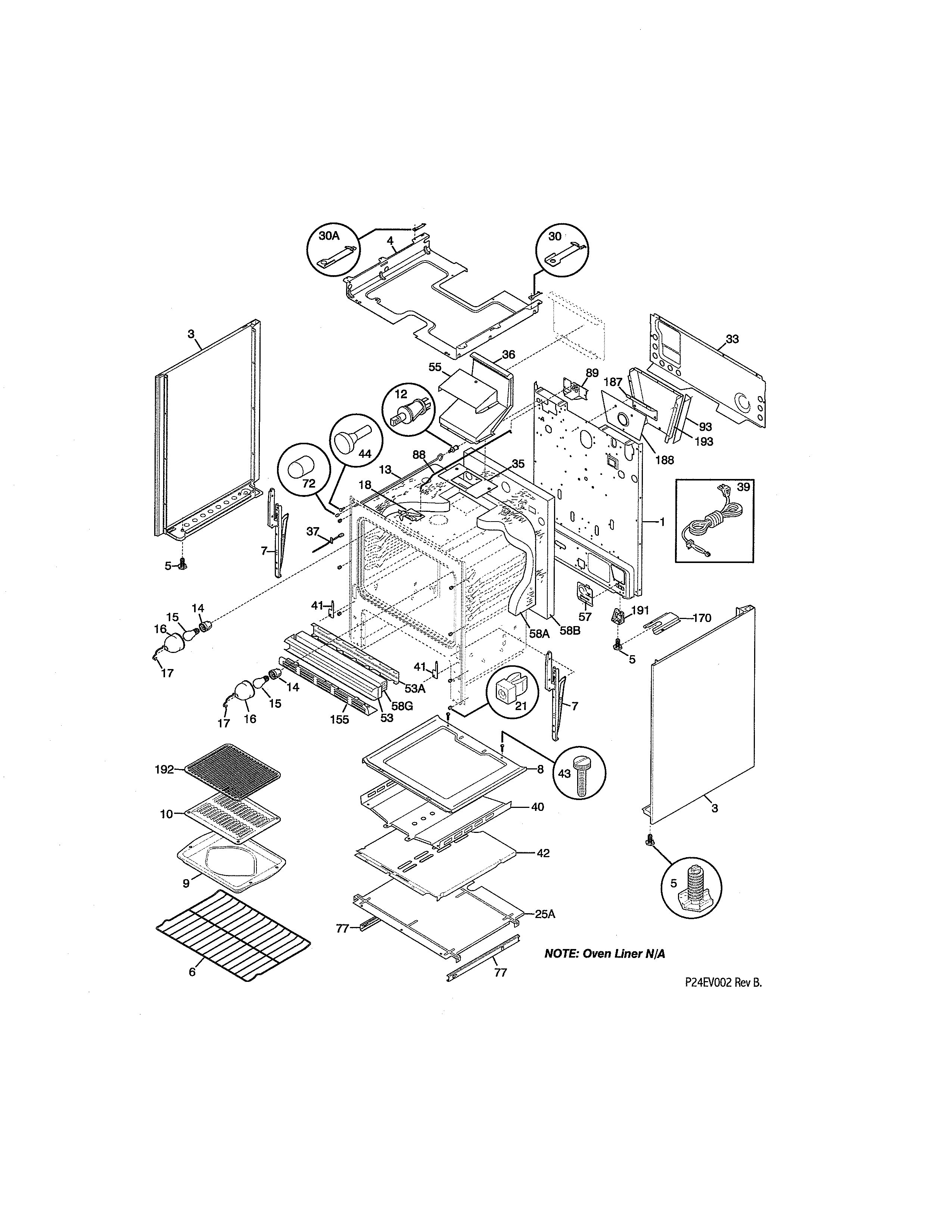

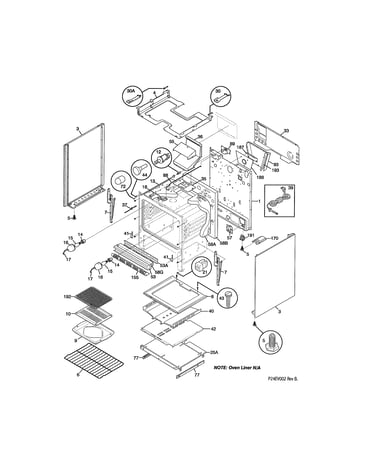

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.78
11% OFF Phone Price : $17.78
In Stock
Range Oven Door Inner Glass 316117500
#8

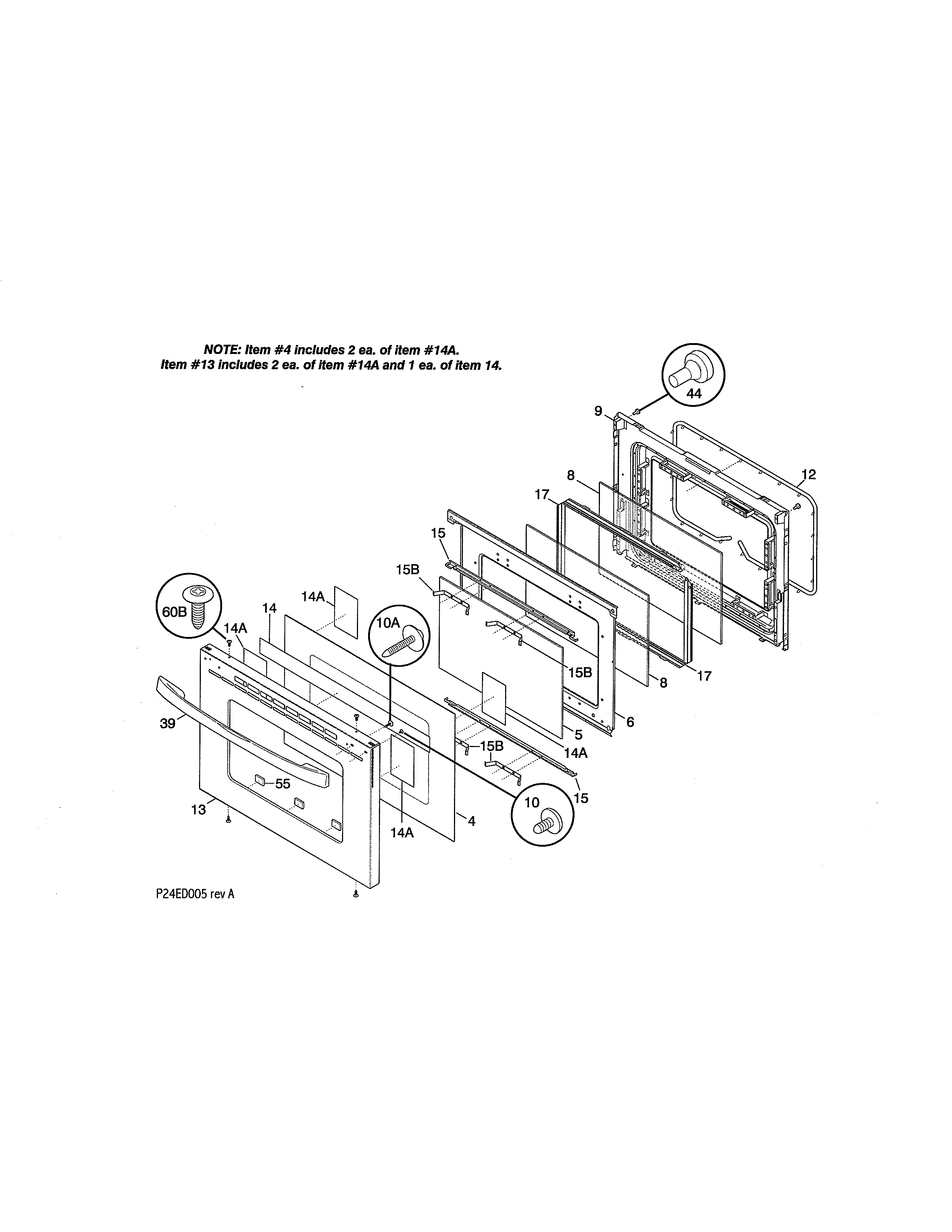

Door diagram

Range oven door inner glass

Part #316117500

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117500. Substitute parts can look different from the original.
BEST SELLER
$85.47
6% OFF Phone Price : $90.47
In Stock
Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, Ap00205013, Ap205013, Ap205016, P205013, P205016, P205034) 5303935066
#19

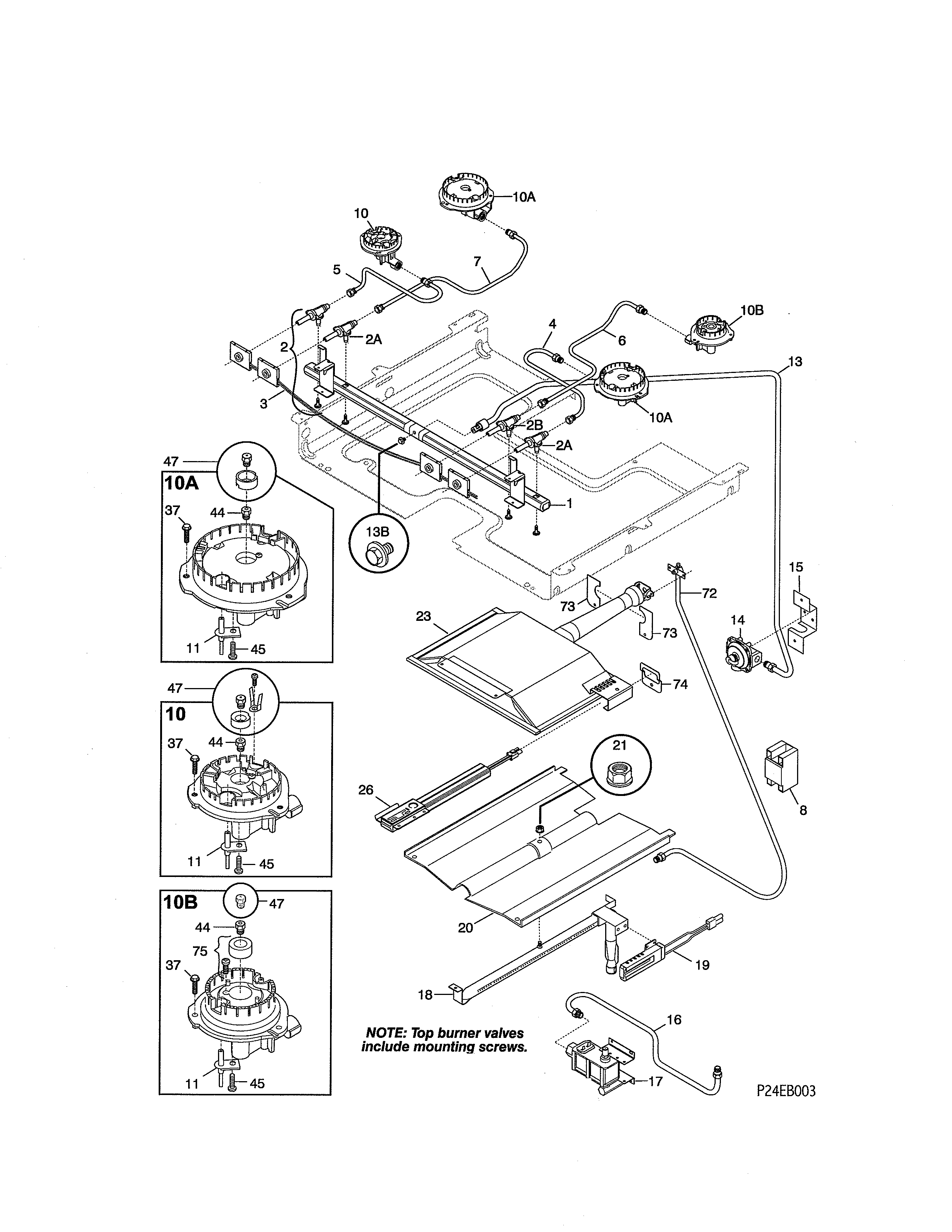

Burner diagram

Range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

BEST SELLER
$34.30
22% OFF MSRP : $44.00
In Stock
Range Oven Rack 316067902
#6

Body diagram

Range oven rack

Part #316067902

BEST SELLER
$71.79
7% OFF Phone Price : $76.79
In Stock
Cover 08011086
#16

Body diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
$13.90
13% OFF Phone Price : $15.90
In Stock
Lens 316040201
#46

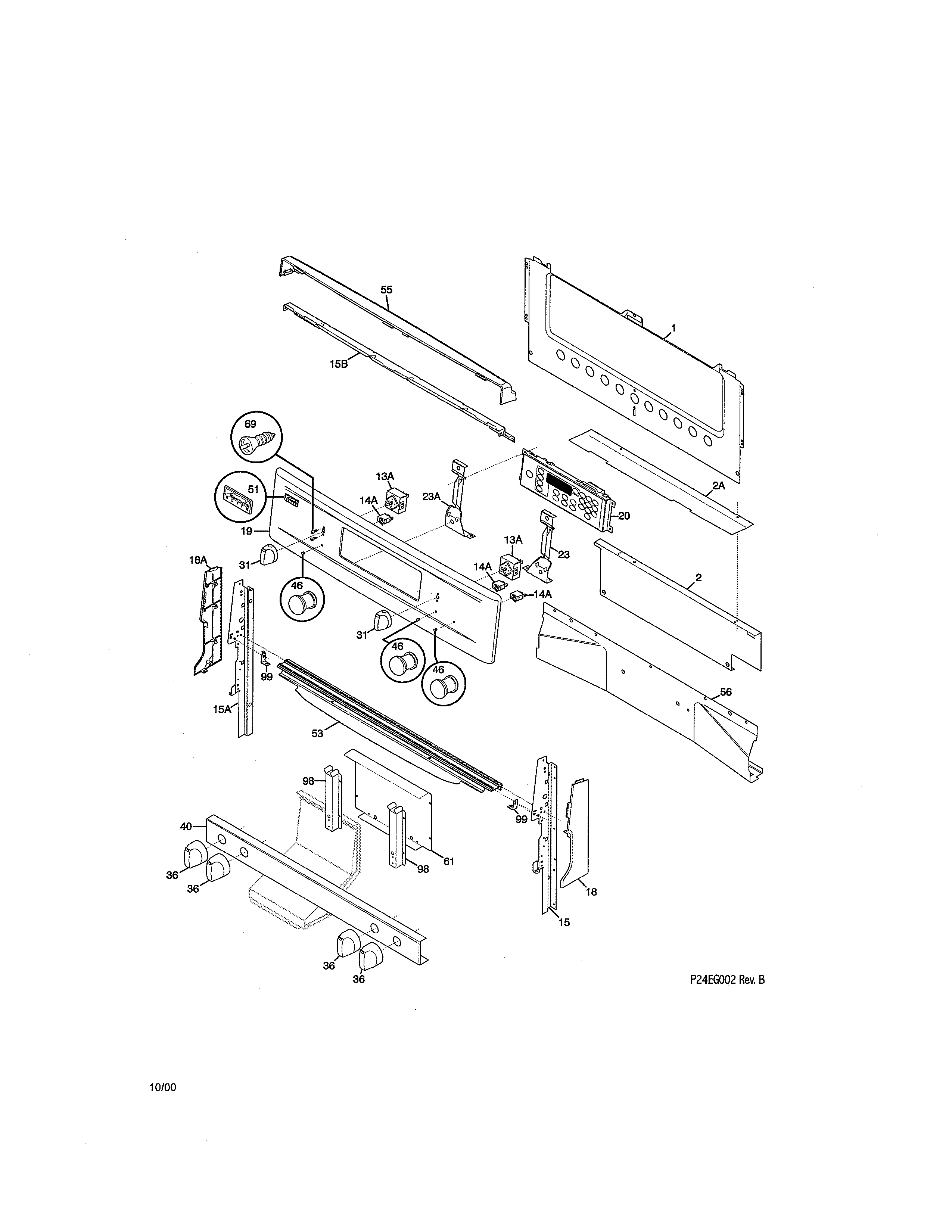

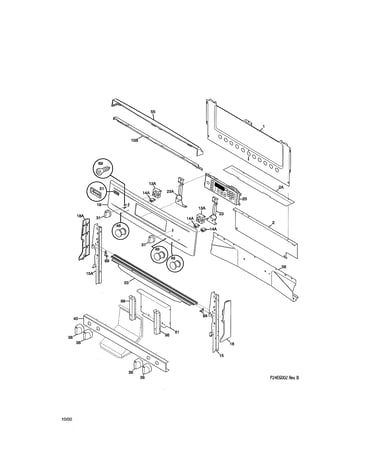

Backguard diagram

Lens

Part #316040201

Replaced by #318228310

?
Manufacturer substitution
This part replaces 316040201. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.59
13% OFF Phone Price : $7.59
In Stock
Out Rh Warmr 316105500
#77

Body diagram

Out rh warmr

Part #316105500

Replaced by #316105501

?
Manufacturer substitution
This part replaces 316105500. Substitute parts can look different from the original.
BEST SELLER
$73.89
6% OFF Phone Price : $78.89
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
Range Screw 316021110

#NI12

All parts diagram

Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
Range Hex Head Screw, #8-18 X 3/8-in 316021105
#60

Body diagram

Range hex head screw, #8-18 x 3/8-in

Part #316021105

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
