Kenmore Elite 79574032410 refrigerator Parts

On a Kenmore Elite refrigerator like model 79574032410, the model number is printed on a rating label inside the cabinet. You will typically find it on an interior side wall, on the door frame area, or behind/near the crisper drawers.

Common places to check first

Look for a white or silver sticker or plate with the model and serial number. Check these spots:

• Inside the fresh food (refrigerator) compartment on a side wall
• On the door frame (open the refrigerator door and look around the perimeter)
• Behind the lower crisper drawers (remove drawers to see the back wall area)
• Inside the freezer compartment on an interior wall
• Behind the lower front kick plate (toe grille), if your unit has one

Quick tips to make the label easier to find

• Use a flashlight and look for small print near the top corners and side walls
• Wipe condensation or smudges off the label so the numbers are readable
• Write down both the model and serial number; both help when ordering parts

Why it matters

The exact model number ensures we match the correct Kenmore Elite 795-series parts and diagrams. Even small model-number differences can change which water filter, ice maker, or control board fits.

What the label usually looks like

What you’ll see	Why it’s useful
Model number (example: 79574032410)	Identifies the exact refrigerator configuration
Serial number	Helps confirm production details for service and parts lookup
Electrical ratings	Useful for troubleshooting and safe servicing

For more model identification and feature details for this series, use the owner's manual.

Last updated: February 2026

A Kenmore Elite 79574032410 bottom-mount refrigerator typically lasts 10 to 15 years. To reach the upper end of that range, focus on basic upkeep like keeping the condenser area clean, maintaining good door seals, and addressing cooling or ice maker issues early using the 79574032410 owner's manual.

Typical lifespan and what affects it

Most refrigerators in this class land in the 10 to 15 year range; the biggest swing factors are heat load, airflow, and how hard the sealed system has to work.

• Condenser cleanliness and airflow: dusty coils make the compressor run hotter and longer
• Door seal condition: air leaks cause longer run times and temperature swings
• Ice maker and water system health: leaks and clogs can create secondary problems
• Room temperature and ventilation: tight cabinets and hot garages shorten life
• How full it runs: overpacking blocks vents; underpacking can increase cycling

What “normal operation” looks like

Your refrigerator may run longer than older models; the manual notes that a high-efficiency compressor can run longer while still being more energy efficient, and you may hear a pulsating or high-pitched sound during operation.

Maintenance checklist to help it last longer

Use this as a simple routine for the 79574032410.

• Vacuum dust from the condenser area regularly
• Keep food from blocking interior air vents and the air diffuser
• Clean and inspect door gaskets; correct door alignment if doors pop open
• Replace the water filter on schedule to protect water flow and the ice maker
• Watch for puddles, frost buildup, or warm spots and troubleshoot early

Quick “repair vs. replace” guide

If your fridge is…	Usually makes sense to…
Under 8 years old	Repair most cooling, ice, and dispenser issues
10 to 15 years old	Compare repair cost vs. remaining life
Over 15 years old	Replace if sealed-system repairs are needed

Parts that commonly come up as refrigerators age

These are frequent wear or failure points on bottom-mount units.

• Water filter: genuine Kenmore refrigerator water filter 9690 AGF80300801
• Water supply issues: lg refrigerator water inlet valve AJU72992603
• Ice production issues: lg refrigerator ice maker AEQ73130004
• Cooling control issues: refrigerator electronic control board EBR78940615

Why it matters

A refrigerator that runs hot, leaks air, or has restricted airflow forces the compressor and sealed system to work harder. That increases run time, raises energy use, and shortens the service life of major components.

Last updated: February 2026

Common problems we see with the Kenmore Elite 79574032410 bottom-mount refrigerator include weak or uneven cooling, ice maker or dispenser issues, water leaks, doors that do not seal or close correctly, and frost buildup from defrost or airflow problems. Your owner's manual troubleshooting section helps match symptoms to the most likely cause.

Most common symptoms and what usually causes them

• Not cooling well or temperature swings: dirty condenser coil, airflow blockage, fan or sensor issues
• Food freezing in the fresh food section: items too close to an air vent, control set too cold, or room temperature too low
• Ice maker not making ice or dispensing poorly: ice maker assembly issue, ice container jam, or water supply/valve problem
• Water leaking: clogged/iced drain, loose water line connection, or inlet valve problem
• Doors popping open or not sealing: bins/shelves out of position, packages blocking the door, or leveling/alignment issues

Quick checks we recommend first (no parts required)

• Clean dust from the condenser area; restricted airflow is a top cause of warm temps.
• Move high-water-content foods away from air vents if items are freezing.
• Reduce long or frequent door openings to limit humidity and frost.
• Make sure bins, pans, and shelves are fully seated so doors close correctly.
• If the door is hard to open right after closing, wait 1 minute for pressure to equalize.

Parts that commonly fix these issues

If troubleshooting points to a failed component, these model-matched parts are common solutions:

Symptom	Likely part	Example part for model 79574032410
Warm fridge/freezer, poor heat rejection	Condenser coil	Refrigerator condenser coil ACG73645004
No water to ice maker/dispenser	Water inlet valve	Lg refrigerator water inlet valve AJU72992603
Ice maker not producing ice	Ice maker	Lg refrigerator ice maker AEQ73130004
Frost/defrost-related cooling issues	Defrost sensor	Refrigerator defrost sensor assembly 6615JB2005R
Random behavior after outage, no response	Electronic control board	Refrigerator electronic control board EBR78940615

Why it matters

Cooling, ice, and leak complaints often share the same root causes: restricted airflow, incorrect temperature settings, or a failing water/defrost component. Catching the cause early helps prevent food spoilage, ice buildup, and repeated cycling that stresses the compressor.

Last updated: February 2026

On the Kenmore Elite 79574032410 bottom-mount refrigerator, the damper control is in the fresh food (refrigerator) compartment at the air outlet where cold air enters from the freezer. It sits behind a small vent cover or diffuser housing; confirm the exact spot in the owner's manual.

How to locate it fast

• Open the refrigerator door (not the freezer drawer).
• Look for the cold-air vent area where airflow enters the refrigerator section.
• Check the upper rear wall first; that is the most common damper location on bottom-mount designs.
• Look for a snap-on plastic grille or cover that hides the damper door.
• Move food packages away from vents; blocked vents can mimic a damper problem.

What it does and why it can get noisy

The damper is a small door that opens and closes to regulate cold air into the refrigerator section. Clicking, tapping, or fluttering noises happen when the damper cycles or when airflow is restricted by frost, ice, or items packed against the vent.

Symptom guide

Symptom	Likely damper-related cause	First step
Refrigerator too warm, freezer OK	Damper stuck closed or vent blocked	Clear vents; recheck temps after 24 hours
Refrigerator too cold, items freezing	Damper stuck open	Raise refrigerator temp 1 step; wait 24 hours
Repeated clicking near vent	Damper motor cycling or obstruction	Inspect vent area for ice or blockage

Checks before replacing parts

• After changing temperature settings, wait 24 hours for temperatures to stabilize.
• Inspect the vent area for frost or ice buildup.
• If you are also troubleshooting weak water flow or ice maker issues, replace the water filter on schedule; use the genuine Kenmore refrigerator water filter 9690 AGF80300801 if that is the filter installed in your unit.

Why it matters

A working damper keeps milk cold without freezing produce; it also prevents temperature swings that can increase noise and moisture.

Last updated: February 2026

Water leaking from the bottom of your Kenmore Elite 79574032410 is usually caused by defrost water not draining (a clogged or frozen defrost drain) or a water supply leak at the filter, inlet valve, or dispenser/ice maker tubing. Use the owner's manual to pinpoint the source.

Quick checks (most common causes)

• Pull out the crispers; water or a thin ice sheet under them points to a defrost drain clog or freeze-up.
• Check the water filter door and housing for drips, especially right after dispensing.

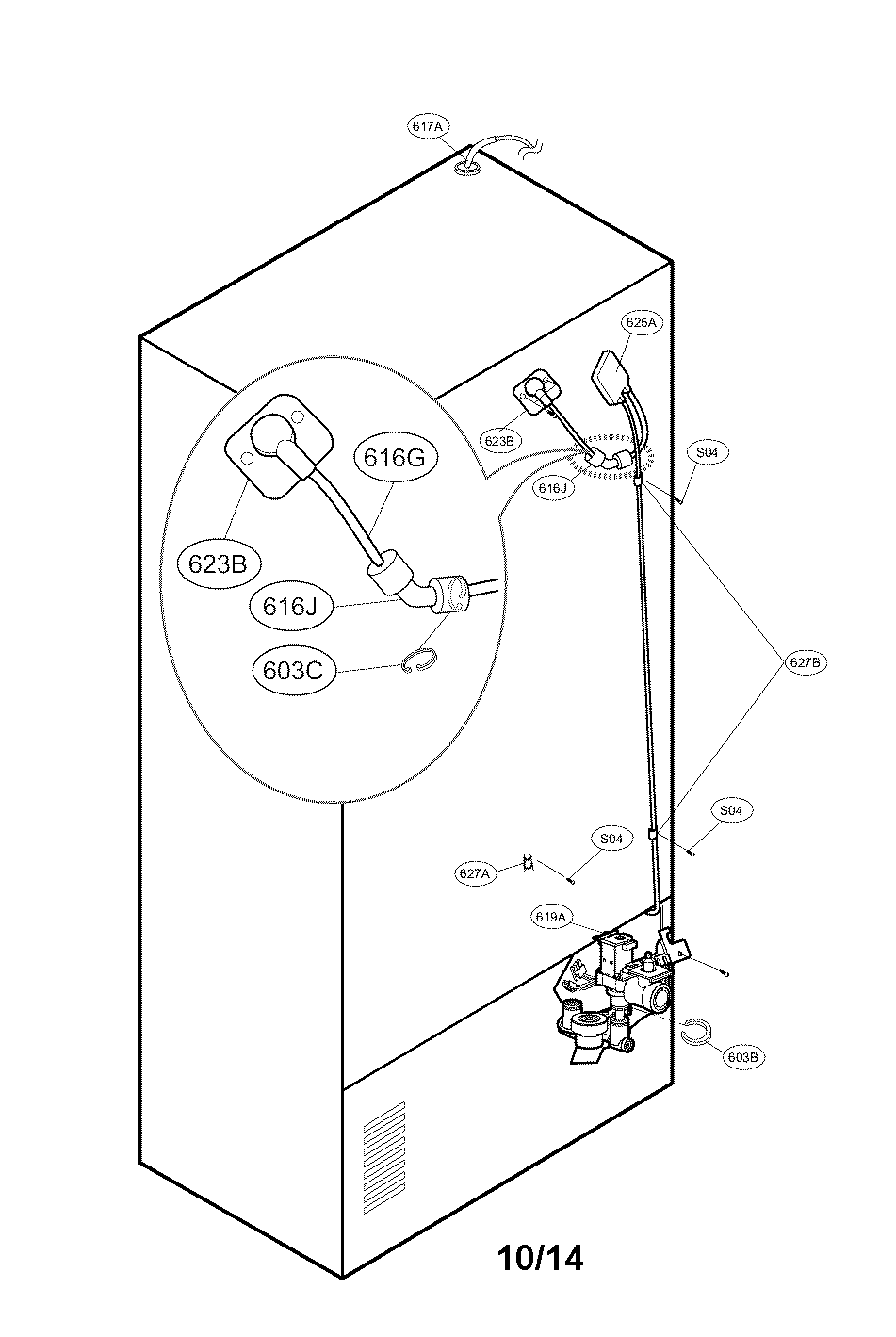

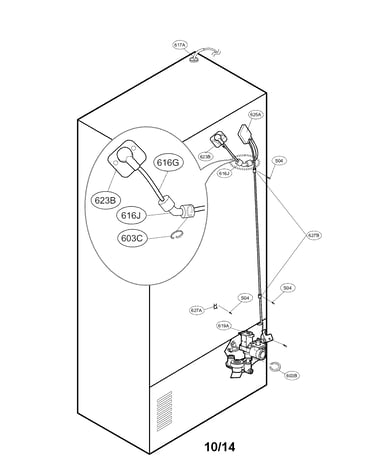

• Inspect the water line behind the refrigerator for a loose fitting, kink, or rub spot.
• Look at the drain pan under the unit; some water during defrost is normal, overflow is not.
• If it leaks only when dispensing water or making ice, focus on the supply side.

Isolate the leak in 10 minutes

1. Dry the floor and any wet areas inside the fresh food section.
2. Don’t dispense water for a few hours; if it still leaks, the defrost drain path is the likely source.
3. Dispense 2 to 3 cups of water; watch for drips at the filter area and underneath.
4. If the leak appears during ice maker fill cycles, inspect the valve and tubing connections.

Parts that commonly solve bottom leaks

Leak pattern	Most likely area	Part to consider
Water under crispers, recurring puddles	Defrost drain icing or restriction	Defrost system issues can contribute; check the refrigerator defrost sensor assembly 6615JB2005R if you also have heavy frost buildup
Leak during dispenser use or ice maker fill	Water supply valve or fittings	Lg refrigerator water inlet valve AJU72992603
Drips right after filter replacement	Filter not seated, O-rings, housing	Genuine Kenmore refrigerator water filter 9690 AGF80300801

Why it matters

A bottom leak can damage flooring and can also lead to ice buildup that restricts airflow, causing warm temperatures and poor ice maker performance.

Helpful DIY guidance

• How to get rid of refrigerator puddles

Last updated: February 2026
