Frigidaire
Bottom-Mount Refrigerator

Model # LGHD2369TF5 Official Frigidaire bottom-mount refrigerator

Here are the diagrams and repair parts for Official Frigidaire LGHD2369TF5 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

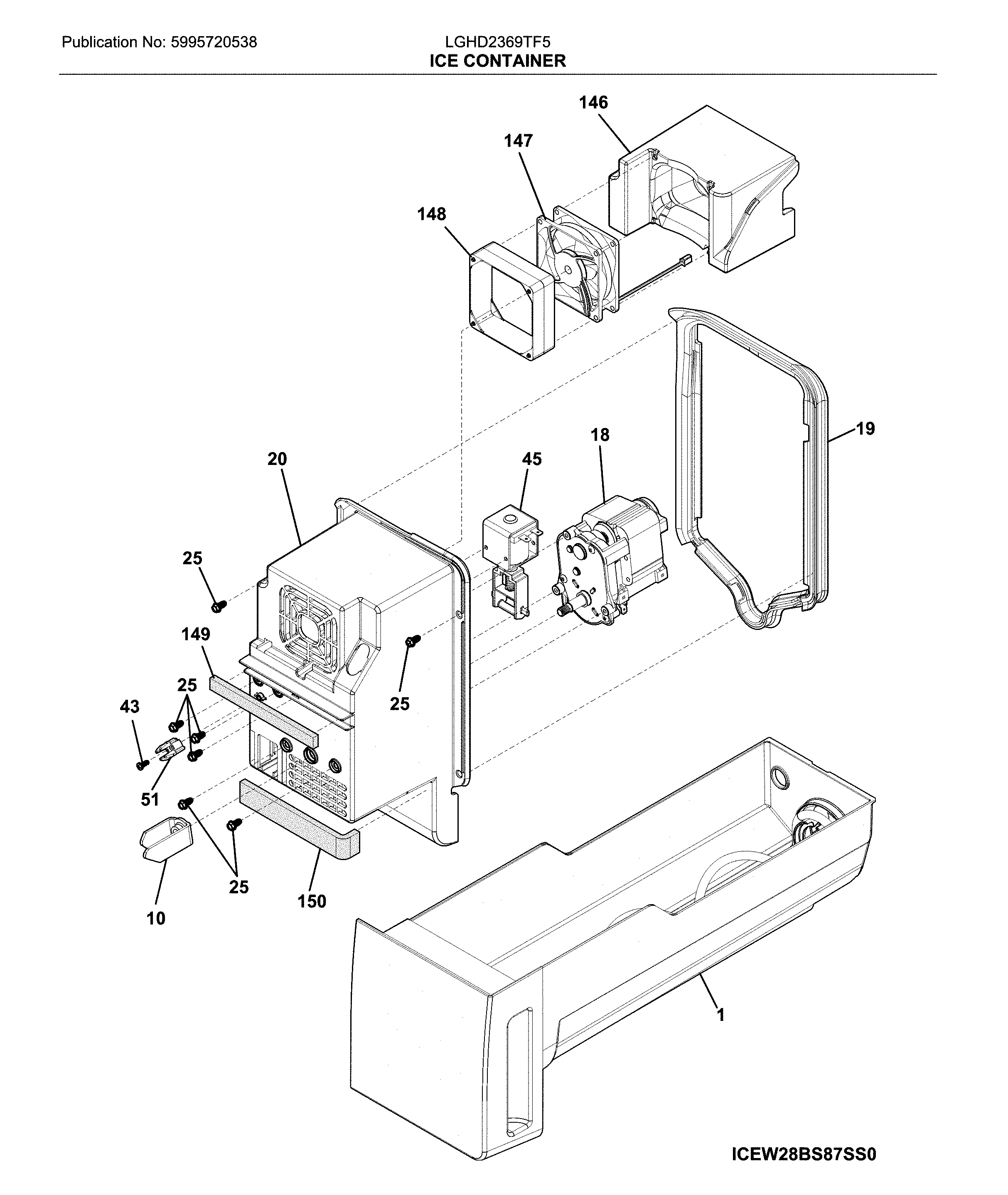

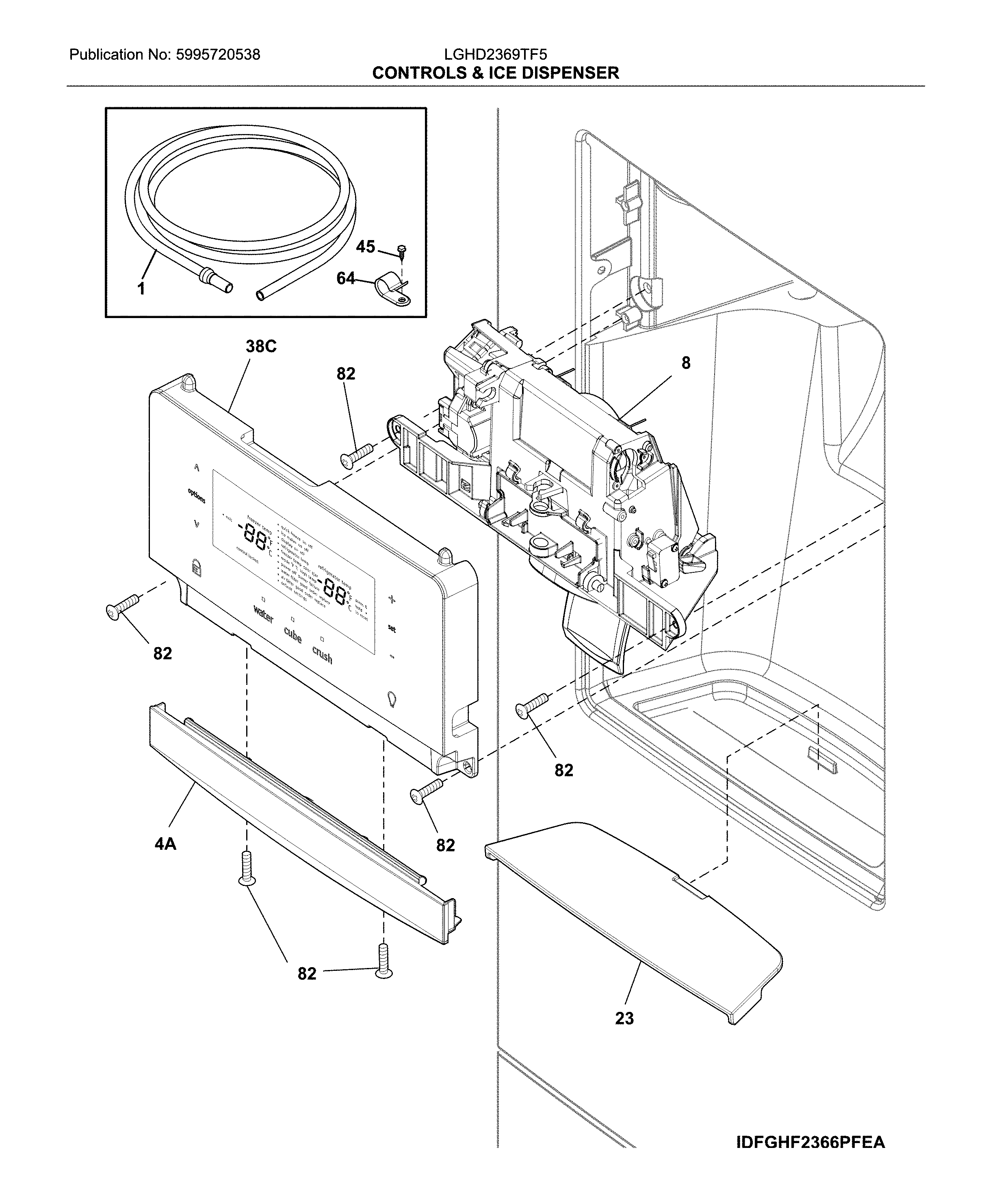

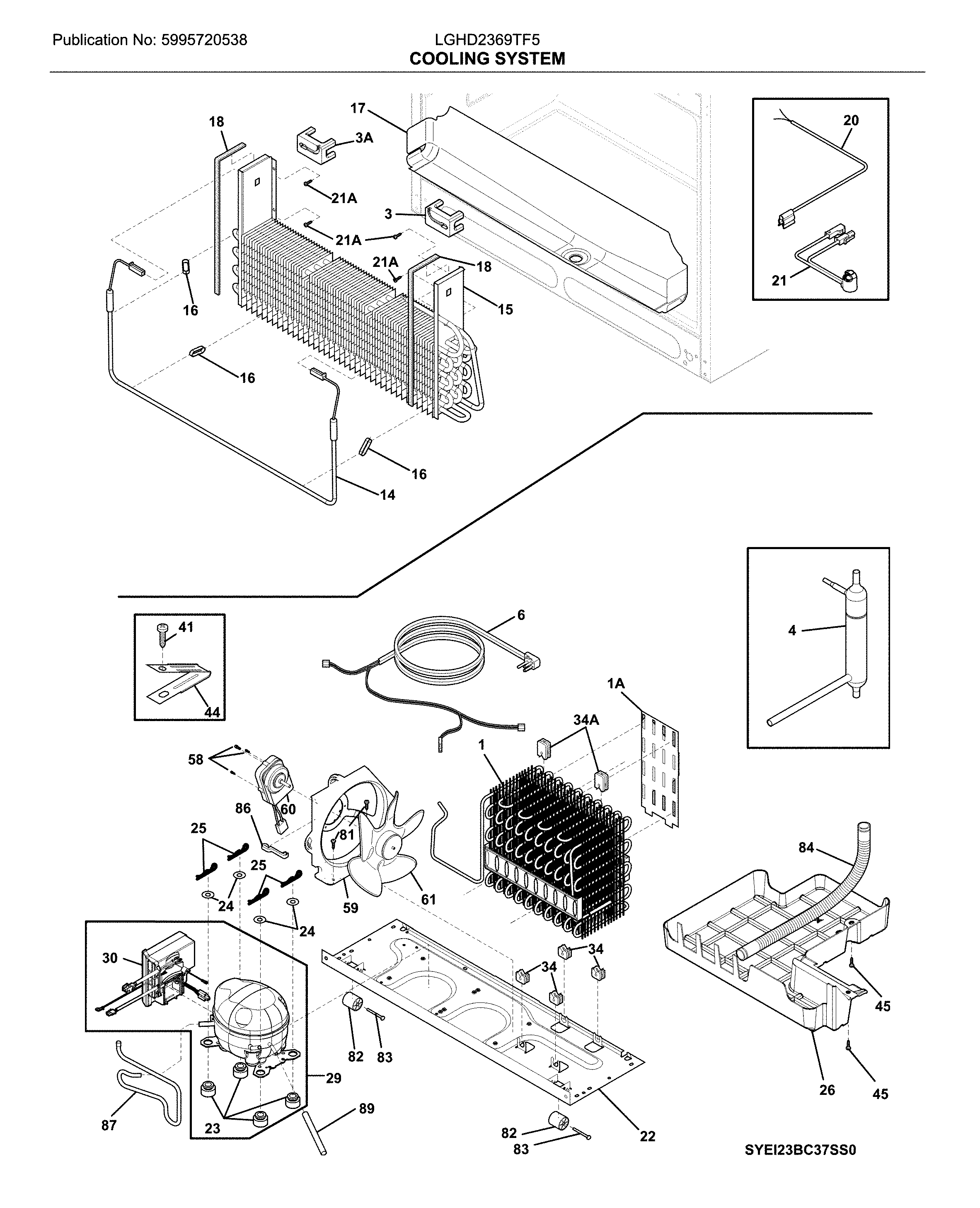

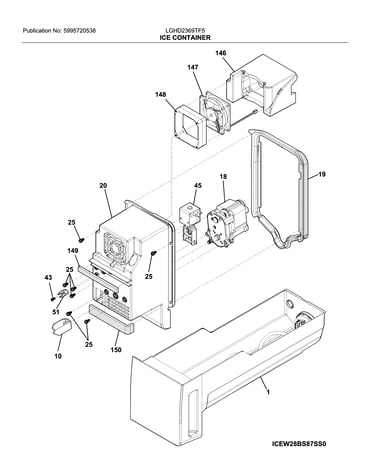

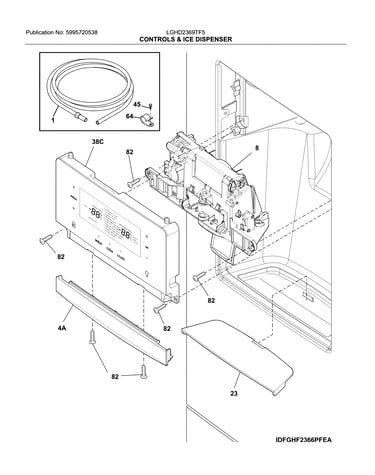

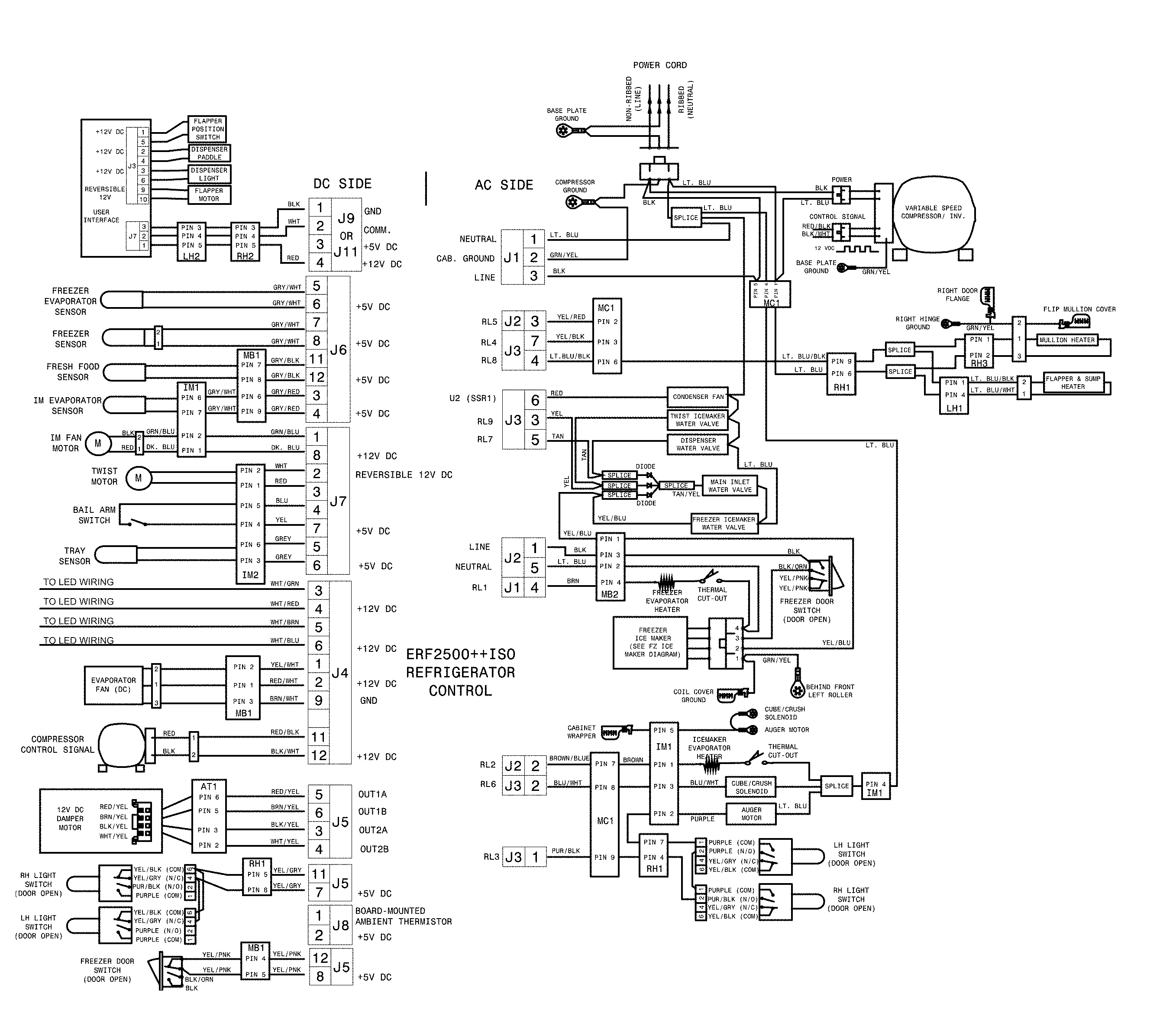

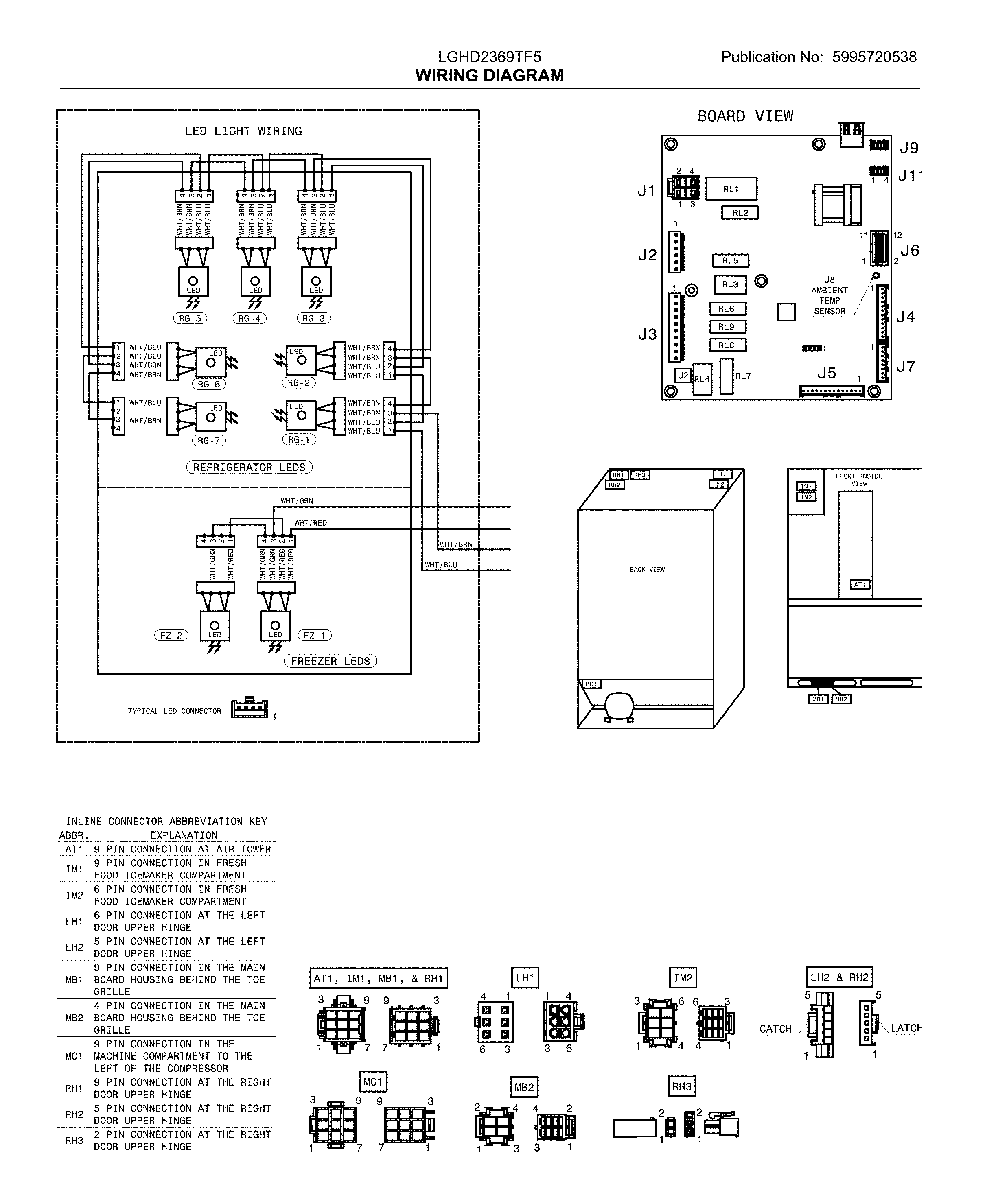

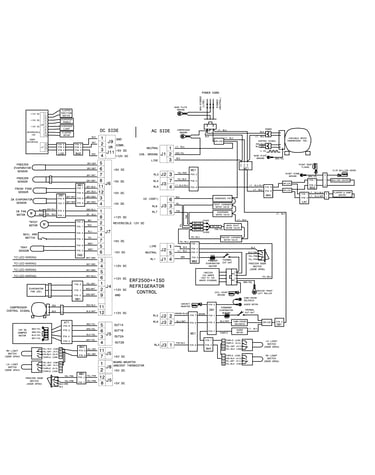

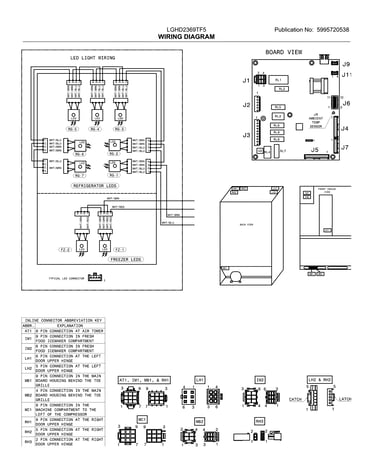

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 244 parts  |

Refrigerator Filter Assembly 807946701
#137

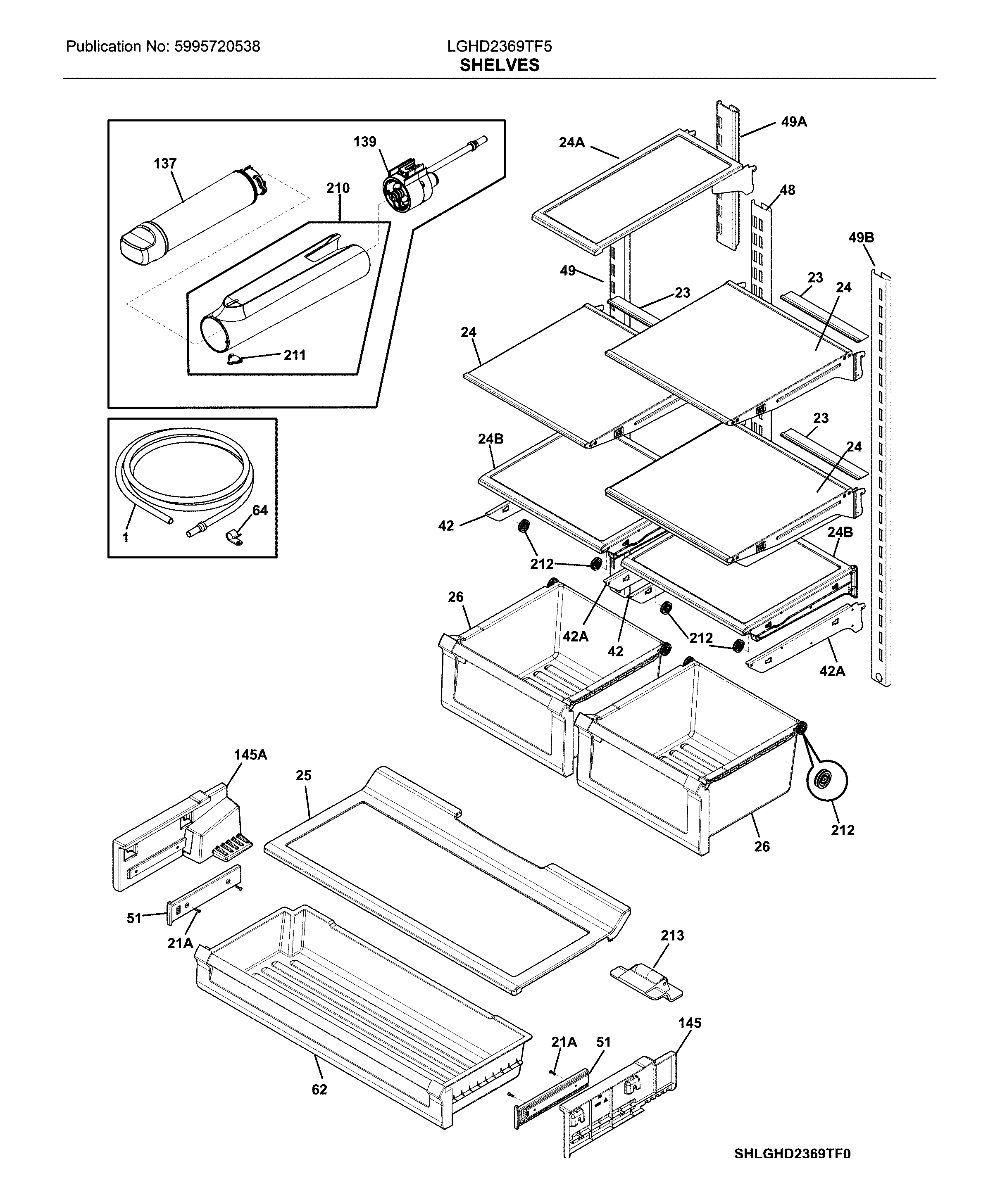

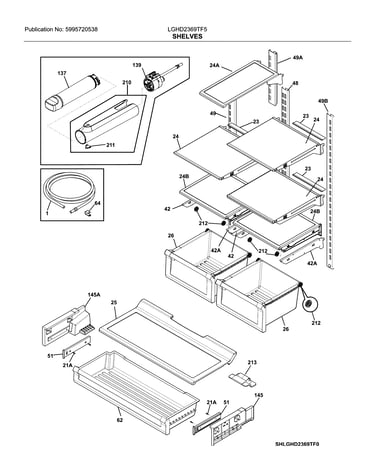

Shelves diagram

Refrigerator filter assembly

Part #807946701

Replaced by #EPTWFU01

?
Manufacturer substitution
This part replaces 807946701. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$64.98
19% OFF MSRP : $80.00
In Stock
Refrigerator Crisper Drawer Roller 5304508016
#212

Shelves diagram

Refrigerator crisper drawer roller

Part #5304508016

BEST SELLER
This item is not returnable
$2.89
26% OFF Phone Price : $3.89
In Stock
Refrigerator Freezer Door Gasket (replaces 241778308) 5304501270
#1

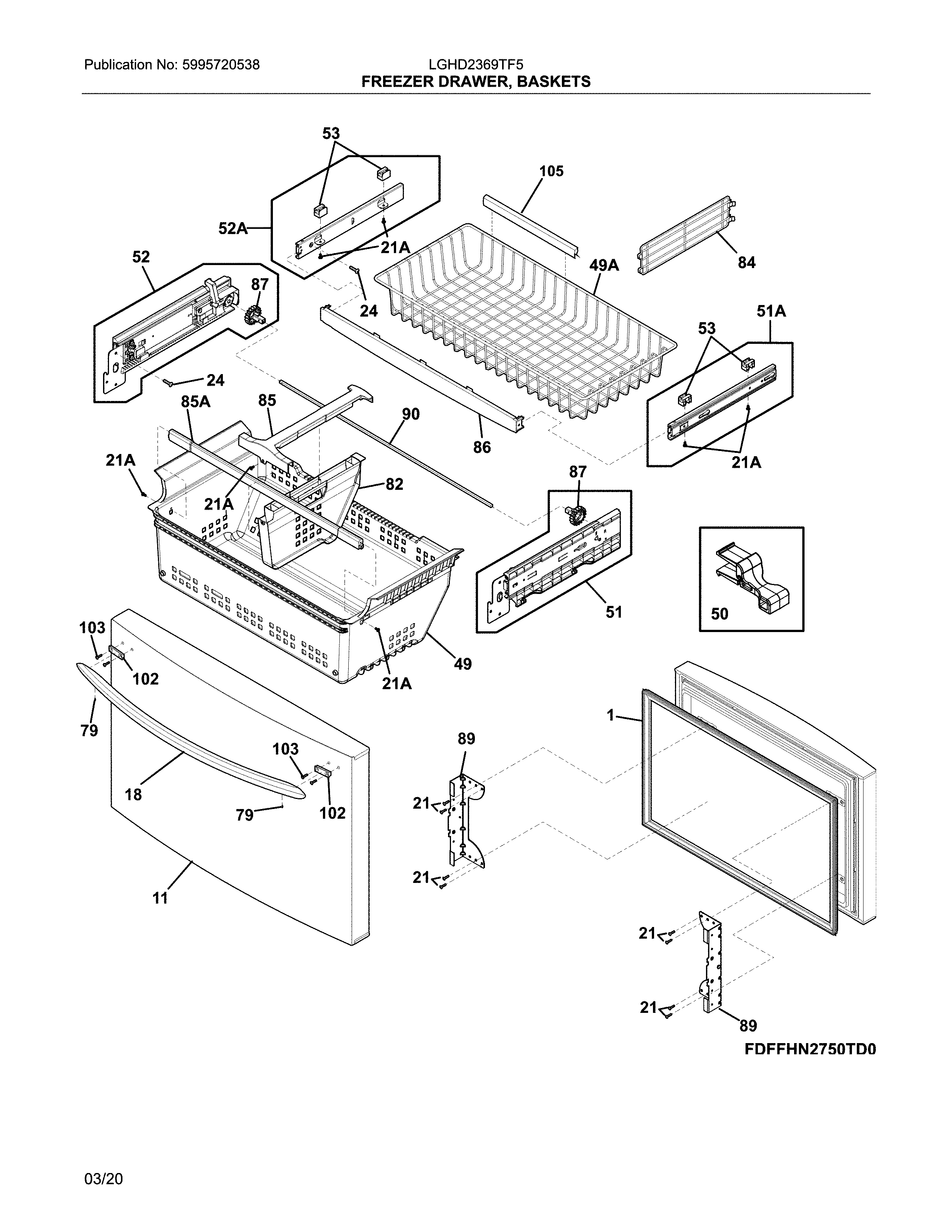

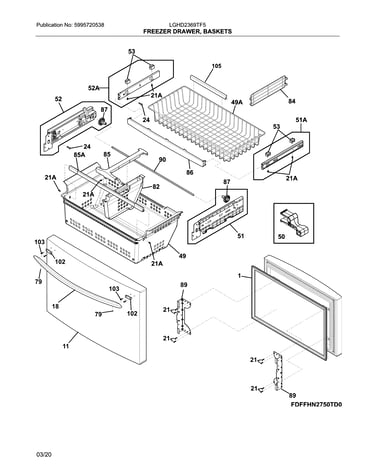

Freezer door diagram

Refrigerator freezer door gasket (replaces 241778308)

Part #5304501270

BEST SELLER
$137.11
7% OFF Phone Price : $147.11
In Stock
Refrigerator Door Hinge (replaces 7241779401) 241779401
#82

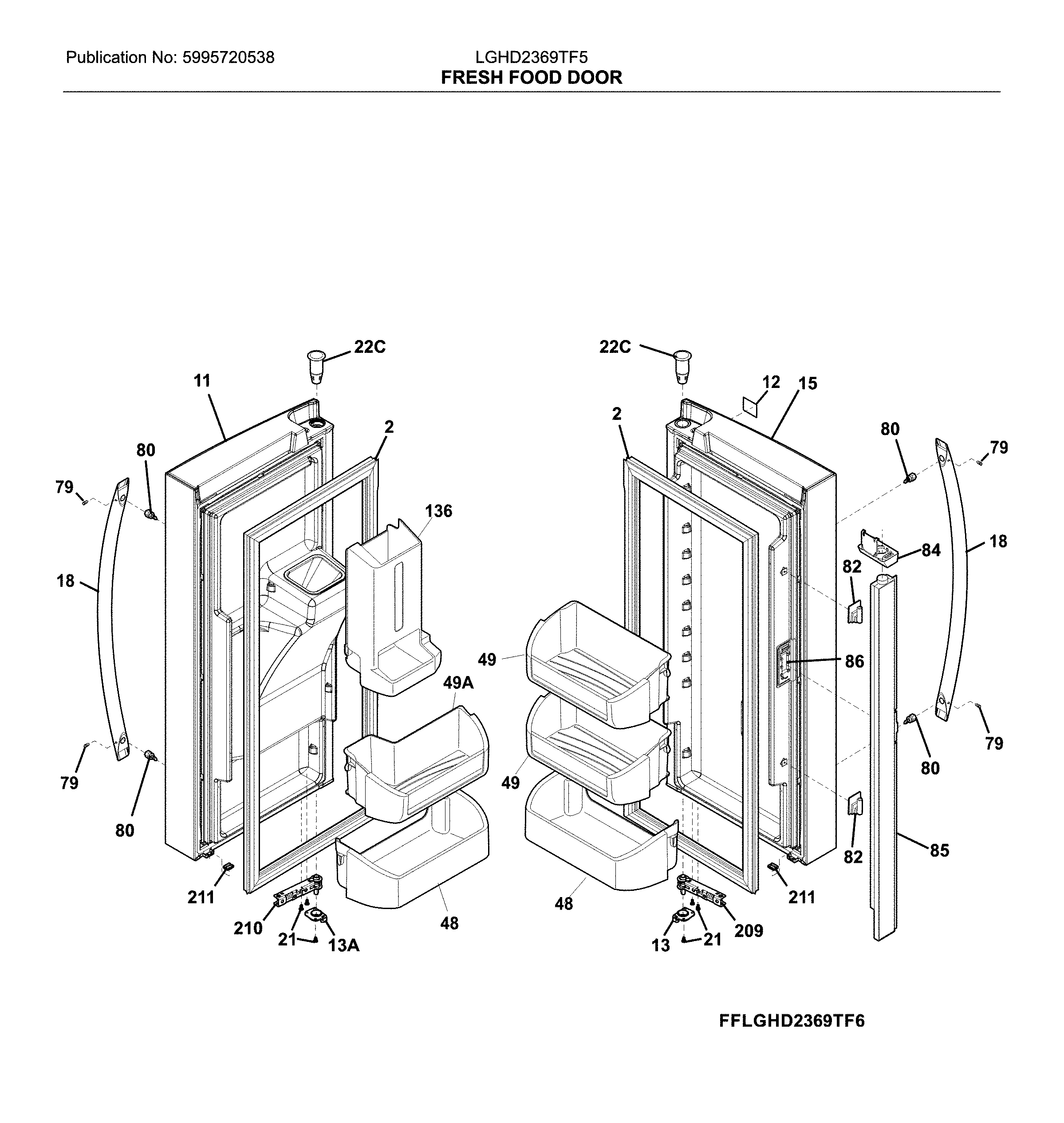

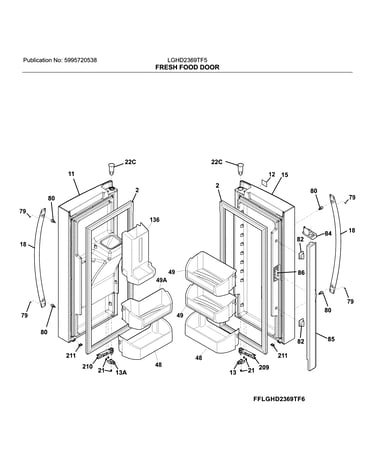

Fresh food door diagram

Refrigerator door hinge (replaces 7241779401)

Part #241779401

BEST SELLER
$17.69
10% OFF Phone Price : $19.69
In Stock
Refrigerator Gasket 242146001
#33

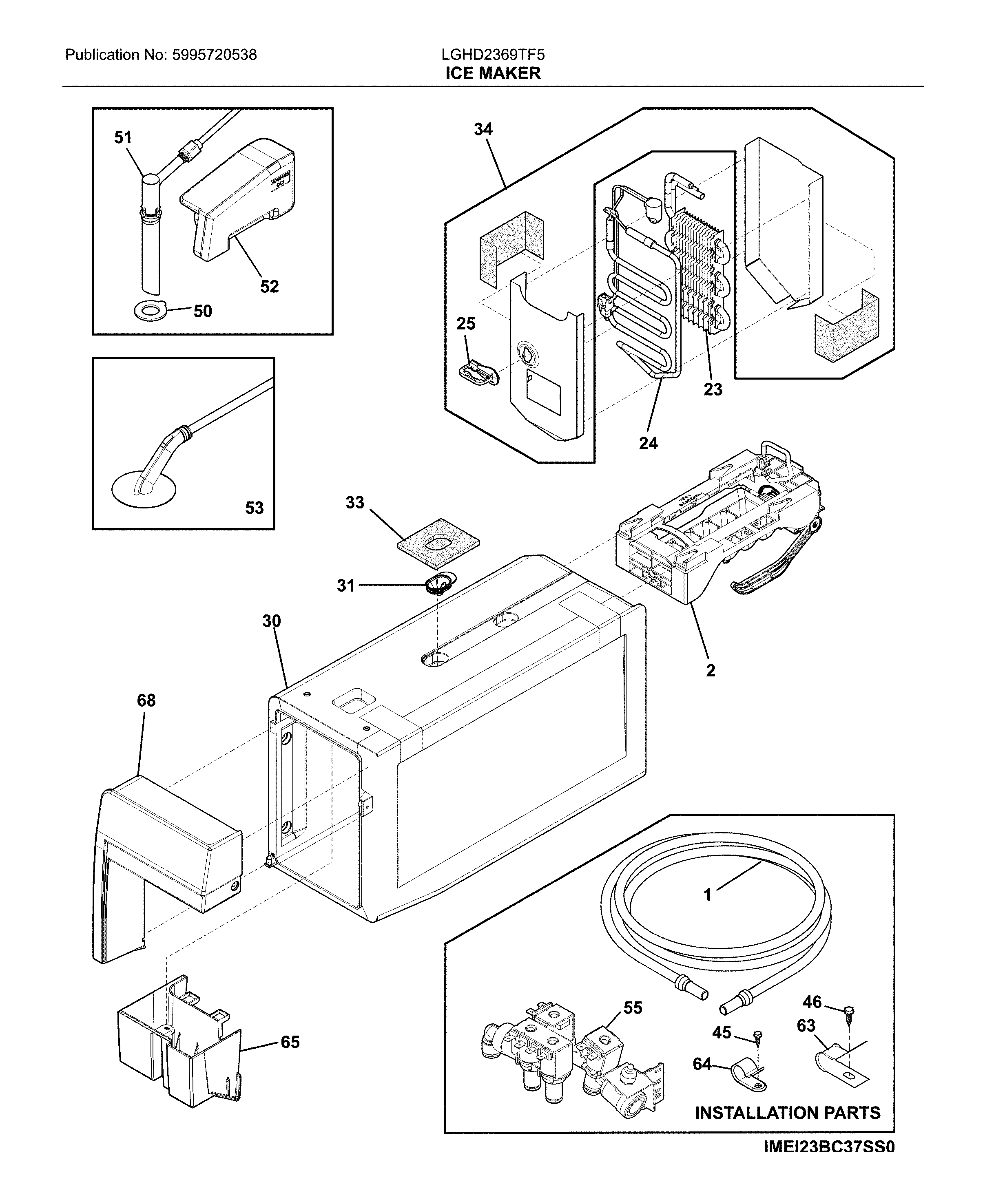

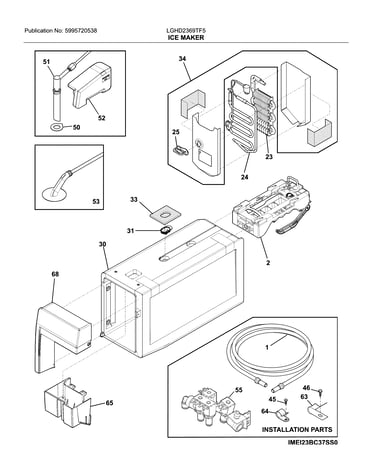

Ice maker diagram

Refrigerator gasket

Part #242146001

Replaced by #5303918784

?
Manufacturer substitution
This part replaces 242146001. Substitute parts can look different from the original.
BEST SELLER
$69.86
7% OFF Phone Price : $74.86
In Stock
Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504) 218755504
#80

Fresh food door diagram

Refrigerator door handle screw (replaces 218755503, 241531502, 7218755504)

Part #218755504

BEST SELLER
$9.22
10% OFF Phone Price : $10.22
In Stock
Refrigerator Pureair Ultra Ii Air Filter 242047805
#109

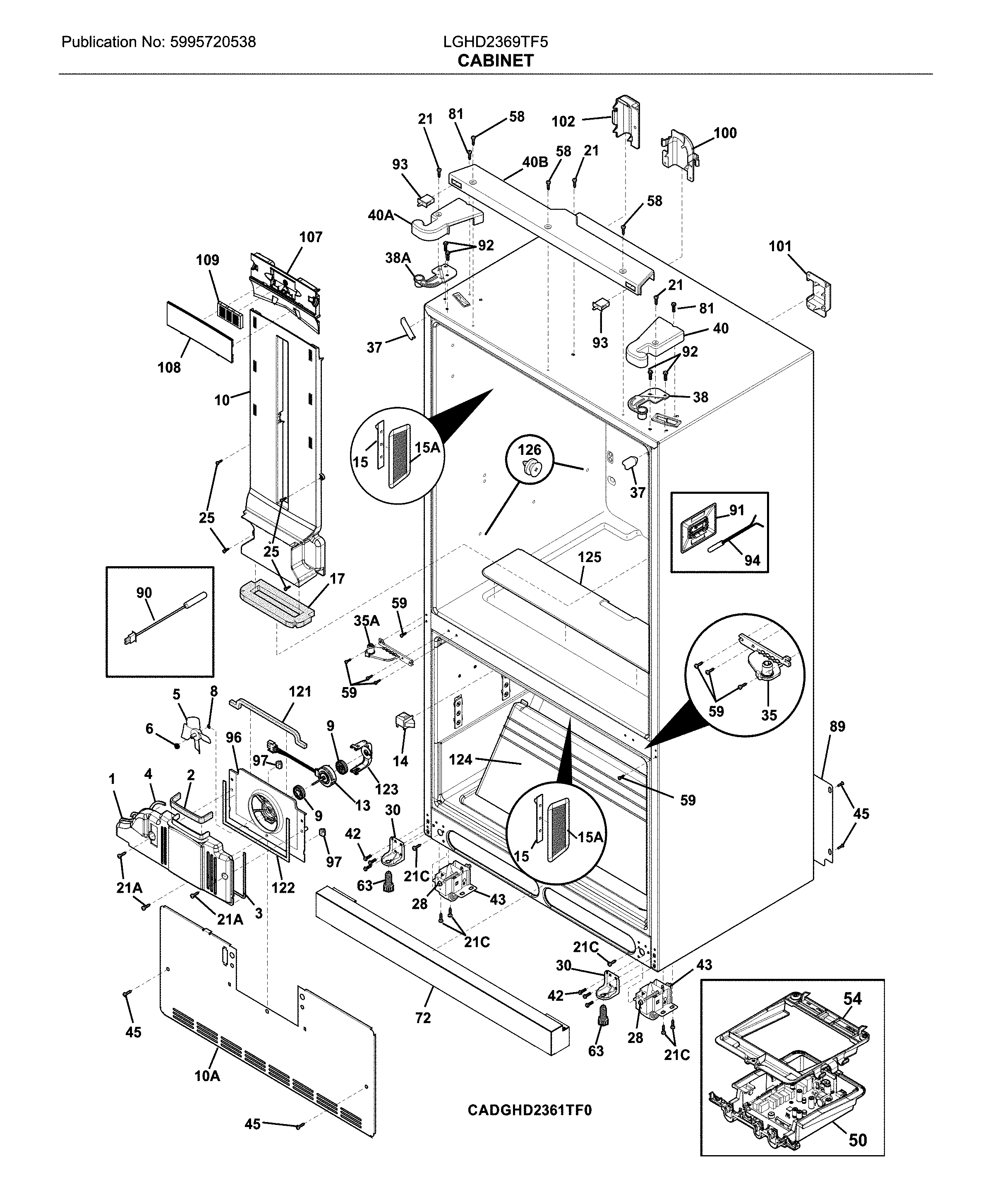

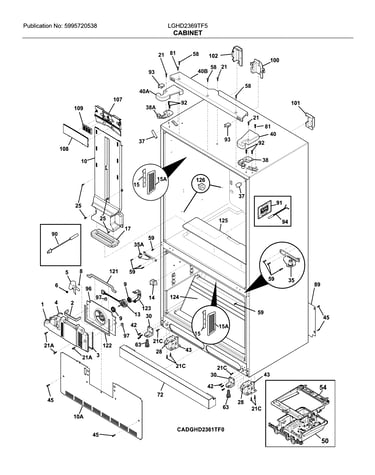

Cabinet diagram

Refrigerator pureair ultra ii air filter

Part #242047805

BEST SELLER

Get free shipping with Automatic Reorder

$24.59
17% OFF Phone Price : $29.59
In Stock
Refrigerator Crisper Drawer Cover Assembly (replaces 5304508068) 5304508761
#24B

Shelves diagram

Refrigerator crisper drawer cover assembly (replaces 5304508068)

Part #5304508761

BEST SELLER
$102.58
9% OFF Phone Price : $112.58
Back Order
Refrigerator Evaporator Fan Blade 5308000010
#5

Cabinet diagram

Refrigerator evaporator fan blade

Part #5308000010

BEST SELLER
$39.39
11% OFF Phone Price : $44.39
In Stock
Screw 218755407
#79

Freezer door diagram

Screw

Part #218755407

Replaced by #218755402

?
Manufacturer substitution
This part replaces 218755407. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.89
13% OFF Phone Price : $7.89
In Stock
