How do I remove the base grille on my Whirlpool refrigerator?

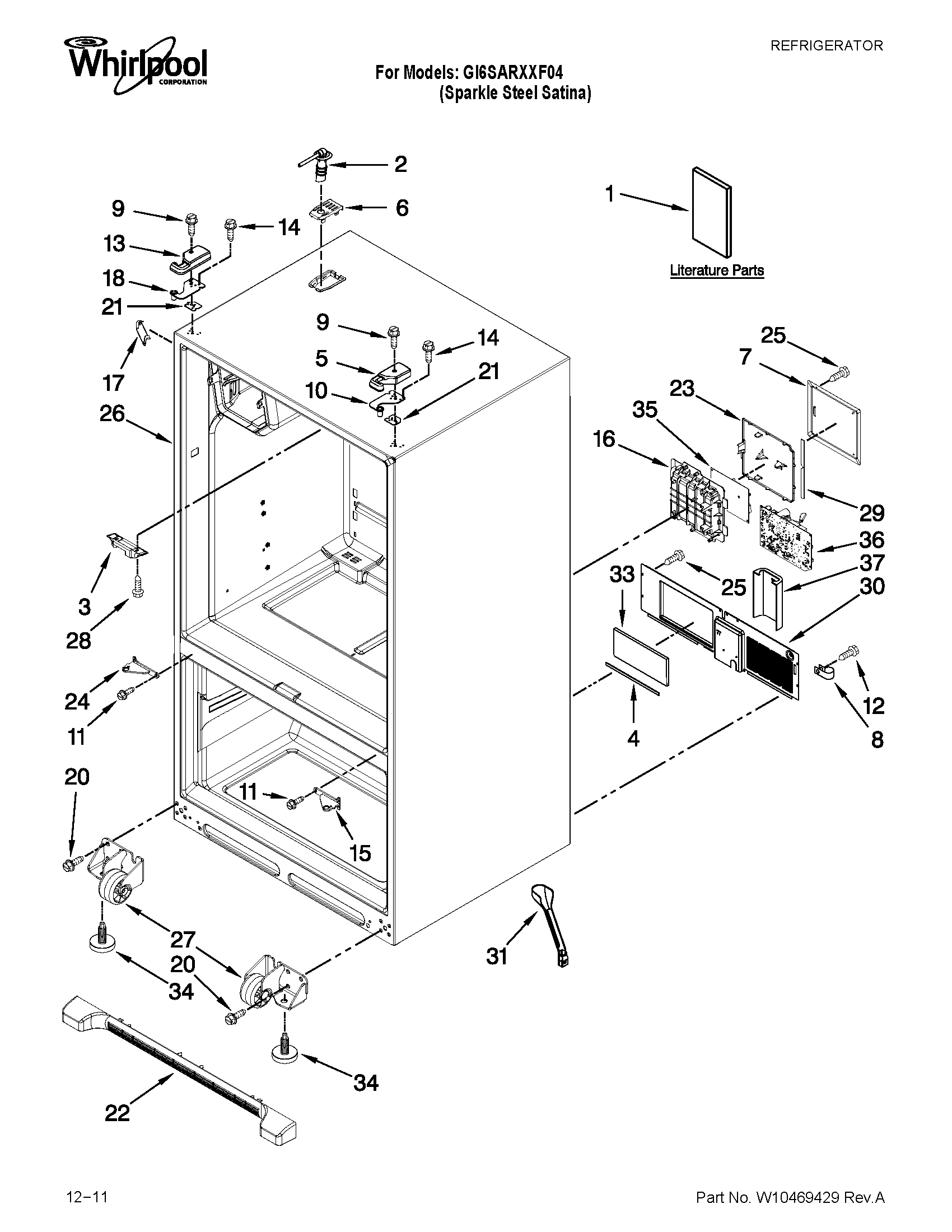

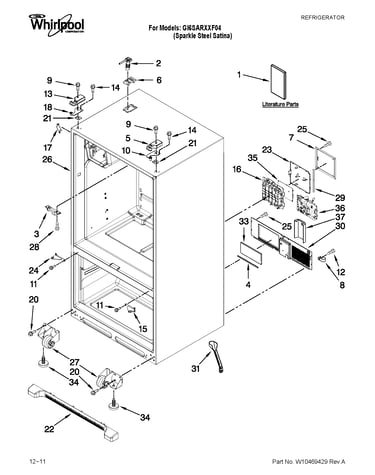

To remove the base grille on your Whirlpool GI6SARXXF04 bottom-mount refrigerator, grasp the grille firmly at the bottom front and pull it straight toward you until it releases from the clips. Once you are done, line it up and press it back into place.
- Open both fresh food doors for better access.
- Grip the base grille with both hands near the ends.
- Pull the grille straight toward you (do not pry hard from one corner).
- If it feels stuck, pull evenly from both sides to release the retaining clips.
- To reinstall, align the ends with the base area and press until it snaps in.
Removing the base grille is a common first step for maintenance and service tasks, including:
- Cleaning dust from the front condenser area
- Accessing the front leveling screws to improve door closing
- Inspecting for water leaks or debris at the bottom front
| Task | What you do after the grille is off | Typical tool needed |
|---|---|---|
| Leveling the refrigerator | Turn the front leveling screws to raise or lower the cabinet | 1/4-inch hex driver |
| Cleaning for better cooling | Vacuum the grille and the open area behind it | Vacuum with soft brush |
| Checking for puddles | Look for water tracks, tubing issues, or drain problems | Flashlight |
A properly seated base grille helps protect the condenser area from debris and keeps airflow where it belongs. Removing it the right way also prevents broken clips, which can cause rattles or a loose fit.
For the exact illustrations and service steps used for this model, follow the procedure in the GI6SARXXF04 owner's manual.
Last updated: February 2026
Do you remove cardboard from the bottom of a Whirlpool refrigerator?
On the Whirlpool GI6SARXXF04 bottom-mount refrigerator, remove and recycle the external packaging materials used for shipping; do not remove any built-in bottom or rear cover panels. Those panels help protect components and support proper airflow around the machine compartment.
- Remove: tape, foam, plastic wrap, corner blocks, and any loose cardboard used as packaging
- Leave installed: any attached bottom or rear cover panel (even if it looks like fiberboard)
- Keep handy: a piece of cardboard or hardboard to protect your floor when sliding the refrigerator out
Use this simple guide before pulling anything off:
| What you see | Typical location | What to do |
|---|---|---|
| Loose cardboard, foam, plastic wrap | Around doors, shelves, exterior | Remove and recycle/dispose |
| A fastened panel with screws/clips | Bottom rear area near compressor/condenser | Leave it in place |
| Cardboard placed under the fridge during moving | Under wheels/leveling legs | Use it only for moving, then remove |
Our installation guidance for this Whirlpool model recommends protecting the floor with cardboard or hardboard when moving the refrigerator for cleaning or service.
- Unplug the refrigerator before moving it
- Pull the refrigerator straight out; do not “walk” it side to side
- Use cardboard or hardboard under the front rollers/feet to prevent floor damage
- Recheck that the unit is level after repositioning
Removing a factory-installed cover can expose wiring and cooling components, and it can disrupt airflow that helps the refrigerator cool efficiently. Keeping protective panels in place helps prevent damage and performance issues.
For model-specific installation and handling details, follow the GI6SARXXF04 owner's manual.
Last updated: February 2026
How to take off a whirlpool bottom freezer door?

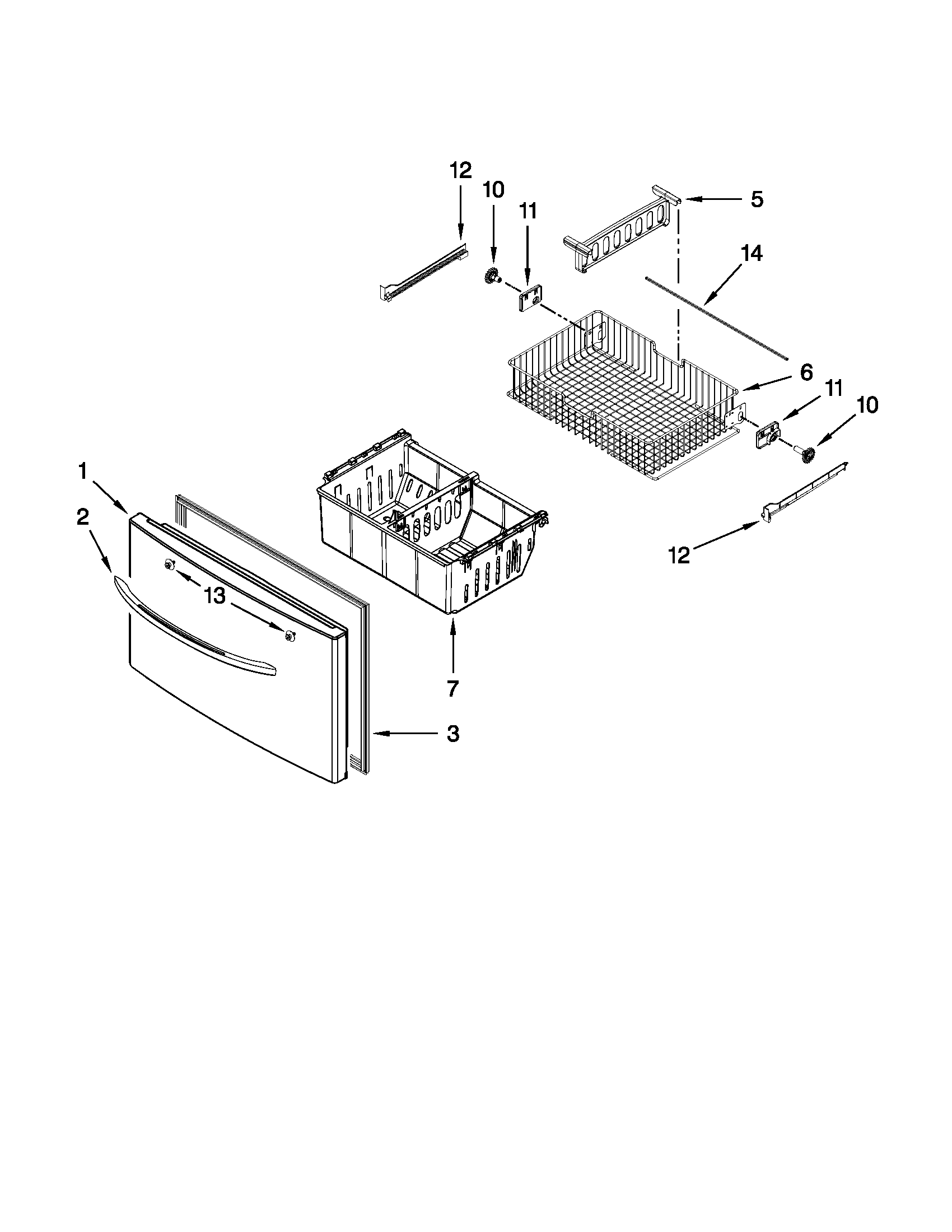

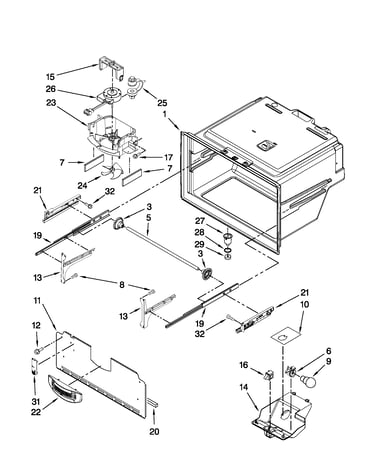

To remove the bottom freezer drawer front on Whirlpool model GI6SARXXF04, open the drawer fully, loosen (do not remove) the four screws that secure the drawer glides to the drawer front, then lift the drawer front up and off the screws. Use the GI6SARXXF04 owner's manual for the exact drawer-front removal graphics.
- Unplug the refrigerator to prevent electrical shock.
- Empty the freezer drawer so it is lighter and easier to control.
- Open the drawer to full extension so you can access the glide screws.
- Keep a hand on the drawer front as you loosen screws so it does not shift.
- Plan for two people if the drawer front feels heavy or awkward.
- Open the freezer drawer to full extension.
- Loosen the four screws attaching the drawer glides to the drawer front (loosen 3 to 4 turns; keep the screws in the drawer front).
- Lift the drawer front upward and off the screws.
- Slide the drawer glides out.
- Set the top screws into the slots in the drawer brackets.
- Pull the drawer brackets toward you to seat the bottom screws.
- Tighten all four screws completely.
| Task | What to do | Common mistake to avoid |
|---|---|---|
| Loosen screws | 3 to 4 turns only | Removing screws completely and losing alignment |
| Lift drawer front | Upward, then off | Pulling straight out and bending brackets |
| Reattach | Top slots first, then bottom | Tightening before the front is fully seated |
Removing the drawer front the right way prevents stripped screw holes, bent glide brackets, and a freezer drawer that will not seal or slide smoothly afterward.
Last updated: February 2026
Does the Whirlpool GI6SARXXF04 have a water filter?

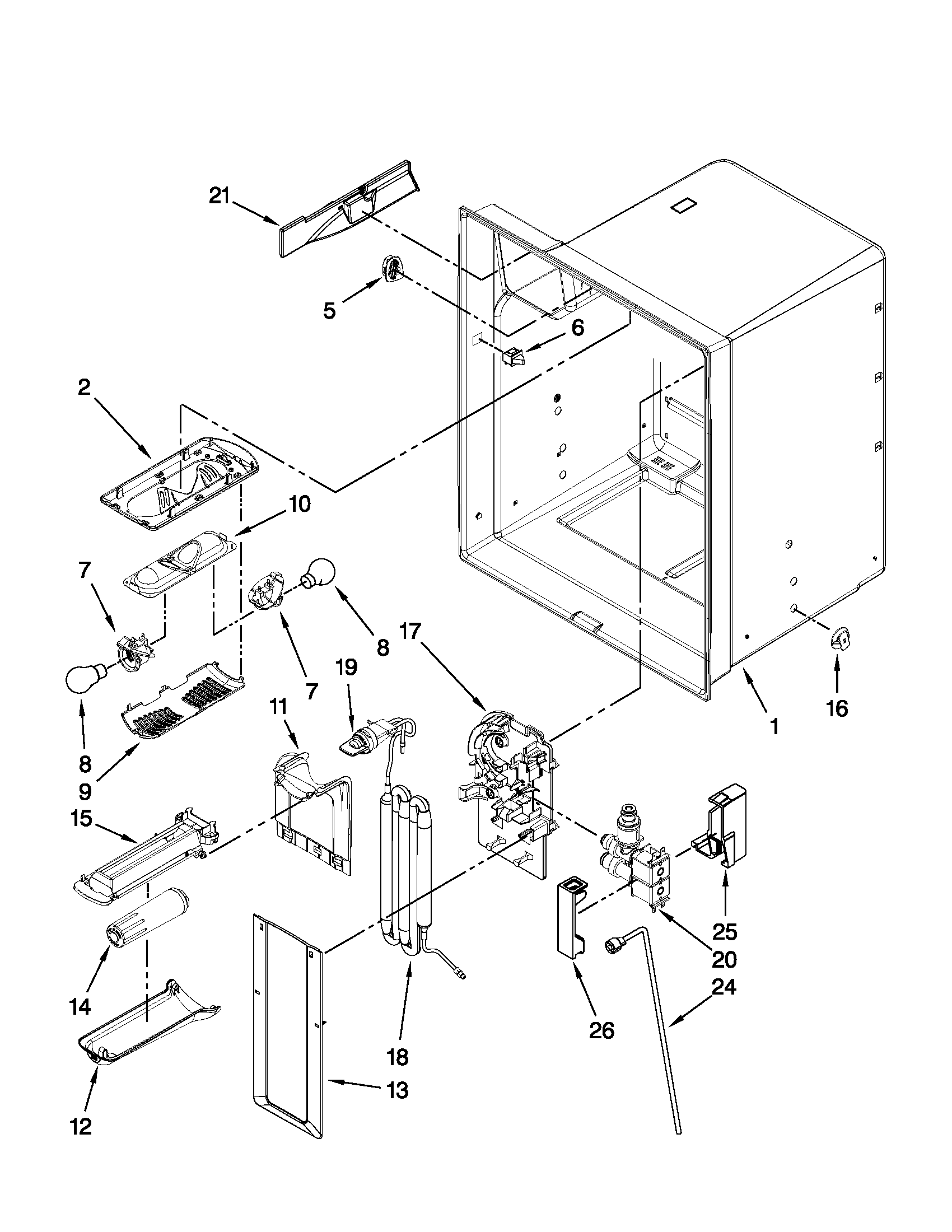

Yes. The Whirlpool GI6SARXXF04 has a built-in water filter in the refrigerator compartment; it sits in the upper right-hand corner behind the filter cover. You can also run the dispenser without a filter by installing the bypass cap, but your water will not be filtered.
The filter location is consistent for this model:
- Open the fresh food (refrigerator) door.
- Look in the upper right-hand corner of the compartment.
- Press up on the ribbed section of the water filter cover to open it.
- Turn the filter counterclockwise to remove it.
- Install the new filter and turn it clockwise until it stops, then close the cover.
For the exact steps and any model-specific notes, follow the GI6SARXXF04 owner's manual.
After you install a new filter, flushing and resetting prevents sputtering and helps restore normal flow.
- Dispense water for at least 2 minutes to purge air.
- Check for leaks around the filter head and cover.
- Confirm the filter status light returns to normal after the system is reset.
- If you remove the filter later, dispense water first to reduce pressure and ejection risk.
| Item | What to expect on GI6SARXXF04 |
|---|---|
| Filter location | Upper right of refrigerator compartment |
| Removal direction | Counterclockwise |
| Install direction | Clockwise until it stops |
| Flush time | At least 2 minutes |
A clogged or overdue water filter can reduce dispenser flow, affect ice maker fill, and contribute to odd-tasting water. Keeping the filter current helps protect the water system components and keeps ice and water performing normally.
If you are troubleshooting low water flow or ice issues after a filter change, use our how to change the water filter in a Whirlpool refrigerator guide for best practices.
Last updated: February 2026
