Model # FAV9800AWW Official Maytag washer

Here are the diagrams and repair parts for Official Maytag FAV9800AWW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

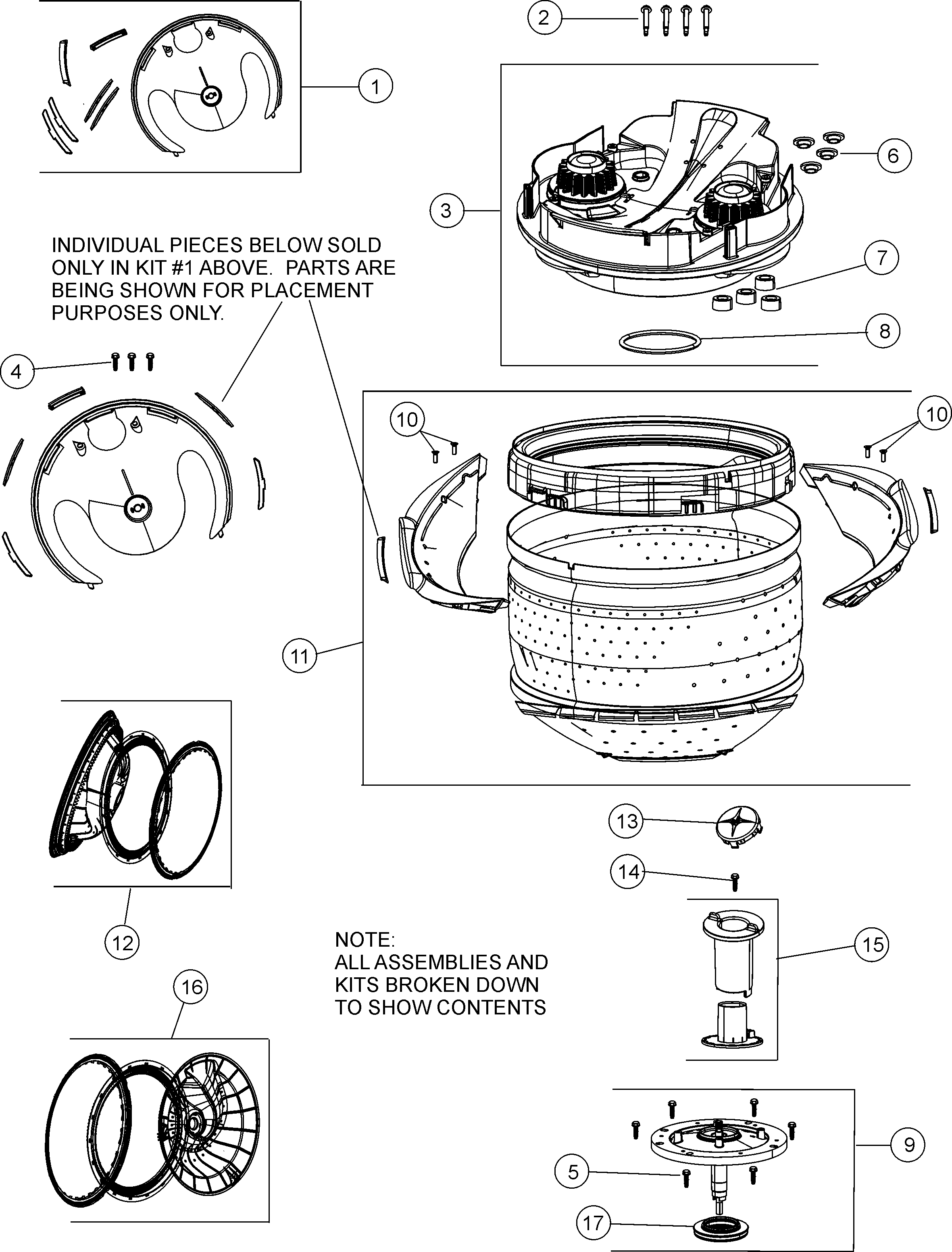

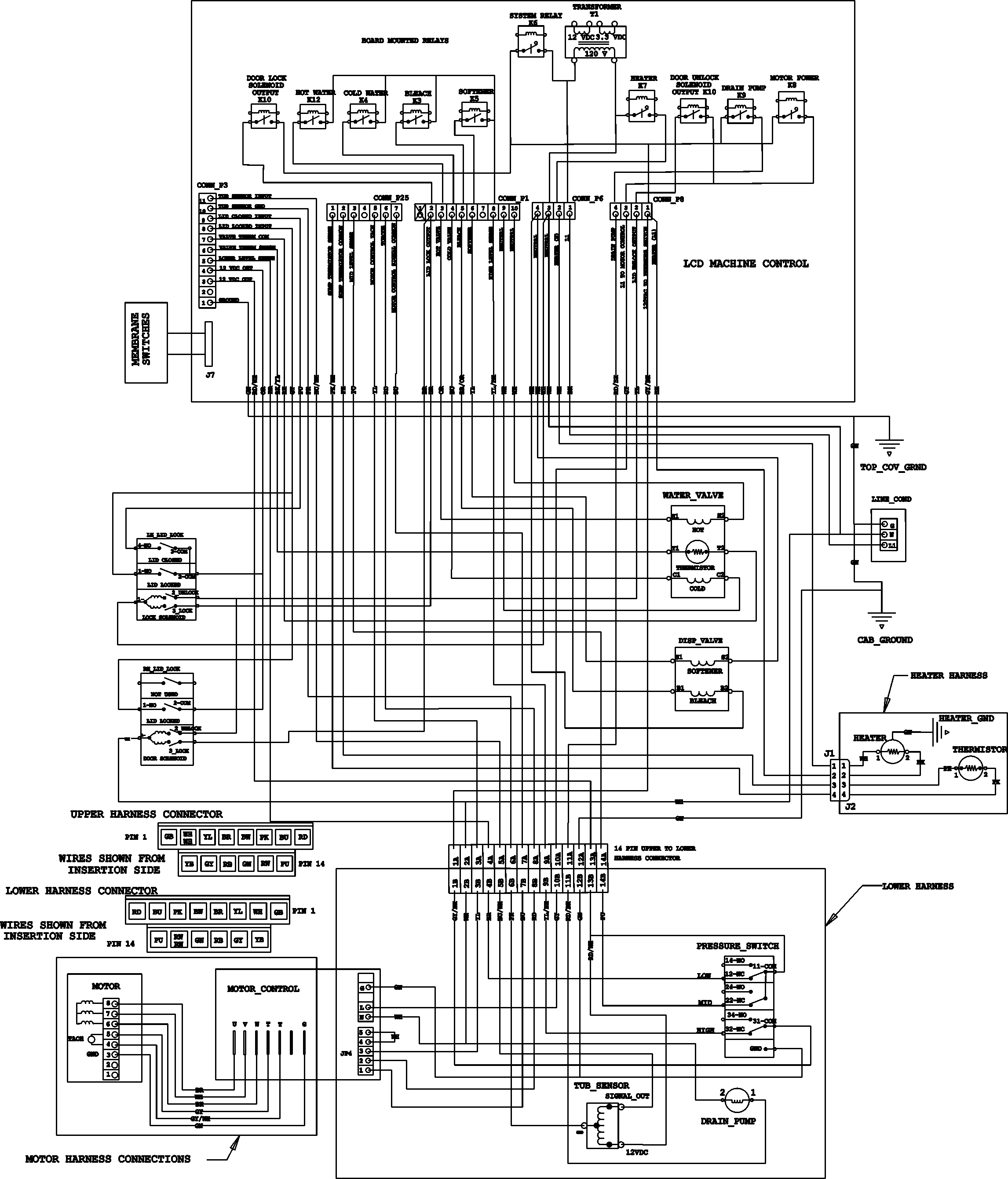

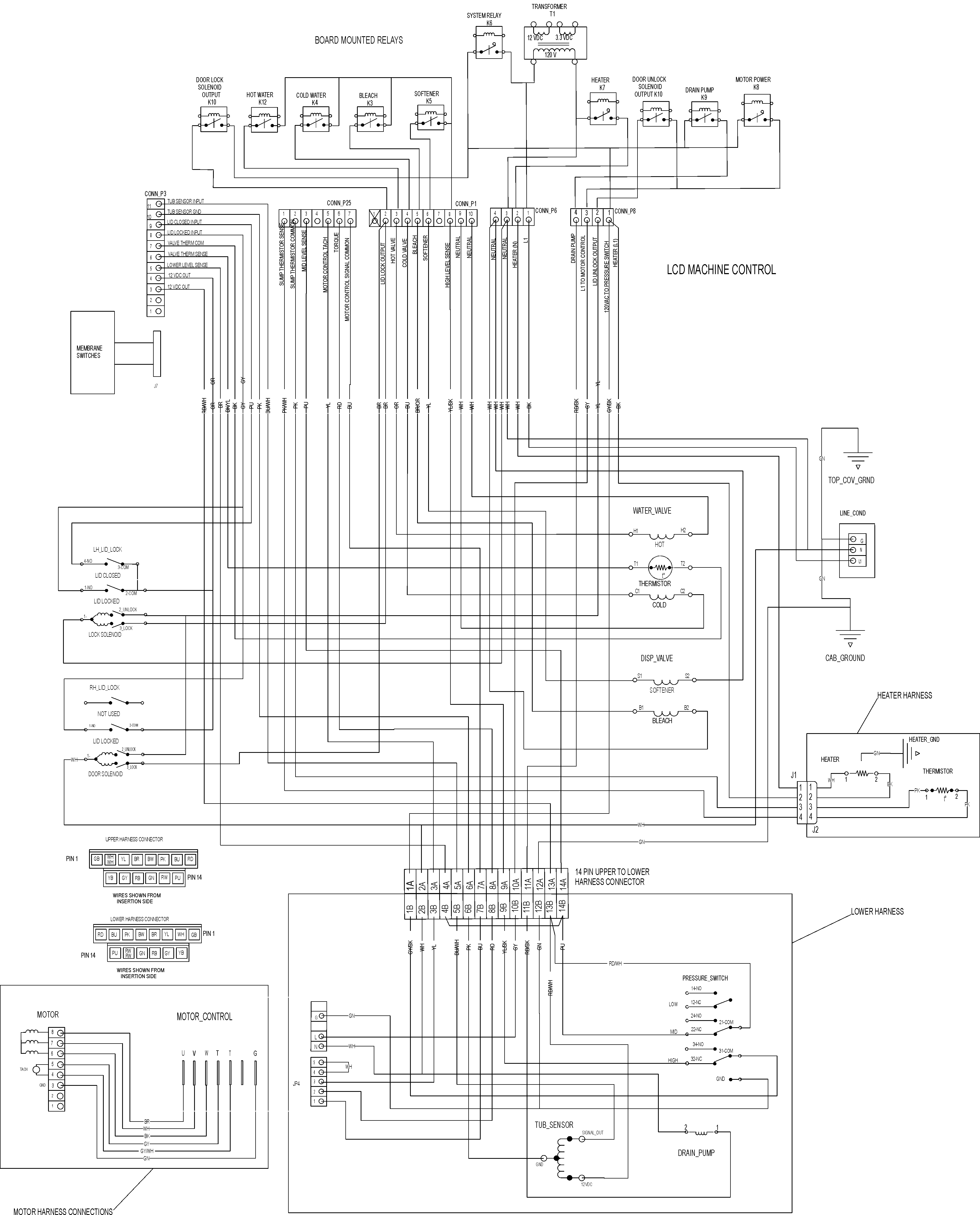

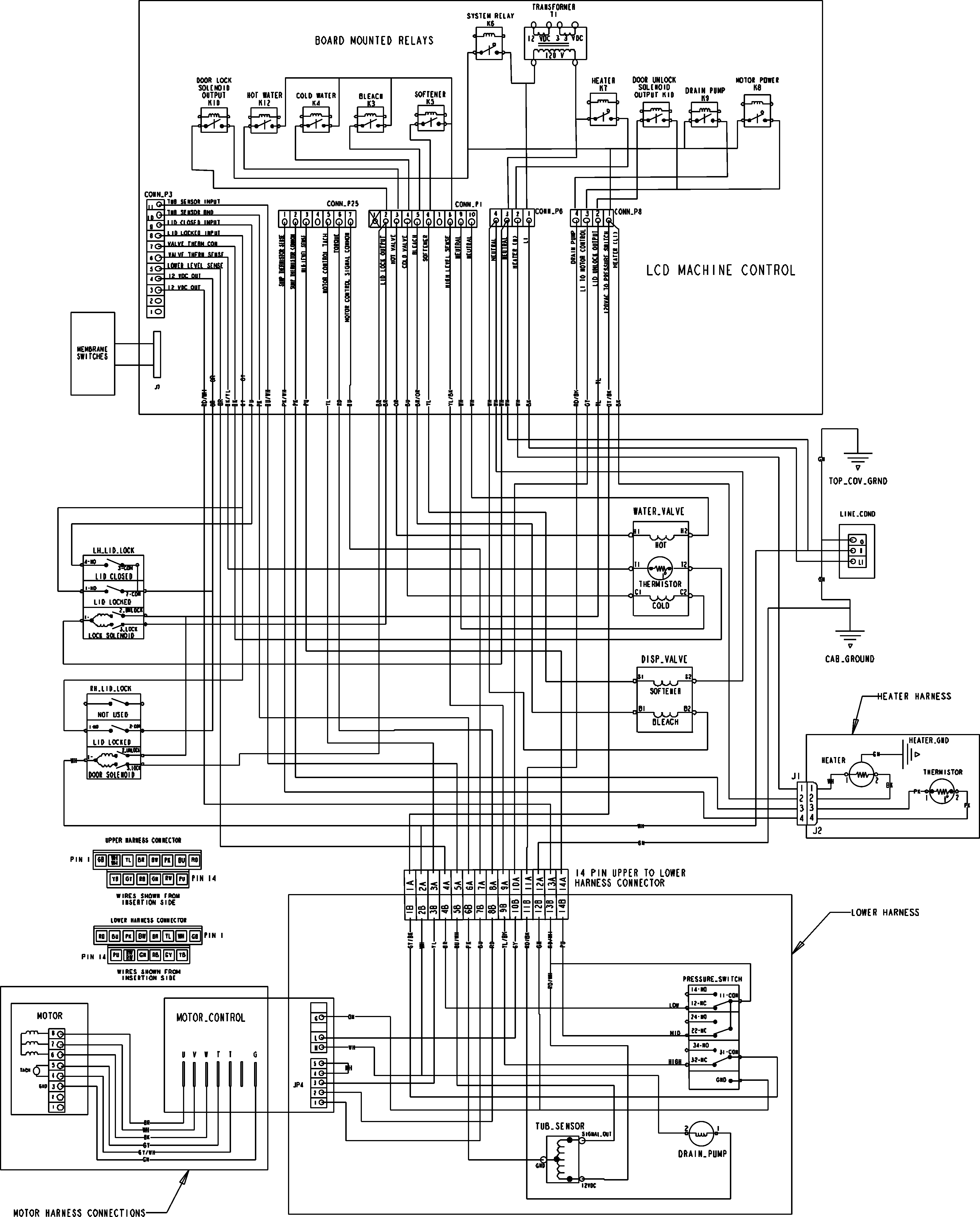

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Drain Hose Clamp 22001984
Drain hose clamp

Part #22001984

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 22001984. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
59% OFF MSRP : $16.00
In Stock
Hose Clamp 22002853
#7

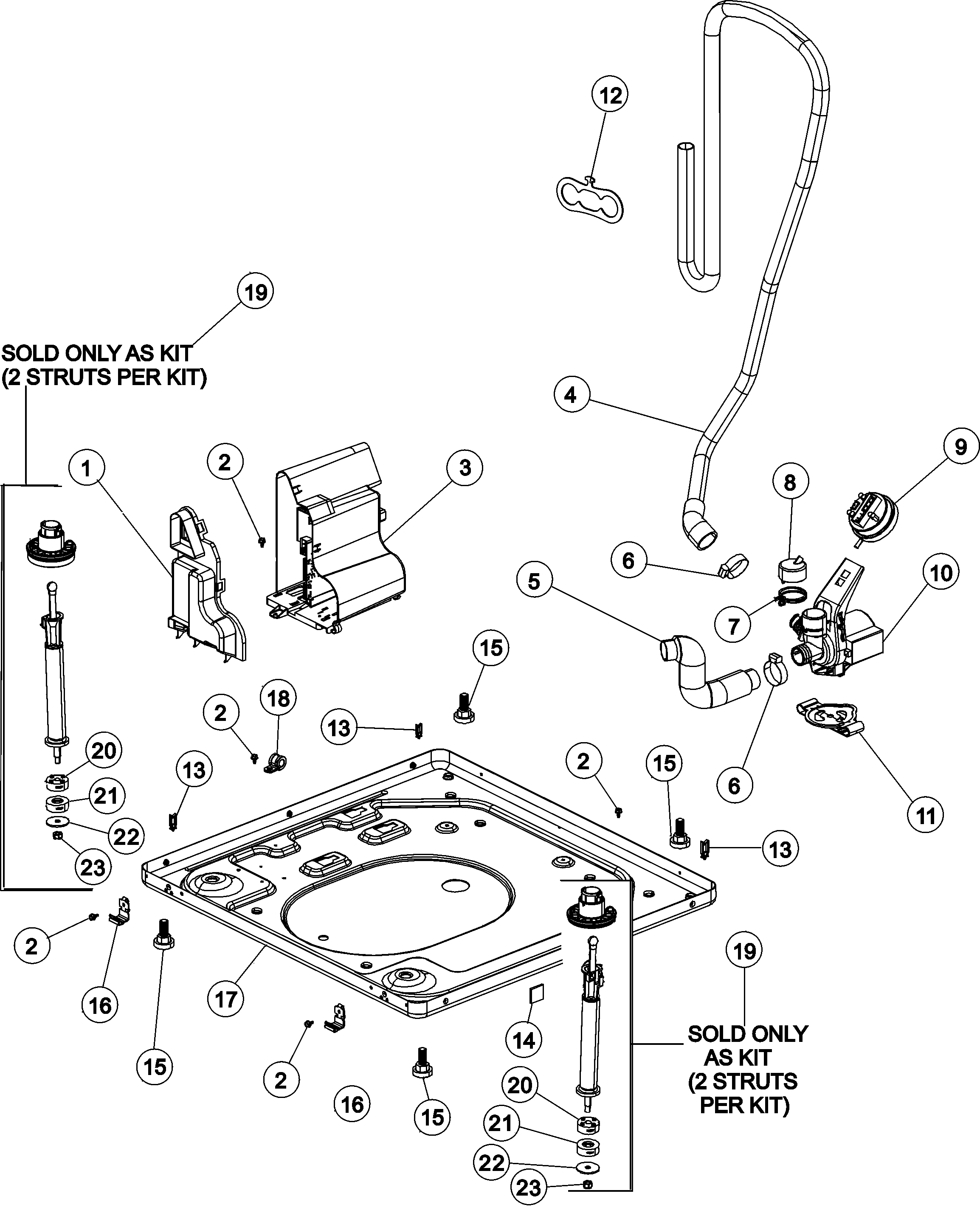

Base diagram

Hose clamp

Part #22002853

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 22002853. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
59% OFF MSRP : $16.00
In Stock
Washer Drain Pump 25001052
#10

Base diagram

Washer drain pump

Part #25001052

Replaced by #WP25001052

?
Manufacturer substitution
This part replaces 25001052. Substitute parts can look different from the original.
$142.33 |
7% OFF Phone Price : $152.33
In Stock
Siphon Screw 014874
#21

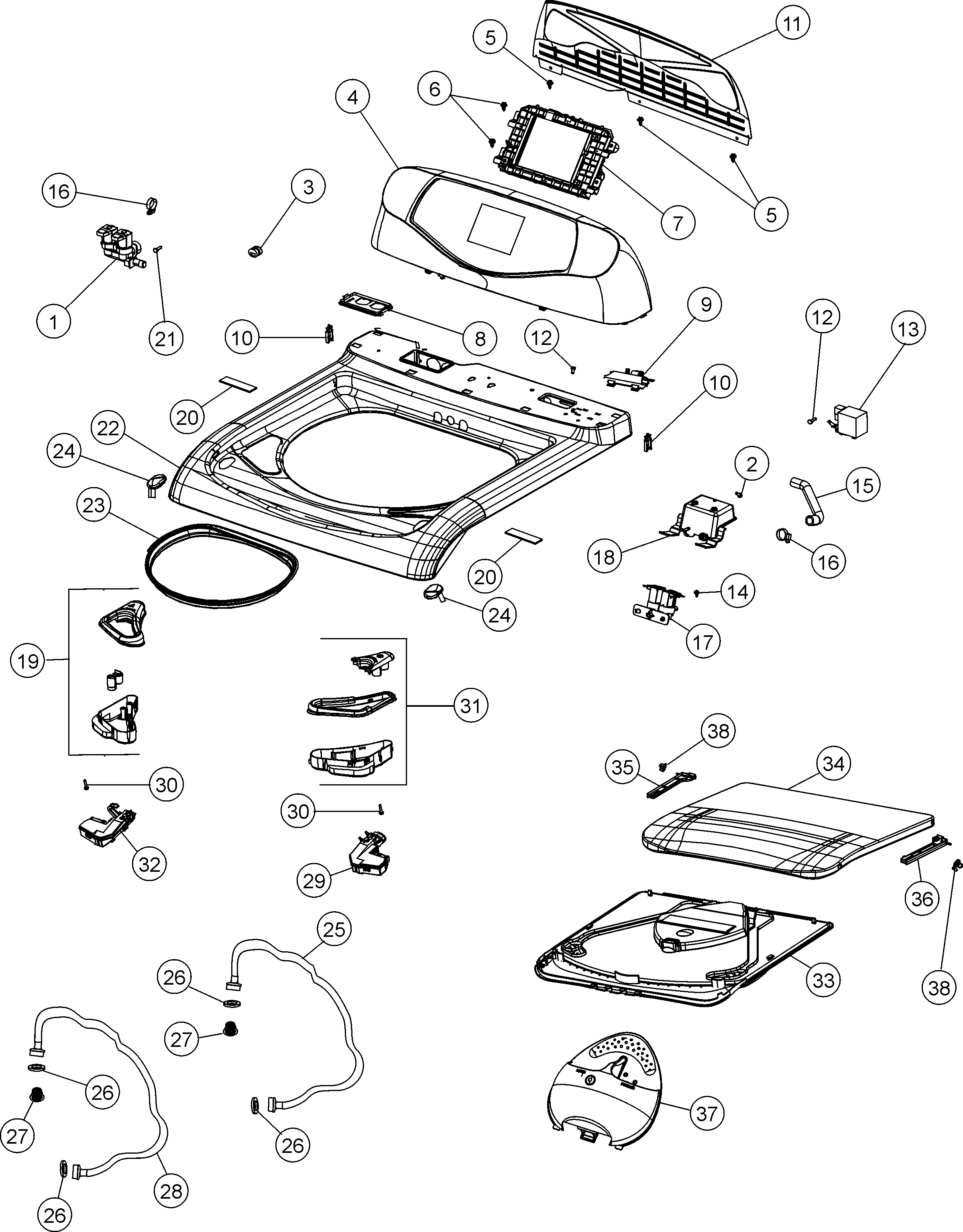

Control panel, top & lid diagram

Siphon screw

Part #014874

Replaced by #WPY014874

?
Manufacturer substitution
This part replaces 014874. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Softener Dis 12002564
#31C

Control panel, top & lid diagram

Softener dis

Part #12002564

$51.11
In Stock
Washer Outer Tub 25001199
#2A

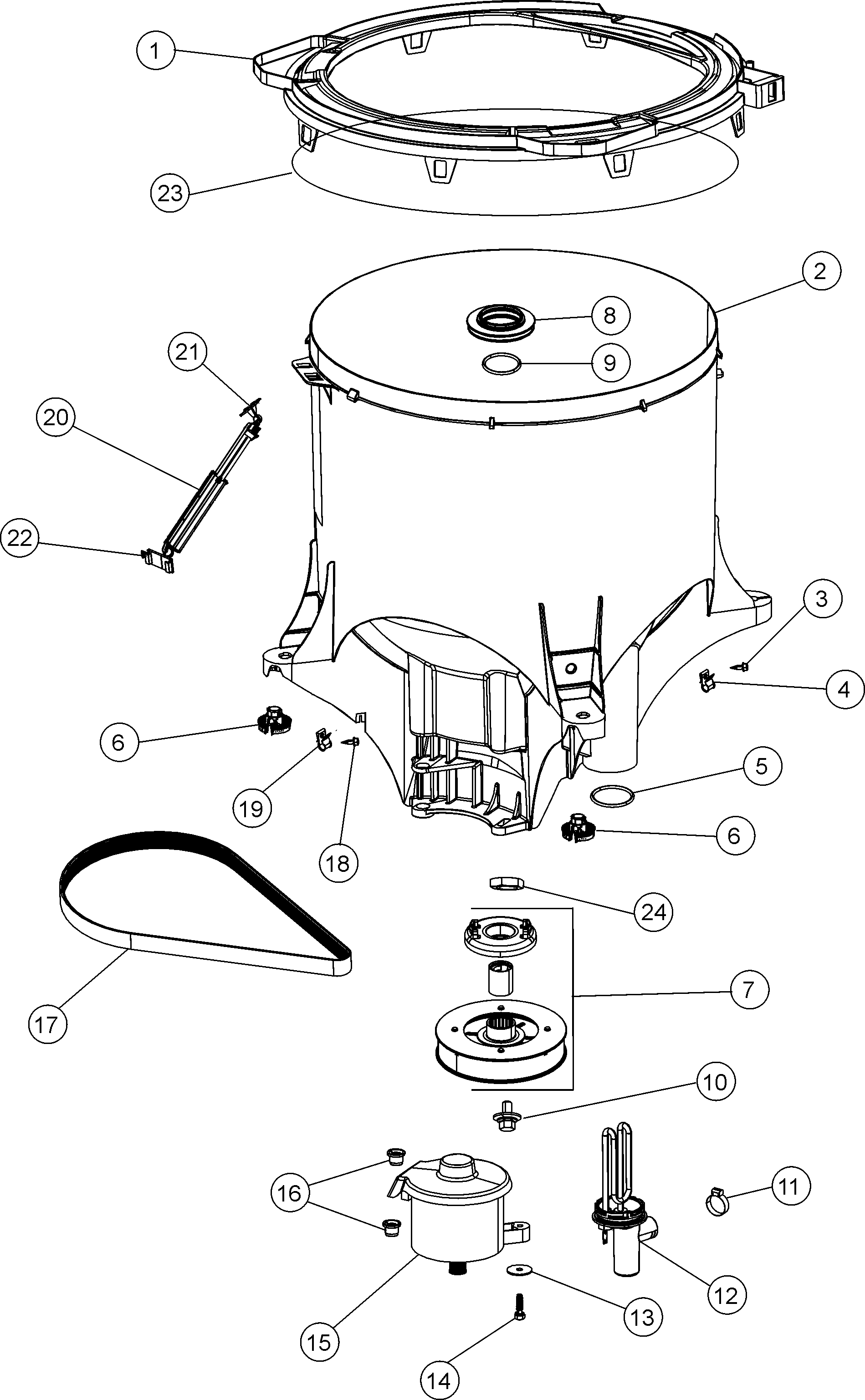

Outer tub diagram

Washer outer tub

Part #25001199

This item is not returnable
$1048.33
In Stock
Washer Motor Control Board 25001079
#3

Base diagram

Washer motor control board

Part #25001079

Replaced by #WP25001079

?
Manufacturer substitution
This part replaces 25001079. Substitute parts can look different from the original.
$182.99 |
5% OFF Phone Price : $192.99
In Stock
Insert Screw 22002300
#14

Control panel, top & lid diagram

Insert screw

Part #22002300

Replaced by #WP9740848

?
Manufacturer substitution
This part replaces 22002300. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Drive Retainer 22002892
#12

Base diagram

Drive retainer

Part #22002892

Replaced by #WP22002892

?
Manufacturer substitution
This part replaces 22002892. Substitute parts can look different from the original.
$33.58
In Stock
Cabinet Clip 25-7220
#14

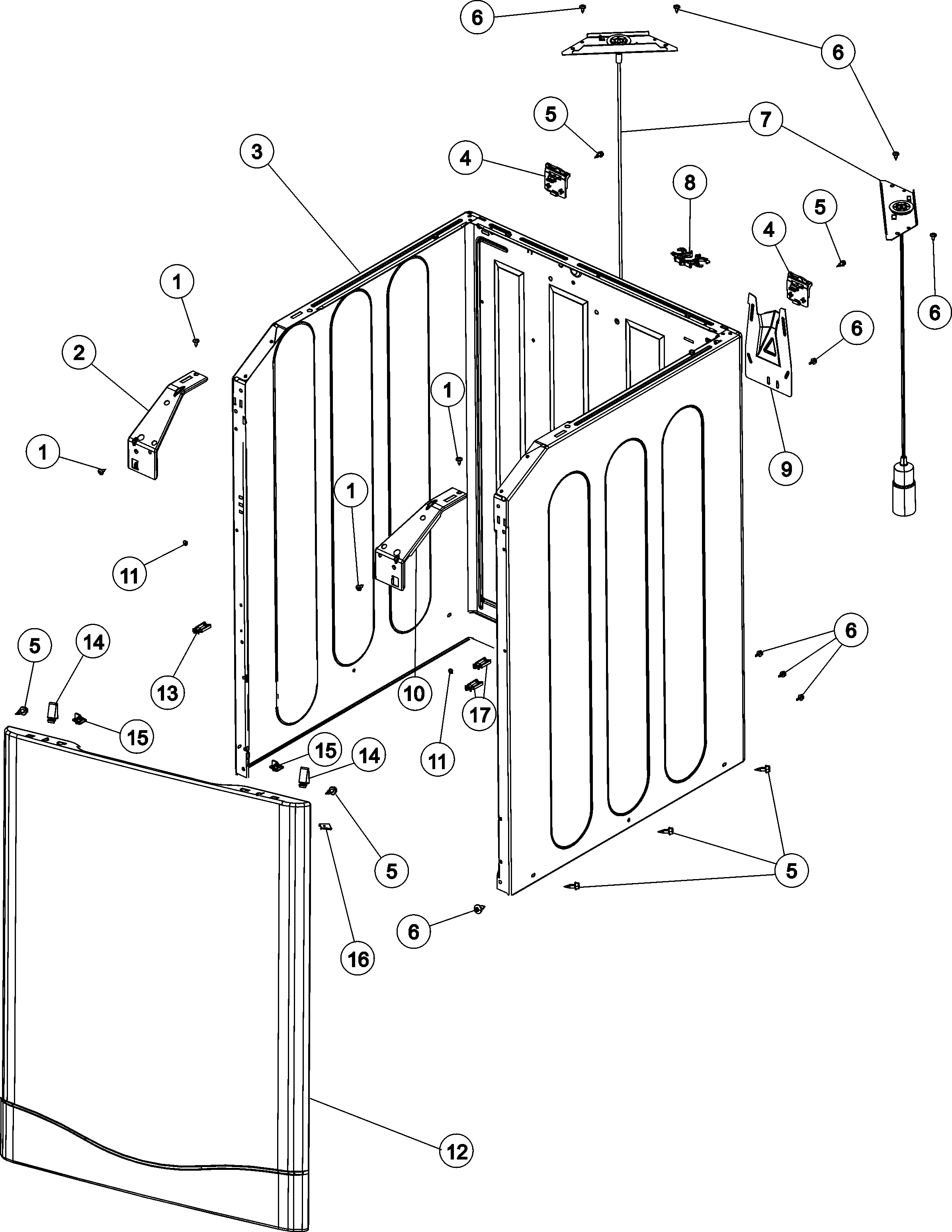

Cabinet diagram

Cabinet clip

Part #25-7220

Replaced by #WP25-7220

?
Manufacturer substitution
This part replaces 25-7220. Substitute parts can look different from the original.
$8.39 |
11% OFF Phone Price : $9.39
In Stock
