Model #BT22RT-3BTVX Magic Chef rv range

Here are the repair parts and diagrams for your Magic Chef BT22RT-3BTVX rv range.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profileError Codes

Showing 10 of 90 parts

Wall Oven Door Glass Retainer Clip

#14

Door ("z") (bt22ra-3btz) Diagram

$14.45

In Stock

Spring Arm

#7

Door ("z") (bt22ra-3btz) Diagram

Spring arm

Part #3423F001-34
This item is not returnable

$5.69

In Stock

Range Oven Light Rocker Switch

#16

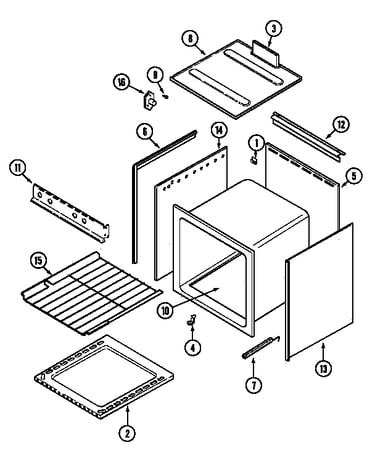

Oven Diagram

$37.80

In Stock

Kit, Line Co

#19

Oven Diagram

Kit, line co

Part #12400044

$13.63

In Stock

Range Oven Door Hinge and Receptacle Kit, Right

#5A

Door ("x") (bt22rt-3btvx) Diagram

Range oven door hinge and receptacle kit, right

Part #12400029
This item is not returnable

$3.29

In Stock

Range Oven Door Hinge and Receptacle Kit, Right

#5A

Door ("z") (bt22ra-3btz) Diagram

Range oven door hinge and receptacle kit, right

Part #12400029
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  3418D092-34
This part replaces 3418D092-34
This item is not returnable

$3.29

In Stock

Range Lighter Cup and Flash Extension Tube Assembly

#25

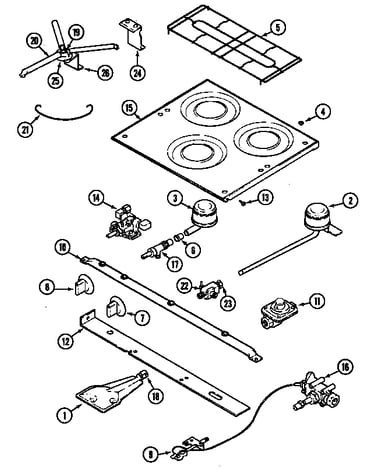

Top & gas controls Diagram

Range lighter cup and flash extension tube assembly

Part #7506P154-60
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  7506P065-60
This part replaces 7506P065-60

$19.77

In Stock

Nut

#11

Door ("x") (bt22rt-3btvx) Diagram

Nut

Part #W10080180
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  7103P034-60
This part replaces 7103P034-60

$12.49

In Stock

Range Screw

#14A

Door ("z") (bt22ra-3btz) Diagram

Range screw

Part #WP98008545
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  7101P040-60
This part replaces 7101P040-60

$7.88

In Stock

Spacer

#11

Door ("z") (bt22ra-3btz) Diagram

Spacer

Part #WP8010P073-60
?This is a manufacturer substitution. Part may differ in appearance but is a functional equivalent to prior parts including  8010P073-60
This part replaces 8010P073-60
This item is not returnable

$2.24

In Stock
