Model #79040613802 Official Kenmore wall oven
Here are the diagrams and repair parts for Kenmore 79040613802 wall oven, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

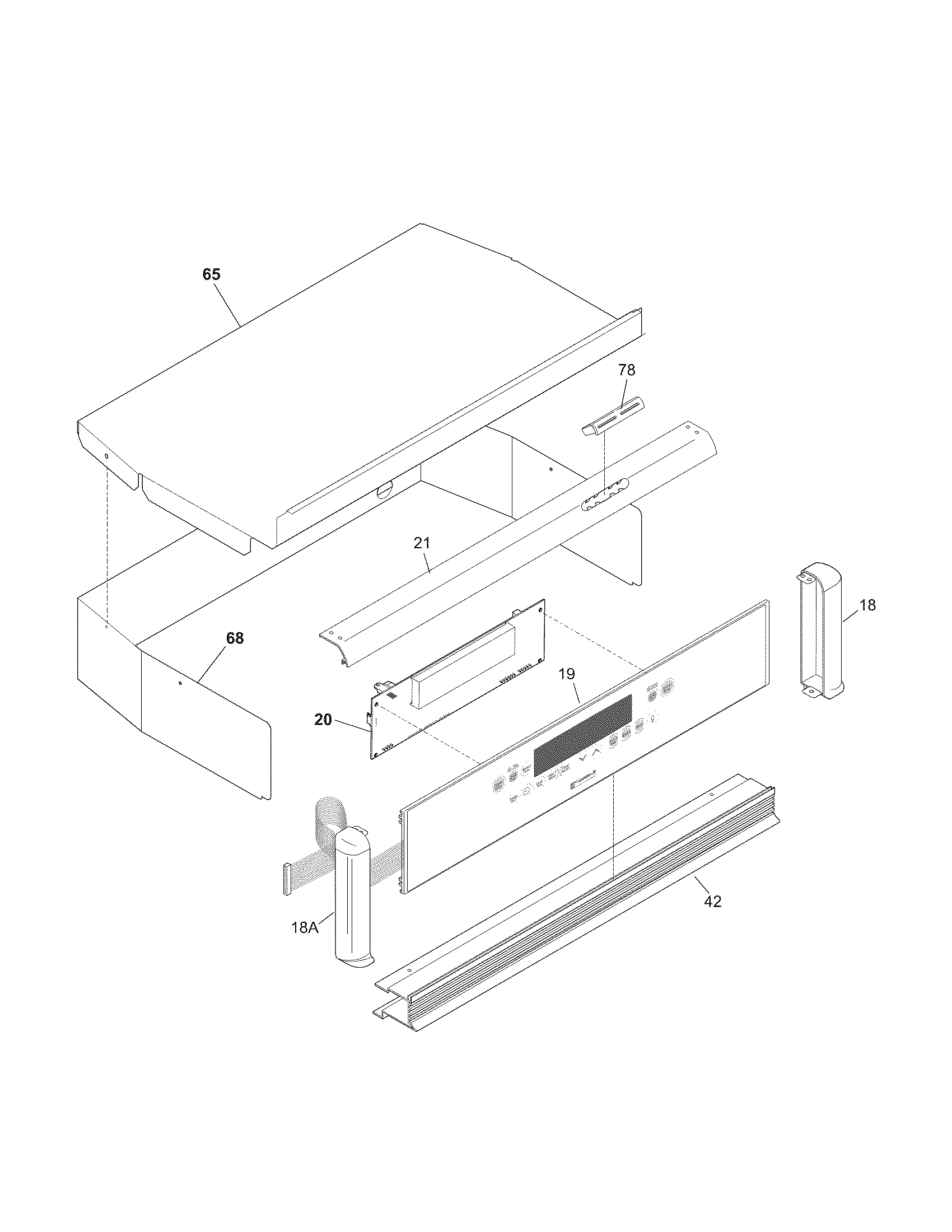

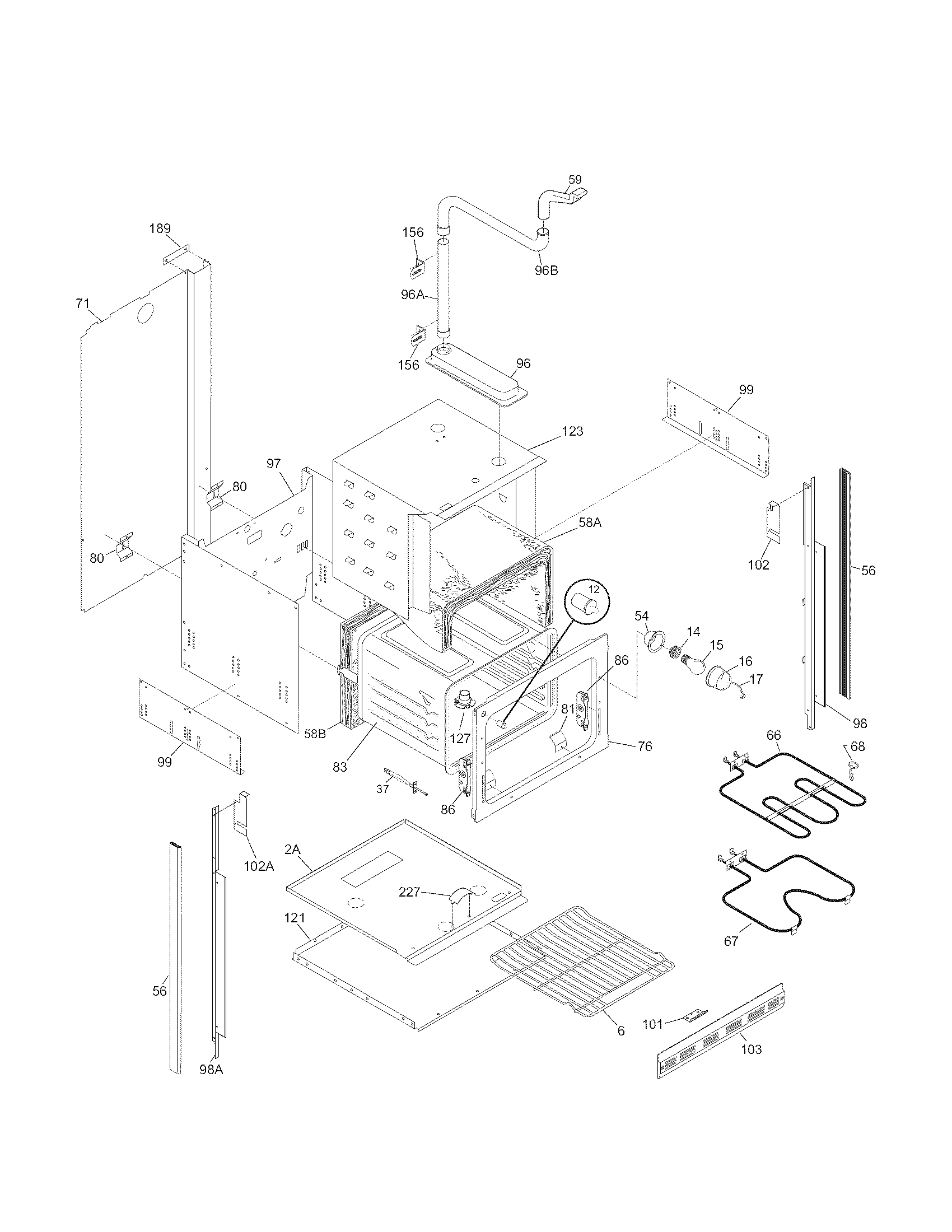

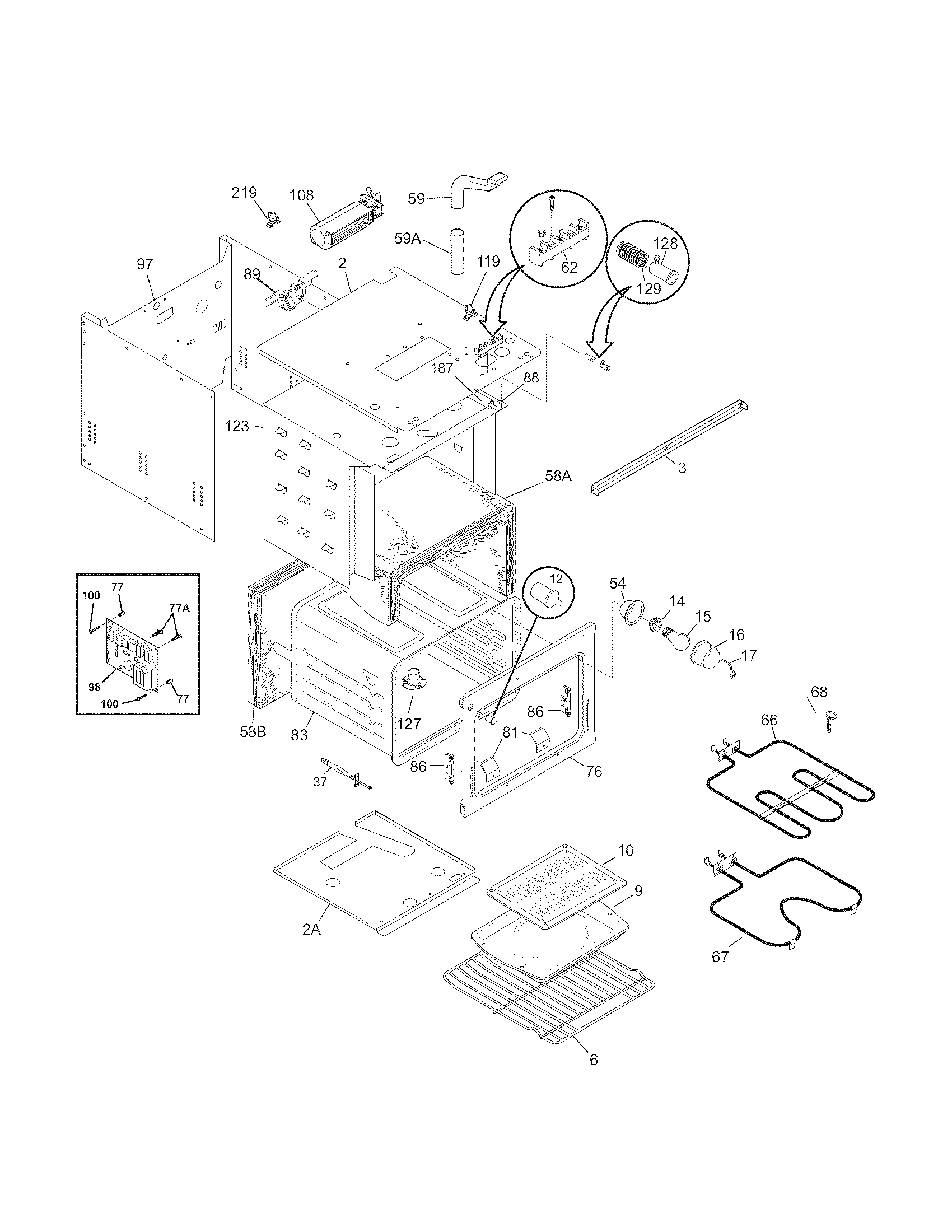

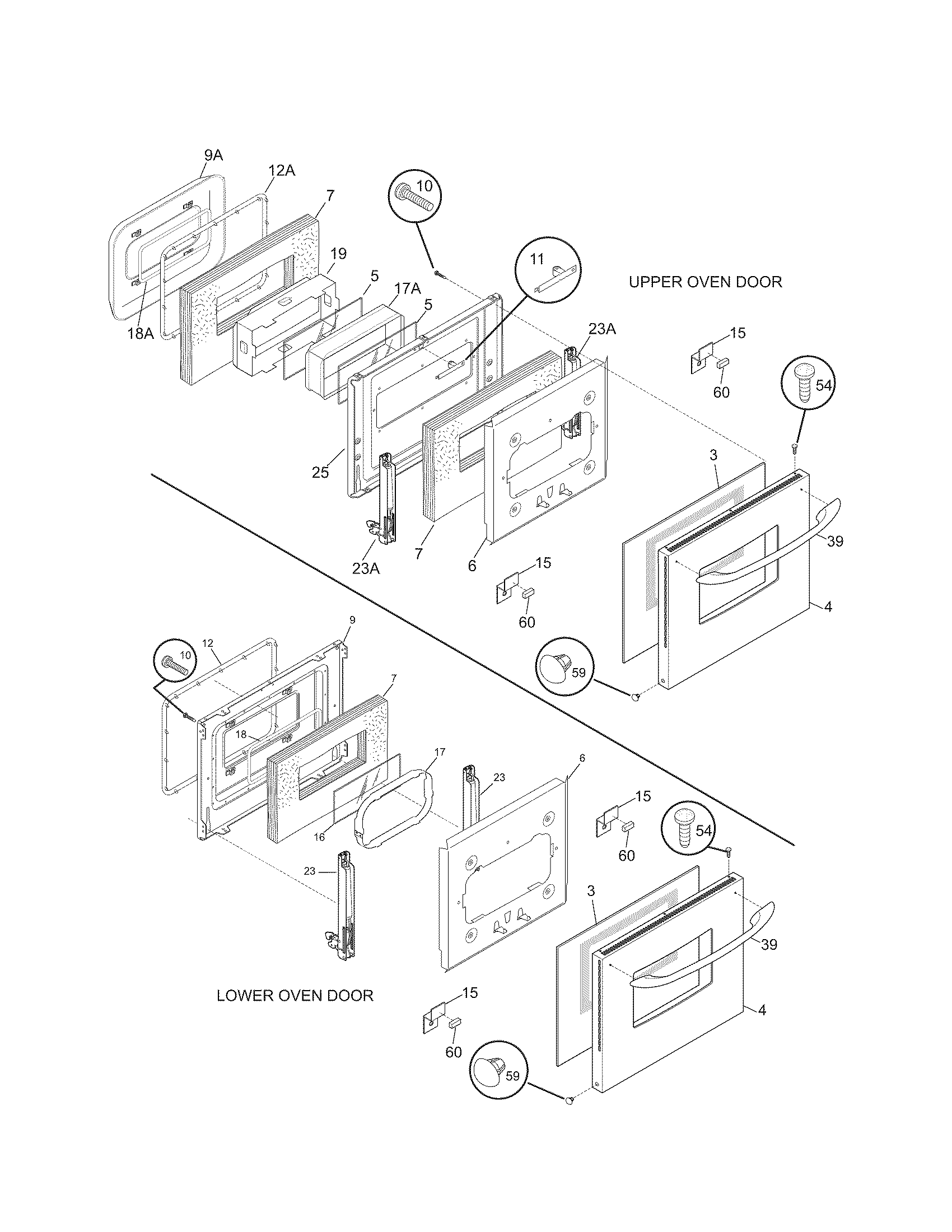

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

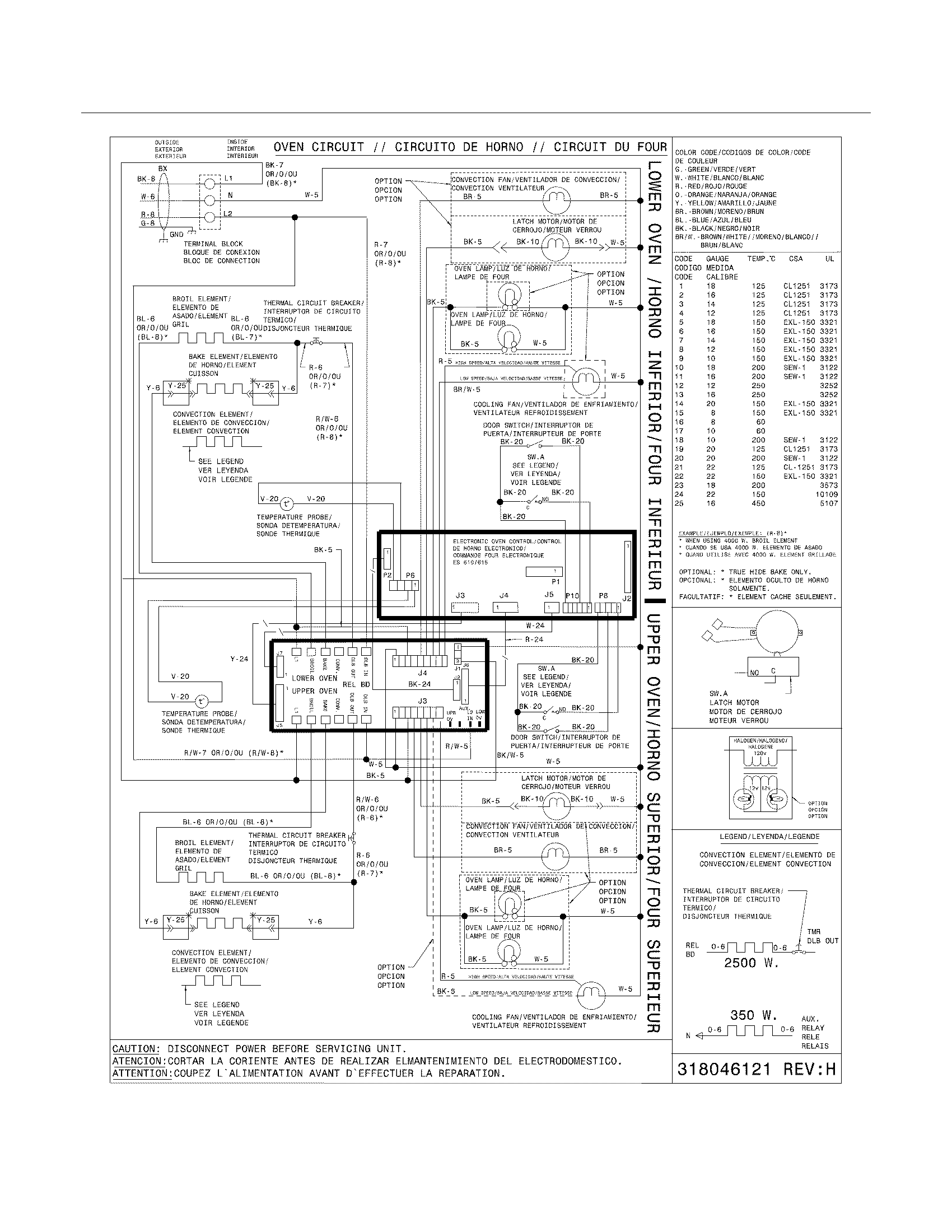

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 131 parts
See All Related Diagrams
Appliance light bulb, 40-watt
Part #316538901
Replaced by #316538904
?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
In Stock
$16.82 |
11% OFF
Phone Price: $18.82
See All Related Diagrams
Range oven temperature sensor
Part #318562500
Replaced by #5304525427
?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
In Stock
$25.13
Wall oven relay control board
Part #316443913
In Stock
$248.71 |
$10.00 OFF
Phone Price: $258.71
Appliance stainless steel cleaner, 1-oz
Part #316136900
In Stock
$25.09 |
17% OFF
Phone Price: $30.09
Insert broil
Part #5303317976
Replaced by #5304494997
?
Manufacturer substitution
This part replaces 5303317976. Substitute parts can look different from the original.
In Stock
$59.77 |
8% OFF
Phone Price: $64.77
Broiler pan
Part #5303317977
Replaced by #5304494997
?
Manufacturer substitution
This part replaces 5303317977. Substitute parts can look different from the original.
In Stock
$59.77 |
8% OFF
Phone Price: $64.77
See All Related Diagrams
Range broil element (replaces 318255601)
Part #318255606
In Stock
$158.01 |
6% OFF
Phone Price: $168.01
Range oven door seal
Part #5303316768
In Stock
$68.09 |
7% OFF
Phone Price: $73.09
See All Related Diagrams
Range door light switch
Part #318394802
Replaced by #808136601
?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
In Stock
$32.29 |
13% OFF
Phone Price: $37.29
Wall oven safety thermostat
Part #318003616
In Stock
$78.49 |
6% OFF
Phone Price: $83.49
Recommended maintenance parts and accessories
Symptoms common to all wall oven
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure
Main causes: broken broil element, faulty broil burner igniter, control system failure
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, control system failure
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element
