Bottom-Mount Refrigerator

Model #PGCS1RKZASS Official GE bottom-mount refrigerator

Here are the diagrams and repair parts for GE PGCS1RKZASS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

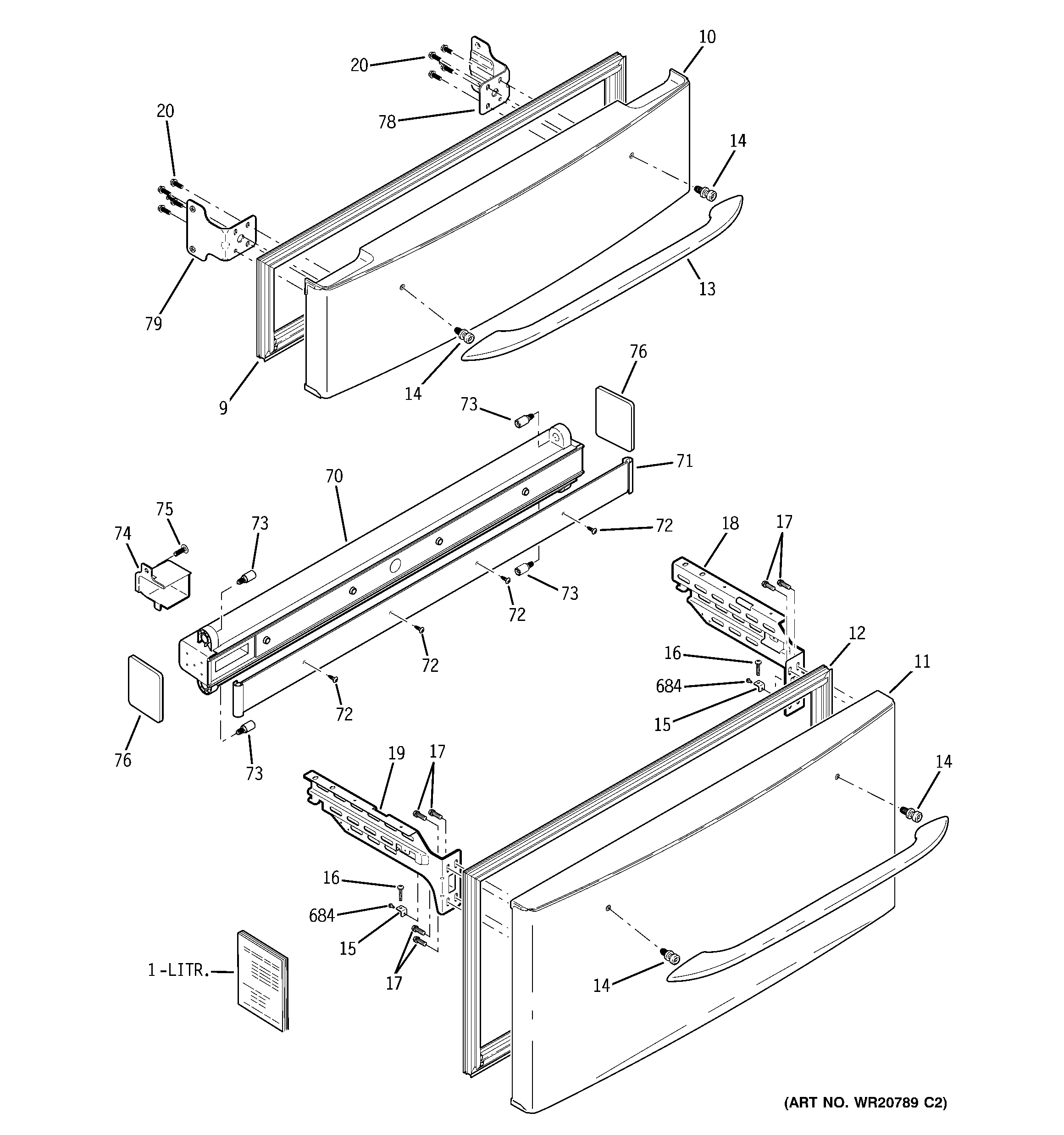

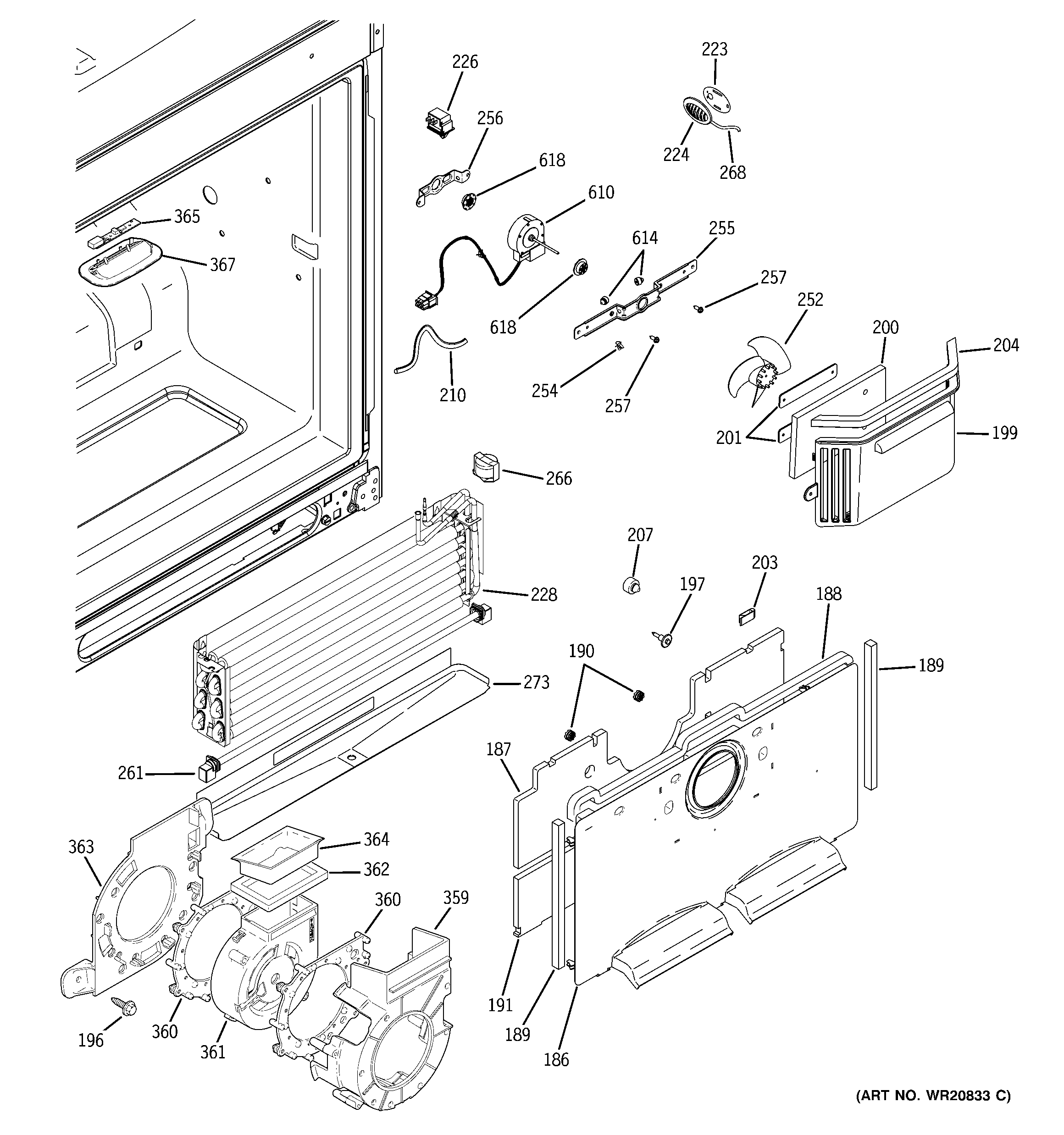

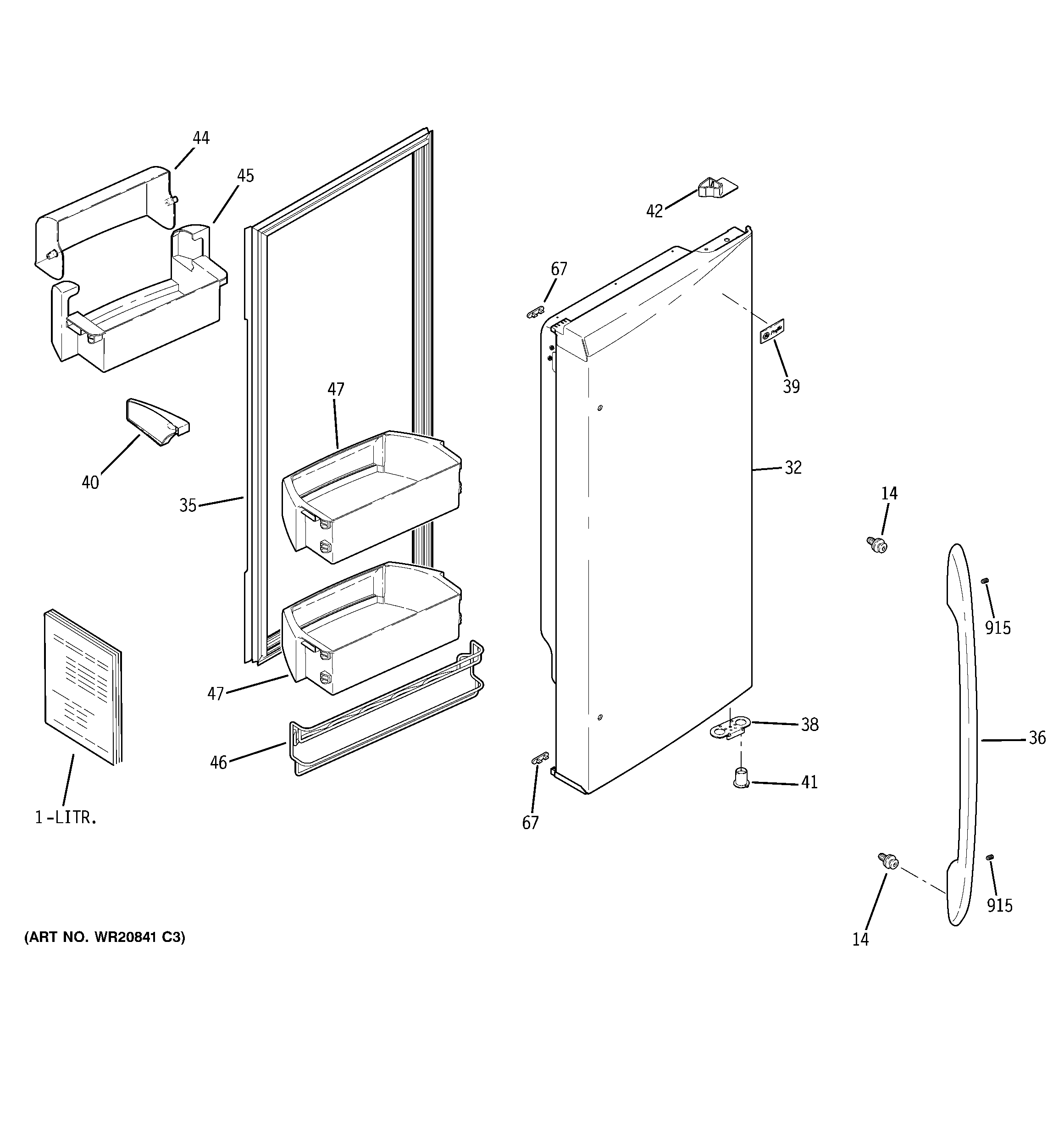

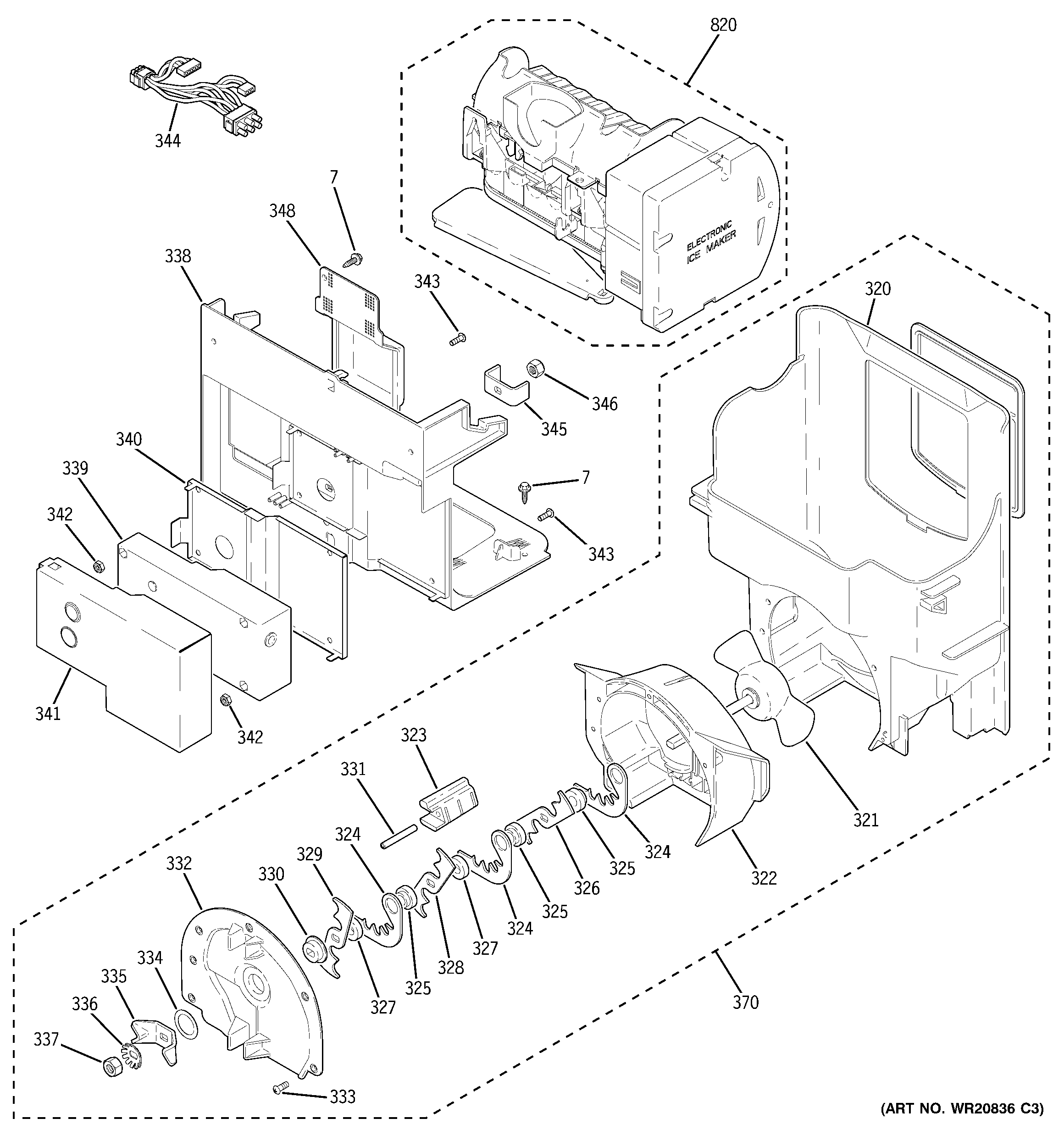

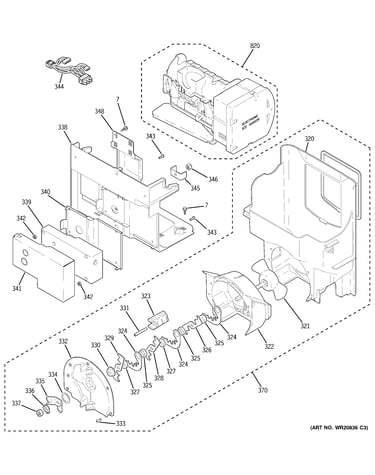

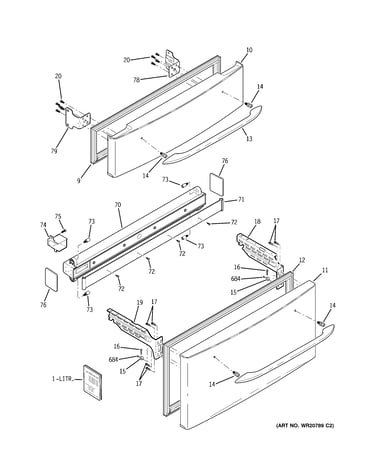

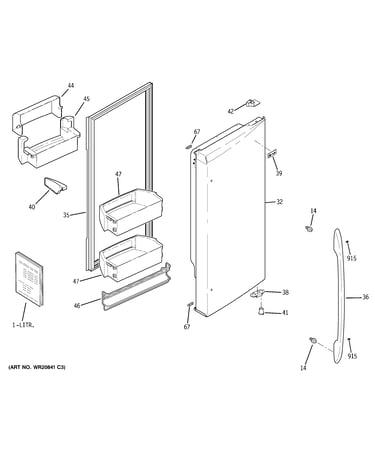

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes
?
This is the number corresponding to the part on the diagram / schematic

Showing 10 of 309 parts

GE Refrigerator Water Filter (replaces 9970, MWFPA)#264

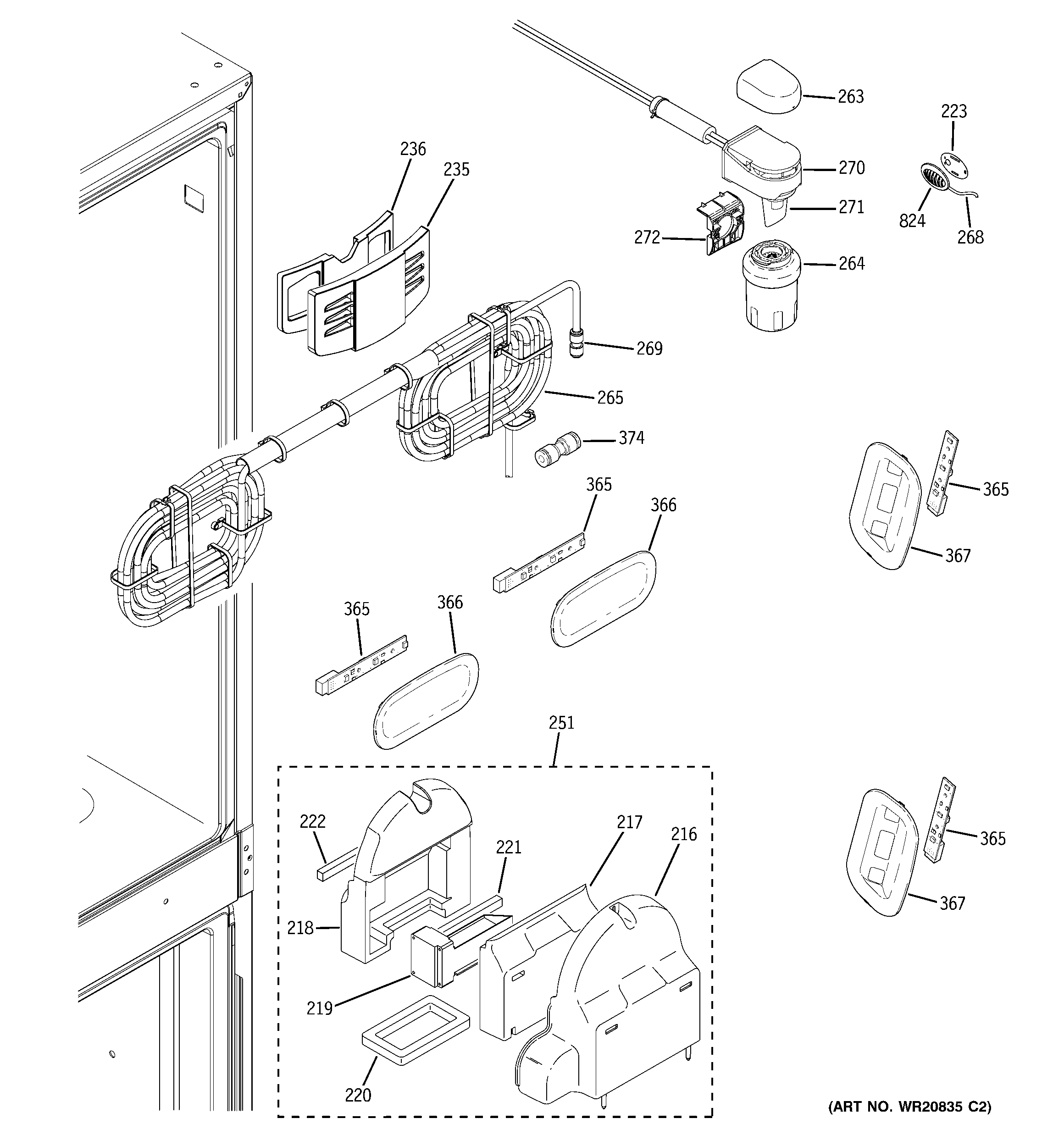

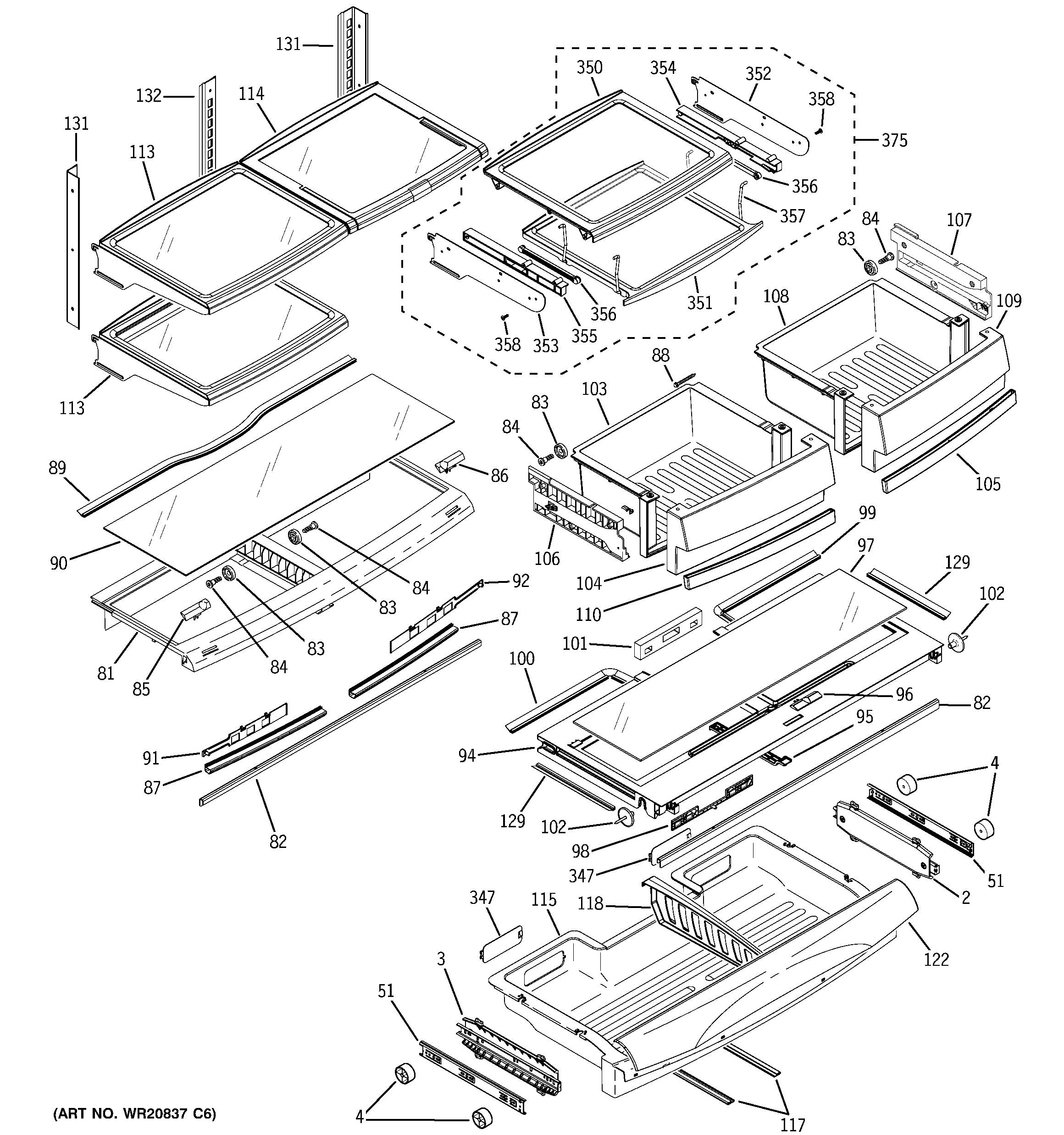

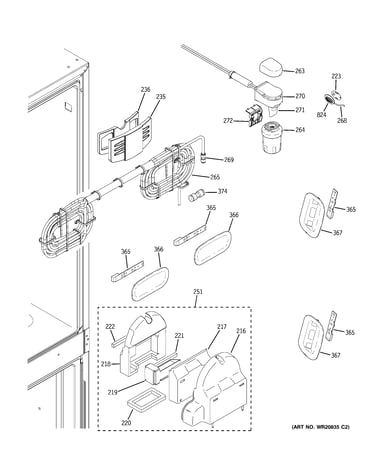

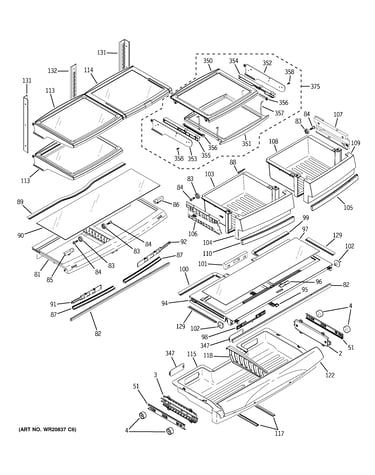

Fresh food section Diagram

Ge refrigerator water filter (replaces 9970, mwfpa)

Part #MWF
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
$49.99
Refrigerator Temperature Sensor

See All Related Diagrams

Temperature sensor

Part #WR55X10711
Replaced by #WR55X10025
?
Manufacturer substitution
This part replaces WR55X10711. Substitute parts can look different from the original.
BEST SELLER
In Stock
$23.31 |
18% OFF
Phone Price: $28.31
Refrigerator Water Inlet Valve Assembly#800

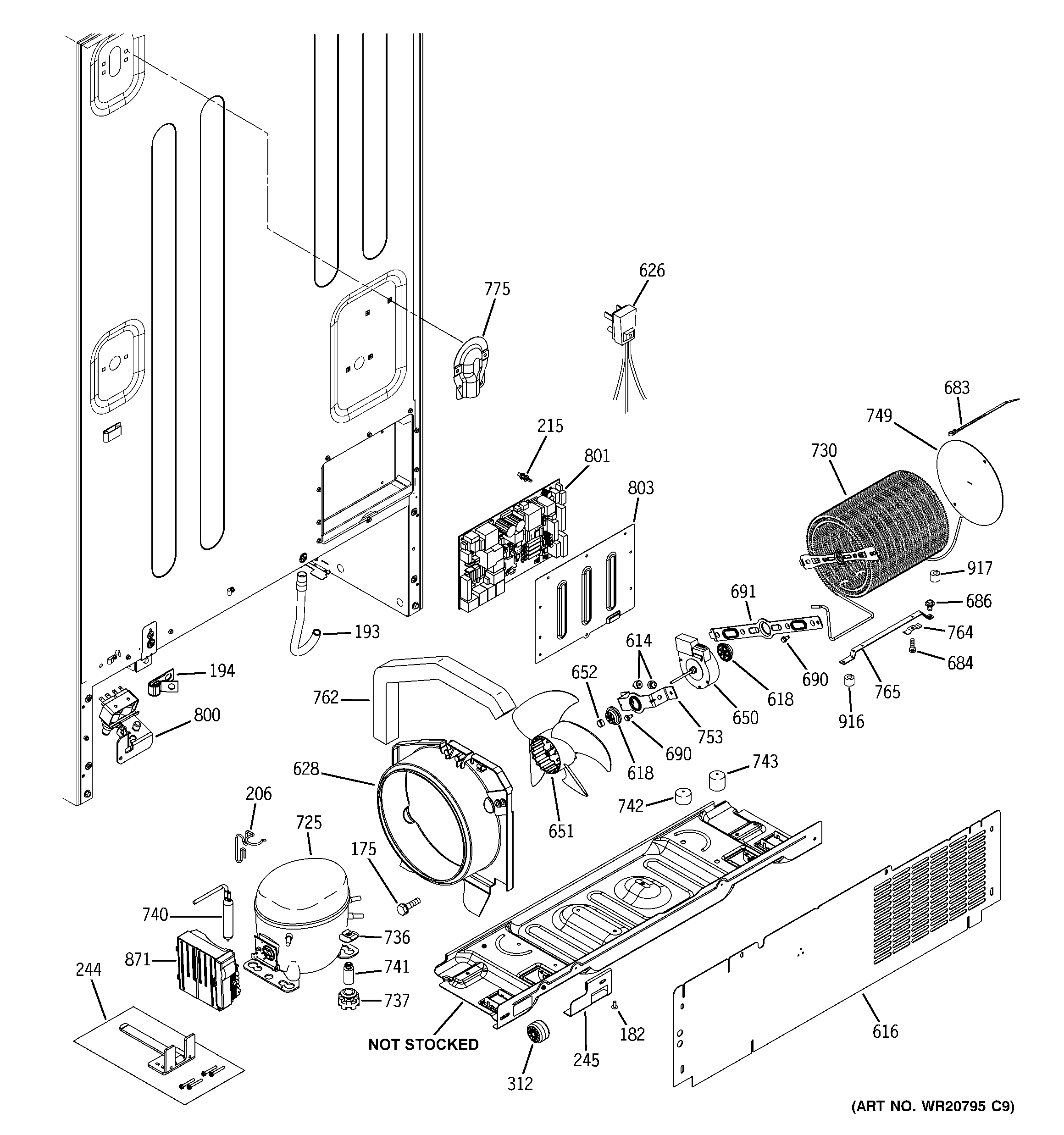

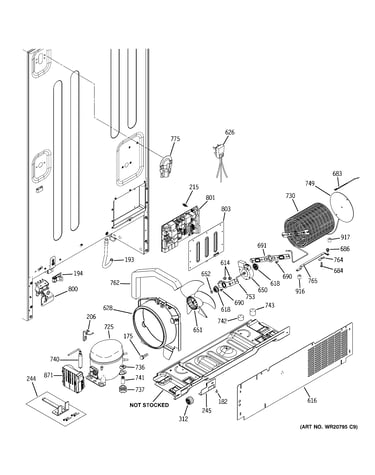

Machine compartment Diagram

Refrigerator water valve

Part #WR57X10040
Replaced by #WR57X10032
?
Manufacturer substitution
This part replaces WR57X10040. Substitute parts can look different from the original.
BEST SELLER
In Stock
$62.59 |
7% OFF
Phone Price: $67.59
Refrigerator Dispenser Ice Chute Door Solenoid (replaces WR62X10020)#143

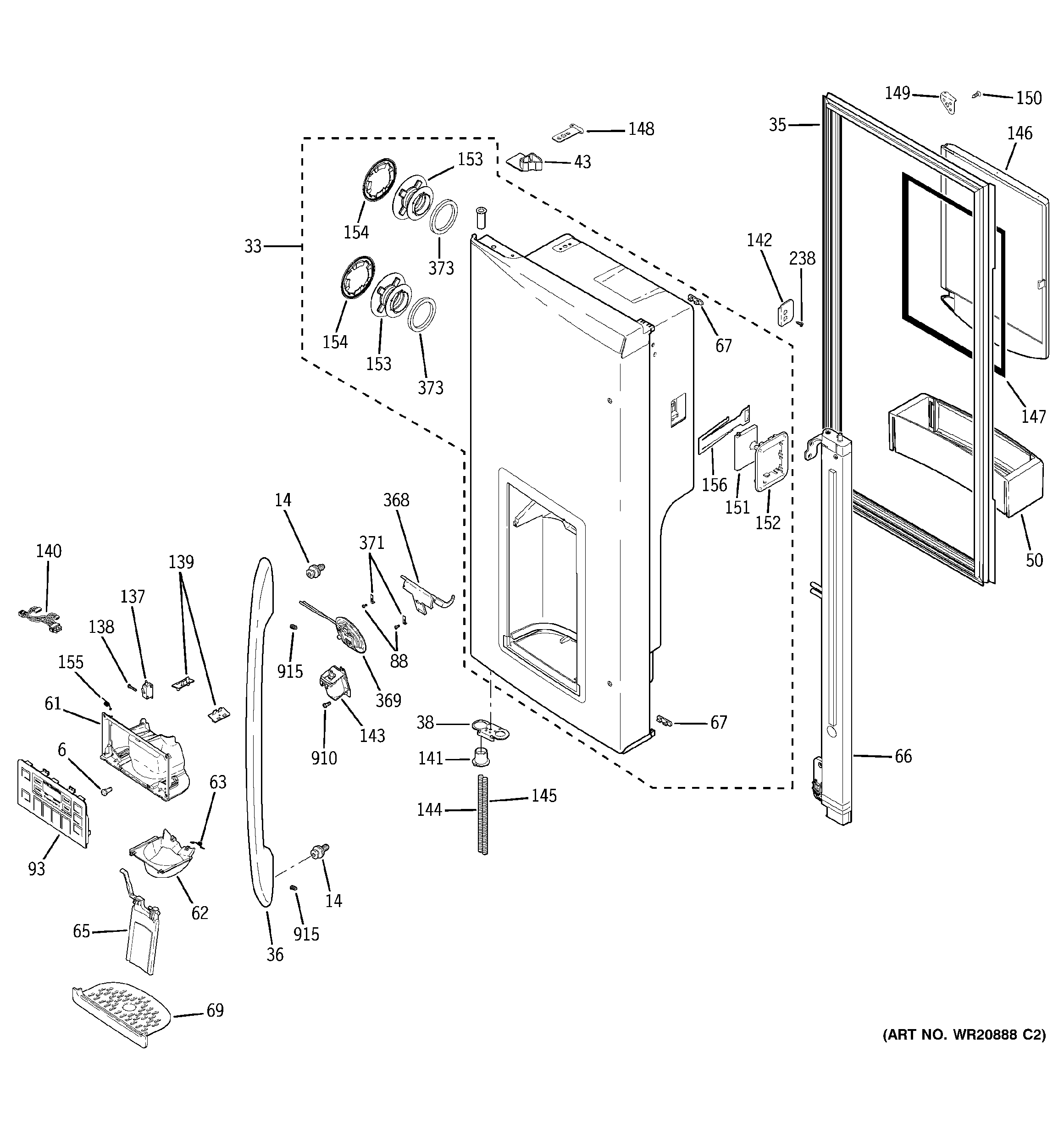

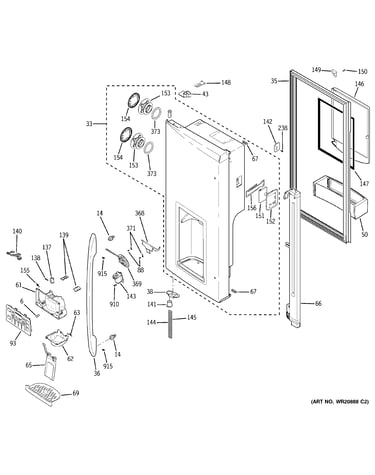

Dispenser door Diagram

Refrigerator dispenser ice chute door solenoid (replaces wr62x10020)

Part #WR62X10055
BEST SELLER
In Stock
$52.84 |
9% OFF
Phone Price: $57.84
Refrigerator Dispenser Lever#65

Dispenser door Diagram

Refrigerator dispenser lever

Part #WR17X12982
BEST SELLER
In Stock
$25.09 |
17% OFF
Phone Price: $30.09
Refrigerator Air Damper Assembly (replaces WR17X12456)

Refrigerator air damper assembly (replaces wr17x12456)

Part #WR60X10239
In Stock
$137.64 |
7% OFF
Phone Price: $147.64
Refrigerator Door Switch (replaces WR23X21073)#225

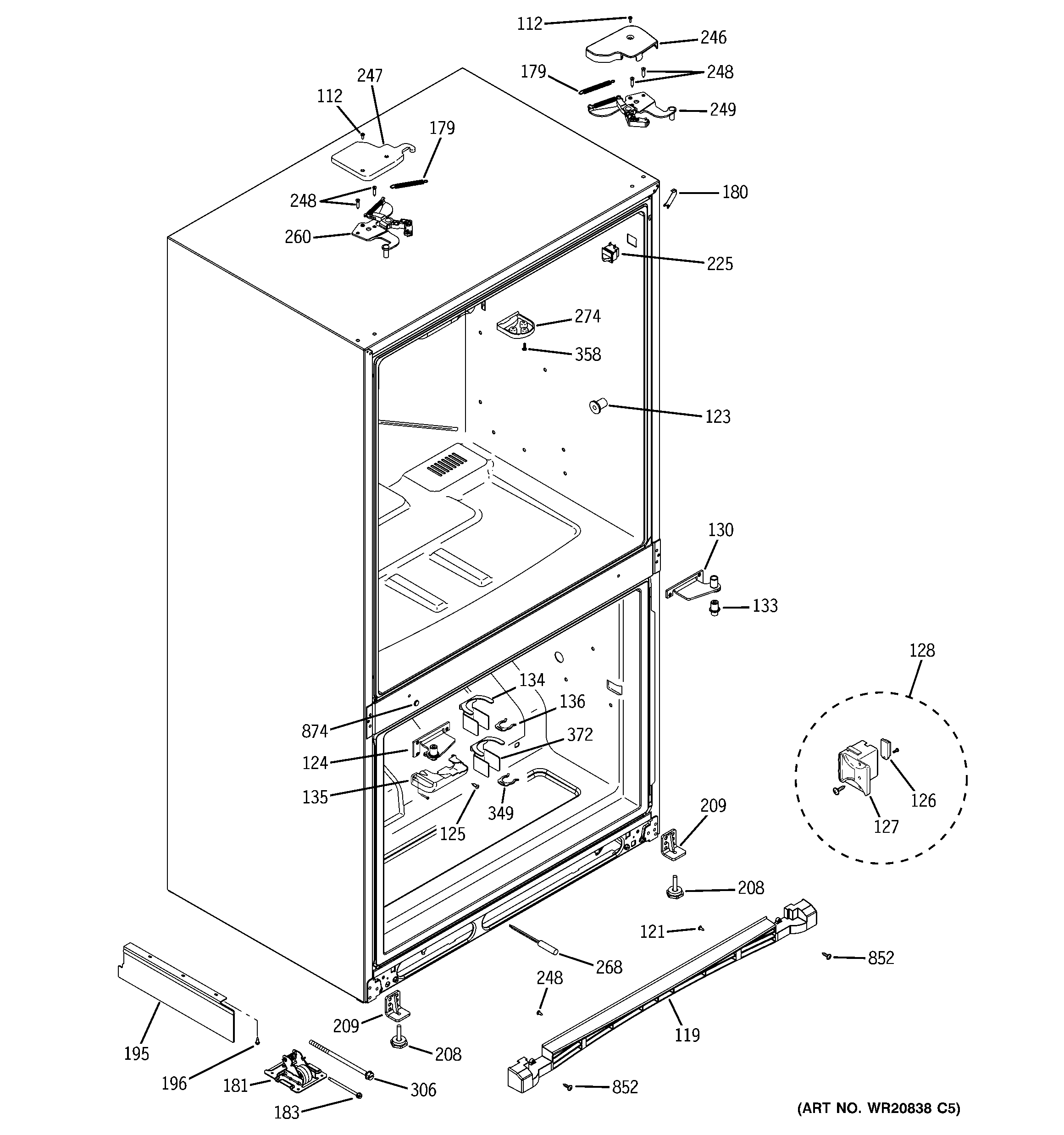

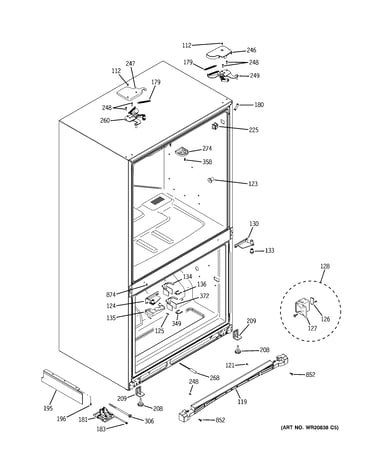

Case parts Diagram

Refrigerator door switch

Part #WR23X10179
Replaced by #WR23X21444
?
Manufacturer substitution
This part replaces WR23X10179. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$8.29 |
11% OFF
Phone Price: $9.29
Refrigerator Air Damper Assembly (replaces WR17X12456)#251

Fresh food section Diagram

Refrigerator air damper

Part #WR17X12456
Replaced by #WR60X10239
?
Manufacturer substitution
This part replaces WR17X12456. Substitute parts can look different from the original.
In Stock
$137.64 |
7% OFF
Phone Price: $147.64
Refrigerator Inverter Kit (replaces WR55X10490, WR55X10979)#871

Machine compartment Diagram

Refrigerator inverter

Part #WR55X10979
Replaced by #WR49X10283
?
Manufacturer substitution
This part replaces WR55X10979. Substitute parts can look different from the original.
In Stock
$255.40 |
$10.00 OFF
Phone Price: $265.40

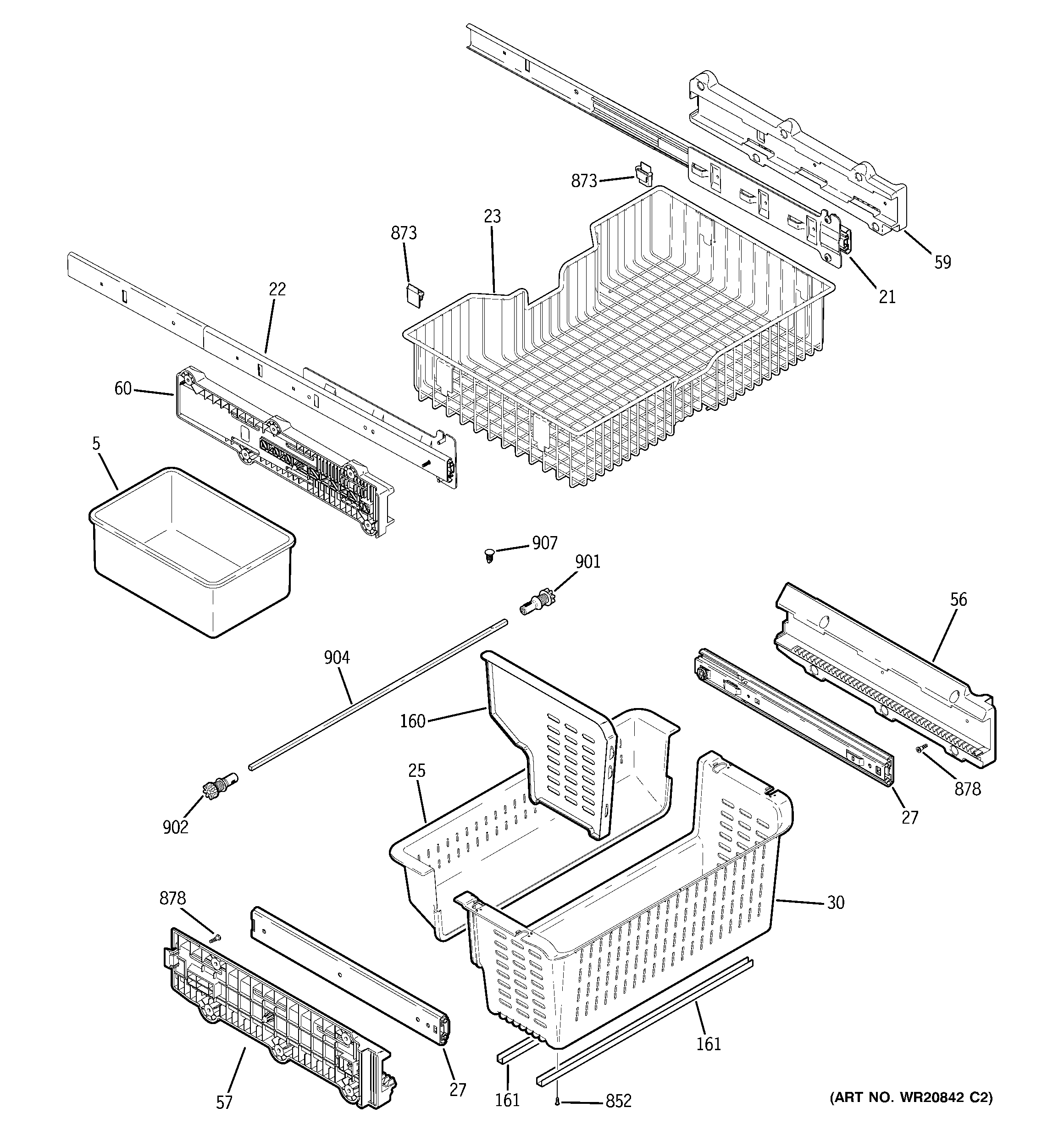

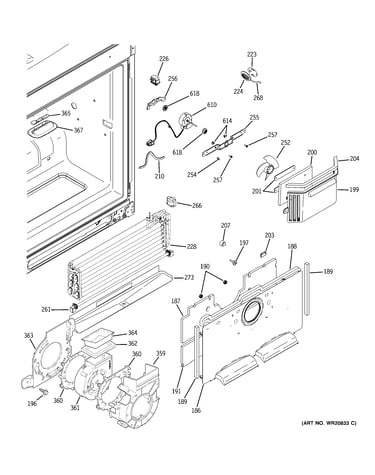

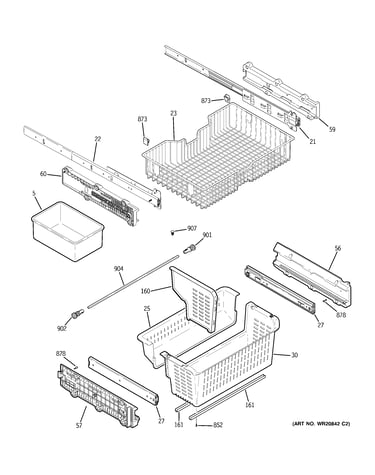

Freezer Basket Bumper (replaces WR02X11329)

See All Related Diagrams

Freezer basket bumper (replaces wr02x11329)

Part #WR02X10540
This item is not returnable
In Stock
$7.69 |
12% OFF
Phone Price: $8.69
