Maytag MZF34X18FW03 upright freezer Parts

To tell the size of your Maytag MZF34X18FW03 upright freezer, we measure the outside height, width, and depth, then estimate capacity in cubic feet using those dimensions. For the exact rated capacity, match your model number and compare to the product specs when shopping for parts on Sears PartsDirect.

Measure the freezer (outside dimensions)

Use a tape measure and record all measurements in inches.

• Height: floor to the top of the cabinet (do not include the hinge cap if it sticks up)
• Width: left edge to right edge of the cabinet (not the handle)
• Depth: back of cabinet to the front edge of the door (measure again including the handle if clearance matters)
• Door swing clearance: measure how far the door extends when open if you are planning placement

Quick measurement checklist

• Measure at the widest points (some cabinets flare slightly)
• Measure depth two ways: with and without the handle
• Write down results like H x W x D (example: 66 x 30 x 29)
• If the freezer is on rollers/feet, measure with it sitting level

Estimate capacity (cubic feet)

Manufacturers rate capacity by usable interior volume, so an estimate from outside dimensions will be a little high. Still, it is useful for comparing sizes.

1. Convert inches to feet: divide each measurement by 12
2. Multiply: (height ft) x (width ft) x (depth ft)
3. Reduce by about 15% to 25% to approximate usable interior space (shelves, insulation, and the evaporator area take space)

What you want	What to measure	What it tells you
Fit in a space	Outside H x W x D	Clearance and placement
“How many cubic feet?”	Outside H x W x D (then adjust)	Approximate capacity
Exact rated size	Model-based specs	True manufacturer capacity

Why it matters

Knowing both the outside dimensions and the approximate capacity helps you plan installation clearance, compare upright freezer sizes, and choose compatible replacement parts (like shelves or a door gasket).

Last updated: February 2026

Most Maytag refrigerators last 10 to 15 years with normal use and basic maintenance. If you keep airflow clear, clean the coils, and fix cooling issues early (especially fan and temperature-sensing problems), many units reach the upper end of that range.

What affects refrigerator lifespan most

• Condenser coil cleanliness (dust buildup makes the compressor work harder)
• Ventilation around the cabinet (tight spaces trap heat)
• Door seal condition (air leaks force longer run times)
• Stable temperatures (avoid frequent warm-ups from propped doors)
• Fast response to symptoms (warm temps, loud fan noise, heavy frost)

Practical maintenance that adds years

Even though this page is for the Maytag upright freezer model MZF34X18FW03, the same reliability drivers apply to Maytag refrigeration systems.

• Vacuum coils and the area underneath/behind the unit regularly
• Keep the door closing squarely; level the cabinet if the door swings open
• Do not overload shelves so air can circulate
• Defrost and clear frost buildup if airflow is restricted
• If temperatures swing, check the sensor and airflow components early (for this model, parts like the refrigerator thermistor WPW10383615 and evaporator motor WPW10359880 are common cooling-system suspects)

Common “end-of-life” symptoms vs. fixable issues

Symptom	Often fixable?	Common area to check
Runs constantly, still warm	Yes	Airflow, coils, temperature sensing
Loud buzzing/clicking at start	Sometimes	Start device/relay
Heavy frost on back wall	Yes	Defrost system, door seal
No cooling at all	Sometimes	Sealed system or compressor

Why it matters

A refrigerator that runs longer than it should uses more electricity and wears out major components faster. Catching airflow and temperature-control problems early can prevent compressor strain and extend overall appliance life.

Ordering parts

You can order replacement parts for your Maytag MZF34X18FW03 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common problem we see in a Maytag upright freezer like model MZF34X18FW03 is warm temperatures caused by restricted airflow, usually from frost buildup on the evaporator cover or blocked air vents. A close second is air leaks at the door gasket, which drive heavy frost and long run times.

Quick checks that solve the most problems

• Make sure packages are not blocking interior air vents or the air tower.
• Confirm the door closes fully and does not pop back open.
• Look for heavy frost on the back interior panel (a defrost issue sign).
• Listen for the evaporator fan running when the door is closed.
• Verify the freezer is level and stable (a tilted cabinet can affect door sealing).

What the symptoms usually point to

Symptom	Most likely cause	Common next step
Freezer not cold enough, little or no airflow	Evaporator fan problem	Inspect fan blade and motor; replace if damaged
Heavy frost on back wall, temps rising	Defrost system problem	Check defrost heater circuit and frost pattern
Frost around door edge, moisture, long run times	Door not sealing	Inspect gasket for gaps, tears, or hardened spots
Compressor runs a lot, clicking, then stops	Start device issue	Check start relay and wiring connections

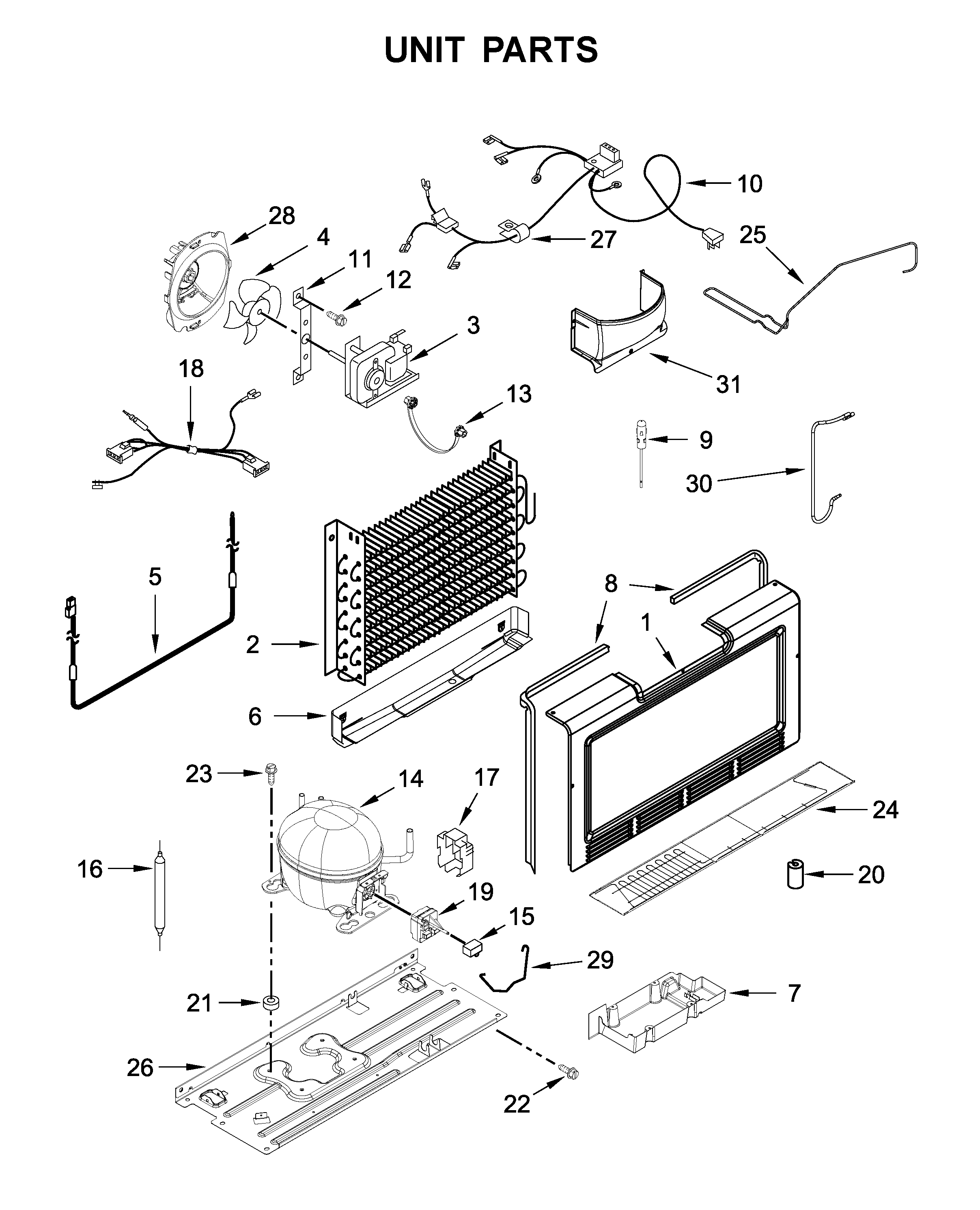

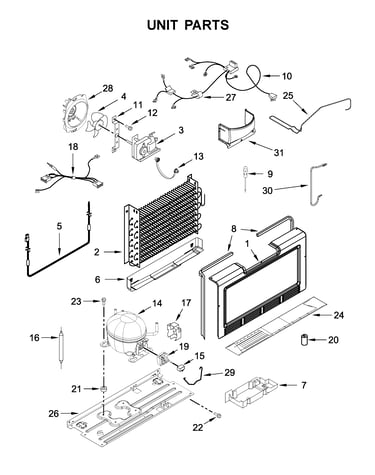

Parts that commonly relate to these issues

If airflow or temperature sensing is the problem, these model-matched parts are often involved:

• Evaporator motor WPW10359880 (moves cold air through the cabinet)
• Refrigerator evaporator fan blade WP2169142 (a cracked or loose blade reduces airflow)
• Refrigerator thermistor WPW10383615 (helps the control sense temperature accurately)
• Combination W10873801 (compressor start relay; can cause hard-start or clicking symptoms)

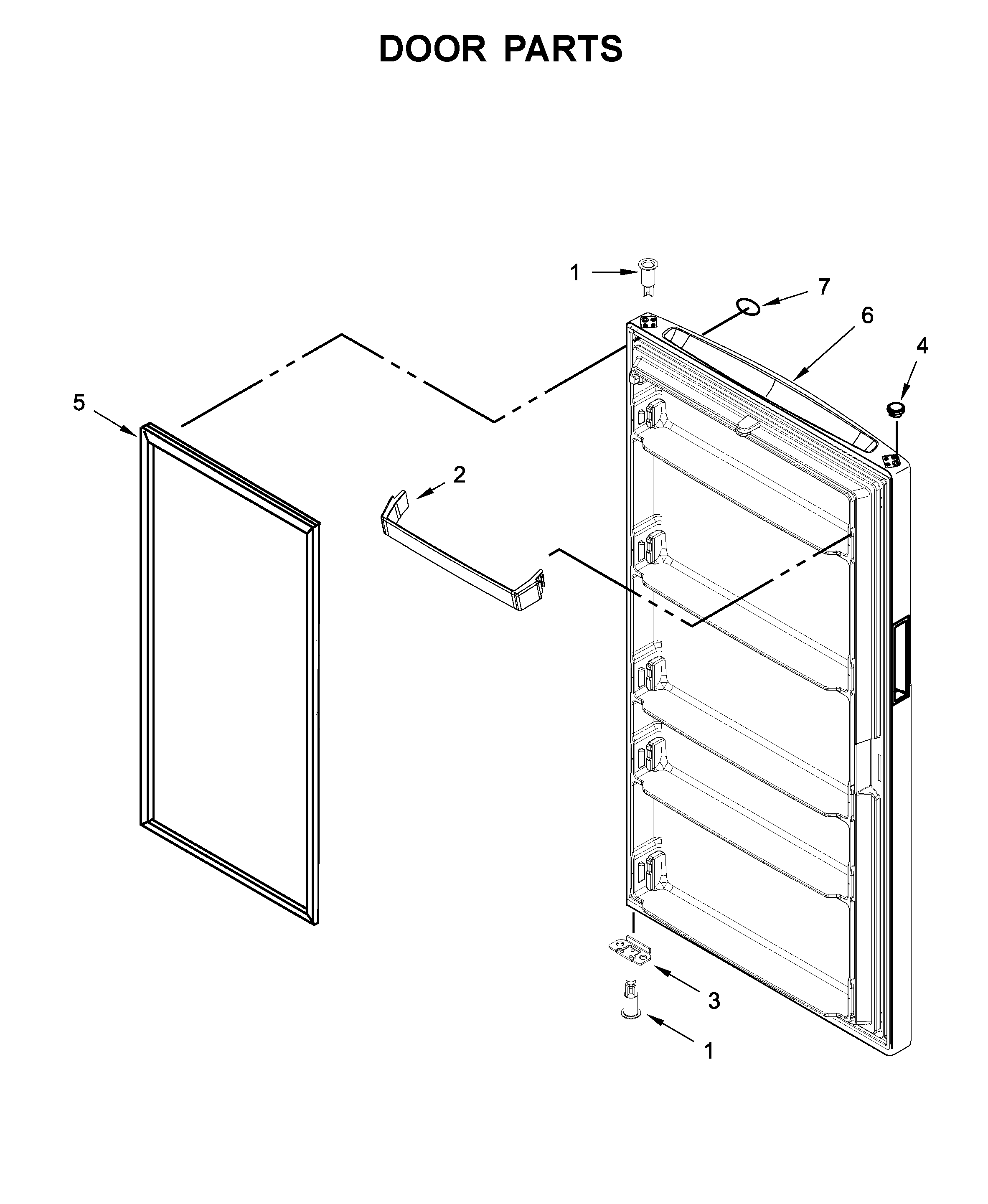

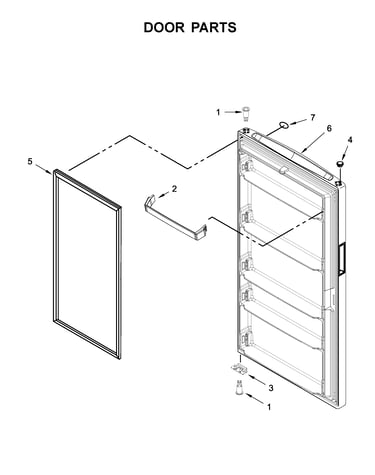

• Freezer door gasket W10856583 (prevents warm, moist air leaks that create frost)

Why it matters

Airflow and sealing problems make the freezer run longer, build frost faster, and struggle to hold safe food temperatures. Fixing the root cause (fan, defrost, or gasket) restores normal cooling and efficiency.

You can order replacement parts for your Maytag MZF34X18FW03 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
