GE DVLR223GG7WW gas dryer Parts

Yes. A 7.3 cubic foot dryer is a large-capacity size; it gives you extra room for bulky items and bigger mixed loads, so you can dry more at once with fewer cycles. For your GE gas dryer model DVLR223GG7WW, capacity this size is considered “large” in today’s dryer lineup.

What “7.3 cu. ft.” means in real laundry loads

A 7.3 cu. ft. drum is designed to handle larger, fluffier loads without packing the drum too tightly.

• Comforters, blankets, and bulky towels fit more easily
• Fewer loads for families or frequent laundry days
• Better tumbling space helps reduce damp spots
• Less overdrying when you avoid cramming the drum full
• More flexibility to mix items (towels plus smaller items)

Quick capacity comparison

Use this as a practical guide when shopping or comparing dryers.

Dryer capacity	Common label	Best for
5.0 to 6.0 cu. ft.	Standard	Singles, couples, smaller loads
6.1 to 7.0 cu. ft.	Large	Most households, regular weekly laundry
7.1+ cu. ft.	Extra-large	Bulky items, larger families, fewer loads

Why it matters for drying performance

Capacity affects airflow and tumbling. When a dryer is overloaded, clothes cannot tumble freely, airflow drops, and dry times increase. With a large drum like 7.3 cu. ft., you get more space to keep loads loose, which supports faster, more even drying.

Tips to get the most from a large-capacity dryer

These habits improve dry times and help protect parts like the drum supports and blower system.

• Clean the lint screen before every load
• Keep loads “loose”; stop short of packing the drum full
• Use Timed Dry for very bulky items if the automatic cycle ends too soon
• Make sure the exhaust is rigid or flexible metal ducting (gas dryers must vent outdoors)
• If dry times suddenly get longer, check for vent restriction and lint buildup

For cycle details and operating tips specific to DVLR223GG7WW, use the DVLR223GG7WW owner’s manual. For venting and duct requirements, follow the DVLR223GG7WW installation guide. If you need replacement parts for airflow or drum support issues, you can order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

Your GE DVLR223GG7WW gas dryer shows the “Clean Lint Filter” message to remind you to clean the lint screen before each load. If the message stays on after you clean it, airflow is usually restricted (lint in the housing or vent) or the dryer is not sensing airflow correctly.

What to do first (quick fixes)

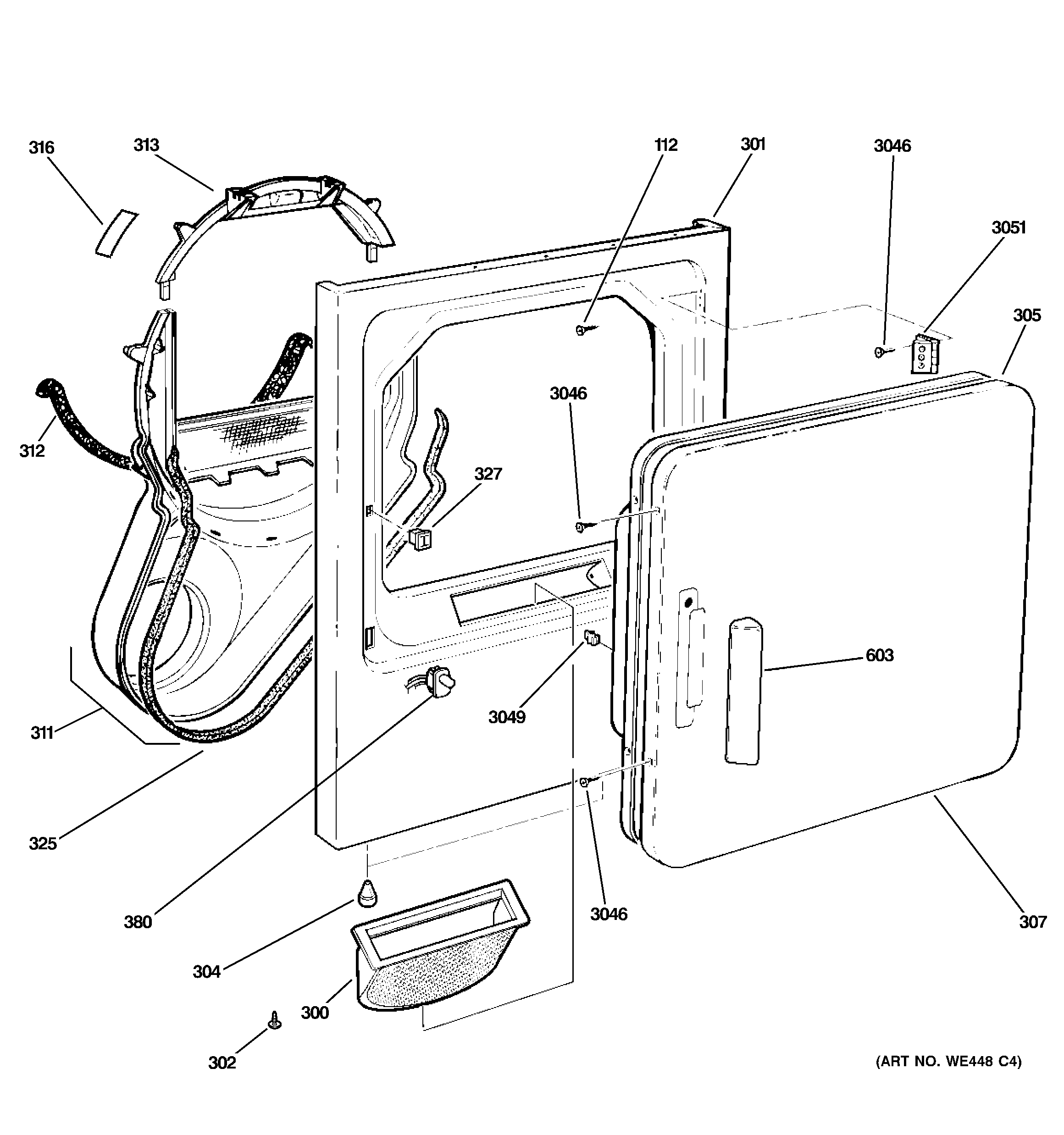

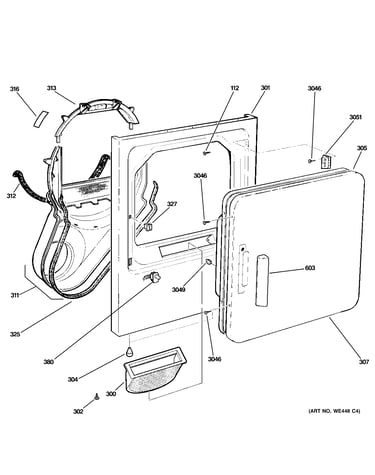

• Remove the lint screen and clean off all lint; wash the screen with warm water if it has a film, then let it dry completely.
• Reach into the lint filter opening and wipe out hidden lint around the housing.
• Run a short timed cycle and confirm strong airflow at the outside vent hood.
• Inspect the vent path for kinks, crushed duct, or heavy lint buildup.
• Power reset: unplug the dryer (or switch off the breaker) for 2 minutes, then restart.

Airflow checks that stop the message from coming back

Restricted venting is the most common reason this alert repeats, and it also causes long dry times.

• Clean the exhaust ducting end-to-end; the manual calls for inspecting and cleaning ducting at least once a year.
• Make sure the outside damper opens easily and is not blocked.
• Use 4-inch metal ducting; avoid plastic or other combustible duct materials.

What you notice	Most likely cause	What to do
Message appears every load	Normal reminder	Clean the screen before each use (per the DVLR223GG7WW owner's manual)
Clothes take too long to dry	Lint screen or vent restriction	Clean screen, then clean and straighten venting
Dryer runs but airflow feels weak	Crushed/kinked duct or clogged vent hood	Correct duct routing, clear blockage

When a part is involved

If airflow is good and the message still persists, check for lint buildup inside the blower area or a loose/blown blower wheel that reduces airflow.

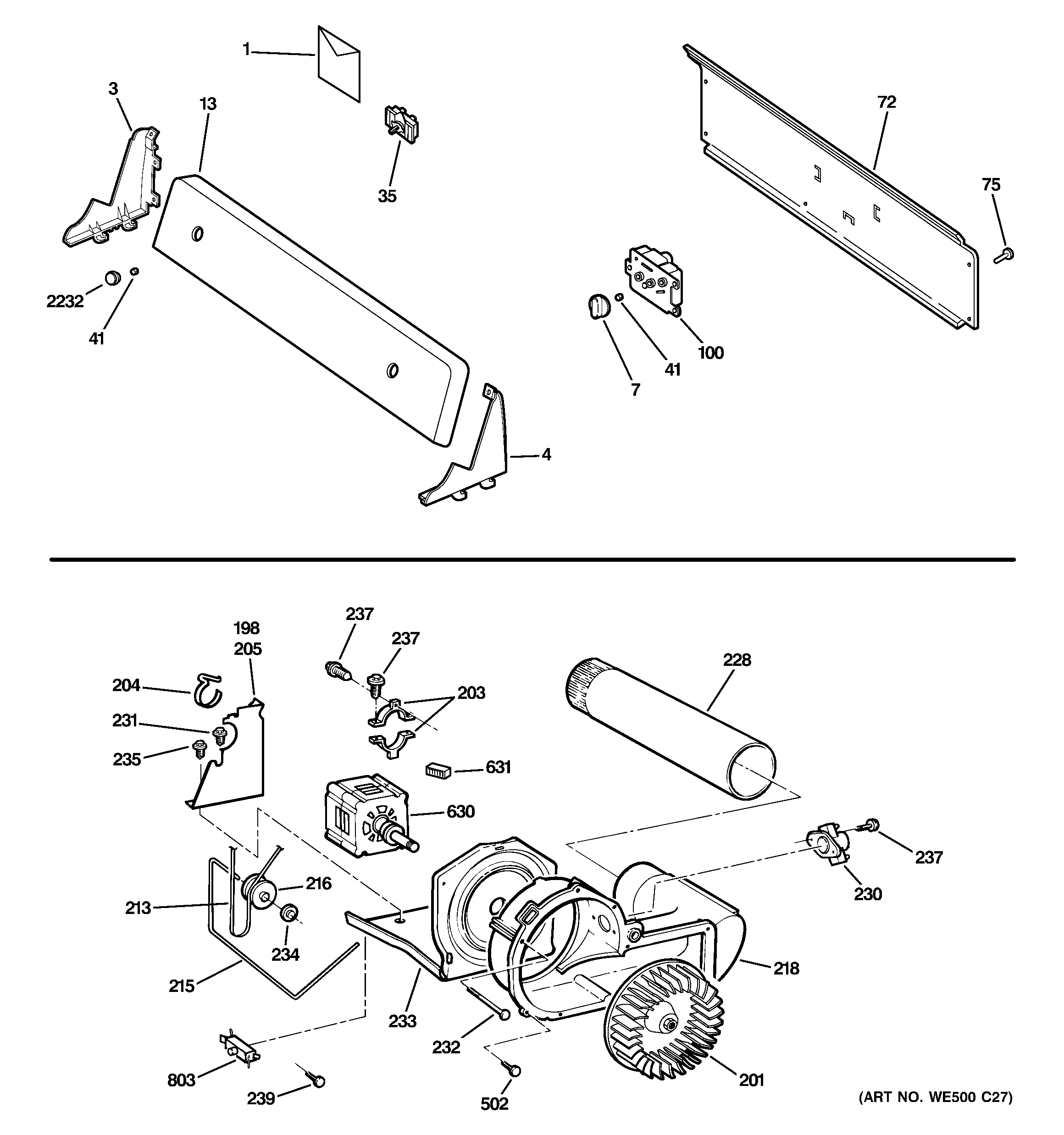

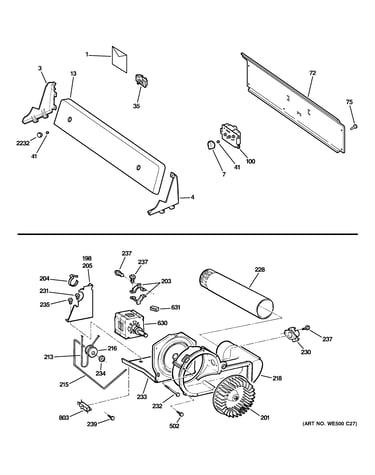

• A worn or slipping blower wheel can reduce air movement; see the dryer blower wheel WE16X20393.

Why it matters

Good airflow keeps drying times consistent, helps prevent overheating, and reduces wear on components like thermostats and the drive motor.

Ordering parts

You can order replacement parts for your GE DVLR223GG7WW from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

For your GE gas dryer model DVLR223GG7WW, the most reliable way to know the correct belt size is to match the belt to the model-specific parts list, not by measuring an old belt (belts stretch and can read “too long”). Use the DVLR223GG7WW owner's manual as a reference for access and safety steps.

Best ways to identify the correct belt

• Look up the dryer belt by model number DVLR223GG7WW in the parts list for this dryer.
• If the belt is still intact, use its printed markings (if readable) to match the replacement.
• If the belt is broken or missing, use the model-based lookup rather than guessing by drum size.
• If you already removed the belt, keep it for comparison, but do not rely on its length alone.
• If the dryer has drum noise or drag, inspect support parts while you are in the cabinet (glides, bearing, idler).

If you still want to measure the belt you have

Measuring helps you describe what you found, but it should not override the model match.

• Length (circumference): Wrap a non-stretch string around the belt’s outside, mark it, then measure the string.
• Width: Measure the belt width with a ruler or caliper.
• Ribbed vs. smooth: Note whether the belt is multi-ribbed or flat.

Quick measurement checklist

What to measure	How to measure	Common mistake
Outside circumference	String around belt, then measure string	Measuring a stretched belt and ordering “same length”
Width	Ruler/caliper across belt	Measuring at a frayed edge
Belt type	Visual check	Assuming all dryer belts are the same

Why it matters

A belt that is even slightly off can slip, squeal, fail early, or keep the drum from turning correctly. Correct belt fit also helps protect the drive system, including the idler and motor.

While the dryer is open, check these wear items

If your DVLR223GG7WW has squealing, thumping, or a hard-to-turn drum, these parts commonly wear with the belt:

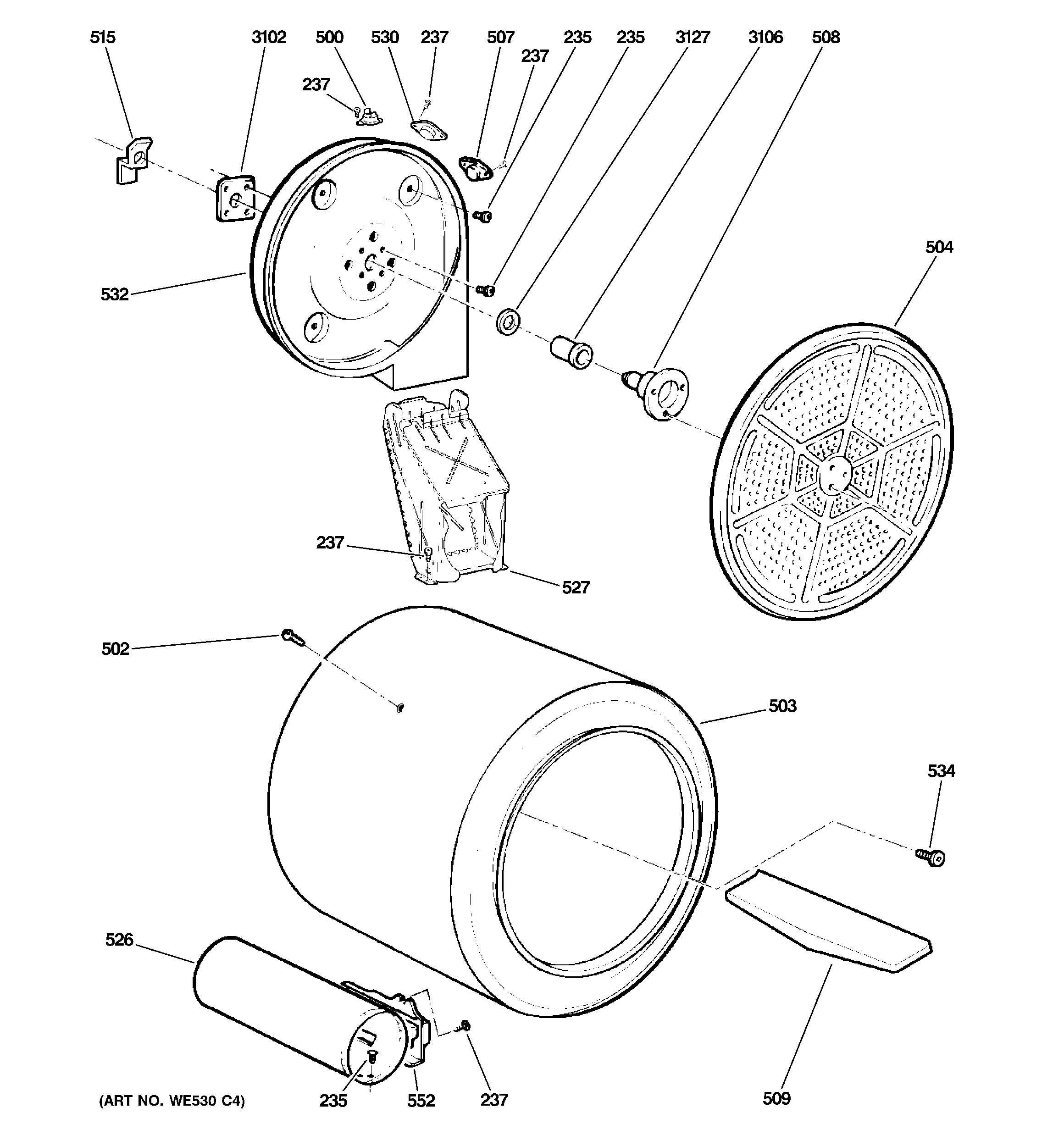

• Dryer drum glide bearing (green) WE03X37317
• Dryer drum front glide pad WE03X37318
• Idler arm WE03X20434
• Dryer drive motor WE17X22217

Ordering the right belt

Order the belt that is listed for model DVLR223GG7WW from the parts list for this dryer; for broader model searches and ordering, use Sears PartsDirect.

Last updated: February 2026

For the GE DVLR223GG7WW gas dryer, the most common problem we see is no heat or poor drying, and the most common root cause is restricted airflow from a clogged lint filter or venting. The DVLR223GG7WW owner's manual also points to basic power and gas-supply checks when the dryer will not start or heat.

Most common symptoms and what they usually mean

• Dryer tumbles but doesn’t heat: gas supply shutoff closed, igniter or gas valve issue, or an overheating safety device opening.
• Clothes take too long to dry: lint filter full, vent duct kinked or blocked, outside hood damper stuck.
• Dryer won’t start: unplugged unit, tripped breaker or blown fuse, or a control/timer issue.
• Dryer stops mid-cycle: overheating from poor venting, high-limit thermostat opening.
• Squealing or scraping noise: worn drum glides or front bearing.

Quick checks we recommend first (fast, high-impact)

1. Clean the lint filter before every load (this is the single best habit for drying performance).
2. Inspect venting: use 4-inch rigid or flexible metal duct, keep it short, and avoid crushing or collapsing the duct.
3. Check the outside exhaust hood: confirm the flaps move freely and the hood is not blocked.
4. If there’s no heat, confirm the gas shutoff valves are fully open.
5. If it won’t start, confirm the plug is fully seated and check the home fuse/breaker.

Parts that commonly fix these problems on DVLR223GG7WW

If airflow is good and the symptom persists, these model-matched parts are common repair paths:

Symptom	Common part to check/replace	Example part on this model
No heat or overheating shutdown	High-limit thermostat	Dryer high-limit thermostat WE4M137

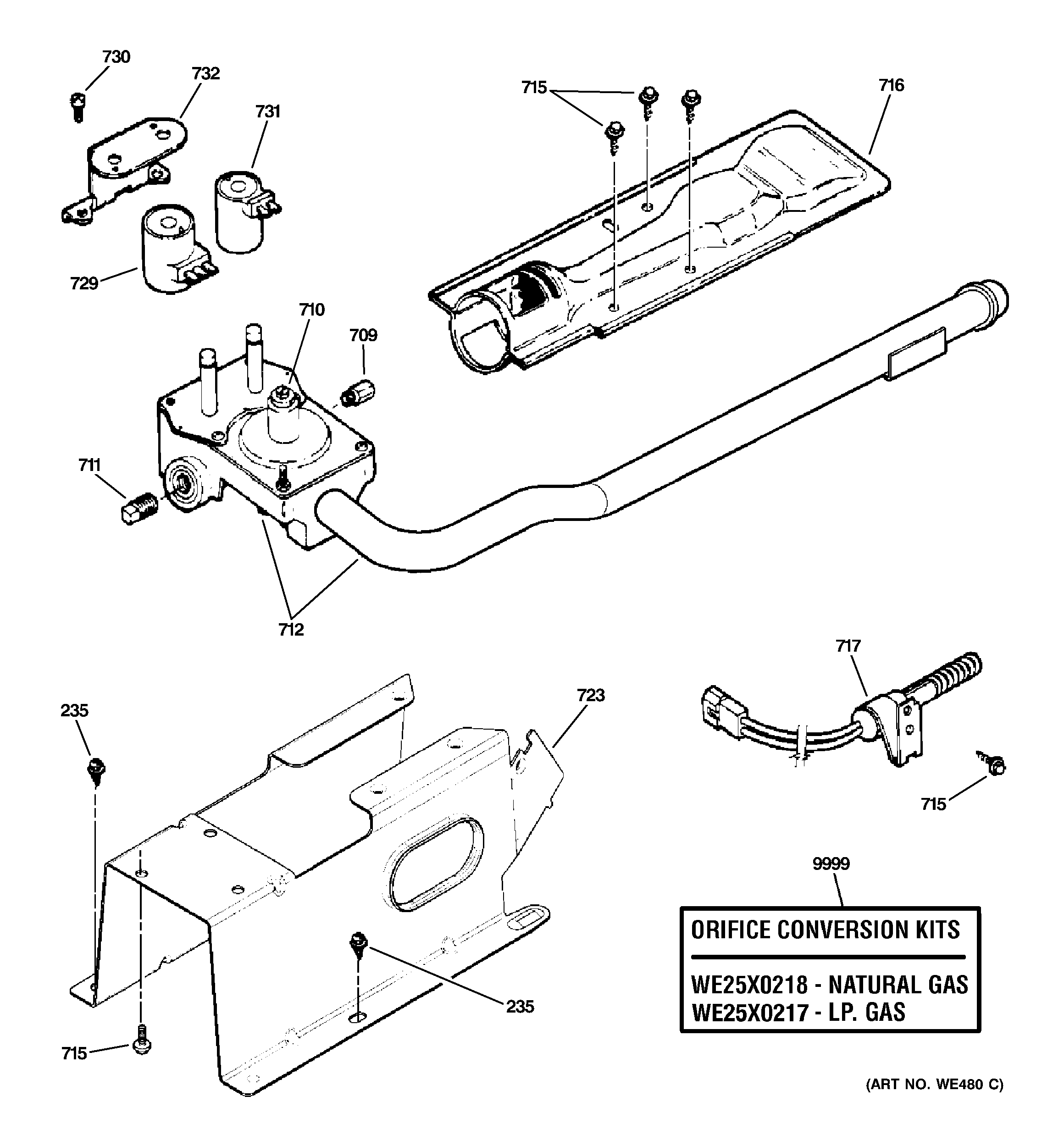

No ignition (no flame)	Igniter	Igniter WE04X25996
Long dry times with weak airflow	Blower wheel	Dryer blower wheel WE16X20393
Squeal, scrape, drum drag	Drum glides/bearing	Dryer drum glide bearing (green) WE03X37317

Why it matters

Restricted venting makes a gas dryer run longer, waste energy, and overheat. Overheating can trip safety thermostats and create “no heat” or “stops mid-cycle” complaints even when the burner system is otherwise fine.

Helpful DIY reference

For GE dryer fault displays and code meanings, use GE cleanspeak dryer error codes.

You can order replacement parts for your GE DVLR223GG7WW from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
