Kenmore Elite 79047152400 gas range

Kenmore Elite 79047152400 gas range Parts

Here are the diagrams and repair parts for Kenmore Elite 79047152400 gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

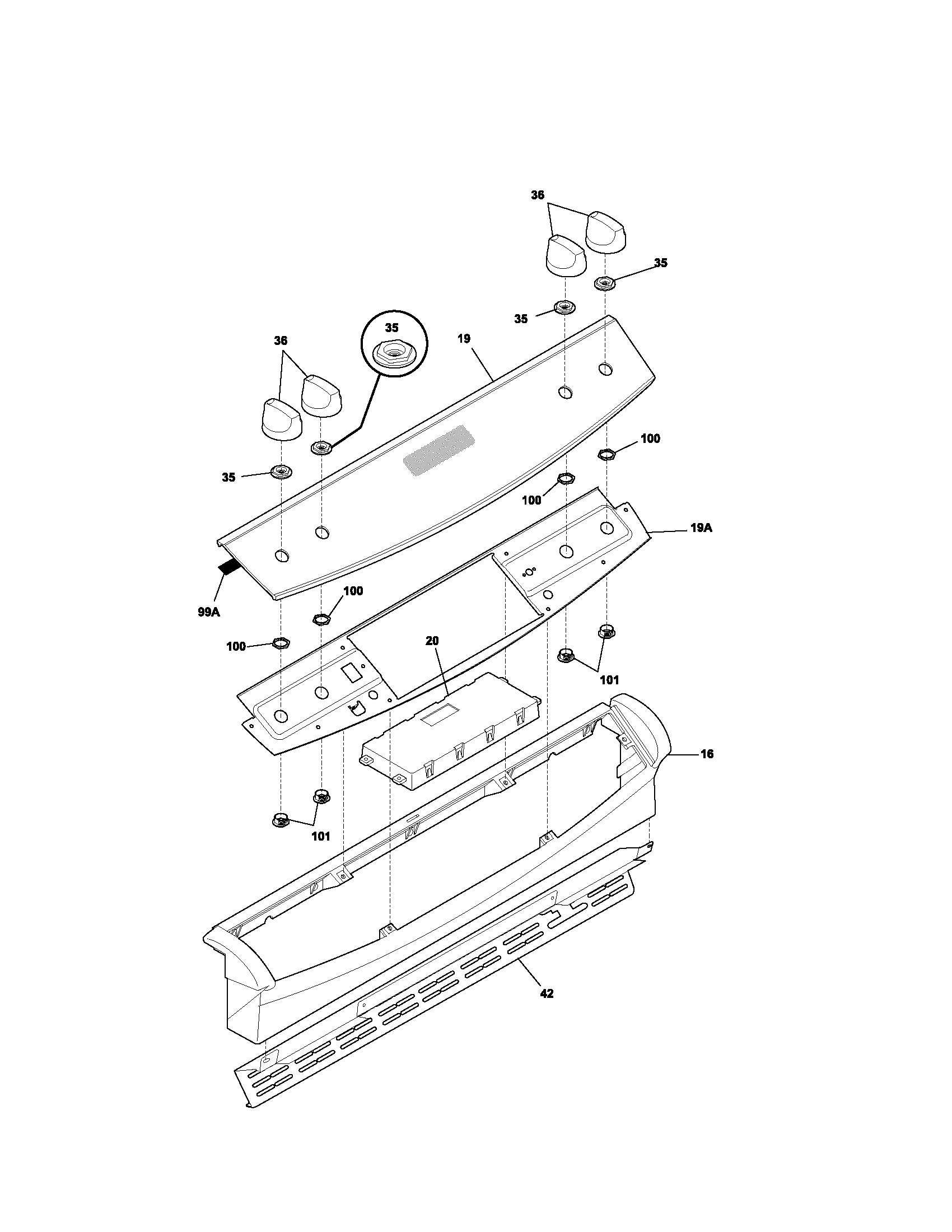

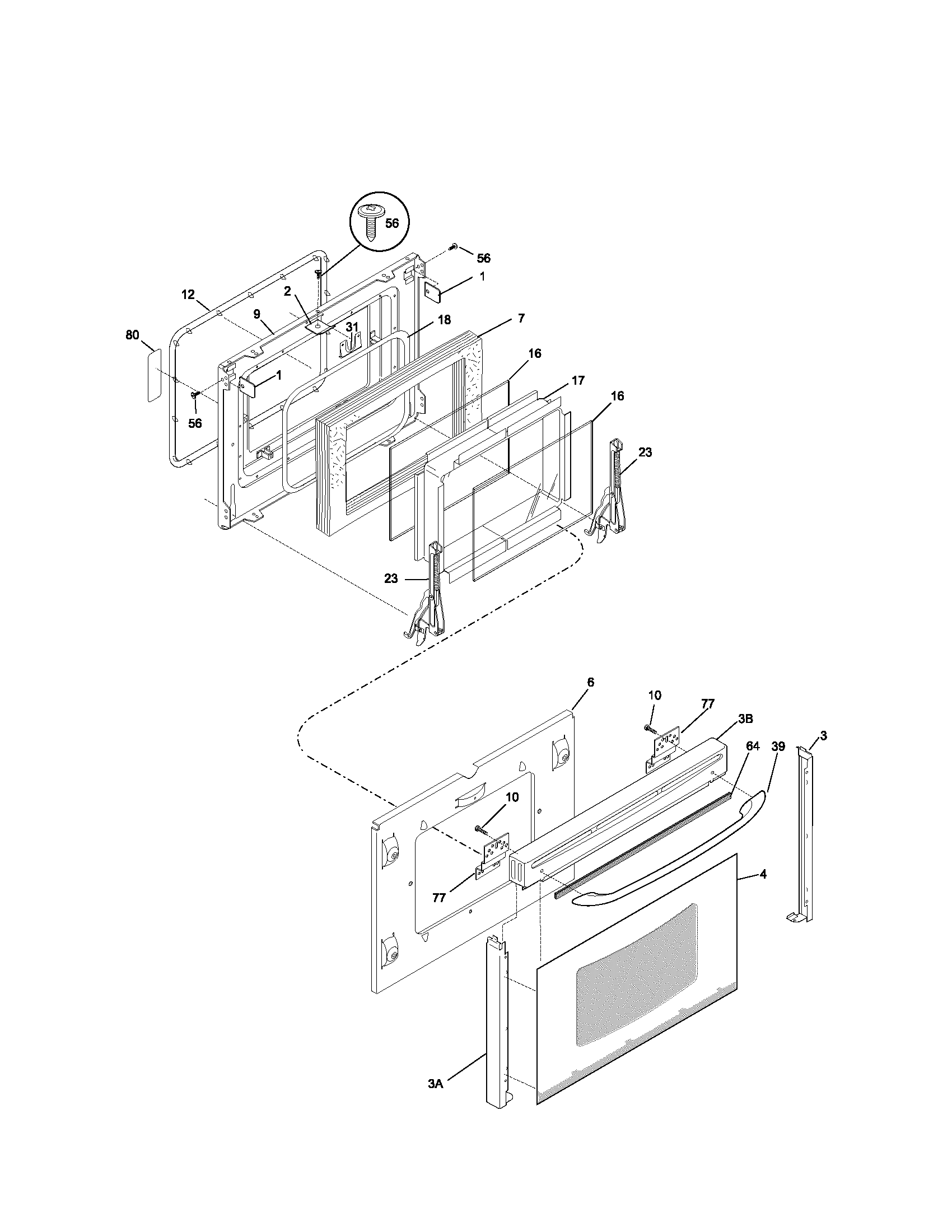

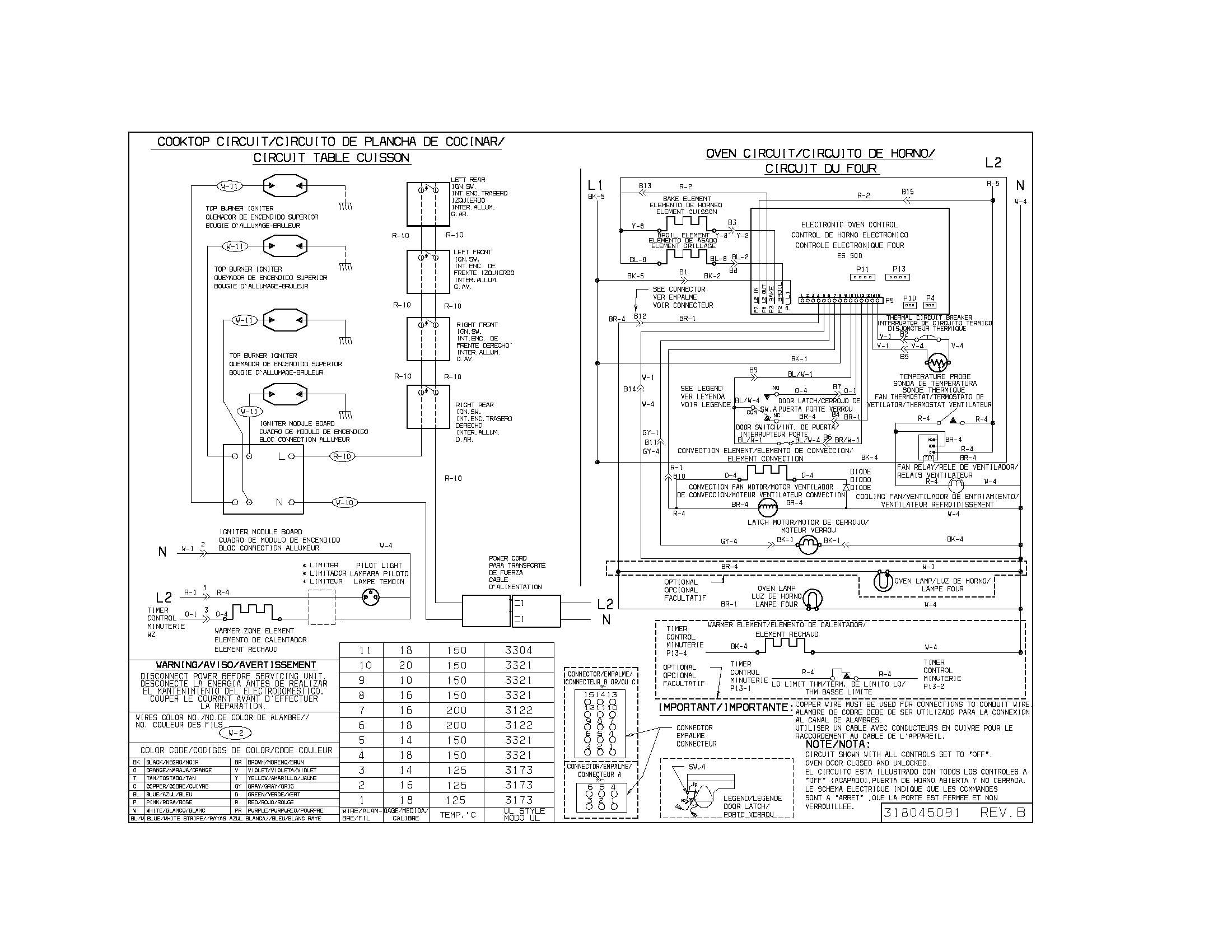

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 79047152400 Gas Range

  • Frigidaire Range Oven Temperature Sensor for Kenmore Elite 79047152400 - Part 316217002

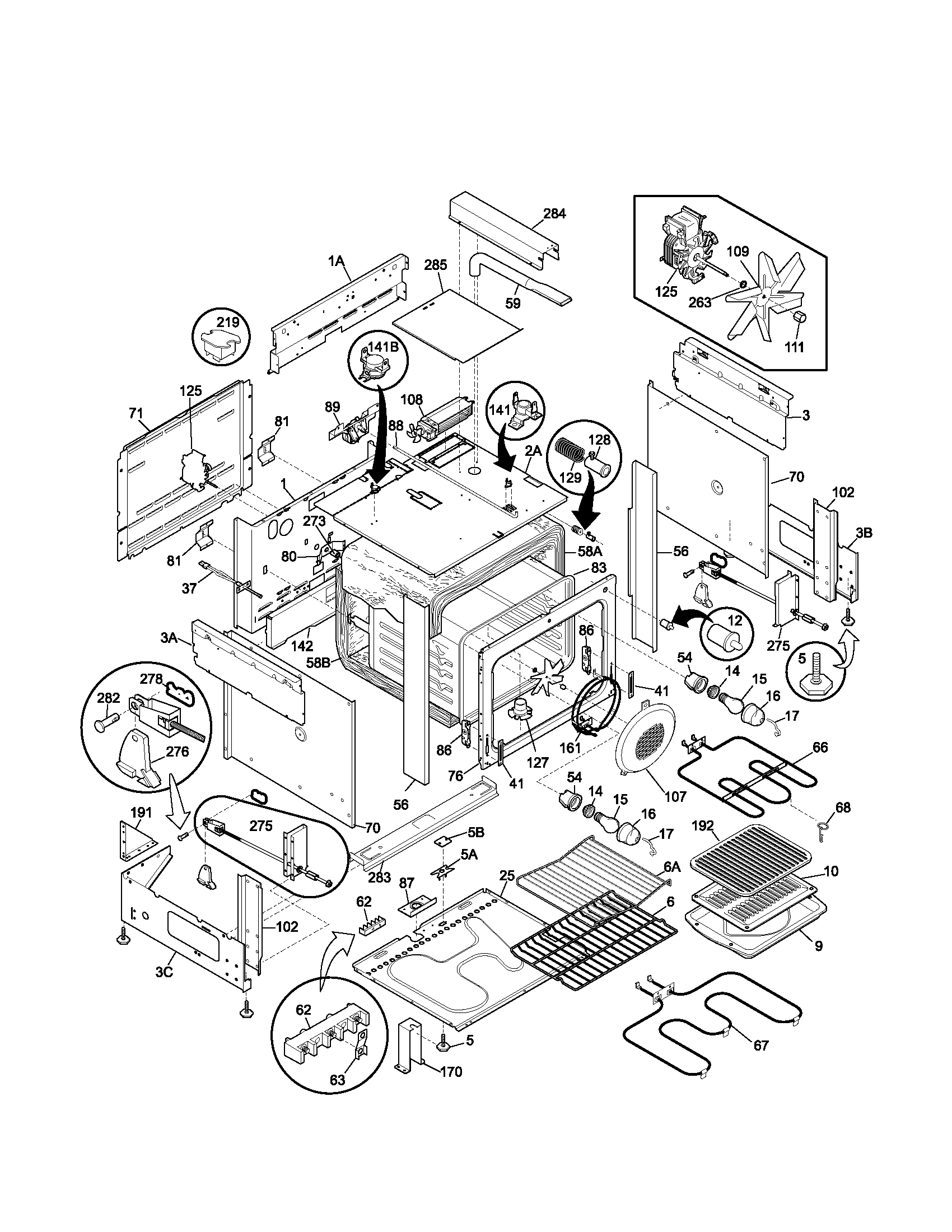

    Body diagram

    Frigidaire Range Oven Temperature Sensor

    Part #316217002
    In Stock
    $56.89
    10% OFF Phone Price : $62.89Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Convection Fan Blade for Kenmore Elite 79047152400 - Part 316136400

    Body diagram

    Range Convection Fan Blade

    Part #316136400

    The manufacturer no longer makes this part, and there's no substitute part

  • Range Light Socket for Kenmore Elite 79047152400 - Part 316116400

    Body diagram

    Range Oven Light Socket

    Part #318224000

    Replaced by #316116400

    Info Icon
    Manufacturer substitution
    This part replaces 318224000. Substitute parts can look different from the original.
    In Stock
    $49.60
    11% OFF Phone Price : $55.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Convection Fan Blade Nut for Kenmore Elite 79047152400 - Part 316136600

    Body diagram

    Range Convection Fan Blade Nut

    Part #316136600
    In Stock
    $21.26
    22% OFF Phone Price : $27.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Washer for Kenmore Elite 79047152400 - Part 316008401

    Body diagram

    Washer

    Part #316136500

    Replaced by #316008401

    Info Icon
    Manufacturer substitution
    This part replaces 316136500. Substitute parts can look different from the original.
    In Stock
    $14.45
    12% OFF Phone Price : $16.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Frigidaire Range Storage Drawer Outer Rail for Kenmore Elite 79047152400 - Part 316105501

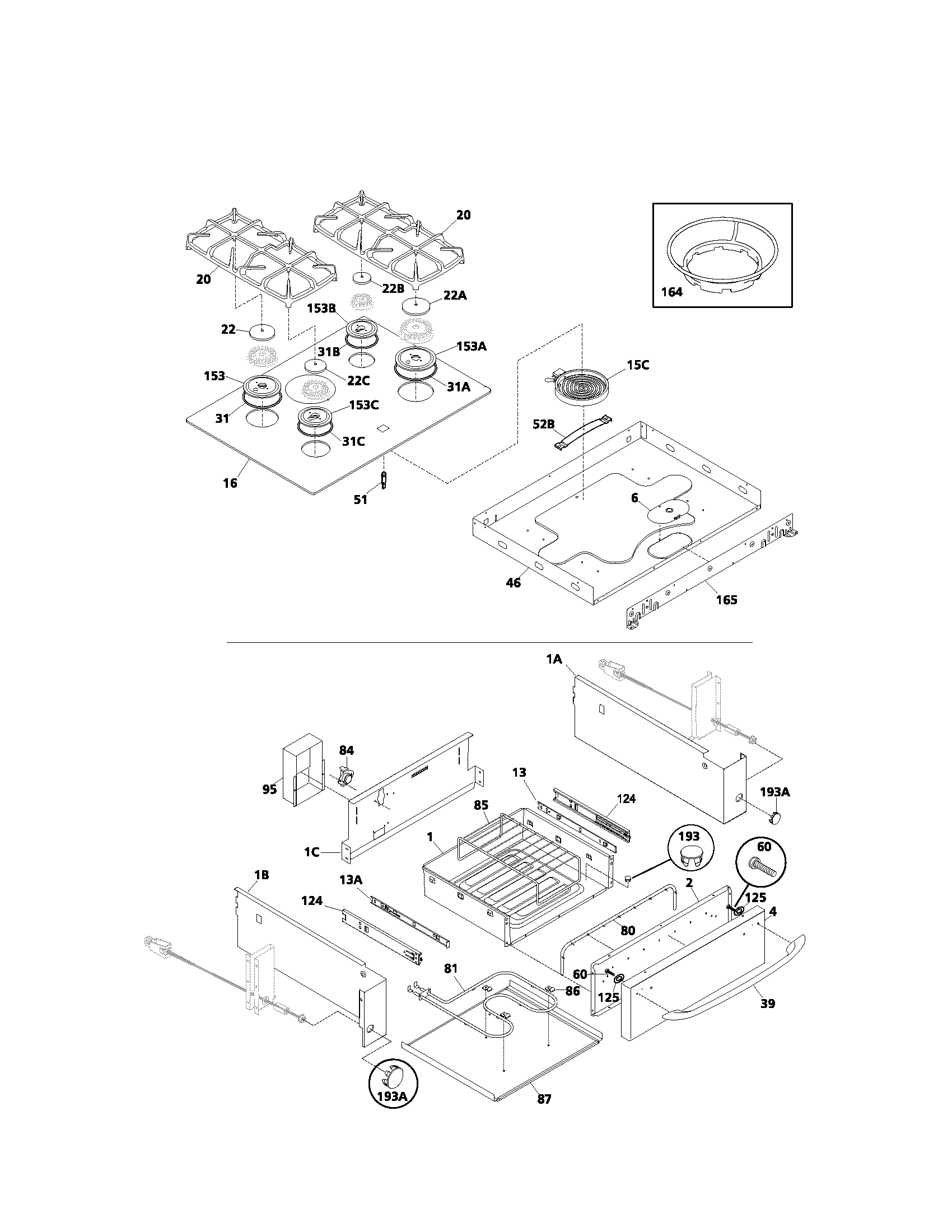

    Top/drawer diagram

    Out Rh Warmr

    Part #316105500

    Replaced by #316105501

    Info Icon
    Manufacturer substitution
    This part replaces 316105500. Substitute parts can look different from the original.
    In Stock
    $59.76
    24% OFF Was : $78.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Cooling Fan Assembly for Kenmore Elite 79047152400 - Part 318073028

    Body diagram

    Motor

    Part #318073016

    Replaced by #318073028

    Info Icon
    Manufacturer substitution
    This part replaces 318073016. Substitute parts can look different from the original.
    In Stock
    $202.63
    14% OFF Was : $236.84Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Oven Light Lens for Kenmore Elite 79047152400 - Part 5304524341

    Body diagram

    Cover

    Part #3201911

    Replaced by #5304524341

    Info Icon
    Manufacturer substitution
    This part replaces 3201911. Substitute parts can look different from the original.
    In Stock
    $17.11
    10% OFF Phone Price : $19.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Orifice for Kenmore Elite 79047152400 - Part 316237901

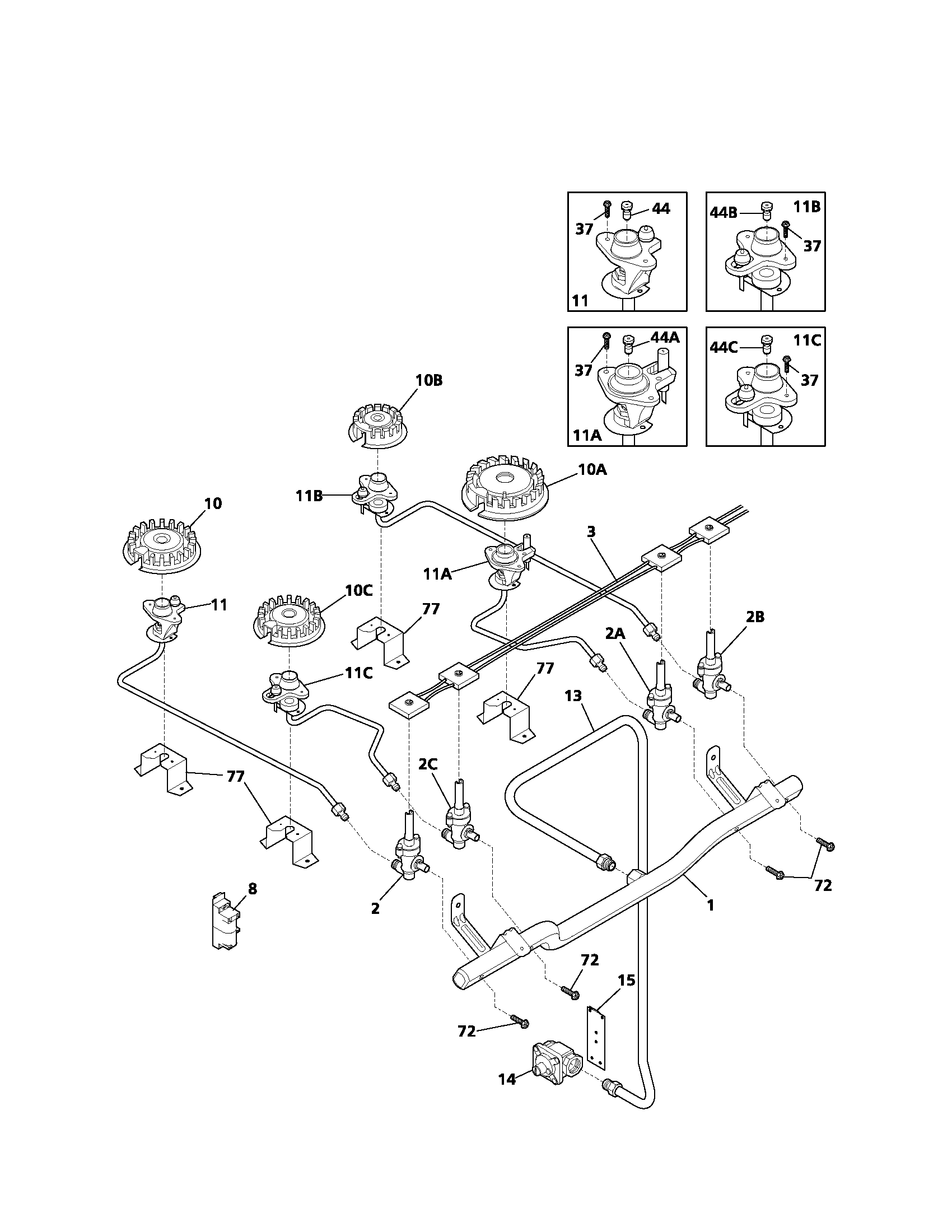

    Burner diagram

    Range Surface Burner Orifice

    Part #316237901
    In Stock
    $35.01
    35% OFF Was : $53.93Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Kenmore Elite 79047152400 - Part 316215600

    Burner diagram

    Range Screw

    Part #316215600
    In Stock
    $18.11
    10% OFF Phone Price : $20.11Info Icon
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Range Anti-tip Decal 316221000

Range Anti-tip Decal

Part #316221000
In Stock
$49.37
Minus Item
Qty
Plus Item
Cleaner-cook 316112100

Cleaner-cook

Part #316112100
In Stock
$47.06
Minus Item
Qty
Plus Item
