What year is my Craftsman mower serial number lookup?
For a Craftsman riding mower like model 917259547, the model number does not contain the year. To identify the year, we use the product serial number from the tractor’s ID label and decode it using the format shown in the owner's manual.
Where to find the serial number on model 917259547
On this tractor, the model plate is located under the seat. The label typically lists the model number and a separate serial number.
- Park on a level surface and set the parking brake
- Turn the key off and remove it
- Lift the seat to access the model/serial label
- Write down the full serial number exactly as shown
- Keep that number with your maintenance records
How serial number “date codes” are commonly read
Many Craftsman-built tractors use a date-coded serial number where the first 6 digits represent a build date:
| Serial digits | Meaning | Example |
|---|---|---|
| 1-2 | Month | 07 = July |
| 3-4 | Day | 28 = 28th |
| 5-6 | Year (2-digit) | 11 = 2011 |
If your serial number starts with 072811, that decodes to July 28, 2011.
Quick checks before you decide the year
Because serial formats can vary by production run, we use these checks to avoid misreading the code:
- Confirm you are reading the tractor serial number, not the engine model/type
- Make sure the first 6 characters are all digits (some labels include letters later)
- Compare the label info to the tractor model plate under the seat
- Use the parts diagrams for model 917259547 to confirm you are matching the correct tractor family
Why it matters
Knowing the correct year helps us match the right repair parts and specs (deck components, belts, wheels and tires, decals). For example, common wear items for this model include the lawn tractor drive belt 532144200 and deck hardware that must match your exact configuration.
Last updated: February 2026

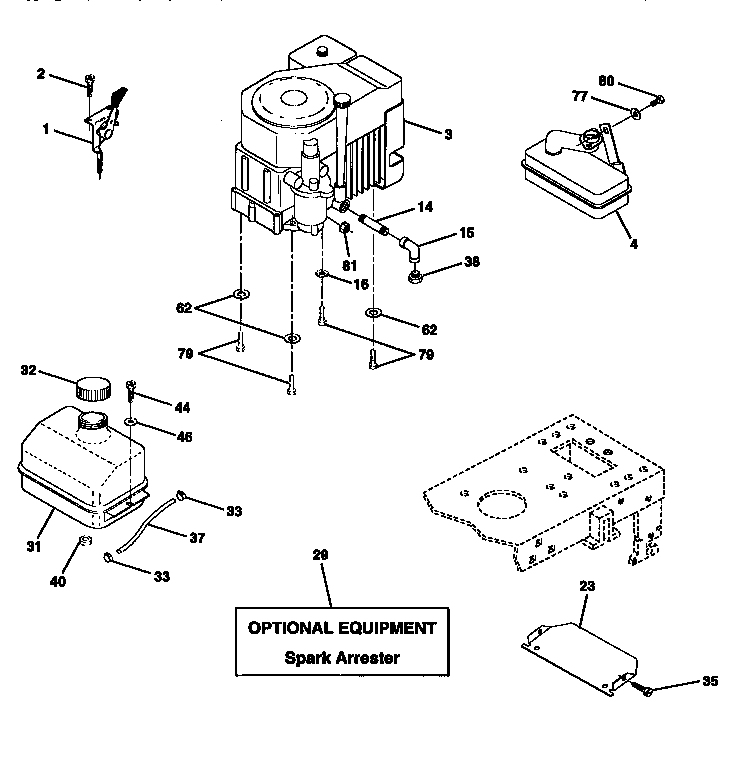

Who makes the 917259547 IntelliPower engine?
The Craftsman lawn tractor model 917259547 uses a Kohler engine; the parts list in the owner's manual identifies it as Kohler CV15S, type PS-41567. “IntelliPower” is a different engine branding used on some newer tractors, not the engine specified for this model.
What engine is on Craftsman 917259547?
From the model 917259547 repair parts information, the engine is listed as:
- Brand: Kohler
- Model: CV15S
- Type number: PS-41567
- Engine family: single-cylinder lawn tractor engine (typical for this series)
Why “IntelliPower” can be confusing
“IntelliPower” is commonly used as a performance label on certain riding mower engines, but model 917259547 is documented with a Kohler CV15S engine. If you are comparing tractors, always match by:
- Tractor model number (917259547)
- Engine model and type (CV15S, PS-41567)
- The engine parts breakdown section in the manual
Quick ID checklist (before ordering engine-related parts)
Use these checks to make sure you are matching the correct engine:
- Look for the engine ID tag on the engine shroud or valve cover area
- Confirm CV15S and PS-41567 on the tag
- Match the part category (air intake, ignition/electrical, lubrication) to the correct diagram
- Use the tractor model number 917259547 when searching parts
Common engine-related parts you may replace
If you are troubleshooting starting, charging, or deck engagement issues, these parts on this model are commonly involved:
| Symptom | Common area to check | Example part on this model page |
|---|---|---|
| Clicks but will not crank | Starting circuit | Solenoid 532146154 |
| Poor cut or vibration | Deck/blade system | Husqvarna lawn tractor mulching blade, 21-in 532134149 |
| Deck will not stay engaged | Belt/idler system | Lawn tractor drive belt 532144200 |
Why it matters
Engine maker and exact engine model determine the correct tune-up parts (air filter, spark plug, fuel system items) and the right diagrams to follow. Matching Kohler CV15S PS-41567 prevents ordering parts that fit a different engine family.
Last updated: February 2026
What kind of oil does a Craftsman 917259547 Platinum lawn mower take?
For the Craftsman riding lawn tractor model 917259547, use SAE 10W-30 engine oil when temperatures are above 32°F, and SAE 5W-30 when temperatures are below 32°F (API service SF/SG/SH). Oil capacity is 4.0 pints with filter or 3.5 pints without filter; see the owner's manual for the exact maintenance procedure.
Oil type and capacity for model 917259547
Use the oil grade that matches your outdoor temperature:
- Above 32°F: SAE 10W-30
- Below 32°F: SAE 5W-30
- Oil rating: API SF/SG/SH
- Capacity with filter: 4.0 pints
- Capacity without filter: 3.5 pints
Quick checklist before you add oil
- Park on a level surface and let the engine cool.
- Wipe dirt from around the dipstick/fill tube so debris does not enter the crankcase.
- Add oil slowly, then recheck the dipstick to avoid overfilling.
- If you changed the oil filter, fill to the with-filter capacity range.
- Dispose of used oil properly.
Common oil choices by season
| Typical conditions | Recommended oil | Why it helps |
|---|---|---|
| Spring and summer mowing | SAE 10W-30 | Better protection at warmer temps |
| Late fall and cold starts | SAE 5W-30 | Easier cranking and faster lubrication |
Why it matters
Using the correct viscosity helps your 15.5 HP engine lubricate properly during cold starts and under mowing load. The right fill level also prevents hard starting, smoking, and premature engine wear.
Last updated: February 2026
What size belt does a 42 in Craftsman lawn mower take?
For a Craftsman 42-inch mower deck, belt size depends on the exact tractor model and deck configuration. For Craftsman model 917259547, use the belt routing and belt identification shown in the owner's manual to match the correct deck belt (and ground drive belt) for your tractor.
How to identify the right belt on model 917259547
We recommend confirming two things before ordering: which belt you mean (deck vs. drive) and the belt’s routing path.

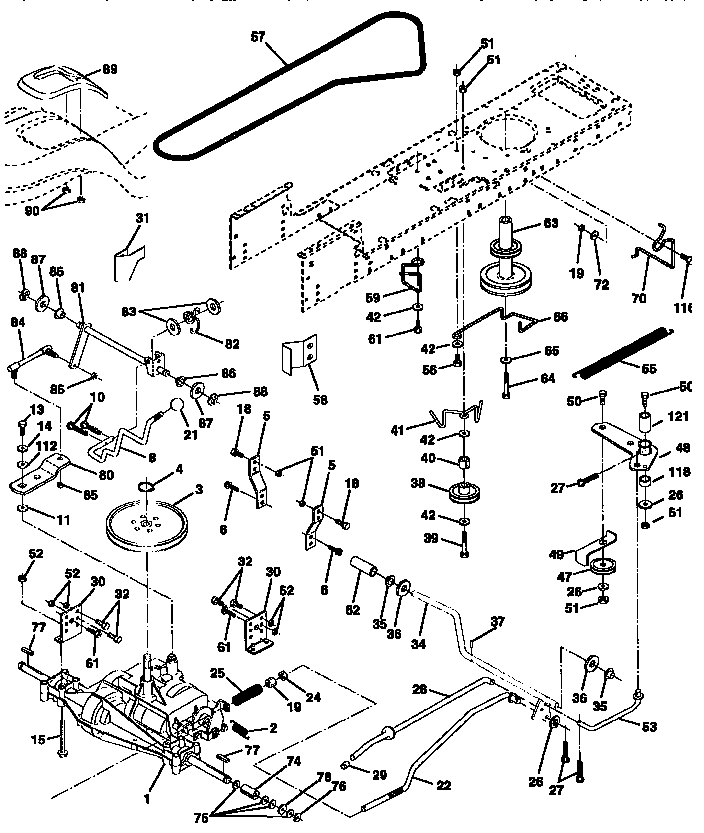

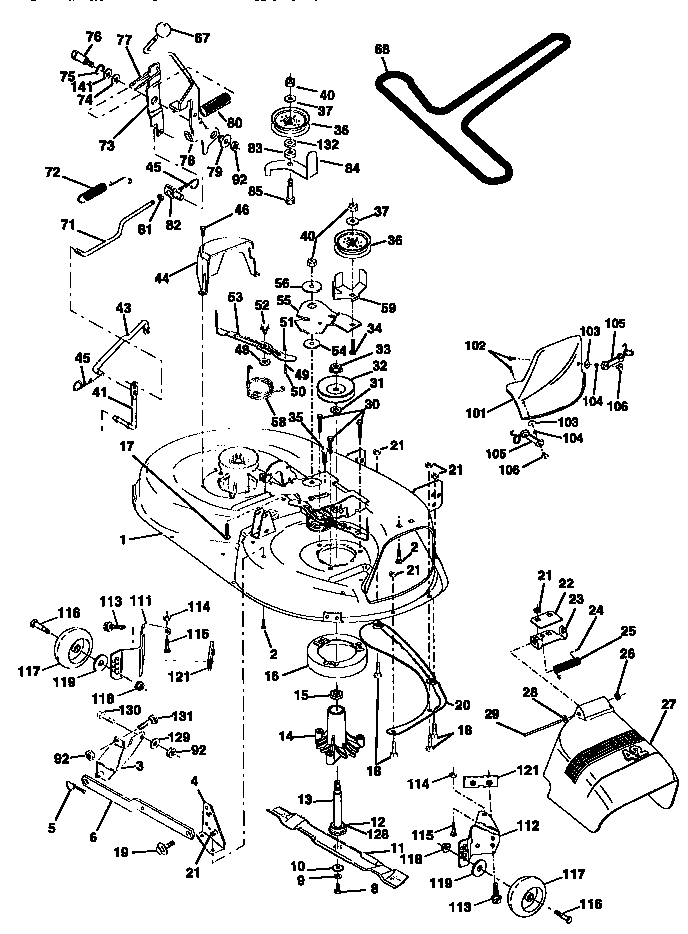

- Mower deck (blade drive) belt: runs from the engine pulley to the deck mandrels to spin the blades
- Ground drive belt: runs from the engine pulley to the transaxle to move the tractor
- Check whether your deck is 42-inch (this model is a 42-inch mower setup)
- Compare your belt’s routing to the V-belt schematic decal listed for this tractor in the manual
- If the old belt is still present, match its printed number or measure it end-to-end (outside circumference)
Common belt size range for many 42-inch Craftsman decks
Across many Craftsman 42-inch decks, the deck belt is commonly:
- Width: about 1/2 inch
- Length: often in the mid-90-inch to high-90-inch range (outside circumference)
That range is useful for sanity-checking, but the correct belt for 917259547 should be selected by model-based parts lookup and routing.
Parts that often get replaced with the belt
If the belt keeps slipping, squealing, or jumping off, we also check the wear items that control belt tension and tracking.
| Symptom | Most common cause | What to inspect/replace |
|---|---|---|
| Belt squeals | Low tension or glazed belt | Idler pulley, idler spring, belt guides |
| Belt jumps off | Misrouted belt or bent keeper | Belt keepers/guides, pulley alignment |
| Uneven cut | Deck not level or blade issue | Deck leveling, blades, mandrels |
Model-matched examples from this page include the lawn tractor drive belt 532144200 (ground drive belt) and the lawn tractor blade idler pulley 532139245 (a common wear point in belt systems).
Why it matters
A belt that is even slightly wrong in length or profile can slip, overheat, or derail, which reduces blade speed and cut quality and can accelerate wear on pulleys, mandrels, and belt keepers.
Last updated: February 2026
