Frigidaire LGHB2869TF4 bottom-mount refrigerator Parts

A bottom-mount refrigerator like the Frigidaire LGHB2869TF4 keeps the fresh-food section at a more comfortable, eye-level height, so you reach everyday items with less bending. The freezer stays in the lower drawer, which helps keep frequently used refrigerated foods easier to see and grab.

Key advantages you’ll notice day to day

• Less bending for fresh food: milk, produce, leftovers, and condiments are easier to access.
• Better organization for refrigerated items: shelves and door bins are at a natural viewing height.
• Freezer drawer storage: baskets and drawers can make frozen foods easier to sort than a top-freezer shelf.
• Convenient kitchen workflow: it’s easier to move items between the refrigerator and nearby countertops.
• Good fit for families: the most-used compartment (fresh food) is the easiest to reach.

What to plan for with a bottom-mount design

Bottom-mount models typically need enough swing clearance for the doors to open fully so you can pull out drawers and freezer baskets. Our installation guidance for this model also calls out basic placement needs like a level floor, a grounded outlet, and room for airflow.

Topic	What to expect	Why it matters
Door clearance	Doors must open wide enough for drawers/baskets	Prevents binding and improves access
Air circulation	Keep vents and toe grille unobstructed	Helps cooling performance and efficiency
Room temperature	Avoid very hot or very cold locations	Protects compressor performance

Why it matters

Most people open the fresh-food doors far more often than the freezer. With a bottom-mount refrigerator, the compartment you use most sits higher, which reduces strain and makes it easier to keep food visible and organized.

For model-specific installation clearances and placement tips, follow the installation guide.

Last updated: February 2026

Bottom-freezer refrigerators like the Frigidaire LGHB2869TF4 keep fresh food at eye level, but the tradeoff is that frozen items sit lower and are stored in heavier pull-out baskets. That design can mean more bending, more drawer wear over time, and less “at-a-glance” freezer organization than some other styles.

Common disadvantages (what you’ll notice day to day)

• You bend more often to reach frozen foods, especially items at the bottom of the drawer.
• Freezer drawers can feel heavy when fully loaded; that extra weight increases stress on slides, rollers, and alignment.
• It is easier for items to get buried in deep baskets, so freezer organization takes more effort.
• Doors and drawers must open fully for complete access; tight kitchens can make access awkward.
• If the refrigerator is not level, doors may not close tightly and drawers can be harder to move (leveling guidance is in the installation guide).

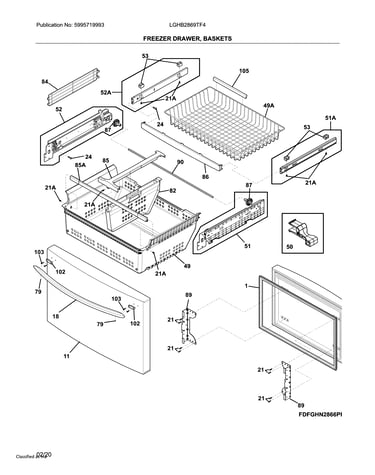

What tends to wear faster on bottom-freezer designs

The freezer drawer system is the main “workhorse” on this style. If you use the freezer frequently, these areas typically see the most wear:

Area	What you might see	What to do first
Drawer tracks/rollers	Drawer feels stiff or jerky	Clean tracks and reduce overloading
Door gaskets	Frost, moisture, or warm spots	Inspect for gaps and clean the seal
Door alignment/leveling	Doors not closing smoothly	Re-level the cabinet and recheck clearances

If you’re seeing air leaks or frost around the freezer door, a worn gasket is a common cause; the model-compatible option on this page is the Frigidaire refrigerator freezer door gasket (gray) 5304537408.

Why it matters

A bottom freezer that is overloaded, out of level, or not sealing well can run longer and less efficiently. Keeping drawers gliding smoothly and doors sealing tightly helps protect food quality, reduce temperature swings, and prevent unnecessary strain on the cooling system.

Last updated: February 2026

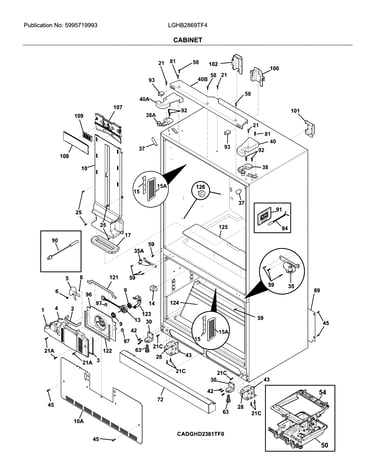

On your Frigidaire LGHB2869TF4 bottom-mount refrigerator, the bottom front section is commonly called the toe grille (also called a kick plate). The compressor is also located in the lower area of many refrigerators, but it is not the visible “bottom front” trim piece shown in the diagrams in the owner's manual.

Common “bottom of the fridge” parts and what they do

Depending on what you mean by “bottom,” these are the most common names:

• Toe grille (kick plate): the vented panel at the bottom front; helps airflow and covers components
• Freezer drawer/baskets: the storage area in a bottom-mount freezer
• Lower hinge area: where the door pivots (some models use adjustable hinges)
• Machine compartment (rear lower area): where cooling components sit (compressor, condenser fan, etc.)

Quick guide: which part are you pointing to?

If you mean...	It’s usually called...	Where it is
The vented panel at the very bottom front	Toe grille (kick plate)	Front, below the doors
The bottom drawer you pull out	Freezer drawer/basket	Bottom freezer section
The “motor” area that hums	Compressor area	Rear lower compartment

Why it matters

Using the right name helps you find the correct diagram and replacement parts for LGHB2869TF4. For example, airflow issues near the bottom can affect cooling performance and can be confused with door seal or freezer drawer problems.

Helpful tips when checking the bottom area

• Keep the toe grille vents clear of dust and pet hair
• Make sure the refrigerator is level so doors seal correctly
• Listen for fan noise from the lower rear (condenser fan area)
• If you see moisture between doors, check door alignment and sealing surfaces
• Use the labeled “features at a glance” diagram to match names to locations

Last updated: February 2026

Yes. For your Frigidaire LGHB2869TF4 bottom-mount refrigerator, using the full model number is the most reliable way to pull up the correct parts diagrams and compatible replacement parts, so you match items like the ice maker, water filter, and door gaskets to your exact configuration.

How to find and use the model number

Use the complete model number exactly as shown on the appliance ID label, then search parts by that number.

• Enter LGHB2869TF4 (not a partial number)
• Match the part by name and ID from the parts list and diagram
• Compare the part description (color, left/right, freezer vs fresh food)
• Use the manual to confirm feature layout (dispenser, ice maker location)
• Order the part that matches your refrigerator’s configuration

Common parts customers look up for LGHB2869TF4

These are examples of model-matched parts shown for this refrigerator.

What you need	What it affects	Example part on this model page

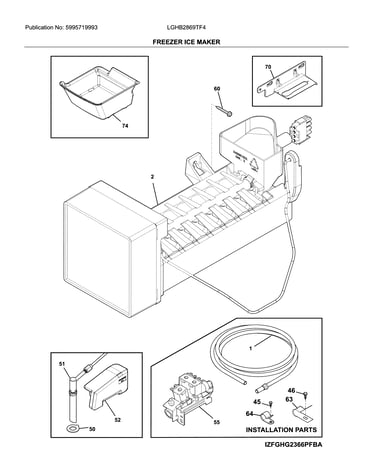

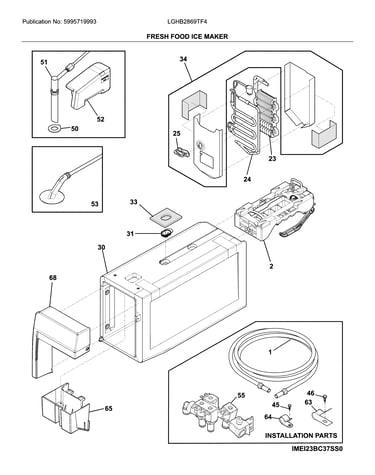

Ice production stops	Ice maker and harvest cycle	Refrigerator ice maker 243297613
Water tastes/flows poorly	Filtration and dispenser flow	Refrigerator filter assembly EPTWFU01
Frost or warm freezer	Air leaks at freezer door	Frigidaire refrigerator freezer door gasket (gray) 5304537408

Why it matters

Frigidaire refrigerators often share similar-looking parts across multiple series, but mounting points, wiring connectors, and door seal profiles can differ. Looking up parts by LGHB2869TF4 prevents ordering a “close match” that does not fit or does not resolve the symptom.

Helpful reference for features and maintenance

Your refrigerator’s Use & Care manual covers features at a glance (including water filter and ice maker locations) and routine tasks like changing the filter. See the owner's manual for the exact layout and instructions for your configuration.

Last updated: February 2026

The most common Frigidaire refrigerator issue is a cooling problem (warm fresh-food section, weak airflow, or frost buildup) caused by airflow restrictions, a door seal leak, or a fan/sensor problem. The next most common complaint is ice maker trouble related to water supply, filter seating, or a clogged filter; see the owner's manual for model-specific checks.

Most common symptoms and what they usually point to

• Fridge warm, freezer OK: restricted airflow, evaporator fan issue, or a temperature sensor (thermistor) reading wrong.
• Frost or moisture inside: door not sealing, frequent door openings, or humidity; moisture on walls can increase in hot/humid weather.
• Runs a lot: on this style of refrigerator, a variable-speed compressor can run nearly continuously except during defrost; that is normal.
• Ice maker not making ice: ice maker turned off, water valve closed, kinked supply line, filter not seated, or filter clogged.

Quick checks we recommend first (LGHB2869TF4)

1. Confirm temperature settings and allow 24 hours after changes.
2. Make sure doors close fully and gaskets are clean and making full contact.
3. If ice is the issue, verify the household water valve is open and the supply line is not kinked.
4. Reseat the water filter fully into the locked position; slow or no water flow often tracks back to a clogged or mis-seated filter.
5. If the display shows an error, follow the guidance in the Frigidaire refrigerator error codes reference.

Common parts involved (when symptoms match)

Symptom	Common part to inspect	Example part for LGHB2869TF4
No ice	Ice maker assembly	Refrigerator ice maker 243297613
No ice or slow fill	Water inlet valve	Refrigerator water inlet valve assembly 242253002
Warm temps, poor airflow	Evaporator fan motor/blade	Frigidaire refrigerator evaporator fan motor 809069206 and refrigerator evaporator fan blade 5308000010
Temps inconsistent	Temperature sensor	Refrigerator temperature sensor 5303918775
Frost, air leaks	Freezer door gasket	Frigidaire refrigerator freezer door gasket (gray) 5304537408

Why it matters

Cooling and ice maker problems often share the same root causes: airflow and water flow. Fixing a simple issue (like a kinked water line, a mis-seated filter, or a leaking gasket) prevents food spoilage, reduces frost buildup, and helps the refrigerator run efficiently.

Last updated: February 2026
