Whirlpool WTW4816FW0 washer Parts

The WTW4816FW0 washing machine is a Whirlpool washer. For model-specific identification details (including where to find the model and serial tag), use the WTW4816FW0 user manual.

How we identify the brand for this model

For this specific washer model, the brand is confirmed by the model information associated with WTW4816FW0.

• Brand: Whirlpool
• Model number: WTW4816FW0
• Appliance type: top-load washer
• Category: washer parts

Where to confirm it on the appliance

If you want to verify the brand directly on the washer, check the model and serial label. Common locations on Whirlpool top-load washers include:

• Under the lid near the tub opening
• Along the top rim of the cabinet
• On the rear panel of the cabinet
• Inside the lid area near the hinge

Quick reference

Item	What to look for
Brand name	Whirlpool on the console, lid, or label
Model number	WTW4816FW0
Best document to reference	WTW4816FW0 user manual

Why it matters

Brand and model number matching is what keeps parts and repair guidance accurate. Even close model numbers (for example, WTW4816FW2) can use different components such as a lid lock, control board, or water inlet valve.

Last updated: January 2026

Yes. The Whirlpool WTW4816FW0 top-load washer is an agitator-style washer; it uses a center agitator to move clothes through the wash water for cleaning action. For diagrams and operating details specific to this model, use the WTW4816FW0 washer manual.

How to confirm it on your washer

You can verify an agitator on WTW4816FW0 in a few quick checks:

• Open the lid and look for a tall center post in the middle of the wash basket
• The center post typically has fins or a spiral shape (often called a dual-action agitator)
• During the wash portion of a cycle, you will see the center post move back and forth
• If the center post is missing or loose, the washer may have poor agitation or leave clothes dirty

Agitator vs impeller: what you will see

Washer type	What it looks like inside	Typical wash action
Agitator (WTW4816FW0)	Tall center post	Back-and-forth agitation
Impeller	Low-profile plate at bottom	Rubbing and rolling action

Parts that commonly relate to agitation issues

If your WTW4816FW0 has an agitator but it is not moving correctly, these parts are often involved:

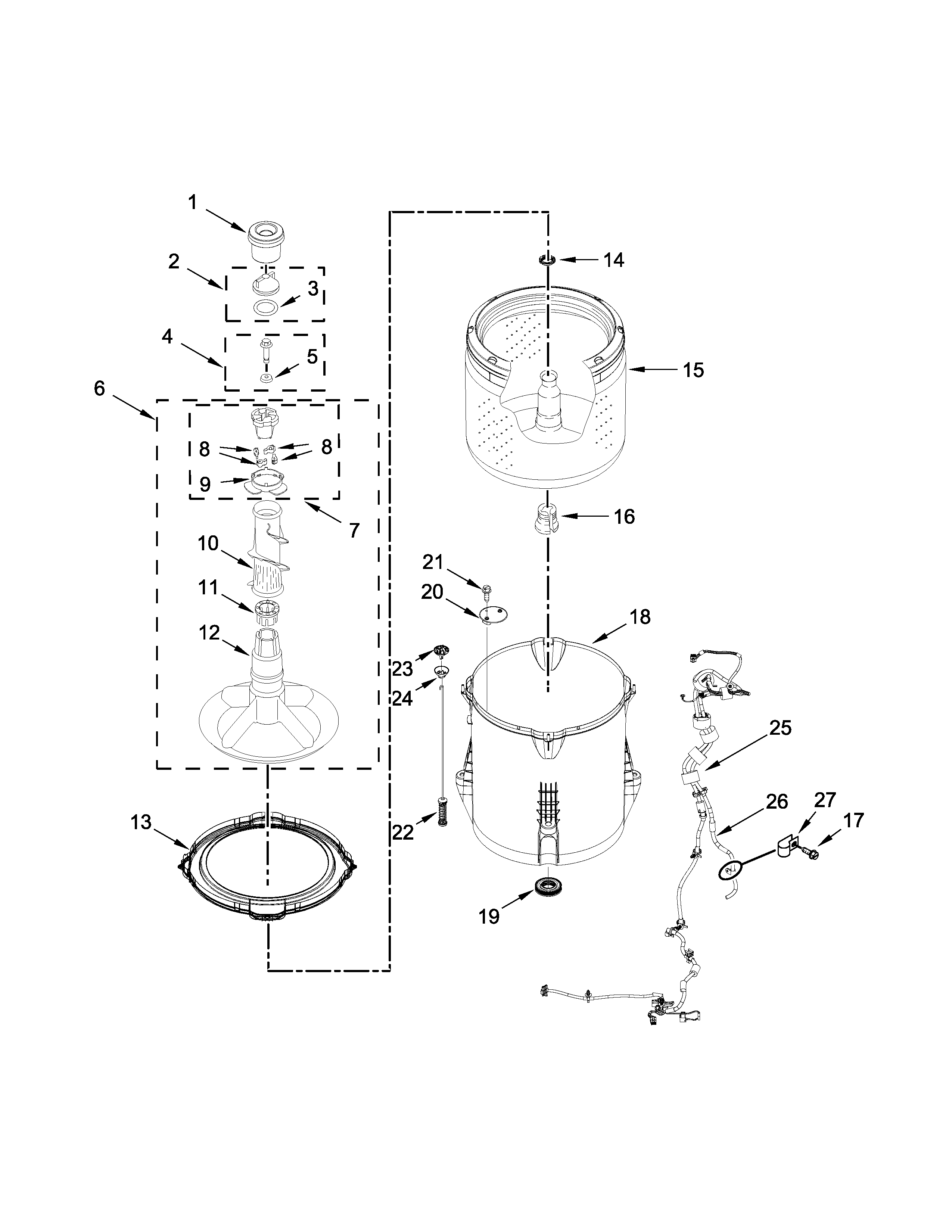

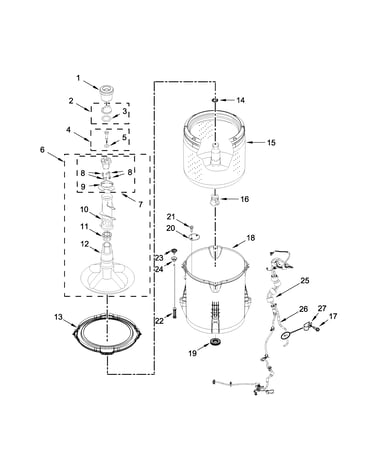

• Washer agitator 285565 (the center agitator assembly)
• Agitator dog 80040 (small internal “grip” pieces that help the upper agitator section move)
• Drive system components such as the belt and pulley (if the washer won’t agitate or spin)

Why it matters

Agitator washers like the Whirlpool WTW4816FW0 can be especially effective on heavy soils and bulky loads, but worn agitator components can reduce cleaning performance and cause slipping or clicking during agitation.

Last updated: January 2026

On Whirlpool washers like model WTW4816FW0, the most common service issues we see are no-start conditions (often tied to lid-lock or control problems) and no-drain/no-spin symptoms (often tied to drain restrictions or drive system issues). Your WTW4816FW0 user manual can help you confirm the correct start sequence and basic checks before replacing parts.

Quick checks first (no tools)

• Confirm the washer is plugged into a grounded outlet and the breaker is on.
• Make sure the lid is fully closed; listen for the lid lock to engage.
• Reduce the load size and redistribute items to correct an unbalanced load.
• Verify hot and cold water faucets are fully open.
• Check the drain hose for kinks and confirm it is installed at the proper height.

Common symptoms and likely causes on WTW4816FW0

Symptom	What it usually points to	Example model-compatible part
Won’t start or stops immediately	Lid not locking, lid strike not engaging	Washer lid lock W11307244
Won’t drain or leaves water in tub	Clog at pump/hose, weak pump	Washer drain pump WPW10661045
Won’t spin or spins weakly	Belt/pulley wear, drive system slipping	Washer drive belt WPW10006384
Excessive shaking or “walking”	Suspension/damper wear, leveling issue	Damper assembly W10780045

Why it matters

A washer that won’t start, drain, or spin can look like a major failure, but it is often a single component (lid lock, drain pump, belt) or an installation/load issue. Catching the root cause early helps prevent motor strain, water leaks, and repeat shutdowns.

When to use the installation guide

If the washer is new to you, recently moved, or suddenly started vibrating or siphoning water, we recommend reviewing the drain hose and leveling steps in the WTW4816FW0 installation instructions. Correct drain setup and leveling can prevent false “won’t drain/spin” complaints.

Last updated: January 2026
