Craftsman 502256061 25" 8-hp riding lawn mower with electric start Parts
Here are the diagrams and repair parts for Craftsman 502256061 25" 8-hp riding lawn mower with electric start, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

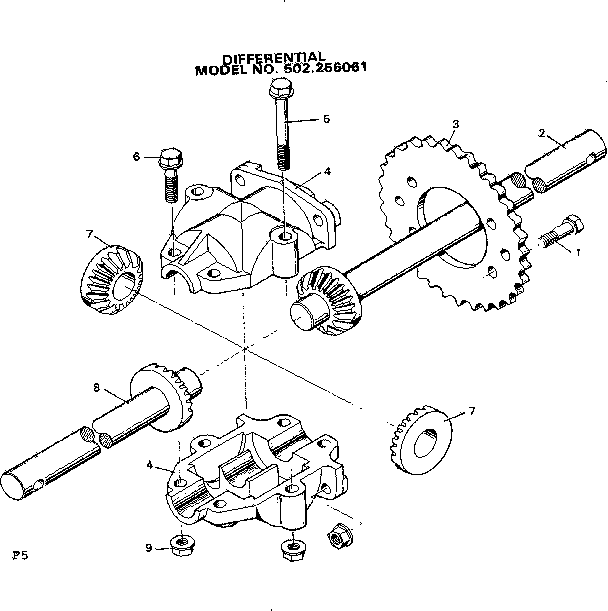

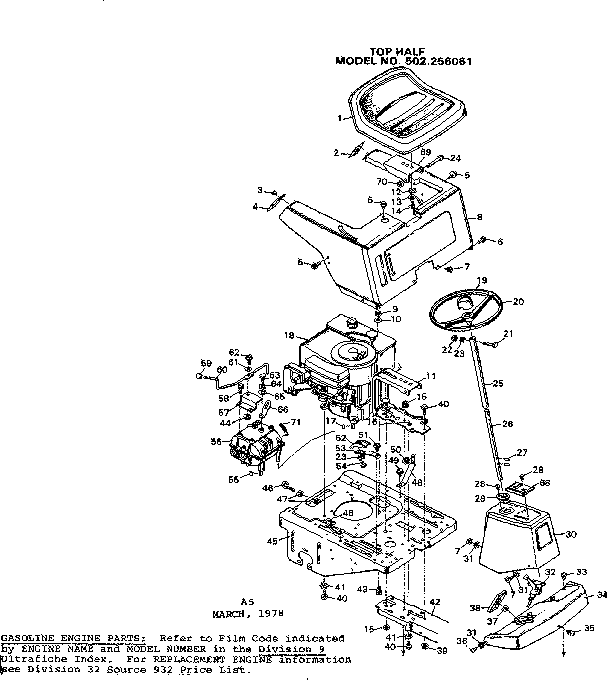

Browse Parts for 502256061 Riding Mowers & Tractors

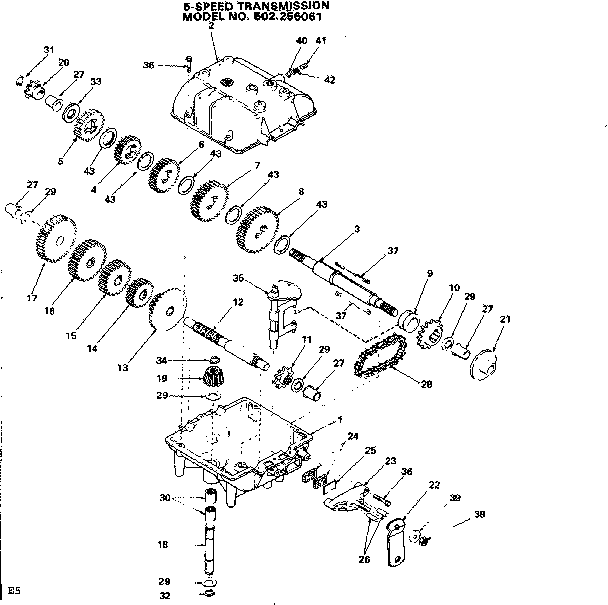

5-speed transmission diagram
Pin
Part #786026Replaced by #786026B
Manufacturer substitutionThis part replaces 786026. Substitute parts can look different from the original.This item is not returnableIn Stock$5.3716% OFF Phone Price : $6.37
Qty
5-speed transmission diagram
Sprocket
Part #786060Replaced by #786060

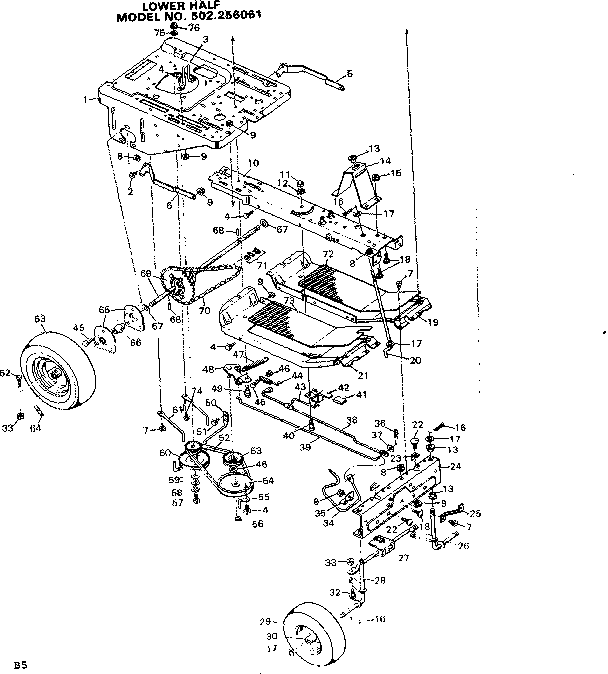

Manufacturer substitutionThis part replaces 786060. Substitute parts can look different from the original.In Stock$18.14QtyLower half diagram
Steer Post
Part #20864Replaced by #11X16MA
Manufacturer substitutionThis part replaces 20864. Substitute parts can look different from the original.This item is not returnableIn Stock$7.31Qty5-speed transmission diagram
Sprocket
Part #786061Replaced by #786061
Manufacturer substitutionThis part replaces 786061. Substitute parts can look different from the original.In Stock$14.31QtyLower half diagram
Lock Nut
Part #15X85Replaced by #703333
Manufacturer substitutionThis part replaces 15X85. Substitute parts can look different from the original.In Stock$9.23Qty5-speed transmission diagram
Gear
Part #778126Replaced by #778127A
Manufacturer substitutionThis part replaces 778126. Substitute parts can look different from the original.In Stock$45.13Qty5-speed transmission diagram
Gear
Part #778123Replaced by #778123A
Manufacturer substitutionThis part replaces 778123. Substitute parts can look different from the original.In Stock$40.40QtyLower half diagram
Washer
Part #10851ZReplaced by #10851ZMA
Manufacturer substitutionThis part replaces 10851Z. Substitute parts can look different from the original.In Stock$10.60Qty5-speed transmission diagram
Gear
Part #778125Replaced by #778125

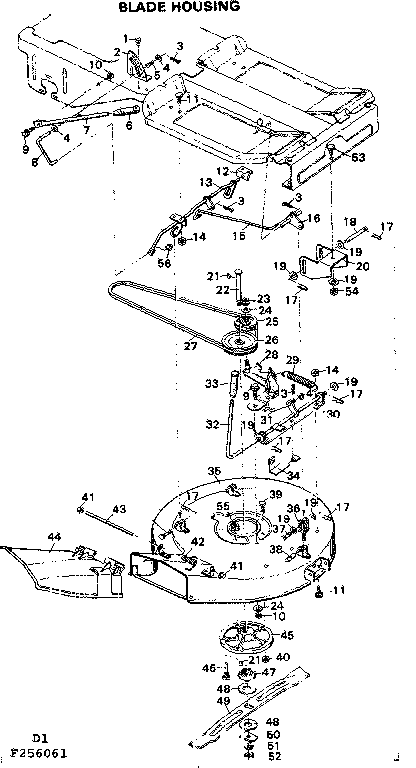

Manufacturer substitutionThis part replaces 778125. Substitute parts can look different from the original.In Stock$35.07QtyBlade housing diagram
Torsion Spring
Part #21189Replaced by #166X4MA
Manufacturer substitutionThis part replaces 21189. Substitute parts can look different from the original.In Stock$12.97Qty
