Model # VBXR1060T2WB Official Hotpoint washer

Here are the diagrams and repair parts for Official Hotpoint VBXR1060T2WB washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

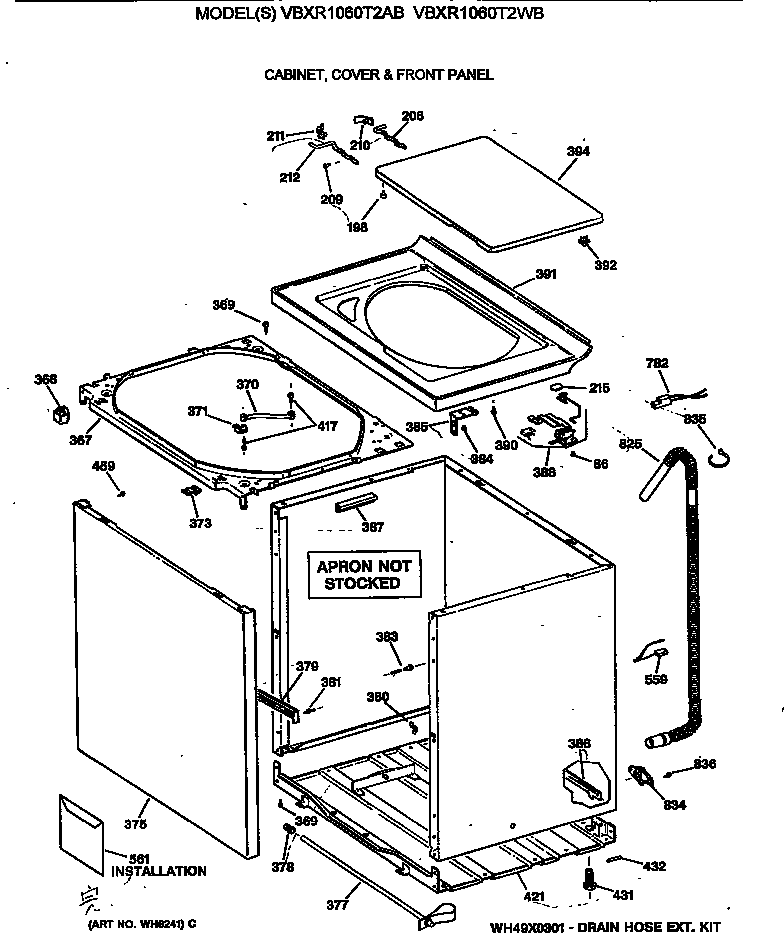

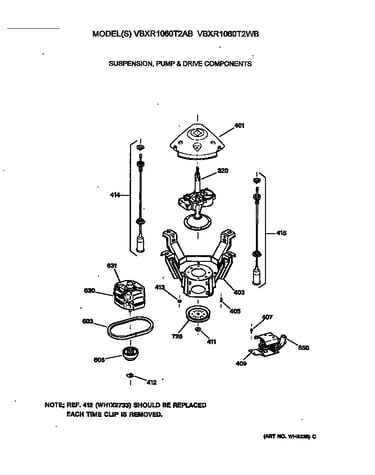

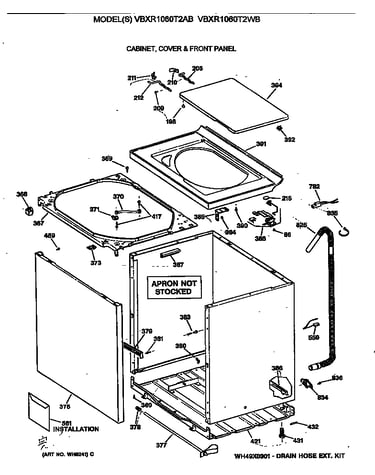

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Washer Hub Nut (replaces Wh02x1193) WH2X1193
#325

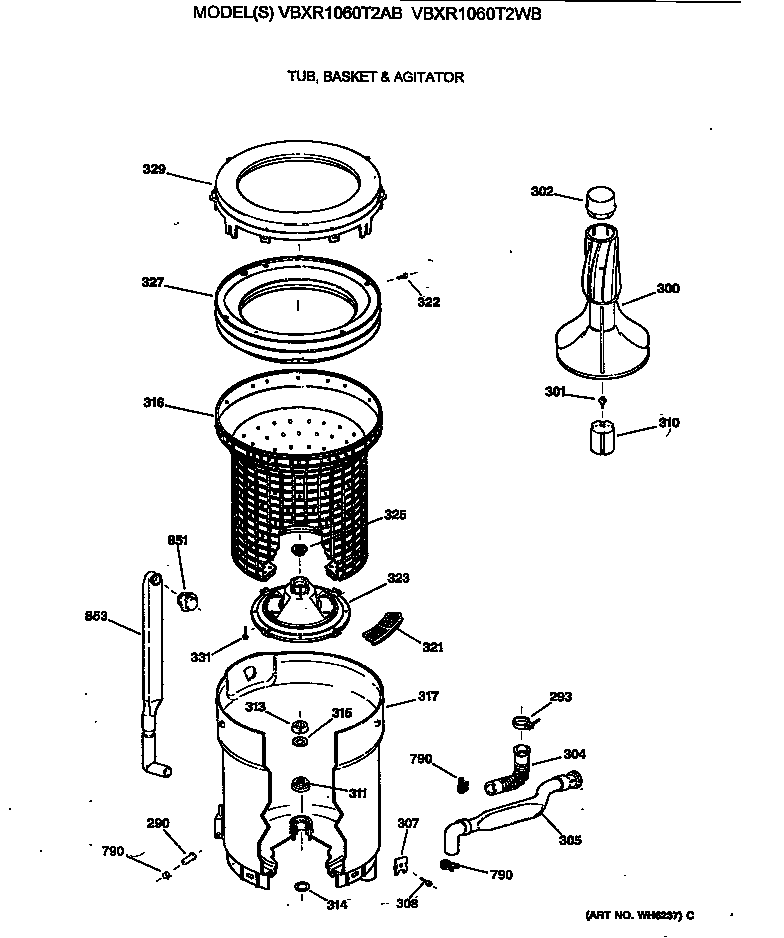

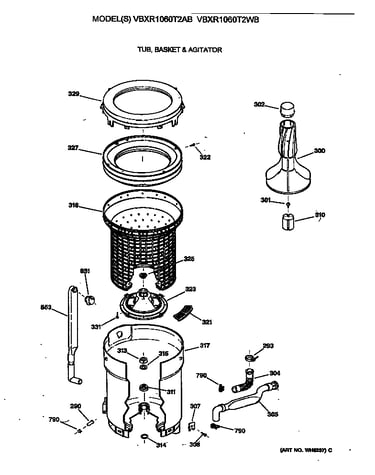

Tub, basket & agitator diagram

Washer hub nut (replaces wh02x1193)

Part #WH2X1193

BEST SELLER
$7.59 |
12% OFF Phone Price : $8.59
In Stock
Split Ring WH2X1195
#313

Tub, basket & agitator diagram

Split ring

Part #WH2X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH2X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.54 |
15% OFF Phone Price : $6.54
In Stock
Seal WH2X1196
#311

Tub, basket & agitator diagram

Seal

Part #WH2X1196

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH2X1196. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.76 |
13% OFF Phone Price : $7.76
In Stock
Washer Tub Mounting Hub Washer (replaces Wh02x1199) WH2X1199
#315

Tub, basket & agitator diagram

Washer tub mounting hub washer (replaces wh02x1199)

Part #WH2X1199

BEST SELLER
This item is not returnable
$5.54 |
15% OFF Phone Price : $6.54
In Stock
Dryer Control Knob Clip WE1X980
#41

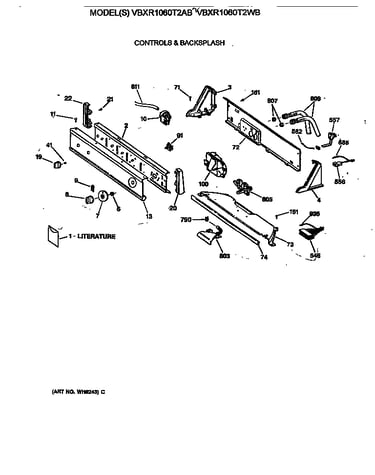

Controls & backsplash diagram

Dryer control knob clip

Part #WE1X980

Replaced by #WH01X10106

?
Manufacturer substitution
This part replaces WE1X980. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.79 |
13% OFF Phone Price : $7.79
In Stock
Valve WH13X86
#805

Controls & backsplash diagram

Valve

Part #WH13X86

Replaced by #WH13X10024

?
Manufacturer substitution
This part replaces WH13X86. Substitute parts can look different from the original.
BEST SELLER
$68.35 |
7% OFF Phone Price : $73.35
In Stock
Washer Water-level Pressure Switch Hose (replaces Wh41x0365) WH41X365
#811

Controls & backsplash diagram

Washer water-level pressure switch hose (replaces wh41x0365)

Part #WH41X365

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Tub-to-pump Hose WH41X371
#304

Tub, basket & agitator diagram

Washer tub-to-pump hose

Part #WH41X371

Replaced by #WH41X22935

?
Manufacturer substitution
This part replaces WH41X371. Substitute parts can look different from the original.
This item is not returnable
$15.53 |
11% OFF Phone Price : $17.53
In Stock
Washer Screw WH2X1194
#322

Tub, basket & agitator diagram

Washer screw

Part #WH2X1194

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Sw Rotary WH12X999
#91

Controls & backsplash diagram

Sw rotary

Part #WH12X999

Replaced by #WH12X10498

?
Manufacturer substitution
This part replaces WH12X999. Substitute parts can look different from the original.
This item is not returnable
$20.74 |
19% OFF Phone Price : $25.74
In Stock
