Whirlpool ACE124PT1 air conditioner Parts
Here are the diagrams and repair parts for Whirlpool ACE124PT1 air conditioner, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for ACE124PT1 Air Conditioner

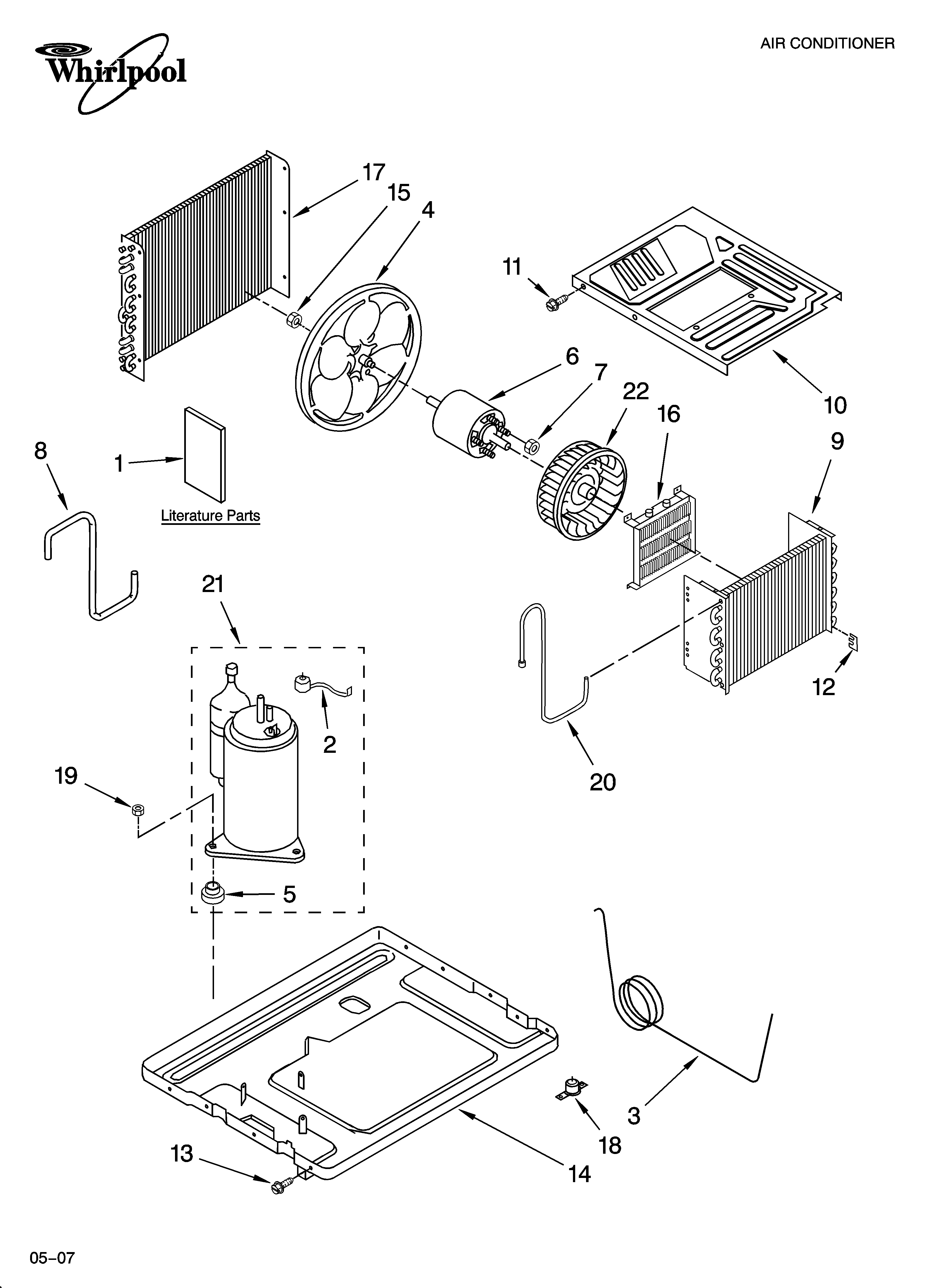

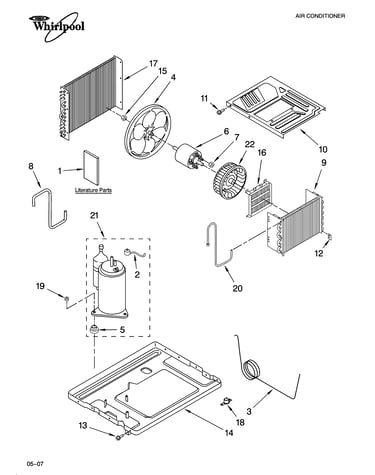

Unit parts diagram
Energy Guide
Part #W10122491This item is not returnableIn Stock$4.55
Qty

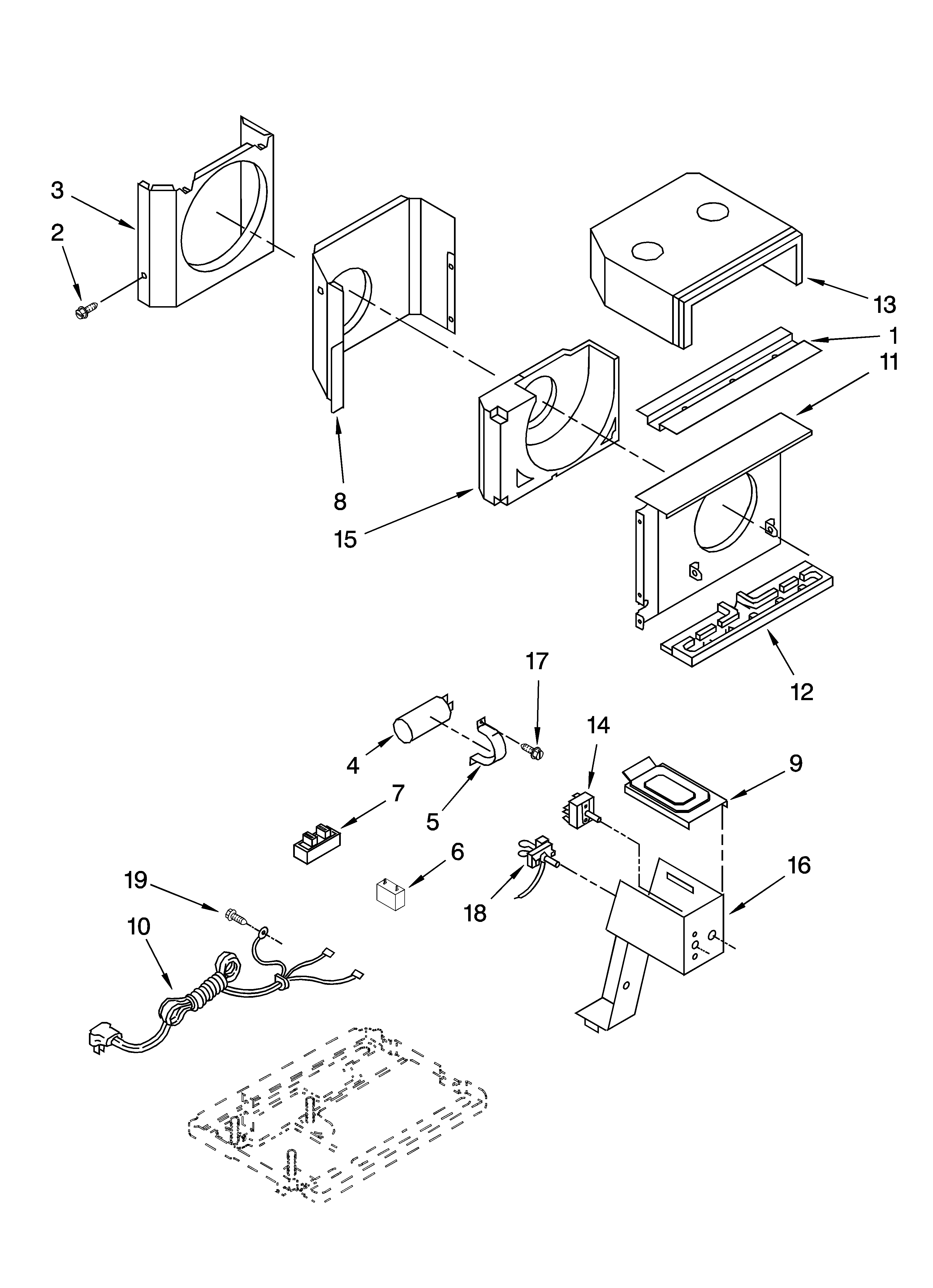

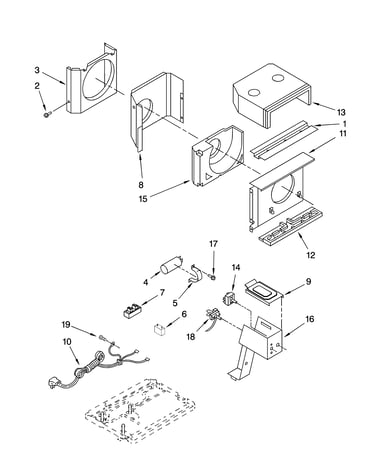

Air flow and control parts diagram
Bracket
In Stock$35.72QtyUnit parts diagram
Grommet
Part #8215077Replaced by #1188564
Manufacturer substitutionThis part replaces 8215077. Substitute parts can look different from the original.In Stock$62.96QtyScrew
Part #8209688Replaced by #W11245710
Manufacturer substitutionThis part replaces 8209688. Substitute parts can look different from the original.This item is not returnableIn Stock$18.6110% OFF Phone Price : $20.61
QtyAir flow and control parts diagram
Electronic Control
Part #8215089
The manufacturer no longer makes this part, and there's no substitute part

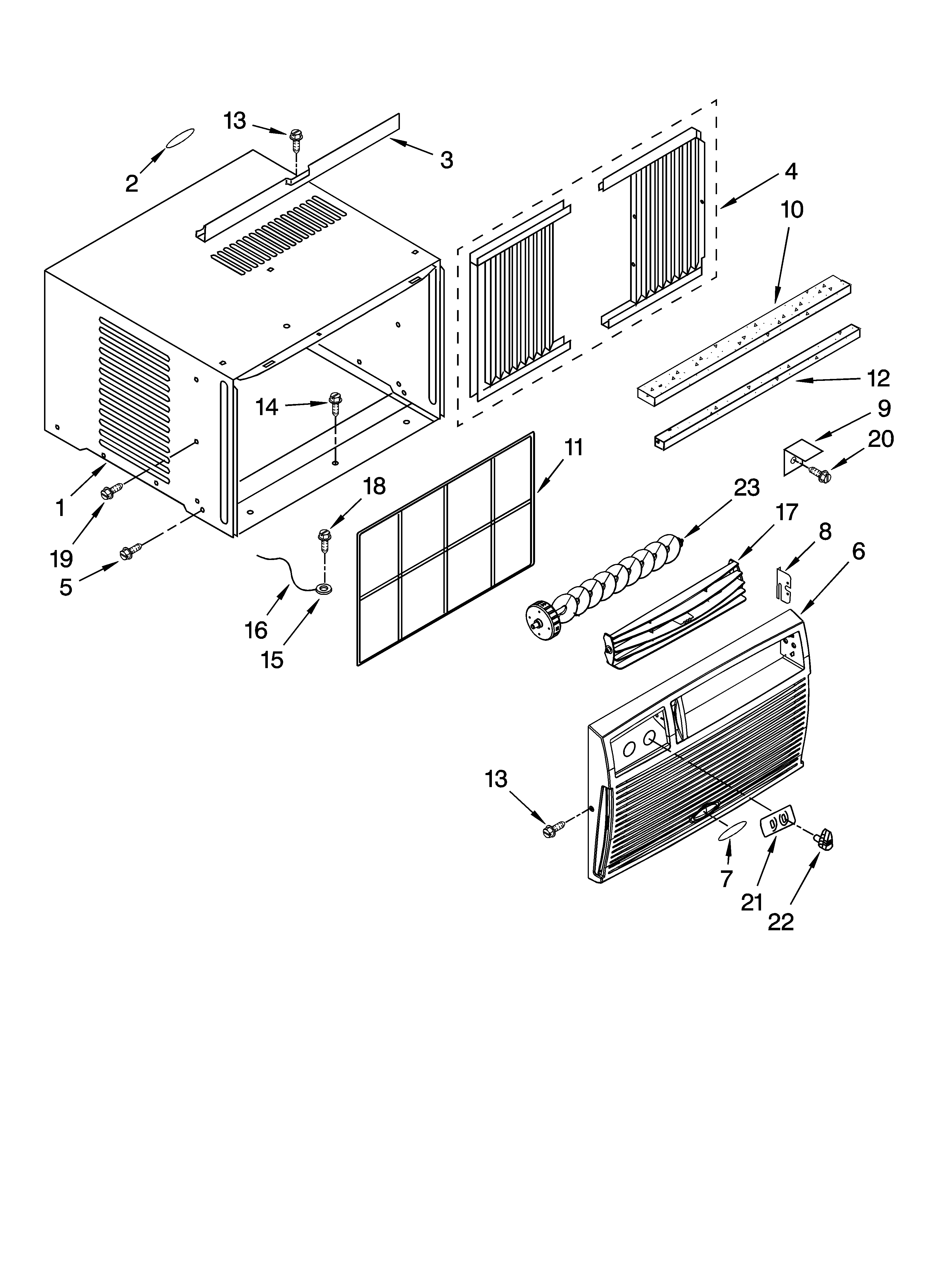

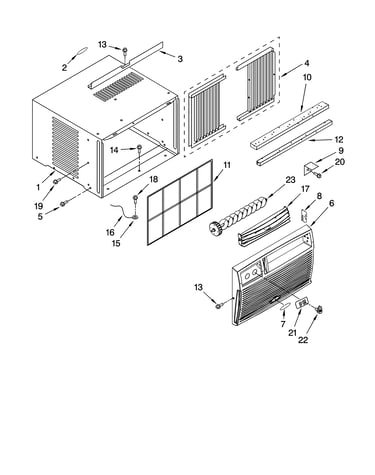

Cabinet parts diagram
Front
Part #8215081
The manufacturer no longer makes this part, and there's no substitute part
Air flow and control parts diagram
Front
Part #8209690
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Louver-vt
Part #8209940
The manufacturer no longer makes this part, and there's no substitute part
Air flow and control parts diagram
Capacitor
Part #8215164
The manufacturer no longer makes this part, and there's no substitute part
Unit parts diagram
Fan Motor
Part #8215374
The manufacturer no longer makes this part, and there's no substitute part
