What does 5y and ce mean on a Frigidaire refrigerator?
On Frigidaire model PLHS269ZCB4, “5Y” and “CE” are most often seen as markings on the model and serial tag or documentation, not as a standard on-screen fault code. When the refrigerator is actually displaying an error, we use the model’s diagnostic chart in the PLHS269ZCB4 owner's manual to match the exact code format.
- On the display or dispenser screen while the unit is running
- On the model and serial label inside the fresh food section

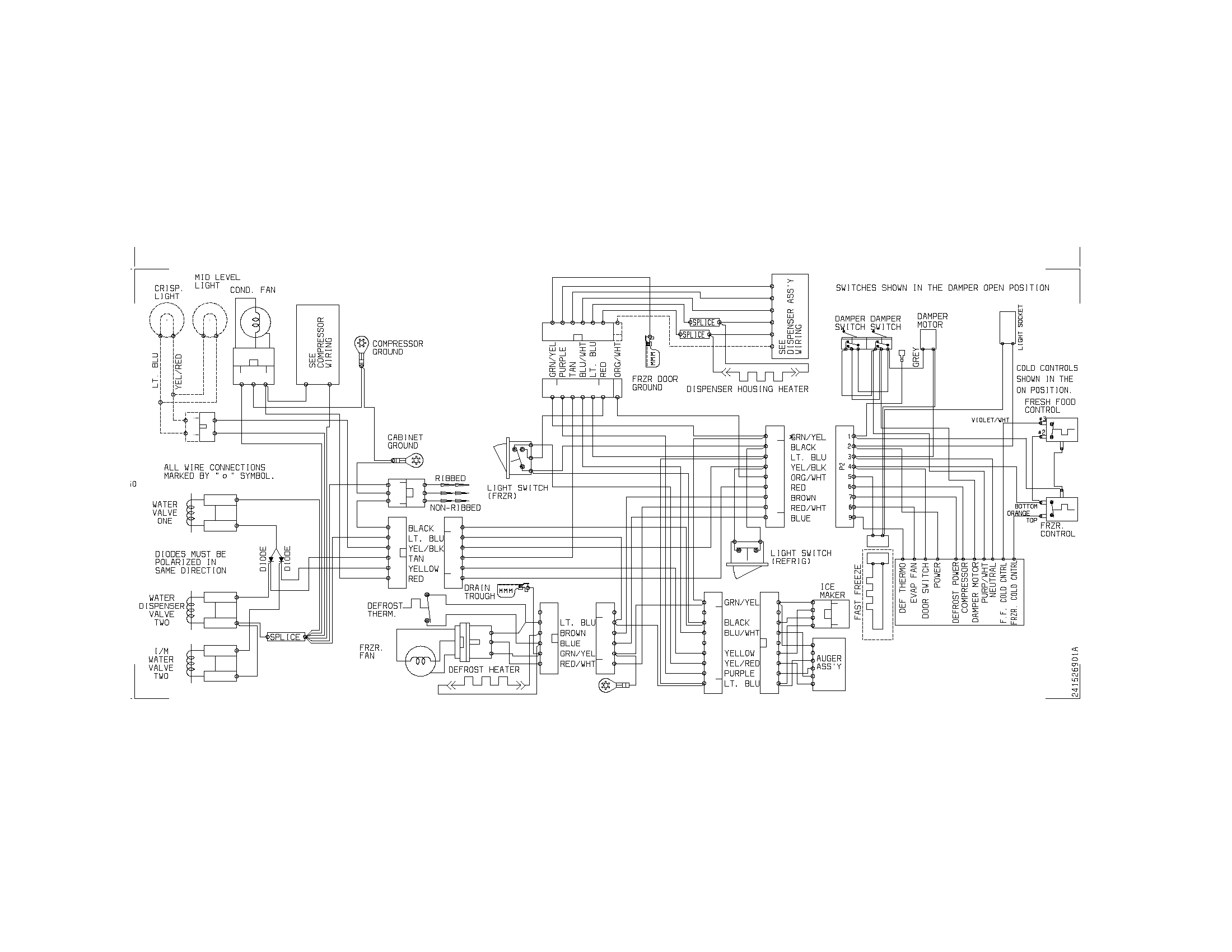

- Printed on a wiring diagram, tech sheet, or control housing
- In a message that appears after a power interruption
Start with safe, basic steps that resolve many electronic display issues:
- Unplug the refrigerator for 5 minutes, then restore power.
- Make sure it is plugged into a dedicated 115-volt outlet (no extension cord).
- If the display is still abnormal, check that the doors are fully closed and the controls respond.
- If cooling, ice, or water dispensing is affected, schedule service.
| Where you see “5Y CE” | What it usually indicates | Best next step |
|---|---|---|
| On the running display | A control or display condition needing the model’s code chart | Use the PLHS269ZCB4 owner's manual to identify the exact code and steps |
| On the model/serial tag | Manufacturing or compliance marking | No repair needed |
| After a power event | Control reset or display glitch | Power reset, then monitor |

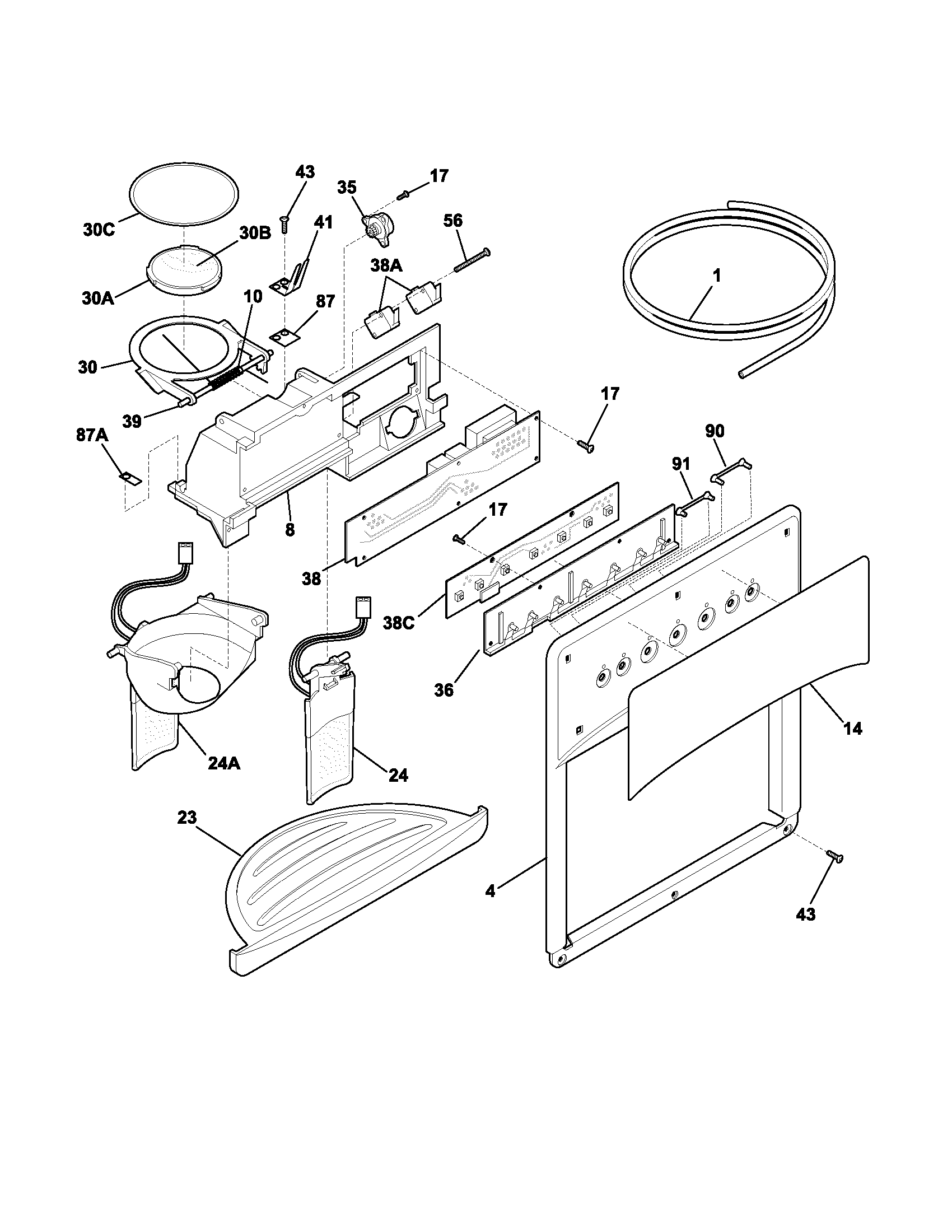

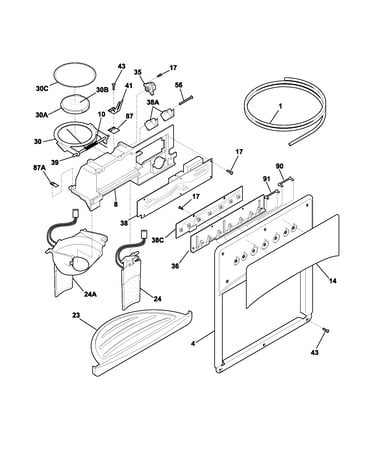

If the issue is tied to the dispenser interface (buttons, lights, display), an electronic control in that circuit is often involved, such as the refrigerator control board 241708307.
Treating “5Y CE” as a confirmed error code can lead to unnecessary parts replacement. Verifying whether it is a display error versus a label marking keeps troubleshooting accurate and protects food temperatures.
Last updated: January 2026
What is the most common problem with Frigidaire refrigerators?
Cooling performance and ice maker or dispenser issues are the most common problems we see on Frigidaire refrigerators like model PLHS269ZCB4. In many cases, the fix is basic maintenance (cleaning the condenser, improving door sealing) or restoring proper water flow to the ice maker and dispenser.
- Refrigerator or freezer too warm: dirty condenser, doors opened often, door not sealing, controls set too warm
- Runs too much or too long: warm room conditions, frequent door openings, dirty condenser, leaking door gasket
- No ice production: ice maker shutoff arm up, water supply valve closed, freezer not cold enough, clogged filter
- Moisture between doors or on cabinet: humid conditions or a door slightly open
- Water in bottom of crisper drawer: produce draining water (often normal)
Use these steps before replacing parts; they match common causes called out in the troubleshooting section of the PLHS269ZCB4 owner’s manual.
- Confirm the unit is plugged into a dedicated 115V outlet and the breaker is not tripped
- Verify doors close fully and nothing is blocking the door from sealing
- Clean the condenser coils (a dirty condenser commonly causes long run times and warm temps)
- Adjust temperature controls, then wait 24 hours for temperatures to stabilize
- If ice is not being made, confirm the household water valve is open and the freezer is cold enough
- If water flow is weak or ice stops, replace the water filter (a clogged filter can restrict flow)
If the dispenser slows down or the ice maker stops, a restricted filter is a frequent cause. For PLHS269ZCB4, the Frigidaire puresource2 refrigerator water filter WF2CB is a common replacement.
| Issue | Most likely cause | Best first action |
|---|---|---|
| No ice | Ice maker off, freezer too warm, no water supply | Turn ice maker on, verify temps, open water valve |
| Slow water at dispenser | Clogged filter or air in line | Replace filter, purge air |
| Ice clumps or jams | Usage and humidity, bin not emptied | Empty bin, break up clumps |
Cooling and ice maker symptoms often share the same root causes: airflow restrictions (dirty condenser, poor door seal) and water restrictions (clogged filter, closed valve). Fixing those early helps protect food quality and reduces compressor run time.
Related help: how to replace the water filter in a Frigidaire refrigerator
Last updated: January 2026
How do I find the model number on my PLHS269ZCB4?
The model number for your Frigidaire side-by-side refrigerator is printed on the serial plate inside the fresh food (refrigerator) compartment. Open the refrigerator door and look along the interior walls for the label that lists both the model and serial numbers; see the owner's manual for the exact location.
- Open the refrigerator (fresh food) door, not the freezer door
- Look for a serial plate or rating label inside the compartment
- Check the side walls near the front opening first
- Also check near the top interior area if you do not see it right away
- Write down the full model number and serial number exactly as shown
| Label item | What it’s used for | Example |
|---|---|---|
| Model number | Matching parts and diagrams | PLHS269ZCB4 |
| Serial number | Identifying production run details | Varies |
| Electrical ratings | Verifying power requirements | Varies |
Using the exact model number (including all letters and numbers) ensures you get the correct Frigidaire parts for your PLHS269ZCB4, such as the right door gasket, ice maker, control board, or water filter. Even small model-number differences can change fit and wiring.
- Copy the model number directly from the serial plate (do not use the owner’s paperwork only)
- Take a clear photo of the label before ordering
- Match parts by model number first, then confirm with the diagram and part description
