Hoover
Upright Vacuum

Model # U5101930 Official Hoover vacuum cleaner

Here are the diagrams and repair parts for Official Hoover U5101930 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |

Vacuum Height Adjuster Indicator Knob 38567014
#45

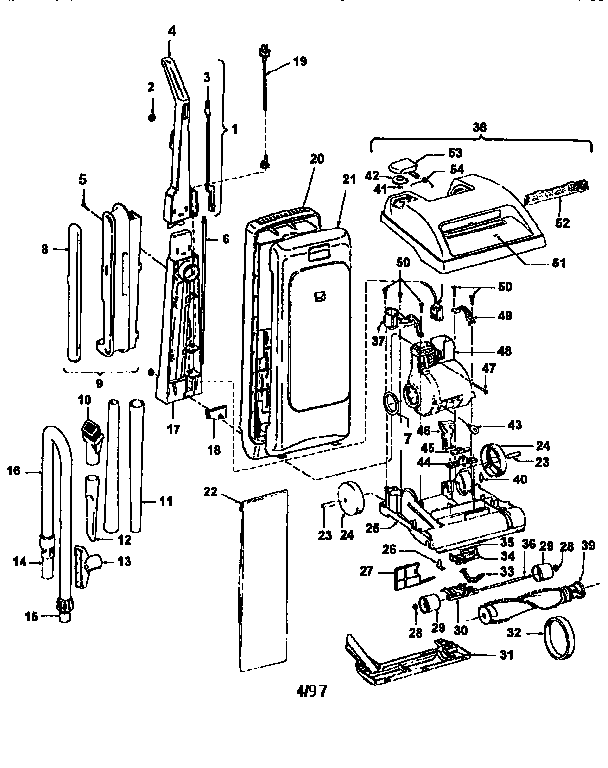

Turbo power 4000 diagram

Vacuum height adjuster indicator knob

Part #38567014

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Furniture Nozzle 38614029
#13

Turbo power 4000 diagram

Vacuum furniture nozzle

Part #38614029

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 38617024
#12

Turbo power 4000 diagram

Crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mounting Bolt And Nut 40201085
#47

Turbo power 4000 diagram

Vacuum motor mounting bolt and nut

Part #40201085

The manufacturer no longer makes this part, and there's no substitute part

Tool Handle Assembly 41426019
#9A

Turbo power 4000 diagram

Tool handle assembly

Part #41426019

The manufacturer no longer makes this part, and there's no substitute part

Spring 38351012
#35

Turbo power 4000 diagram

Spring

Part #38351012

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 51669071
#51

Turbo power 4000 diagram

Nameplate

Part #51669071

The manufacturer no longer makes this part, and there's no substitute part

Valve Gate 38718005
#27

Turbo power 4000 diagram

Valve gate

Part #38718005

The manufacturer no longer makes this part, and there's no substitute part

Speed Nut 21362006
#41

Turbo power 4000 diagram

Speed nut

Part #21362006

The manufacturer no longer makes this part, and there's no substitute part

Low Handle 48669017
#17

Turbo power 4000 diagram

Low handle

Part #48669017

The manufacturer no longer makes this part, and there's no substitute part
