Hoover
Upright Vacuum

Model # U5439-900 Official Hoover upright vacuum cleaner

Here are the diagrams and repair parts for Official Hoover U5439-900 upright vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |

Vacuum Light Bulb 27313101
#30

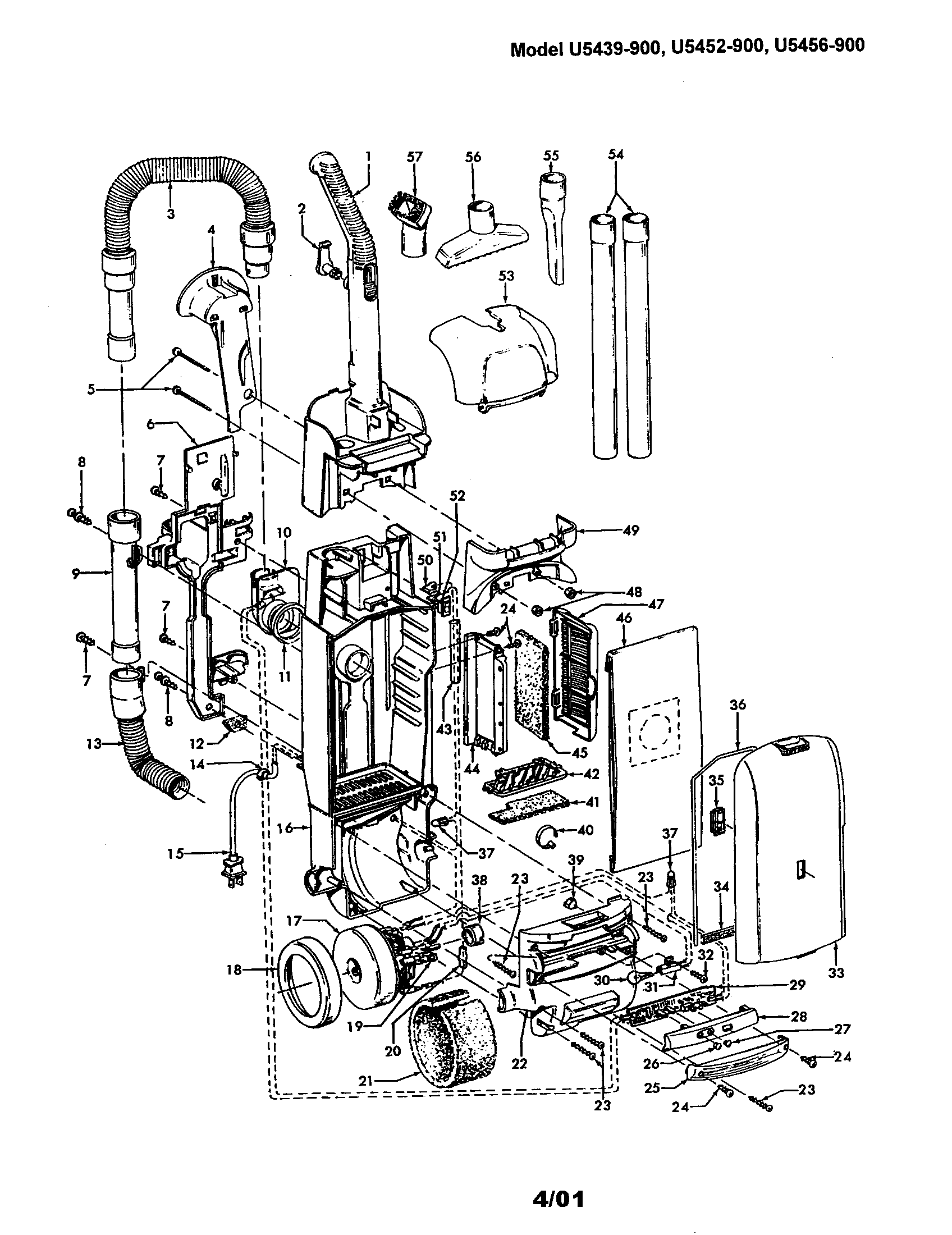

Wind tunnel diagram

Vacuum light bulb

Part #27313101

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Retainer 36131056
#18

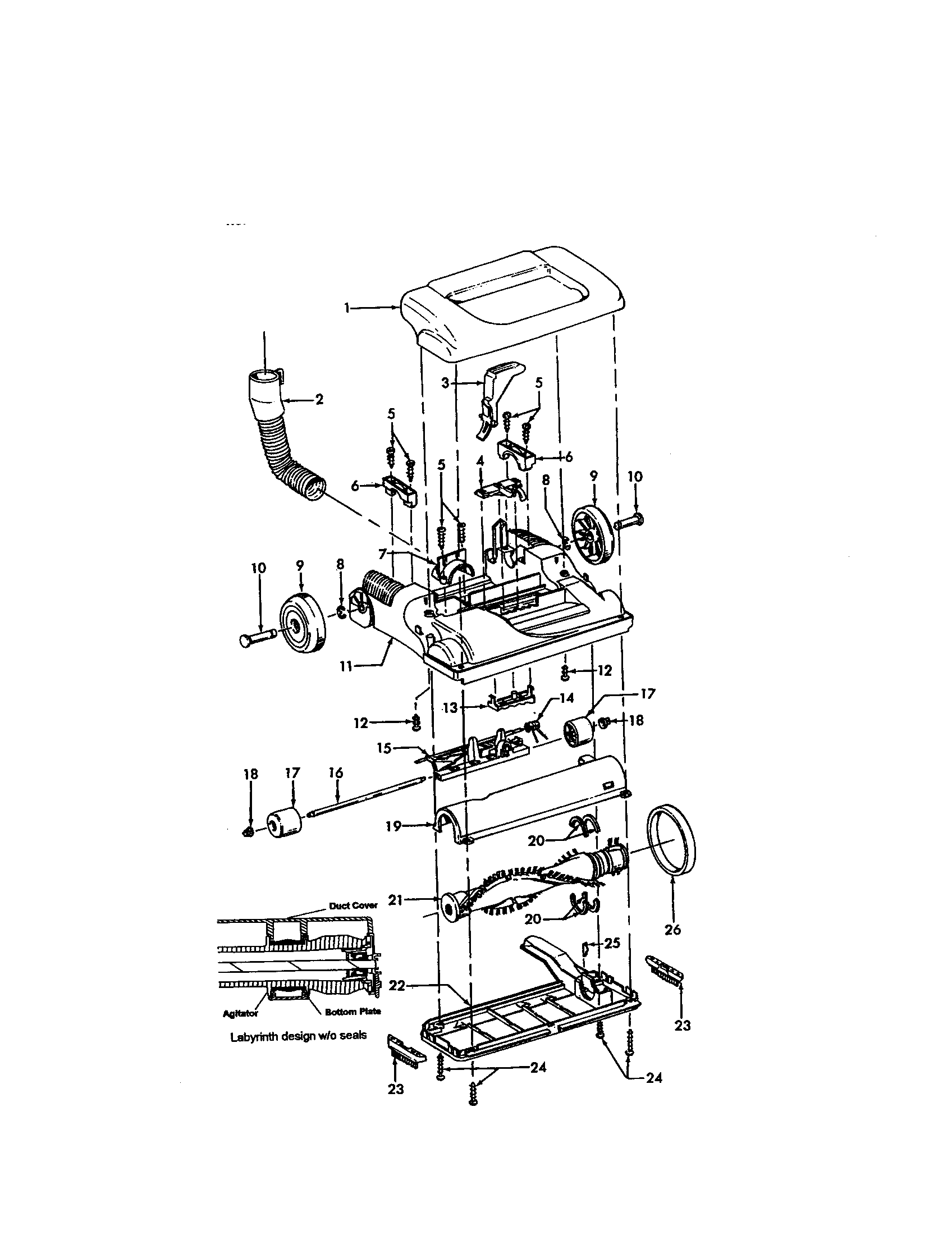

Hood assembly diagram

Vacuum wheel retainer

Part #36131056

The manufacturer no longer makes this part, and there's no substitute part

Lens Cover 39383107
#25

Wind tunnel diagram

Lens cover

Part #39383107

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Allergen Filtration Bag, 3-pack 4010100Y
#46

Wind tunnel diagram

Vacuum allergen filtration bag, 3-pack

Part #4010100Y

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Edge Brush 39511004
#23

Hood assembly diagram

Vacuum edge brush

Part #39511004

The manufacturer no longer makes this part, and there's no substitute part

Clamp 36171044
#7

Hood assembly diagram

Clamp

Part #36171044

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Assembly (charcoal Gray) 48663205
#1

Wind tunnel diagram

Vacuum handle assembly (charcoal gray)

Part #48663205

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord Strain Relief 27482230
#14

Wind tunnel diagram

Vacuum power cord strain relief

Part #27482230

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wire Harness 47173028
#31A

Wind tunnel diagram

Vacuum wire harness

Part #47173028

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#14

Hood assembly diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part
