Model # 11016612692 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 11016612692 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

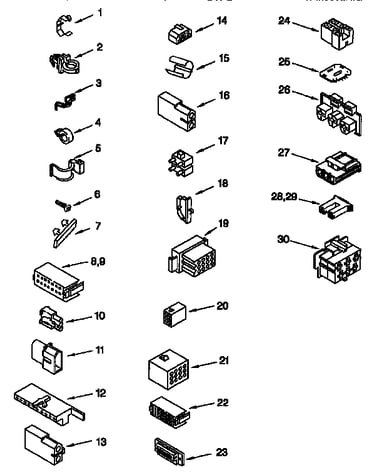

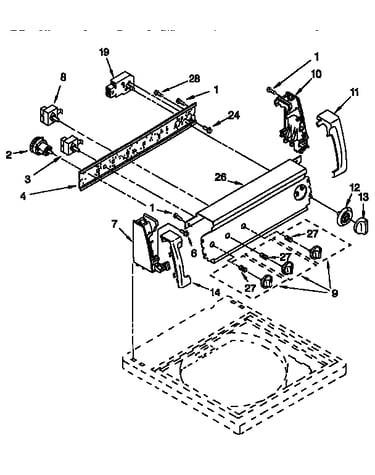

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |

Agitator Dog 3366877
#5

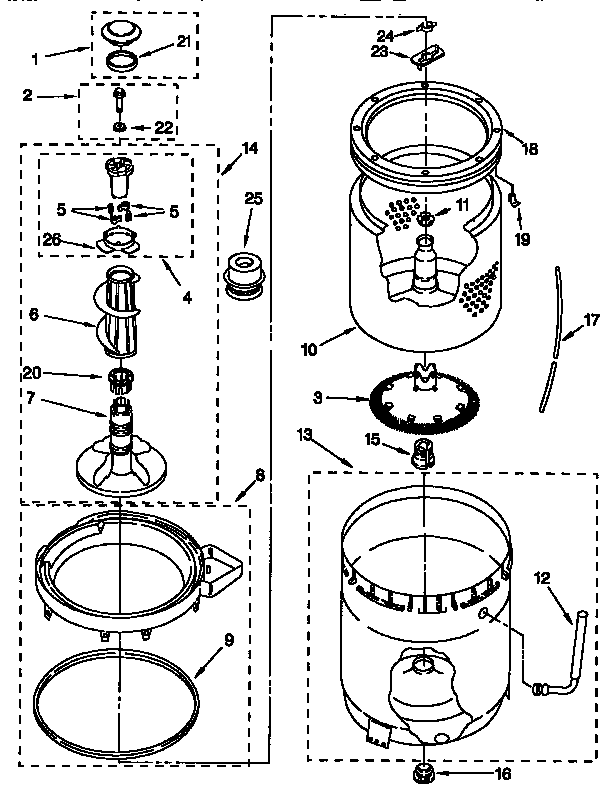

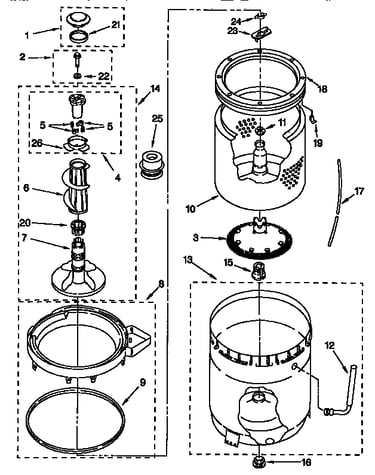

Agitator, basket and tub diagram

Agitator dog

Part #3366877

Replaced by #80040

?
Manufacturer substitution
This part replaces 3366877. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.35
19% OFF Phone Price : $5.35
In Stock
Coupling 3364003
#13

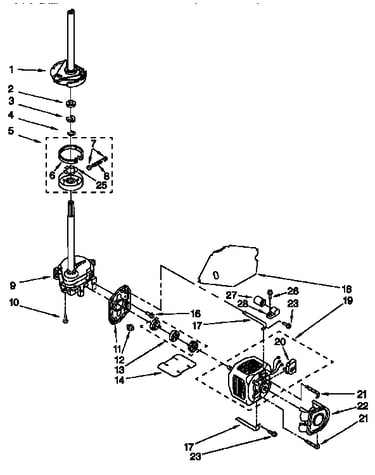

Brake/clutch/gearcase/motor/pump diagram

Coupling

Part #3364003

Replaced by #285753A

?
Manufacturer substitution
This part replaces 3364003. Substitute parts can look different from the original.
BEST SELLER
$25.50
16% OFF Phone Price : $30.50
In Stock
Washer Lid Switch 3949238
#11

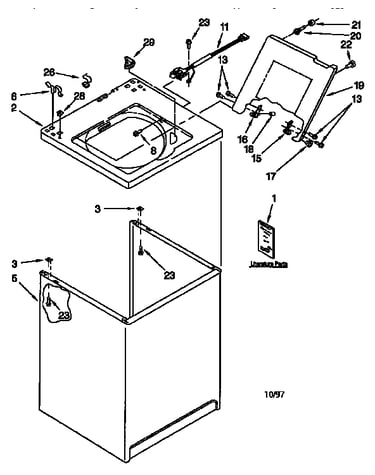

Top and cabinet diagram

Washer lid switch

Part #3949238

Replaced by #WP3949238

?
Manufacturer substitution
This part replaces 3949238. Substitute parts can look different from the original.
BEST SELLER
$30.98
34% OFF MSRP : $47.00
In Stock
Washer Drain Pump 3363394
#22

Brake/clutch/gearcase/motor/pump diagram

Washer drain pump

Part #3363394

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3363394. Substitute parts can look different from the original.
BEST SELLER
$37.32
20% OFF MSRP : $46.50
In Stock
Washer Agitator Bolt 358237
#2

Agitator, basket and tub diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.76
59% OFF MSRP : $14.00
In Stock
Clutch 3951311
#5

Brake/clutch/gearcase/motor/pump diagram

Clutch

Part #3951311

Replaced by #285785

?
Manufacturer substitution
This part replaces 3951311. Substitute parts can look different from the original.
BEST SELLER
$30.32
14% OFF Phone Price : $35.32
In Stock
Mixing Valve 3360392
#26

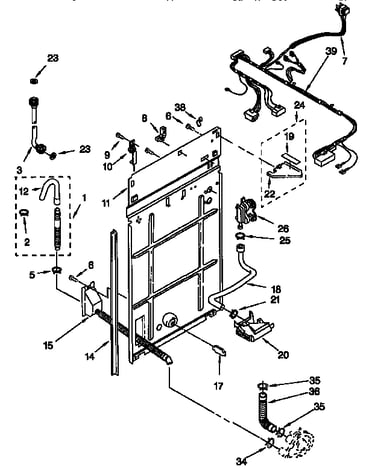

Rear panel diagram

Mixing valve

Part #3360392

Replaced by #285805

?
Manufacturer substitution
This part replaces 3360392. Substitute parts can look different from the original.
BEST SELLER
$26.67
17% OFF MSRP : $32.00
In Stock
Counterweight Spring (red) 388492
#15

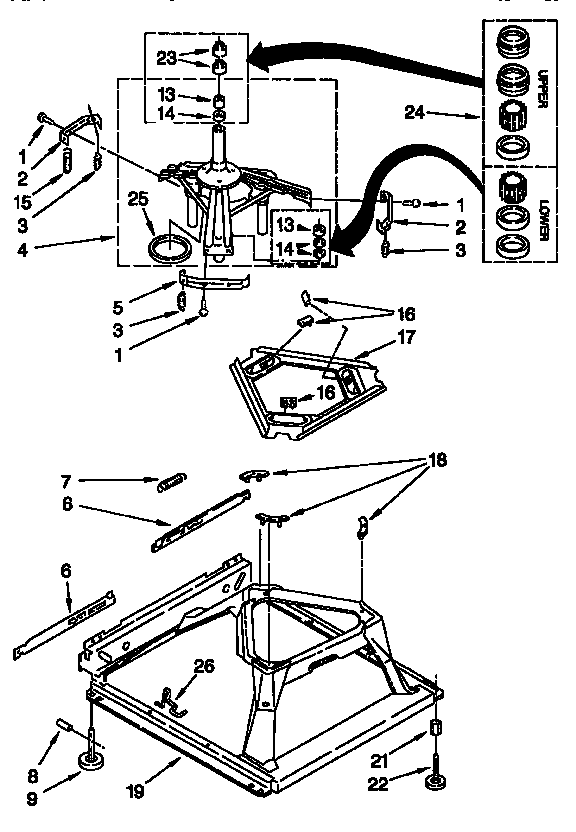

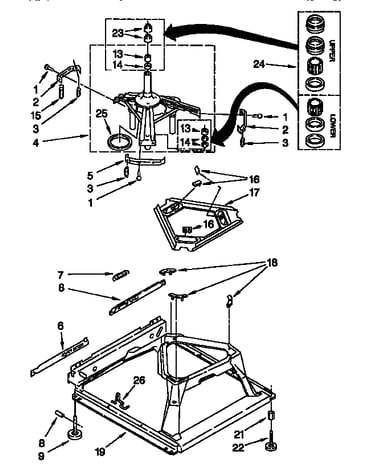

Machine base diagram

Counterweight spring (red)

Part #388492

Replaced by #WPW10250667

?
Manufacturer substitution
This part replaces 388492. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.81
73% OFF MSRP : $14.00
In Stock
Gear Case 3360630
#9

Brake/clutch/gearcase/motor/pump diagram

Gear case

Part #3360630

Replaced by #3360629

?
Manufacturer substitution
This part replaces 3360630. Substitute parts can look different from the original.
BEST SELLER
$255.74
$10.00 OFF Phone Price : $265.74
In Stock
Washer 3350389
#20

Agitator, basket and tub diagram

Washer

Part #3350389

Replaced by #285587

?
Manufacturer substitution
This part replaces 3350389. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.69
13% OFF Phone Price : $7.69
In Stock
