GE GDF510PGM4BB dishwasher Parts

Yes. On the GE GDF510PGM4BB dishwasher, an FTD code is commonly triggered when the unit cannot drain fast enough; a clogged filter area, blocked drain hose, or a restriction at the sink or disposer connection can cause that drain failure.

• Cancel the cycle and let the dishwasher attempt a drain; listen for the drain pump running.
• Remove standing water (cup or wet/dry vac) so you can inspect the sump area.
• Check the drain path for kinks or clogs, especially the hose routing and the high loop.
• Clear debris around the sump inlet (labels, glass, food) that can block flow.
• If connected to a garbage disposer, make sure the disposer inlet knockout plug was removed.

If the drain path is clear but the dishwasher still will not drain, these model-compatible parts are common fixes:

FTD usually means water is staying in the tub longer than it should. That can end the cycle early, leave dishes dirty, and increase the chance of leaks if water backs up into the door area.

If the code returns after you clear the drain path, use GE electronic dishwasher error codes to narrow the failure to a drain, fill, or control issue before replacing parts.

Last updated: February 2026

Most GE built-in dishwashers, including the GE GDF510PGM4BB, are designed to fit a standard 24-inch-wide cabinet opening; typical overall dimensions are about 24 inches wide, 34 to 35 inches high (adjustable), and 24 to 25 inches deep. For exact fit, measure your opening and compare before ordering parts.

These are the common ranges we see for standard built-in 24-inch GE dishwashers:

• Width: ~23 1/2 to 24 inches (fits a 24-inch opening)
• Height: ~33 1/2 to 35 inches (adjustable leveling legs)
• Depth: ~24 to 25 inches (varies with door style and handle)
• Cutout opening (common): 24 inches wide x 34 inches high x 24 inches deep

Measure in inches with the dishwasher removed if possible.

• Measure opening width at the front and back
• Measure opening height from floor to underside of countertop
• Measure depth from the back wall to the front of the cabinet frame
• Check for baseboard or flooring changes that reduce depth
• Confirm door clearance so the door can open fully

Dishwasher dimensions affect installation, leveling, and door alignment. A tight opening can cause vibration, leaks at the tub seal, or a door that will not latch consistently.

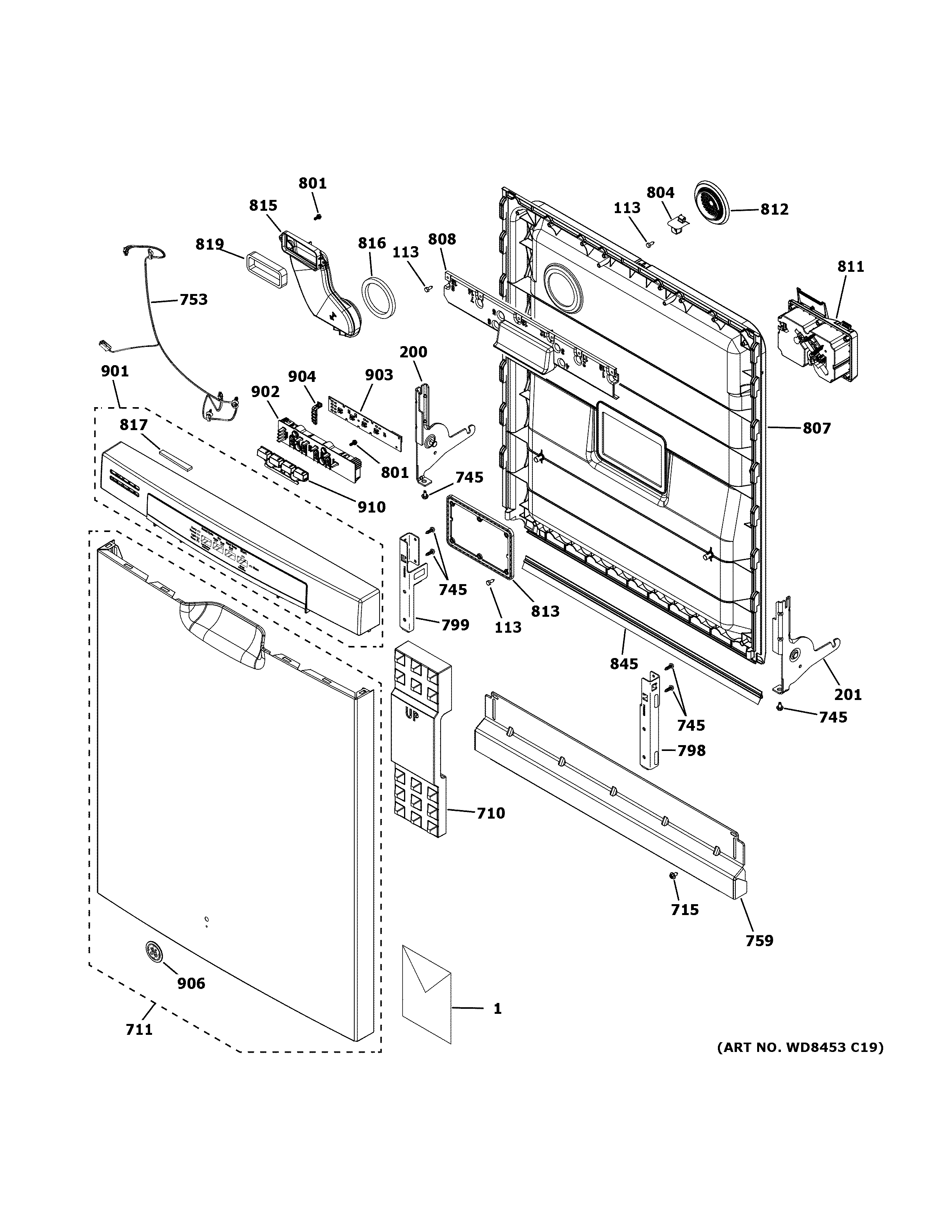

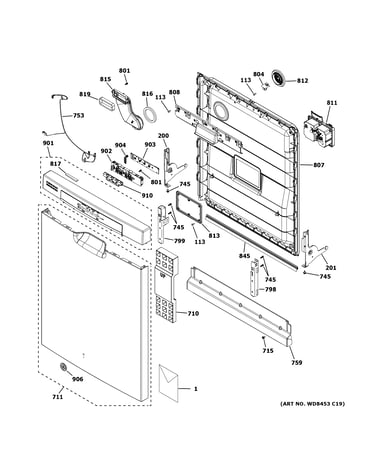

If you are troubleshooting a door that will not close after a reinstall, check the latch and alignment; the GE dishwasher door latch lock WD21X10490 is a common replacement part for closing and starting issues.

Last updated: February 2026

On a GE GDF510PGM4BB dishwasher, an E1 code points to a water fill problem (the dishwasher is not sensing the correct water level in the expected time). In most cases, the fix is restoring proper water supply and checking the fill sensing components.

• Make sure the water shutoff valve under the sink is fully open.
• Confirm the dishwasher door is fully latched; a weak latch can stop filling. Consider the GE dishwasher door latch lock WD21X10490 if the door will not reliably latch.
• Check the inlet hose for kinks or crushing.
• Clean the sink air gap (if you have one) and verify the drain hose routing is correct; a bad drain setup can cause odd fill and drain behavior.
• Reset power: turn the breaker off for 1 minute, then back on.

If the basics look good, these model-matched parts are the most likely suspects:

When the dishwasher cannot fill correctly, the wash pump cannot circulate water, so cleaning performance drops and the control may stop the cycle to prevent running the heater or pump under improper conditions.

For GE-specific code definitions and what to test next, use our GE electronic dishwasher error codes guide.

Last updated: February 2026

For a GE GDF510PGM4BB dishwasher, the most reliable way to clear an error code is a power reset: turn the dishwasher off at the breaker for about 5 minutes, then restore power and try a new cycle. If the code returns, the reset cleared the symptom but not the cause.

• Turn the dishwasher off at the circuit breaker.
• Wait 5 minutes (this lets the control fully power down).
• Turn the breaker back on.
• Press Start and run a short cycle or cancel and drain.
• If the display shows a code again, move to the checks below.

Many GE dishwasher fault codes are triggered by a real condition such as draining, filling, heating, or door-latch problems.

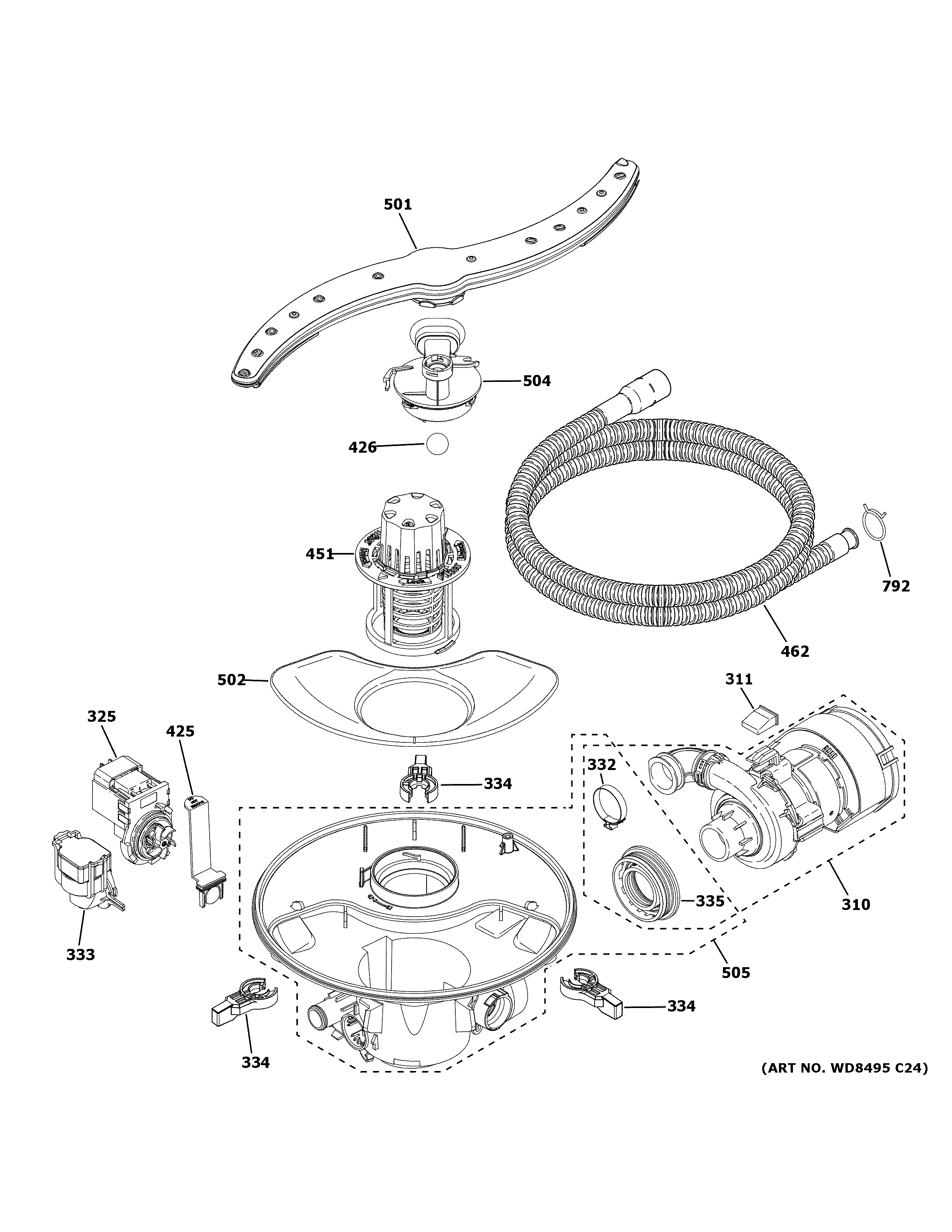

• Won’t drain or drains slowly: Check for kinks or clogs in the drain line; inspect the dishwasher drain hose WD24X10062.
• Water left in tub after cancel/drain: The drain pump may be jammed or weak; consider the dishwasher drain pump WD19X25461.
• Not cleaning well: A clogged or cracked spray arm reduces wash pressure; inspect the dishwasher spray arm, lower WD22X33499.
• Not drying or heating-related codes: A failed heater can trigger heating faults; check the dishwasher heating element WD05X35098.
• Door won’t latch or cycle won’t start: A latch issue can stop operation and cause errors; inspect the GE dishwasher door latch lock WD21X10490.

Resetting clears temporary control glitches, but repeated error codes usually mean the dishwasher is protecting itself from a condition that can lead to leaks, poor cleaning, or incomplete draining. Fixing the underlying cause prevents repeat shutdowns and helps protect the electronic control.

For code definitions and code-specific troubleshooting, use our GE electronic dishwasher error codes guide.

Last updated: February 2026

The most common GE dishwasher problems are the dishwasher not starting, not draining, or not cleaning well. On the GE GDF510PGM4BB, these symptoms are often tied to a door that is not fully latched, a restricted drain path, or wash system issues like a clogged spray arm or a failed sensor.

• Won’t start: door not fully closed, failed latch, control not responding
• Won’t drain: kinked hose, clogged drain path, weak or failed drain pump
• Not cleaning: blocked spray arm holes, low water fill, wash pump or sensor issues
• Not drying: heater circuit problem, rinse aid issue, short cycle selection
• Leaks: worn door seals or tub gasket, loading issues causing splash-out

• Confirm the door closes firmly and the latch “clicks” (no play in the handle).
• Cancel the cycle and listen for a strong drain sound; weak draining points to a restriction or pump issue.
• Inspect and clean the spray arm holes; food debris can block water flow.
• Check the drain hose routing under the sink for kinks and make sure it is looped high.
• Run hot water at the sink for 30 to 60 seconds before starting to improve wash performance.

These “common” problems usually come down to water movement and safety interlocks. If the dishwasher cannot confirm the door is locked, fill correctly, circulate water through the spray arms, and drain strongly, it will either stop or wash poorly.

• Use GE electronic dishwasher error codes to match any blinking lights or fault codes to the most likely cause.
• If the unit has power but won’t run, follow dishwasher wont start video for step-by-step checks.

Last updated: February 2026
