How do I know if my Kenmore dryer thermal fuse is blown?
On the Kenmore 11069132411 electric dryer, a blown thermal fuse commonly shows up as a dryer that will not start, or a dryer that runs but will not heat. The sure way to know is to unplug the dryer and test the fuse for continuity using the steps in the 11069132411 owner's manual.
- Dryer will not run even though the door is closed and controls are set
- Drum tumbles but there is no heat (clothes stay damp)
- “L2” diagnostic code appears and the dryer runs but the heater does not turn on (low or no line voltage can also cause this)
- Repeated tripped breaker or blown house fuse after starting a heated cycle
Electric dryers like model 11069132411 need a full 240V (or 208V) supply. If one leg of power is missing, the motor can run but the heater will not.
| What you see | Common cause | What to check |
|---|---|---|
| Tumbles, no heat | One house fuse/breaker tripped (dryer uses 2) | Reset both breakers or replace both fuses |
| Will not start | Door not closed, Start not held long enough, no power | Door switch, hold Start/Pause up to 3 seconds, outlet power |
| “L2” code | Low line voltage condition | Cord installation and home power supply |
- Unplug the dryer (or switch off both breakers).

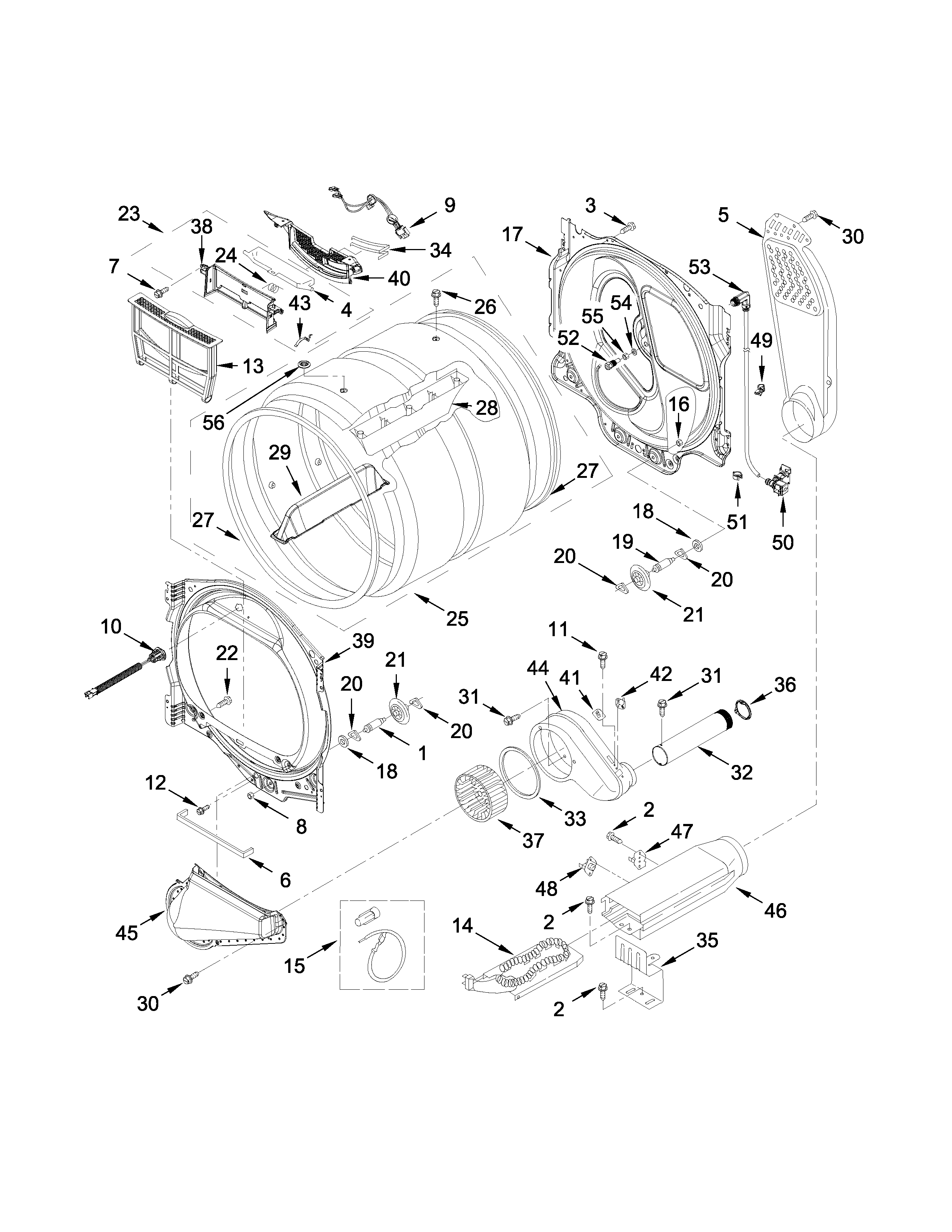

- Access the thermal fuse on the blower housing (location varies by build).
- Remove at least one wire from the fuse terminal.
- Meter across the fuse terminals.
- Good fuse: continuity (beep or near 0 ohms)
- Blown fuse: no continuity
A thermal fuse usually opens because the dryer overheated from restricted airflow.
- Clean the lint screen
- Inspect and clear the vent duct for crushing, kinks, or heavy lint
- Check the outside vent hood for blockage
- If “Check Vent” appears, treat it as an airflow warning and correct venting
If testing confirms a failed fuse, we typically replace the fuse and correct airflow issues. On this model, a common replacement is the thermal fuse W10909685.
A blown thermal fuse is a safety cutoff. Replacing it without correcting venting or airflow restrictions can cause repeat failures and longer dry times.
Last updated: February 2026
How do I tell what model my Kenmore dryer is?
Your Kenmore dryer’s model number is printed on the appliance’s ID label (a sticker or metal plate). On most Kenmore dryers, you’ll find it in the door opening area; once you have the full model number, we can match the correct parts, wiring, and specifications for your exact dryer.
Check these common locations first (use a flashlight and wipe dust off the label):
- Inside the dryer door opening, along the front frame
- On the back panel of the dryer cabinet
- Near the lint screen housing area (depending on the design)
- On the side panel near the door opening
- On the lower front area behind a small access panel (less common)
Kenmore dryer model numbers are typically long and numeric, and many start with a prefix like 110. For example, 11069132411 is a complete model number format we use to pull the correct Kenmore electric dryer parts list.
| What you see on the label | What it tells us | What you can do next |
|---|---|---|
| Full model number (example: 11069132411) | Exact configuration and compatible parts | Use it to look up diagrams and replacement parts |
| Serial number | Production tracking and date coding | Keep it for service records |
| Partial number (missing digits) | Not enough to guarantee part fit | Recheck the label and write down every digit |
- Copy the model number exactly as printed (all digits, no spaces)
- Take a clear photo of the label before you start shopping
- Match the model number on the label, not the number on the control panel styling
- If your label shows a model series list, use the one that matches your exact digits
Kenmore dryers often share a similar look across multiple series, but internal parts like the heater element, thermal fuse, and control board can vary by model. Using the exact model number ensures the right fit, safe operation, and correct installation steps from the 11069132411 owner’s manual.
Last updated: February 2026
What is the average lifespan of 11069132411?
The average lifespan of the Kenmore 11069132411 electric dryer is 13 years. Regular airflow maintenance (lint filter and venting) and replacing wear parts like drum rollers and thermal fuses on time are the biggest factors in reaching that lifespan.
A dryer usually fails early from overheating, restricted airflow, or normal wear in moving parts. For model 11069132411, focus on these items:
- Clean the lint screen before every load.
- Keep the vent run short with minimal elbows; airflow drops with each turn.
- Replace plastic or foil vent ducting with rigid, heavy metal 4-inch duct.
- Do not use an extension cord; use the correct dedicated electrical circuit.
- Address new noises quickly; they often point to roller or drum support wear.
| Care and usage | What we typically see | Result |
|---|---|---|
| Good venting, routine cleaning | Stable heat, fewer safety trips | Reaches 13 years |
| Long or clogged venting | Overheating, blown thermal fuse | Shorter lifespan |
| Ignored squeals/thumps | Roller wear spreads to other parts | More repairs |
If the dryer still tumbles and the cabinet is solid, these repairs often extend life significantly:
- Dryer drum support roller WPW10314173: reduces thumping and drum drag.
- Thermal fuse W10909685: restores operation after an overheat event (the venting issue must be fixed too).
- Heater element W11025156: restores heat when the element is open.
A dryer that runs hot or has poor airflow can repeatedly trip safety devices and stress wiring, thermostats, and the heating circuit. Following the venting and electrical guidance in the owner's manual helps protect the heater, controls, and motor so the dryer reaches its full service life.
Last updated: March 2026
