How many cubic feet is my Kenmore Elite refrigerator?
Your Kenmore Elite refrigerator model 10651143111 is typically in the 25 to 27 cubic feet range for a standard-depth side-by-side. For the exact rated capacity for your specific configuration, we recommend checking the product specifications section in the 10651143111 owner's manual.
How to confirm the exact capacity on your model
We use the manual because capacity can vary slightly by production run, door style, and internal features.
- Look for “Capacity” or “Product specifications” in the manual
- Check for separate listings for refrigerator and freezer compartment volume
- If your unit has an in-door ice system, capacity is often slightly lower
- Compare the manual’s capacity to your model tag (inside the fresh food section)
Typical side-by-side capacity ranges (for context)
| Refrigerator type | Typical total capacity | Notes |
|---|---|---|
| Standard-depth side-by-side | 25 to 27 cu. ft. | Most common for Kenmore 106-style platforms |
| Counter-depth side-by-side | 20 to 23 cu. ft. | Shallower cabinet reduces volume |
Why it matters
Knowing the cubic feet helps when you are comparing replacement refrigerators, estimating food storage space, and choosing compatible accessories such as an air filter or organizing bins.
If you are also tracking odors or airflow performance, replacing the refrigerator air filter W10311524 is a common maintenance step on this style of Kenmore Elite refrigerator.
Last updated: January 2026
What are the common problems with Kenmore Elite refrigerators?
Common problems we see on the Kenmore Elite refrigerator model 10651143111 include warm temperatures from airflow or defrost issues, ice maker or dispenser failures, water leaks tied to the water supply system, and intermittent operation caused by controls or compressor start components. Use the 10651143111 owner's manual to match symptoms to the correct checks.
Most common symptoms and what they usually point to

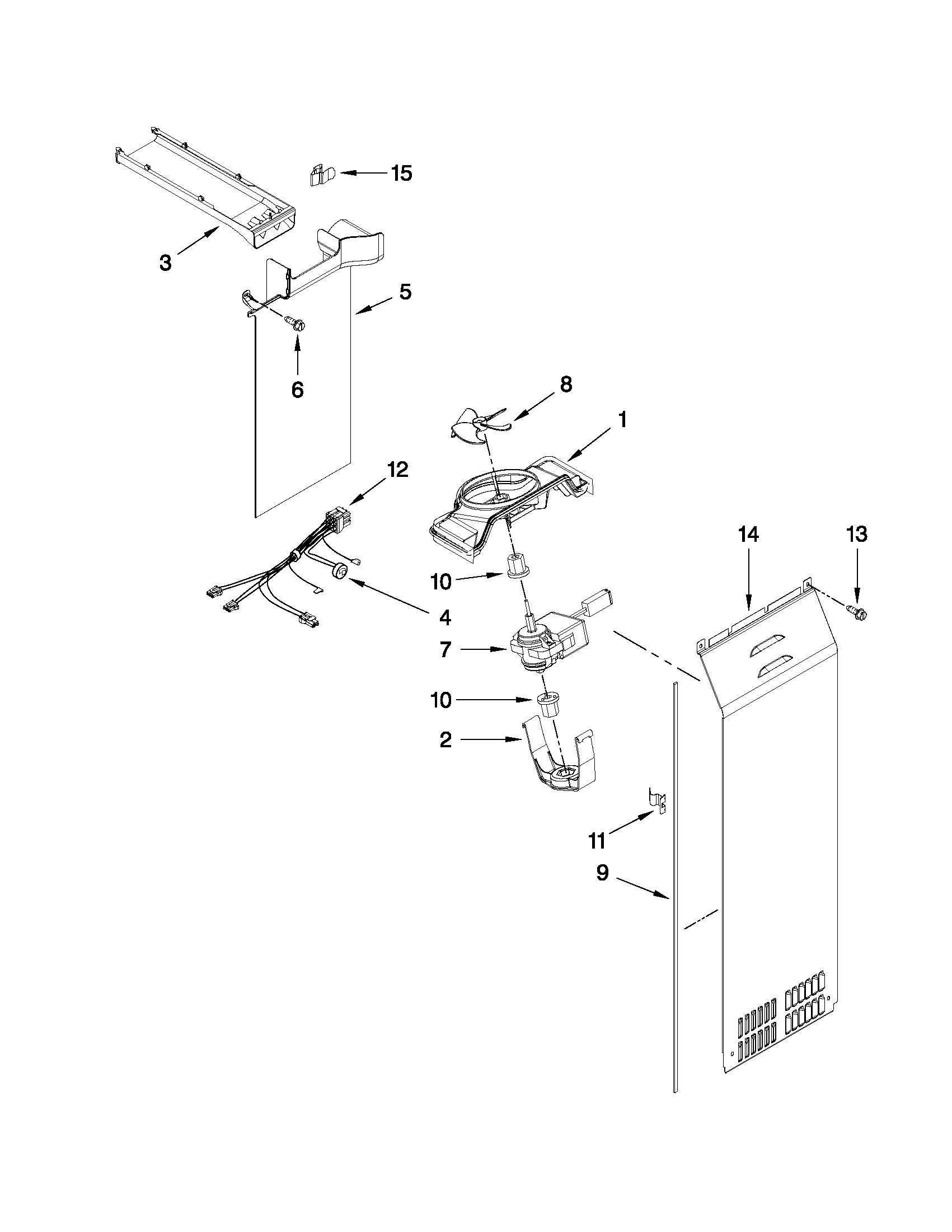

- Not cooling or weak cooling: evaporator fan not moving air, frost buildup from a defrost problem, or a restricted air damper
- Freezer cold but fridge warm: airflow restriction, iced evaporator, or a diffuser/damper issue
- Ice maker not making ice: water supply issue, inlet valve problem, or failed ice maker
- Water dispenser slow or not dispensing: clogged filter, low house water pressure, or inlet valve issue
- Clicking, humming, or won’t start: compressor start components (capacitor/relay) or compressor problems
- Bad odors: overdue air filter or spills trapped in liners and ducts
Parts that commonly solve these problems on model 10651143111
The exact fix depends on the symptom, but these model-matched parts are frequent solutions:
| Symptom | Common part to check | What it does |
|---|---|---|
| Warm temps, noisy freezer | Refrigerator evaporator fan motor WP2315549 | Circulates cold air through the freezer and into the fresh food section |
| Frost buildup, warm temps | Refrigerator defrost bi-metal WPW10225581 | Helps control defrost heater operation to prevent icing |
| No ice or slow fill | Refrigerator water inlet valve WPW10341320 | Opens to send water to the ice maker and dispenser |
| Won’t start, intermittent cooling | Refrigerator run capacitor WPW10662129 | Helps the compressor start and run efficiently |
| Odors in fresh food section | Refrigerator air filter W10311524 | Reduces food odors by filtering circulating air |
Quick checks we recommend before replacing parts
- Confirm temperature settings and allow 24 hours after changes
- Make sure vents are not blocked by food packages
- Check door gaskets for gaps and verify doors close fully
- If the ice maker is the issue, confirm the shutoff arm is down and the supply valve is fully open
- If you suspect a valve issue, review the steps in how to diagnose a faulty refrigerator water inlet valve
Why it matters
On a side-by-side refrigerator like Kenmore model 10651143111, most “not cooling” complaints trace back to airflow (evaporator fan, diffuser) or defrost problems. Catching those early prevents heavy frost buildup, food spoilage, and compressor strain.
Last updated: January 2026

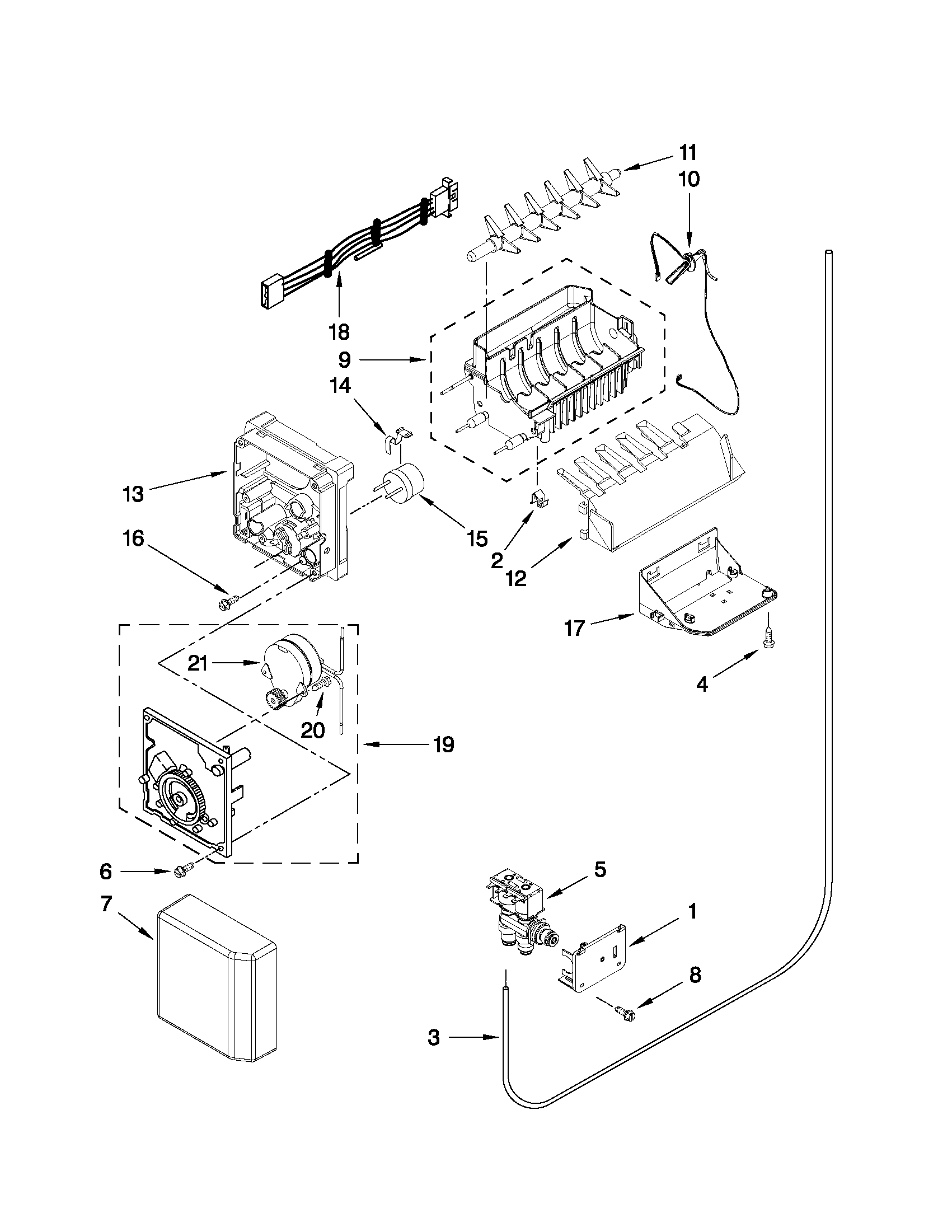

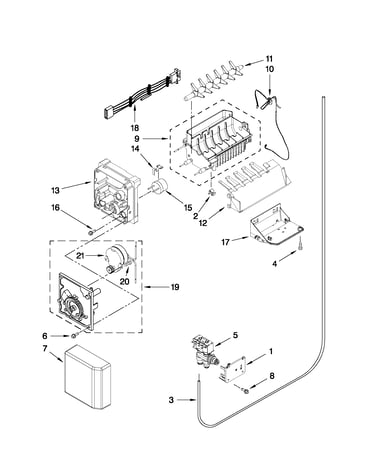

Why is my Kenmore Elite side by side ice maker not working?
On Kenmore Elite refrigerator model 10651143111, an ice maker usually stops working because water is not getting to the ice maker, the freezer is not cold enough to harvest ice, or the ice maker drive components are jammed or failed. Start with a quick reset and basic water supply checks, then test the valve and ice maker.
Quick checks first (fastest fixes)
- Confirm the ice maker is turned ON and the shutoff arm is down (or the switch is ON, depending on your style).
- Make sure the freezer is set near 0°F; ice makers commonly stop cycling if the freezer is too warm.
- Dump any clumped ice from the bin and check for a jam at the dispenser chute.
- Unplug the refrigerator for 5 minutes, then plug it back in to reset controls.
- Replace the water filter if flow at the dispenser is weak (a restricted filter can starve the ice maker).
Water supply and valve troubleshooting
If the dispenser water is slow or the ice maker is dry, focus on the inlet valve and supply line.
- Verify the household shutoff valve is fully open.
- Inspect the water line behind the refrigerator for kinks or crushing.
- If you hear the ice maker cycling but no water enters, the dual water valve may be sticking or electrically failed.
Common replacement part for this symptom: Refrigerator water inlet valve WPW10341320
What to check based on symptoms
| Symptom | Most likely cause | What we check next |
|---|---|---|
| No ice, no fill sound | No water supply or failed inlet valve | Water line, valve, filter flow |
| Small/hollow cubes | Low water pressure or restricted filter | Filter, supply pressure, valve |
| Ice maker cycles but no ice drops | Freezer too warm or ice maker issue | Freezer temp, ice mold freeze, ice maker module |
| Frost buildup, warm freezer | Defrost problem affecting temps | Defrost system, airflow |
Why it matters
The ice maker depends on steady water flow and a consistently cold freezer. A weak water supply or a warm freezer can look like an “ice maker failure,” but fixing the root cause prevents repeat clogs, hollow cubes, and intermittent ice production.
Model-specific help
Use the 10651143111 owner's manual to confirm the exact ice maker ON/OFF method, temperature recommendations, and any built-in diagnostics your control panel supports.
Last updated: January 2026
