Maytag LSE7806BCE stacked laundry center Parts
Here are the diagrams and repair parts for Maytag LSE7806BCE stacked laundry center, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

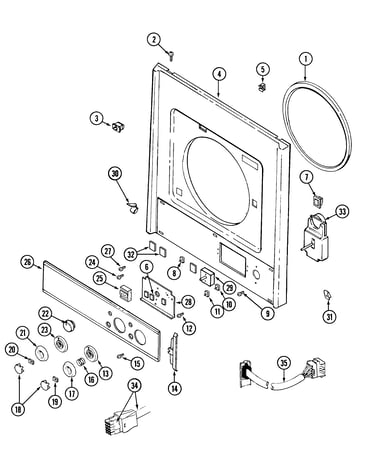

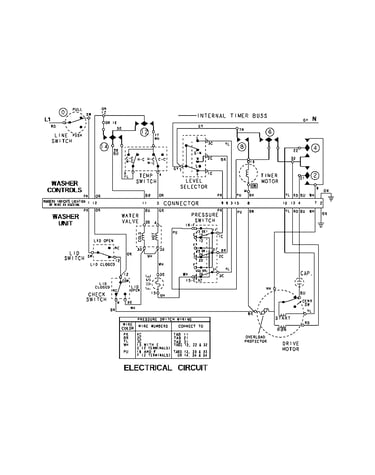

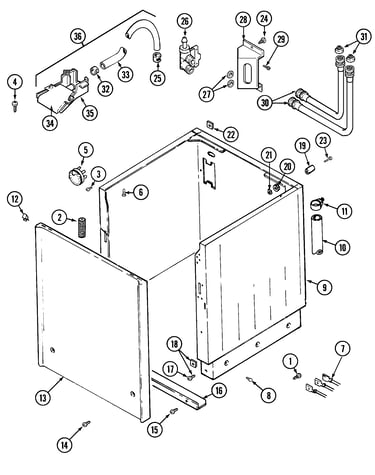

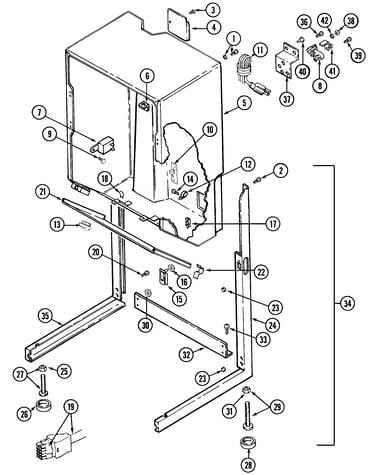

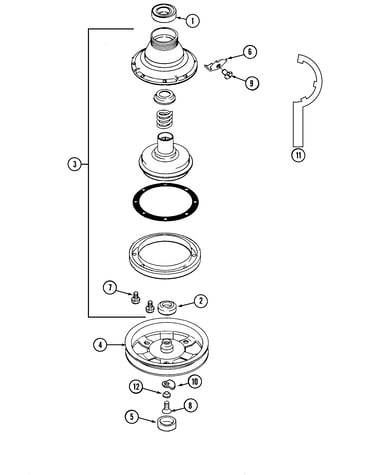

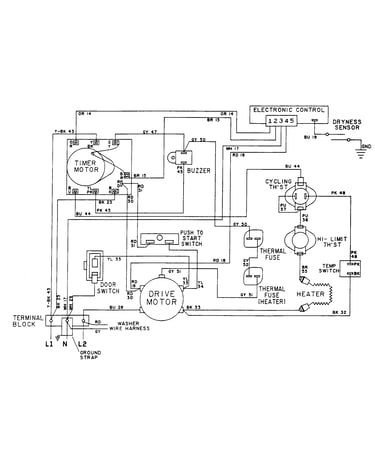

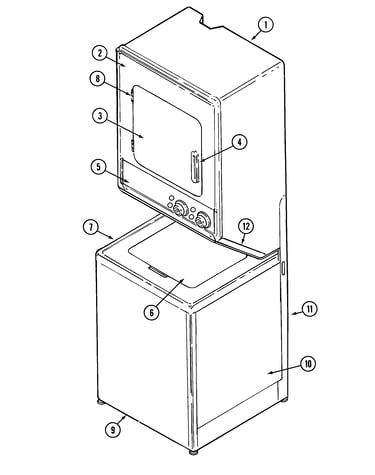

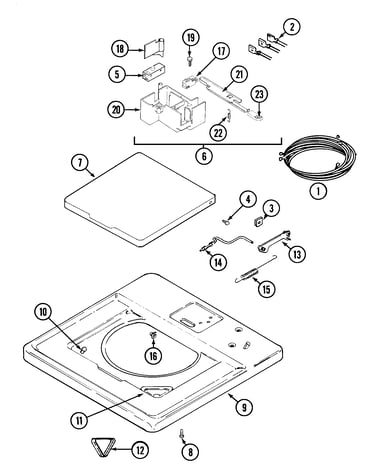

Browse Parts for LSE7806BCE Laundry Center

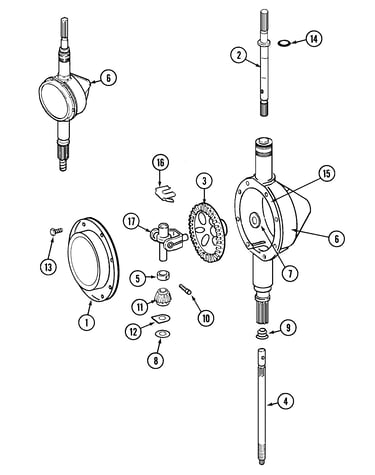

Transmission diagram
Silastic,adh
Part #058700Replaced by #W10841140
Manufacturer substitutionThis part replaces 058700. Substitute parts can look different from the original.In Stock$16.1411% OFF Phone Price : $18.14
Qty

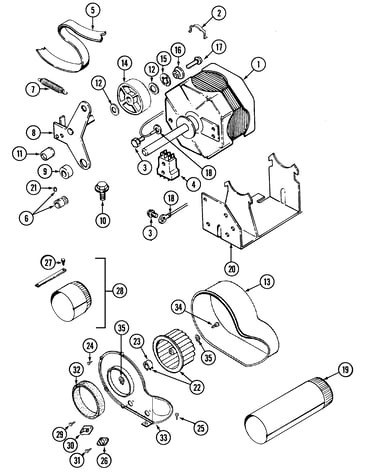

Motor-dryer & blower diagram
Idler Pulley
Part #303705Replaced by #WP6-3037050
Manufacturer substitutionThis part replaces 303705. Substitute parts can look different from the original.In Stock$20.7222% OFF Phone Price : $26.72QtyDryer Drum Support Roller Retainer
Part #410233Replaced by #WP9703438
Manufacturer substitutionThis part replaces 410233. Substitute parts can look different from the original.This item is not returnableIn Stock$4.1619% OFF Phone Price : $5.16QtyHose Clamp
Part #22001640Replaced by #WP285655

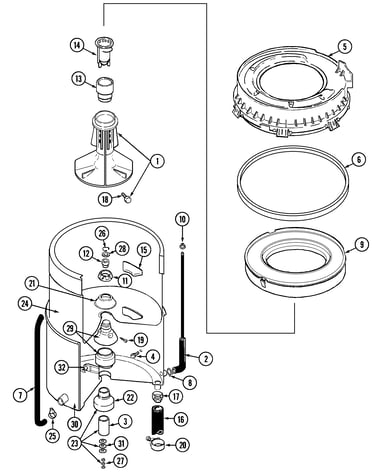

Manufacturer substitutionThis part replaces 22001640. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyTub diagram
Clamp
Part #211641Replaced by #WP285655
Manufacturer substitutionThis part replaces 211641. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtyMotor-dryer & blower diagram
Lock Ring, I
Part #312958Replaced by #WP354987

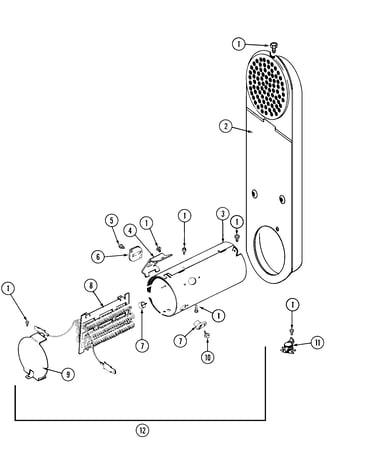

Manufacturer substitutionThis part replaces 312958. Substitute parts can look different from the original.This item is not returnableIn Stock$9.719% OFF Phone Price : $10.71QtyHeater diagram
Dryer High-limit Thermostat
Part #303396Replaced by #WP303396
Manufacturer substitutionThis part replaces 303396. Substitute parts can look different from the original.In Stock$26.8418% OFF Phone Price : $32.84QtyMotor-dryer & blower diagram
Idler Washer
Part #312527Replaced by #WPY312527
Manufacturer substitutionThis part replaces 312527. Substitute parts can look different from the original.In Stock$9.549% OFF Phone Price : $10.54QtyMotor-dryer & blower diagram
Cut-off, The
Part #306604Replaced by #WP306604

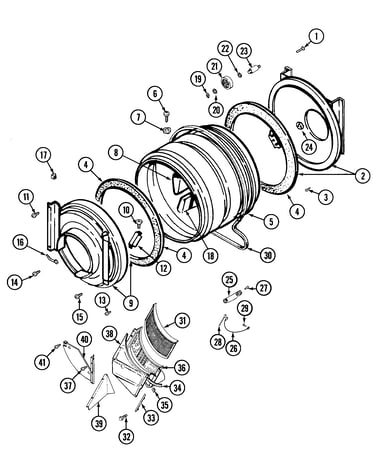

Manufacturer substitutionThis part replaces 306604. Substitute parts can look different from the original.This item is not returnableIn Stock$26.8418% OFF Phone Price : $32.84QtyTumbler diagram
Dryer Drum Felt Seal
Part #314820Replaced by #WP314820
Manufacturer substitutionThis part replaces 314820. Substitute parts can look different from the original.This item is not returnableIn Stock$23.9820% OFF Phone Price : $29.98Qty
