Craftsman
Front-Engine Lawn Tractor

Model # 917271813 Official Craftsman lawn tractor

Here are the diagrams and repair parts for Official Craftsman 917271813 lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

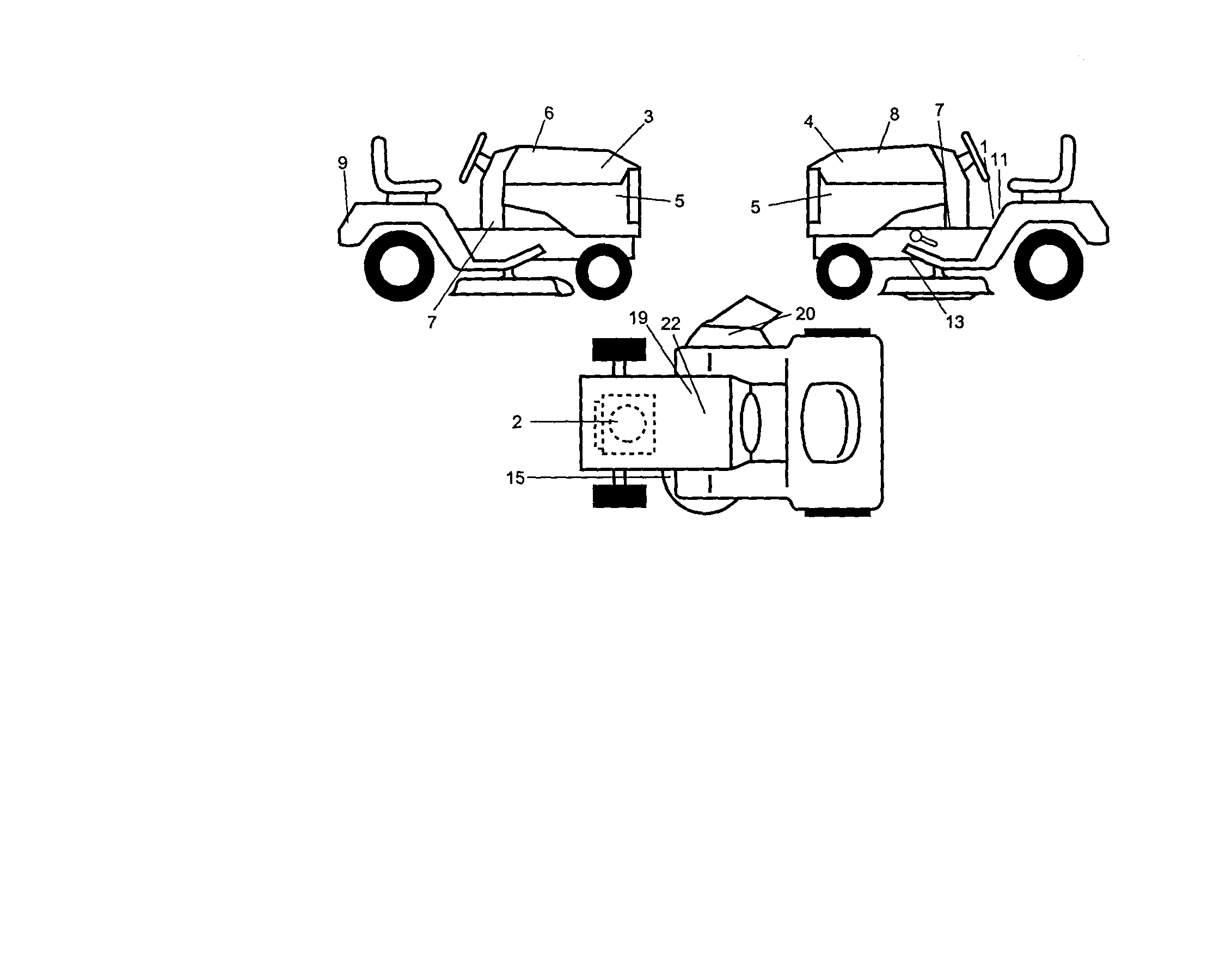

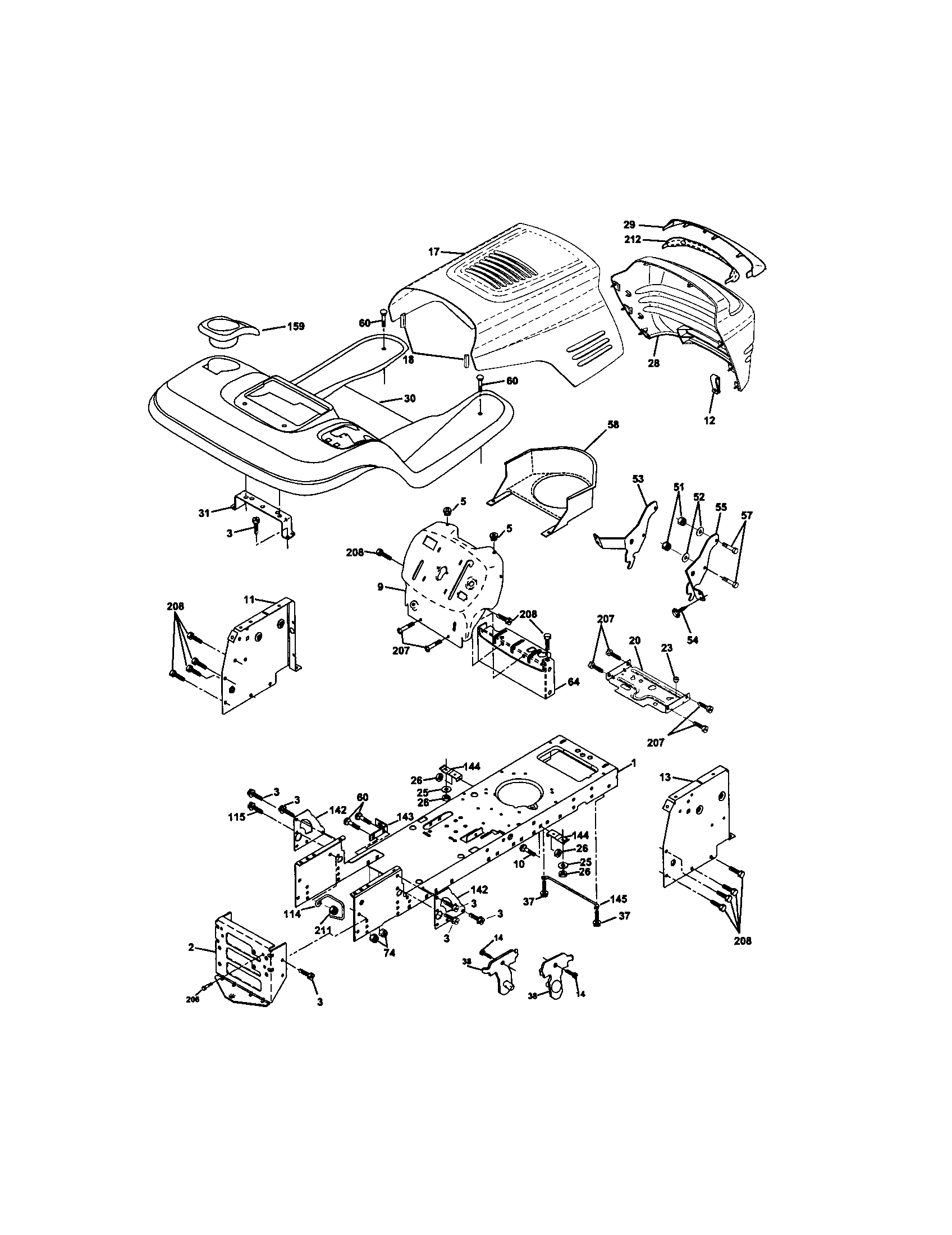

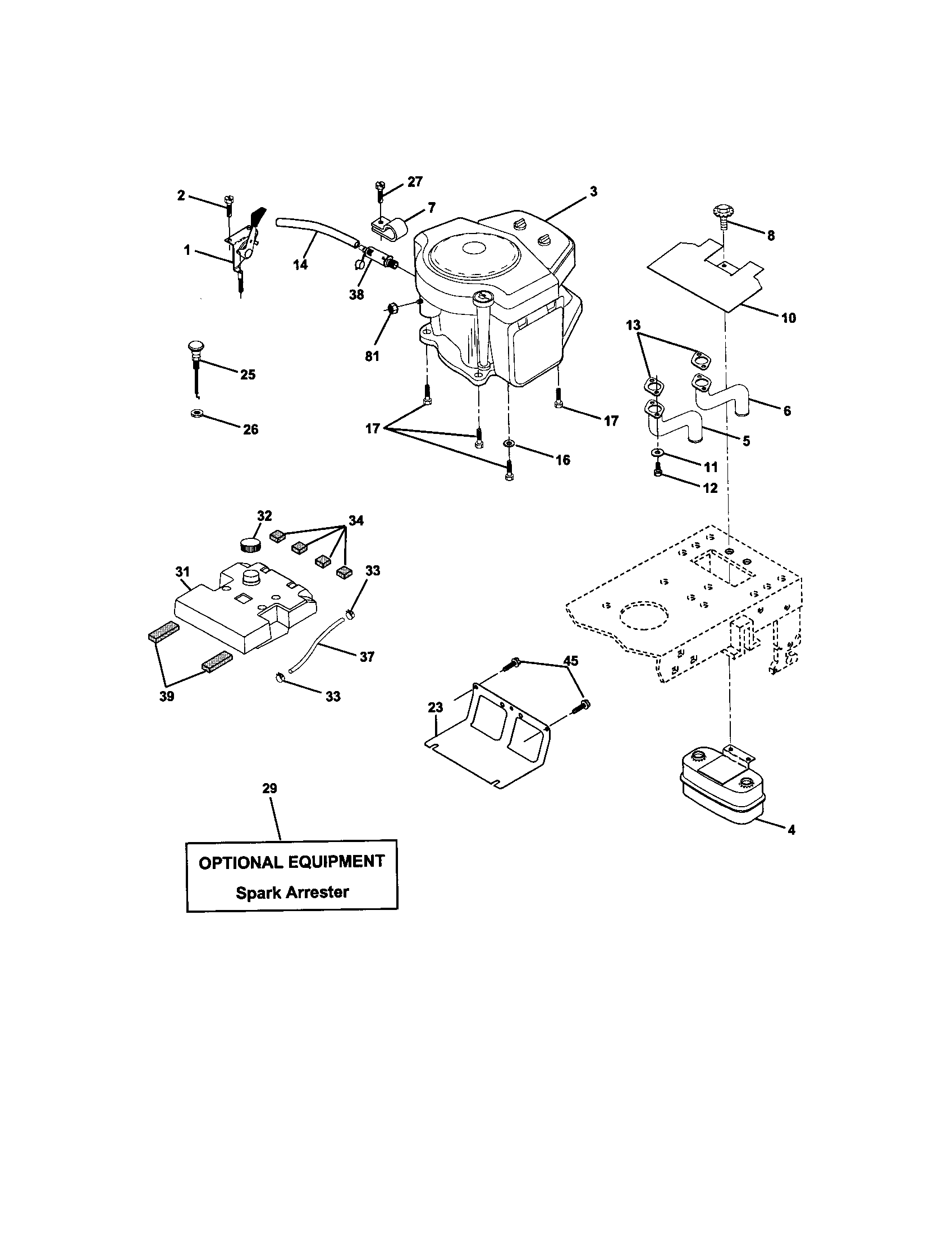

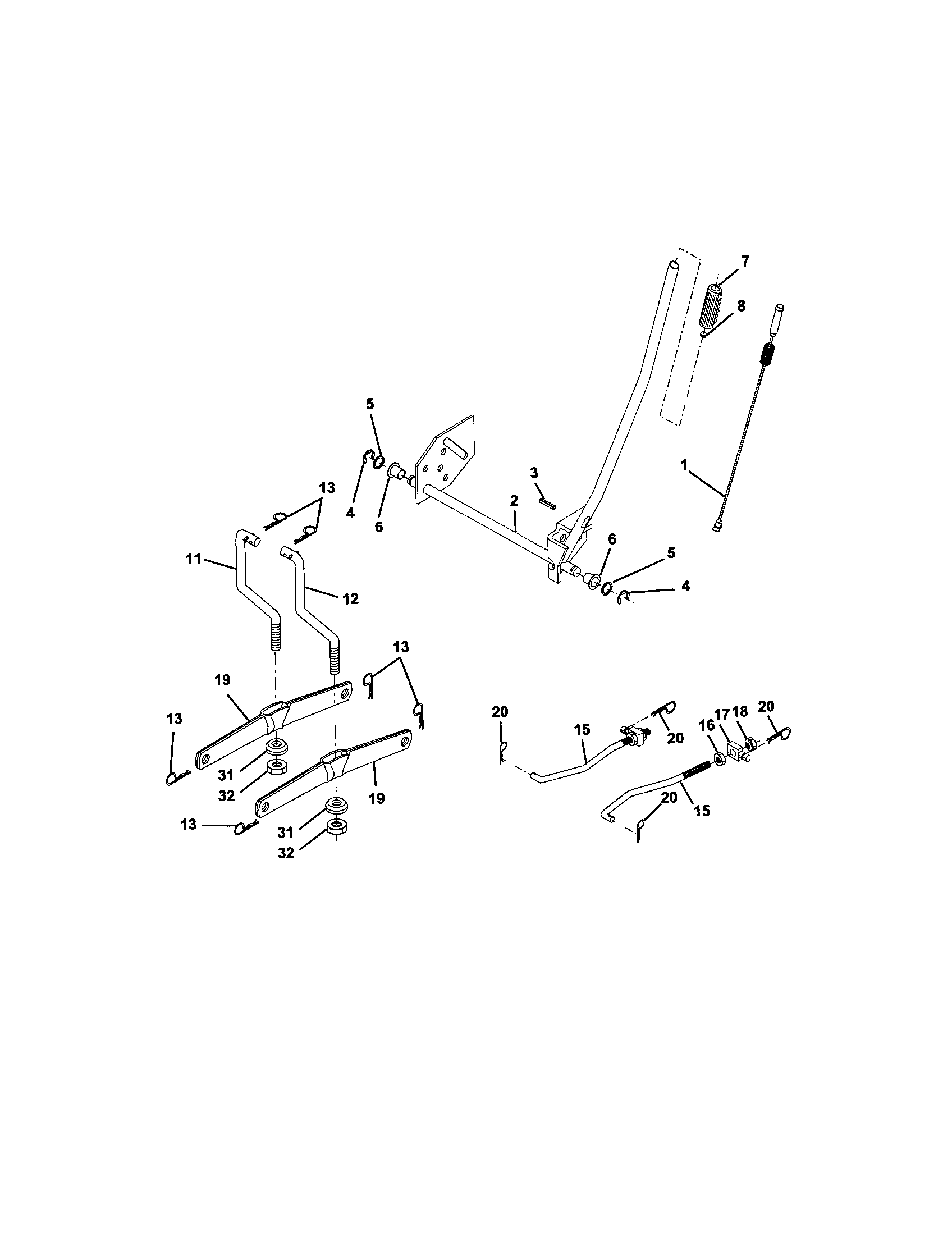

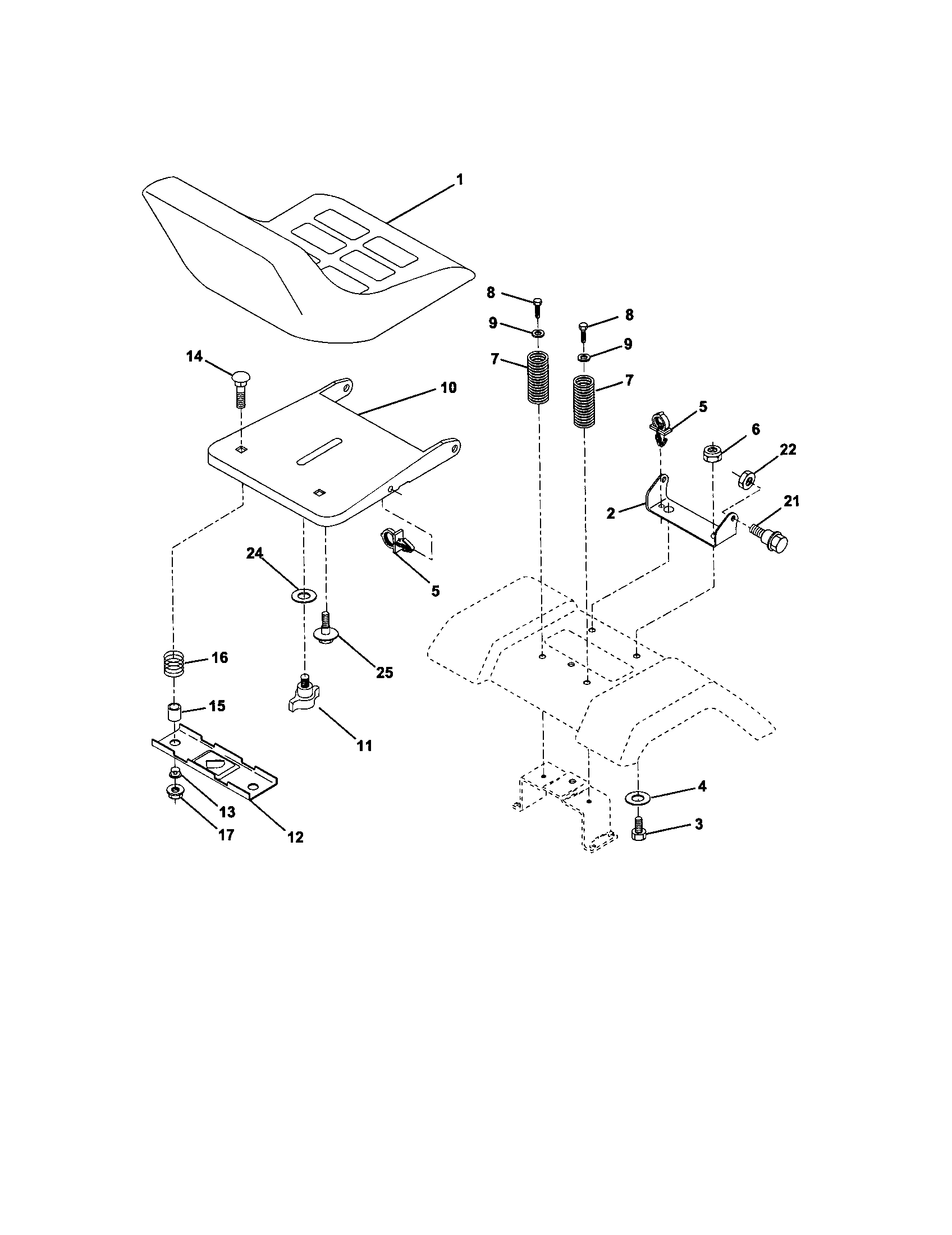

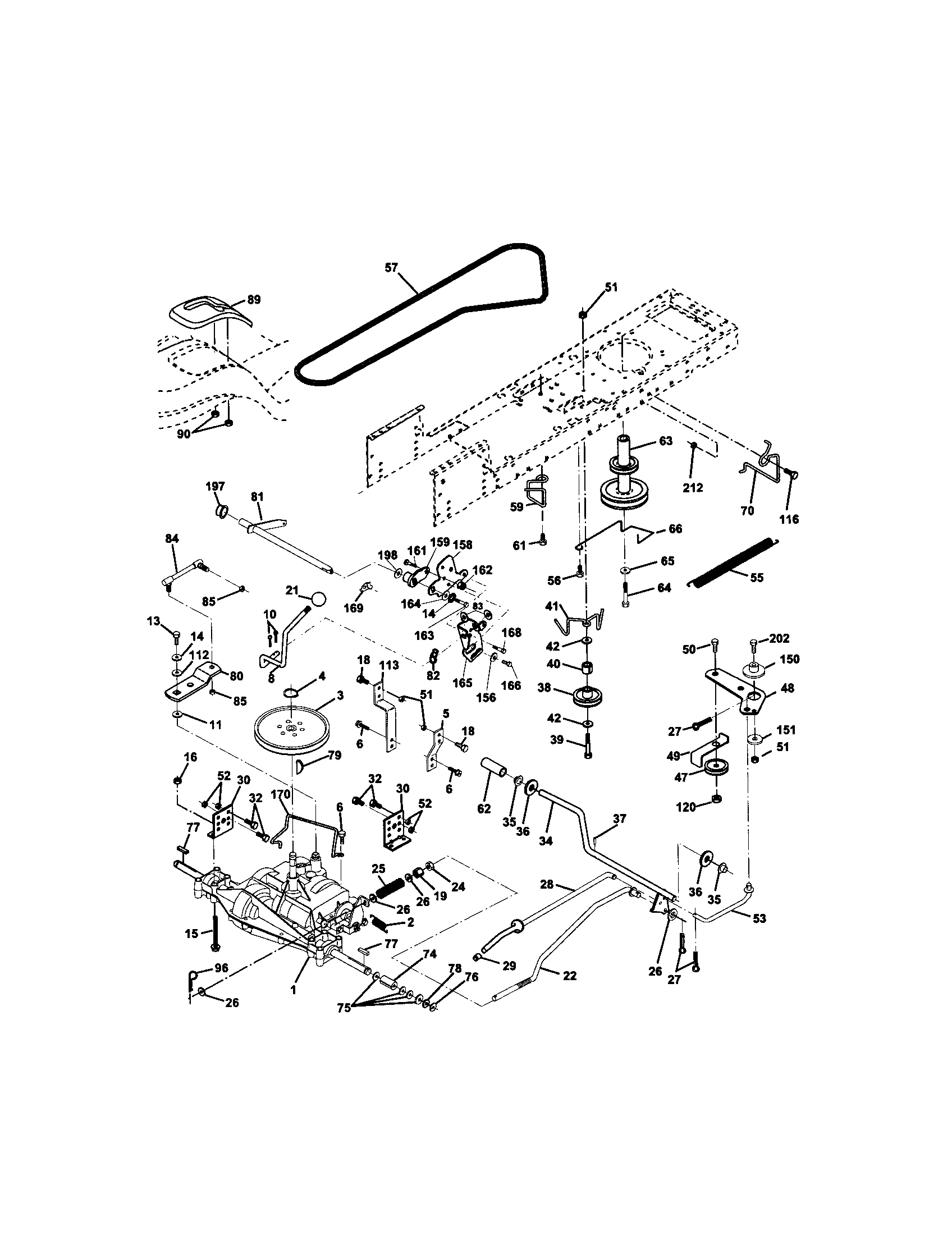

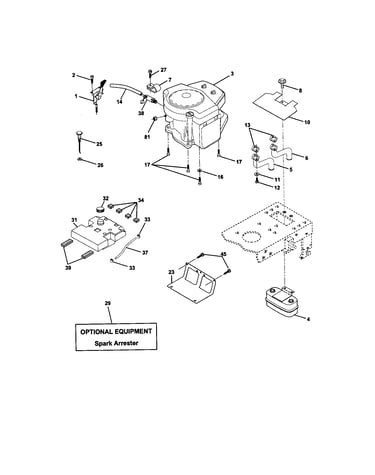

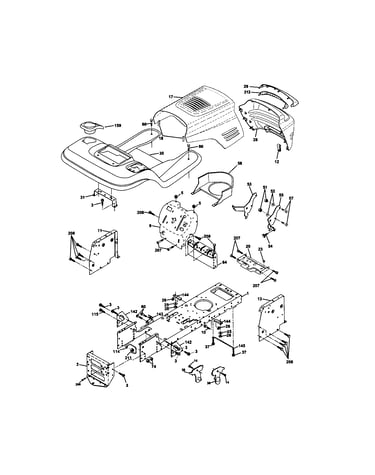

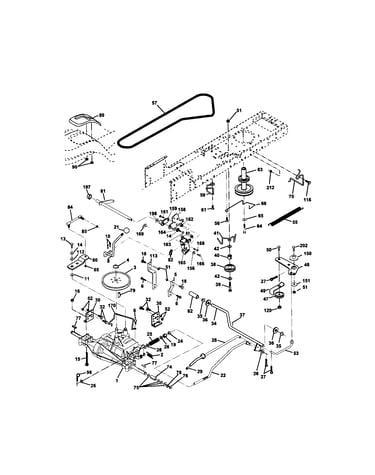

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 512 parts  |

Lawn Tractor Blade Drive Belt, 1/2 x 95-1/4-in (replaces 144959)
#68

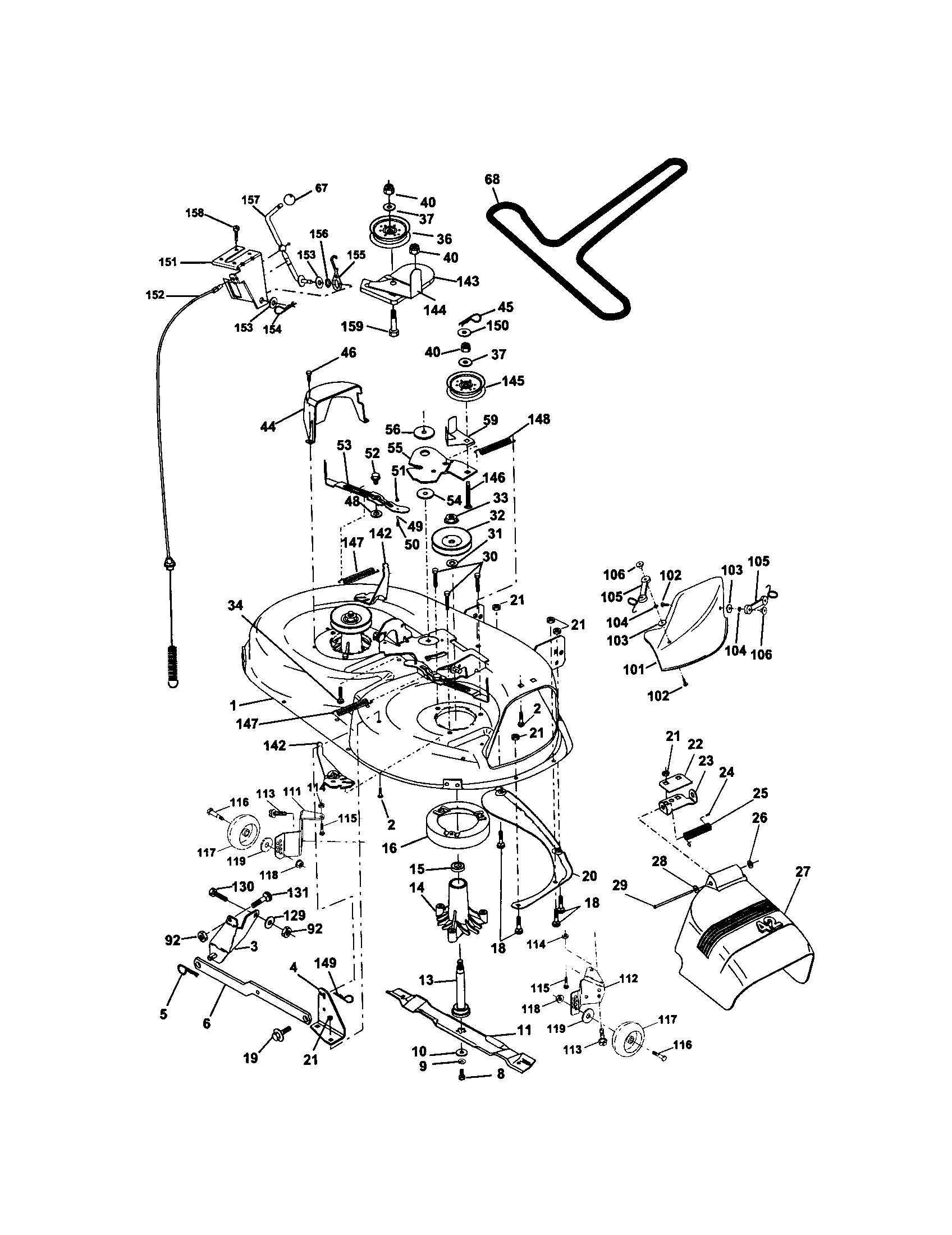

Mower deck diagram

Lawn tractor v-belt

Part #144959

Replaced by #532144959

?
Manufacturer substitution
This part replaces 144959. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$40.44
11% OFF Phone Price : $45.44
In Stock
Lawn Tractor Mandrel Assembly (replaces 130794CS, 130794MS, 130794WA, 130797, 180074, 532130794, 5321307-94, 532183170, 539110158, 577203113)

#NI

All parts diagram

Lawn tractor mandrel assembly (replaces 130794cs, 130794ms, 130794wa, 130797, 180074, 532130794, 5321307-94, 532183170, 539110158, 577203113)

Part #130794

BEST SELLER
$42.59
36% OFF MSRP : $66.36
In Stock
Lawn Tractor Axle Cap (replaces 104757X428)
#11

Wheels and tires diagram

Lawn tractor axle cap

Part #104757X428

Replaced by #532104757

?
Manufacturer substitution
This part replaces 104757X428. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.79
21% OFF Phone Price : $4.79
In Stock
Lawn Tractor Blade Engagement Cable Kit (replaces 175067, 5321750-67)
#152

Mower deck diagram

Lawn tractor blade engagement cable

Part #169676

Replaced by #532175067

?
Manufacturer substitution
This part replaces 169676. Substitute parts can look different from the original.
BEST SELLER
$38.64
11% OFF Phone Price : $43.64
Back Order
Lawn Tractor Axle Flange Bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920H, 5920H1, P-1246, P-1622)
#7

Wheels and tires diagram

Lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)

Part #9040H

BEST SELLER
This item is not returnable
$5.64
62% OFF MSRP : $15.00
Back Order
Lawn Tractor Bagger Attachment Chute Strap (replaces 160793)
#105

Mower deck diagram

Lawn tractor bagger attachment chute strap

Part #160793

Replaced by #597000601

?
Manufacturer substitution
This part replaces 160793. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.08
25% OFF MSRP : $6.80
Back Order
Lawn Tractor Mandrel Pulley (replaces 153535, 153535MS, 153535WA, 153535X431, 177865, 532173436, 5321734-36, 539112171, 577203105)
#32

Mower deck diagram

Lawn tractor mandrel pulley

Part #153535

Replaced by #173436

?
Manufacturer substitution
This part replaces 153535. Substitute parts can look different from the original.
BEST SELLER
$15.49
37% OFF MSRP : $24.76
Back Order
Lawn Tractor Blade Idler Pulley (replaces 173438, 5321734-38)
#36

Mower deck diagram

Lawn tractor flat blade idler pulley

Part #131494

Replaced by #532173438

?
Manufacturer substitution
This part replaces 131494. Substitute parts can look different from the original.
BEST SELLER
$17.72
19% OFF MSRP : $22.00
In Stock
Lawn Tractor Ignition Key (replaces 140403, 5321404-03)
#33

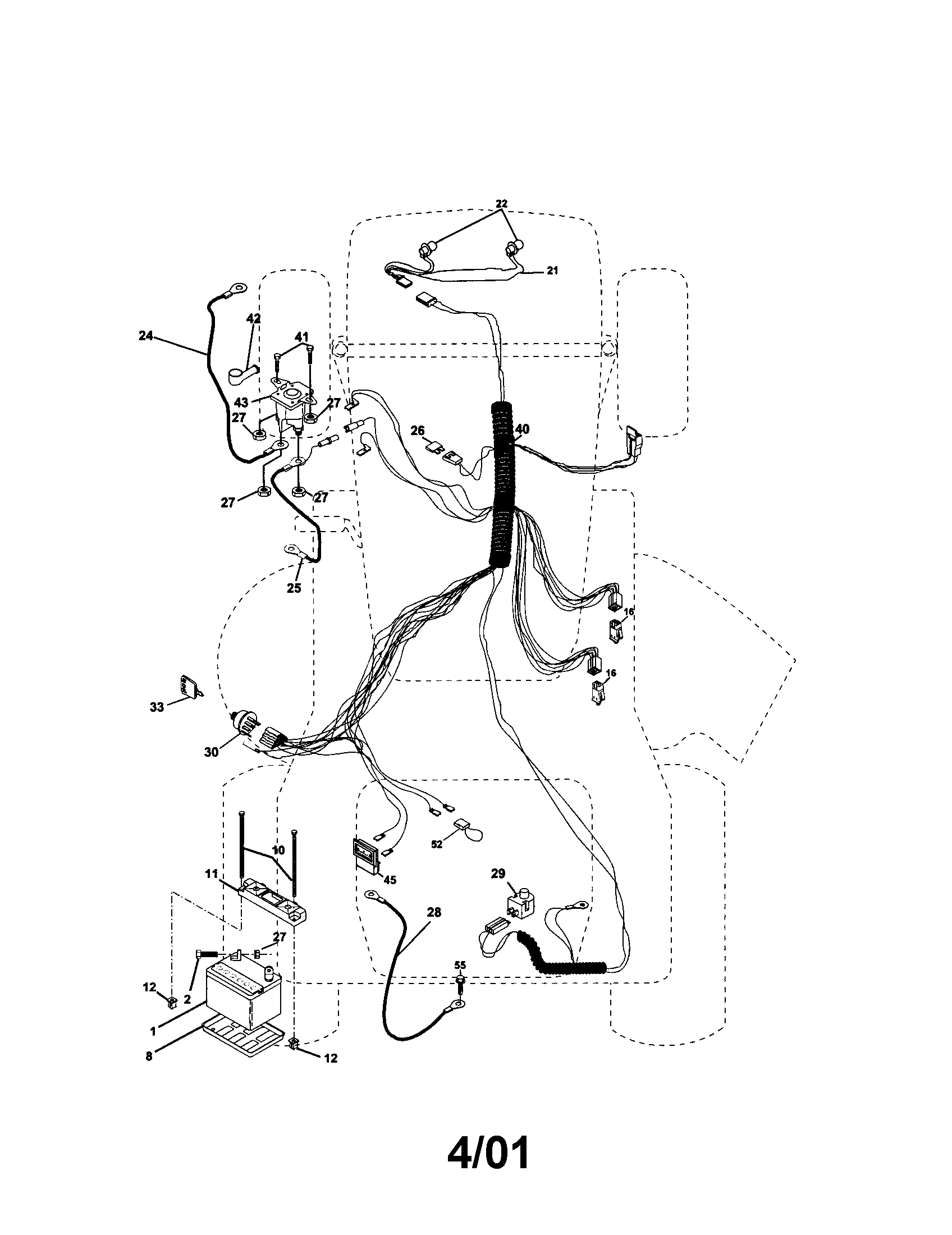

Electrical diagram

Molded ignition key

Part #140403

Replaced by #532140403

?
Manufacturer substitution
This part replaces 140403. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.61
15% OFF Phone Price : $6.61
In Stock
Lawn Tractor Ring Clip (replaces 5022P, 53212000029, 812000029, 8120000-29)
#8

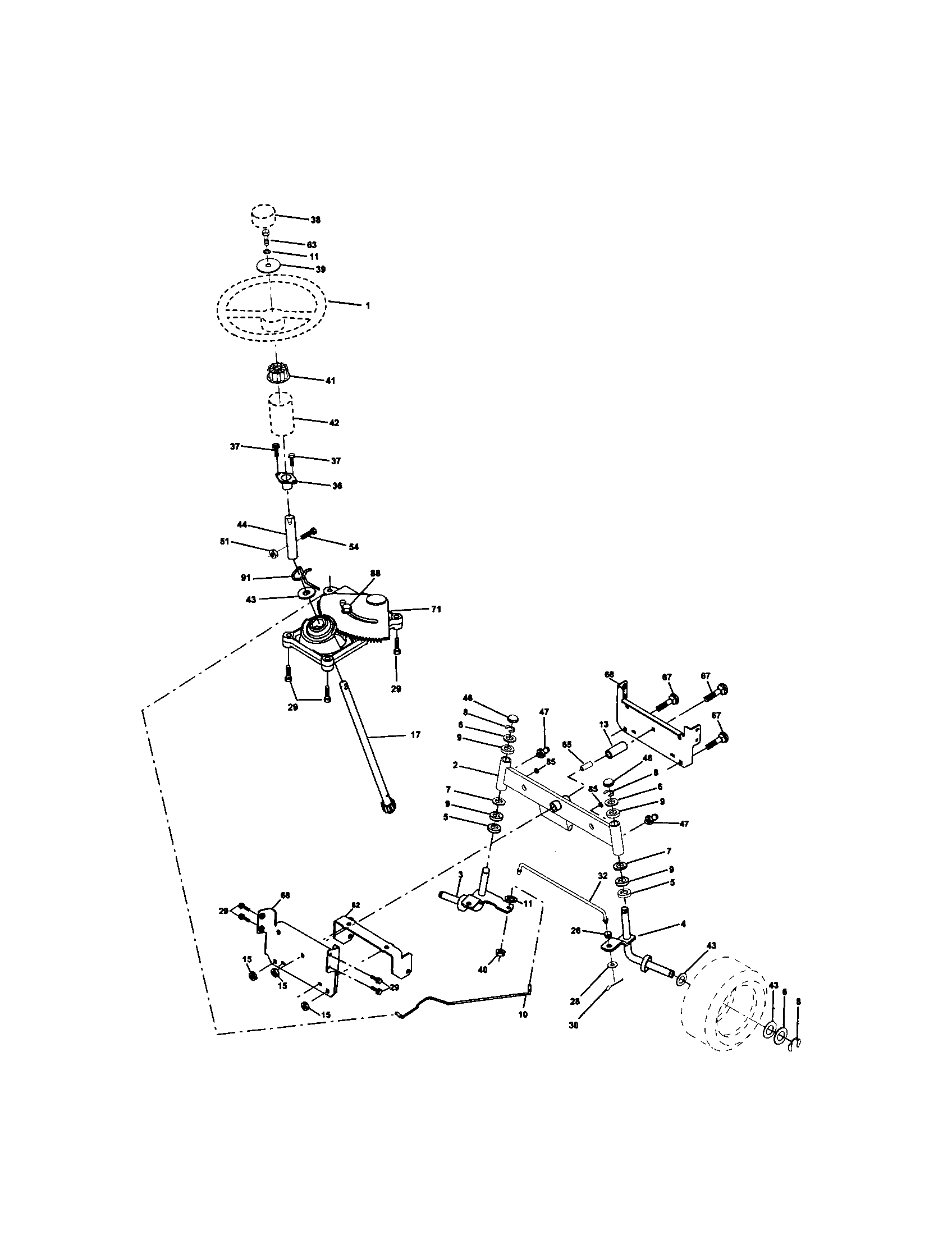

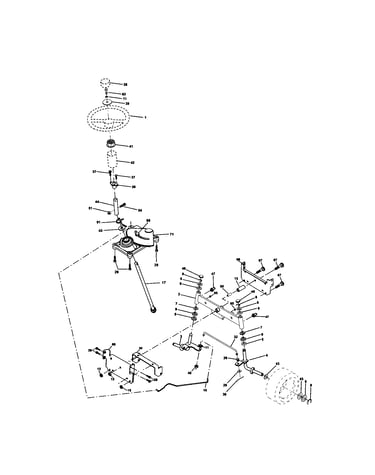

Steering diagram

Lawn tractor ring clip (replaces 5022p, 53212000029, 812000029, 8120000-29)

Part #12000029

BEST SELLER
This item is not returnable
$3.21
24% OFF Phone Price : $4.21
In Stock
