GE
Freestanding Ice Maker

Model #ZDIS15CSSL GE ice cube maker

Here are the diagrams and repair parts for GE ZDIS15CSSL ice cube maker, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 83 parts

Ice Maker Temperature Sensor

#312

Control panel parts Diagram

$115.64

In Stock

Ice Maker Recirculation Pump

#201

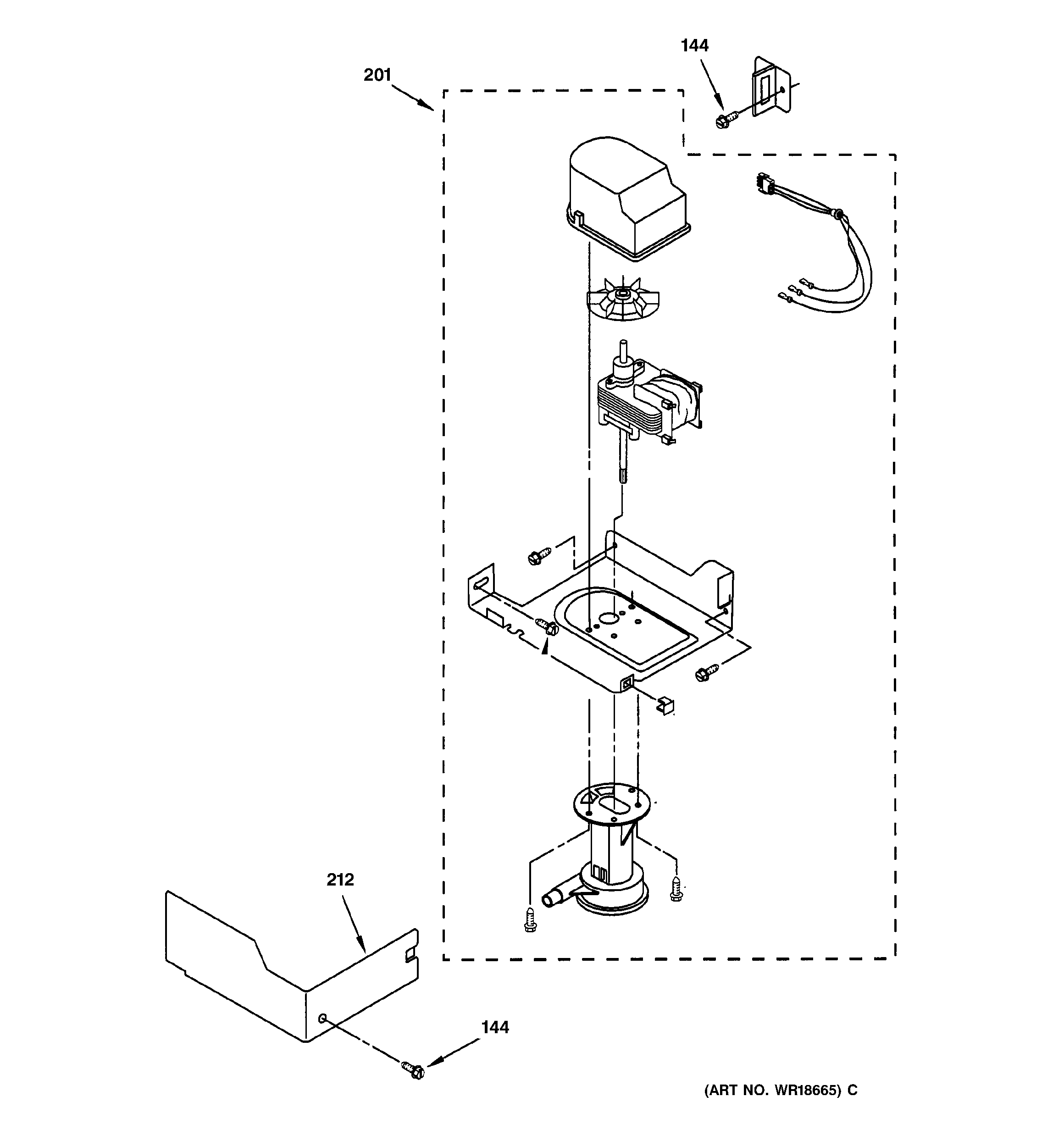

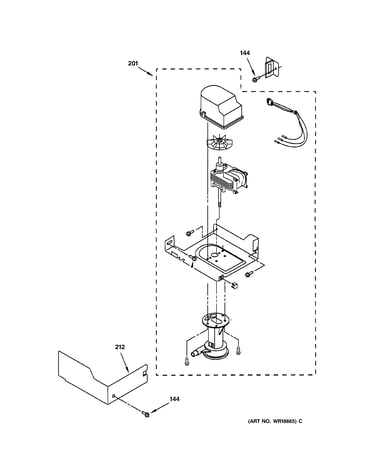

Pump parts Diagram

$360.47

In Stock

Ice Maker Electronic Control Board

#305

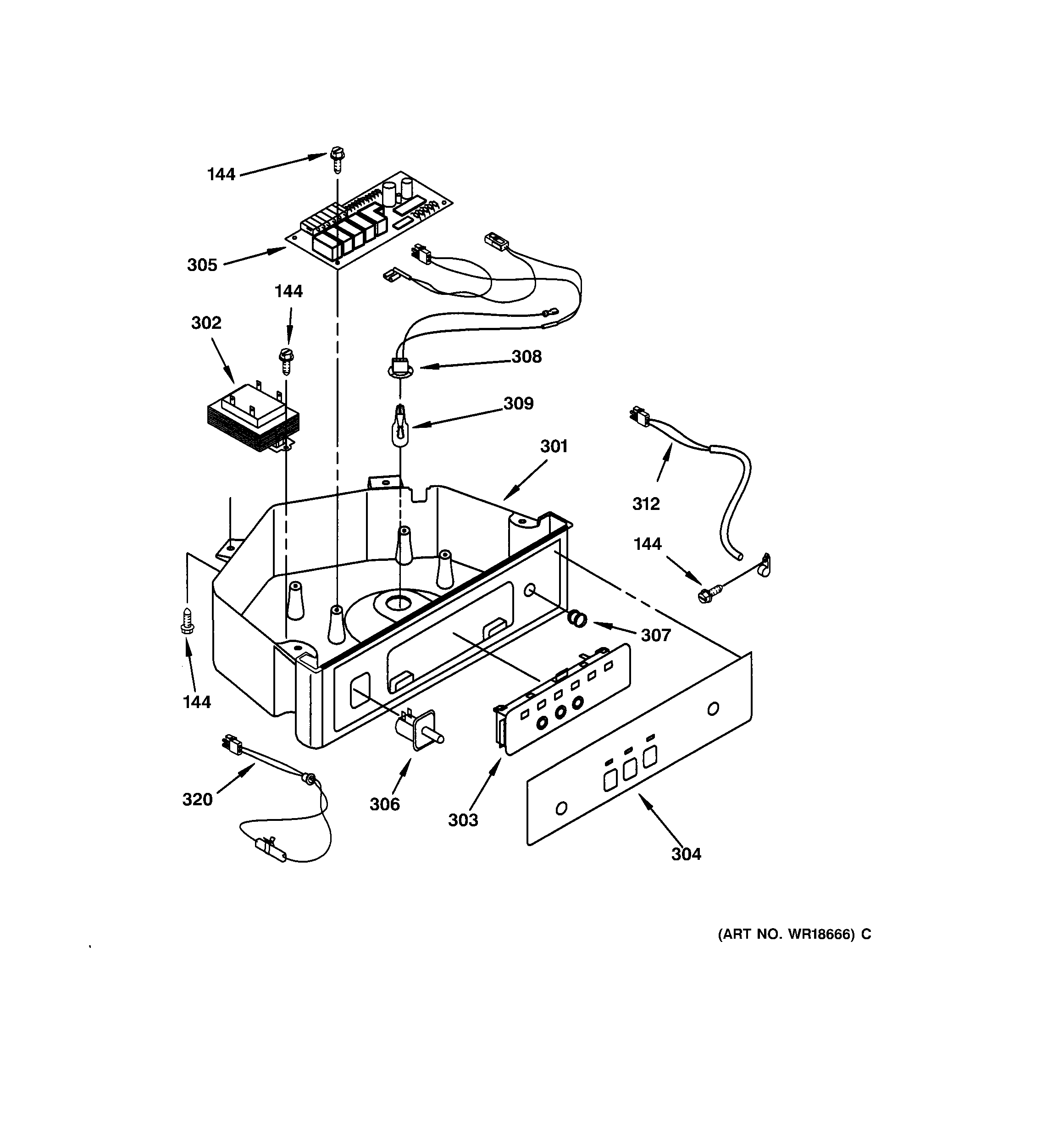

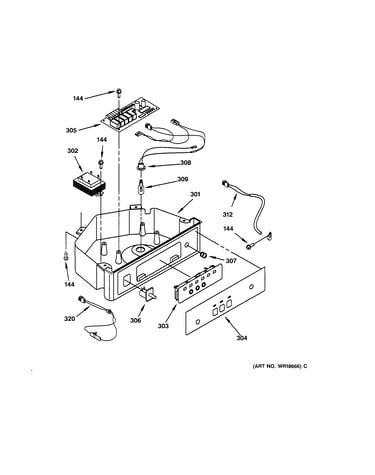

Control panel parts Diagram

$320.63

In Stock

Support

#27

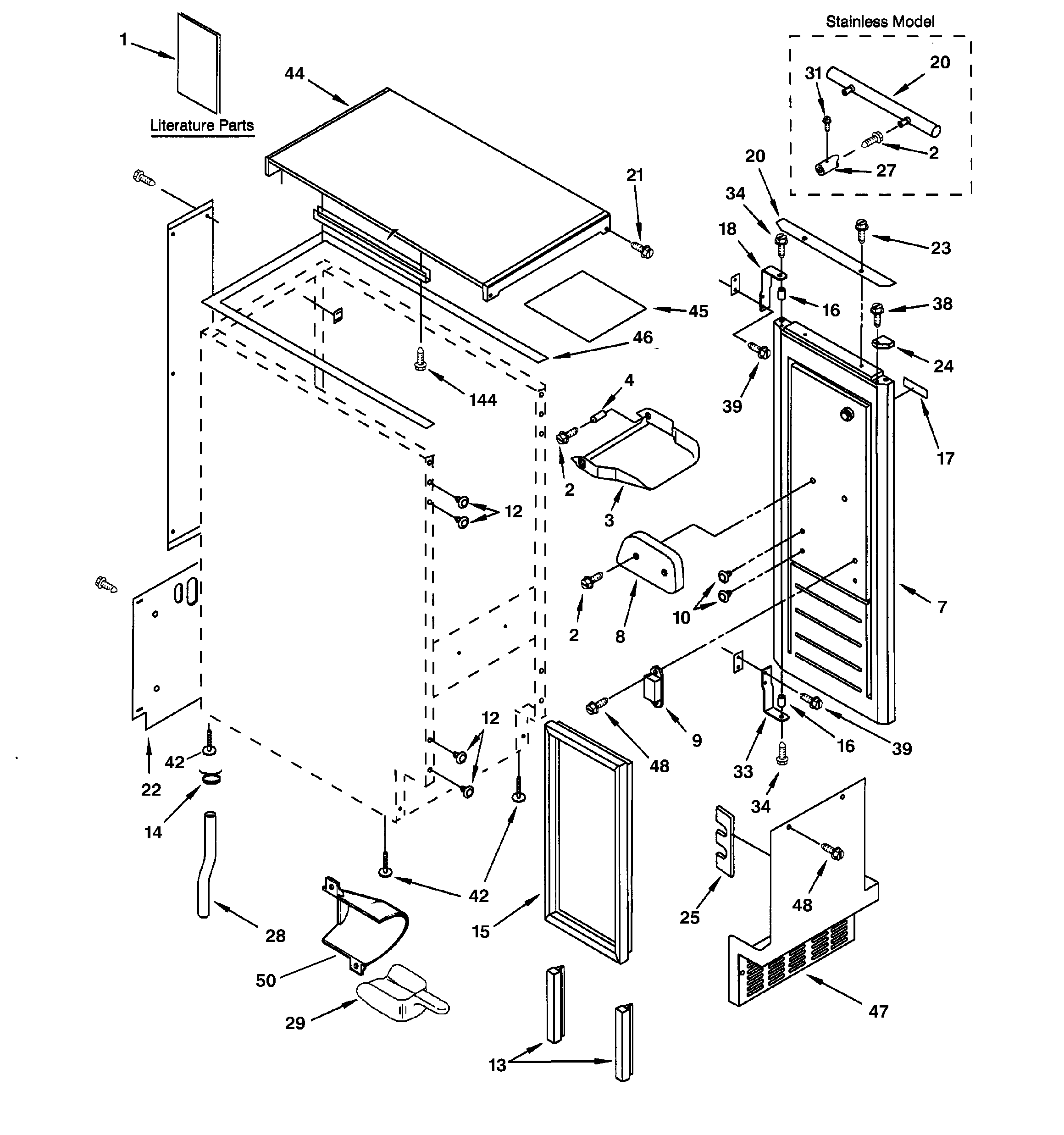

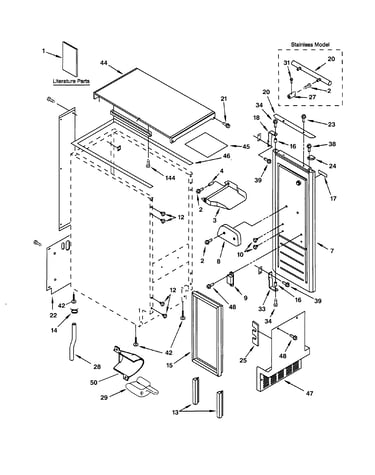

Cabinet liner & door parts Diagram

Support

Part #WR02X10056
$44.88

In Stock

Dispenser Wrap

#104

Evaporator, ice cutter grid & water Diagram

Dispenser wrap

Part #WR02X10381
$161.65

In Stock

Ice Maker Cutter Grid Cover

#141

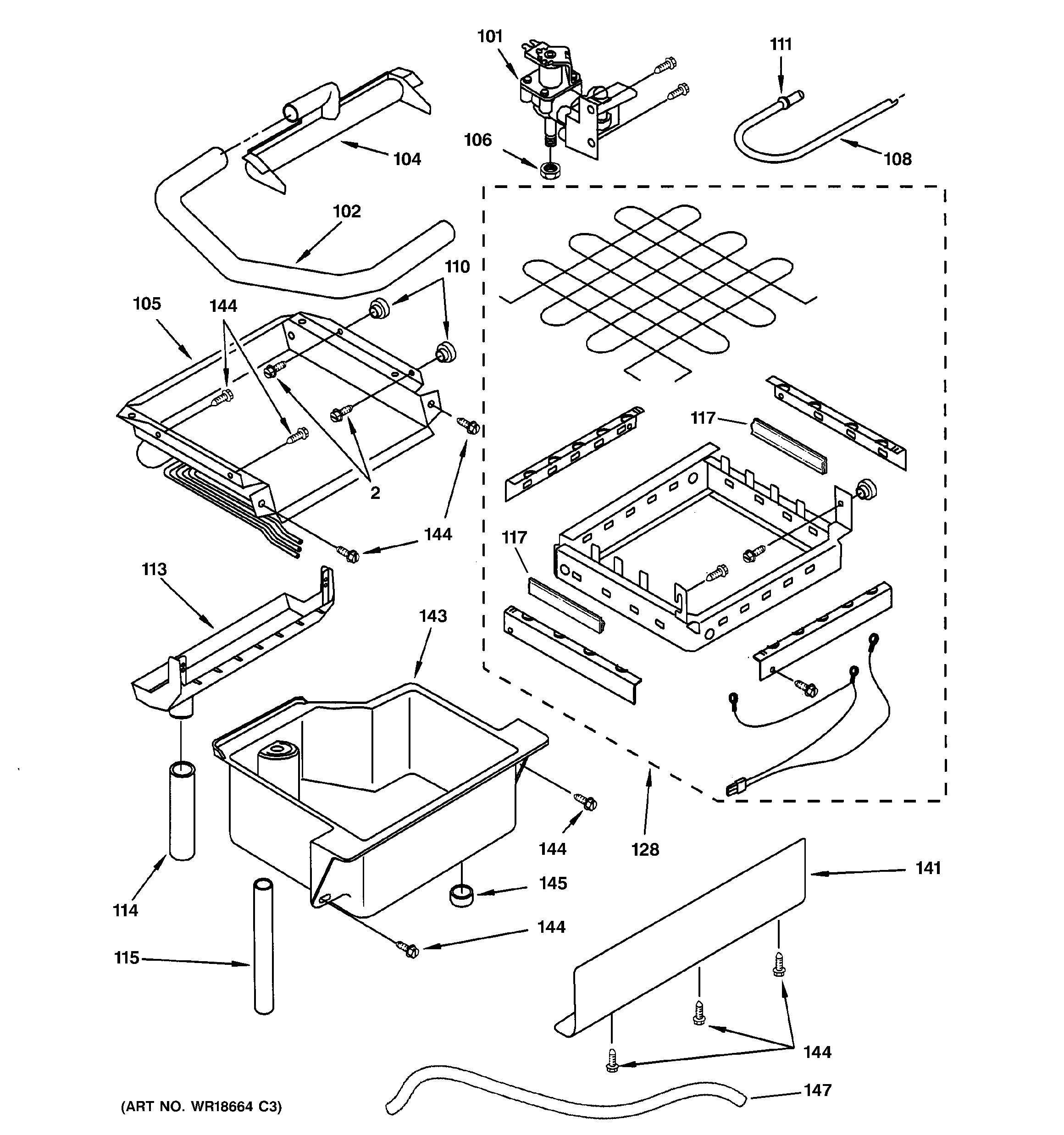

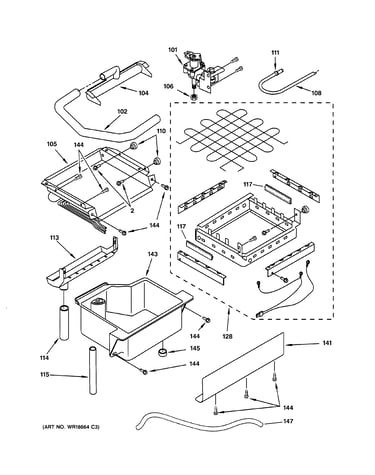

Evaporator, ice cutter grid & water Diagram

$71.59

In Stock

8-32 X .750

#433

Unit parts Diagram

8-32 x .750

Part #WR01X10636
$9.24

In Stock

Ice Maker Compressor Kit

#407

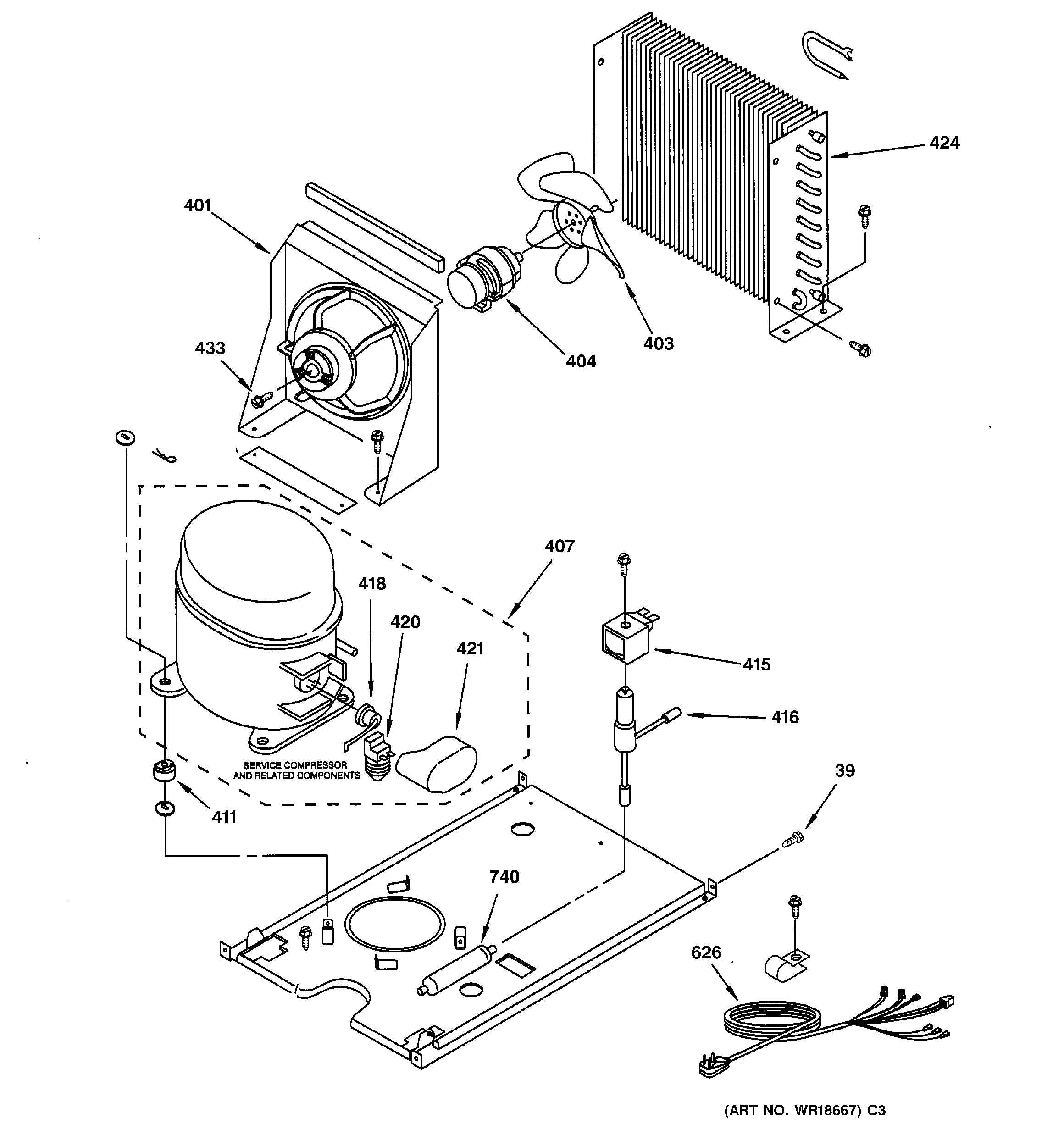

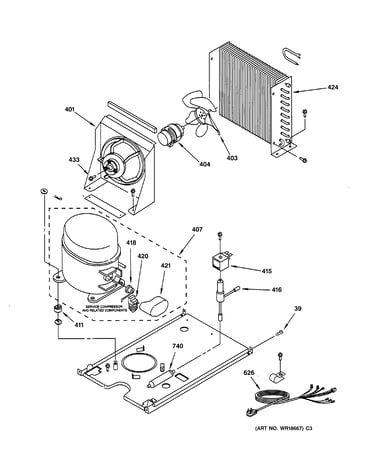

Unit parts Diagram

Ice maker compressor kit

Part #WR87X10061
$380.27

In Stock

Ice Maker Condenser Fan Motor

#404

Unit parts Diagram

$206.36

In Stock

Hinge

#18

Cabinet liner & door parts Diagram

Hinge

Part #WR13X10062
$28.99

In Stock

Symptoms common to all freestanding ice makers

Choose a symptom to see related ice maker repairs.

Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply problems, bad water valve
Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin
Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cutting grid
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad evaporator thermistor
Main causes: bad bin thermistor, condenser fan failure, faulty control board
Main causes: wiring failure, broken cutting grid, faulty electronic control board
Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, broken cutting grid
Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin

Repair guides common to all freestanding ice makers

These step-by-step repair guides will help you safely fix what’s broken on your ice maker.

How to replace a freestanding ice maker cutter grid

When the cutting grid is broken, ice cubes don’t drop into the ice bin. Use the steps in this repair guide to replace a broken cutter grid.

Repair difficulty
Time required
 15 minutes or less
How to replace a freestanding ice maker electronic control board

When the electronic control board won’t activate the ice maker components, follow these steps to install a new one.

Repair difficulty
Time required
 45 minutes or less
How to replace a freestanding ice maker recirculation pump

If your ice maker isn’t making ice, the pump could be the problem. Here’s how to replace it.

Repair difficulty
Time required
 45 minutes or less
