Kenmore 66495113612 electric slide-in range Parts

On the Kenmore electric slide-in range model 66495113612, the model and serial number label is on the oven frame behind the top side of the oven door. Open the oven door and look along the frame near the top edge; the label is typically a sticker or metal tag. See the 66495113612 use and care guide for the exact label location description.

• Turn the oven light on so you can see the frame clearly.
• Open the oven door fully and look at the oven frame (not the door itself).
• Check the top left and top right areas of the frame first.
• Wipe the frame with a damp cloth if grease or residue is hiding the label.
• Write down the full model number and serial number exactly as shown.

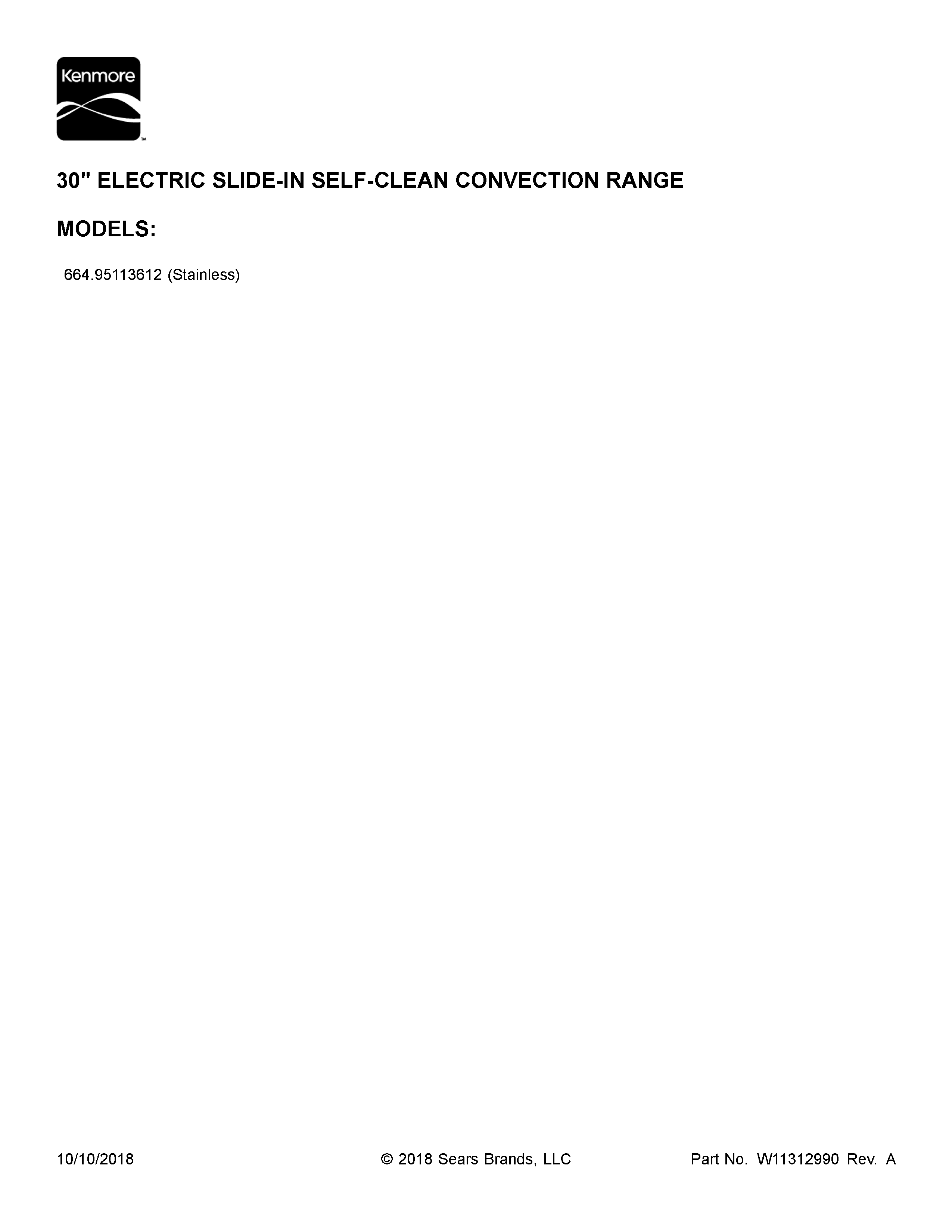

This Kenmore range is part of the 664.9511* family shown in the manual; your full model number will match 66495113612 on the rating label.

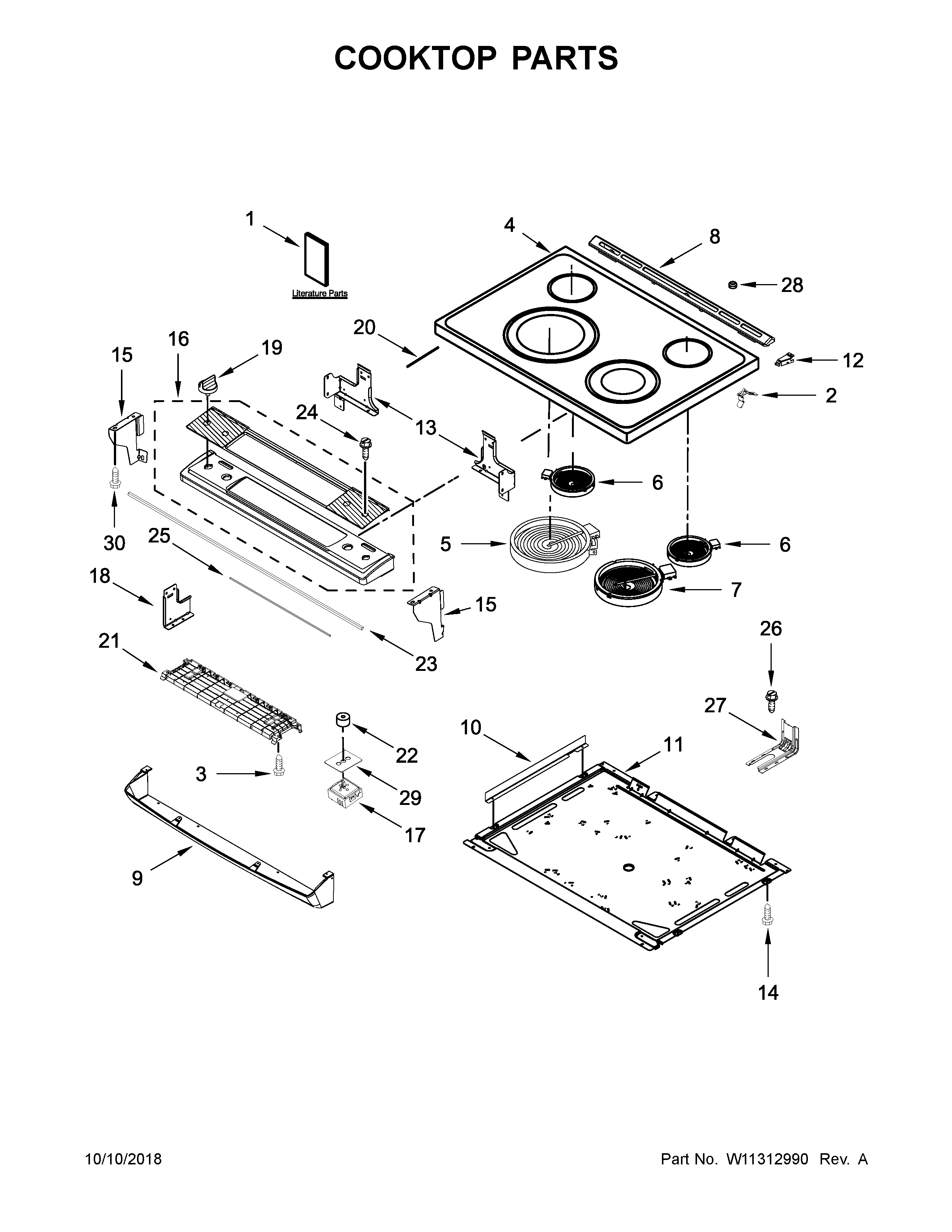

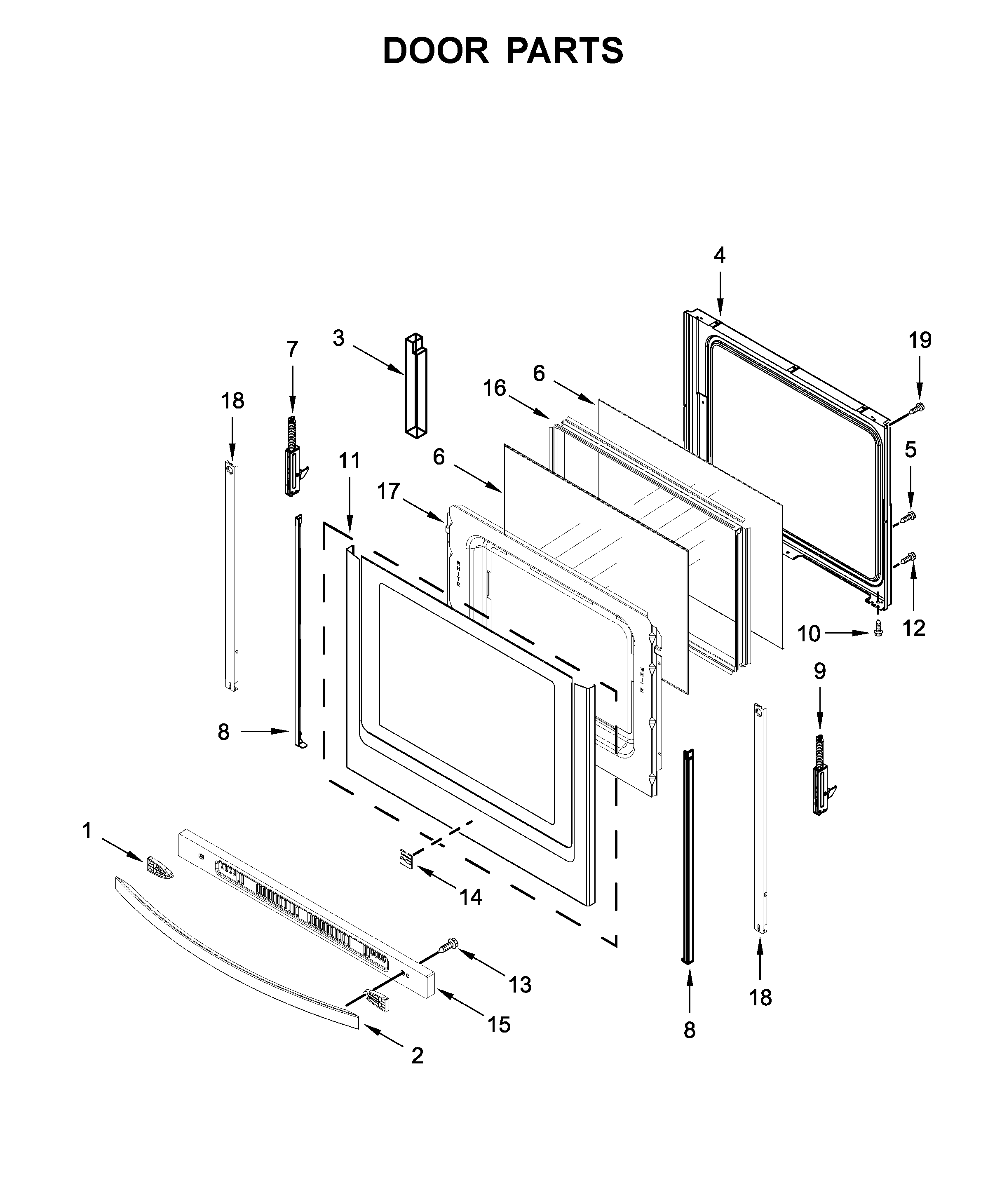

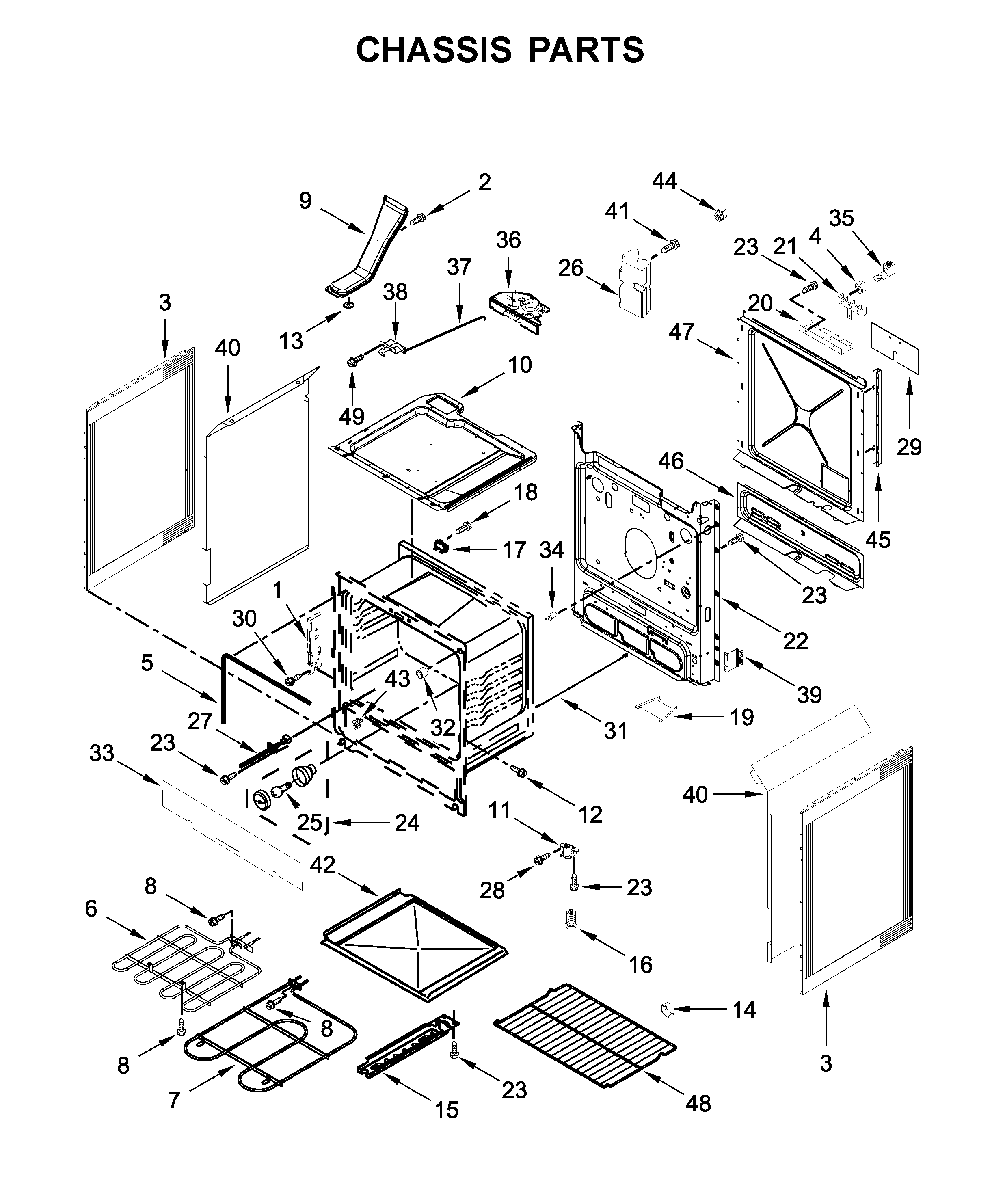

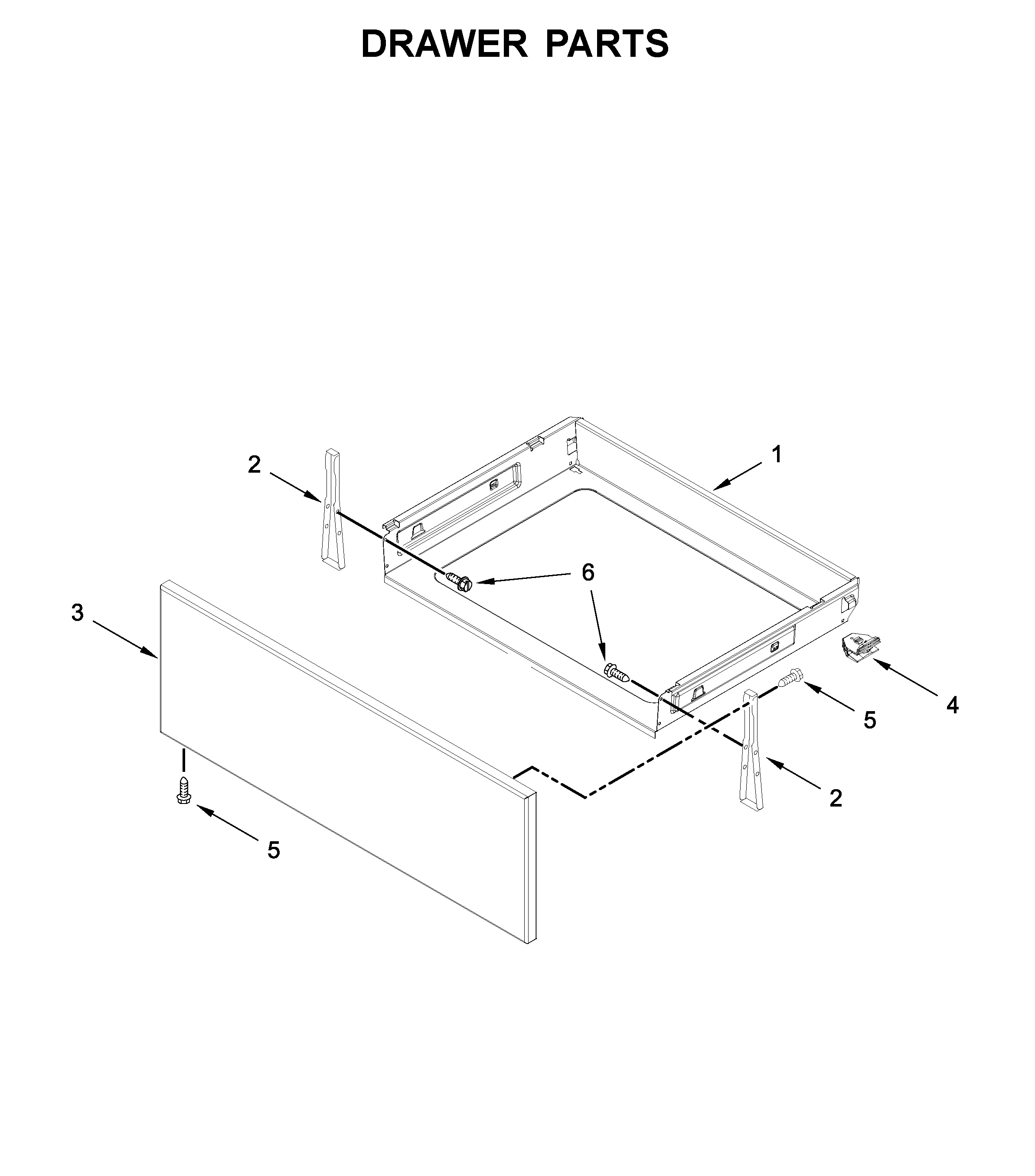

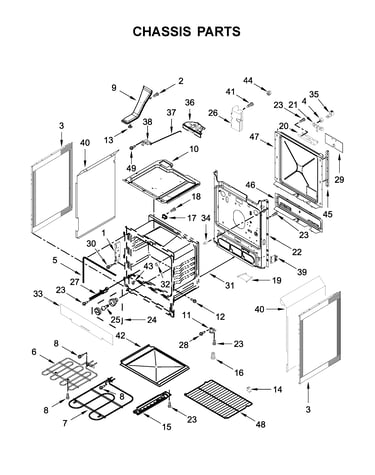

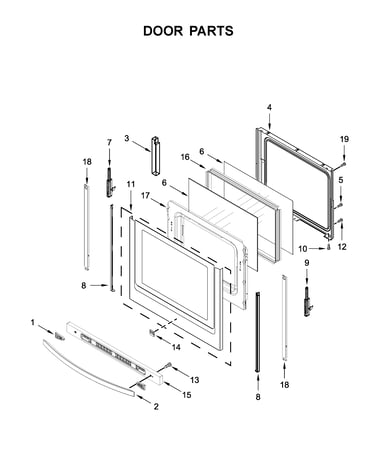

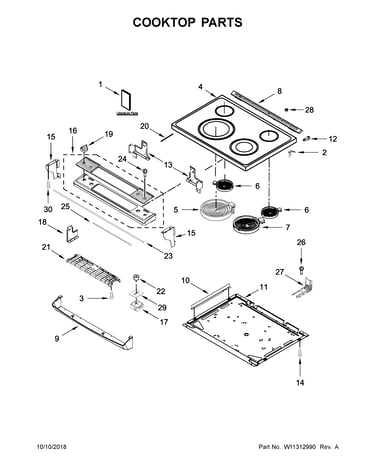

We use the model number to match the correct diagrams and parts for your cooktop and oven systems (surface elements, control switches, door parts, wiring). Even small model differences can change which parts fit.

Last updated: January 2026

PF on a Kenmore range (including model 66495113612) means power failure. The control detected an interruption in electrical power; after power is restored, you may need to clear the message and reset the clock using the steps in the 66495113612 use and care guide.

• Press Cancel/Off (or the clear key on your control) to stop any active cycle.
• Reset the clock and re-enter any cooking settings.
• If the oven was heating when power dropped, check food safety and restart cooking as needed.
• If PF returns repeatedly, avoid using the range until you confirm the power supply is stable.

If PF keeps coming back and you find signs of overheating or loose connections at the range’s power connection point, the terminal block area is a common place to inspect. For this model, the related part is the range terminal block WPW10245259.

• Turn off power at the breaker before inspecting any wiring.
• Look for burn marks, melted insulation, or loose screws.
• Repair damaged wiring with proper high-temperature connectors.

A PF message is usually harmless after a one-time outage, but repeated PF events can point to a loose or overheating electrical connection. Catching that early helps prevent nuisance shutdowns and protects the range’s electronic control.

Last updated: January 2026

Most Kenmore electric ranges, including model 66495113612, last 13 to 15 years with normal household use and basic maintenance. Keeping the cooktop and oven clean, using the right cookware, and fixing small issues early helps you reach the full expected lifespan.

• Heat stress and spills: boilovers and baked-on residue can shorten element and control life.
• Electrical health: loose or overheated power connections can damage wiring and controls.
• Door sealing: a worn gasket lets heat escape, making the oven work harder.
• How often you self-clean: high-heat self-clean cycles add stress to components.
• Small wear items: bulbs, knobs, and racks wear out long before the range does.

• Clean spills promptly and avoid abrasive pads on the glass.
• Use flat-bottom cookware sized to the element.
• Keep the oven door closing tightly; replace the gasket if it’s torn or flattened.
• Replace failed surface elements or switches early to prevent overheating damage.
• Follow the cleaning and operating guidance in the 66495113612 use and care guide.

These are common wear or failure items we see on electric slide-in ranges like 66495113612:

• Range dual radiant surface element W11517959 (burner not heating or uneven heat)
• Range infinite switch W10917724 (burner won’t regulate temperature)
• Oven bulb 8009 (oven light out)

A range that is struggling to heat evenly or maintain temperature uses more energy and puts extra strain on electrical parts. Replacing a worn element, switch, or door seal often restores normal performance and helps the range last closer to its full 13 to 15 year service life.

Last updated: January 2026

To reset a Kenmore electric slide-in range model 66495113612, turn the range off, then cycle power at the home breaker for about 1 minute and restore power. This clears many control glitches and flashing displays; then reset the clock if needed (see the 66495113612 use and care guide).

• Soft stop: Press CANCEL to stop an active oven function (the Timer is separate).
• Power reset: Turn the range breaker OFF for about 60 seconds, then turn it ON.
• Clear an error display: Press CANCEL to clear a code; if it returns, focus on the related circuit or component.
• After a power outage: If the time is flashing, clear it and reset the clock.

• Verify the range has power (a tripped breaker can make it look “dead”).
• If nothing operates, check for a blown household fuse or tripped breaker.
• If the display shows F9 or F9 E0, the outlet may be miswired and needs an electrician.
• If a surface element will not heat, the issue is often the element or its control.

A reset is a safe first step because many range issues are temporary control lockups after a power interruption. If the problem comes back right away, it usually points to a power-supply issue, a wiring problem, or a failed heating control component.

Last updated: January 2026
