Craftsman 13953914 garage door opener Parts

You can buy replacement parts for your Craftsman garage door opener model 13953914 through our parts lookup for that model, and you can also search by model number on Sears PartsDirect to find additional Craftsman garage door opener parts and accessories that fit.

Best way to find the right part for model 13953914

We recommend using the model-based parts list first so you match the correct drive system and controls (belt rail parts, trolley parts, safety sensors, and wall control components).

• Confirm the model number on the opener motor unit label: 13953914

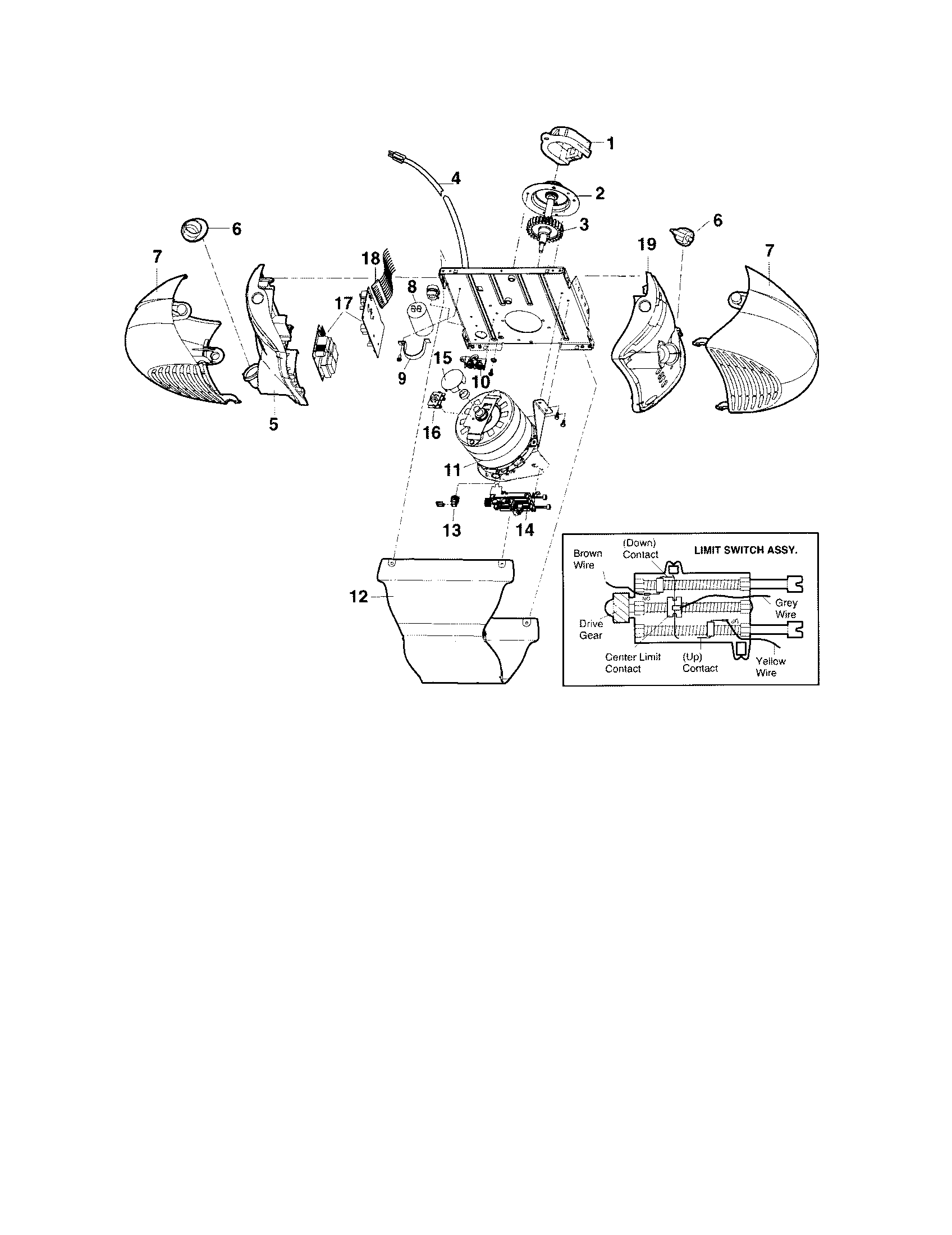

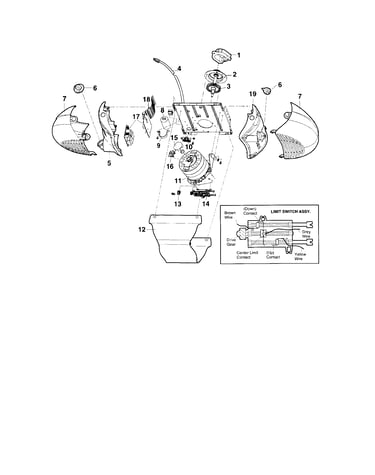

• Use the exploded diagrams to identify the exact part name you need
• Compare your existing part visually (mounting holes, wire connector style, lens shape)
• Check whether your opener uses a belt rail and trolley setup (common on this model family)
• Use the part description to avoid ordering a similar looking but incompatible item

Common parts and accessories people replace

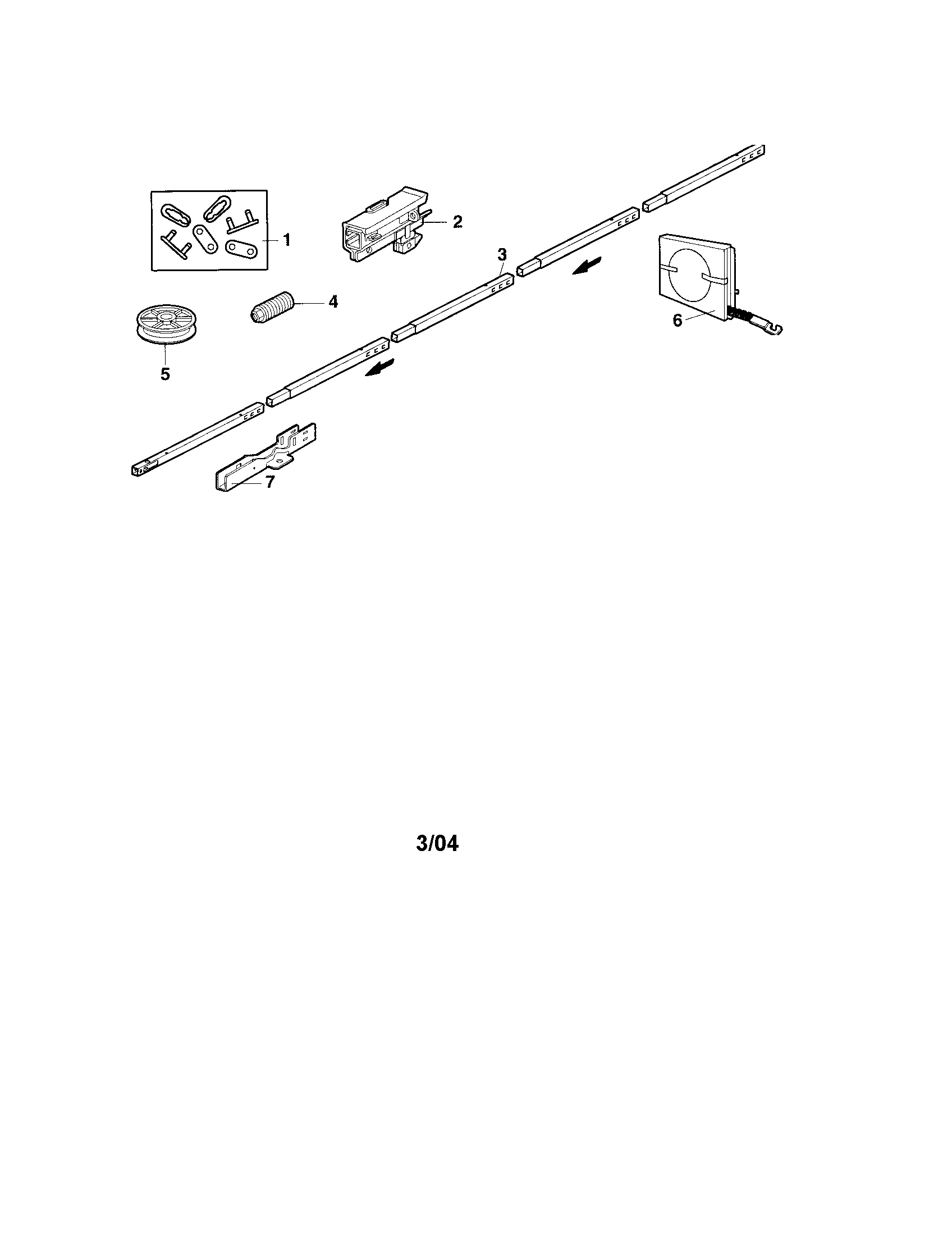

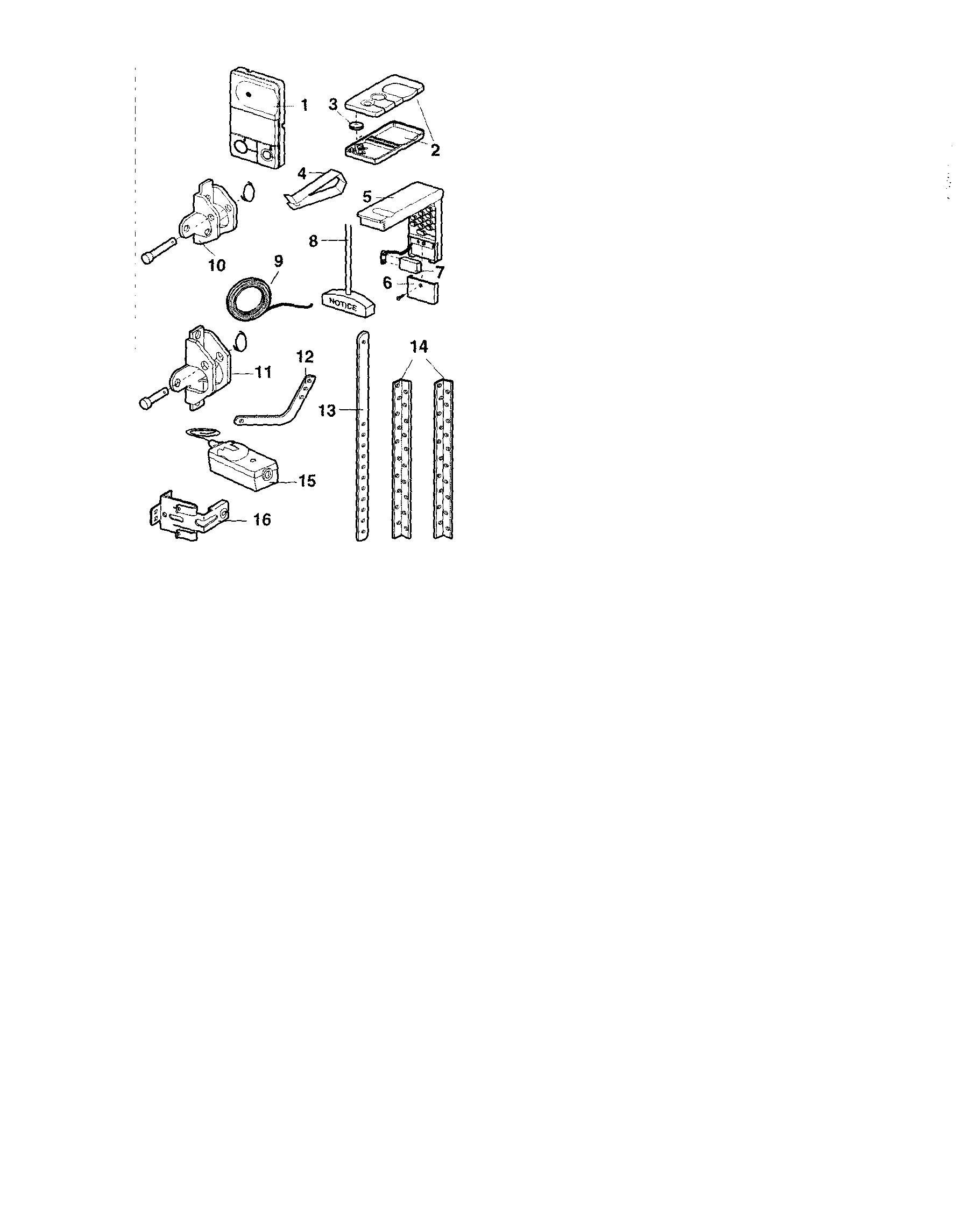

Your 13953914 manual shows typical included components such as safety reversing sensors, wall control console, remote controls, light lenses, trolley, idler pulley, and rail sections. Use the parts diagrams and the 13953914 owner's manual to match what you have.

Symptom	Parts to check first	What to look for
Door will not close	Safety reversing sensors	Misalignment, blocked beam, damaged wires
Opener runs but door does not move	Trolley, belt/rail components	Loose/broken drive parts, trolley not engaged
Remote or keypad issues	Remote, keyless entry, wall control	Battery, programming, lock feature enabled
Lights not working	Light lenses, bulbs	Loose lens, wrong bulb type, burned out bulb

Why it matters

Garage door opener parts are not one-size-fits-all. Matching parts to Craftsman 13953914 helps ensure the door reverses correctly and the safety sensor system works as designed (including proper sensor alignment and door reversal testing).

Helpful DIY references

If you are troubleshooting before ordering parts, use these guides to narrow down the failure:

• Craftsman error codes
• How to maintain a garage door opener
• Garage door opener remotes wont work video

Last updated: February 2026

A Craftsman garage door opener typically lasts 10 to 15 years. For the Craftsman 13953914, lifespan depends most on door balance, lubrication, and correct safety-reverse setup; a well-maintained opener and properly balanced door usually run longer with fewer breakdowns.

Typical lifespan and what changes it

Most openers wear out from repeated load on the motor, drive system, and internal gears. These factors have the biggest impact:

• Cycles per day (more opens and closes equals faster wear)
• Door balance (a heavy or binding door overloads the opener)
• Lubrication of door rollers, hinges, and springs (reduces strain)
• Safety sensor alignment (prevents repeated reversals and “fighting” the door)
• Force and travel settings (too much force increases wear and safety risk)

Quick “replace vs. repair” guide

Use this as a practical rule of thumb when deciding what to do next.

What you notice	What it usually means	Best next step
Opener runs but door barely moves	Door is binding or drive components are worn	Check door balance and hardware first; then inspect drive system
Door reverses unexpectedly	Safety sensors, travel limits, or force settings	Verify sensor alignment and adjust travel/force per the manual
Loud grinding or popping	Worn gears or drive parts	Plan a drive-system inspection and repair
Intermittent remote operation	Remote programming, wall control, or interference	Reprogram and troubleshoot controls

Maintenance that extends life (do this 2 times a year)

These steps reduce load on the motor and help the opener last closer to the 15-year range:

• Test the safety reverse using a 1-1/2 inch object (or a 2x4 laid flat) on the floor
• Confirm the door is properly balanced (a poorly balanced door is the #1 opener killer)
• Lubricate the door hardware (not the safety sensors)
• Tighten visible fasteners on the opener mounting and door hardware (as needed)
• Keep safety sensors clean and aligned so the door closes smoothly

For model-specific procedures and safety checks, follow the owner's manual.

Why it matters

A garage door opener is designed to move a door that is already moving freely. When the door is out of balance or the force settings are incorrect, the opener works harder every cycle; that shortens motor and gear life and can create inconsistent opening and closing.

If you need replacement parts, we list them for Craftsman 13953914, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026

Common problems on the Craftsman 13953914 garage door opener usually fall into three areas: safety sensor issues that stop the door from closing (often with blinking lights), remote or wall-control problems (lock mode, programming, batteries), and drive-system wear that causes noise, slipping, or no movement. Use the 13953914 owner's manual for model-specific tests and adjustments.

Most common symptoms and what they point to

• Door will not close; opener lights blink: safety reversing sensors are blocked, misaligned, or not connected.
• Closes from wall control but not from a remote: sensor beam is interrupted or a sensor indicator light is off.
• Remote will not run the opener: lock mode is on, remote needs programming, or the battery is weak.
• Door reverses or stops early: travel or force settings need adjustment, or the door is binding.
• Grinding/clicking; motor runs but door does not move: drive gear or drive mechanism wear.

Quick checks we recommend first

• Confirm both photo-eye sensors are aimed at each other, mounted low, and lenses are clean.
• Remove any object breaking the sensor beam.
• Try the wall control; if it works but remotes do not, focus on sensors and remote programming.
• Watch the diagnostic LED flashes on the motor unit and match them to the chart.

Symptom-to-next-step guide

What you notice	Most likely area	Best next step
Won’t close; lights blink	Safety sensors	Align, clear beam, verify indicator lights and wiring
Remote unresponsive	Remote/wall control	Check lock mode, reprogram, replace battery
Loud noise; no movement	Drive system	Inspect drive components; repair if gears are stripped

Why it matters

On this model, the safety reversing sensors are designed to prevent closing when the beam is broken or a sensor light is off; that protection is a common reason the door will not close.

Parts and troubleshooting help

We list replacement parts for Craftsman 13953914 by diagram and symptom; for broader model searches, use Sears PartsDirect. For code-based troubleshooting, use Craftsman error codes.

Last updated: February 2026

Repairing your Craftsman garage door opener model 13953914 is cheaper when the problem is a single, fixable issue (sensor alignment, remote programming, wall control, wiring). Replacing is the better value when the opener is 10 to 12 years old or repair costs approach the price of a new unit; use the 13953914 owner's manual for safety checks and adjustments.

Quick decision guide

Use these common rules to decide fast:

• Repair when the opener runs but won’t close, reverses, or blinks lights (often sensors or settings).
• Repair when the fix is adjustment-related (travel limits, force limits, sensor alignment).
• Replace when the motor/drive system repeatedly fails or the opener strains even after adjustments.
• Replace when you want modern features (Wi-Fi control, quieter operation, battery backup).
• Replace when the opener has frequent breakdowns and downtime.

Situation	Usually best choice	Typical reason
Door won’t close and lights blink	Repair	Safety reversing sensors blocked or misaligned
Door reverses at the floor or stops short	Repair	Travel/force settings or door balance issues
10 to 12+ years old with repeated problems	Replace	Better long-term reliability and updated features

Checks to do before spending money

These steps often point to a low-cost repair:

• Test safety reversal: the door should reverse on a 1-1/2 inch object (like a 2x4 laid flat).
• Check sensor mounting and alignment: brackets or wood blocks may be needed depending on the garage.
• Check the floor-to-door gap: bottom gap should be 1/4 inch or less for proper sensor performance.
• Confirm the door is balanced and lubricated: an unbalanced door can cause false reversals and strain.
• Match blink patterns to a cause using Craftsman error codes.

Why it matters

A garage door opener is a safety system. When sensors, force settings, or door balance are off, the door may not reverse correctly, which increases wear and creates unsafe operation.

Parts and ordering

Identify the failed component first (sensor set, wall control, logic board, drive gear assembly), then order by model number through the parts list or search on Sears PartsDirect.

Last updated: February 2026
