Maytag DF20HX/X5Z53 freezer Parts
Here are the diagrams and repair parts for Maytag DF20HX/X5Z53 freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for DF20HX/X5Z53 Freezer

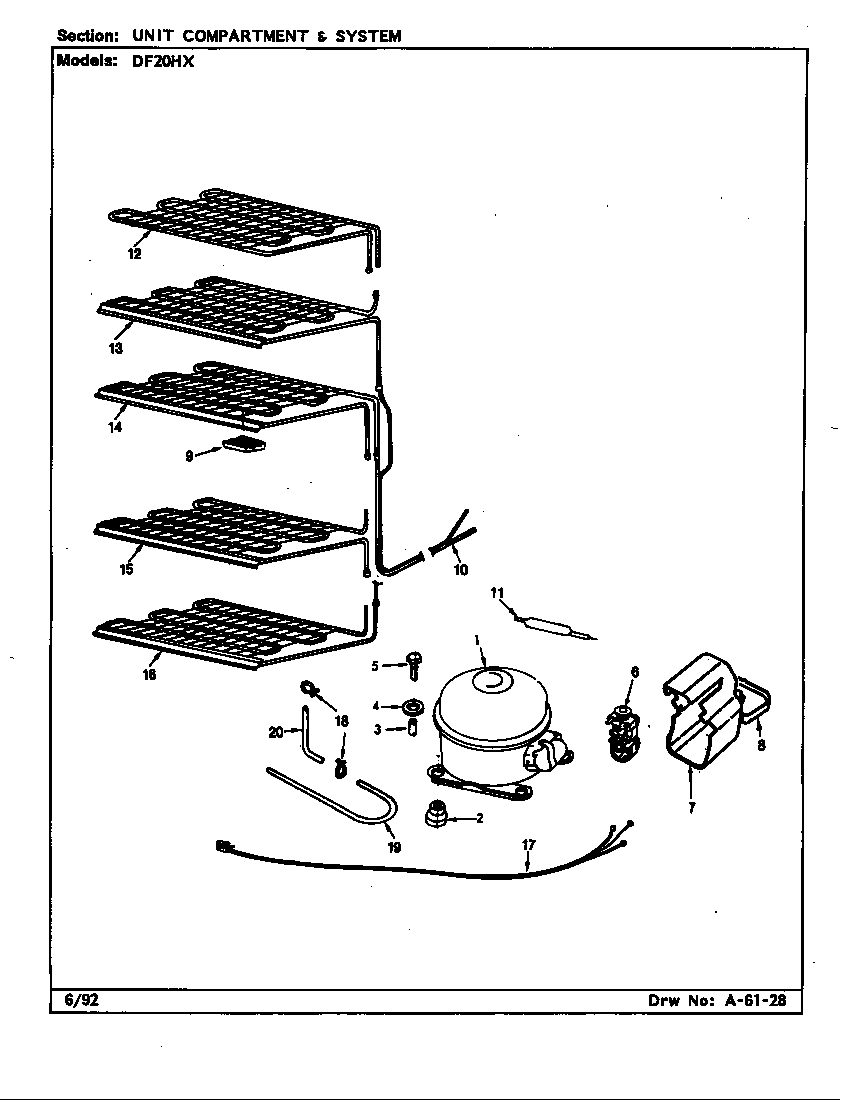

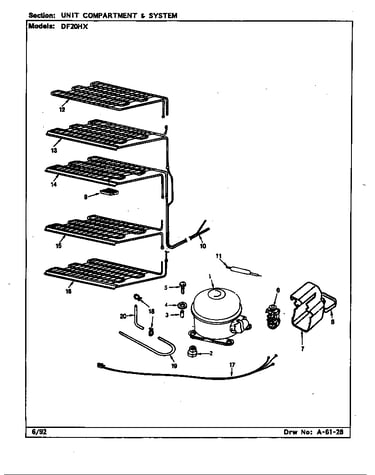

Unit compartment & system diagram
Drier
Part #13900Replaced by #WPW10143759
Manufacturer substitutionThis part replaces 13900. Substitute parts can look different from the original.In Stock$22.8521% OFF Phone Price : $28.85
Qty

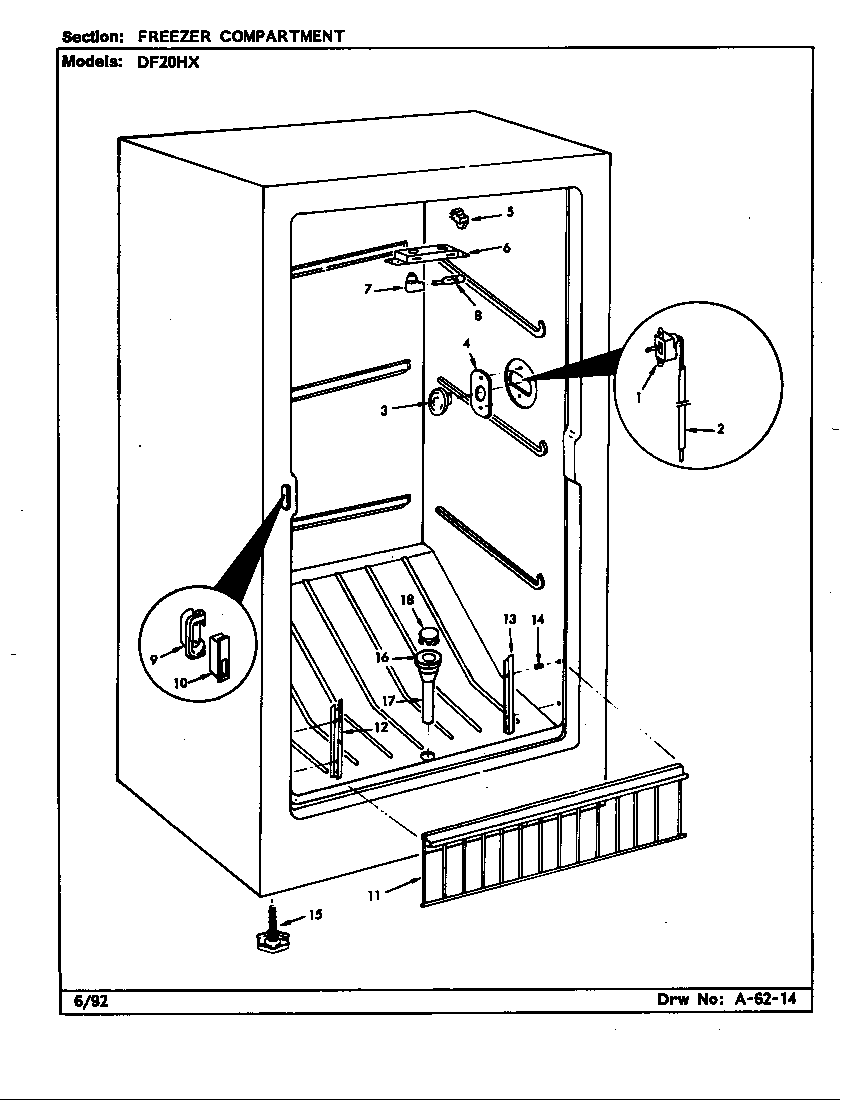

Freezer compartment diagram
Light Switch
Part #55732-1Replaced by #W11384469

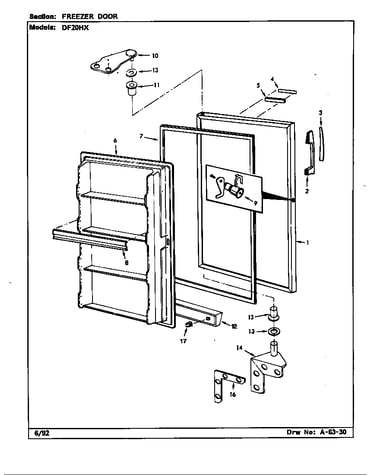

Manufacturer substitutionThis part replaces 55732-1. Substitute parts can look different from the original.In Stock$25.9119% OFF Phone Price : $31.91QtyFreezer door diagram
Screw
Part #400015-12Replaced by #W11233072
Manufacturer substitutionThis part replaces 400015-12. Substitute parts can look different from the original.In Stock$17.63QtyFreezer door diagram
Gasket 20
Part #048380-02Replaced by #WP4-81049-001
Manufacturer substitutionThis part replaces 048380-02. Substitute parts can look different from the original.In Stock$211.705% OFF Phone Price : $223.70QtyFreezer door diagram
Screw
Part #046897-05Replaced by #WP4159193
Manufacturer substitutionThis part replaces 046897-05. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0014% OFF Phone Price : $7.00QtyFreezer compartment diagram
Leveling Leg
Part #68664-1Replaced by #W11117769
Manufacturer substitutionThis part replaces 68664-1. Substitute parts can look different from the original.In Stock$14.4712% OFF Phone Price : $16.47QtyFreezer door diagram
Clip
Part #045520-01Replaced by #1-80247-101
Manufacturer substitutionThis part replaces 045520-01. Substitute parts can look different from the original.In Stock$9.619% OFF Phone Price : $10.61QtyFreezer door diagram
Refrigerator Door Hinge Nylon Washer
Part #52185-1Replaced by #WP52185-1
Manufacturer substitutionThis part replaces 52185-1. Substitute parts can look different from the original.In Stock$8.8410% OFF Phone Price : $9.84QtyFreezer door diagram
Lock Bolt
Part #046897-02Replaced by #3-35284-001
Manufacturer substitutionThis part replaces 046897-02. Substitute parts can look different from the original.In Stock$23.3020% OFF Phone Price : $29.30QtyScrew
Part #046377-03Replaced by #WP8204624
Manufacturer substitutionThis part replaces 046377-03. Substitute parts can look different from the original.In Stock$37.16Qty
