Upright Vacuum

Model # 1163966183C Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1163966183C vacuum cleaner, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
1163966183C Vacuum Cleaners
Gasket 4152184
#2

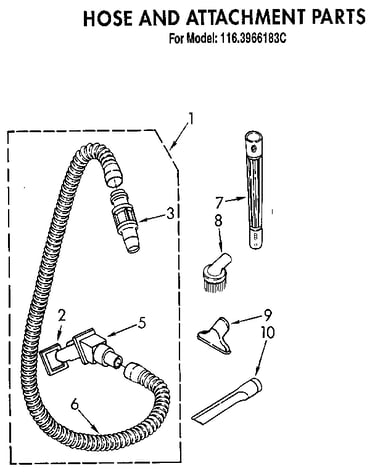

Hose and attachment diagram

Gasket

Part #4152184

The manufacturer no longer makes this part, and there's no substitute part

Light Bulb 745362
#17

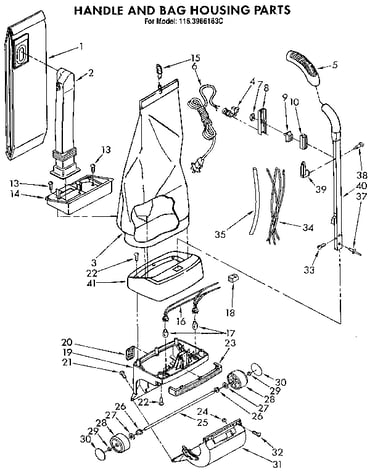

Handle and bag housing diagram

Light bulb

Part #745362

Replaced by #5248

?
Manufacturer substitution
This part replaces 745362. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
List, Repair Parts (mini) LIT4154376
#1B

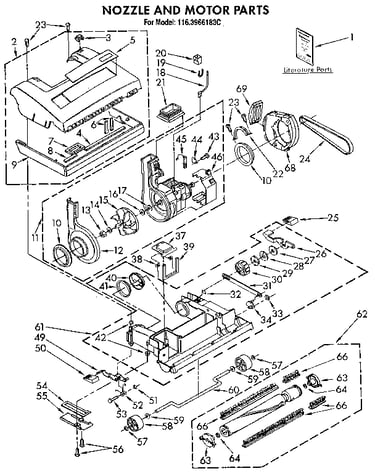

Nozzle and motor diagram

List, repair parts (mini)

Part #LIT4154376

The manufacturer no longer makes this part, and there's no substitute part

Handle Grip 745286
#5

Handle and bag housing diagram

Handle grip

Part #745286

The manufacturer no longer makes this part, and there's no substitute part

Bearing 744643
#26

Handle and bag housing diagram

Bearing

Part #744643

The manufacturer no longer makes this part, and there's no substitute part

Catch 722955
#29

Nozzle and motor diagram

Catch

Part #722955

The manufacturer no longer makes this part, and there's no substitute part

Spring 725775
#32

Nozzle and motor diagram

Spring

Part #725775

The manufacturer no longer makes this part, and there's no substitute part

Connector 4152657
#20

Nozzle and motor diagram

Connector

Part #4152657

The manufacturer no longer makes this part, and there's no substitute part

Door Vent 745287
#20

Handle and bag housing diagram

Door vent

Part #745287

The manufacturer no longer makes this part, and there's no substitute part

Nut 4147995
#51

Nozzle and motor diagram

Nut

Part #4147995

The manufacturer no longer makes this part, and there's no substitute part
