Model # GTDL210GD0WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE GTDL210GD0WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |

Dryer Drum Belt (replaces WE12M29)
#213

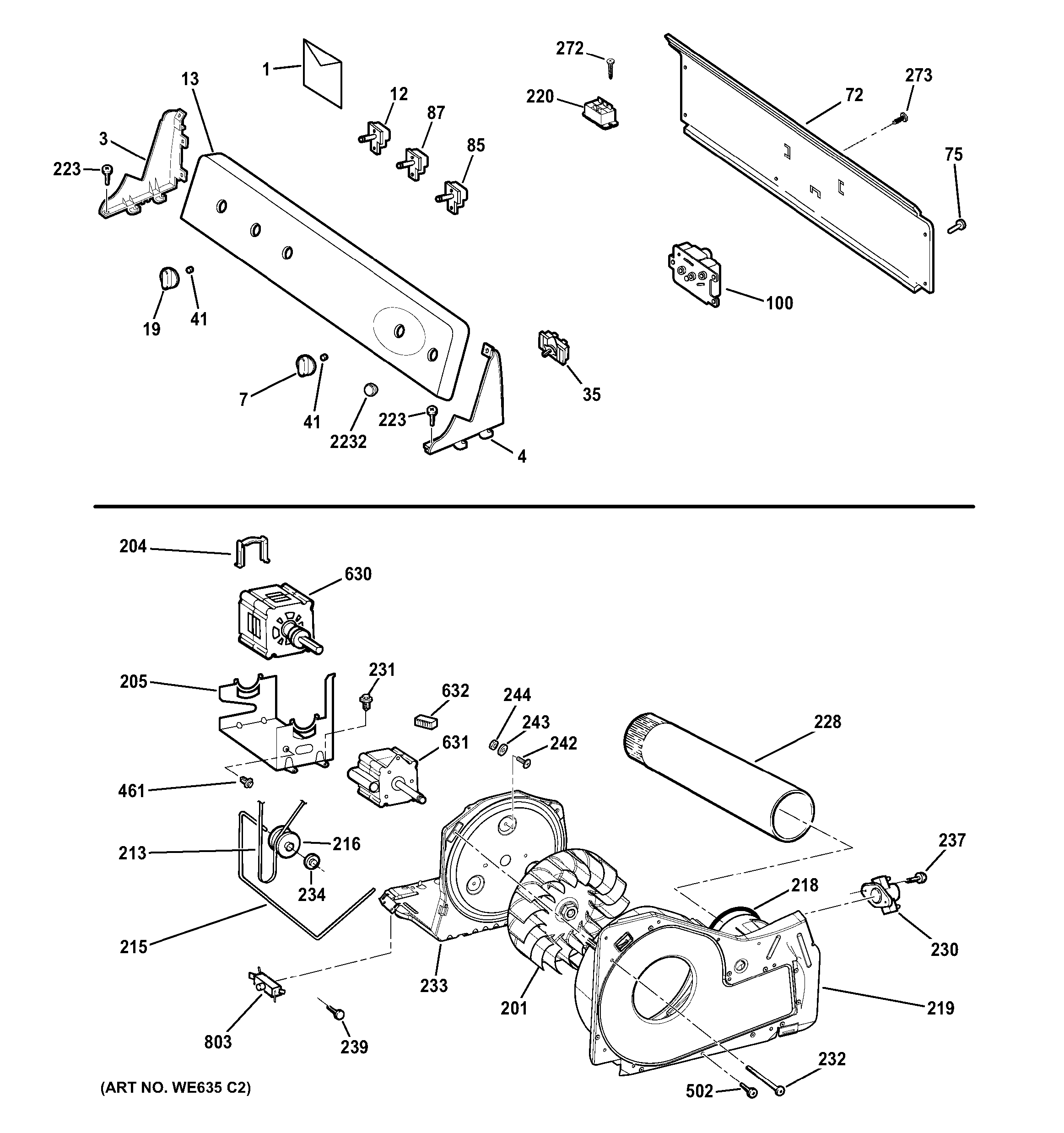

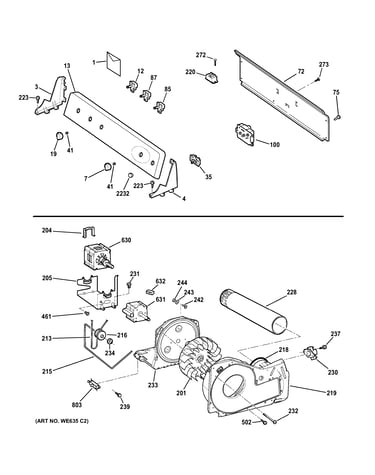

Backsplash, blower & drive assembly diagram

Dryer drum belt

Part #WE12M29

Replaced by #WE03X29897

?
Manufacturer substitution
This part replaces WE12M29. Substitute parts can look different from the original.
BEST SELLER
$24.42
17% OFF Phone Price : $29.42
In Stock
Dryer Drum Front Glide Pad (replaces WE1M333)
#317

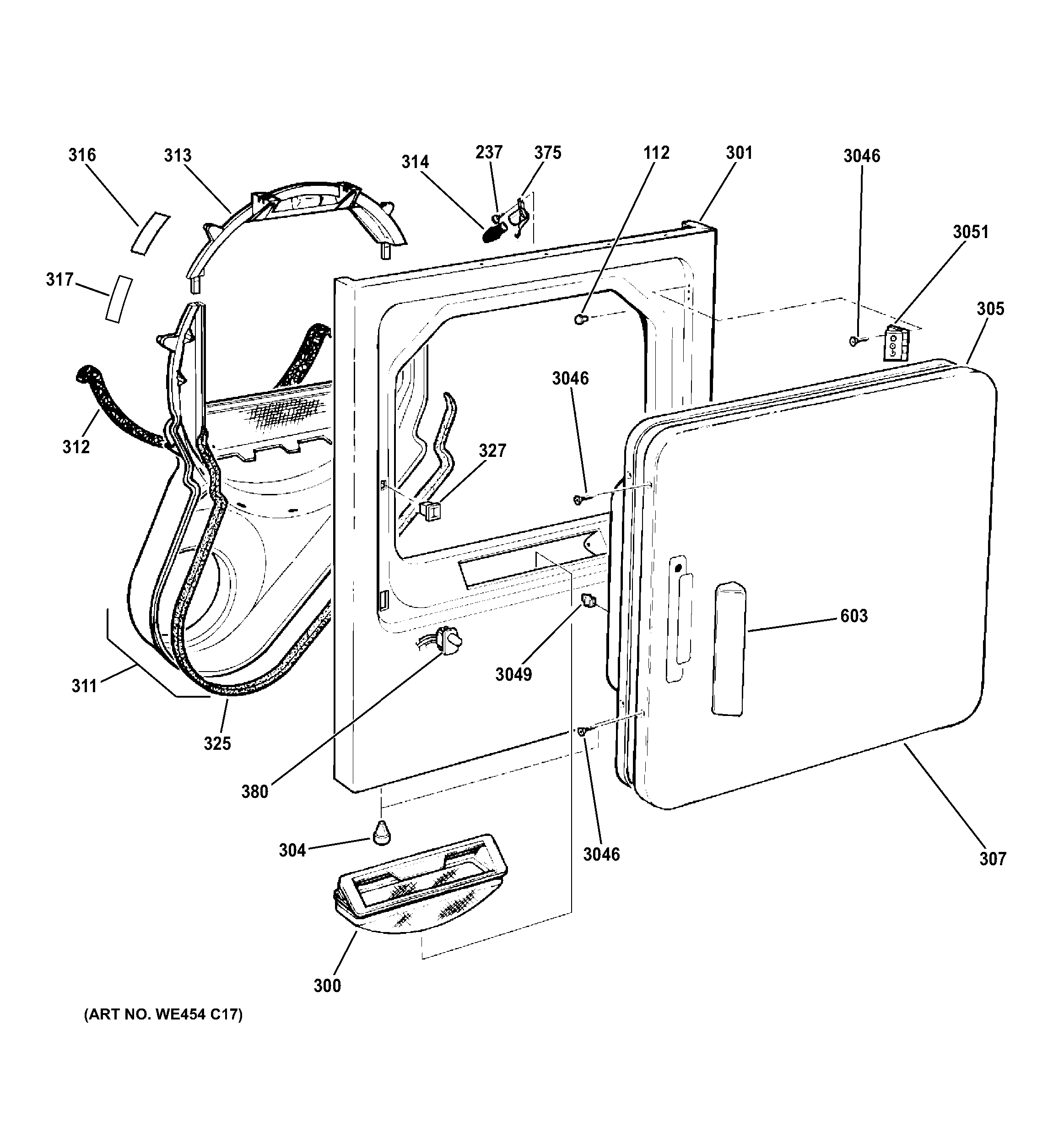

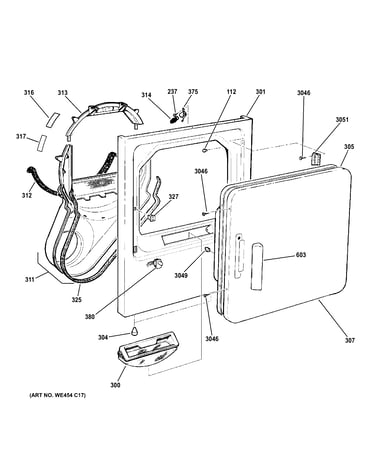

Front panel & door diagram

Dryer drum front glide pad (replaces we1m333)

Part #WE1M504

BEST SELLER
$19.19
9% OFF Phone Price : $21.19
In Stock
Dryer Drum Felt Seal (replaces WE09X20441, WE9M15)
#312

Front panel & door diagram

Felt

Part #WE9M30

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE9M30. Substitute parts can look different from the original.
BEST SELLER
$7.92
11% OFF Phone Price : $8.92
In Stock
Dryer Drum Front Glide Pad (replaces WE01M1067, WE1M507)
#316

Front panel & door diagram

Dryer drum front glide pad (replaces we01m1067, we1m507)

Part #WE1M1067

BEST SELLER
$14.74
12% OFF Phone Price : $16.74
In Stock
Dryer Drum Bearing, Front (replaces WE03M0026, WE3M20)
#313

Front panel & door diagram

Dryer drum bearing, front (replaces we03m0026, we3m20)

Part #WE3M26

BEST SELLER
$30.30
14% OFF Phone Price : $35.30
In Stock
Dryer Rear Bearing
#3106

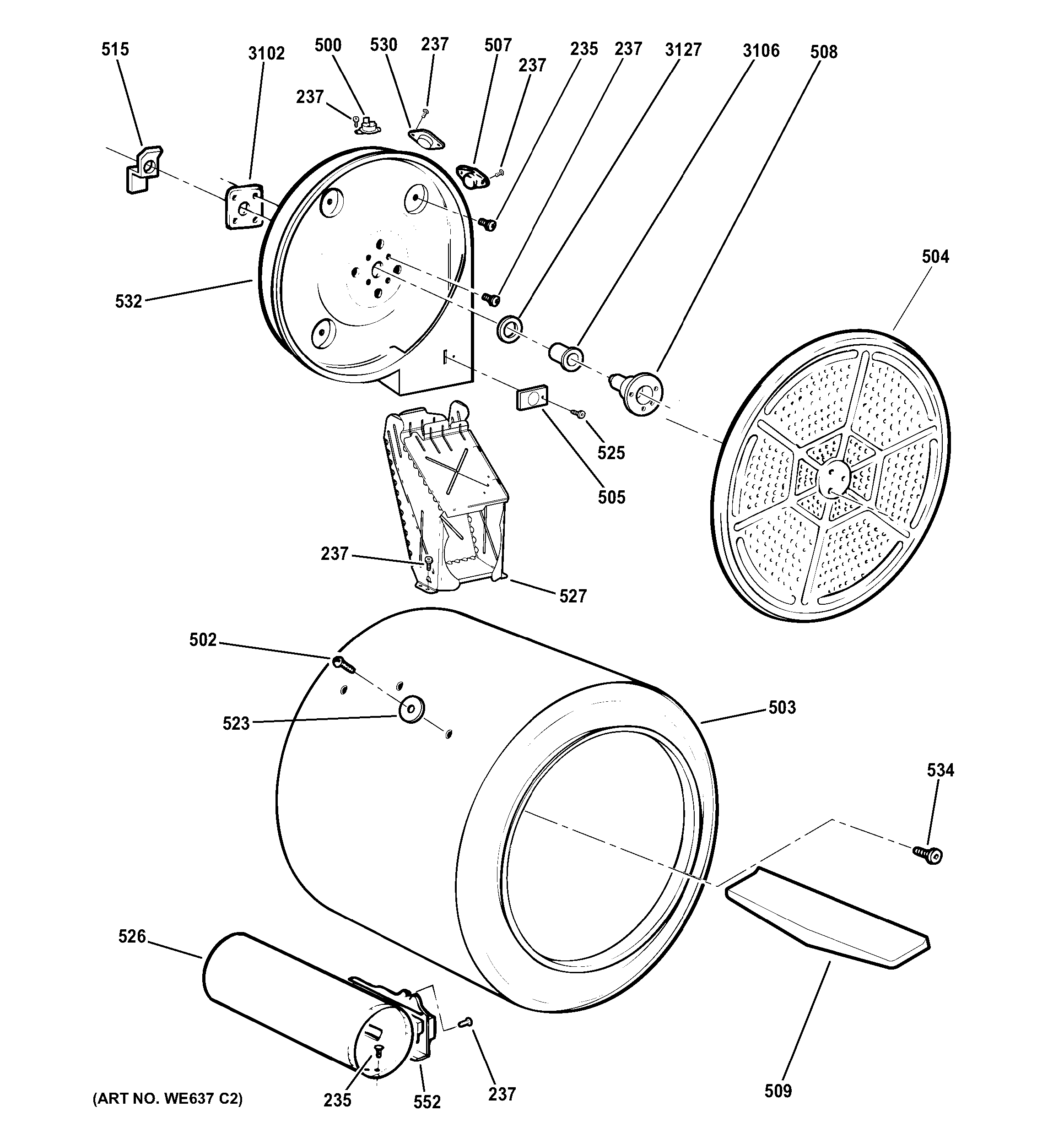

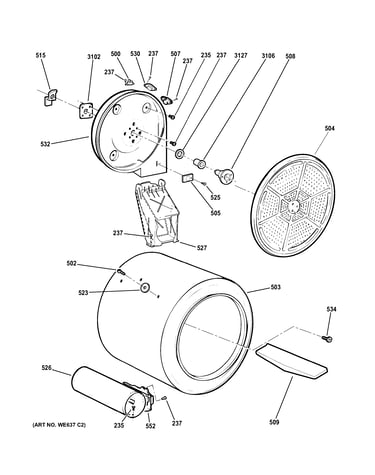

Drum diagram

Dryer rear bearing

Part #WE1M462

BEST SELLER
$18.63
10% OFF Phone Price : $20.63
In Stock
Dryer Drum Light Bulb (replaces WE4M305)
#314

Front panel & door diagram

Dryer drum lamp

Part #WE4M305

Replaced by #WE05X20431

?
Manufacturer substitution
This part replaces WE4M305. Substitute parts can look different from the original.
BEST SELLER
$13.71
13% OFF Phone Price : $15.71
In Stock
Dryer Idler Pulley (replaces WE12X0083, WE12X80, WE12X92)
#216

Backsplash, blower & drive assembly diagram

Idler pulley

Part #WE12M8

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M8. Substitute parts can look different from the original.
BEST SELLER
$30.28
14% OFF Phone Price : $35.28
In Stock
Dryer Control Knob (replaces WE01X20432, WH01X10460)
#19

Backsplash, blower & drive assembly diagram

Knob and cli

Part #WE01X20432

Replaced by #WE01X20378

?
Manufacturer substitution
This part replaces WE01X20432. Substitute parts can look different from the original.
BEST SELLER
$30.33
14% OFF Phone Price : $35.33
In Stock
Dryer Door Catch (replaces WE01M1011, WE1M536)
#327

Front panel & door diagram

Latch

Part #WE1M536

Replaced by #WE1M1011

?
Manufacturer substitution
This part replaces WE1M536. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.55
16% OFF Phone Price : $12.55
In Stock
