Frigidaire
Laundry Center

Model #FGZ831AS0 Frigidaire laundry center

Here are the diagrams and repair parts for Frigidaire FGZ831AS0 laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 202 parts

    Dryer Drum Bearing

    #12

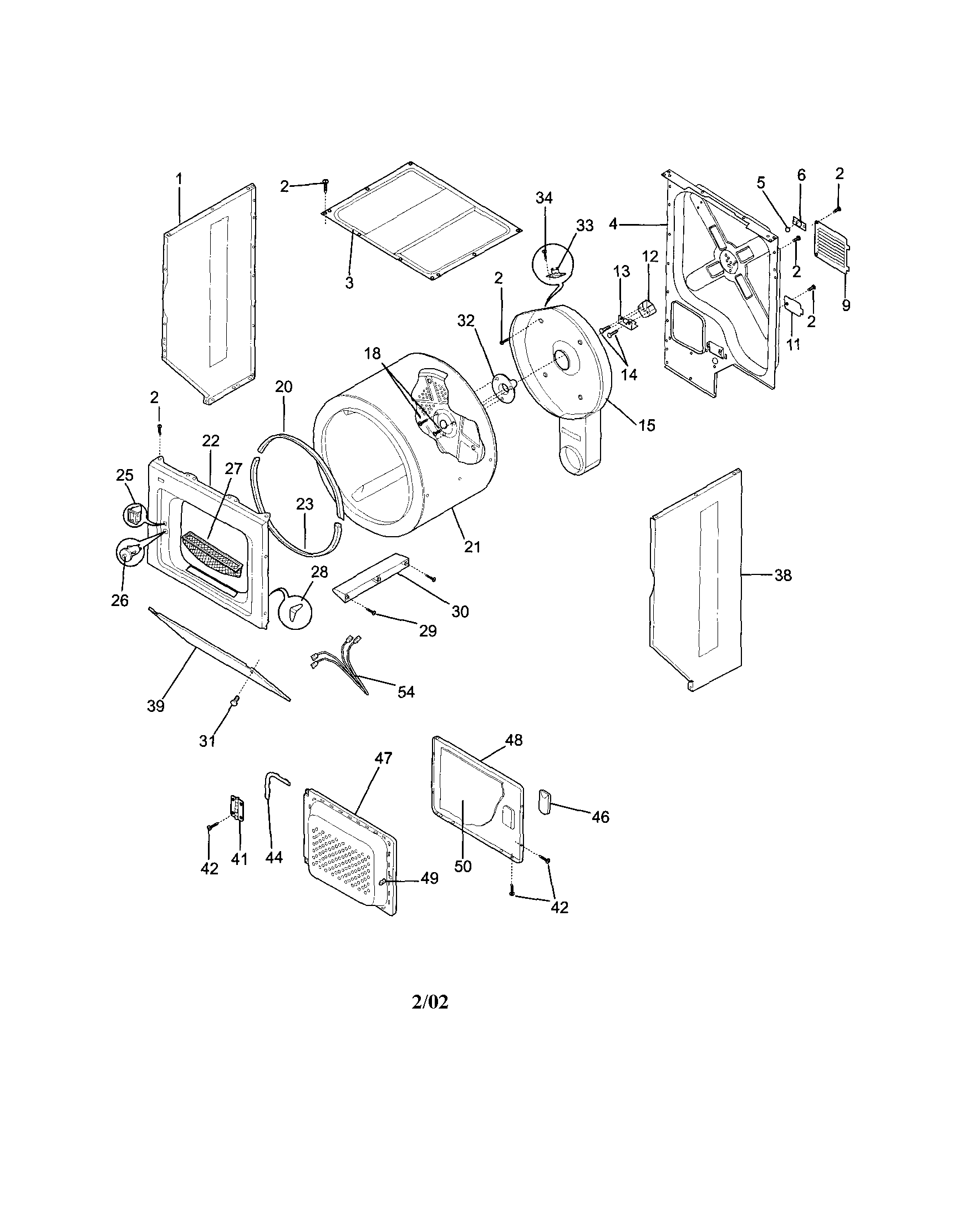

    Upper cabinet/drum/heater Diagram

    Dryer drum bearing

    Part #131825900
    This item is not returnable
    $7.29

    In Stock

    Dryer Felt and Glide Kit

    #20

    Upper cabinet/drum/heater Diagram

    Dryer felt and glide kit

    Part #5303937139
    $42.99

    In Stock

    Dryer Drum Support Shaft

    #32

    Upper cabinet/drum/heater Diagram

    Dryer drum support shaft

    Part #131777700
    $58.99

    In Stock

    Dryer Drum Felt Seal, Lower

    #23

    Upper cabinet/drum/heater Diagram

    $32.99

    In Stock

    Dryer Blower Wheel

    #12

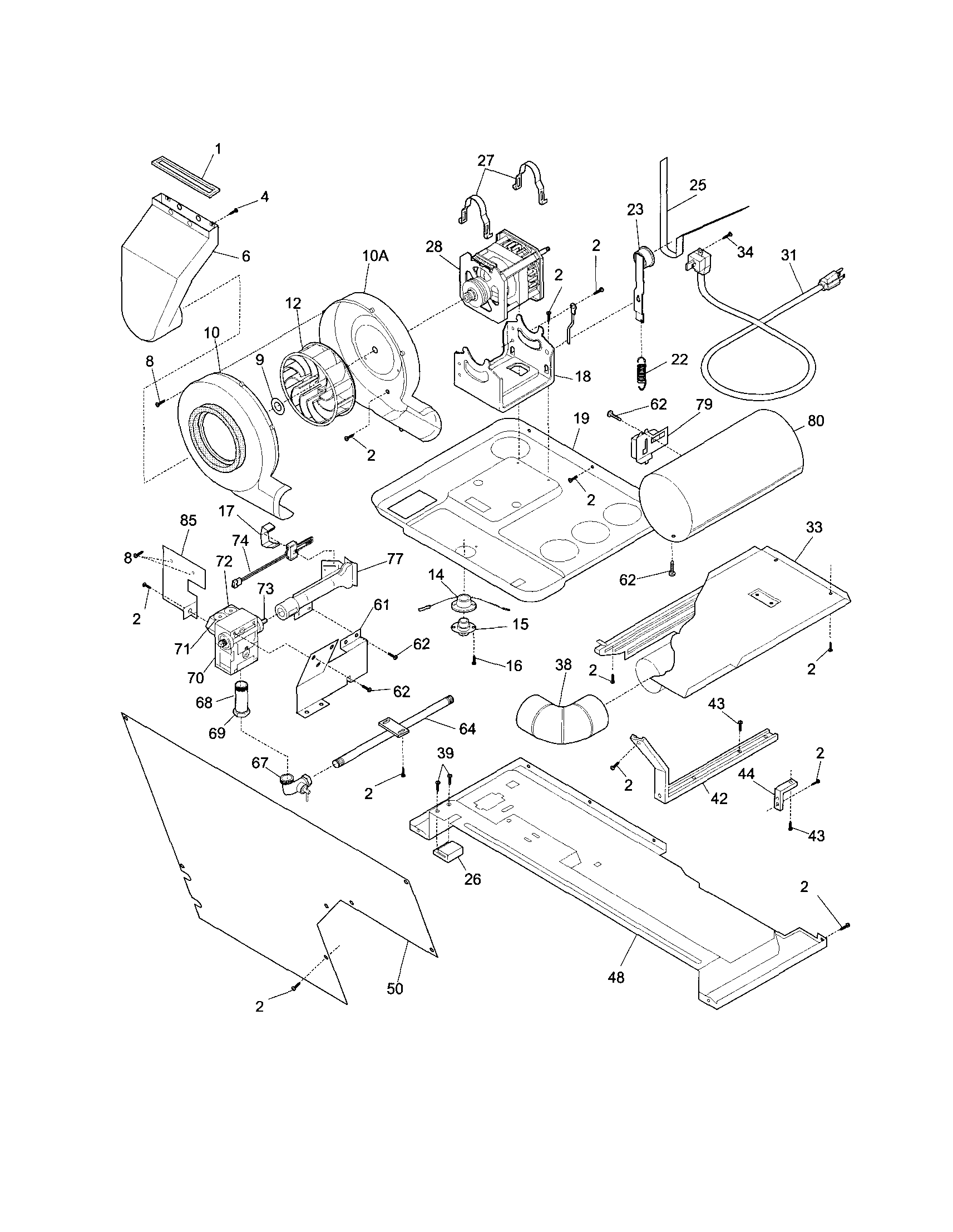

    Motor/blower/belt Diagram

    Dryer blower wheel

    Part #131476300
    $38.99 |
    9% OFF
    MSRP: $43.00

    In Stock

    Laundry Appliance Screw, #8-18 x 31/100-in

    #2

    Dry mtr,belt Diagram

    $14.99

    In Stock

    Laundry Center Dryer Door Handle (White)

    #46

    Upper cabinet/drum/heater Diagram

    $32.99 |
    25% OFF
    MSRP: $44.00

    In Stock

    Washer Spin Bearing

    #26

    Wshr mtr,hose Diagram

    Washer spin bearing

    Part #3204405
    $57.99 |
    15% OFF
    MSRP: $68.00

    In Stock

    Dryer Control Knob

    #21

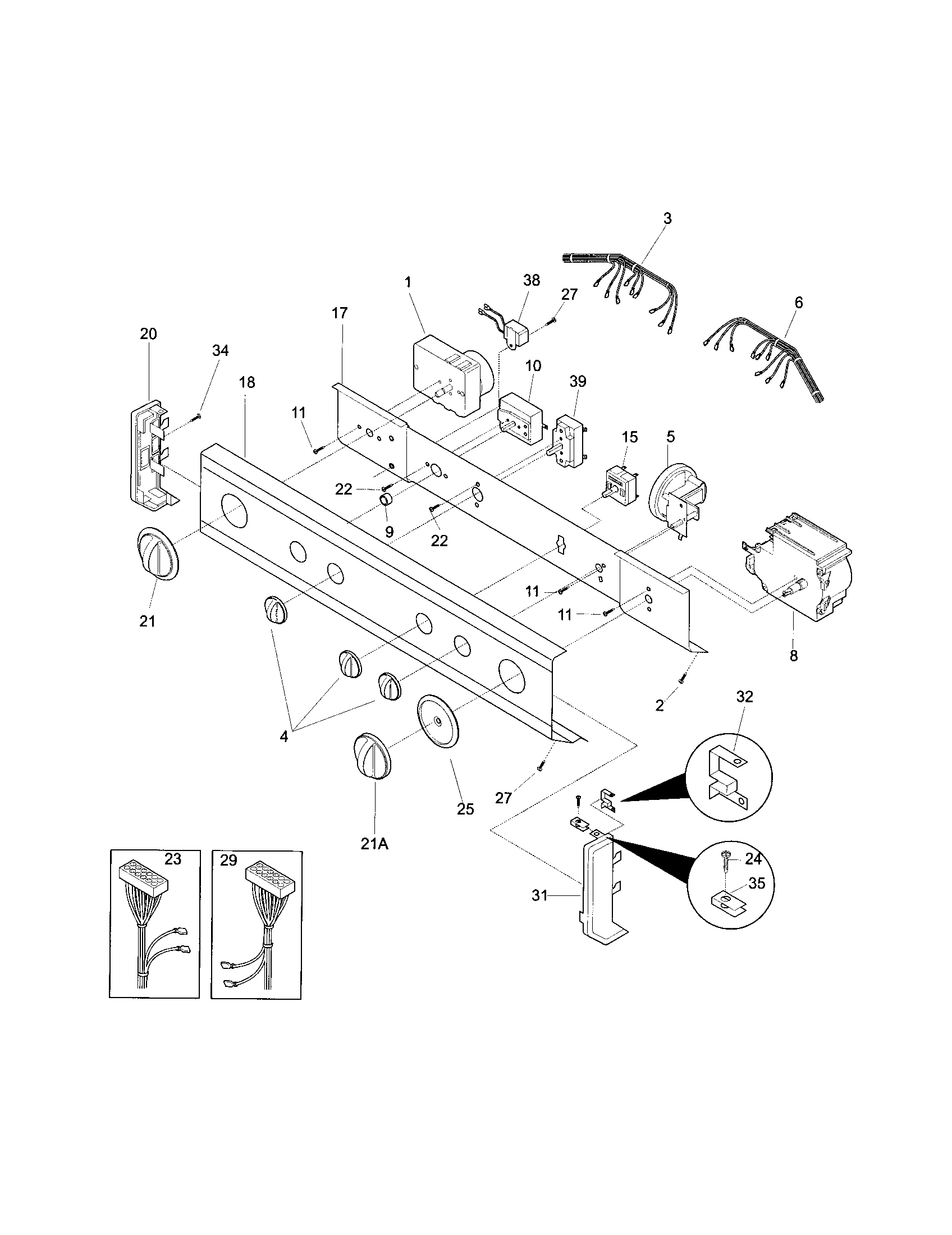

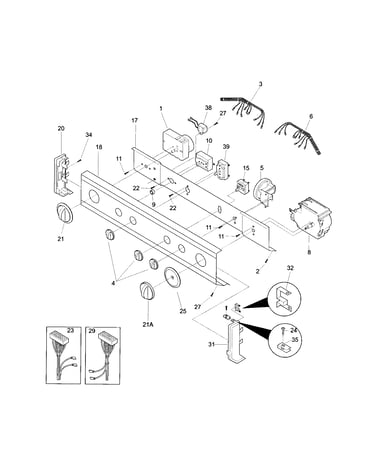

    Control panel Diagram

    Dryer control knob

    Part #131873304
    $38.99 |
    19% OFF
    MSRP: $48.00

    In Stock

    Washer Idler Pulley

    #30

    Wshr mtr,hose Diagram

    Washer idler pulley

    Part #131862900
    $21.99

    In Stock

    Symptoms common to all laundry centers

    Choose a symptom to see related laundry center repairs.

    Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components
    Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control board
    Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply problem, blown fuse
    Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown fuse, control failure
    Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad heating element
    Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring
    Main causes: clogged drain system, blocked drain hose, bad drain pump
    Main causes: broken dryer drive belt, weak drive motor, binding drum seals
    Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failure, bad water valve
