For your Whirlpool ED5CHQXKB04 side-by-side refrigerator, the most reliable way to confirm cubic feet (total capacity) is to look up the model’s published specs using the model number. If you just need an estimate, you can calculate capacity from interior measurements (height x width x depth) and convert to cubic feet.

Fast ways to find capacity

• Check the model/serial tag inside the fresh food compartment (often on a side wall or ceiling area); some tags list capacity directly.
• Search by model number (ED5CHQXKB04) in our parts and model resources to match the correct product family.
• Use the measurement method below when the label does not list capacity.
• If you are comparing sizes for a replacement, measure the cabinet opening too (not just the refrigerator).

How to calculate cubic feet (good estimate)

1. Measure the usable interior of the refrigerator compartment in inches: height x width x depth.
2. Do the same for the freezer compartment.
3. Add the two volumes together.
4. Convert cubic inches to cubic feet.

What you measure	Formula	Convert to cubic feet
One compartment	H x W x D (in inches)	Divide by 1,728
Total capacity	(Fridge volume + Freezer volume)	Divide by 1,728

Example: If a compartment measures 48 x 18 x 16 inches, that is 13,824 cubic inches; 13,824 ÷ 1,728 = 8.0 cubic feet.

Why your estimate may not match the “official” number

Manufacturers rate capacity using standardized methods; your tape-measure result can differ because of:

• Shelves, bins, and air channels reducing usable space
• Curved interior walls and door storage
• Ice maker housing and ducting

Related parts that affect usable space

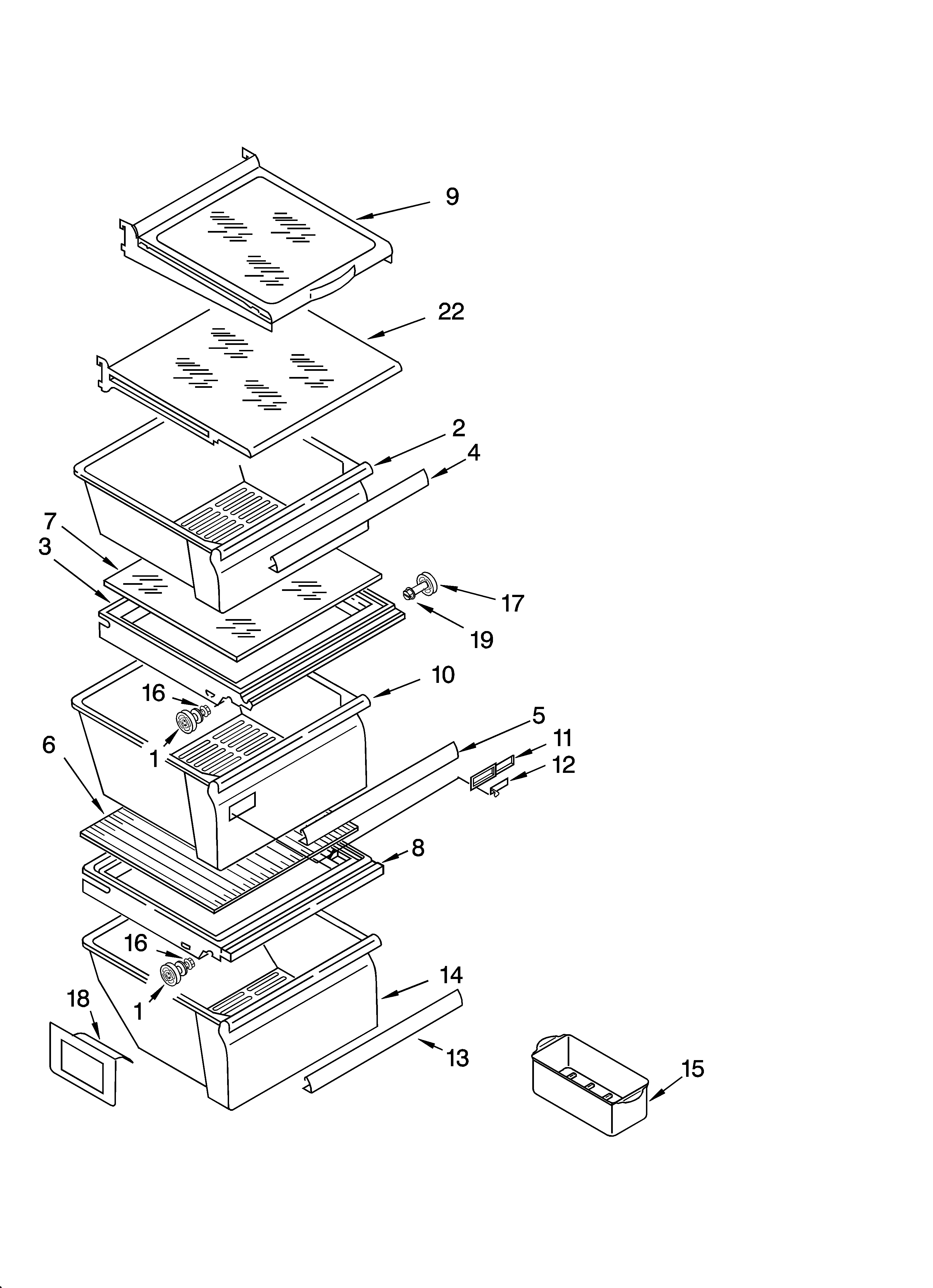

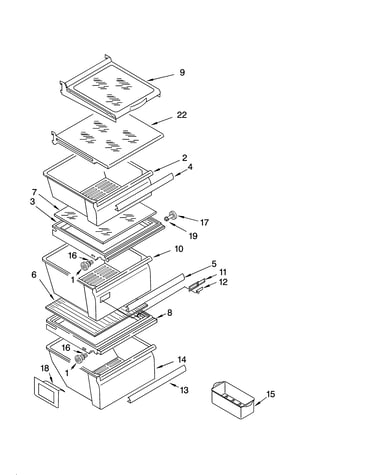

If broken bins or pans are reducing storage, replacing them restores organization and airflow:

• Refrigerator crisper pan WP2188656
• Refrigerator meat pan WP2188664

Last updated: February 2026

There is no single “best” brand for a side-by-side refrigerator; the best choice depends on what you value most (reliability, ice and water features, interior space, or price). If you already own a Whirlpool ED5CHQXKB04, keeping it running well often comes down to timely maintenance and replacing wear parts.

How we recommend choosing a “best” brand

Focus on the features that affect day-to-day satisfaction:

• Ice and water system design: dispenser performance, clog resistance, and ease of service
• Temperature stability: consistent fresh food and freezer temps with normal door use
• Parts availability: common service parts staying available over time
• Noise level: evaporator fan and compressor sound during normal cycling
• Fit and storage: shelf layout, bin size, and door clearance in your kitchen

What matters most for long-term reliability

Most side-by-side refrigerators last 13 years. Reliability is usually driven more by maintenance and usage than the logo on the door.

Common maintenance items that protect performance:

• Keep condenser area clean to reduce compressor run time
• Make sure doors seal and close fully every time
• Replace water filtration on schedule if your model uses a filter
• Clear ice clumps and keep the ice bin seated correctly
• Address frost buildup early (defrost system issues get worse fast)

Quick comparison: what “best” can mean

If you care most about...	Prioritize...	What to check before buying
Fewer service calls	Simpler features	Skip extra dispenser options you will not use
Best ice and water experience	Strong dispenser design	Water pressure requirements and filter access
Lowest total cost	Proven platform	Parts pricing and availability
Quiet operation	Good airflow and insulation	Fan noise and vibration reviews

Why it matters (especially for ED5CHQXKB04 owners)

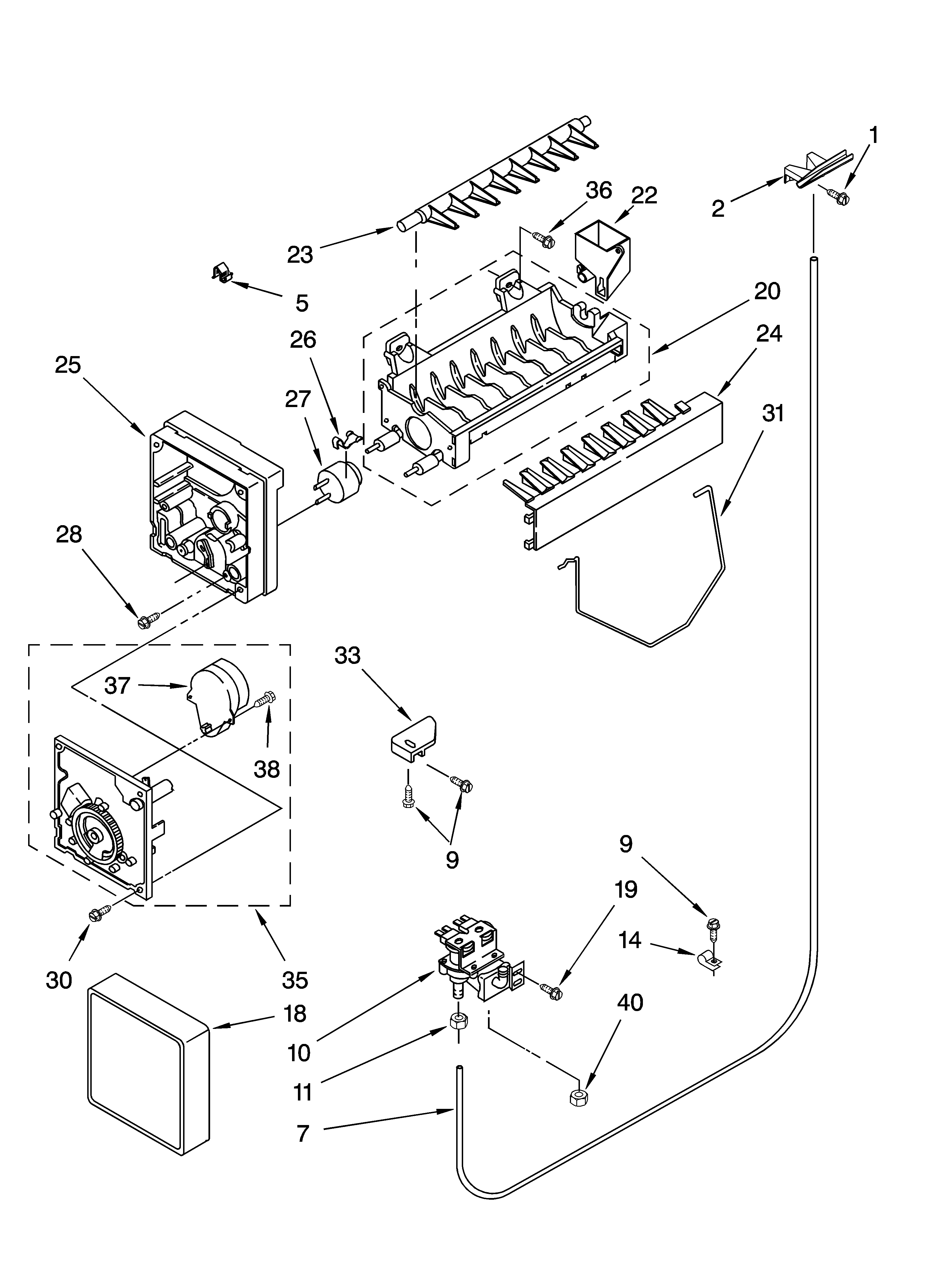

When a side-by-side starts feeling “bad,” it is often a specific system acting up (ice maker, defrost, door sealing, or temperature control), not the entire refrigerator brand. For example, if ice production is inconsistent, replacing the ice maker assembly - refrigerator ice maker by Whirlpool 4317943 is a common repair path after basic checks.

For brand-agnostic troubleshooting that applies to most Whirlpool side-by-sides, we use guides like how to prevent water dispenser and ice maker problems to pinpoint the real cause before replacing parts.

Last updated: February 2026

The biggest problem we see in Whirlpool refrigerators like model ED5CHQXKB04 is a cooling failure (fresh food section warm, freezer too warm, or temperatures swinging). The most common root causes are restricted airflow, defrost system trouble, or a failing fan or temperature control.

What “cooling problem” usually means

Cooling complaints typically show up as one of these symptoms:

• Freezer is cold but refrigerator is warm (airflow or evaporator frost issue)
• Both sections are warm (condenser airflow, sealed system, or control issue)
• Frost builds up on the back wall of the freezer (defrost system problem)
• Loud humming, grinding, or rattling (fan blade or motor issue)
• Ice maker stops producing (often tied to temperature or water supply)

Quick checks we recommend first (in order)

• Confirm settings: freezer around 0°F, refrigerator around 37°F
• Make sure vents are not blocked by food packages
• Listen for the evaporator fan in the freezer; it should run when the compressor runs
• Check for heavy frost on the freezer back panel (points to defrost failure)
• Inspect door sealing and closing; a door that does not fully close causes constant running and warm temps

Parts that commonly fix the “biggest problem”

If your symptoms match, these model-compatible parts are common solutions:

Symptom	Likely system	Example part for ED5CHQXKB04
Frosted freezer panel, warm fridge	Defrost system	Refrigerator defrost bi-metal WPW10225581
Frosted freezer panel, no defrost heat	Defrost heater circuit	Refrigerator heater WP2323198

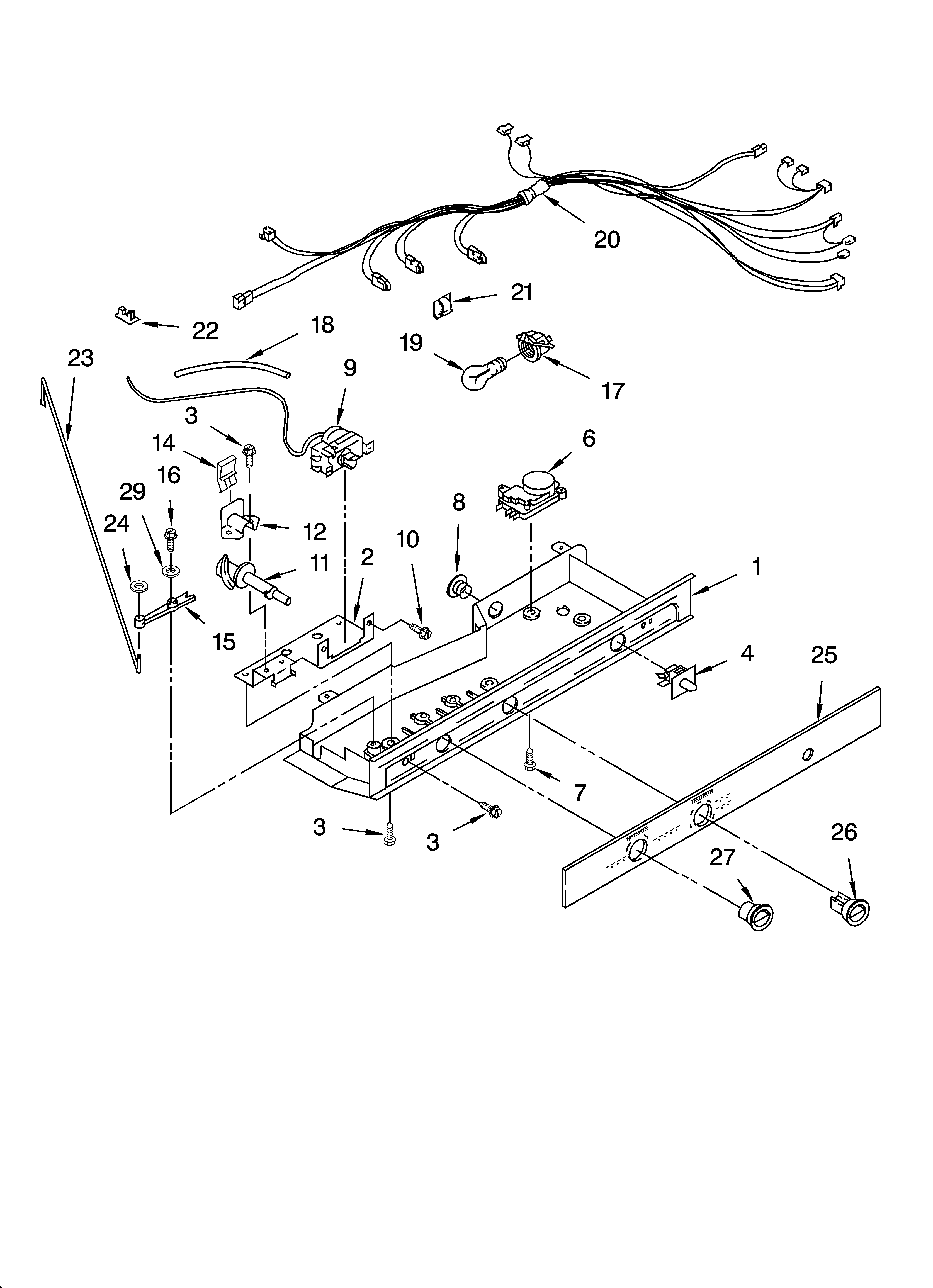

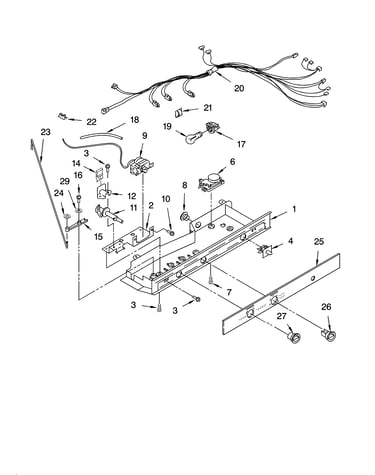

Temps swing, runs too warm or too cold	Temperature control	Refrigerator thermostat WP2198202

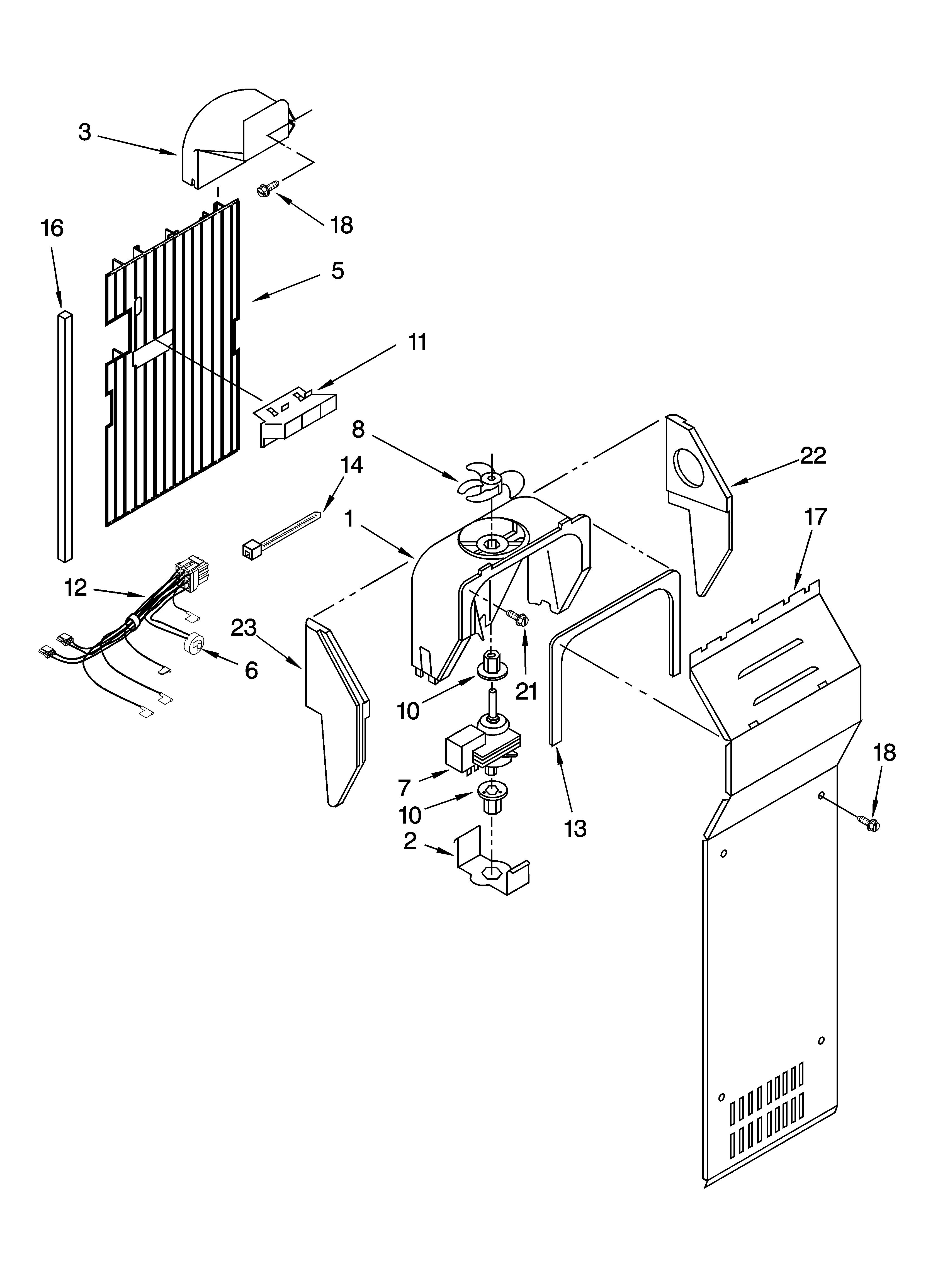

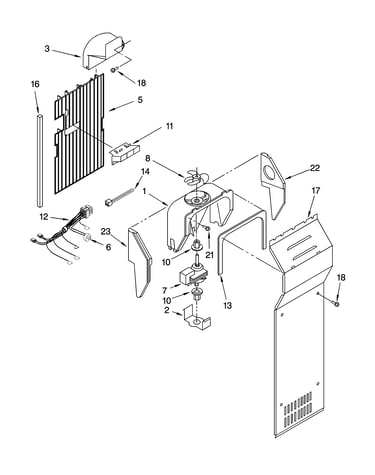

Rattling or poor airflow noise	Evaporator fan airflow	Refrigerator evaporator fan blade WP2169142

Why it matters

A refrigerator cools by moving air across the evaporator and circulating it through both compartments. When airflow is restricted (ice buildup, fan issue, or a control problem), temperatures rise quickly and food safety becomes a concern.

Helpful DIY guidance

For step-by-step troubleshooting, we recommend our DIY resources:

• How to fix your evaporator cooling fan
• Common refrigerator ice maker problems and solutions

Last updated: February 2026

Most Whirlpool refrigerators last 15 years on average. For a Whirlpool ED5CHQXKB04 side-by-side refrigerator, reaching that 15-year mark is typical when airflow stays clear, door seals stay tight, and the cooling and defrost systems are kept in good working order.

Typical lifespan range (what we see most often)

Refrigerator life varies by usage, environment, and maintenance, but these ranges are reliable for household units:

• Average: 15 years
• Common range: 10 to 20 years
• Often replaced sooner when: door gaskets leak, condenser is clogged, or ice maker and dispenser issues go unresolved

Lifespan stage	What it usually means	What to do next
Under 10 years	Usually repairable	Fix cooling, defrost, or ice maker issues early
10 to 20 years	Normal end-of-life window	Prioritize critical failures (cooling, sealed system)
Over 20 years	Beyond typical service life	Expect more frequent part failures

What shortens refrigerator life fastest

These are the most common causes of early failure in side-by-side refrigerators:

• Dirty condenser area causing high heat and long run times
• Door not sealing (warm air leaks create frost and compressor strain)
• Defrost problems leading to ice buildup and poor airflow
• Evaporator fan issues (warm fridge, noisy freezer, uneven temps)
• Ice maker and water system leaks that create corrosion or ice jams

Parts that commonly support a longer service life

When symptoms point to a specific failure, replacing the right part helps prevent bigger problems:

• If ice production is inconsistent or stops: consider the ice maker assembly - refrigerator ice maker by Whirlpool 4317943
• If temperatures swing or won’t regulate: the refrigerator thermostat WP2198202 is a common control component
• If frost builds up and cooling drops: defrost components like the refrigerator defrost bi-metal WPW10225581 and refrigerator defrost timer W10822278 are frequent culprits

Why it matters

A refrigerator that runs warm, frosts up, or runs constantly can wear out the compressor faster and increase energy use. Addressing airflow, sealing, and defrost issues early is the most effective way to hit the full expected lifespan.

For prevention tips that reduce wear on the ice maker and dispenser system, use our how to prevent water dispenser and ice maker problems guide.
