Whirlpool 3HLER5437JQ2 dryer Parts
Here are the diagrams and repair parts for Whirlpool 3HLER5437JQ2 dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for3HLER5437JQ2 Dryer

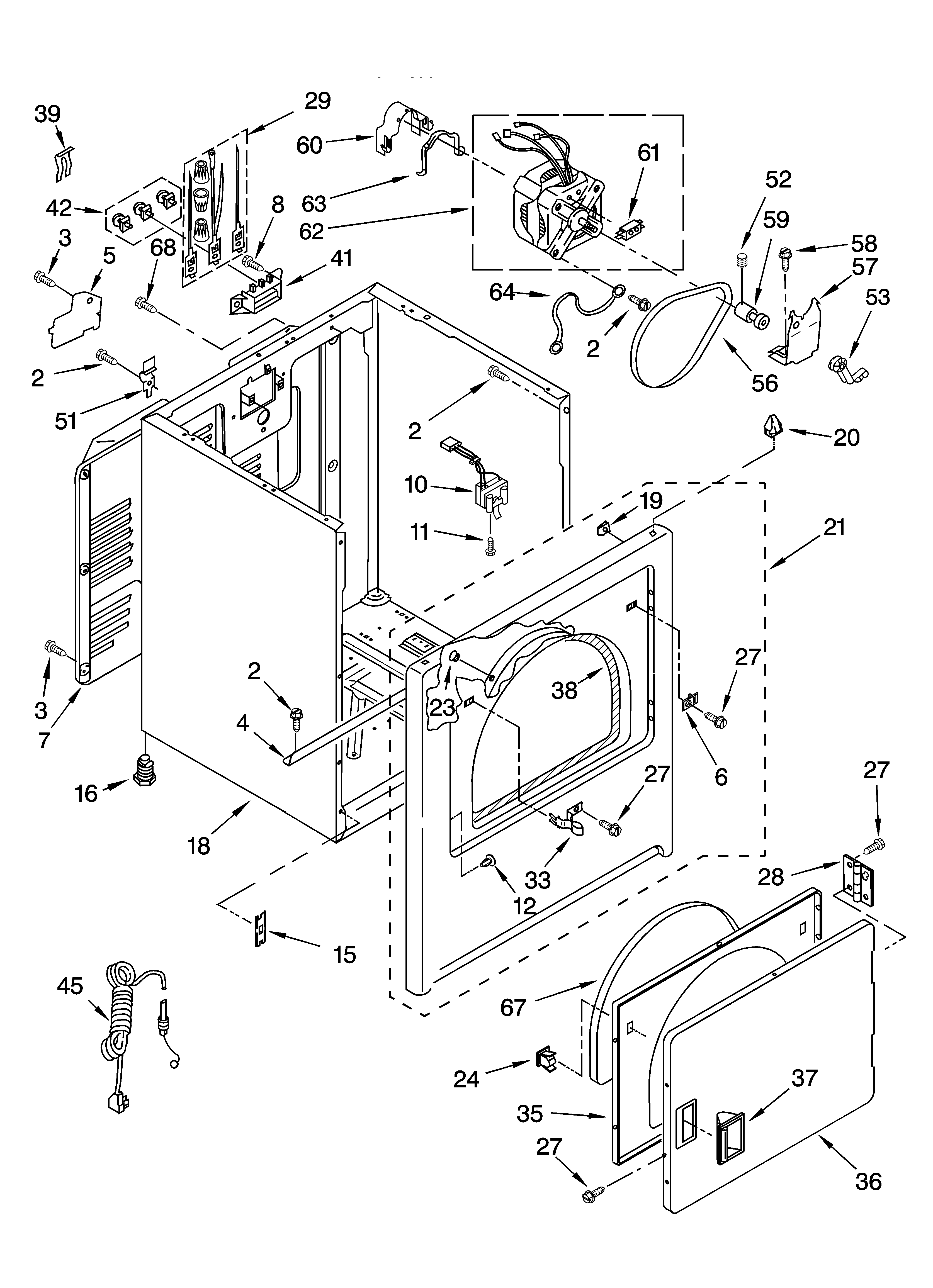

Cabinet parts diagram
Dryer Terminal Block Wire Set
In Stock$61.349% OFF Phone Price : $67.34
Qty

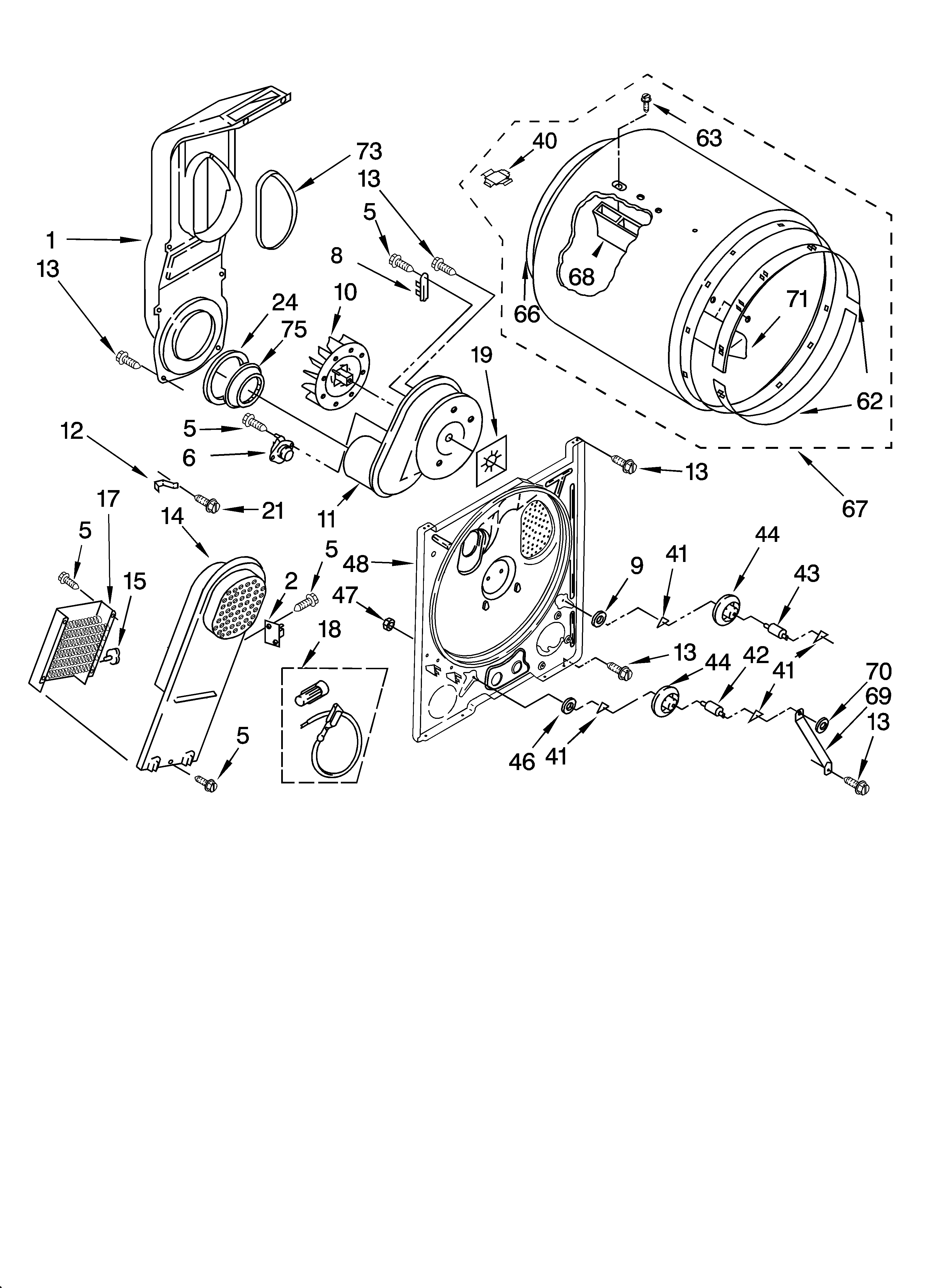

Bulkhead parts diagram
Tap Screw
Part #90767Replaced by #WP90767
Manufacturer substitutionThis part replaces 90767. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyScrew
Part #343641Replaced by #WP681414
Manufacturer substitutionThis part replaces 343641. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyCabinet parts diagram
Dryer Door Strike
Part #3403431Replaced by #W11429589
Manufacturer substitutionThis part replaces 3403431. Substitute parts can look different from the original.In Stock$16.0611% OFF Phone Price : $18.06QtyWasher Screw
Part #693995Replaced by #WP693995

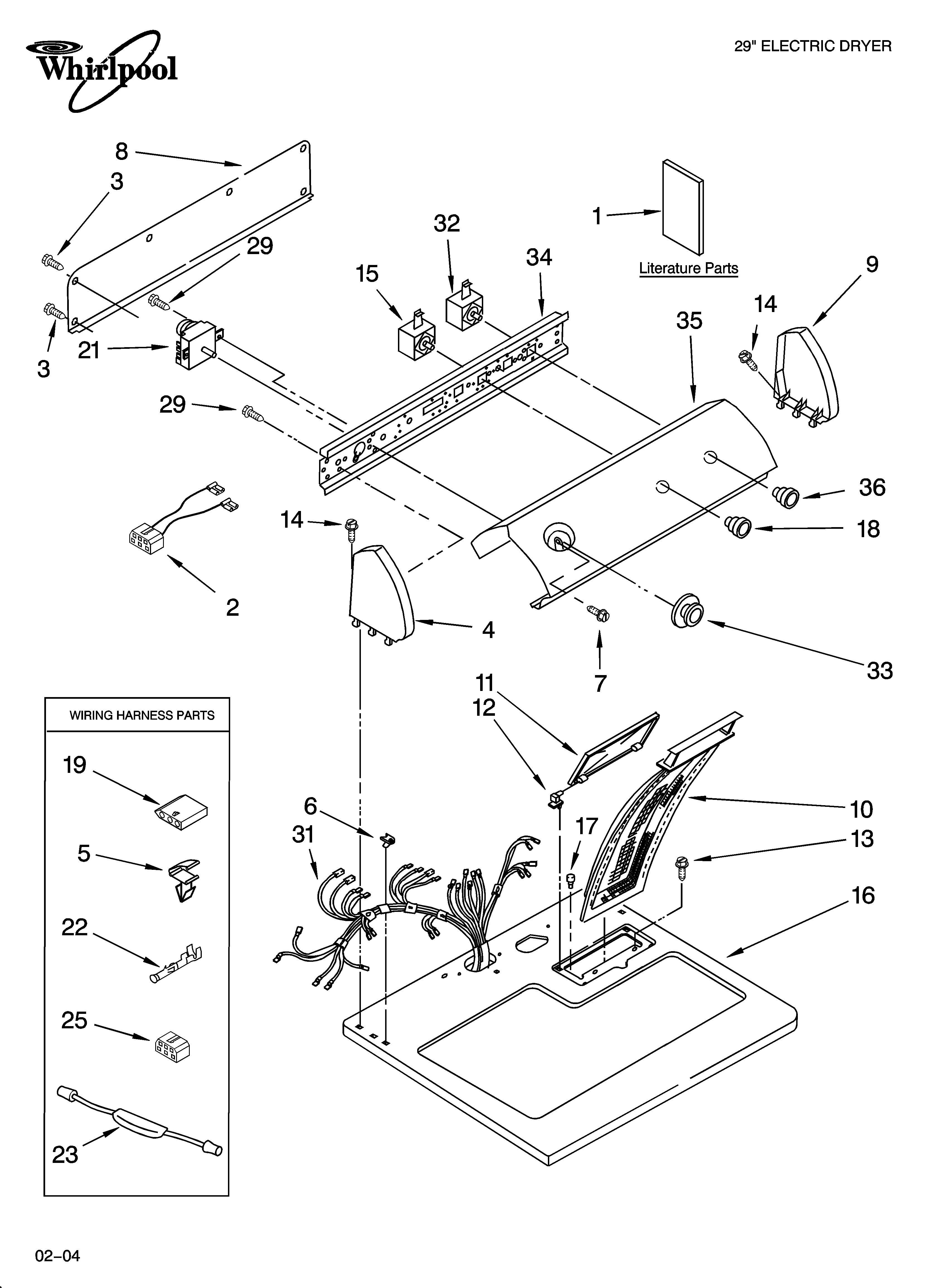

Manufacturer substitutionThis part replaces 693995. Substitute parts can look different from the original.In Stock$38.72QtyTop and console parts diagram
Dryer Lint Screen
Part #349639Replaced by #WP349639
Manufacturer substitutionThis part replaces 349639. Substitute parts can look different from the original.In Stock$40.9413% OFF Phone Price : $46.94QtyBulkhead parts diagram
Dryer Operating Thermostat
Part #3387137Replaced by #WP3387137
Manufacturer substitutionThis part replaces 3387137. Substitute parts can look different from the original.In Stock$64.169% OFF Phone Price : $70.16QtyBulkhead parts diagram
Housing
Part #8557384Replaced by #WP8577230
Manufacturer substitutionThis part replaces 8557384. Substitute parts can look different from the original.In Stock$95.8711% OFF Phone Price : $107.87QtyCabinet parts diagram
Dryer Hinge (white)
Part #3405514Replaced by #WPW10362431
Manufacturer substitutionThis part replaces 3405514. Substitute parts can look different from the original.This item is not returnableIn Stock$6.4813% OFF Phone Price : $7.48QtyBulkhead parts diagram
Dryer Lint Chute Assembly
Part #348368Replaced by #W11117429
Manufacturer substitutionThis part replaces 348368. Substitute parts can look different from the original.In Stock$92.826% OFF Phone Price : $98.82Qty
