Samsung
Washer

Model #WA50F9A6DSW/A2-01 Official Samsung washer

Here are the diagrams and repair parts for Samsung WA50F9A6DSW-A2-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Search within this model
Parts List

Showing 10 of 157 parts

Washer Washplate Cap#1-6

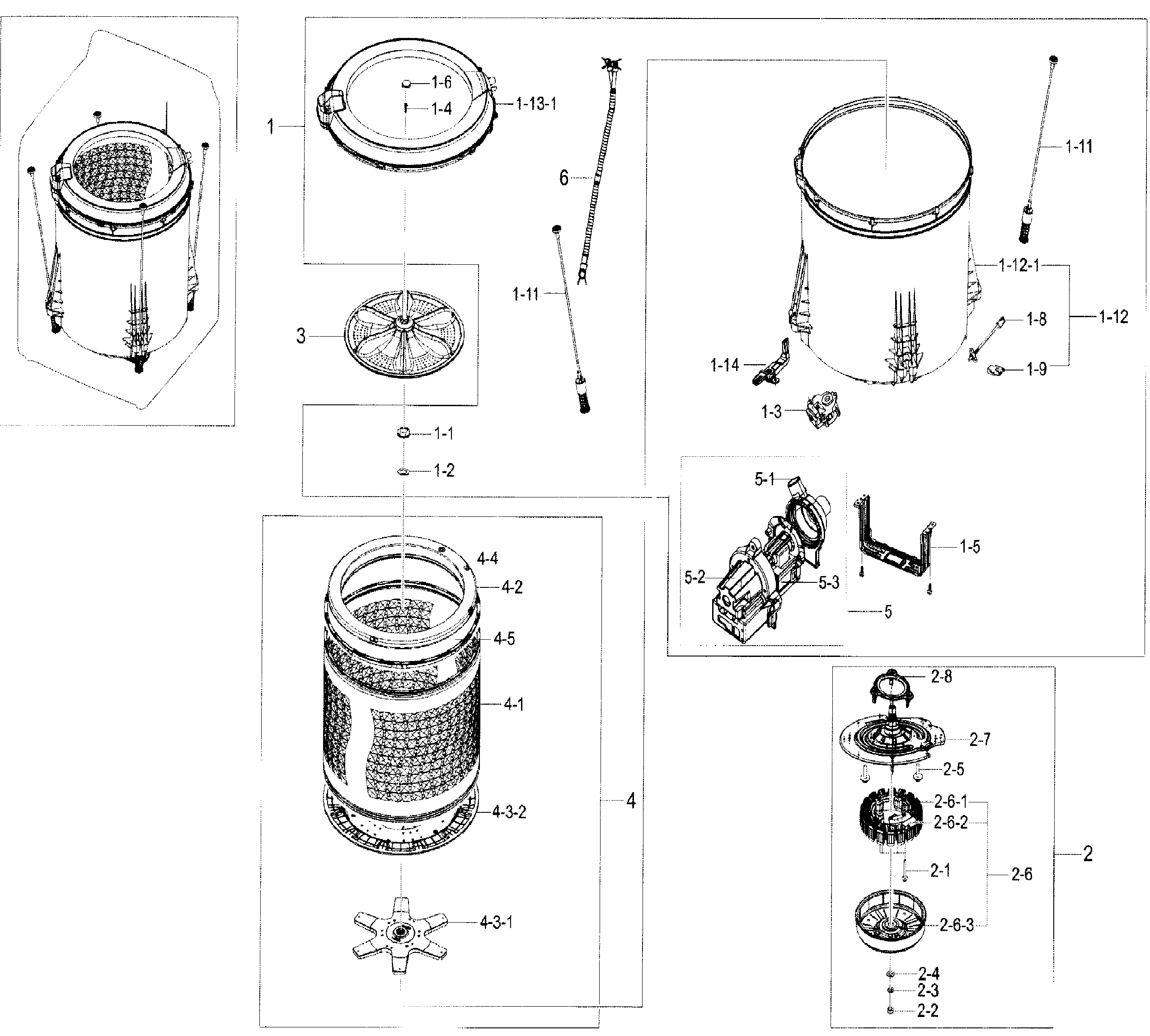

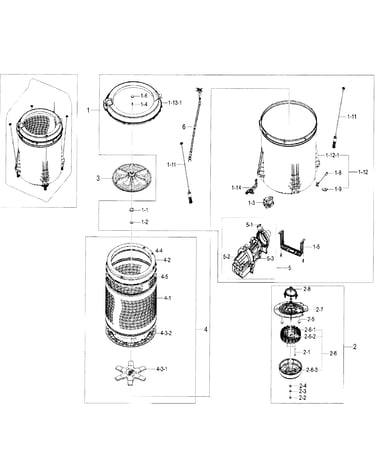

Tub parts Diagram

Washer washplate cap

Part #DC66-00777A
BEST SELLER
In Stock
$16.06 |
11% OFF
Phone Price: $18.06
Washer Drain Pump Check Valve#9-6

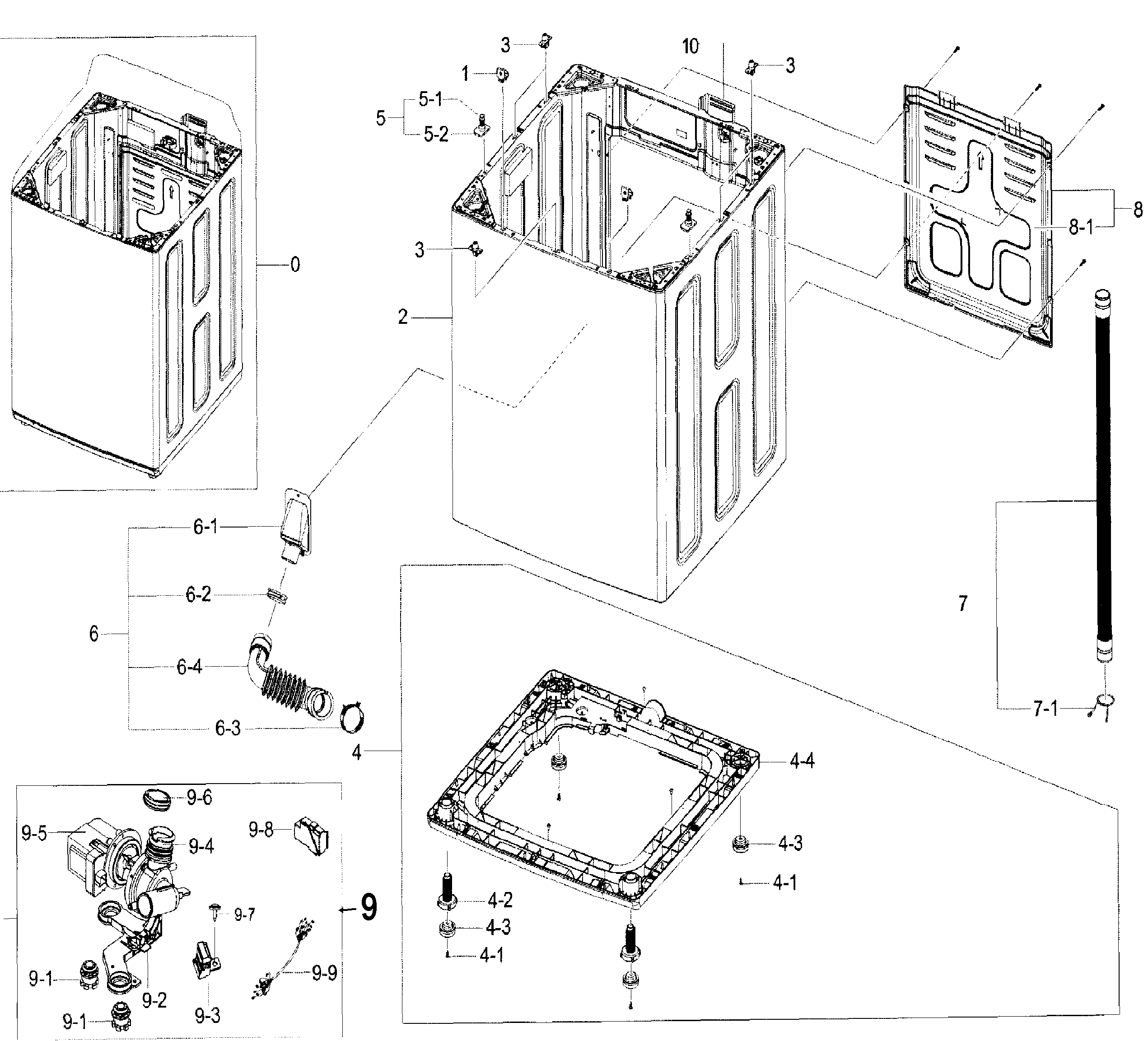

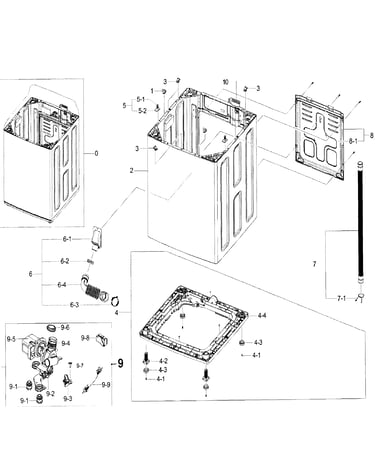

Frame Diagram

Washer drain pump check valve

Part #DC62-00328A
BEST SELLER
This item is not returnable
In Stock
$63.73
Washer Washplate#3

Tub parts Diagram

Washer washplate

Part #DC97-17374A
BEST SELLER
In Stock
$160.84 |
6% OFF
Phone Price: $170.84
Washer Water Inlet Valve#10

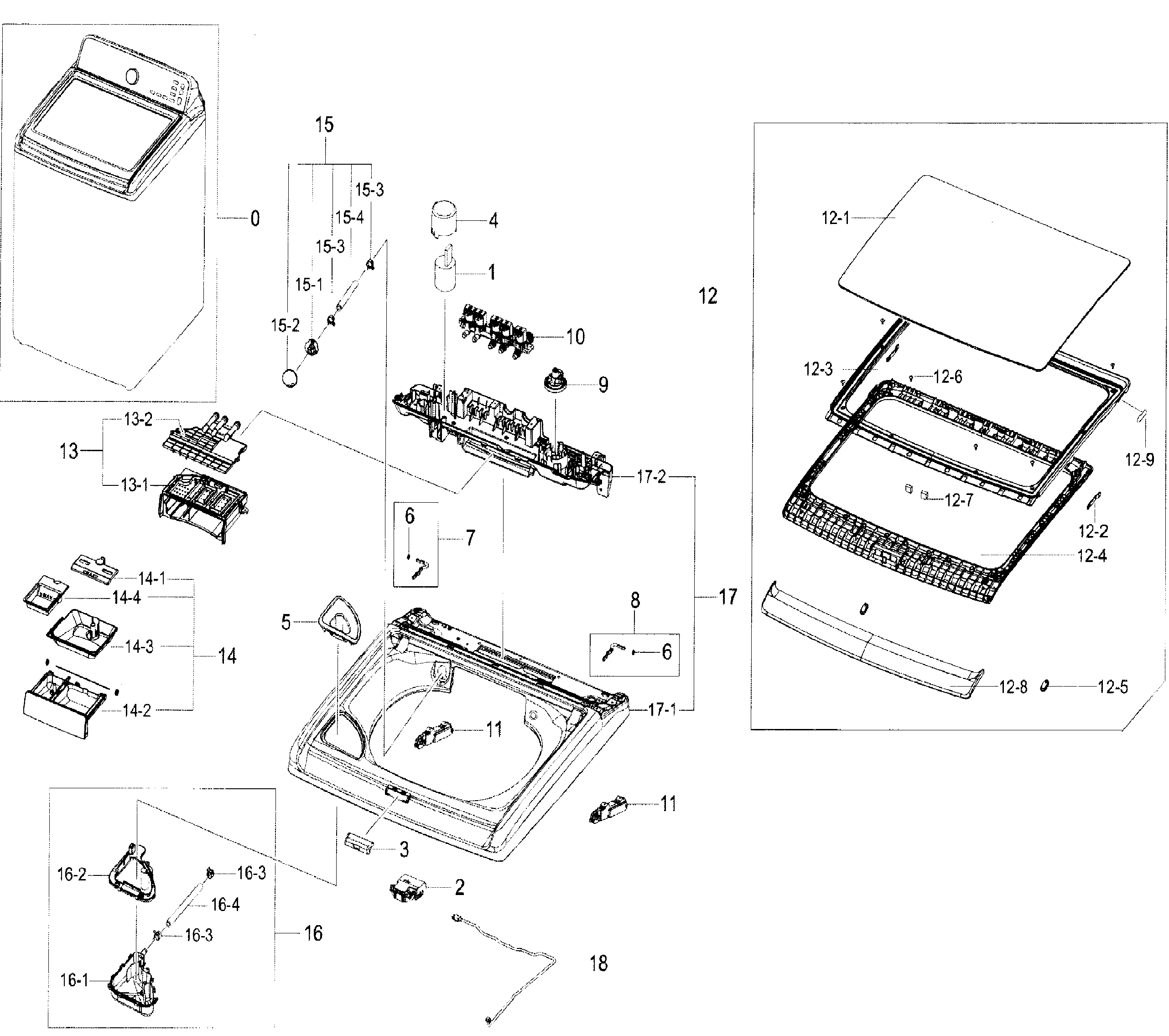

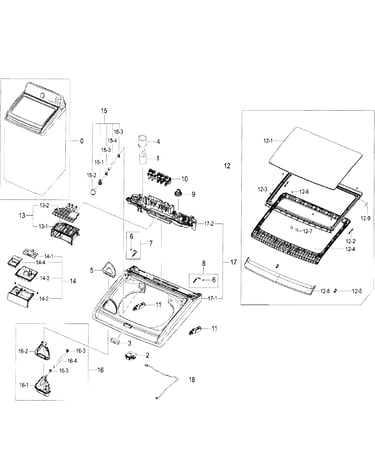

Cover top Diagram

Washer water inlet valve

Part #DC97-15459G
BEST SELLER
In Stock
$119.17 |
8% OFF
Phone Price: $129.17
Washer Motor Rotor Position Sensor#2-61

Tub parts Diagram

Washer motor rotor position sensor

Part #DC31-00098A
BEST SELLER
In Stock
$56.68 |
8% OFF
Phone Price: $61.68
Washer Drain Pump#9-5

Frame Diagram

Washer drain pump

Part #DC31-00054D
BEST SELLER
In Stock
$58.23 |
8% OFF
Phone Price: $63.23
Washer Spin Nut (replaces DC60-50003B)#1-1

Tub parts Diagram

Spin nut

Part #DC60-50003B
Replaced by #DC60-50003A
?
Manufacturer substitution
This part replaces DC60-50003B. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$19.66 |
9% OFF
Phone Price: $21.66
Refrigerator Screw (replaces 6002-000231, 6002-000494)#NI

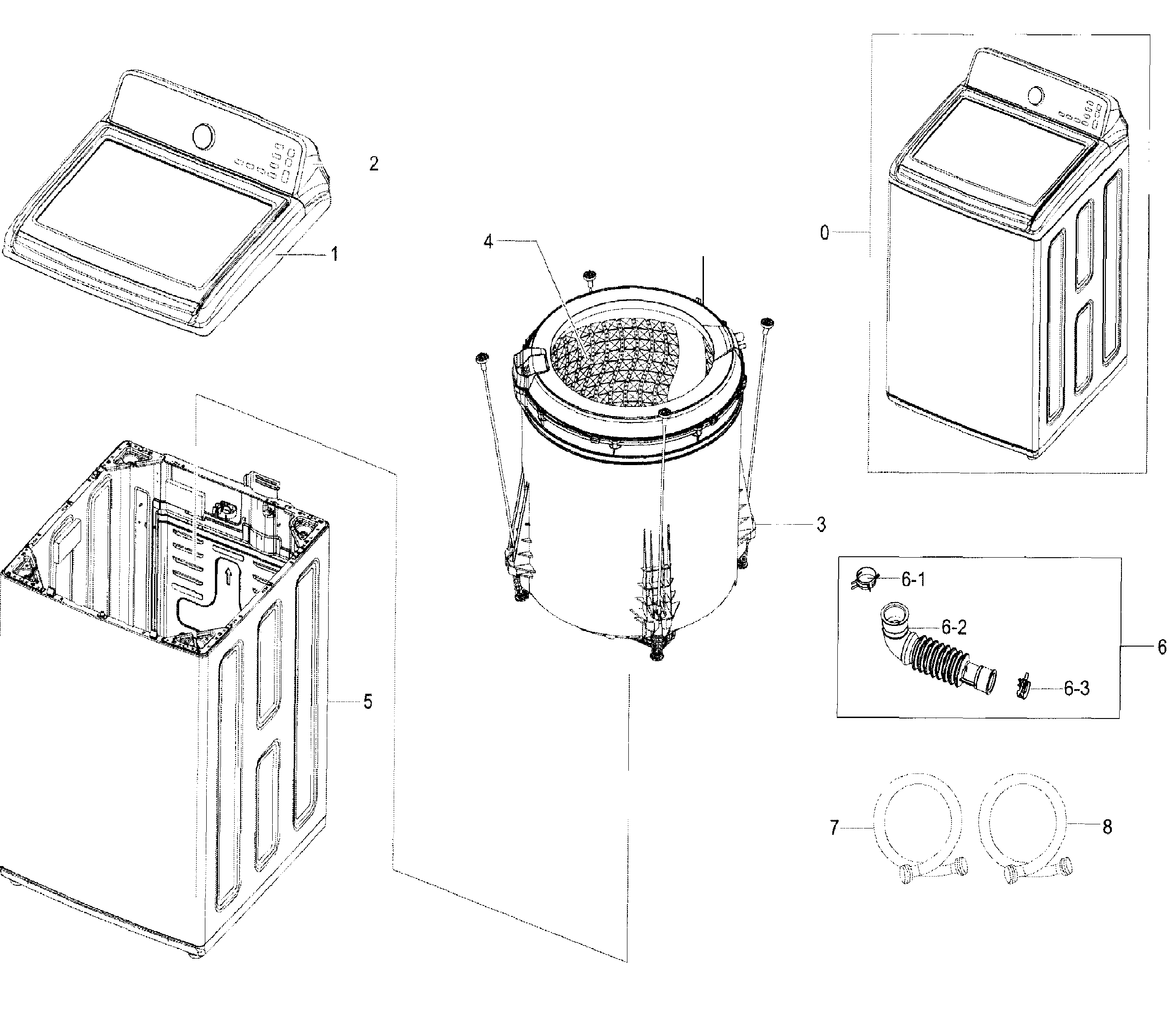

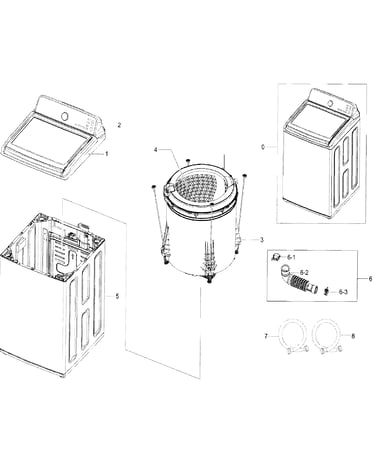

Main asy Diagram

Refrigerator screw (replaces 6002-000231, 6002-000494)

Part #6002-000213
BEST SELLER
This item is not returnable
In Stock
$2.26
Washer Leveling Leg#4-2

Frame Diagram

Washer leveling leg

Part #DC61-01722B
BEST SELLER
In Stock
$7.36 |
12% OFF
Phone Price: $8.36
Washer Drive Shaft and Shifter Assembly#2-7

Tub parts Diagram

In Stock
$241.16 |
$10.00 OFF
Phone Price: $251.16

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
