Model # WFL2060UC/01 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WFL2060UC-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

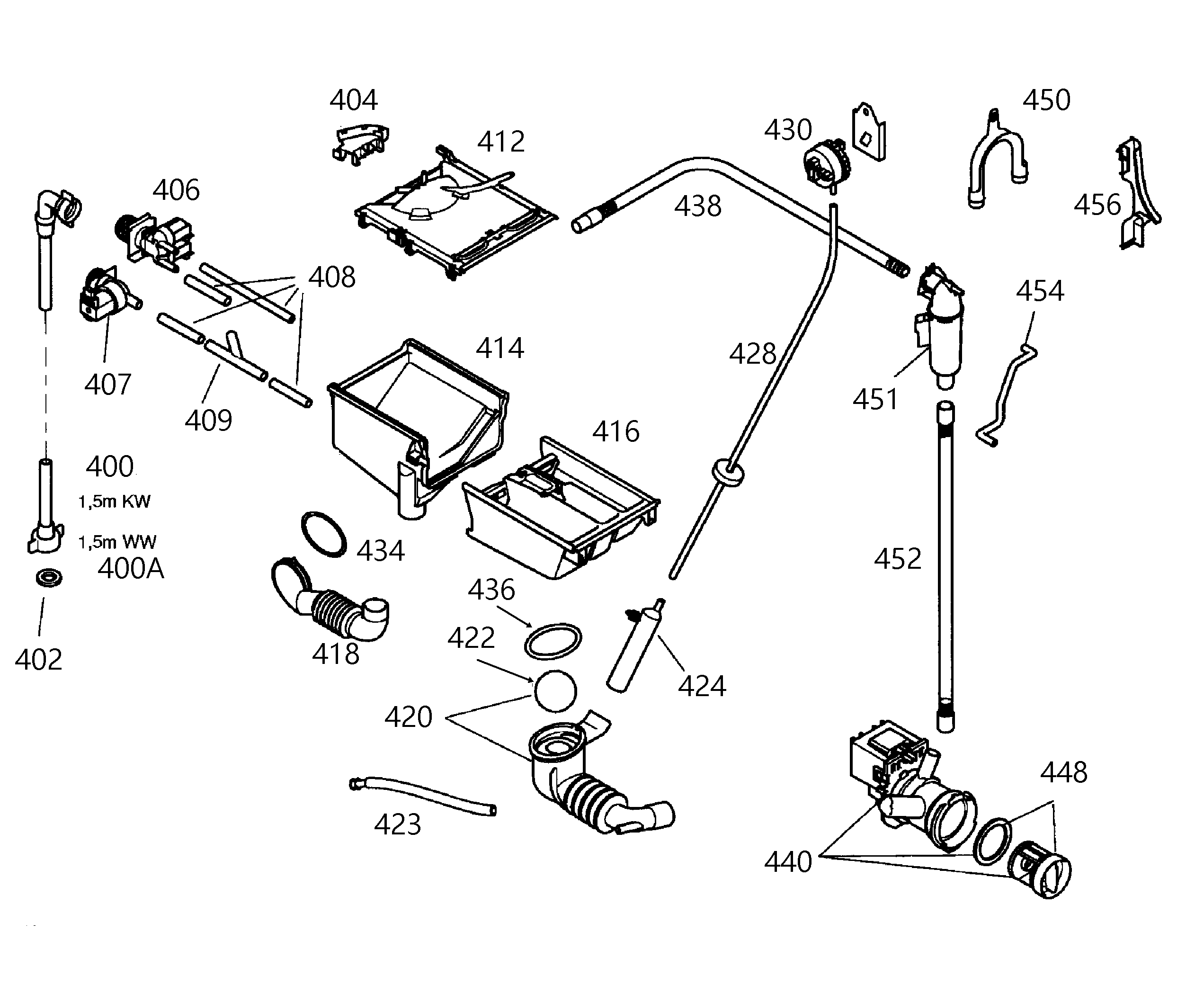

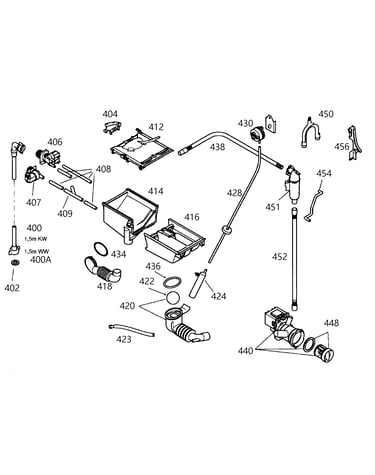

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Frame 00358289
#238

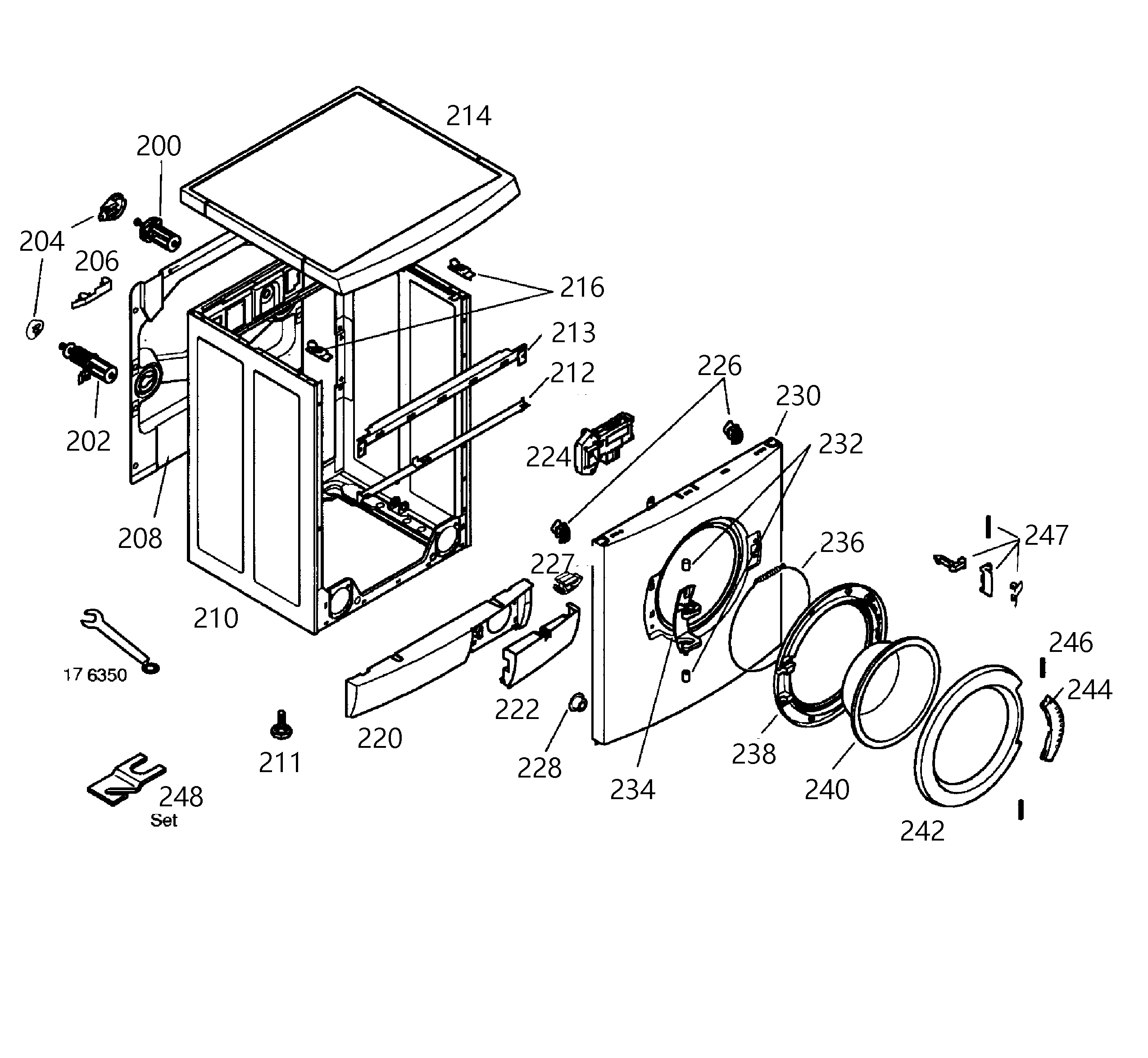

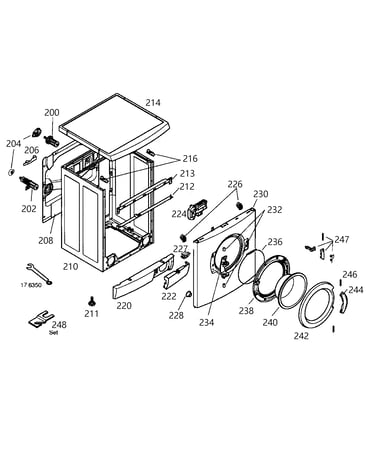

Cabinet diagram

Frame

Part #00358289

Replaced by #00432074

?
Manufacturer substitution
This part replaces 00358289. Substitute parts can look different from the original.
$46.39 |
11% OFF Phone Price : $52.39
In Stock
Foot 00170953
#211

Cabinet diagram

Foot

Part #00170953

Replaced by #00610643

?
Manufacturer substitution
This part replaces 00170953. Substitute parts can look different from the original.
This item is not returnable
$14.26
In Stock
Axis 00171255
#246

Cabinet diagram

Axis

Part #00171255

$19.60
In Stock
Handle 00269130
#244

Cabinet diagram

Handle

Part #00269130

Replaced by #00490903

?
Manufacturer substitution
This part replaces 00269130. Substitute parts can look different from the original.
$53.49
In Stock
Shock Absorber 00361126
#340

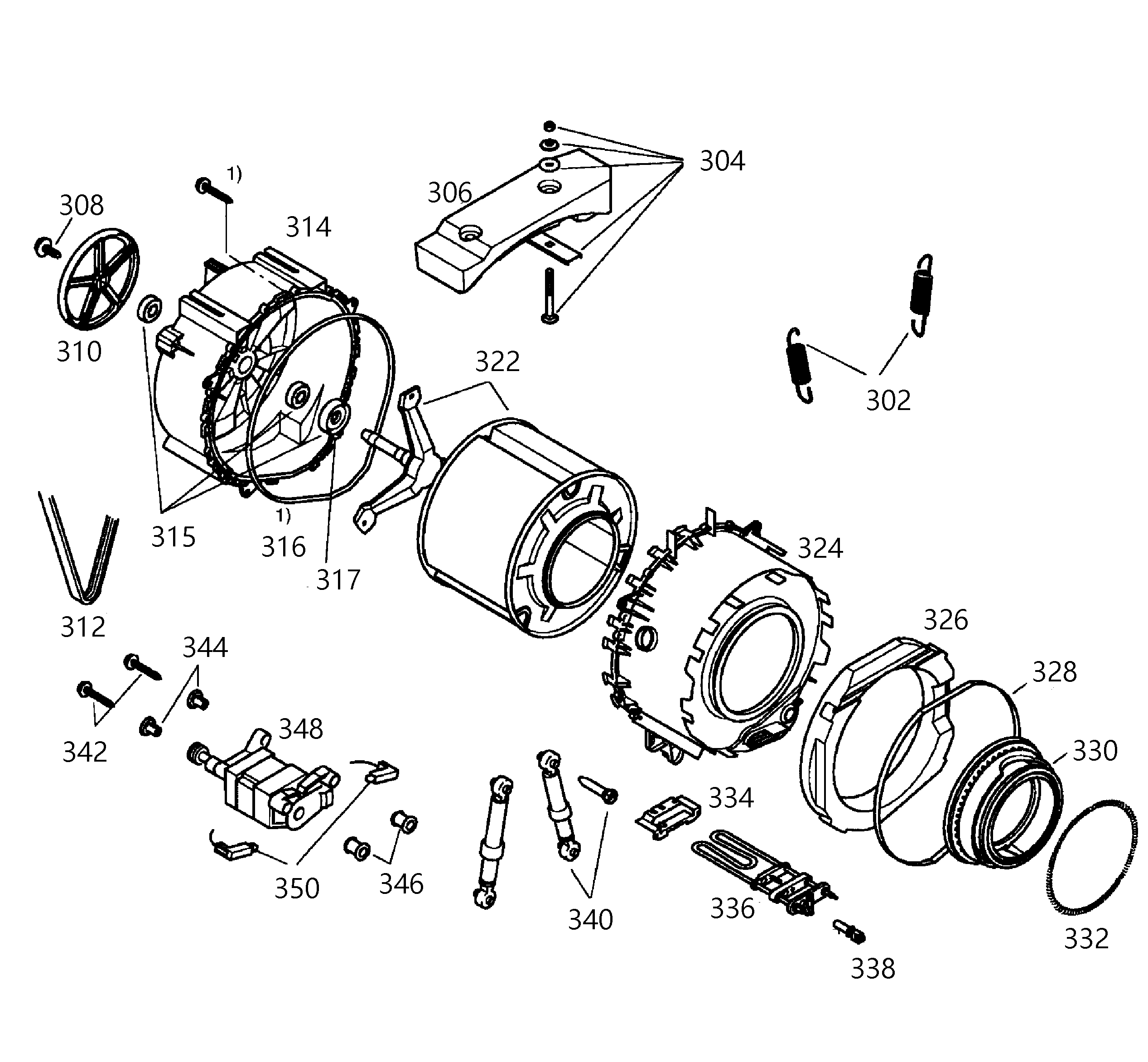

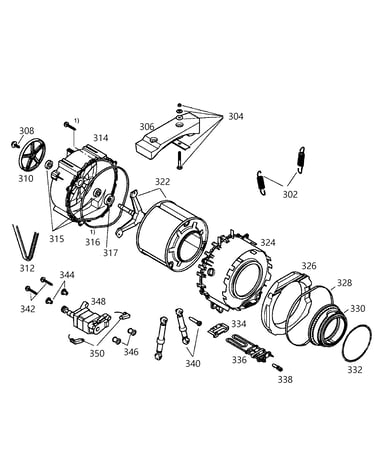

Drum diagram

Shock absorber

Part #00361126

Replaced by #00448032

?
Manufacturer substitution
This part replaces 00361126. Substitute parts can look different from the original.
$165.58
In Stock
Washer Knob 00172699
#116

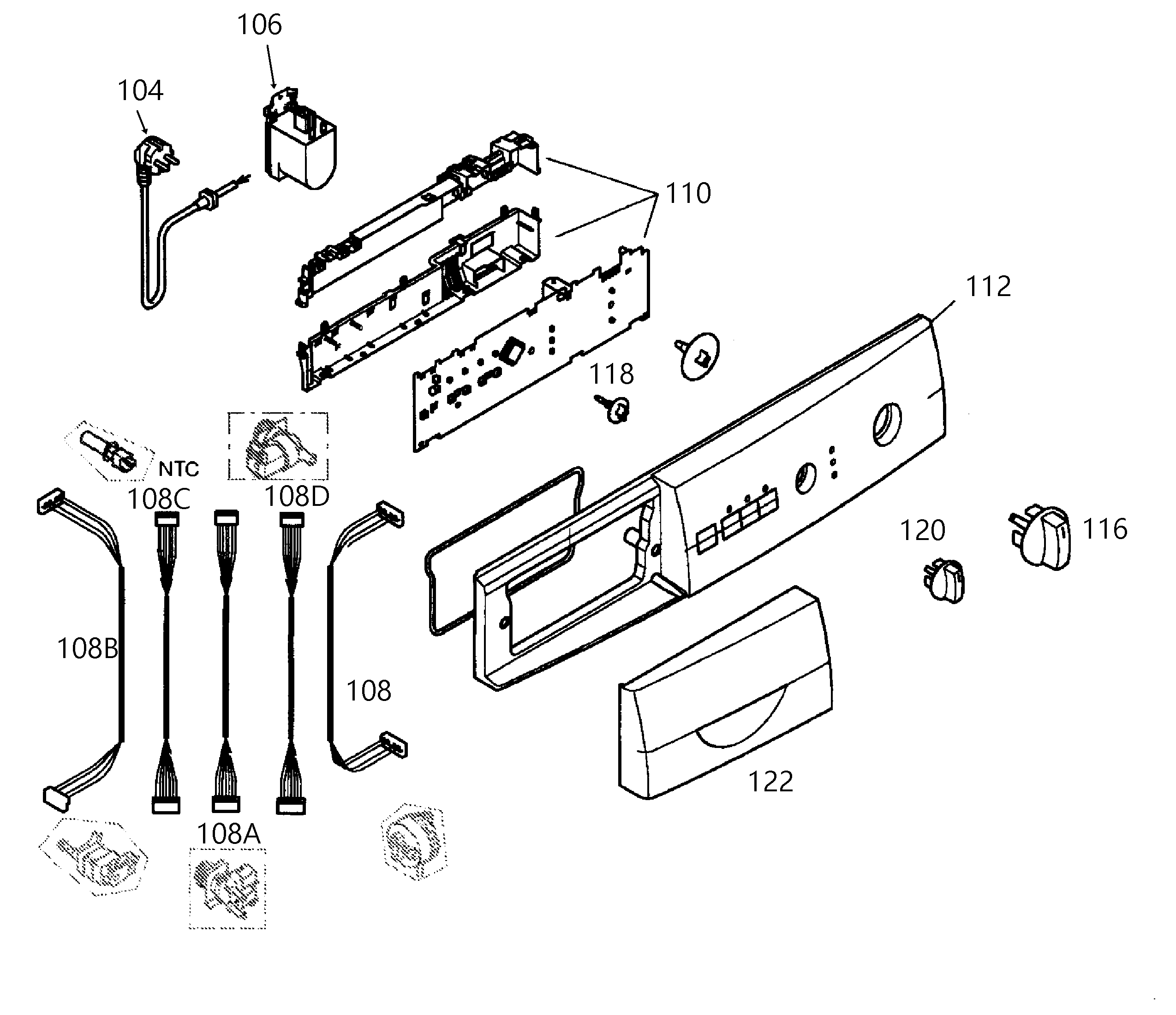

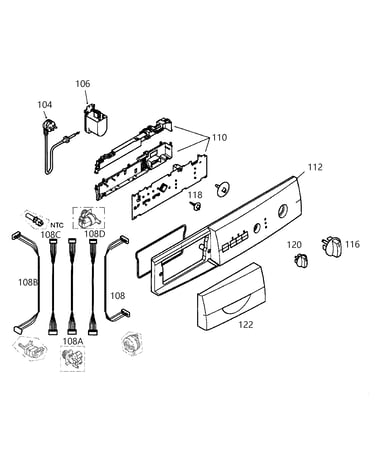

Control panel diagram

Washer knob

Part #00172699

$76.60
In Stock
Washer Door Hinge Bushing 00171264
#232

Cabinet diagram

Washer door hinge bushing

Part #00171264

$23.77
In Stock
Trans Bolt 00173226
#200

Cabinet diagram

Trans bolt

Part #00173226

$26.29
In Stock
Bosch Sealing 00265964
#316

Drum diagram

Bosch sealing

Part #00265964

$56.31
In Stock
Washer Bearing And Seal Kit (replaces 172686) 00172686
#315

Drum diagram

Washer bearing and seal kit (replaces 172686)

Part #00172686

$125.94 |
9% OFF Phone Price : $137.94
In Stock
