Amana ALW540RMC-PALW540RMC washer Parts
Here are the diagrams and repair parts for Amana ALW540RMC-PALW540RMC washer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

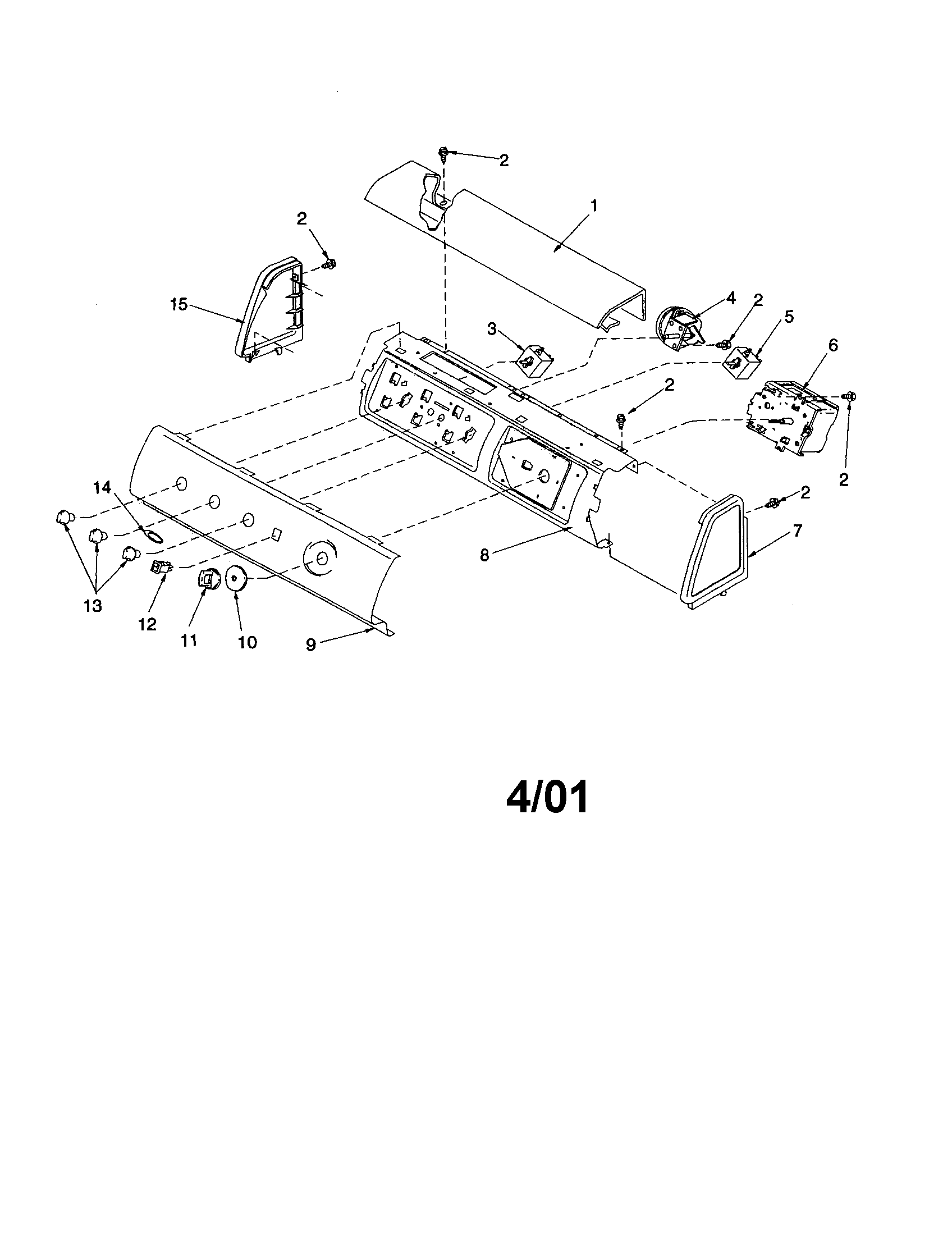

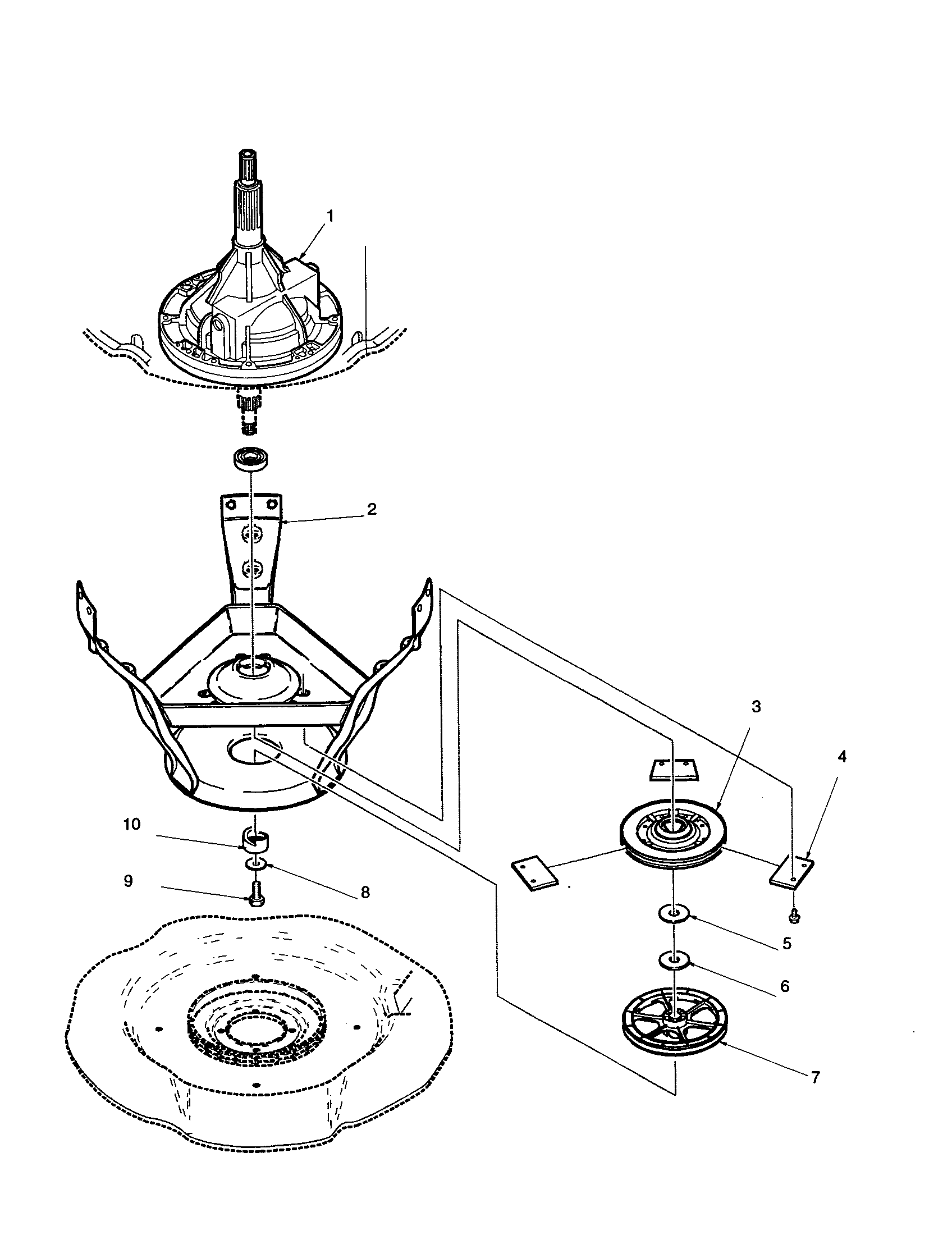

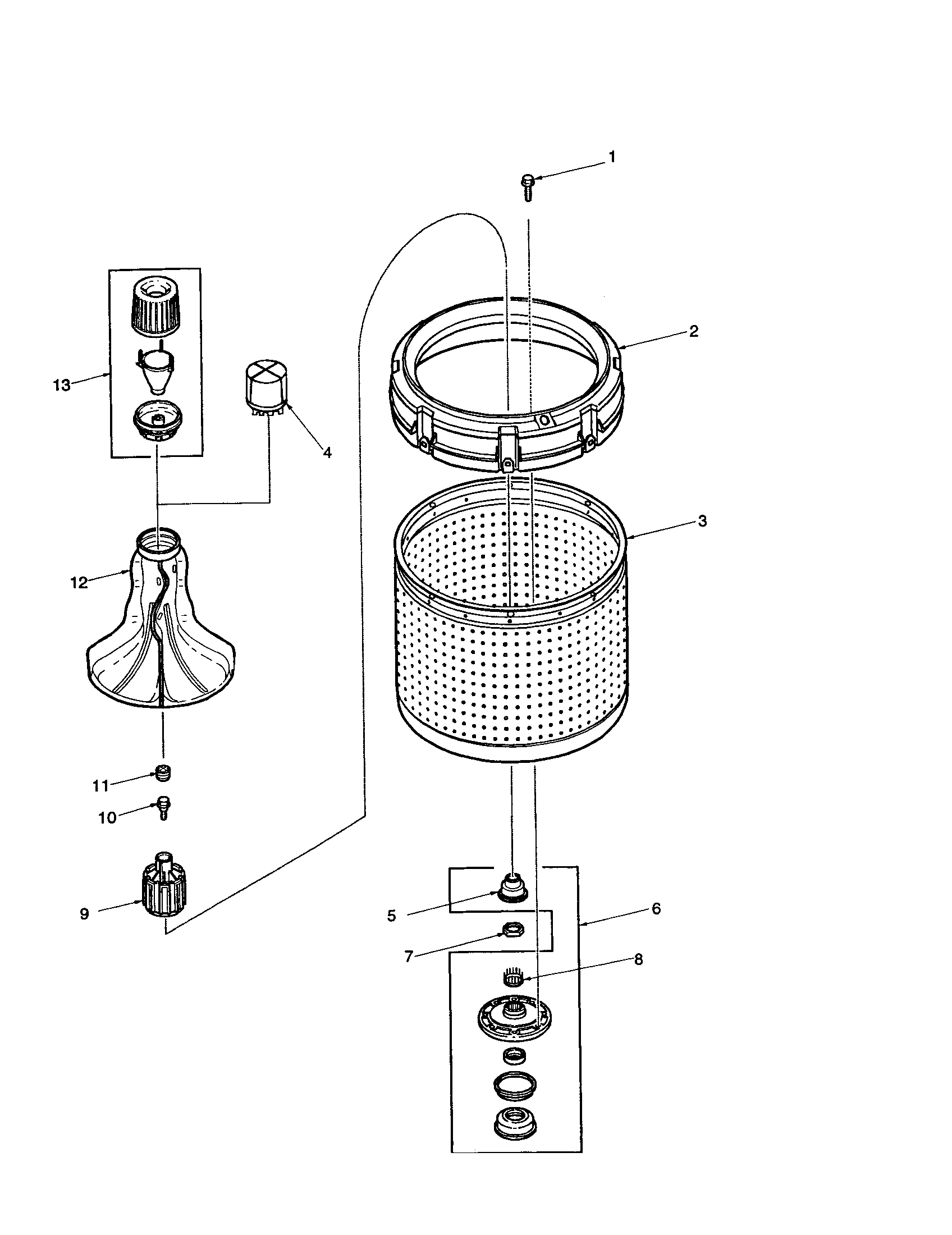

Browse Parts for ALW540RMC-PALW540RMC Washer

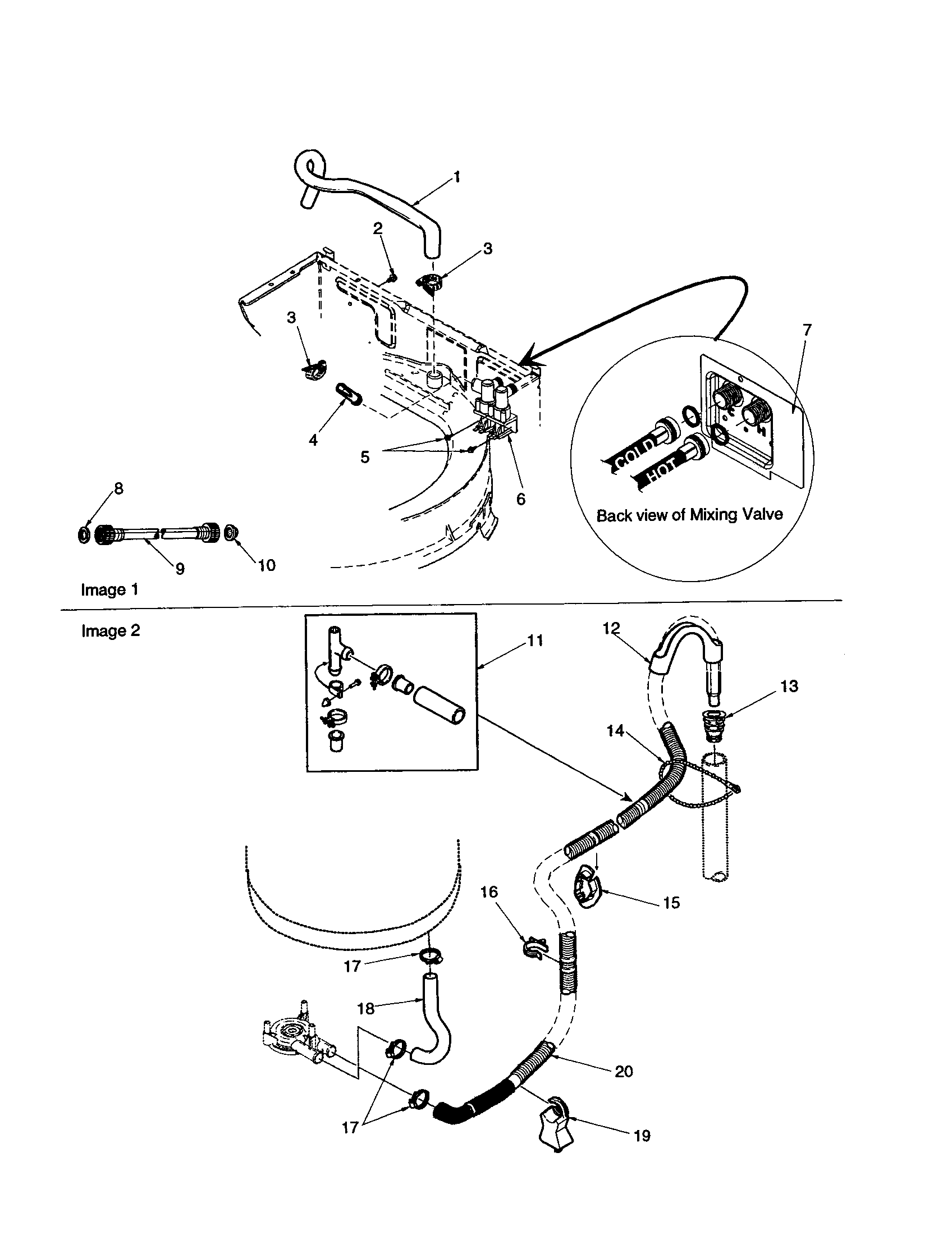

Mixing valve and hoses diagram
Hose Clamp
Part #36802Replaced by #WP285655
Manufacturer substitutionThis part replaces 36802. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21
Qty
Screw
Part #501086Replaced by #WP90767

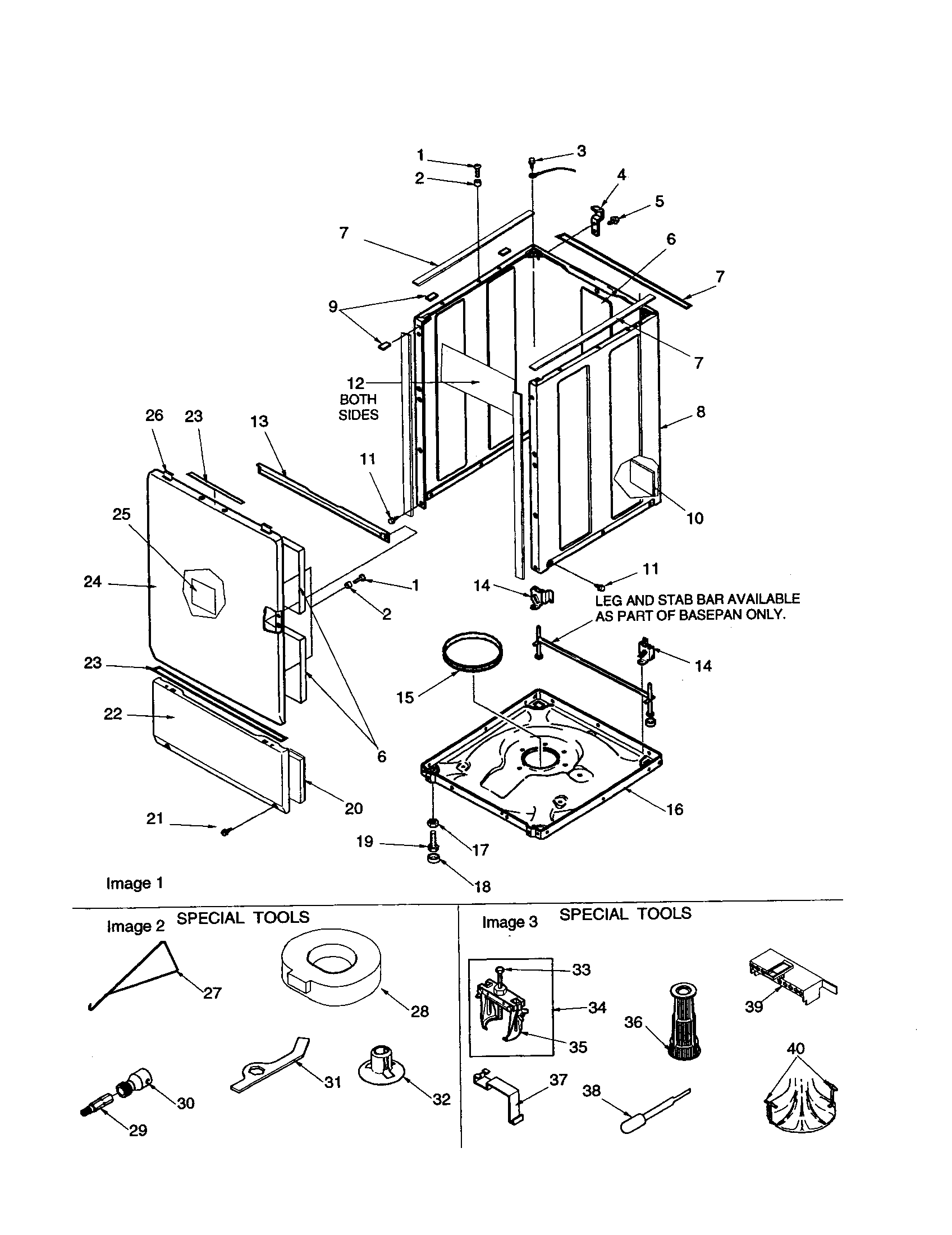

Manufacturer substitutionThis part replaces 501086. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyBase, cabinet, front/special tools diagram
Screw
Part #40064801Replaced by #WP3390631
Manufacturer substitutionThis part replaces 40064801. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyMixing valve and hoses diagram
Drain Hose
Part #40053901Replaced by #WP40053901
Manufacturer substitutionThis part replaces 40053901. Substitute parts can look different from the original.In Stock$48.9011% OFF Phone Price : $54.90QtyBase, cabinet, front/special tools diagram
Screw
Part #32671Replaced by #WPY014874

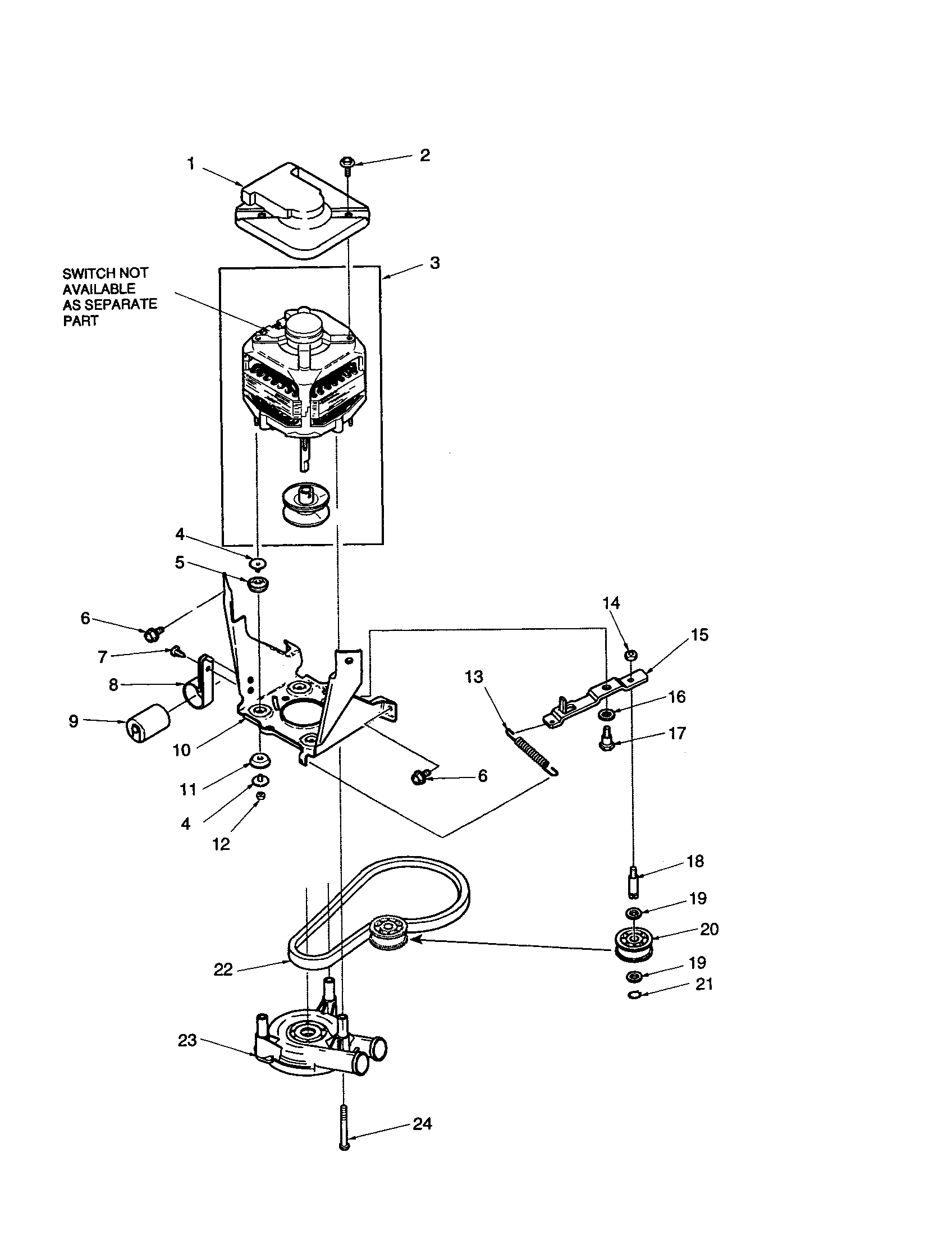

Manufacturer substitutionThis part replaces 32671. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyMotor, belt, pump and idler diagram
Shaft
Part #56461Replaced by #WP56461
Manufacturer substitutionThis part replaces 56461. Substitute parts can look different from the original.In Stock$77.577% OFF Phone Price : $83.57QtyMotor, belt, pump and idler diagram
Locknut, 10-
Part #40095101Replaced by #WPY707702

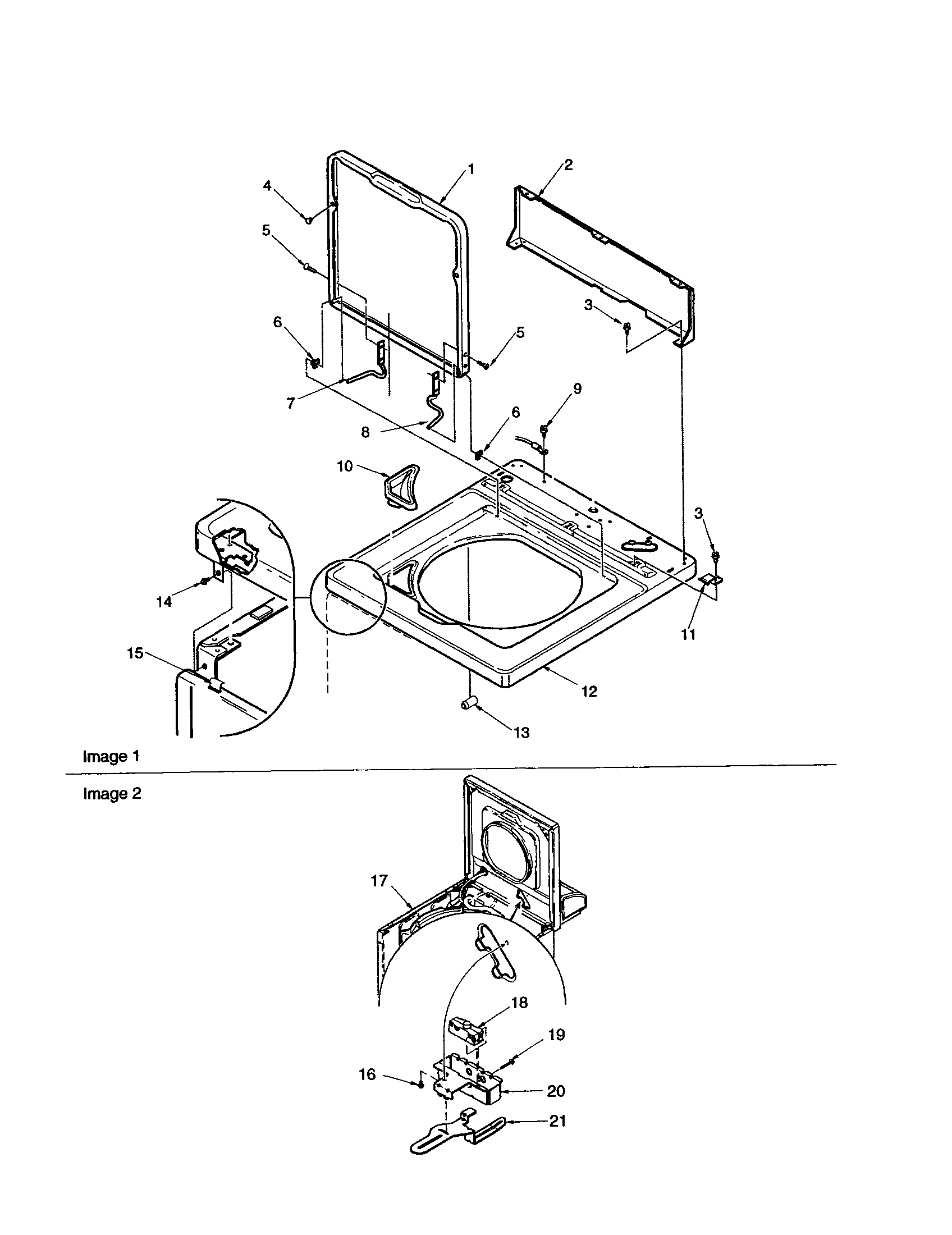

Manufacturer substitutionThis part replaces 40095101. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyCabinet top, door and door switch diagram
Screw
In Stock$27.79QtyMixing valve and hoses diagram
Adapter

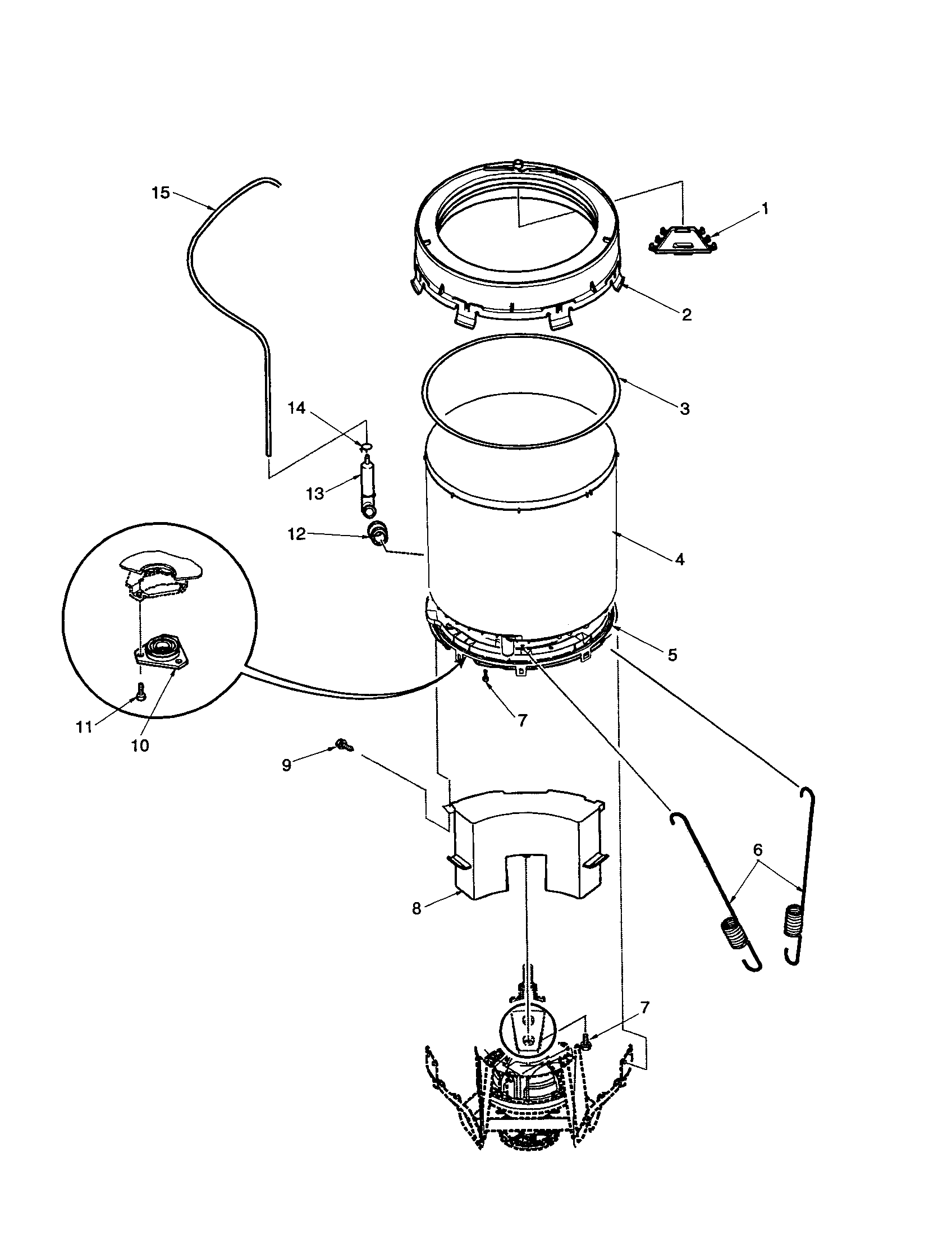

In Stock$97.39QtyOuter tub and pressure tube diagram
Screw
In Stock$27.79Qty
