Model # 11066134610 Official Kenmore dryer

Here are the diagrams and repair parts for Official Kenmore 11066134610 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 119 parts  |
Dryer Thermal Fuse, 195-degree F (replaces 3392519)
#7

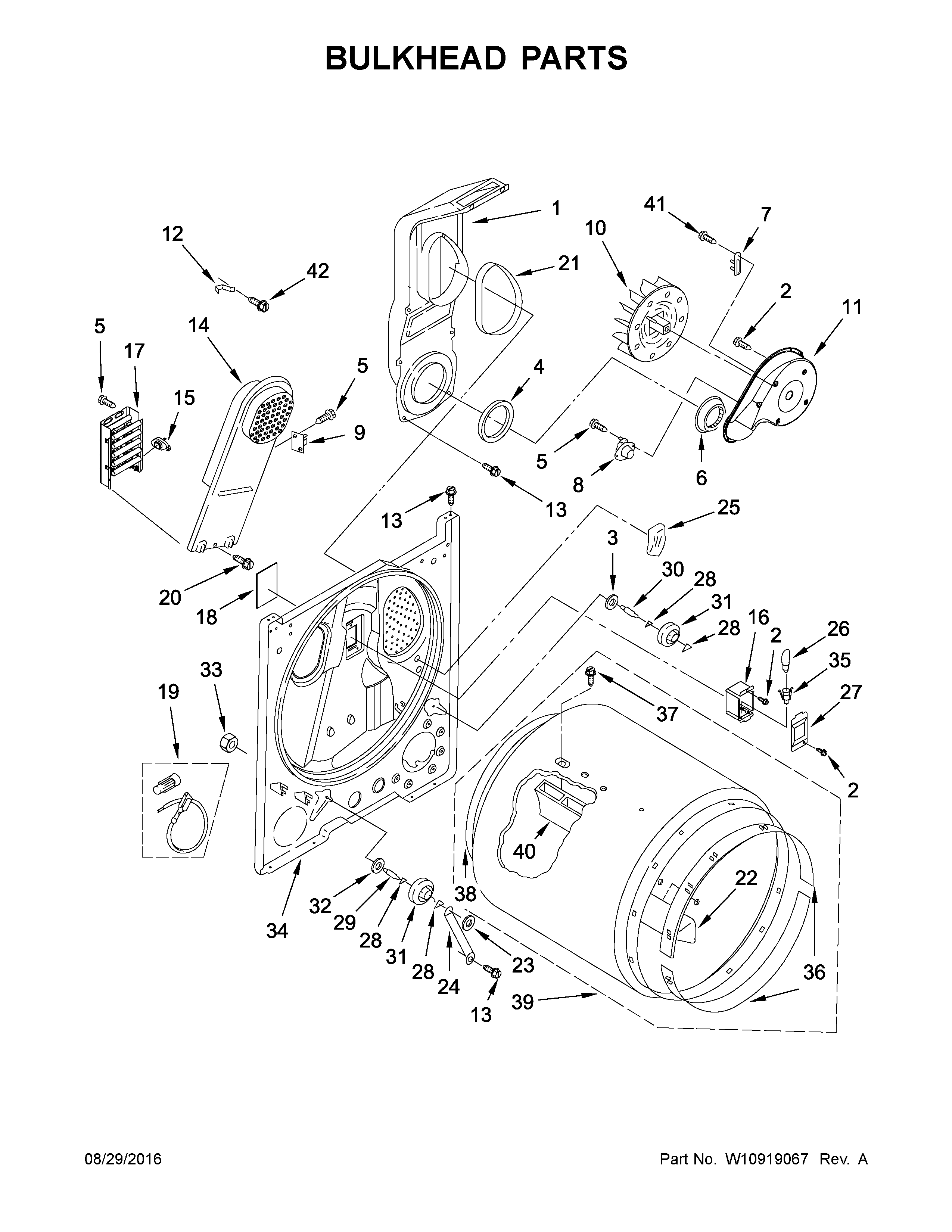

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$19.62 |
9% OFF Phone Price : $21.62
In Stock
Dryer Repair Kit (replaces 2014, 279948, 80046, 8238)
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #279948

Replaced by #4392065

?
Manufacturer substitution
This part replaces 279948. Substitute parts can look different from the original.
BEST SELLER
$31.43 |
14% OFF Phone Price : $36.43
In Stock
Dryer Heating Element (replaces WP279837, WP279838)
#17

Bulkhead parts diagram

Dryer heating element

Part #W10724237

Replaced by #279838

?
Manufacturer substitution
This part replaces W10724237. Substitute parts can look different from the original.
BEST SELLER
$65.25 |
7% OFF Phone Price : $70.25
In Stock
Dryer Drum Support Roller Kit (replaces 26000349241, 3397590, 8170)
#31

Bulkhead parts diagram

Support

Part #3397590

Replaced by #349241T

?
Manufacturer substitution
This part replaces 3397590. Substitute parts can look different from the original.
BEST SELLER
$19.79 |
10% OFF Was : $21.99
In Stock
Dryer Door Handle (White) (replaces W10714516)
#37

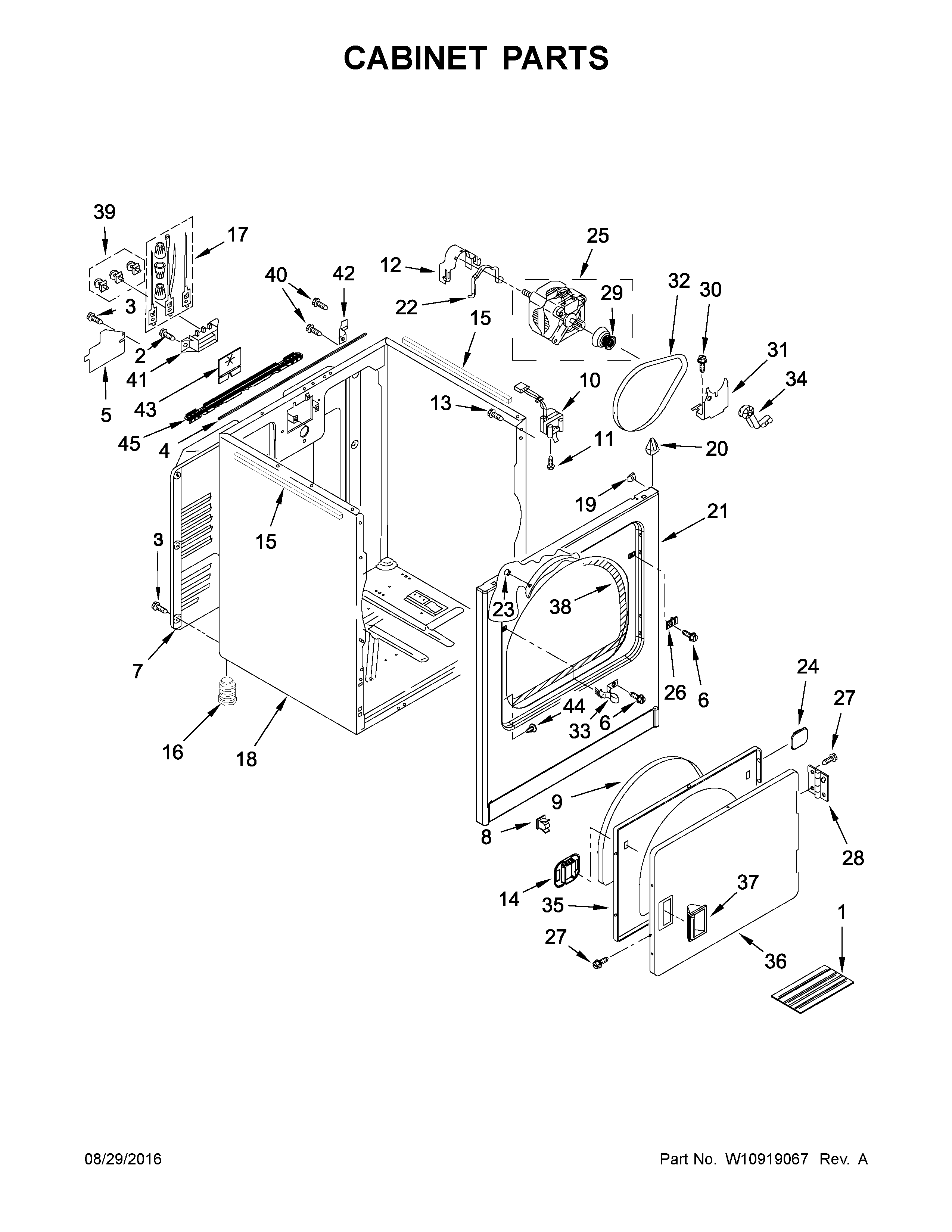

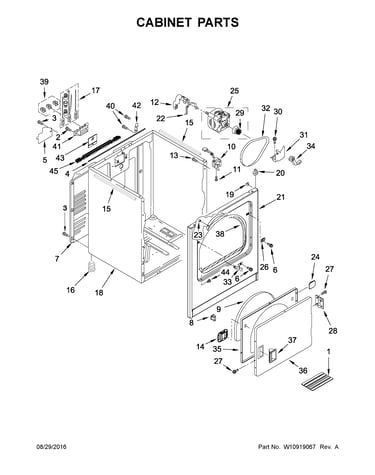

Cabinet parts diagram

Dryer door handle

Part #W10714516

Replaced by #W10861225

?
Manufacturer substitution
This part replaces W10714516. Substitute parts can look different from the original.
BEST SELLER
$33.24 |
15% OFF MSRP : $39.00
In Stock
Dryer Idler Pulley (replaces 691366, W10612905)
#34

Cabinet parts diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$14.31 |
12% OFF Phone Price : $16.31
In Stock
Dryer Thermistor (replaces 8577274)
#8

Bulkhead parts diagram

Dryer thermistor

Part #8577274

Replaced by #WP8577274

?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
BEST SELLER
$44.48 |
10% OFF Phone Price : $49.48
In Stock
Dryer Drive Motor (replaces 2019, 3388235, 349588, 3980069, 661654, 8066206, 8066207, 8115, 8538262, 8539555, W10194250, W10366770, W10396029, W10396032, W10448892)
#25

Cabinet parts diagram

Drive motor

Part #W10396029

Replaced by #279827

?
Manufacturer substitution
This part replaces W10396029. Substitute parts can look different from the original.
BEST SELLER
$98.37 |
9% OFF Phone Price : $108.37
In Stock
Dryer High-Limit Thermostat (replaces 3977767)
#15

Bulkhead parts diagram

Dryer high-limit thermostat

Part #3977767

Replaced by #WP3977767

?
Manufacturer substitution
This part replaces 3977767. Substitute parts can look different from the original.
BEST SELLER
$17.38 |
10% OFF Phone Price : $19.38
In Stock
Dryer Drum Light Bulb (replaces 22002263, 8206780)
#26

Bulkhead parts diagram

Light bulb

Part #3406124

Replaced by #WP22002263

?
Manufacturer substitution
This part replaces 3406124. Substitute parts can look different from the original.
BEST SELLER
$17.95 |
10% OFF Phone Price : $19.95
In Stock
