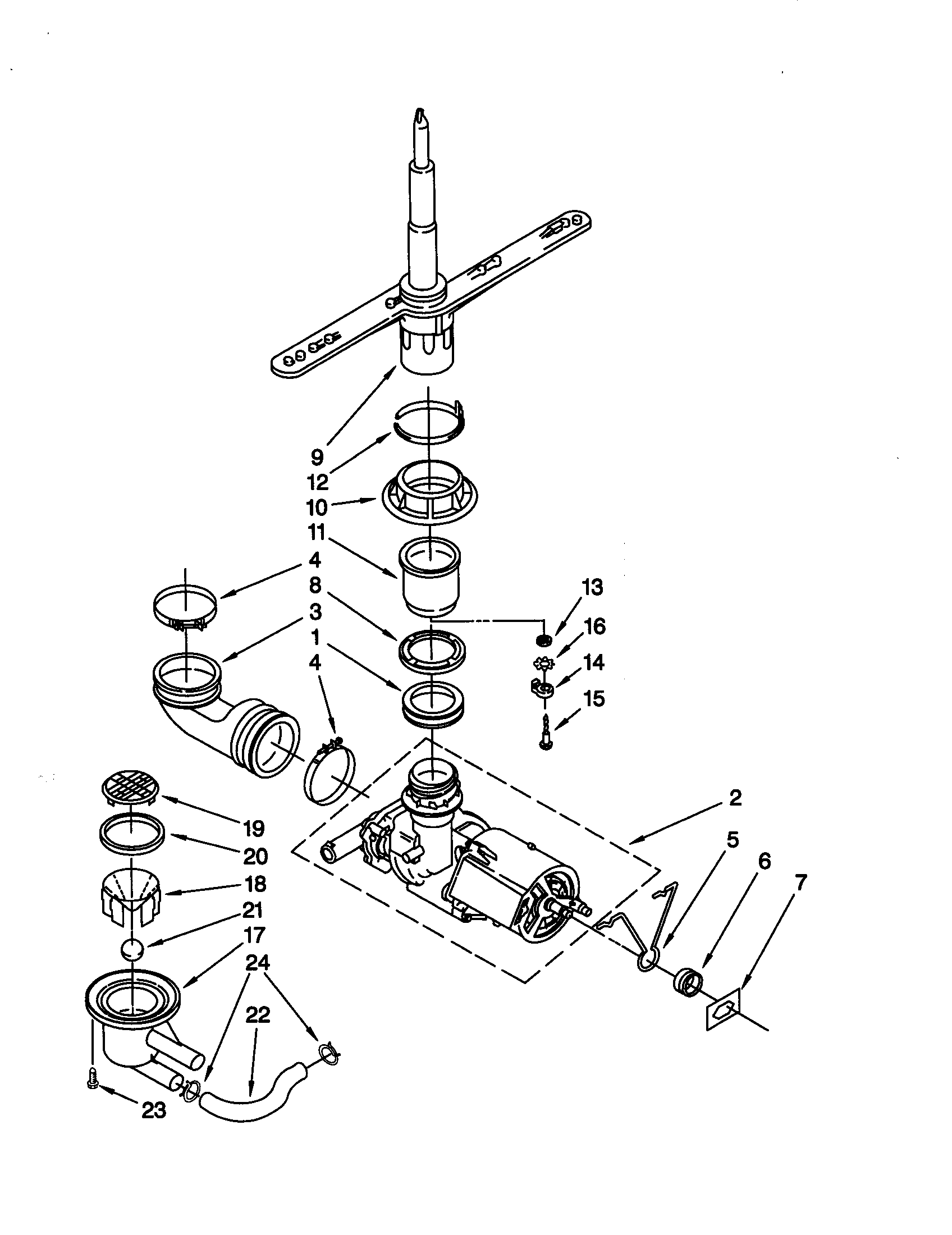

In a Whirlpool DU800DWGX1 dishwasher, the filter area is in the bottom of the tub under the lower dishrack, typically around the base of the lower spray arm and sump. Pull the lower rack out and look for a screen or grate that covers the intake area.

How to find it (quick steps)

• Turn the dishwasher off at the control and let the unit cool if it just ran.
• Pull the lower rack straight out.
• Look at the center-bottom of the tub where the lower spray arm mounts.
• Check for a flat screen or grate covering the sump intake.
• If there is a removable piece, lift or twist it gently; do not force it.

What you will see on this model

Many Whirlpool dishwashers in this series use a screen or tub grate style filter area rather than a tall, twist-out cartridge. On DU800DWGX1, the “filter” you clean is usually the screen/grate over the pump intake at the bottom of the tub.

What you’re looking for	Where it sits	What it does
Screen/grate (filter area)	Bottom of tub near spray arm base	Catches debris before it reaches the pump
Sump intake area	Center-bottom	Feeds water to the wash pump
Spray arm hub	Center-bottom	Distributes wash water

If you suspect the filter area is damaged or missing

A warped or broken grate can let debris reach the impeller and cause poor cleaning or draining. If the bottom screen/grate is cracked or won’t stay seated, match the replacement to your model’s parts list; a common related part in this area is the dishwasher tub grate WP3369322.

Why it matters

Keeping the filter area clear helps prevent clogs, improves wash performance, and reduces strain on the pump and impeller.

For cleaning and maintenance steps that apply to Whirlpool dishwashers, use our guide: how to clean and maintain your dishwasher.

Last updated: February 2026

The most common Whirlpool dishwasher problem we see on models like DU800DWGX1 is poor cleaning or draining caused by a clog or restricted water flow. In practice, that usually traces back to food debris buildup in the sump area, a blocked drain path, or a fill issue that leaves the wash pump without enough water.

Most common symptoms and what they usually mean

• Dishes still dirty: spray arm holes or sump area restricted; low fill can also reduce wash pressure
• Water left in the bottom: drain hose restriction, drain path blockage, or a pump/impeller issue
• Won’t start or stops mid-cycle: door not latching fully, or a control/console issue
• Leaking at the front or corners: door sealing issue or tub corner baffle/deflector not sealing
• No water entering: inlet valve not opening, or supply shutoff not fully open

Quick checks we recommend first (no parts needed)

1. Cancel/drain the cycle and listen for the drain pump running.
2. Check the sink drain/disposal for a clog (a blocked sink drain often backs up the dishwasher).
3. Inspect the drain hose routing: look for kinks and make sure it has a high loop.
4. Clean out visible debris in the bottom of the tub around the sump area.
5. Confirm hot water supply is on and the shutoff valve is fully open.

Parts that commonly solve these problems on DU800DWGX1

If the basic checks point to a failed component, these are common fixes for the symptoms above:

Symptom	Common fix	Example part on this model
Not filling or fills too slowly	Replace water inlet valve	Inlet valve W10844024
Won’t start, won’t run when door closes	Replace door latch	Dishwasher door latch WP3380854
Not draining or drains poorly	Replace drain hose if restricted	Drain hose WP3374077

Why it matters

A dishwasher that is not filling, washing, or draining correctly often keeps re-circulating dirty water or never builds proper spray pressure. Fixing the root cause protects the wash motor and helps prevent repeat clogs and leaks.

For fault lights or beeping patterns, use our Whirlpool dishwasher error codes guide to match the symptom to the most likely failed part.

Last updated: February 2026

A Whirlpool dishwasher like model DU800DWGX1 typically lasts 10 years with normal household use. Consistent cleaning, correct loading, and fixing small leaks or drain issues quickly are the biggest factors that keep the wash system, door, and racks working longer.

Typical lifespan and what affects it

Most dishwashers fall into a similar life range, but day-to-day conditions make a big difference.

• Water quality: hard water speeds up mineral buildup on the inlet valve, spray system, and heater area
• How often it runs: multiple loads per day shortens lifespan faster than light use
• Maintenance: cleaning the tub and checking for clogs prevents pump strain
• Loading habits: overloading can damage racks, tines, and the door latch alignment
• Small problems left alone: slow draining or minor leaks often lead to bigger failures

Quick maintenance that extends life

These steps help protect the motor, pump, and seals.

• Run a monthly cleaning cycle (dishwasher cleaner or a manufacturer-approved method)
• Keep the bottom of the tub clear of labels, glass, and food debris
• Make sure the drain path is clear and the hose is not kinked
• Use rinse aid to reduce spotting and improve drying performance
• Inspect the door closing action; a door that does not close smoothly can wear the latch

Parts that commonly wear first (and why)

If your DU800DWGX1 is otherwise in good shape, replacing a worn part can be a cost-effective way to extend service life.

Symptom	Common wear area	Example part for this model
Door will not latch or starts then stops	Door latch mechanism	Dishwasher door latch WP3380854
Slow fill, no fill, or fill errors	Water inlet valve	Inlet valve W10844024
Leaks or water where it should not be	Hose connections and clamps	Clamp WP596669

Why it matters

A dishwasher near the end of its lifespan often shows early warning signs (longer cycles, poor cleaning, intermittent draining). Addressing those symptoms early helps prevent secondary damage to the pump, wiring, and door seals.

Last updated: February 2026

On a Whirlpool dishwasher like model DU800DWGX1, an F8 error is most often tied to a water issue (overfill, leak into the base, or abnormal fill). We clear it by stopping power, removing any standing water, correcting the cause (leak, suds, or fill problem), then resetting the control using the proper reset sequence.

Quick reset steps (start here)

• Turn the dishwasher off at the breaker for 1 minute, then restore power.
• If the unit has standing water in the tub, cancel the cycle and let it drain.
• Run a short rinse cycle to see if the code returns.

What usually causes an F8 code

Most F8 situations come from one of these conditions:

• Excess water or a leak collecting in the base area (some models detect this as an overfill condition)
• Excessive suds from wrong detergent or too much rinse aid
• A fill problem (slow fill, stuck valve, or water level sensing issue)
• Door not closing fully, causing abnormal operation during fill

Common checks we recommend

• Use only automatic dishwasher detergent; never use hand dish soap.
• If you see lots of foam, stop the cycle, let suds dissipate, and run a rinse-only cycle.
• Check the float (water level float) inside the tub; it should move freely up and down.
• Inspect for drips under the unit and around the door corners.
• If the dishwasher overfills or keeps filling, suspect the water inlet valve.

Parts that commonly fix the underlying problem

If the F8 code returns after a reset, these model-matched parts are common solutions.

Symptom you see	Likely area	Model-matched part to consider
Overfilling or filling when off	Water inlet valve stuck open	Inlet valve W10844024
Water on floor or leak at hose connection	Hose clamp loose or damaged	Clamp WP596669
Door won’t latch consistently	Door latch not engaging	Dishwasher door latch WP3380854

Why it matters

An F8 condition usually means the dishwasher is not controlling water correctly. Fixing the root cause prevents leaks, protects the motor and wiring, and helps the dishwasher clean and drain normally.

Related troubleshooting help

For code definitions and model-family troubleshooting steps, use our Whirlpool dishwasher error codes guide.

Last updated: February 2026
