Whirlpool LA7800XSW0 washer Parts
Here are the diagrams and repair parts for Whirlpool LA7800XSW0 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

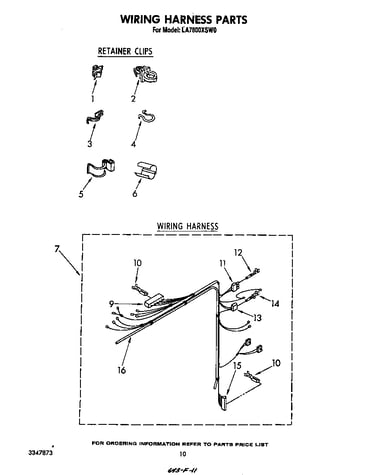

Browse Parts forLA7800XSW0 Washer

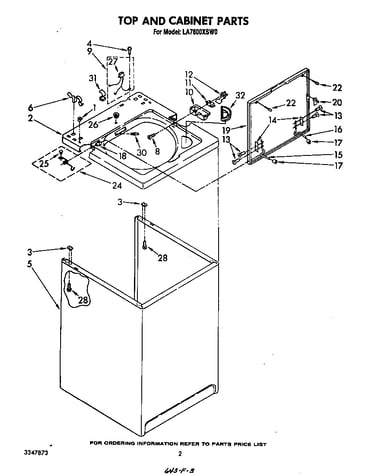

Top and cabinet diagram
Stop
Part #358472
The manufacturer no longer makes this part, and there's no substitute part

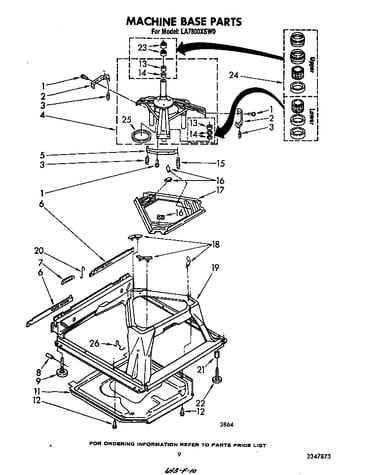

Machine base diagram
Leveling Link Assembly
Part #63466
The manufacturer no longer makes this part, and there's no substitute part

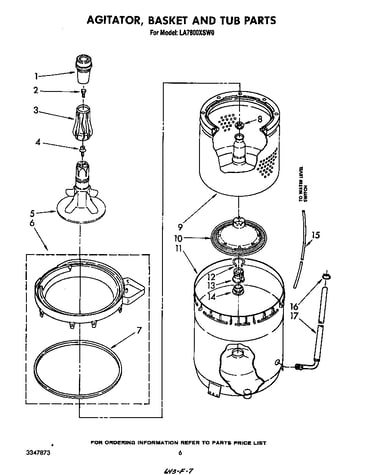

Agitator, basket and tub diagram
Washer Filter Plate Lock Ring
Part #62942
The manufacturer no longer makes this part, and there's no substitute part

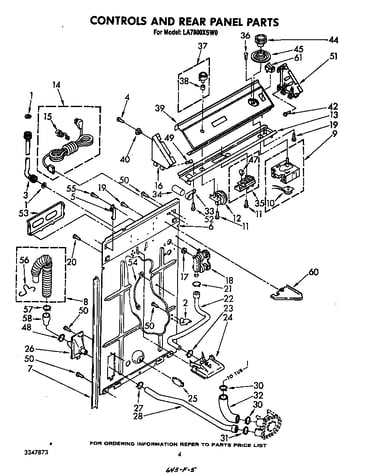

Controls and rear panel diagram
Timer Knob
Part #3347726
The manufacturer no longer makes this part, and there's no substitute part
Top and cabinet diagram
Top Al P
Part #388346
The manufacturer no longer makes this part, and there's no substitute part
Controls and rear panel diagram

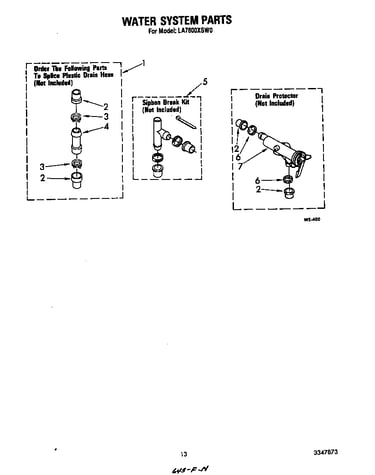

Washer Pump Drain Hose
Part #3348664
The manufacturer no longer makes this part, and there's no substitute part
Controls and rear panel diagram
Control Panel
Part #3348394
The manufacturer no longer makes this part, and there's no substitute part
Top and cabinet diagram
Top To P
Part #388347
The manufacturer no longer makes this part, and there's no substitute part

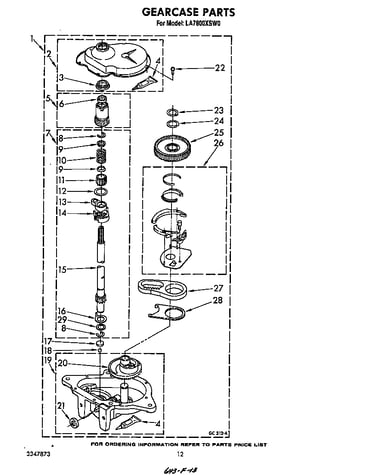

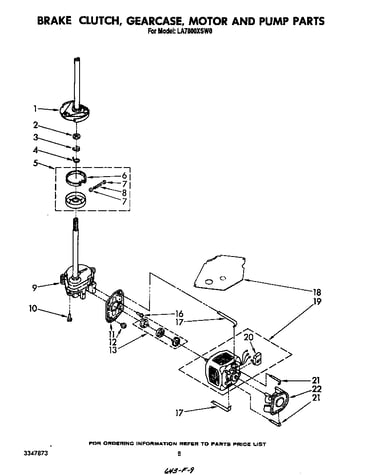

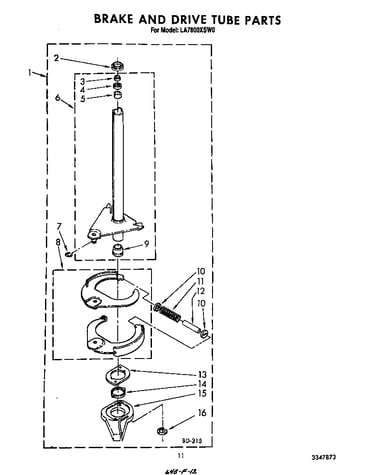

Gearcase diagram
Washer Kit
Part #285292
The manufacturer no longer makes this part, and there's no substitute part
Controls and rear panel diagram
Screw
Part #355326
The manufacturer no longer makes this part, and there's no substitute part
