Are lawnmower decks universal?
No. Mower decks are not universal; on the Craftsman 917270722, the deck must match the tractor’s frame, belt routing, spindle (mandrel) setup, and discharge configuration, so “close enough” decks usually do not bolt on or drive correctly. Use the 917270722 owner's manual to confirm deck type and the exact deck parts breakdown.
What has to match for a deck to interchange
Even when two riding mowers both use a 42-inch deck, these fitment points commonly differ:
- Mounting points and hangers: front draft rod, rear lift links, sway bars

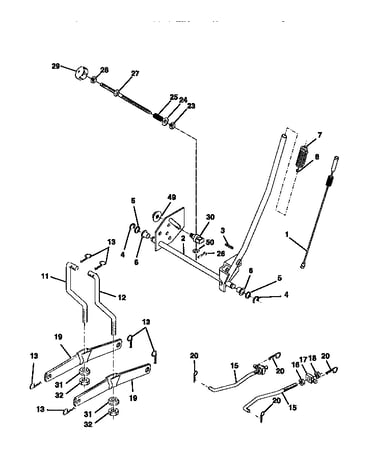

- Deck lift geometry: lift shaft location and lift range
- Belt path and pulley sizes: engine pulley alignment and idler layout
- Mandrel (spindle) pattern: housing style, shaft length, pulley offset
- Discharge style: side discharge vs mulching plate vs bagger-ready
- Gauge wheel locations: to keep the deck level at your cutting height
Quick compatibility checklist (before you buy)
Use this checklist to avoid ordering a deck that will not fit or will cut poorly:
| What to compare | What to look for | Why it matters |
|---|---|---|
| Deck model/part number | Same deck housing family | Ensures mounting and geometry match |
| Blade drive belt | Same length and width | Prevents slipping and engagement issues |
| Mandrel parts | Same mandrel housing and pulley | Keeps blades aligned and spinning true |
| Lift links and brackets | Same style and hole positions | Maintains correct cutting height range |
Model-specific notes for Craftsman 917270722
Your manual shows this tractor uses a defined mower deck assembly and supports converting between mulching, bagging, and discharging by installing or removing the mulcher plate. That means deck configuration and shields must match the correct housing and hardware.
If you are rebuilding instead of replacing the whole deck, these model-matched parts are often the better fix:
- Deck 532176031 (deck housing assembly)
- Lawn tractor drive belt 532144200 (blade drive belt)
- Husqvarna lawn tractor mandrel assembly 532130794 (spindle/mandrel assembly)
Why it matters
A mismatched deck can cause uneven cutting, poor discharge, belt throw-off, or blades that will not rotate. Keeping the deck matched to the 917270722’s lift and drive system protects the mandrels, pulleys, and belts.
Last updated: February 2026
Do Craftsman mowers use Briggs and Stratton engines?
Yes, many Craftsman mowers and lawn tractors use Briggs & Stratton engines. For Craftsman lawn tractor model 917270722, the 917270722 owner's manual identifies a Briggs & Stratton engine model 311707 (Type 0132-E1), so this specific tractor is Briggs-powered.
What this means for parts and service
Engine brand matters because tune-up parts, carburetor kits, starter parts, and wiring harnesses are typically selected by the engine model and type, not just the tractor model.
- Use the tractor model 917270722 to find chassis and deck parts (belts, blades, steering, lift components).
- Use Briggs & Stratton 311707 Type 0132-E1 to match engine parts (spark plug, air filter, fuel filter, carburetor parts).
- When ordering engine parts, always match both the model and type numbers.
- If your tractor has been repowered, verify the engine tag on the engine blower housing.
Quick check: tractor model vs. engine model
| What you’re working on | Use this identifier | Example for this unit |
|---|---|---|
| Tractor frame, steering, deck, belts | Tractor model number | 917270722 |
| Engine internals and fuel/ignition | Engine model and type | Briggs & Stratton 311707, Type 0132-E1 |
Common deck and drive parts for this model
If your question is really about mowing performance or belt routing, these model-matched parts are commonly involved:
- Lawn tractor ground drive belt, 1/2 x 82-in 532140294 for traction drive issues
- Lawn tractor drive belt 532144200 for blade drive and deck engagement issues
- Husqvarna lawn tractor mulching blade, 21-in 532134149 for cut quality and mulching performance
Why it matters
Using the correct engine family (Briggs & Stratton) prevents wrong-part returns and speeds up repairs, especially for ignition, fuel, and starting problems where the engine model and type are the deciding fit factors.
Last updated: February 2026
Is it worth repairing a lawn mower engine?
Yes, it’s worth repairing the engine on your Craftsman 917270722 when the problem is a basic maintenance or bolt-on fix (fuel, spark, belts, wiring, battery). If the engine has internal damage or the repair estimate approaches the cost of a replacement engine or tractor, replacement is the better value.
Quick decision checklist
- Repair if it’s a no-start, rough running, or poor performance issue tied to fuel, spark, air filter, battery, or loose wiring.
- Repair if the tractor is otherwise solid (deck, steering, transmission) and you can do DIY service.
- Replace the engine if there’s knocking, low compression, heavy smoke, or metal in the oil.
- Replace the tractor if multiple major systems are worn (engine plus deck mandrels, belts, steering).
- Start with safety: never adjust or repair with the engine running; let the machine cool before servicing.
What we see most often on this model
The 917270722 manual’s troubleshooting guidance points to common, fixable causes like spark plug issues, stale fuel, clogged fuel filter, loose/damaged wiring, and carburetor adjustment. It also calls out vibration and cut-quality problems caused by worn or bent blades, bent mandrels, and belt issues, which can feel like “engine trouble” but are usually deck-drive repairs.
Common “engine problem” symptoms and likely fixes
| Symptom | Often caused by | Typical fix path |
|---|---|---|
| Clicks but won’t crank | Battery/cables/solenoid | Clean connections, charge/test battery |
| Cranks but won’t start | Fuel or ignition | Fresh fuel, spark plug, fuel filter |
| Runs rough/surges | Carburetor/fuel restriction | Clean fuel system, adjust carburetor |
| Vibrates badly | Blade/mandrel imbalance | Inspect blade, check mandrel, tighten hardware |
Why it matters
Continuing to run with severe vibration or a damaged blade/mandrel can lead to “eventual damage to mower and engine.” Fixing the root cause early protects the crankshaft, bearings, and deck components.
Parts that commonly factor into the repair vs replace decision
If the issue is in the deck drive (not the engine), these are typical wear items to inspect:
- Lawn tractor ground drive belt, 1/2 x 82-in 532140294 (traction drive)
- Lawn tractor drive belt 532144200 (blade/deck drive)
- Husqvarna lawn tractor mandrel assembly 532130794 (blade spindle/mandrel)
Where to confirm specs and procedures
Use the 917270722 owner's manual for the exact troubleshooting chart, blade and mandrel service steps, and safety instructions.
Last updated: February 2026
What are all the parts on a lawn mower?
On the Craftsman lawn tractor model 917270722, the “parts” include the engine and fuel system, the cutting deck and blade drive system, steering and wheels, and safety controls. Your exact parts list is best confirmed in the 917270722 owner's manual, which includes deck diagrams and a troubleshooting chart.
Main part groups you will find on a riding lawn tractor
These are the major assemblies most owners mean when they ask for “all the parts”:
- Engine and fuel system: fuel tank, fuel lines, fuel filter, carburetor, air filter, muffler
- Ignition and starting: battery, key switch, starter solenoid, starter motor, spark plug, ignition coil
- Mower deck (cutting system): deck housing, blades, mandrels (spindles), idler pulleys, belt guards
- Blade drive: deck drive belt, engine pulley, idler arm and springs

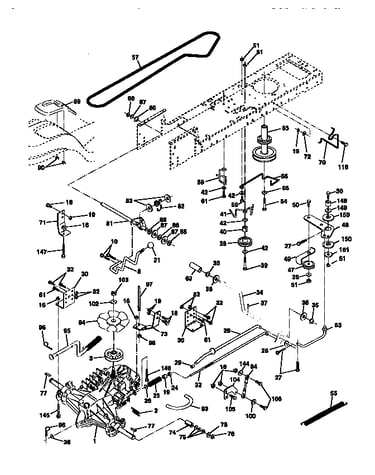

- Ground drive: ground drive belt, transmission, pulleys, brake linkage
- Chassis and controls: frame, seat, operator-presence switch, brake/clutch pedal, throttle/choke

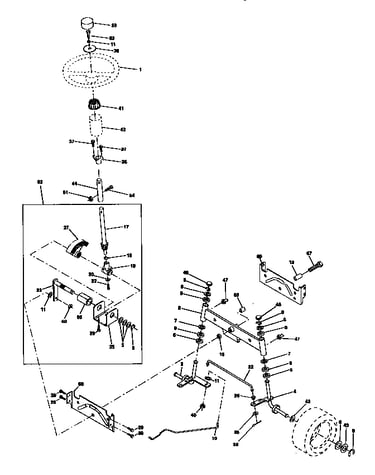

- Steering and running gear: steering sector gear, drag link, rims, tires, bearings

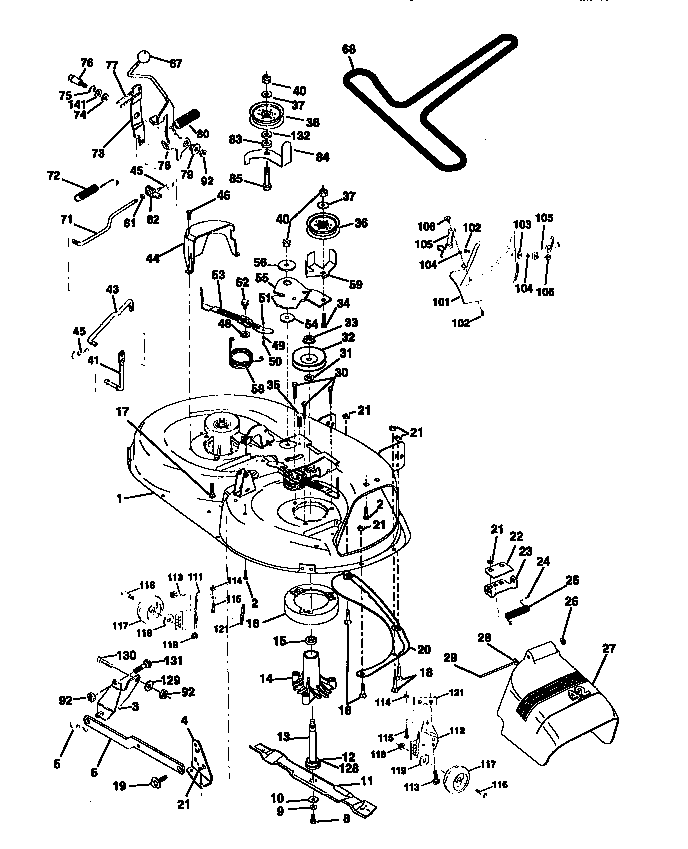

Common mower deck parts (examples for model 917270722)
The manual’s mower deck section for model 917270722 calls out parts such as the deck housing and mulching blade. If you are servicing cut quality or vibration, these are frequent wear items:
- Deck 532176031 (deck housing)
- Husqvarna lawn tractor mulching blade, 21-in 532134149
- Lawn tractor drive belt 532144200 (blade drive belt)
- Lawn tractor ground drive belt, 1/2 x 82-in 532140294 (ground drive belt)
- Husqvarna lawn tractor mandrel assembly 532130794 (spindle/mandrel)
Quick “what it does” table
| Part group | What it does | Symptoms when worn or damaged |
|---|---|---|
| Blade and mandrel | Spins and supports the blade | Vibration, uneven cut, noise |
| Deck drive belt | Transfers power to blades | Blades will not rotate |
| Deck housing | Contains airflow and discharge | Poor discharge, scalping |
| Ground drive belt | Moves tractor forward/reverse | Loss of drive or slipping |
Why it matters
Knowing the part group helps you troubleshoot faster. For example, the manual’s troubleshooting chart ties excessive vibration to a worn or bent blade or a bent mandrel, and blades not rotating to belt, idler, or mandrel problems.
Last updated: February 2026

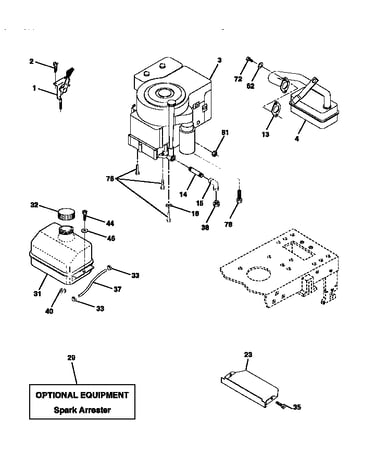

What are the parts of a lawn mower engine?
On the Craftsman lawn tractor model 917270722, the engine system is made up of fuel, air, ignition, and starting components that work together to create spark and power. For the exact control locations and operating details on your tractor, use the 917270722 owner's manual.
Common lawn tractor engine parts (what they do)
- Fuel tank and fuel line: stores and delivers gasoline to the engine
- Fuel filter: traps debris before it reaches the carburetor
- Carburetor: mixes fuel and air for combustion
- Air filter: keeps dirt out of the engine (a dirty filter can cause hard starting)
- Spark plug and ignition coil: creates the spark that ignites the fuel-air mix
- Starter solenoid and starter motor: turns the engine over when you turn the key
- Battery and charging system: powers starting and recharges while running
Controls you’ll use that affect the engine (917270722)
Your tractor’s operator controls tie directly into engine starting and running:
| Control | What it affects | Typical use |
|---|---|---|
| Ignition switch | Starts and stops the engine | Key to start/stop |
| Throttle/choke control | Engine speed and cold starting | Choke for cold starts, throttle for mowing |
| Clutch/brake pedal | Starting interlock and stopping | Depress to start, use to brake |
| Attachment clutch lever | Blade engagement load on engine | Disengage for starting |
Why it matters
Knowing which parts belong to the engine (and which are deck or drive parts) speeds up troubleshooting. For example, hard starting often points to the battery, spark plug, air filter, fuel filter, or carburetor, while poor cutting usually points to deck items like the husqvarna lawn tractor mulching blade, 21-in 532134149.
Quick troubleshooting clues (engine-related)
- Clicks but won’t crank: battery, terminals, solenoid, wiring
- Cranks but won’t start: stale fuel, dirty air filter, bad spark plug, fuel delivery
- Runs rough or lacks power: clogged air filter, carburetor adjustment, old fuel
Last updated: February 2026
What kind of engine does a Craftsman riding lawn mower have?
The Craftsman riding lawn mower model 917270722 uses a 17.0 HP, electric-start gas engine (as listed in the tractor’s owner’s manual). For the exact engine maker and model details, we use the specifications section in the 917270722 owner's manual.
What we can confirm for model 917270722
From the product specifications in the manual, this tractor is set up as a typical single-cylinder lawn tractor engine package with these key operating specs:
- Gasoline capacity: 1.25 gallons (unleaded regular)
- Oil type: SAE 30 above 32°F; SAE 5W-30 below 32°F
- Oil capacity: 3.0 pints
- Spark plug: Champion RC12YC (gap .030 in.)
- Charging system: 3 amps (battery) and 5 amps (headlights)
Quick spec snapshot
| Spec item | What to use on 917270722 |
|---|---|
| Fuel | Unleaded regular |
| Engine oil (warm weather) | SAE 30 |
| Engine oil (cold weather) | SAE 5W-30 |
| Spark plug | Champion RC12YC |
Why it matters
Knowing the correct engine type and tune-up specs helps you buy the right maintenance parts (spark plug, oil, air filter) and prevents hard-starting, loss of power, and poor cutting performance. It also keeps the charging system working properly so the battery stays ready for electric start.
Related parts and maintenance tips
If you are also servicing the cutting system while you tune up the engine, these deck parts are commonly replaced together:
- Husqvarna lawn tractor mulching blade, 21-in 532134149 (blade condition affects cut quality and engine load)
- Lawn tractor ground drive belt, 1/2 x 82-in 532140294 (worn belts can slip and reduce performance)
- Lawn tractor drive belt 532144200 (helps keep blade drive consistent)
Last updated: February 2026
What kind of oil do you use in a Craftsman lawn tractor?
For the Craftsman lawn tractor model 917270722, use SAE 30 engine oil when temperatures are above 32°F, and SAE 5W-30 when temperatures are below 32°F. Use 4-cycle oil that meets API service SF, SG, or SH, and keep the level at the “FULL” mark on the dipstick (capacity is about 3.0 pints).
Recommended oil by temperature
Use this quick chart to pick the right viscosity for your mowing season.
| Outdoor temperature | Oil viscosity to use | Notes |
|---|---|---|
| Above 32°F (0°C) | SAE 30 | Best for warm-weather mowing |
| Below 32°F (0°C) | SAE 5W-30 | Helps cold starting and lubrication |
How to check and maintain the oil level
We recommend checking oil on level ground before each use (and about every 8 hours of operation).
- Park on a level surface and set the parking brake
- Remove the oil fill cap/dipstick, wipe it clean, then reinstall and tighten
- Remove again and read the level; add oil to the “FULL” mark if needed
- Do not overfill; overfilling can cause smoking and performance issues
- Change oil about every 25 hours of operation or at least once a year
For the exact dipstick location and the oil change procedure for this tractor, use the 917270722 owner's manual.
Why it matters
Using the correct viscosity (SAE 30 vs. SAE 5W-30) keeps the engine properly lubricated across temperature changes. That reduces wear, helps starting in cold weather, and supports consistent power when the mower deck is engaged.
Last updated: February 2026
What model number is the Craftsman 42 riding mower?
For the Craftsman 42-inch riding mower shown on this page, the model number is 917.270722 (often written without the dot as 917270722). This is the model number you should use when ordering parts like belts, blades, tires, or deck components for your tractor.
Where to find the model number on the tractor
We recommend confirming the tag on your actual mower, especially if you have multiple Craftsman tractors.
- Look under the seat area (seat pan or frame rail)
- Check the rear fender or near the battery compartment
- Wipe the label clean and copy the full number exactly
- Use the full model number when searching diagrams and parts lists
Model number formats you may see
Both formats refer to the same Craftsman tractor model.
| How it may appear | What it means |
|---|---|
| 917.270722 | Full Craftsman model number (manual format) |
| 917270722 | Same model number without punctuation (parts lookup format) |
Why it matters when ordering parts
Craftsman 42-inch decks and tractors can use different blade drive belts, ground drive belts, mandrel parts, and tires depending on the exact model. Using 917270722 helps match the correct diagrams and part IDs.
Common parts you might match by model include:
- Mower deck parts (housing, mandrels, pulleys)
- Blade and blade hardware
- Ground drive belt and deck drive belt
- Wheels, rims, and hub caps
Helpful reference
The 917270722 owner's manual lists the tractor as a 42-inch mower and shows the model number on the manual cover, along with operation, maintenance, and repair parts information.
Last updated: February 2026
What size belt goes on a 42 inch Craftsman deck?
On the Craftsman 917270722 tractor with a 42-inch deck, the correct deck (blade) drive belt is a 1/2-inch wide by 88-inch belt; it matches the Lawn Tractor Drive Belt part ID 532144200. Confirm routing and tensioning details in the 917270722 owner's manual before installing.
How to choose the right belt (deck vs. ground drive)
A 42-inch Craftsman tractor typically uses two different belts, and they are not interchangeable:
- Deck (blade) drive belt: runs the mower blades and deck pulleys
- Ground drive belt: drives the transmission so the tractor moves
- Belt length and routing depend on the pulley layout and idler system
- Replacing the wrong belt can cause slipping, squealing, or blades not engaging
Common belt options for this model
| Belt type | What it does | Known match for Craftsman 917270722 |
|---|---|---|
| Deck (blade) drive belt | Spins the blades | 1/2 in x 88 in (lawn tractor drive belt 532144200) |

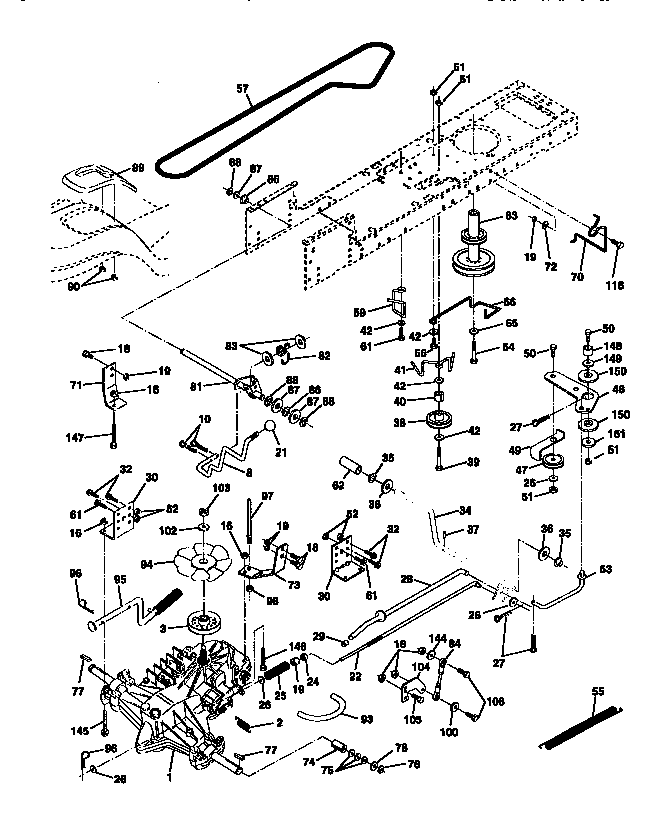

| Ground drive belt | Moves the tractor | 1/2 in x 82 in (lawn tractor ground drive belt, 1/2 x 82-in 532140294) |
Quick checks before you order
- Measure the old belt only if it is not stretched or shredded
- Inspect idler pulleys and keepers for wobble or sharp edges
- Check the mandrel pulleys for bearing noise or play
- Verify the deck size is truly 42-inch (deck shells can be swapped over time)
Why it matters
Using the correct 42-inch deck belt length keeps proper tension on the idler system, helps the PTO engage smoothly, and prevents premature belt wear on pulleys and belt keepers.
Last updated: February 2026
What size deck is a YTH22V46?
A Husqvarna YTH22V46 is a 46-inch cutting-deck lawn tractor. If you’re comparing it to our Craftsman 917270722 tractor, the parts list in the 917270722 owner’s manual shows this Craftsman model uses a 42-inch mower deck (the deck housing is listed as a 42-inch mulching setup).
Quick deck-size comparison
| Model | Brand | Typical deck size |
|---|---|---|
| YTH22V46 | Husqvarna | 46 in. |
| 917270722 | Craftsman | 42 in. |
How to confirm deck size on your tractor
We recommend verifying deck size using the model tag and the deck parts diagram so you order the right blades and belts.
- Check the tractor model number on the frame tag (Craftsman 917270722 vs. Husqvarna YTH22V46).
- Measure the cutting width from blade tip to blade tip (with the engine off and key removed).
- Match the deck housing number in the diagram to your deck.
- Confirm blade style (mulching vs. standard) before ordering.
- Use the correct blade drive belt routing for your deck size.
Parts that change with deck size
Deck size affects which wear parts fit, especially blades and deck belts.
- For the Craftsman 917270722 42-inch deck, a common blade option listed is the husqvarna lawn tractor mulching blade, 21-in 532134149.
- The deck drive belt for this Craftsman model is commonly listed as lawn tractor drive belt 532144200.
Why it matters
A 42-inch deck and a 46-inch deck use different blade lengths, belt lengths, and sometimes different mandrel and pulley setups. Matching the deck size prevents poor cut quality, thrown belts, and premature spindle wear.
Last updated: February 2026
